2017 HONDA CLARITY ELECTRIC light

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s manu al (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 37
For Safe Driving P. 38 Seat Belts P. 42 Airbags P. 50
2Instrument Panel P. 79
Indicators P. 80 Gauges and Driver Information Interface P. 114
2Controls P. 127
Clock P. 128 Locking and Unlocking the Doors P. 129
Operating the Switches Ar ound the Steering Wheel P. 149
Interior Lights/Interior Convenience Items P. 173
2 Features P. 191
Audio System P. 192 Audio System Basic Operation P. 198
Customized Features P. 280 HomeLink® Universal Transceiver P. 306
2 Driving P. 343
Before Driving P. 344 Towing a Trailer P. 349
Multi-View Rear Camera P. 421 Charging P. 423
2 Maintenance P. 441
Before Performing Maintenance P. 442 Maintenance MinderTM P. 445
Checking and Maintaining Wiper Blades P. 456
Climate Control System Main tenance P. 471 Cleaning P. 472
2Handling the Unexpected P. 481
If a Tire Goes Flat P. 482 Handling of the Jack P. 494
Indicator, Coming On/Blinking P. 502 Fuses P. 508
When You Cannot Disengage the Charging Connector P. 517
2Information P. 519
Specifications P. 520 Identification Numbers P. 522
Warranty Coverages P. 525 Authorized Manuals P. 527
17 CLARITY BEV CSS-31TRV6000.book 2 ページ ２０１７年４月１４日　金曜日　午前１１時８分

Contents
Child Safety P. 65Safety Labels P. 78
Opening and Closing the Trunk P. 141 Security System P. 144 Opening and Closing the Windows P. 147
Adjusting the Mirrors P. 164 Adjusting the Seats P. 166
Climate Control System P. 183
Audio Error Messages P. 270 General Information on the Audio System P. 274
Bluetooth® HandsFreeLink ® P. 309
When Driving P. 350 Braking P. 404Parking Your Vehicle P. 419
Energy Economy P. 439
Maintenance Under the Hood P. 449 Replacing Light Bulbs P. 454
Checking and Maintaining Tires P. 459 12-Volt Battery P. 468 Remote Transmitter Care P. 470
Accessories and Modifications P. 478
Power System Won’t Start P. 495 Jump Starting P. 498 Overheating P. 501
Emergency Towing P. 515 When You Cannot Open the Charge Lid P. 516
When You Cannot Open the Trunk P. 518
Devices that Emit Radio Waves P. 523 Reporting Safety Defects P. 524
Customer Service Information P. 528
Quick Reference GuideP. 4
Safe DrivingP. 37
Instrument PanelP. 79
ControlsP. 127
FeaturesP. 191
DrivingP. 343
MaintenanceP. 441
Handling the UnexpectedP. 481
InformationP. 519
IndexP. 530
17 CLARITY BEV CSS-31TRV6000.book 3 ページ ２０１７年４月１４日　金曜日　午前１１時８分

5
Quick Reference Guide
❙Wipers/Washers (P 157)
❙Headlights/Turn Signals (P 152, 153)
❙Brightness Control (P 159)
❙LaneWatchTM (P 402)
❙TRIP Button (P118, 120)
❙Interval Button (P 382)
❙Lane Keeping Assist System (LKAS) Button (P 390)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons
(P 373)
❙ (Display/Information) Button (P118 )
❙/ / / Buttons (P118, 195)34
❙ENTER Button (P118 )
❙Voice Control Buttons (P225)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 309)
❙Horn (Press an area around .)
❙Paddle Selector (+ (P362 )
❙Paddle Selector (- (P362 )
17 CLARITY BEV CSS-31TRV6000.book 5 ページ ２０１７年４月１４日　金曜日　午前１１時８分

7
Quick Reference Guide
❙Side Airbags (P 59)
❙Side Curtain Airbags (P 61)
❙Seat Belts (P 42)
❙Seat Belt (Installing a Child Seat) (P 72)
❙Rear Seat
❙Coat Hook (P 180)
❙Map Lights (P 174)
❙Sun Visors
❙Vanity Mirrors
❙Seat Belt to Secure a Child Seat (P 74)
❙Map Lights (P 174)
❙Grab Handle
❙Sunglasses Holder
(P 182)
❙Accessory Power
Socket
(P 179)
❙Front Seat (P 166)
❙USB Ports (P 193)
❙LATCH to Secure a Child Seat (P 70)
17 CLARITY BEV CSS-31TRV6000.book 7 ページ ２０１７年４月１４日　金曜日　午前１１時８分

Visual Index
8
Quick Reference Guide

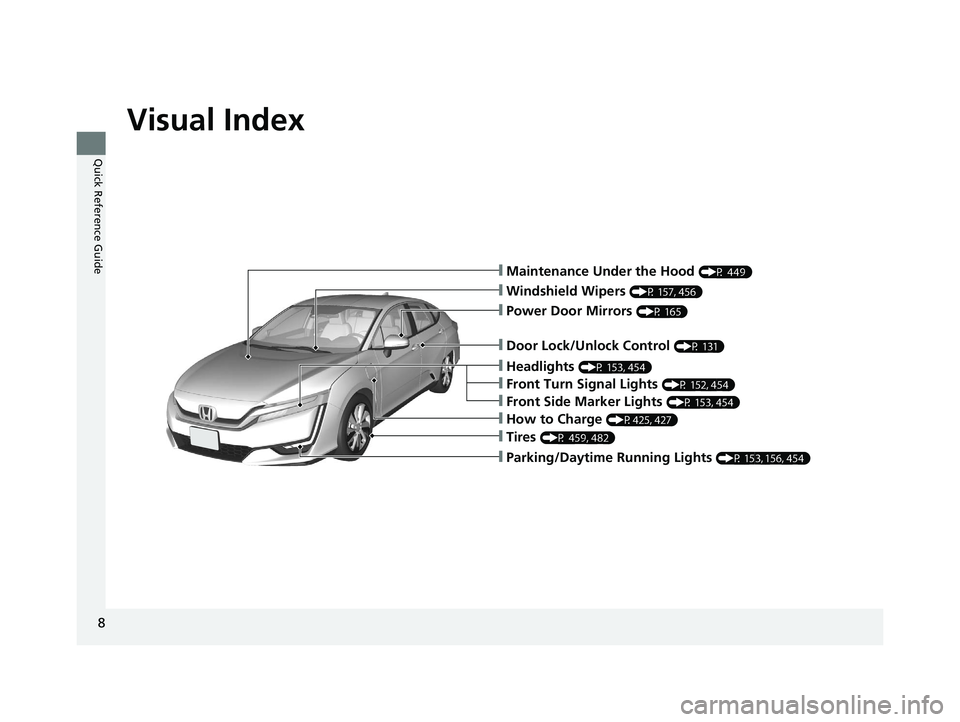

❙Maintenance Under the Hood (P 449)
❙Windshield Wipers (P 157, 456)
❙Tires (P 459, 482)
❙Door Lock/Unlock Control (P 131)
❙Power Door Mirrors (P 165)
❙Headlights (P 153, 454)
❙Front Turn Signal Lights (P 152, 454)
❙Parking/Daytime Running Lights (P 153, 156, 454)
❙Front Side Marker Lights (P 153, 454)
❙How to Charge (P425, 427)
17 CLARITY BEV CSS-31TRV6000.book 8 ページ ２０１７年４月１４日　金曜日　午前１１時８分

9
Quick Reference Guide

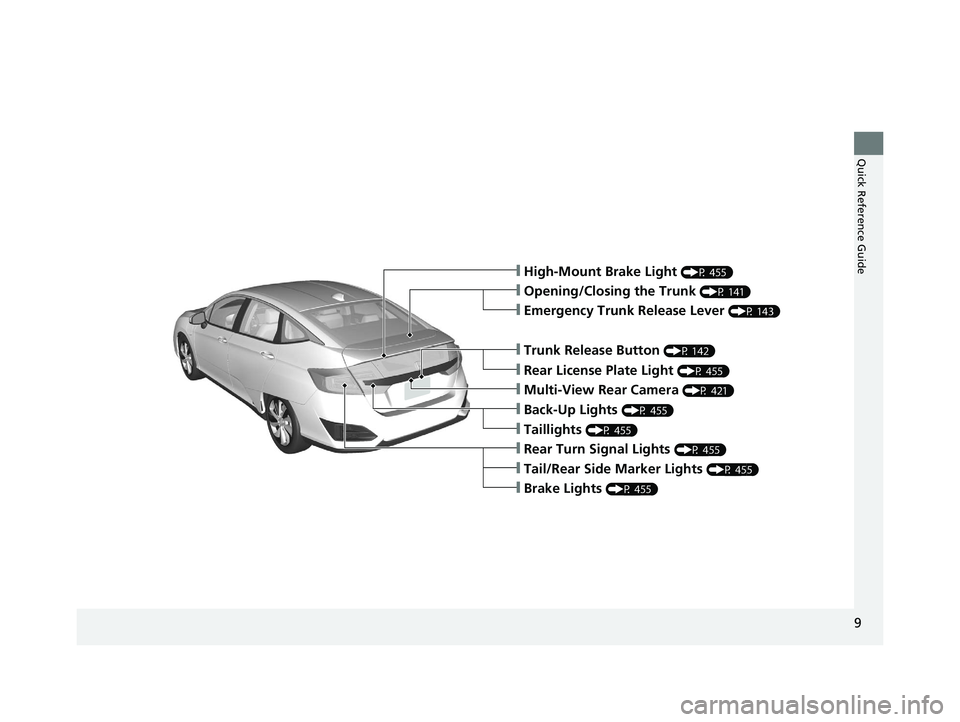

❙High-Mount Brake Light (P 455)
❙Opening/Closing the Trunk (P 141)
❙Tail/Rear Side Marker Lights (P 455)
❙Brake Lights (P 455)
❙Rear Turn Signal Lights (P 455)
❙Back-Up Lights (P 455)
❙Taillights (P 455)
❙Trunk Release Button (P 142)
❙Rear License Plate Light (P 455)
❙Multi-View Rear Camera (P 421)
❙Emergency Trunk Release Lever (P 143)
17 CLARITY BEV CSS-31TRV6000.book 9 ページ ２０１７年４月１４日　金曜日　午前１１時８分

12
Quick Reference Guide
How the Electric Vehicle Works
Instead of using gasoline to power an internal combustion engine, your vehicle uses stored electricity to power an electric pro pulsion motor.
As with a gasoline powered vehicle, the efficiency of an electri c vehicle (and the vehicle’s range) is most impacted by the driver’s driving
style. Climate control system usage also has a strong impact with heavy usage negatively affecting the vehicle’s range.
There are two types of batteries used in this vehicle, a standa rd 12-volt battery that powers the airbags, the interior and exterior lights, and
other standard 12-volt systems, and a high voltage lithium ion ba ttery that is used to power the propulsion motor and recharge the 12-volt
battery.
Charging the High Voltage Battery
You can recharge the High Voltage battery using a standar d household outlet or at a public charging station.
(P 423)
While the vehicle is charging or is parked after running, the co mpressor may operate to melt any frost that has formed on the climate
control system.
Water from the melted frost drains out through the fr ont section of the vehicle, near the undercover.
17 CLARITY BEV CSS-31TRV6000.book 12 ページ ２０１７年４月１４日　金曜日　午前１１時 ８分

14
Quick Reference Guide
High Voltage Battery
The High Voltage battery gradually discharges when the vehicle is not in use. If allowed to discharge too much, the battery may become
damaged.
If your vehicle is parked for an extended period of time, du ring storage for example, periodically recharge the battery to main tain sufficient
charge levels. At least once every three months, recharge the High Voltage battery.
Excessive heat can also damage the batter y. On hot, sunny days, try to avoid parking your vehicle under direct sunlight.
If the High Voltage battery becomes fully discharged or damaged and you are unable to start the power system as a result, consult an
authorized Honda Clarity Electric dealer.
Temperature
When storing the vehicle, make sure not to expose it to extrem ely low temperatures: If the temperature of the High Voltage batt ery drops
to –22°F (–30°C) or below, the power system may not start. Wait for the High Voltage batt ery to warm up, or warm it up by plugging in the
vehicle.
If the temperature of the High Voltage battery drops to –31°F (– 35°C) or below, the power system will not start. Wait for the High Voltage
battery to warm up or move the vehicle to a warmer location. Note plugging the vehicle in will not help in this case.
