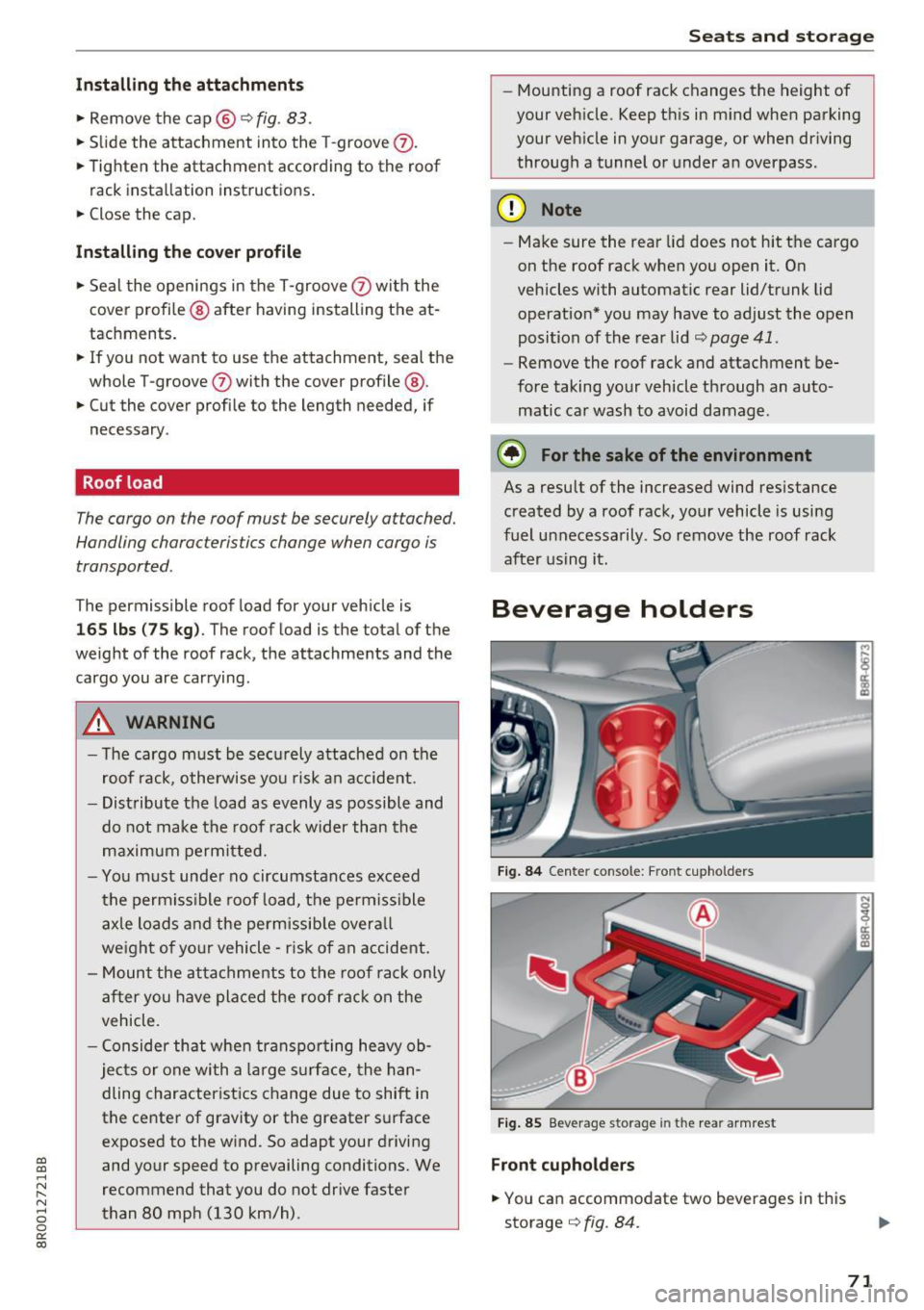

Installing the attachments
• Remove the ca p @ q fig . 83 .
• Slide the attachment into the T-groove 0-
• Tighten the attachment according to the roof
rack installation inst ructions .
• Close the cap.
Install ing the cov er profile
• Seal the openings in the T-groove 0 with the
cover profile @ after hav ing installing the at ­
tachments.
• If you not want to use th e attachment, seal the
whole T-groove
0 with the cover profile @.
• Cut t he cover profile to the length needed, if
necessary .
Roof load
The cargo on the roof mus t be securely attached.
Handling charac teristics change when cargo is
transported .
The permissible roof load for your veh icle is
165 lbs (75 kg ). The roof load is the total of the
weight of the roof rack, the attachme nts and the
cargo you are carrying .
_&, WARNING
- The cargo m ust be sec urely attached on the
roof rack, otherwise yo u risk a n accide nt.
- Dist ribute the load as evenly as possible and
do not make the roof rack wider than the
m ax imum permitted.
- Yo u must unde r no circumstances exceed
t he perm iss ible roof load, the permiss ible
ax le loads and the pe rm issib le overa ll
we ight of yo ur vehicle -risk of an accident.
- M ount the a ttachments to the roof rack only
after you have placed the roof rack on the
vehicle .
- C onsider that whe n transpo rting heavy ob­
je cts or one wi th a large s urf ac e, the han ­
dling characterist ics c hange due to shift in
the cente r of gravity or the greater s urface
exposed to the w ind. So adapt your driving
and your speed to prevailing conditions. We
recommend that you do not dr ive faster
than 80 mp h (130 km/h) .
Seats and storag e
-Mounting a roof rack changes the height of
your veh icle. Keep t his in m ind when parking
your veh icle in your garage, or when dr iving
through a tunnel o r under a n overpass.
(D Note
- Ma ke sure the rea r lid does not hit the cargo
on the roof rack when you open it. On
vehicles with automatic rear lid/trunk lid
operation* you may have to adjust the open
position of the rear lid
~ page 41.
- Remove the roof rack and attachment be­
fore taking your vehicle th rough an auto ­
matic car wash to avoid damage .
@ For the sake of the environment
As a result of the increased wind res istance
created by a roof rack, your vehicle is using
fuel u nnecessarily . So remove the roof rack
aft er using it.
Beverage holders
Fig . 84 Cente r conso le: Fro nt c upho lders
Fig. 85 Beverage storage in th e rea r arm rest
Front cupholders
• You ca n accommo date two beverages in this
storage
q fig . 84 .
71

Sea ts and stor age
Open ing rear beve rag e hold ers
.. To open the rear c upholder, press on the sym­
bol~ @~
fig. 85 .
Holding beverages at the rear
• To adju st the arm @, swing it in the direct ion
of the ar row .
• Place the beverage in the holde r and re lease
the a rm . T he arm swings back by itself and au ­
tomat ically secures the bev erage.
Clo sing the rear cupholders
• To close the rear cupholder, press on the center
section between the two arms and p ush the c u­
pholder in the s lot as far as it will go.
The ho ld ing arm must be adjusted such that it
lies closely against the cupholder.
A max imum o f two beve rages can be pla ced in
the center armrest .
A WARNING
Spilled hot liquid can cause an accident and
personal inju ry .
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea, in
the vehicle while it is moving . In case of an
acc ident, sudden braking or other vehicle
movement, hot liquid could spill, causing
sca ld ing burns . Spilled hot liquid can also
cause a n accident and personal in ju ry.
- U se only soft c ups in the cupholder. Hard
cups and g lasses can cause injury in an acci­
dent.
- Never use the cupholder or adapter as an ashtray -risk of fire .
CD Note
Only dr ink con tainers with lids should be car­
r ied in the cupholder. Liquid co uld sp ill out
and damage your vehicle's elec tronic equip­
ment or stain the upho lstery, etc .
72
-
Climatized cupholders
Applies to: vehicles with climatized beverage holders
Th e dr iv e r sid e beve rag e hold er can k eep your
beverage warm or cold.
Fig. 8 6 Ce nter co nsole : cl im atize d cu pholder
• Press button @~ fig. 86 to keep your beverage
cold . The button will light up blue .
• Press button ©~
fig. 86 to keep you r beverage
warm . The button wi ll light up red.
• To switch between the two functio ns, press th e
appropr iate button .
• Press @ or© to sw itch off these fea ture . The
ligh t in the bu tton will go ou t.
When cooling, the temperature of the bev erage
holder base will go down to approximately 41
°F
(5 °C) . When warm ing , the temperatu re will be
a ppro ximately 136
°F (58 °(). At 104 °F (40 °()
the warming display will come on@. This is re ­
minder not to touch the base because it is hot .
The display goes out if the temperature falls be­ l ow this val ue.
A WARNING
- Never touch the beve rage holder base when
the warming d isplay is on. You can b urn
yourse lf!
- Do not use breakab le beve rage containers
(for examp le made out of g lass or porce­
la in). Yo u could be injured by them in case
of an accident.
CD Note
M ake sure your beverage ho lder has a lid. If
not, your beverage could spill out and cause
damage to the veh icle electronic or stain the
seat covers .

a,
a,
..... N r-­N ..... 0 0
0:
co
@ Tips
Do not cover the venti lation gri lle -arrow- be­
cause that could prevent the beverage holder
from functioning correctly.
Cupholders in the door pockets
There is a cupholder in all four doors.
Fig . 87 Section of door panel: (upholder
The cupholders in the door pockets are suitab le
for
l to 1.5-liter bottles.
.&_ WARNING
Spilled hot liquid can cause an accident and
personal injury.
- Never carry any beverage containers with
hot liquids, such as hot coffee or hot tea, in
the vehicle while it is moving . In case of an
acc ident, sudden braking or other veh icle
movement, hot liq uid could spill, causing
s ca ld ing burns. Spilled hot liquid can also
c a use a n accident and personal i njury.
- Use only soft cups in the c upholder. Hard
c u ps and g lasses can ca use inj ury in an acci­
dent.
(D Note
Only dr ink containe rs with lids should be car­
r ied in the cupholder. Liquid co uld sp ill out
and damage your vehicle's e lectronic equip­
ment or s tain t he upho lstery, etc.
-
Seats and storag e
Ashtray
Fig. 88 Center console: front ashtray
Opening the ashtray
.,. Slide the cover open .
Clo sing the ashtray
.. Tap the lid to close the ashtray automat ica lly.
Removing ashtray insert
.,. Release the asht ray insert by slid ing the switch
@ ¢fig. 88 to the r ight.
.. Remove the ashtray insert@¢
fig. 88.
Reinstalling ashtray insert
.,. Press the ash tray insert into its holder.
.&_ WARNING
-
Never put waste paper in t he ashtray. Hot
ashes or other hot objects in the ashtray co uld
set waste paper on fire.
Cigarette lighter/socket
Cigarette lighter
F ig. 89 Center console: cigarette lighter
.. Press the cigarette lighter in .
73

Sea ts and stor age
~ Remove the cigarette lighter when it pops out.
The cigarette lighter sho uld on ly be used as a
power so urce for the compressor from the inflat­
ab le spare tire/tire repai r kit* when absol ute ly
necessary.
_& WARNING
-
T he cigarette lighter on ly works when the ig­
nition is sw itched on. Incorrect usage can lead
to ser ious injuries or burns . For this reason,
children should never be left unattended in
the vehicle beca use this increases the risk of
injury.
12 -volt sockets
Electrical accessories can be connected to every
12-volt socket.
Fig. 90 Sect io n of the tr im pane l of the luggage compart­
m ent: 12-volt soc ket
F ig. 9 1 Cente r console: 12-volt socket
~ Open the socket cover c:> fig. 90 or c:> fig. 91 .
"' 0
9 a: 00 m
~ Insert the plug of the electrical device into the
socket .
The 12-volt sockets can be used for electrical ac­
cessories . The power input must not exceed 120
watts .
74
There is an additiona l 12-volt socket in the cente r
console.
Befo re yo u purchase any accessor ies, always read
and follow the information inc:>
page 2 78, Addi­
tional accessories and parts replacement.
~ WARNING
The power outlets and therefore the electrical
accessories connected to them operate only
with the ign ition on. Improper use of the out­
lets or of electrical accessor ies can lead to se­
rious injuries o r cause a fire. Fo r this reason,
chi ldren should never be left unattended in
the vehicle -th ey could be injured!
(D Note
To avoid damaging the socket, only use plugs
that fit properly .
(!} Tips
When the engine is off and accessories are
still plugged in and are on, the vehicle battery
can still be drained.
Storing
General overview
There are numerous places to store i tems in your
vehicle.
Glove compartment c:> page 75
Cooling box in glove compa rt-¢ page 75
ment
Storage compartment in the roof
c:> page 75
Coat hooks c:>page 76
Storage in the door panels
Storage net in the front seat-
backs
Sto rage net in luggage compart-
men t
_& WARNING
- Always remove objects from t he i nstr ument
panel. Any items not put away could slide
around inside t he vehicle while driving or
~

a,
a,
..... N r-­N ..... 0 0
0:
co
when accelerating or when applying the brakes or when driving around a corner.
- When you are driving make sure that any­
thing you may have placed in the center con­
sole or other storage locations cannot fall out into the footwells. In case of sudden
braking you would not be able to brake or
accelerate.
- Any pieces of clothing that you have hung
up must not interfere with the driver's view.
The coat hooks are designed only for light­
we ight cloth ing. Never hang any clothing
with hard, pointed or heavy objects in the
pockets on the coat hooks. During sudden
braking or in an accident -especially if the
airbag is deployed -these objects could in­
jure any passengers inside the vehicle.
Glove compartment
The glove comportment is illuminated and can
be locked.
Fig. 92 Glove compartment
To open glove compartment
.,. Pull the handle in the direction of the arrow
c:> fig. 92 and swing the cover down to open .
To close glove compartment
.,. Push the glove compartment lid upward until
the lock engages.
There are holders for a pen and a pad of paper in
the glove compartment lid.
On the right side in the glove compartment is a holder with the key body into which the emergen­
cy key must be clipped to be able to start the ve­
hicle.
Seats and storage
A WARNING
-To reduce the risk of personal injury in an acci-
dent or sudden stop, always keep the glove
compartment closed while driving.
Cooling box in glove compartment
The cooling box works only when the air-condi­
tioning is in cooling mode.
Fig. 93 Glove box with cooling box open and switched on
.,. Open the glove compartment c:> page 75,
fig.
92 .
.,. Turn the rotary switch @counter-clockwise to
switch the cooling on. The symbols on the rota­
ry switch must be displayed
c:> fig. 93 accord­
ing ly .
.,. Turn the rotary switch @clockwise to switch
the cooling off.
The cooling box works only in the cooling mode.
If the climate control is in the heating mode, we
recommend switching the cooling box off .
Storage compartment in the roof
""'
11111
.3
0 .. ~O
~-__;,:~ ~~lr.;...__--1
Fig. 94 Storage pocket in the roof
.,. To open the lid you have to touch the bar
c:> fig. 94 (Arrow) . The lid opens automatically. Ill>
75

Sea ts and stor age
~ To close the lid, push it up until it engages .
A WARNING
Always keep the lid closed while driving to re­
duce the risk of injury during a sudden brak­
ing maneuver or in the event of an accident.
Coat hooks
Fig . 95 Coa t hooks a t re ar doors
A WARNING
- Hang clothes in such a way that they do not
impa ir the driver's vision .
- The coat hooks must only be used for light­
weight cloth ing . Do not leave any heavy or
sharp edged objects in the pockets which may interfere w it h the side cu rtain airbag
deployment and can cause personal injury in
a crash .
- Do not use coat hangers for hanging cloth­
ing on the coat hooks as this can interfere
with prope r deployment of the side curtain
airbags in an accident.
- Do not hang heavy objects on the coat
hooks, as they could cause personal injury in
a sudden stop.
7 6

CD
CD
.... N ,-... N .... 0 0 C<'. 00
Warm and cold Climate control system
Description
The climate control system warms , cools and
adds humidity to the a ir in the veh icle inter ior. It
i s the most effective when the windows and pan­
oramic sliding sunroof* ar e closed. If th ere is a
bui ld-up of heat inside th e vehicle, ventilation
can help to sp eed up th e cooling process.
I n all heating mode functions except
defrost, the
b lower only switches to a higher speed once the
engine coolant has reached a certain tempera­
ture .
Condensat ion from the cooling system can drip
and fo rm a puddle of water unde r the vehicle.
This is normal and does not mean there is a leak.
Pollut ant filter
The pollutant filter removes pollutants such as
dust and pollen from the air.
The air pollutants filter must be changed at the intervals specified in your Warranty
& Mainte­
nance booklet, so that the a ir condit ione r can
p roperly work.
If you drive your vehicle in an area with high air
pollution , the filter may need to be changed
mo re frequently than specified in your Aud i Wa r­
ranty
& Ma intenance booklet. If in doubt, ask
your author ized Audi Service Advisor for advice .
Key co ded setting s
The climate control settings are automatically
stored and assigned to the remote control key
that is i n use .
_&. WARNING
Reduced visib ility is dangerous and can ca use
accidents.
- For safe dr iv ing it is very impo rtant that all
windows be free of ice, snow and condens a­
tion .
Warm and c old
- Completely familiarize yourself with the
proper use and function of the heating and
ventilation system and especially how to de­
fog and defrost the windows .
- Never use the windshield wiper/washer sys­
tem in freezing weather until you have
warmed the windshie ld first, using the heat ­
ing and vent ilation system . The washe r solu­
tion may freeze on the w indshield and re­
duce visibility.
(D Note
- If you suspect that the air conditioner has bee n damaged, sw itch the system off to
avoid further damage and have it inspected
by a qualified dea lership.
- Repa irs to the Aud i a ir cond itioner requ ire
special techn ical know ledge and spec ial
t ools. Contact an a uthorized Audi dea ler fo r
assistance.
@ For the sake of the environment
By reduc ing the amo unt of fuel you use, yo u
also reduce the amount of pollutants emitted
into the air.
(D Tips
- Keep the a ir intake slots (in fro nt of t he
w indshield) free from ice , snow and debr is
in orde r to maintain the proper function of
the climate control system .
- T he energy management system may switch
the seat heating* or rear window defroster
off temporarily . These systems are availab le
again as soon as the energy ba lance has
been restored .
- The a ir flowing out of the vents and
throughout the vehicle's ent ire inter ior is
discharged at the rear of the vehicle . Make
sure that the out let slots are not covered by
cloth ing , etc.
77

Warm and cold
Operation
We recommend pressing the IAUTOI button and setting the temperature to 72 °F (22 °C) .
Fig . 96 3-zo ne de luxe automat ic cl imate co ntrol: con tro ls
Press the buttons to turn the functions on or off .
Use the dials to adjust the temperature, the
b lowe r speed and the air distrib ution . The LED in
a bu tton w ill light up when the funct ion is
sw itched on. The sett ings a re displayed for a few
seconds in the radio or MMI* display .
The driver and front passenger side can be ad­
jus ted separate ly. Th e settings are also d isplayed
in the clima te control system d isplay.
I O FF j Switching the climate control system
on /off
The IOFFI button swi tches the climate contro l
sys tem on or off. It also switches on when you
press the knob . Ai rf low from o utside is blocked
when the climate con trol system is switched off.
IAIC ! Switching cooling mode on /off
The air is not cooled and humidity is not removed
when cooling mode is switched off . T h is can
cause fog on the windows . The cooling mode
sw itches off au toma tic ally when there are cold
outside temperat ures.
la, I Switching recirculation mode on /off
In recirculation mode, the a ir inside the vehicle is
circu lated and filtered . This prevents the unfil­
tered a ir o utside the vehicle from e ntering the
veh icle interior . We recommend switching recir-
78
culation mode on when driving through a tunnel
or when sitt ing in traffic
Q &. -
The !AUTO I button or I l1ii> FRONT ! button switches
reci rculation mode off .
I AUTO I Switching automatic mode on
Automatic mode main tains a constan t tempera­
ture inside the vehicle . Air temperature , airflow
and air distribution are controlled automatically.
Adjusting the temp erature
Temperatures between 60 ° F (+ 16 °C) and 84 ° F
( + 28 °C) can be set . O utside of th is range,
l ow or
high will appear in the radio or MMI* display . At
both of these settings, the climate control sys­
tem runs continuously at maximum cooling or
heating power. There is no temperature regula­
tion.
~ Adju sting th e airfl ow
You can adjust the airflow manua lly to suit your
needs . To have the airflow reg ulated automati­
cally, press the
IAUTO I button.
~ Adjusting the air distribution
Yo u can manual ly select the vents where the air
will flow. To have the air distribut ion regulated
automat ica lly, press the
IAUTO I button. ""
