Warning light in the instrument cluster
display
If the . warning light in the instrument cluster
display flashes, this can mean one of two things:
either the coolant
temperature is too high, or the
coolant
level is too low~ page 26.
If the needle is well in the upper area of the
gauge, the coolant temperature is too high.
Stop
the vehicle, switch the engine off, and allow it
to cool. If the warning light comes on again after
driving a short distance, contact an authorized
Audi dealer or other qualified workshop .
_& WARNING
- Always observe the warning in~ page 217,
before opening the hood and checking the
engine coolant level.
- Never open the engine hood if you see or
hear steam, or if you see engine coolant
dr ipping from the engine compartment. You
cou ld burn yourself. Let the engine cool off
first so that you cannot hear or see any
steam or engine coo lant.
CD Note
- Mounting additional lights or accessories in
front of the air inlets reduces the cooling ef­
fect of the radiator. At high outside temper­
atures or high engine load, the engine could
overheat.
- The front spoiler has been designed to prop­
erly distribute the cooling air when the vehi­
cle is moving. If the spoiler is damaged, this
could reduce the cooling effect and the en­
gine could then overheat. Ask your author­
iz ed Audi dealer for assistance.
Tachometer (engine rev counter)
The tachometer indicates the engine RPM (revo­
lutions per minutes) .
If engine RPM drops below 1,500, you should
downshift to the next lower gear. The red area at
the end of the scale indicates max imum permis­
sible engine RPM after the break-in period . Be­
fore reaching this area, move the selector lever
Instruments and indicator lights
to posit ion D/S or ease your foot off the accelera­
tor pedal.
CD Note
The tachometer need le@ ~ page 8, fig. 3
shou ld only briefly be in the red zone: you
could damage your engine! The beginning of
the red zone varies depending on the engine.
@ For the sake of the environment
Upshifting early saves fuel and reduces en­
gine noise.
~ button
Fig. 4 SET button in the instrument cluster
The !SET ! button performs the following func­
tions:
Switching on time, date, temperature
display and odometer
The display appears for approximately 30 sec­
onds when you press the
ISETI button ~fig . 4
with the ignition off .
Starting the Auto-Check sequence
The Auto-Check system ~ page 24 constantly
monitors certain individual functions and compo­
nents of the vehicle when the ignition is turned
on and when the vehicle is moving.
With the ignit ion turned on, you can start the
"Auto-Check sequence" by press ing the
!SE TI but­
ton. You can pe rform an Auto-Check seq uence
when the vehicle is stationary and the ignition is
turned on or when the vehicle is moving slower
than 3 mph (5 km/h).
IIJ,,,
9

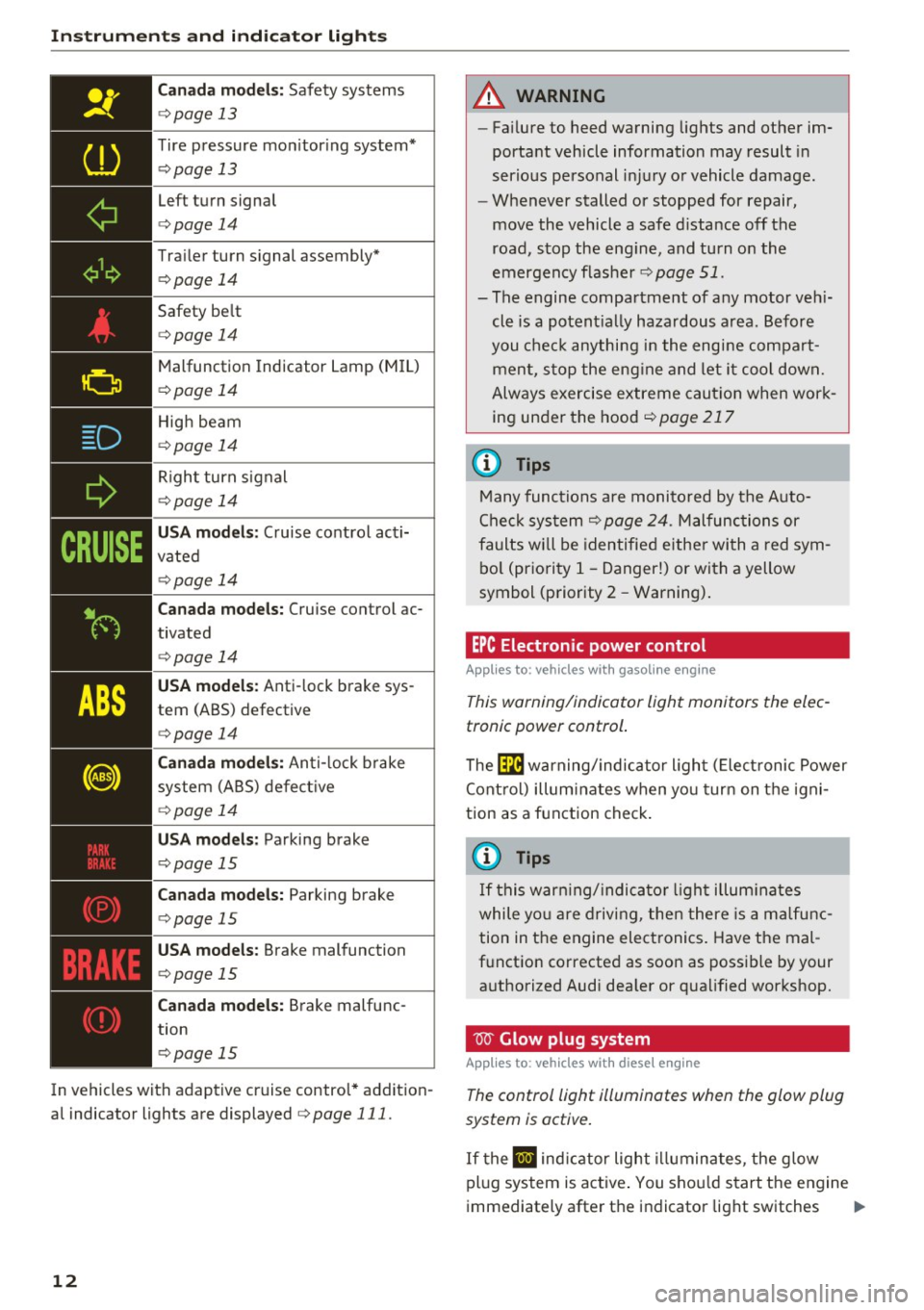

Instruments and indicator lights
Canada models: Safety systems
c:> page 13
Tire pressure mon itor ing system*
c:> page 13
Left turn signal
c:>page 14
Trailer turn s ignal assembly*
c:> page 14
Safety be lt
c:> page 14
Malfunction Indicator Lamp (M IL)
c:> page 14
High beam
c:>page 14
Right turn signal
c:> page 14
USA models: Cruise control acti­
vated
c:> page 14
Can ada mode ls: Cruise control ac­
tivated
c:> page 14
USA model s: Anti-lock brake sys­
tem (ABS) defective
c:> page 14
Canada mode ls: Anti- lock b rake
system (ABS) defect ive
c:> page 14
USA mod els : Parking brake
c:> page 15
Can ad a mode ls: Parking brake
c:> page 15
USA models: Brake malfunction
c:> page 15
Canada mode ls: Brake malfunc­
tion
c:> page 15
In vehicles with adaptive cruise control* addition ­
al indicator lights are displayed
c:> page 111.
12
A WARNING
-
-Fa ilure to heed warning lights and other im-
portant vehicle information may result in
serious personal inj ury or vehicle damage .
- Whenever stalled or stopped for repair,
move the vehicle a safe d istance off the
road, s top the eng ine, and turn on the
emergency flasher
c:> page 51.
- The engine compartment of any motor veh i­
cle is a potent ially hazardous area. Before
you chec k anything in the engi ne compart­
men t, s top the eng ine and let i t coo l down.
Always exercise extreme caut ion when wor k­
ing under the hood
c:>page217
(D Tips
Many func tions are monito red by the Auto ­
Check sys tem
c:> page 24. Malfunc tions or
faults wi ll be identified either wi th a red sym ­
bo l (pr io rity 1 -Danger!) or with a yellow
symbol (priority 2 -Warning).
EPC Electronic power control
App lies to: vehicles wi th gaso line e ngi ne
This warning/indicator light monitors the elec­
tronic power control .
The Ila warning/indicator ligh t (E lect ronic Power
Cont rol) illuminates when yo u turn on the igni ­
tion as a function check .
@ Tips
If this warn ing/ indica to r li gh t illum inates
while yo u are driving, then there is a ma lfu nc­
tion in the engine electronics . Have the mal ­
f u nction corrected as soon as possible by your
a uthorized Audi dea ler or q ualified workshop.
W Glow plug system
App lies to : vehicles wi th diese l engin e
The control light illuminates when the glow plug
system is active.
If the II ind icator light i lluminates, the g low
pl ug system is active . You shou ld start the engine
immediately after the indicator light switches .,.

CD
CD
.... N ,-... N ..... 0 0 C<'. 00
off. Th e indicator light only illuminates for ap­
proximately 1 second if the engine is warm or if
the outside temperature is above 46 QF (8 QC).
(D Tips
- If the glow plug indicator light illuminates
while driving, there is an engine control
malfunction. The engine should be checked
immediately.
- If the indicator light does not illuminate at
all when switching the ignition on, there
may be a malfunction in the glow plug sys­
tem. The engine should be checked.
;J,./ fj Electronic Stabilization Control (ESC )
If the Gl indicator light blinks wh ile driving, the
ESC or ASR (Anti-Slip Regu lation) is active ly regu­
lating.
If the
DJ indicator light turns on, the system has
switched the ESC off. In this case , you can switch
the ignition off and then on to switch the ESC on
again. The indicator light turns off when the sys­
tem is functioning fully.
If the
II i ndicator light turns on, ESC was re­
stricted using the
I " OFF ! button ¢ page 186 .
Stabilization control (ESC /ABS): Fault! See
owner 's manual
If the GI indicator light and the ABS indicator
light ~ (USA models)
1iJ (Canada models)
turn on and the message appears, the ABS or
electronic differential lock is malfunctioning .
This also causes the ESC to malfunct io n. The
brakes still funct ion w ith their normal power, but
ABS is not active.
Drive to your authorized Audi dealer or qualified
workshop immediately to have the malfunct io n
corrected.
A WARNING
If the 1111 (USA models) JII (Canada mod­
els) brake system indicato r light turns on to­
gether with the ABS and ESC indicator lights,
the ABS/ESC regulating function may have
fai led . Functions that stabilize the vehicle are
no longer available. This cou ld cause the vehi-
Instruments and indicator lights
cle to swerve and increase the risk of sliding.
Drive carefully to the nearest authorized Aud i
dealer or other qualified workshop and have
the malfunction corrected.
(D Tips
For additional information on ESC and ABS,
refer to ¢
page 186.
t!i/!{' Safety systems
The II (USA models) a (Canada models) indi­
cator light monitors the safety systems (e.g . a ir­
bags, pretensioners) and illuminates for a few
seconds each time you switc h the ignition on.
If the
II (USA models) 1 m (Canada models) in­
dicator light does not go out, or if it illuminates
whi le you are dr iv ing, or if it starts to blink, then
there is a malfunct ion somewhere in the system .
If the light does not illum inate when you switch
the ignition on, this also means there is a mal­
function.
A WARNING
-
If you have a ma lfunction in the safety sys­
tems, contact your authorized Audi dealer im­ mediately . Otherwise the safety systems may
not work properly in an accident.
(l) Tire pressure monitoring system ·
telltale indicator lamp
App lies to: veh icles w it h tire pressure mo nitor ing syste m
The warning/indicator ligh t appears in the event
of a significant loss of tire pressure or if there is
a malfunction.
The indicator light [DJ illuminates to check the
function when you switch on the ignition.
If the
[DJ symbol remains on or blinks after you
switch on the ignition, there is a loss of t ire pres­
sure or a system malfunction.
If there is a system
malfunction, see your authorized Audi dealer as
soon as possible.
Detai led information on the tire pressure moni­
toring system can be found in ¢
page 247.
13

Instruments and indicator lights
¢ Q Turn signals
The indicator light blinks when you use either
turn signal.
Whenever you use the left B or the right.
turn signal, the indicator l ight blinks. When you
use the emergency flashers, both indicator lights
flash.
If one of the turn s ignal light bulbs burn out, the
turn signal w ill blink twice as fast as normal.
This does not apply, however, in towing mode .
The indicator light does not flash if a turn s ignal
is out on the tra iler or the towing vehicle. Addi­
tional informat ion on the turn s ignals
c::> page52.
¢1.~ Trailer turn signal assembly
Appl ies to: ve hicles w ith towing hitch
The indicator light also blinks if the turn signal is
operated when towing a trailer .
The indicator light . blinks when the turn sig­
na l is used, if a trailer has been p roperly connect­
ed to the vehicle .
If one of the turn signal bulbs on the trailer is burned out or defective, the indicator light will
not blink when you use the turn s ignals.
@ Tips
For vehicles with a factory installed towing
hitch or a tra ile r hitch that was installed later
according to factory specif ications, the trailer
turn signa l assembly is actuated.
~ Safety belts
This warning/indicator light reminds you to put
on your safety belt.
The . warning/indicator light illuminates when
the ignition is switched on to remind the dr iver
and (on USA models only) any front passenger to put on the safety belt. Add itionally, an audible
warn ing tone w ill also sound .
For more Information
c::> page 140, Safety belt
warning light.
14
o Malfunction Indicator Lamp (MIL)
The Malf u nction Indicator Lamp ( MIL) is pa rt of
t h e On-Boar d Diagnos tic ( OBD II) sys tem . T he
symbol
('4 li ghts up when the ignit io n is t urned
on and will turn off after the engine has s tarted
and has settled at a constant idle speed. This in­
dicates that the MIL is work ing properly.
The warning light ill uminates w hen the re is a
malfunction in the engine electronic system.
Contact your authorized Audi dea ler and have the
malfunction corrected .
An improperly closed fuel filler cap may al so
cau se the MIL light to illuminate (only vehicle s
with gasoline engine )
c::> page 212.
For more info rm ation c::> page 23 .
l[D High beam
The SI warning/ indica to r li ght illum ina tes when
the high beams are on or when you use the head­
li ght f lasher. Fo r more information about using
the high beams, see
c::> page 52.
CRUISE/"(') Cruise control
The lij;\1)~14 (USA mode ls) 1B (Canada mode ls)
warning/indicator light illuminates when the
c ruise contro l is activated .
ABS/(8) Anti-lock brake system (ABS)
This warning/indicator light monitors the ABS
and the electronic differential lock (EDL) .
The rJln (USA models) lri] (Canada models)
warning/indicator light will come on for a few
seconds when the ignit ion is switched on . The
li ght w ill go out after an automatic check se­
quence is comp leted.
There i s a malfunction in the ABS when:
-The warning/ indicator light does not illum inate
when you sw itch on the ign ition.
- The warning/ indicato r light does not go o ut af­
ter a few seconds .
- The warning/ indicator light illum inates while
driving. ..,.

Driver information s ystem
Stop vehicle and check brake fluid level
.,. Stop the vehi cle.
.,. Check the brake f luid leve l¢
pag e 224 .
.,. Seek professional assistance if necessary.
Warning! Fault in brake system. Contact
work shop
.,. Drive carefu lly to the nearest authorized A udi
dealer or other qualified workshop and have
the malfunction corrected ¢
,&..
Parking brake system fault! See owner 's
manual
.,. If this symbol appears when the ve hicle is sta­
tionary or after the ignition is turned on, check
to see if the park ing brake can be released.
Drive to an authori zed Audi dealer or other
qualified workshop as soon as poss ible and
have the malfunction corrected . If the parking
brake cannot be opened, then take it to an ex­
pert at a n author ized Audi dealer.
.,. If the symbol appears while you are d riving, i t is
poss ible th at t he traction co ntro l or the emer ­
gency brake has malfunctioned . It is possib le
that the parking brake cannot be applied .
It is
also possible that th e parking brake cannot be
released after it has been applied. Drive to an
authori zed Aud i dea ler or other qualified work­
shop to have the malfunct io n corrected.
If the ABS system malfunct ions, the ABS warn­
ing/indicator light illuminates together with the
brake system malfunction warn ing/ indicator
light ¢.&. .
A WARNING
-Always observe the warnings in
¢page 217, before opening the hood and
c he ck ing the b rake fl uid .
- Driving with low brake fl uid is a safety haz­
ar d. Stop the car and get professional ass is­
tan ce.
- If the .. (USA models) . (Canada mod­
els) brake system i ndic ator lig ht tu rns on to­
ge ther wit h the ABS and ES C i ndi ca to r
ligh ts, the ABS/ ESC regula ting func tion may
have failed . Functions that stab ilize the ve­
hicle a re no longe r available. This could
26
cause the vehicle to swerve and increase the
r isk of sliding. Drive caref ully to the nearest
author ized Audi dealer or other qualified
workshop and have the malfunct io n correct­
ed.
- L Engine cooling system malfunction
A malfunction in the engine cooling system mu st
be repaired as soon as possible.
If the . symbol flashes in the disp lay, either the
engine coo lant
temperature is too high or the en ­
gine coolant
level is too low. A driver message
appears as we ll to expla in the malfunct ion in
more detail. The dr iver warn ing goes out after
about 5 seconds, but it can be b rought up at any
time by p ressing the
IS ET I button agai n.
Turn off engine and check coolant level
.,. Pull off the road .
.,. Stop the vehicle .
.,. Turn off the engine .
.,. Check coolant level¢
page 223 .
.,. Add coolant if necessary ~ page 223.
.,. Continue dr iv ing only after the engine coolant
wa rning/i nd ic ator light goes out .
.,. Contact your authori zed A udi dealer for assis­
tance if ne cessa ry.
If the engine coo lant level is correct, then t he ra­
diato r fan may be the cause of t he malfunc tion.
A WARNING ~
- If you r vehicle should break down fo r me-
chan ica l or othe r reasons, park at a safe dis ­
tance from mov ing traffic, turn off the en­
gine and turn on the hazard warning lights
¢ page 51, Emergency flashers.
- Never open the hood if you see or hear
steam or coolant escaping from the engine
compartment -you risk being scalded. Wait
until you can no longer see or hear steam or
coo lant escaping .
- The engine compartment of any veh icle is a
dangerous area. Before you perfo rm any
work i n the engine compartment, turn of
t he engine and allow i t to cool. Follow the
warn ing stickers
¢ page 217. ~

CD
CD
.... N ,-... N .... 0 0 C<'. 00
(D Note
Do not continue d riving if the. sym bol ill u­
m inates . There is a mal function in the en gine
coo ling system -you could damage your en­
gi ne.
't=?: Engine oil pressure malfunction
The red engine oil pressure warning symbol re­
quires immediate service or repair. Driving with a
low oil pressure indication is likely to cause se­
vere engine damage .
If the . symbol on the display flashes, the en ­
g ine oi l pressure is too low. A d river message ap ­
pears as well to explain t he malfunction in mo re
deta il. Th e d river war ning goes ou t afte r abo ut 5
s econds, but it can be b ro u gh t up at any time by
p ressing the
ISET I button again.
Turn off engine! Oil pressure too low
• Stop t he ve hicle .
• Turn the eng ine
off.
• Check the eng ine oi l level ¢ page 221.
• Co ntact yo ur autho rized Aud i dea le r for assis-
tance if necessary.
Engine oil level too low
If the engine o il level is too low, add eng ine oi l
¢page 221.
Engine oil level correct
If th e sym bol. flashes even thoug h the en gin e
oil leve l is correct, p lease contact your nea rest
author ized Audi Dealer for assistance. Do not
continue dr iv ing .
Do not leave the eng ine running
idle, either .
@ Tips
- The engine oil pressure symbol. is not
an indicator for a low engine oil level. Do
not rely on it. Instead, check the oil level in
your engine at regular intervals, preferably
each time you refuel, and always before
going on a long trip.
- The yellow oil level warning indication
Ill
requires oil refill or workshop service with­
out delay. Do not wait until the red oil
Driver information system
pressure warning. starts to flash before
you respond to the low oil level warning
II. By then, your engine may already have
suffered serious damage .
~ ""' Fill engine oil now
WARNING : Please add oil immediately
If the. sym bo l lights up, then t he oi l has to be
r ep le ni shed right now
¢page 221.
@-Steering malfunction
If there is a malfunction in the electronic steer ­
ing column lock, the steering cannot be un­
locked.
If the . symbo l in the disp lay bli nks, t here is a
malfunction in t he electronic stee ring col umn
l ock. A driver message appears as we ll to exp la in
t h e malfunction i n mo re detail. The dr ive r warn­
ing goes out afte r about 5 seconds , but it can be
broug ht up a t any time by press ing the
ISETI but ­
ton aga in.
Steering defective! Do not drive vehicle!
• Contact your nea rest a uthorized Audi dea ler .
• Do
not tow your ve hicle.
A WARNING
Your ve hicle m ust not be towed in t he event
of a ma lfunction in t he e lectron ic stee ring
col um n loc k becaus e it can not be st ee red due
to the loc ked steering . If i t is towed w ith th e
st eer ing lo cked , the re is the r isk o f an acci ­
d en t.
©-Ignition lock malfunction
A malfunction in the ignition lock must b e re­
paired immediately .
If the . symbo l in the display b links , there is a
malfu nction in t he e lectron ic ignition lock. A d riv­
er m essage a ppears as well to expla in the ma l­
f unct ion in mo re det ail. The driv er warning go es
out a ft er abou t 5 se cond s, but it can b e broug ht
up at an y ti me by pressing the
!SE T! bu tt o n ag ain .
Ignition lock defective. Contact dealer! .,.
27

Driver information s ystem
"' Do not turn the engine off .
"'Drive immediate ly to an authorized Audi dealer
to have the malfunction corrected.
If there is a malfunct ion in the electronic ignition
lock, the ignition cannot be turned
off . Drive im­
mediately to an authorized service facility to have
the cause of the malfunction corrected.
O n ve hicles with Convenience key* , the eng ine
should not be switched
off using the Start/Stop
button because the engine cannot be started
again after the ignition has been switched
off.
Yellow symbols
F ig . 2 3 Display : Yellow wa rning symbo l
N M
9 a: a, ID
When a ye llow warning symbol appears, one
warning tone sounds. A driver message appears
as well to exp la in the ma lfunction in more deta il.
The driver wa rning goes out after about 5 sec­
onds, but it can be brough t up at any t ime by
pressing the
I S ET I button again .
Check the funct ion disp layed as soon as possible.
The yellow symbol w ill not go o ut again until the
reason for the malfunct io n has been corrected.
If several priority 2 malfunctions are present, the
symbo ls appear in succession and remain for
about 2 seconds.
28
E lect romechanica l steer ing , Dy­
namic steering*
c::> poge 191
Worn brake pads
c::> poge29
Battery vo ltage
c::>poge30 Defective
light bu lb
c::> poge 29
Fog lights
c::> poge29
Rear fog lights
c::> poge29
Check engine oil leve l
¢ page 30
E ngine o il sensor ma lf u nct ion
c::> page 30
E ngine tempe ra tu re*
c::> page 210
Low fuel level
c::> page 30
Refill Ad B lue*
c::> page 214
AdBl ue malfunction *
c::> page 214
Windsh ie ld washer fluid level
low
c::> page 30
Convenience key*
Key not in vehicle
c::> page29
Light/rain sensor defective
c::> page 29
Dynam ic headlight range con ­
tro l defective
c::> page 31
Battery in remote control key
c::> page34
E lectromechanical parking
brake
c::> page 88
Engine speed limitation*
c::> page 30, c::>poge 102
Dies el particulate fi lter * clog ­
ged
c::> page 31
Adaptive ligh t defec tive *
c::> page 31
Steering ma lf u nction
c::> poge 31

Ignition lock malfunction
¢ page 31
Adaptive dampers*
¢ page 31
Windshield wiper defective
¢ page 31
Tire pressure monitoring sys­
tem*
Loss of ti re pressure
¢ page248
Tire pressure monitoring sys­
tem *
System not ava ilable
¢page248
Automatic t ransm iss ion mal­
function
¢ page98
Hybr id d rive*
¢ page 102
The speed warnings wa rning thresho ld 1 1aj
and warning th reshold 7 ISi are also yellow
symbo ls in some models. The warning is al ­
ways shown as a small symbol in the upper area of the display
¢ page 91.
-le Key not in vehicle
Appl ies to : ve hicl es with Conve nien ce key
!I Is the ke y in the v ehicle ?
This reminder appears along with the !I symbol
if the master key is removed from the vehicle
with the eng ine running . It is intended to rem ind
you (e .g . when chang ing drivers) not to conti nue
the journey without the master key.
If the master key is no longer in the veh icle, you
cannot switch off the ignition after stopping the
engine and you a lso cannot start the engine
aga in . You also cannot lock the veh icle from the
ou ts ide .
CD
CD
.... N ,-... N .... 0 0
~ 1) - : USA mod els onl y
Dri ver informa tion system
@f> Light/rain sensor defective
fl Automati c headlight s/ automati c wip ers
d efective
If the symbol illum inates , the light sensor has
failed . For safety reasons the low beams are
tu rned on permanently with the switch in
AUTO .
However, yo u can cont inue to turn t he lig hts on
and off us ing the light switch. In the case of a de ­
fect in the rain sensor, the windshield wipe r lever
functions are still available. Have the light/rain sensor checked as soon as poss ible by an author­
i z ed Audi dealer.
{0) Worn brake pads
liJ Brake pads!
If the warning light illuminates , immediat ely
contact your authori zed Audi dealer or qualified
workshop to have all brake pads inspected . On
USA mode ls the warning light
liJ comes on to­
gether w ith the warning light
1111 . Both sets of
brake pads on an axle must a lways be replaced at
the same time.
&_ WARNING
Driving w ith b ad b rakes can cause a collision
and serious personal injury .
- If the warn ing light liJ and the warn ing
light
llll1 l with the message Brake pad s!
comes on in the instrument clus ter display,
immed iate ly contact yo ur authorized Aud i
dealer o r qualified workshop to have a ll
brake pads checked or replaced if necessary .
~!}0 10$ Defective light bulb warning
J:1 -If the indicator light turns on, a bu lb has
failed. The message indicates the location of the
bulb .
II-If a front fog lamp has fa iled, the ind icator
li ght turns on to indicate the location on the vehi-
c le.
~
29
