2016 TOYOTA PRIUS Owners Manual

PRIUS_OM_OM47A29U_(U)
7299-1. Specifications
9
Vehicle specifications
*: Checking your vehicle’s model: P. 727

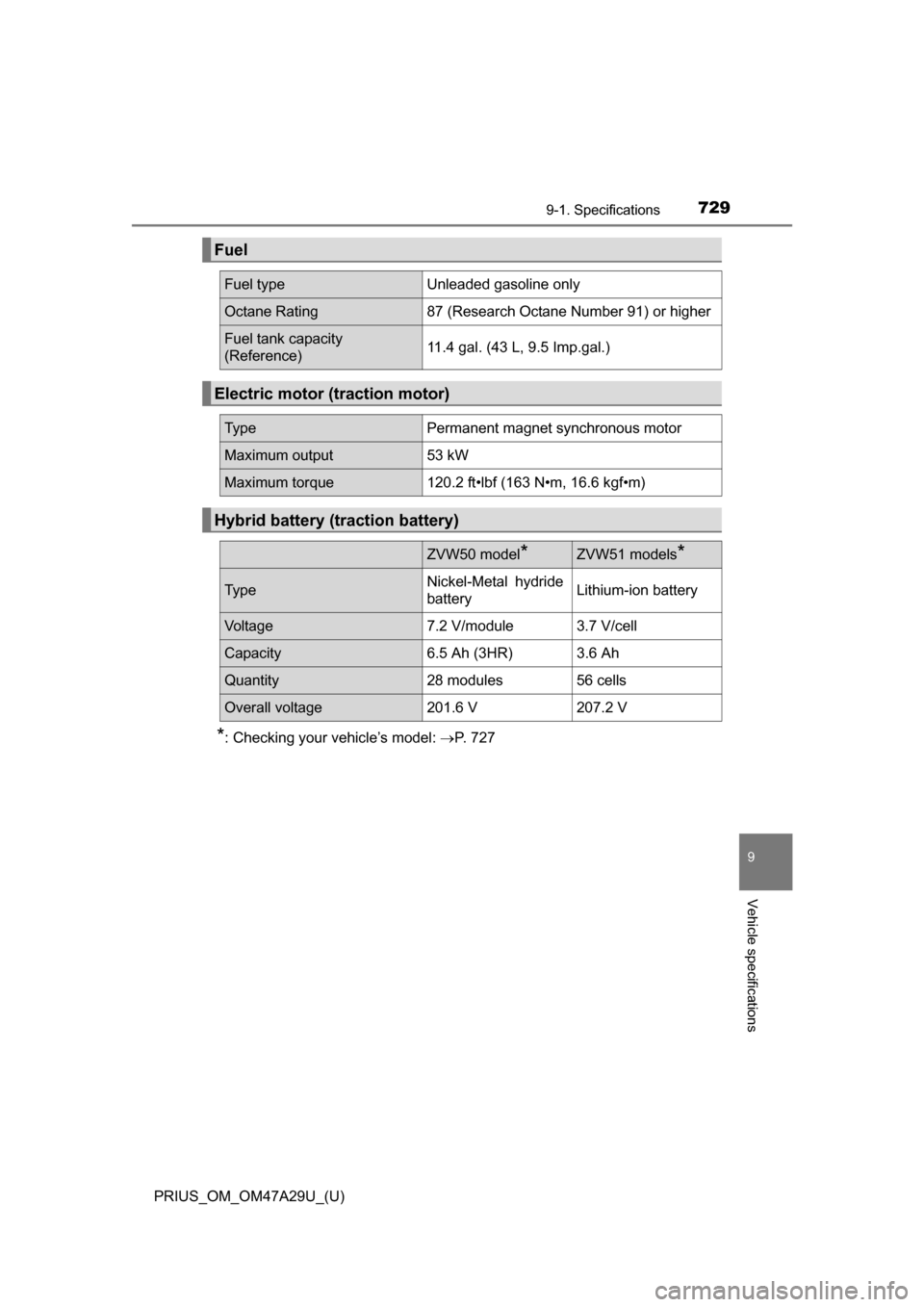

Fuel
Fuel typeUnleaded gasoline only
Octane Rating87 (Research Octane Number 91) or higher
Fuel tank capacity
(Reference)11.4 gal. (43 L, 9.5 Imp.gal.)
Electric motor (traction motor)
Ty p ePermanent magnet synchronous motor
Maximum output53 kW
Maximum torque120.2 ft•lbf (163 N•m, 16.6 kgf•m)
Hybrid battery (traction battery)
ZVW50 model*ZVW51 models*
Ty p eNickel-Metal hydride
batteryLithium-ion battery
Voltage7.2 V/module3.7 V/cell
Capacity6.5 Ah (3HR)3.6 Ah
Quantity28 modules56 cells
Overall voltage201.6 V207.2 V

730
PRIUS_OM_OM47A29U_(U)
9-1. Specifications

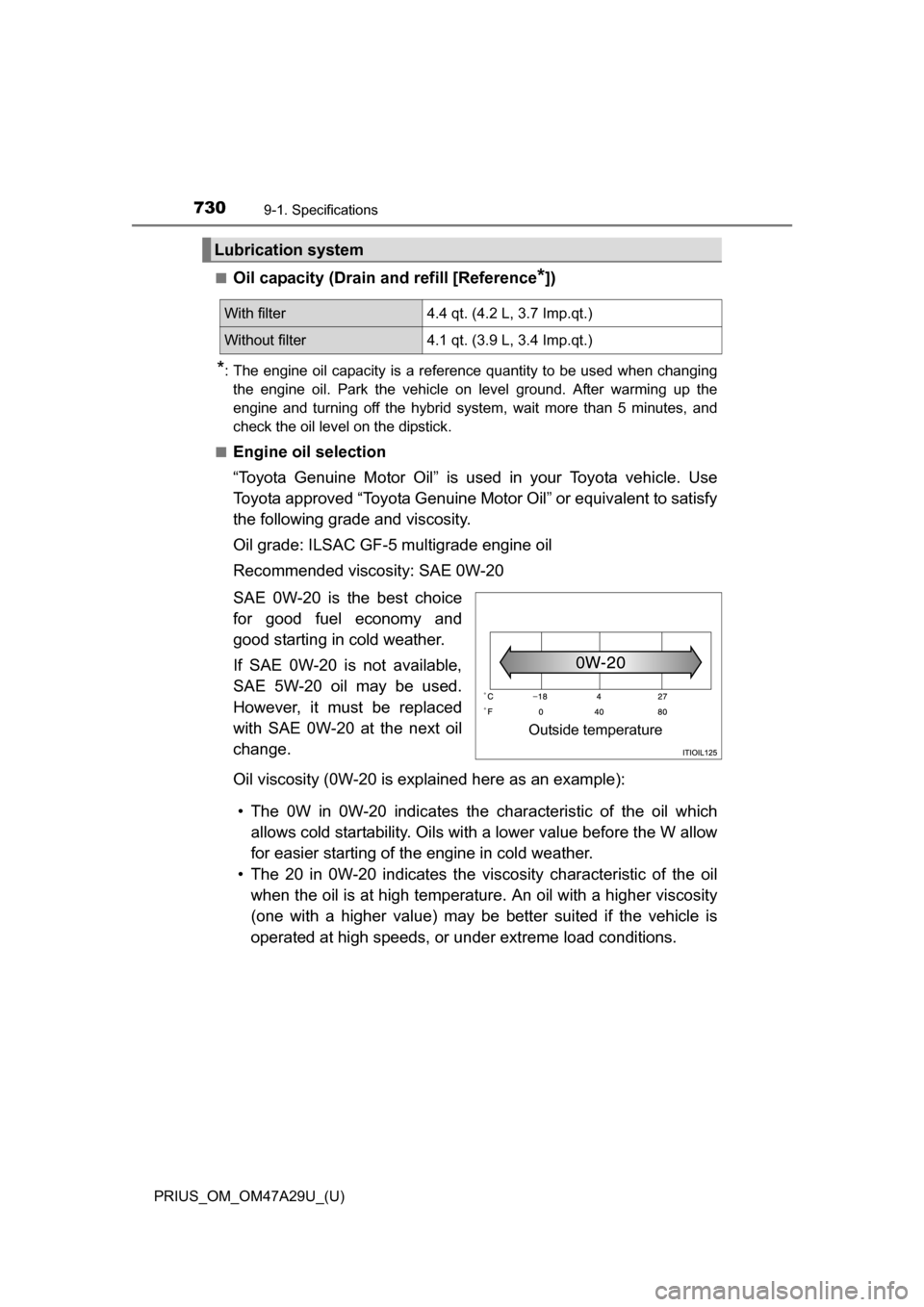

■Oil capacity (Drain and refill [Reference*])
*: The engine oil capacity is a reference quantity to be used when changingthe engine oil. Park the vehicle on level ground. After warming up the
engine and turning off the hybrid system, wait more than 5 minutes, and
check the oil level on the dipstick.
■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade: ILSAC GF-5 multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice
for good fuel economy and
good starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced
with SAE 0W-20 at the next oil
change.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which
allows cold startability. Oils wi th a lower value before the W allow
for easier starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when the oil is at high temperature. An oil with a higher viscosity
(one with a higher value) may be better suited if the vehicle is
operated at high speeds, or under extreme load conditions.
Lubrication system
With filter4.4 qt. (4.2 L, 3.7 Imp.qt.)
Without filter4.1 qt. (3.9 L, 3.4 Imp.qt.)
Outside temperature

PRIUS_OM_OM47A29U_(U)
7319-1. Specifications
9
Vehicle specifications

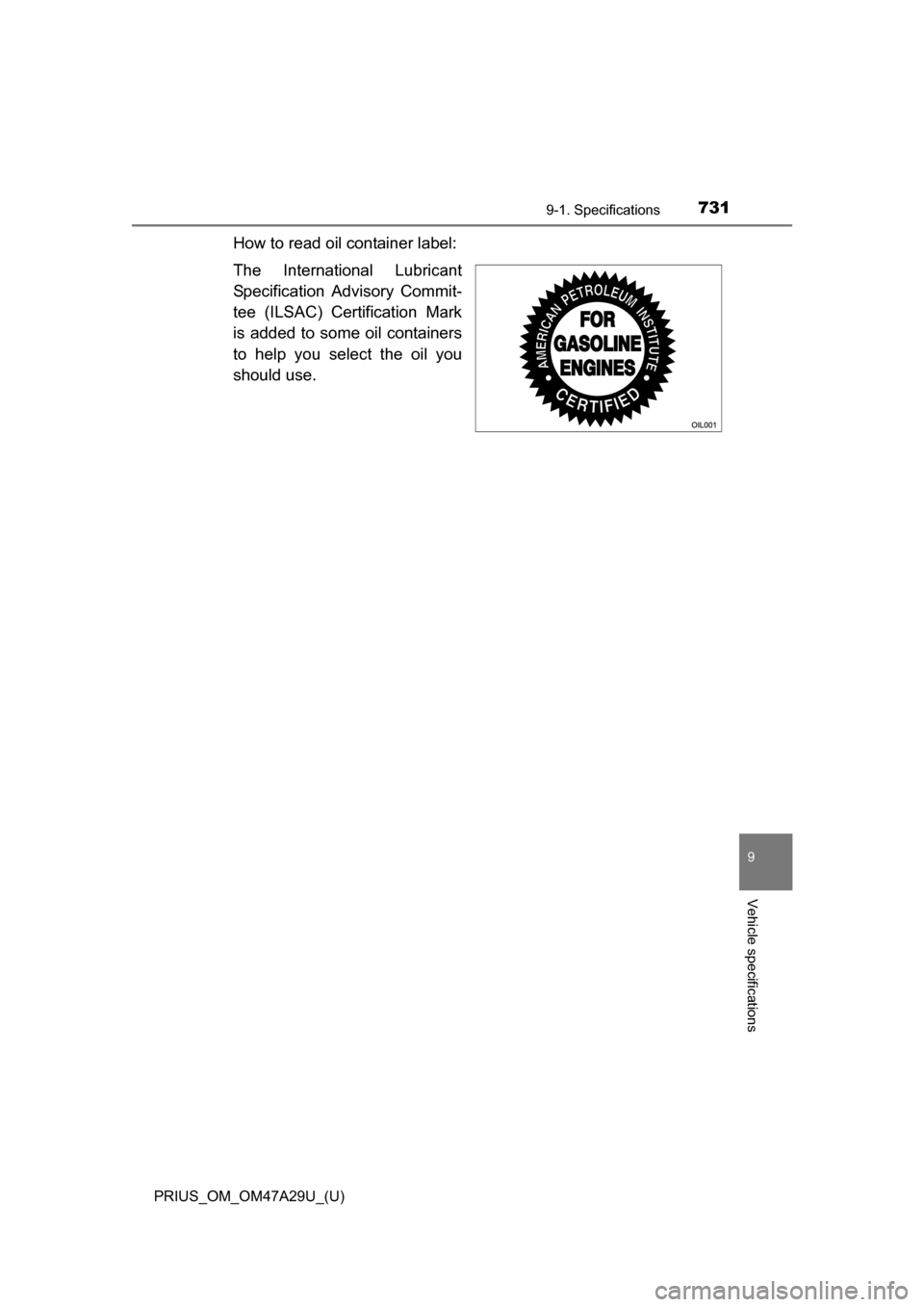

How to read oil container label:
The International Lubricant
Specification Advisory Commit-
tee (ILSAC) Certification Mark
is added to some oil containers
to help you select the oil you
should use.

732
PRIUS_OM_OM47A29U_(U)
9-1. Specifications
*: The coolant capacity is a reference quantity.If replacement is necessary, contact your Toyota dealer.
Cooling system
Capacity*
Gasoline
engine6.2 qt. (5.9 L, 5.2 Imp.qt.)
Power
control unit1.5 qt. (1.4 L, 1.2 Imp.qt.)
Coolant type
Use either of the following: • “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol- based non-silicate, non-amine, non-
nitrite, and non-borate coolant with
long-life hybrid organic acid technology
Do not use plain water alone.
Ignition system (spark plug)
MakeDENSO FC16HR-C9
Gap0.035 in. (0.9 mm)
NOTICE
■ Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.
Electrical system (12-volt battery)
Open voltage at 68 F (20 C):
12.5 V or higher: Fully charged
11.0 — 12.4 V: Half charged
10.9 V or lower: Discharged
(Voltage is checked 30 seconds after the
hybrid system and all lights are turned off.)
Charging rates5 A max.

PRIUS_OM_OM47A29U_(U)
7339-1. Specifications
9
Vehicle specifications
*: The fluid capacity is the quantity of reference.If replacement is necessary, contact your Toyota dealer.
*1: Minimum pedal clearance when depressed with a force of 67.4 lbf (300 N,30.6 kgf) while the hybrid system is operating.
*2: Parking brake pedal travel when depressed with a force of 67.4 lbf (300 N,30.6 kgf).
Transmission
Fluid capacity*3.8 qt. (3.6 L, 3.2 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
■ Transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied
by vibration, and ultimately damage the transmission of your vehicle.
Brakes
Pedal clearance*14.53 in. (115 mm) Min.
Pedal free play0.04 — 0.24 in. (1.0 — 6.0 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake pedal travel*28 — 11 clicks
Fluid typeFMVSS No. 116 DOT 3 or SAE J1703
Steering
Free playLess than 1.2 in. (30 mm)

734
PRIUS_OM_OM47A29U_(U)
9-1. Specifications

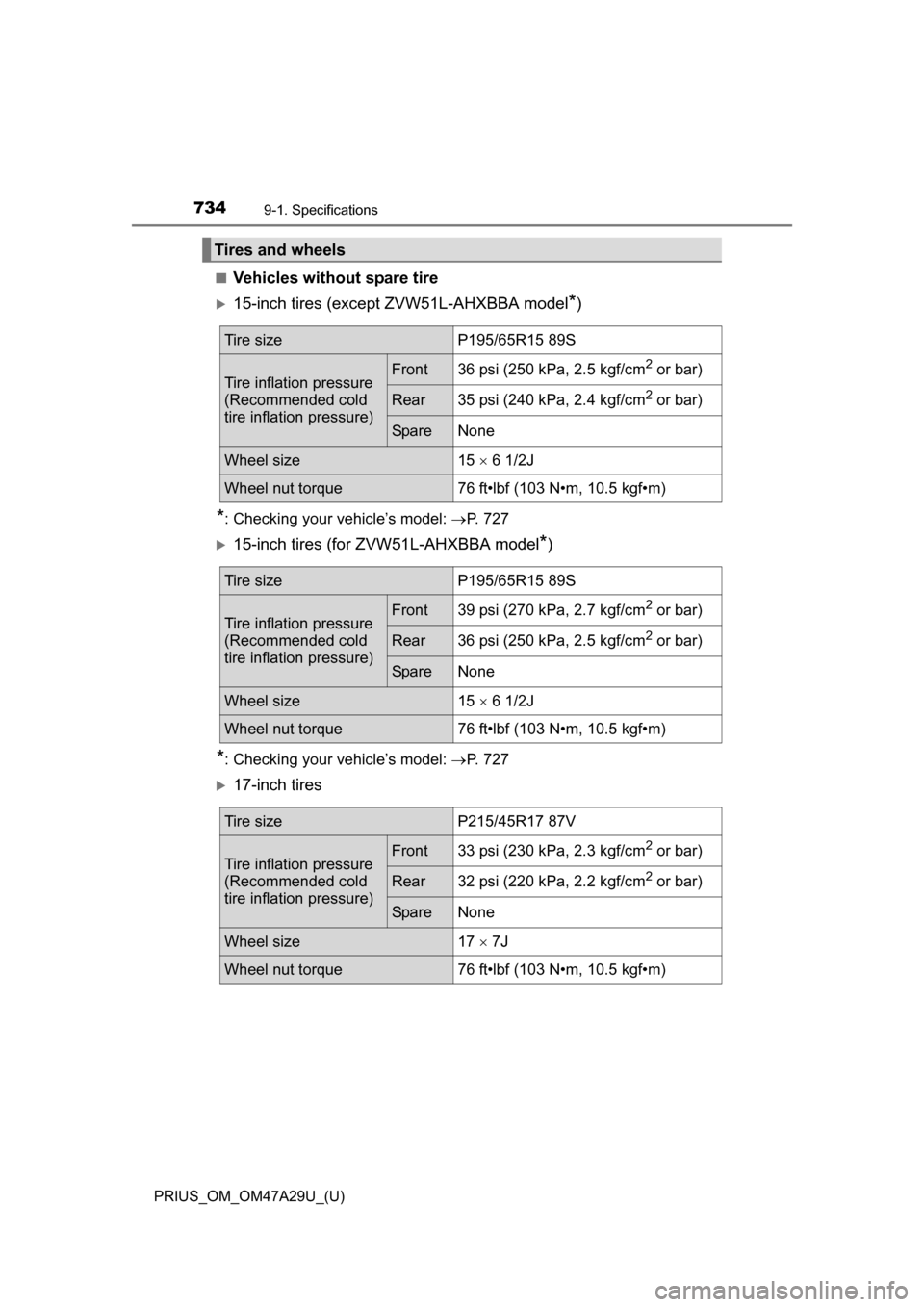

■Vehicles without spare tire
15-inch tires (except ZVW51L-AHXBBA model*)
*: Checking your vehicle’s model: P. 7 2 7
15-inch tires (for ZVW51L-AHXBBA model*)
*: Checking your vehicle’s model: P. 7 2 7
17-inch tires
Tires and wheels
Tire sizeP195/65R15 89S
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spa r eNone
Wheel size15  6 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP195/65R15 89S
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front39 psi (270 kPa, 2.7 kgf/cm2 or bar)
Rear36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Spa r eNone
Wheel size15  6 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP215/45R17 87V
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spa r eNone
Wheel size17  7J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

PRIUS_OM_OM47A29U_(U)
7359-1. Specifications
9
Vehicle specifications

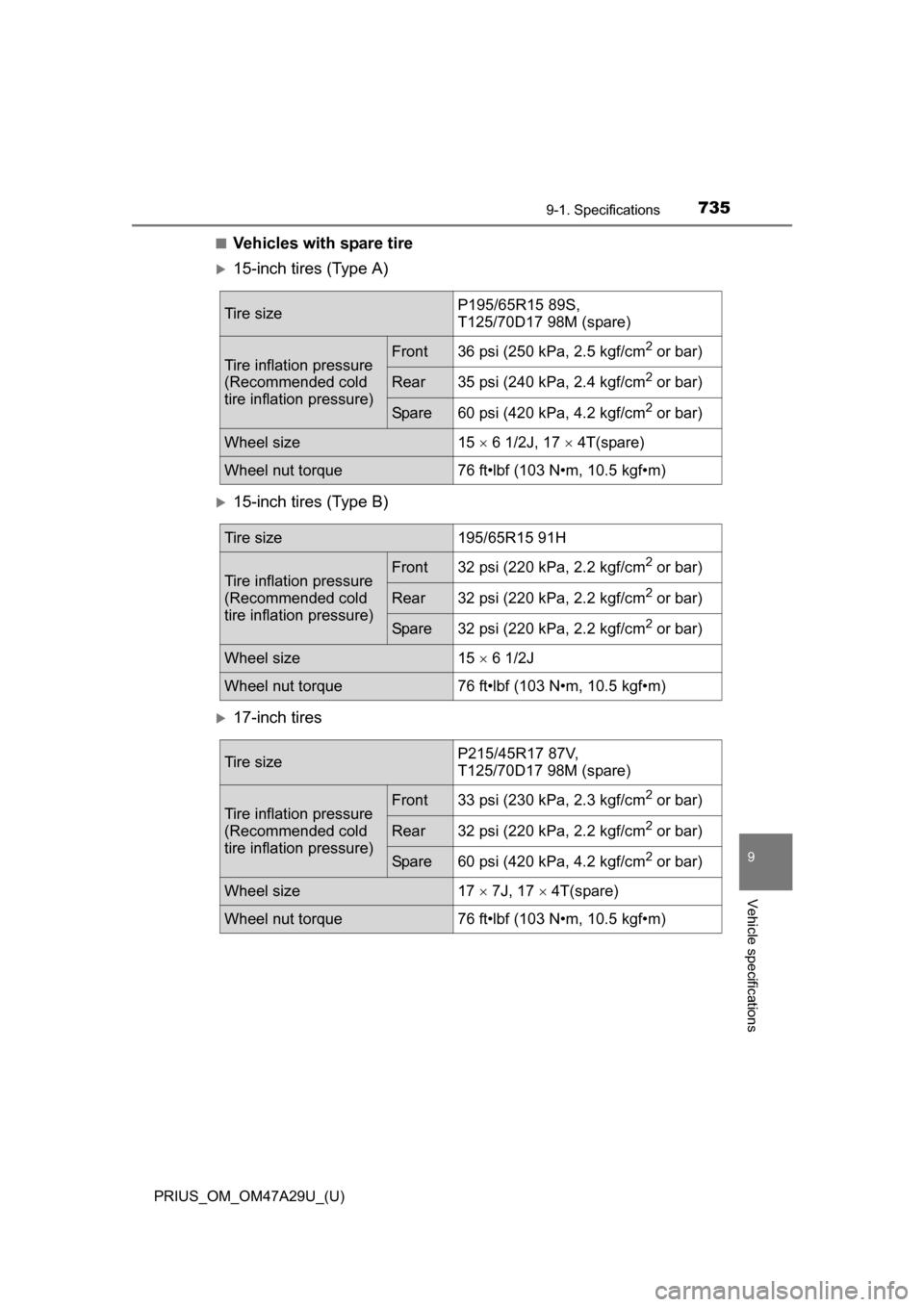

■Vehicles with spare tire
15-inch tires (Type A)
15-inch tires (Type B)
17-inch tires
Tire sizeP195/65R15 89S,
T125/70D17 98M (spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front36 psi (250 kPa, 2.5 kgf/cm2 or bar)
Rear35 psi (240 kPa, 2.4 kgf/cm2 or bar)
Spa r e60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size15  6 1/2J, 17  4T(spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire size195/65R15 91H
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Rear32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spa r e32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Wheel size15  6 1/2J
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Tire sizeP215/45R17 87V,
T125/70D17 98M (spare)
Tire inflation pressure
(Recommended cold
tire inflation pressure)Front33 psi (230 kPa, 2.3 kgf/cm2 or bar)
Rear32 psi (220 kPa, 2.2 kgf/cm2 or bar)
Spa r e60 psi (420 kPa, 4.2 kgf/cm2 or bar)
Wheel size17  7J, 17  4T(spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

736
PRIUS_OM_OM47A29U_(U)
9-1. Specifications
*1: Vehicles with bulb type parking lights
*2: Vehicles with LED type parking lights

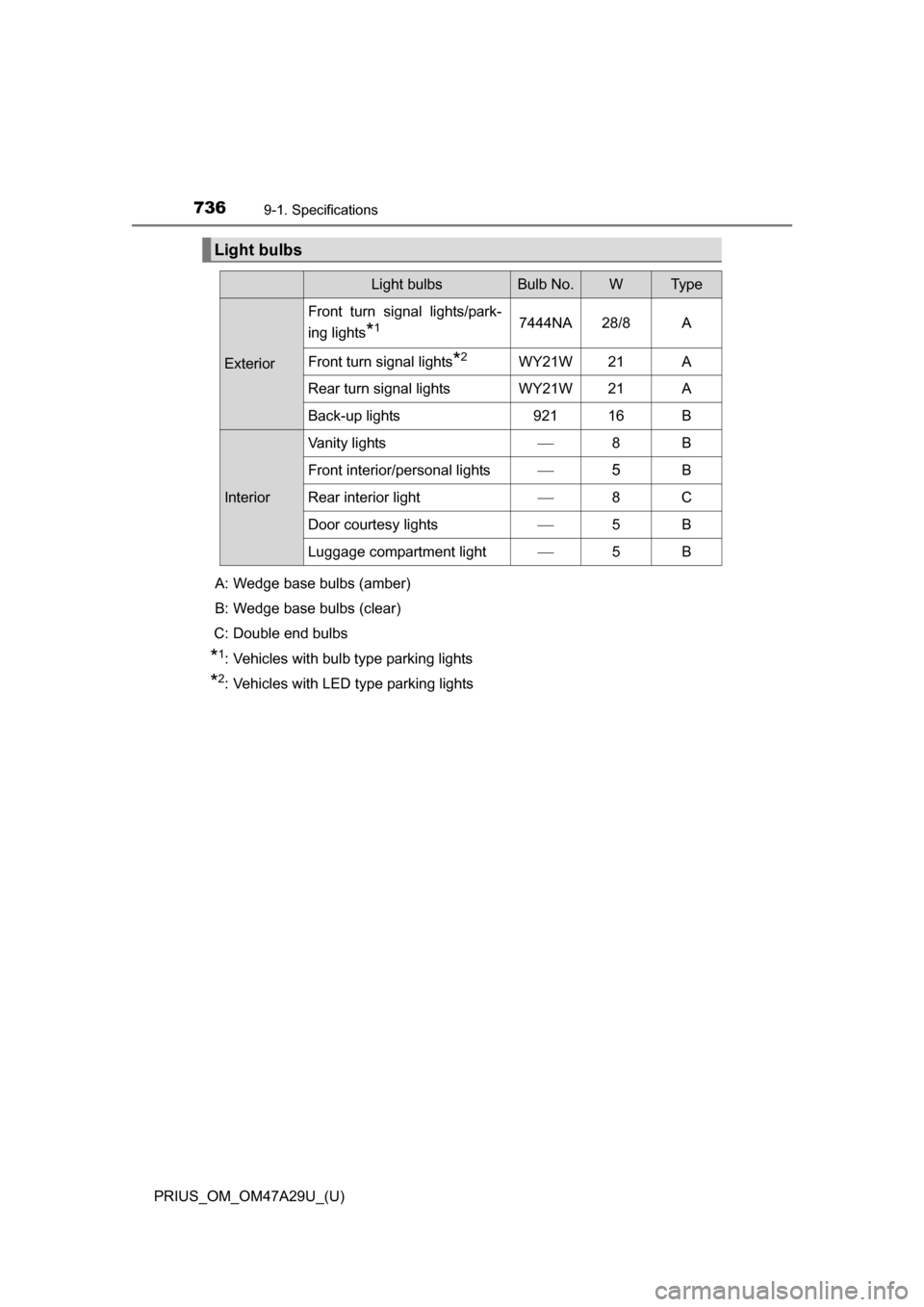

Light bulbs
Light bulbsBulb No.WTy p e
Exterior
Front turn signal lights/park-
ing lights
*17444NA28/8A
Front turn signal lights*2WY21W21A
Rear turn signal lightsWY21W21A
Back-up lights92116B
Interior
Vanity lights8B
Front interior/personal lights5B
Rear interior light8C
Door courtesy lights5B
Luggage compartment light5B
A: Wedge base bulbs (amber)
B: Wedge base bulbs (clear)
C: Double end bulbs
