972. Instrument cluster
2
Instrument cluster

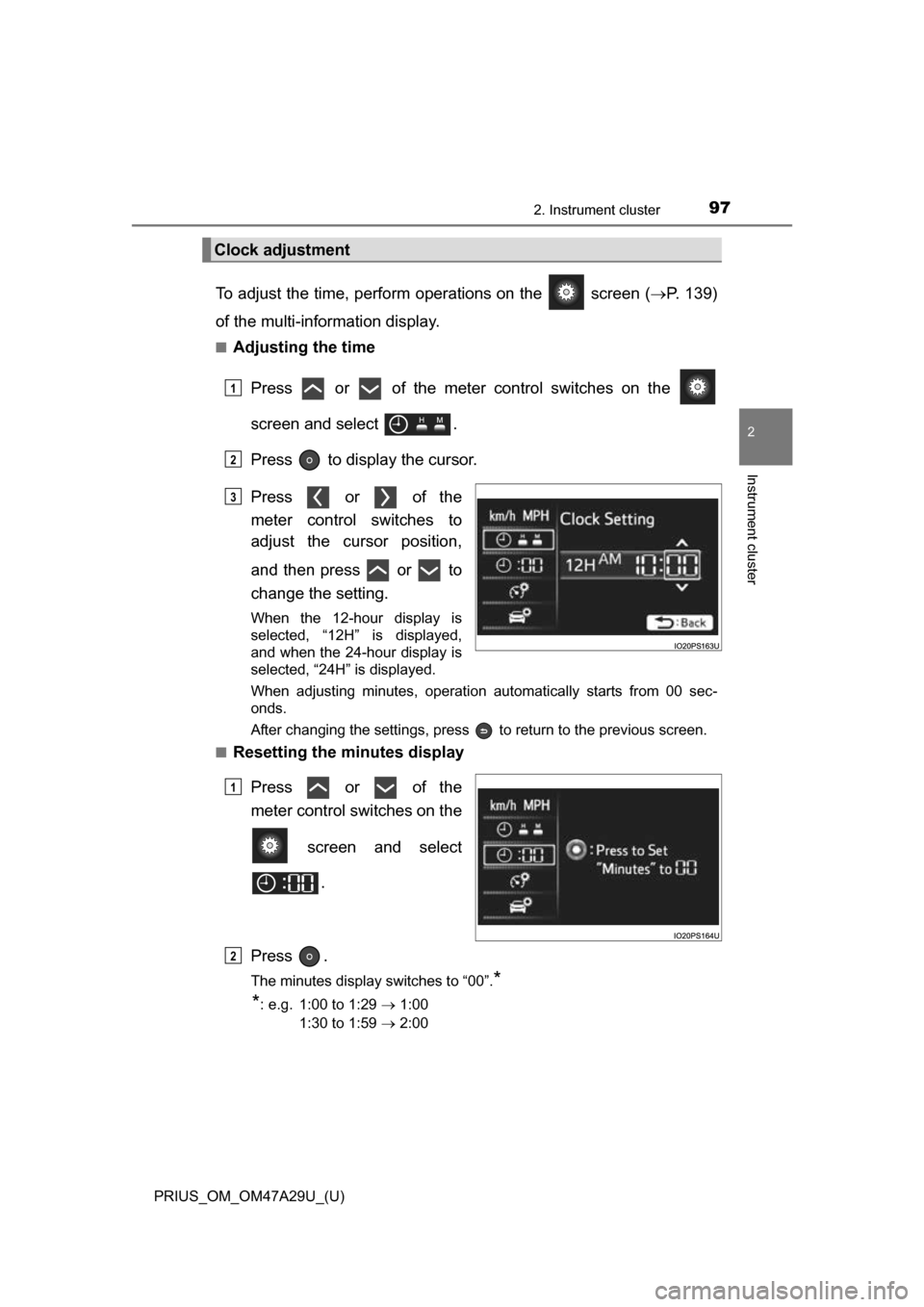

To adjust the time, perform operations on the screen (P. 139)
of the multi-info rmation display.
■Adjusting the time
Press or of the meter control switches on the
screen and select .
Press to display the cursor.
Press or of the
meter control switches to
adjust the cursor position,
and then press or to
change the setting.
When the 12-hour display is
selected, “12H” is displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When adjusting minutes, operation automatically starts from 00 sec-
onds.
After changing the settings, press to return to the previous screen.
■
Resetting the minutes display
Press or of the
meter control switches on the
screen and select.
Press .
The minutes display switches to “00”.*
*
: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
Clock adjustment
1
2
3
1
2

98
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

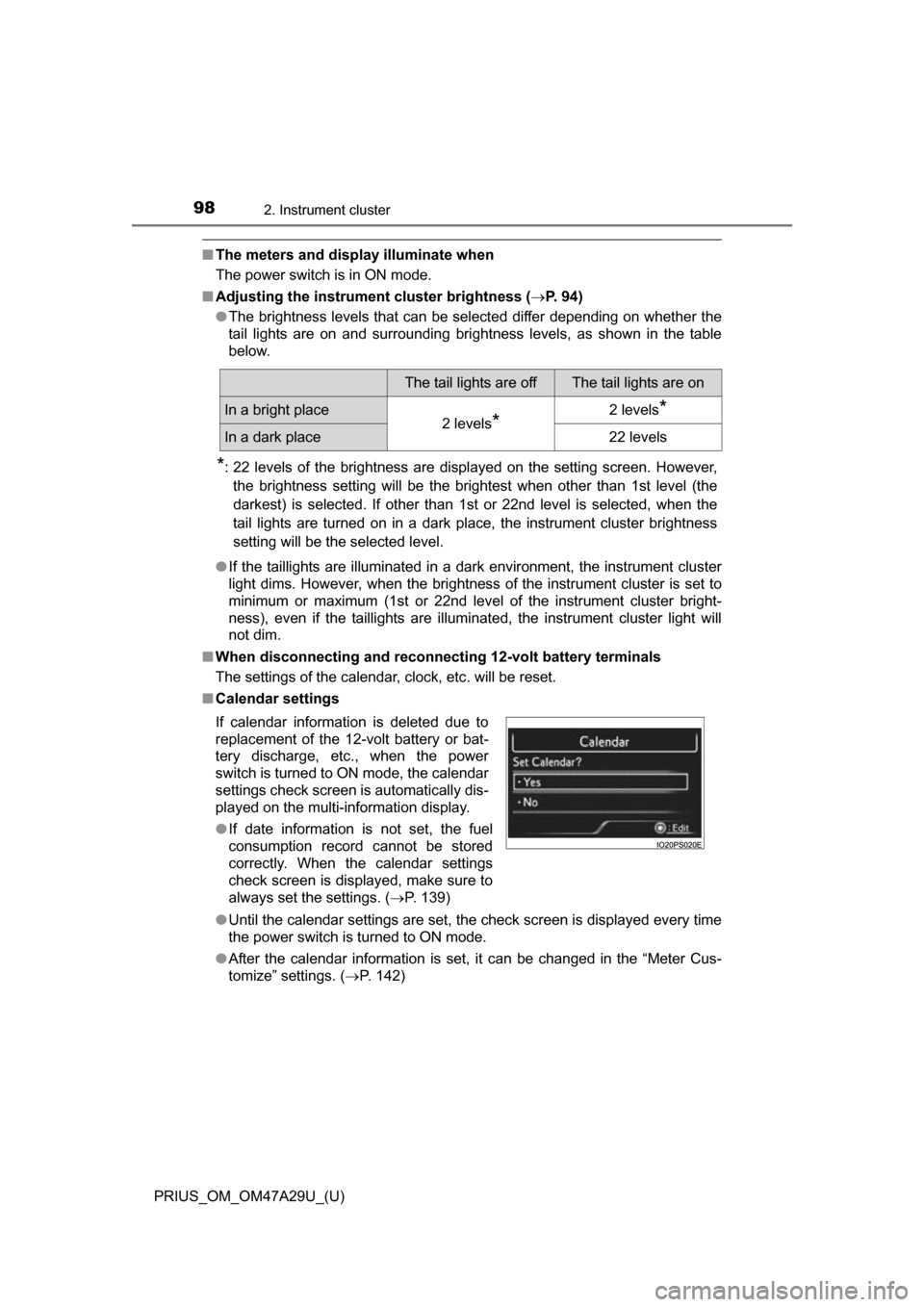

■The meters and display illuminate when
The power switch is in ON mode.
■ Adjusting the instrument cluster brightness (P. 94)
● The brightness levels that can be selected differ depending on whether the
tail lights are on and surrounding brightness levels, as shown in the table
below.
*: 22 levels of the brightness are displayed on the setting screen. However,
the brightness setting will be the brightest when other than 1st level (the
darkest) is selected. If other than 1st or 22nd level is selected, when the
tail lights are turned on in a dark place, the instrument cluster brightness
setting will be the selected level.
● If the taillights are illuminated in a dark environment, the instrument cluster
light dims. However, when the brightness of the instrument cluster is set to
minimum or maximum (1st or 22nd level of the instrument cluster bright-
ness), even if the taillights are illuminated, the instrument cluster light will
not dim.
■ When disconnecting and reconnect ing 12-volt battery terminals
The settings of the calendar, clock, etc. will be reset.
■ Calendar settings
●Until the calendar settings are set, the check screen is displayed every time
the power switch is turned to ON mode.
● After the calendar information is set, it can be changed in the “Meter Cus-
tomize” settings. ( P. 142)
The tail lights are offThe tail lights are on
In a bright place2 levels*2 levels*
In a dark place22 levels
If calendar information is deleted due to
replacement of the 12-volt battery or bat-
tery discharge, etc., when the power
switch is turned to ON mode, the calendar
settings check screen is automatically dis-
played on the multi-information display.
● If date information is not set, the fuel
consumption record cannot be stored
correctly. When the calendar settings
check screen is displayed, make sure to
always set the settings. ( P. 139)

PRIUS_OM_OM47A29U_(U)
992. Instrument cluster
2
Instrument cluster

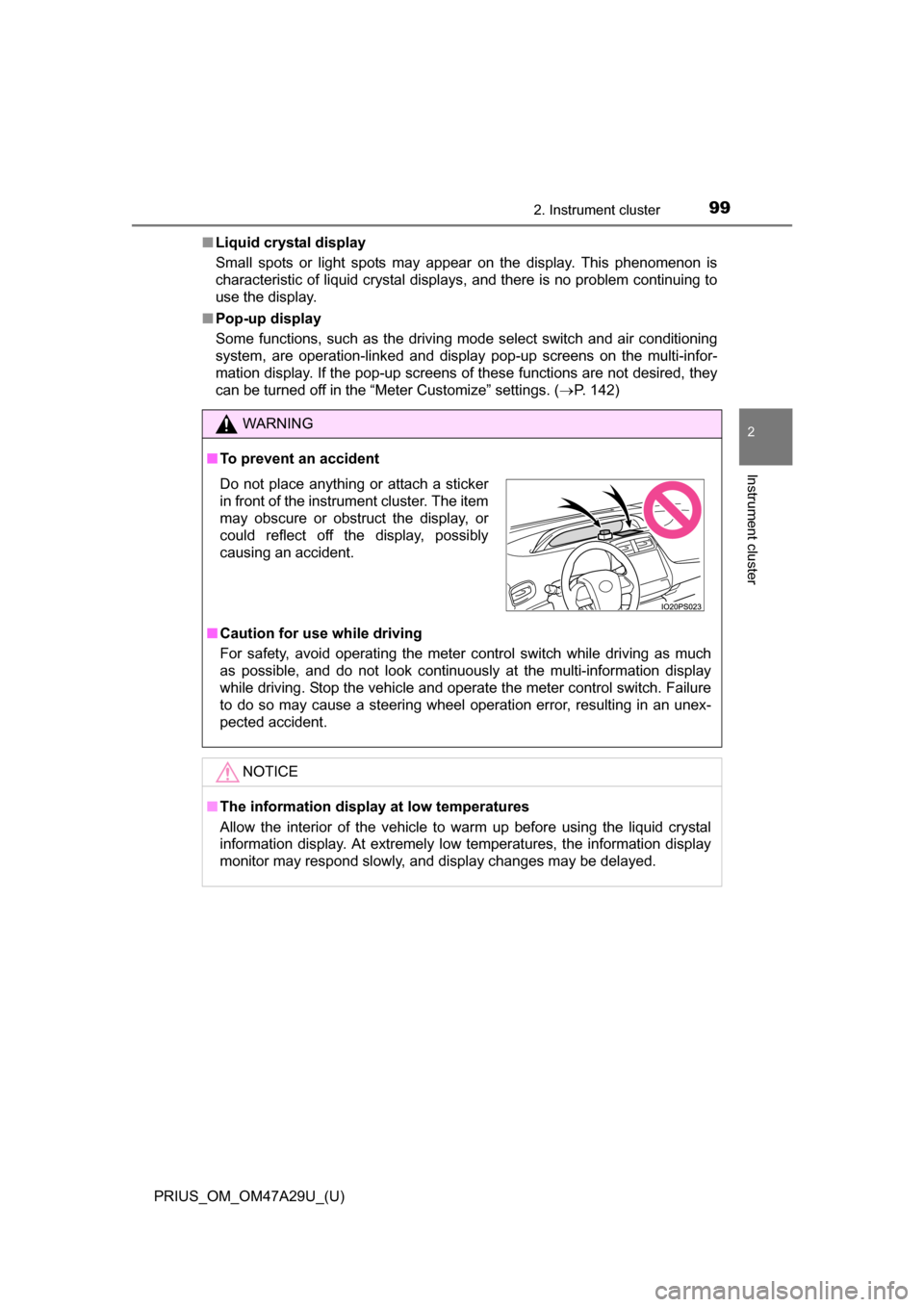

■Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
■ Pop-up display
Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are not desired, they
can be turned off in the “Meter Customize” settings. ( P. 142)
WARNING
■To prevent an accident
■ Caution for use while driving
For safety, avoid operating the meter control switch while driving as much
as possible, and do not look continuously at the multi-information display
while driving. Stop the vehicle and operate the meter control switch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.
NOTICE
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.

100
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

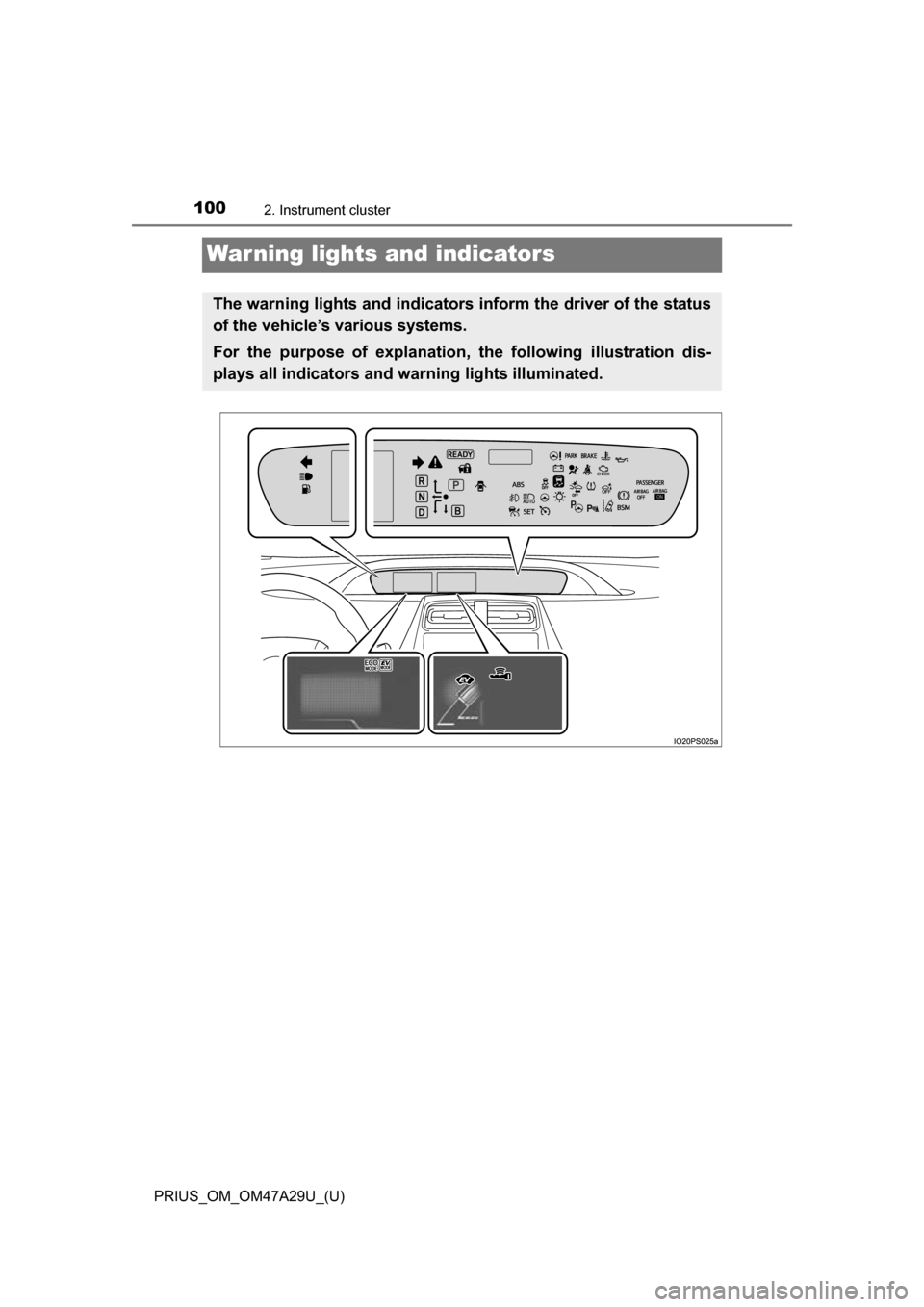

Warning lights and indicators
The warning lights and indicators inform the driver of the status
of the vehicle’s various systems.
For the purpose of explanation, the following illustration dis-
plays all indicators and wa rning lights illuminated.

PRIUS_OM_OM47A29U_(U)
1012. Instrument cluster
2
Instrument cluster

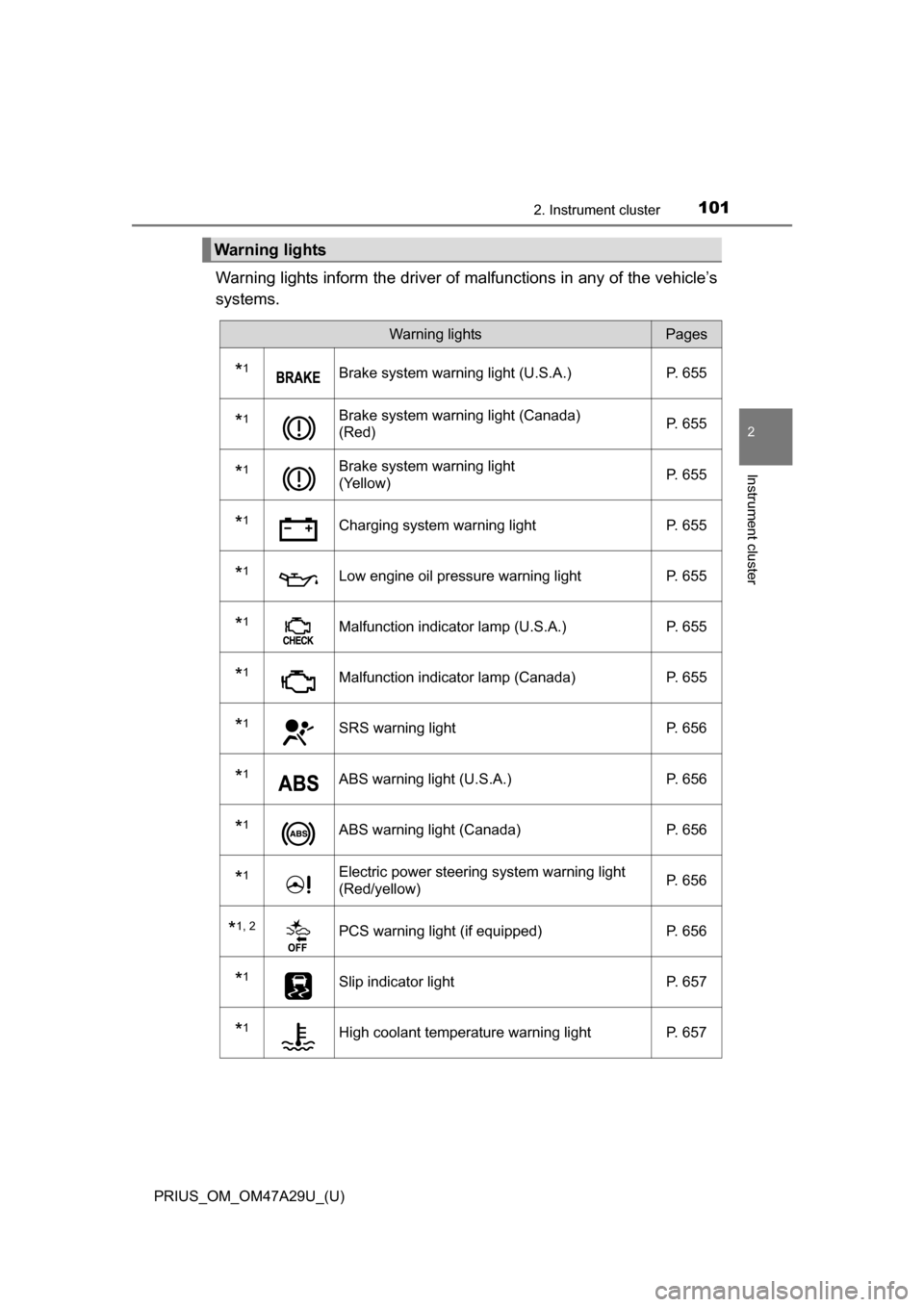

Warning lights inform the driver of malfunctions in any of the vehicle’s
systems.
Warning lights
Warning lightsPages
*1Brake system warning light (U.S.A.) P. 655
*1Brake system warning light (Canada)
(Red)P. 655
*1Brake system warning light
(Yellow)P. 655
*1Charging system warning light
P. 655
*1Low engine oil pressure warning lightP. 655
*1Malfunction indicator lamp (U.S.A.) P. 655
*1Malfunction indicator lamp (Canada) P. 655
*1SRS warning lightP. 656
*1ABS warning light (U.S.A.) P. 656
*1ABS warning light (Canada)P. 656
*1Electric power steering system warning light
(Red/yellow)P. 656
*1, 2PCS warning light (if equipped)
P. 656
*1Slip indicator light P. 657
*1High coolant temperature warning lightP. 657

102
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate a malfunction.

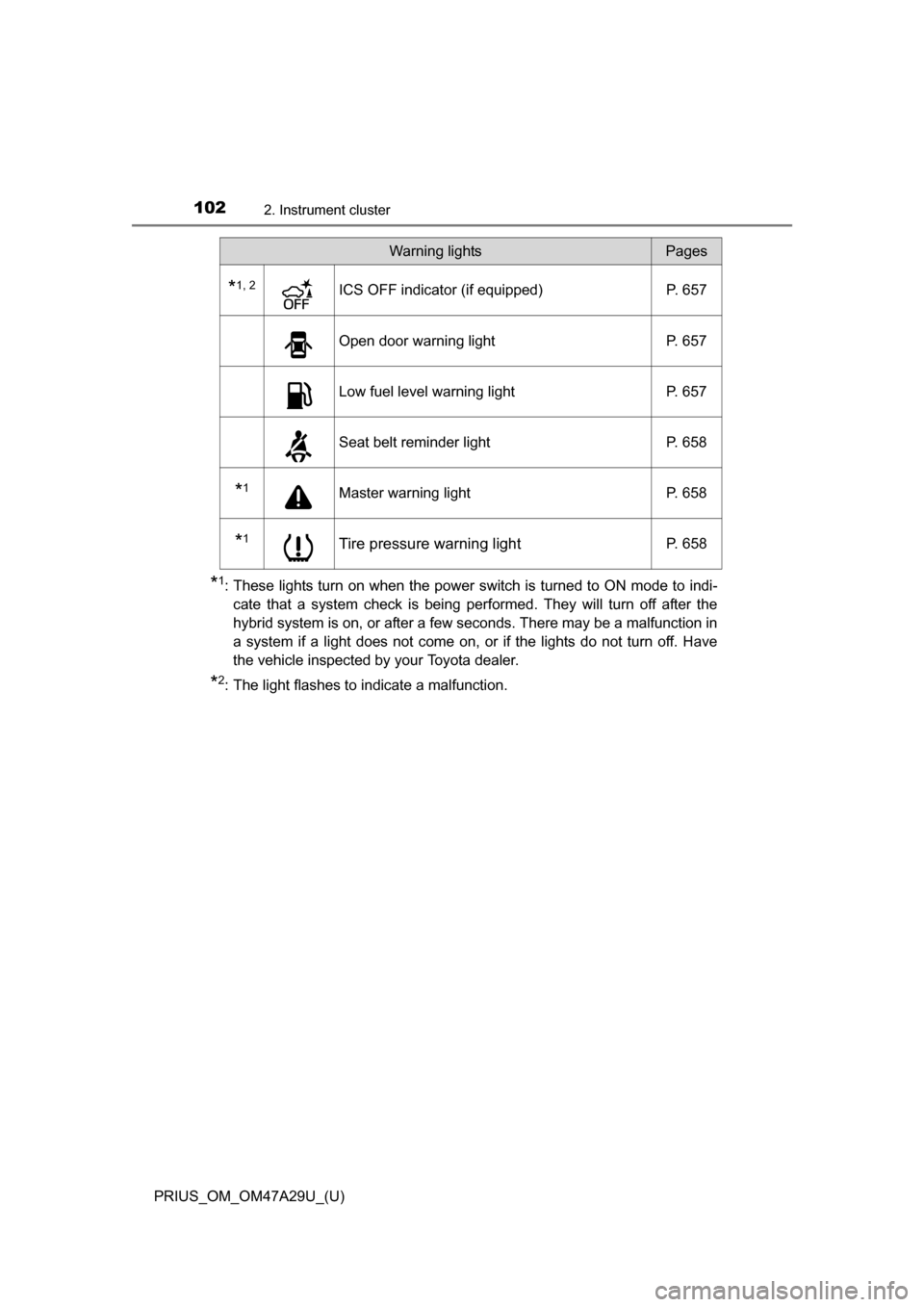

*1, 2ICS OFF indicator (if equipped) P. 657
Open door warning lightP. 657
Low fuel level warning lightP. 657
Seat belt reminder lightP. 658
*1Master warning lightP. 658
*1Tire pressure warning lightP. 658
Warning lightsPages

PRIUS_OM_OM47A29U_(U)
1032. Instrument cluster
2
Instrument cluster

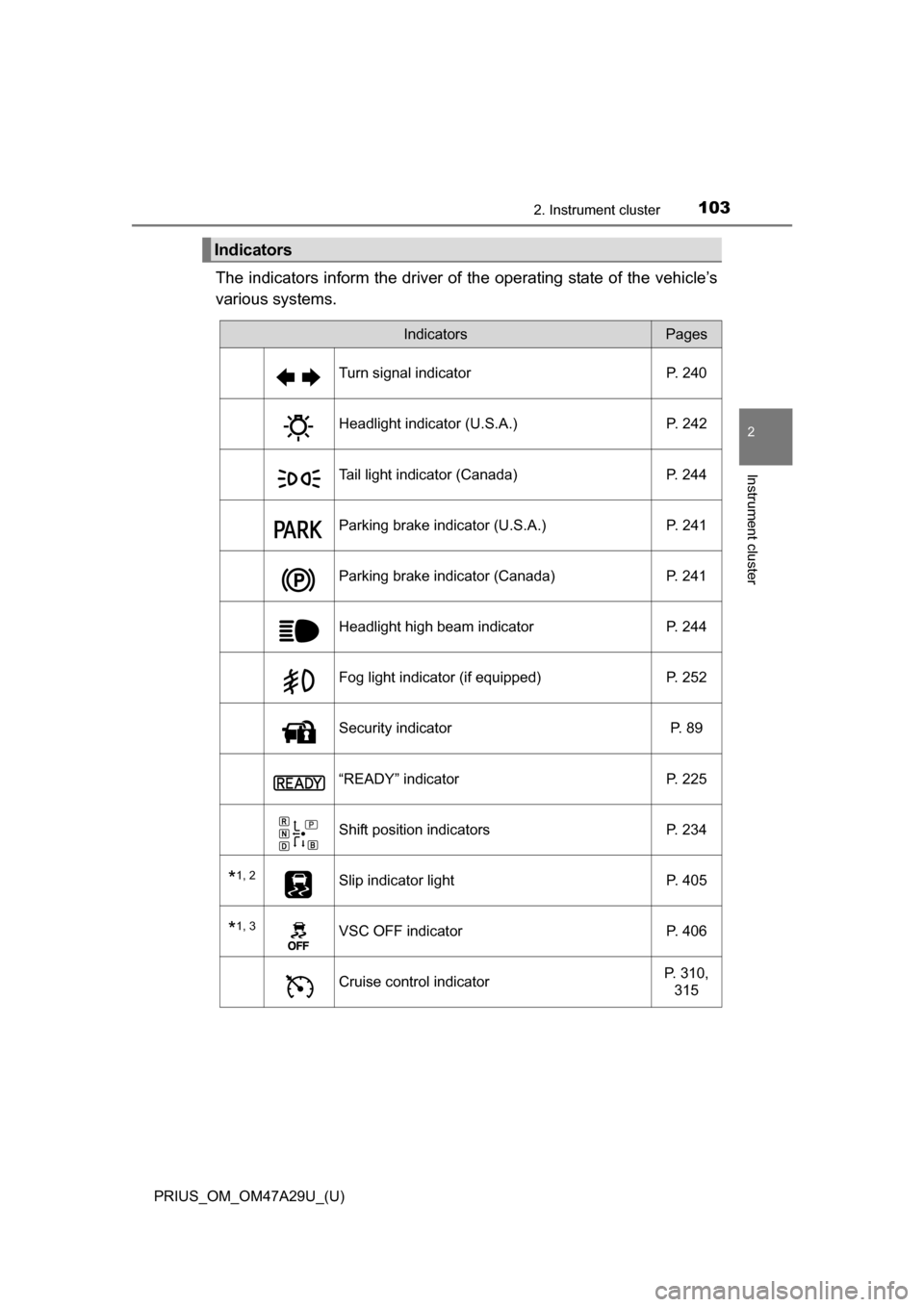

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
IndicatorsPages
Turn signal indicator P. 240
Headlight indicator (U.S.A.) P. 242
Tail light indicator (Canada) P. 244
Parking brake indicator (U.S.A.) P. 241
Parking brake indicator (Canada)P. 241
Headlight high beam indicatorP. 244
Fog light indicator (if equipped) P. 252
Security indicator P. 89
“READY” indicatorP. 225
Shift position indicatorsP. 234
*1, 2Slip indicator light P. 405
*1, 3VSC OFF indicatorP. 406
Cruise control indicatorP. 310,
315

104
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster
*1: These lights turn on when the power switch is turned to ON mode to indi-cate that a system check is being performed. They will turn off after the
hybrid system is on, or after a few seconds. There may be a malfunction in
a system if a light does not come on, or if the lights do not turn off. Have
the vehicle inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light comes on when the system is turned off.

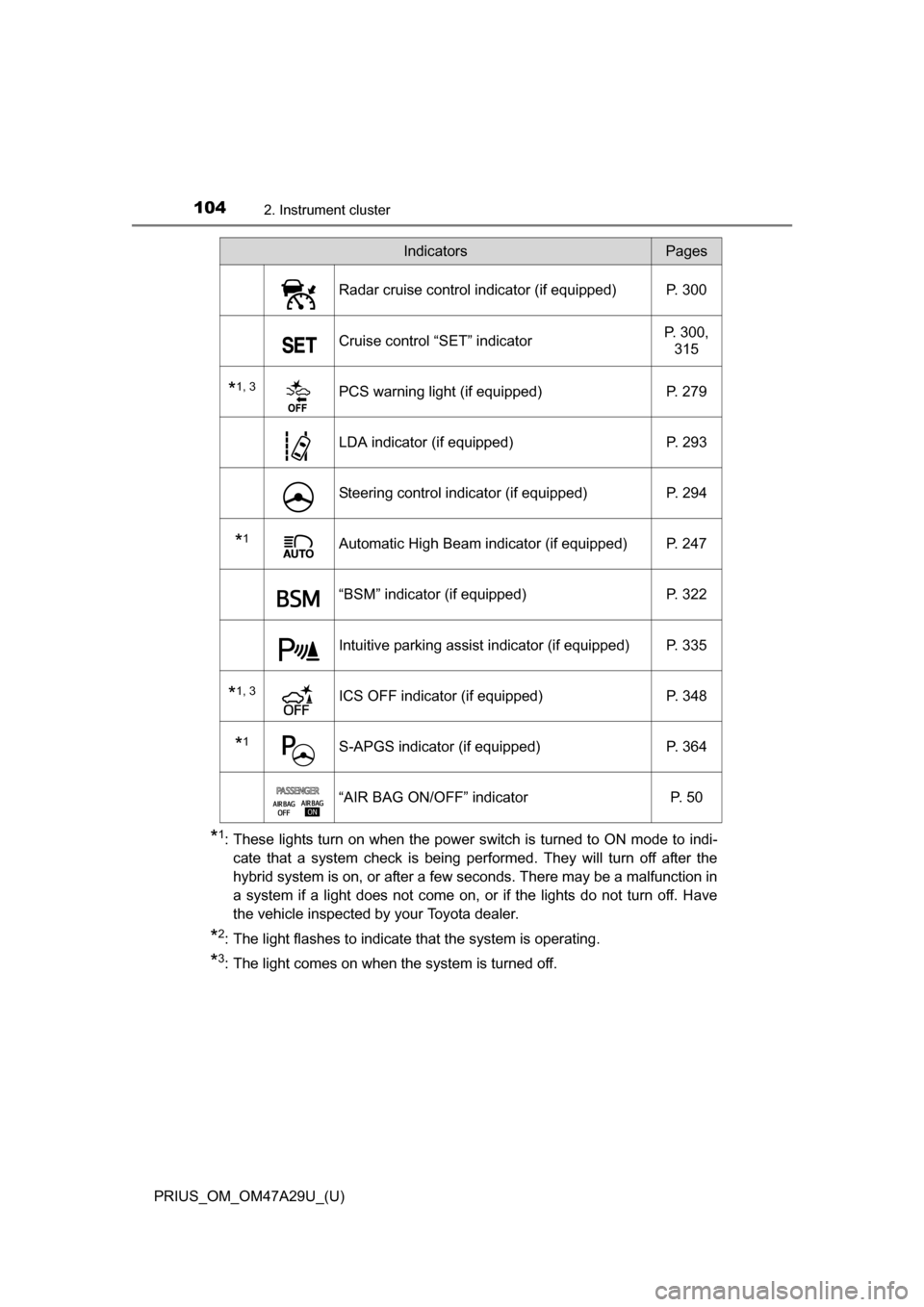

Radar cruise control indicator (if equipped) P. 300
Cruise control “SET” indicator P. 300,
315
*1, 3PCS warning light (if equipped) P. 279
LDA indicator (if equipped) P. 293
Steering control indicator (if equipped) P. 294
*1Automatic High Beam indicator (if equipped) P. 247
“BSM” indicator (if equipped)P. 322
Intuitive parking assist indicator (if equipped) P. 335
*1, 3ICS OFF indicator (if equipped) P. 348
*1S-APGS indicator (if equipped)P. 364
“AIR BAG ON/OFF” indicator P. 50
IndicatorsPages
