1052. Instrument cluster
2
Instrument cluster
■Main display
*: The displayed indicator changes according to the current driving mode.
■
Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis- plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.

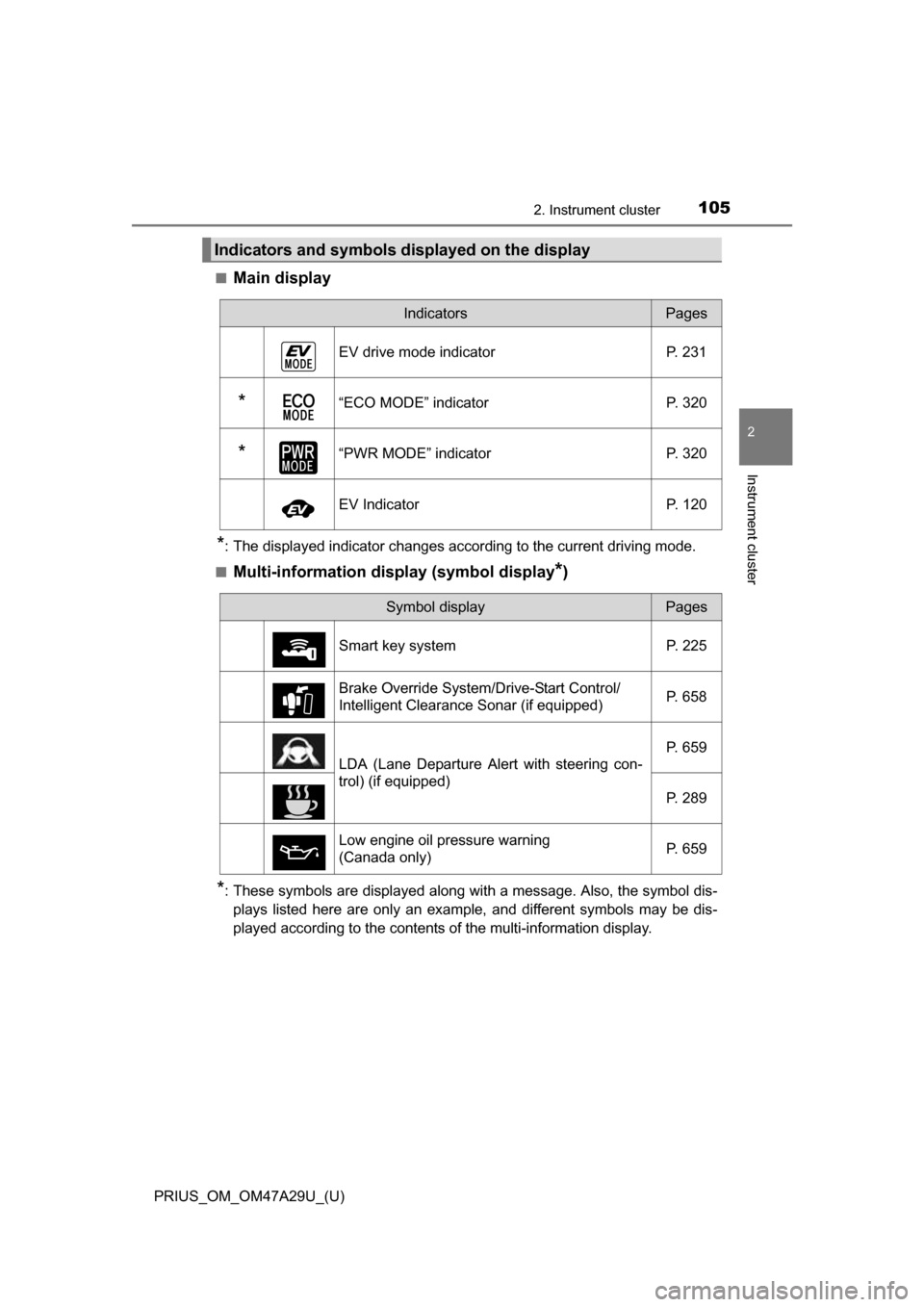

Indicators and symbols displayed on the display
IndicatorsPages
EV drive mode indicator P. 231
*“ECO MODE” indicator P. 320
*“PWR MODE” indicatorP. 320
EV IndicatorP. 120
Symbol displayPages
Smart key system P. 225
Brake Override System/Drive-Start Control/
Intelligent Clearance Sonar (if equipped) P. 658
LDA (Lane Departure Alert with steering con-
trol) (if equipped)P. 659
P. 289
Low engine oil pressure warning
(Canada only) P. 659

106
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

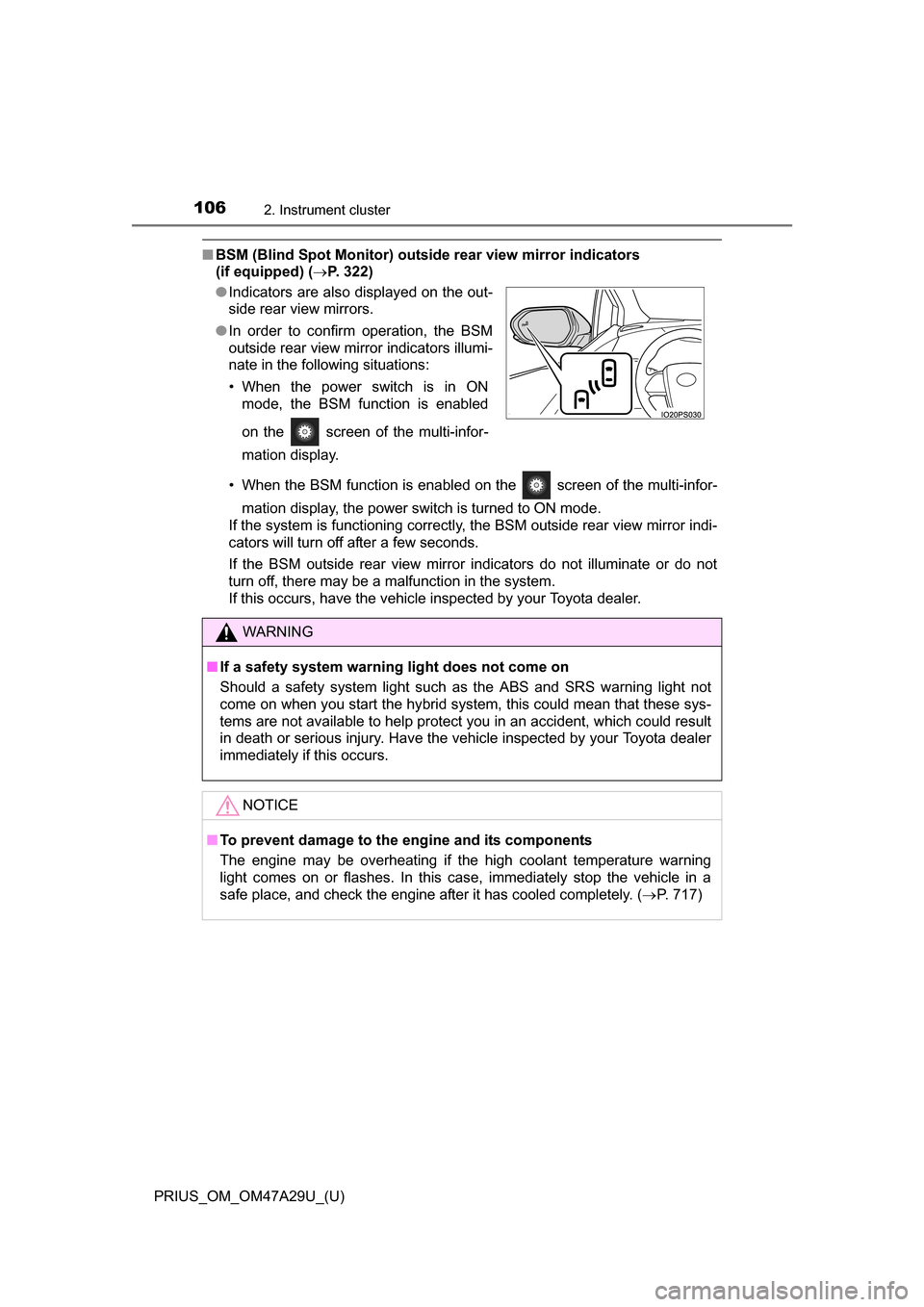

■BSM (Blind Spot Monitor) outsid e rear view mirror indicators
(if equipped) ( P. 322)
• When the BSM function is enabled on the screen of the multi-infor- mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota dealer.
●
Indicators are also displayed on the out-
side rear view mirrors.
● In order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not
come on when you start the hybrid system, this could mean that these sys-
tems are not available to help protect you in an accident, which could r\
esult
in death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.
NOTICE
■To prevent damage to the engine and its components
The engine may be overheating if the high coolant temperature warning
light comes on or flashes. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely. (P. 717)

107
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster
2
Instrument cluster

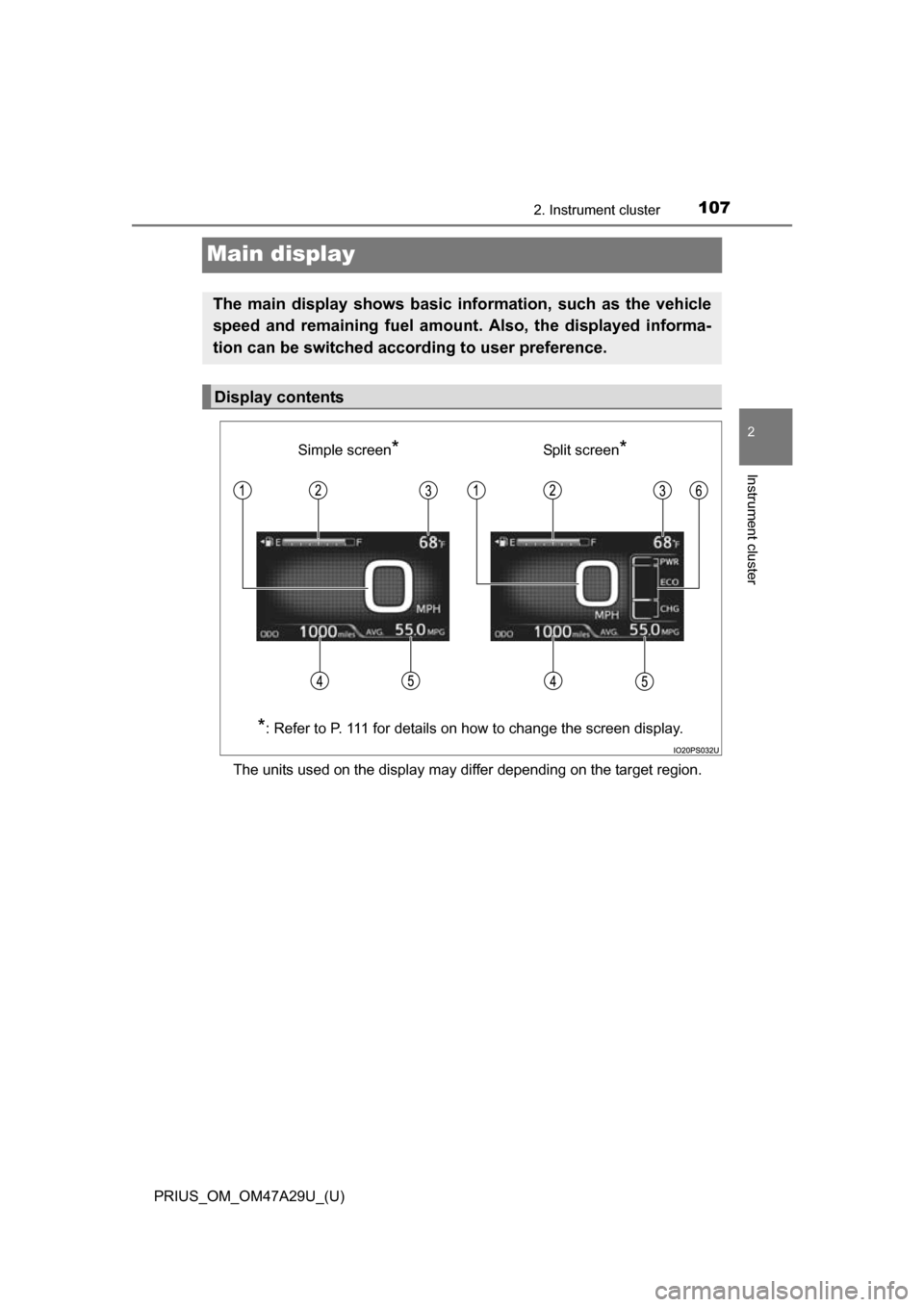

Main display
The units used on the display may differ depending on the target region.
The main display shows basic information, such as the vehicle
speed and remaining fuel amount . Also, the displayed informa-
tion can be switched according to user preference.
Display contents
Simple screen*Split screen*
*
: Refer to P. 111 for details on how to change the screen display.

108
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

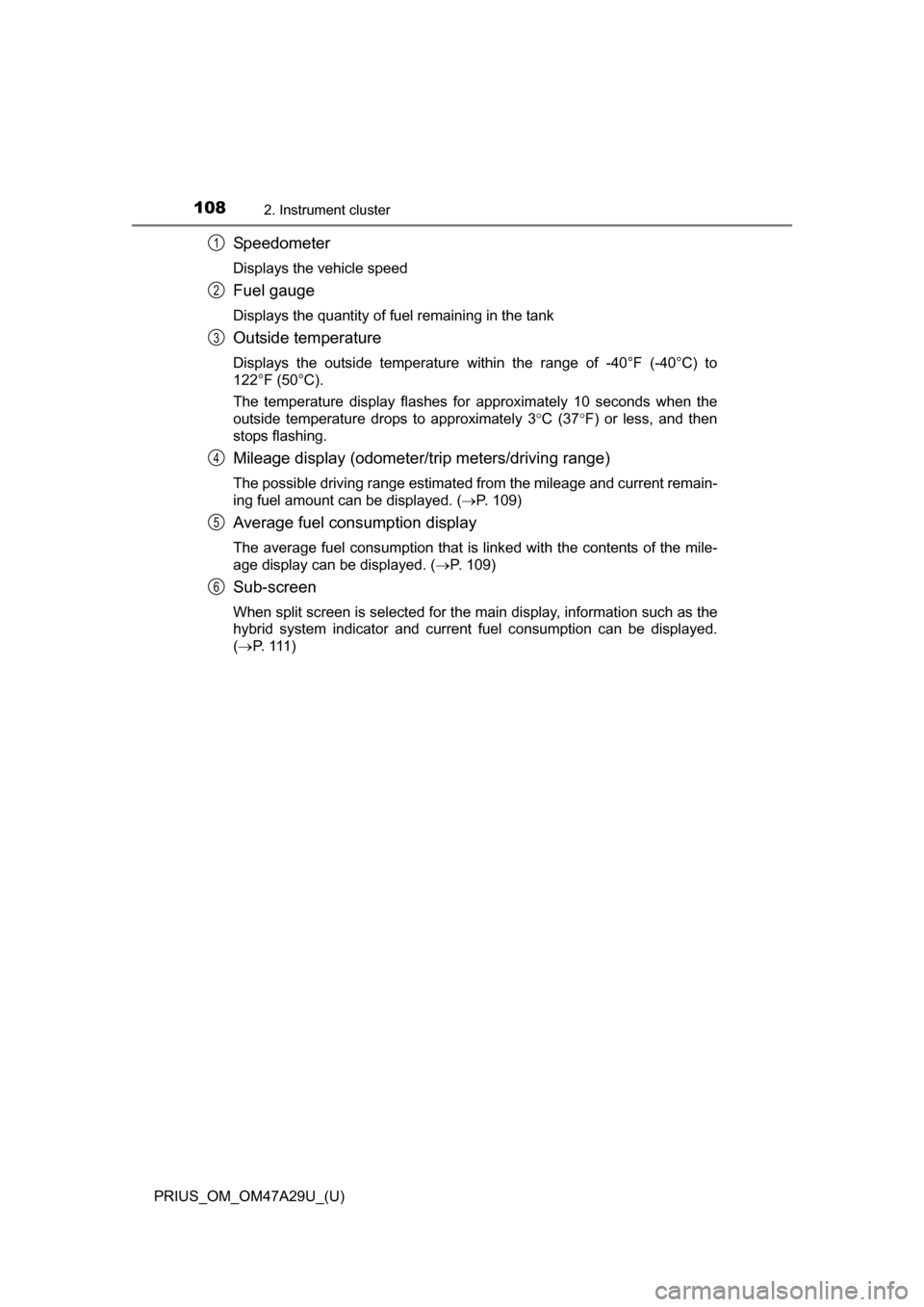

Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Outside temperature
Displays the outside temperature within the range of -40°F (-40°C) to
122°F (50°C).
The temperature display flashes for approximately 10 seconds when the
outside temperature drops to approximately 3C (37 F) or less, and then
stops flashing.
Mileage display (odometer/trip meters/driving range)
The possible driving range estimated from the mileage and current remain-
ing fuel amount can be displayed. ( P. 109)
Average fuel consumption display
The average fuel consumption that is linked with the contents of the mile-
age display can be displayed. (P. 109)
Sub-screen
When split screen is selected for the main display, information such as the
hybrid system indicator and current fuel consumption can be displayed.
( P. 1 1 1 )
1
2
3
4
5
6

PRIUS_OM_OM47A29U_(U)
1092. Instrument cluster
2
Instrument cluster

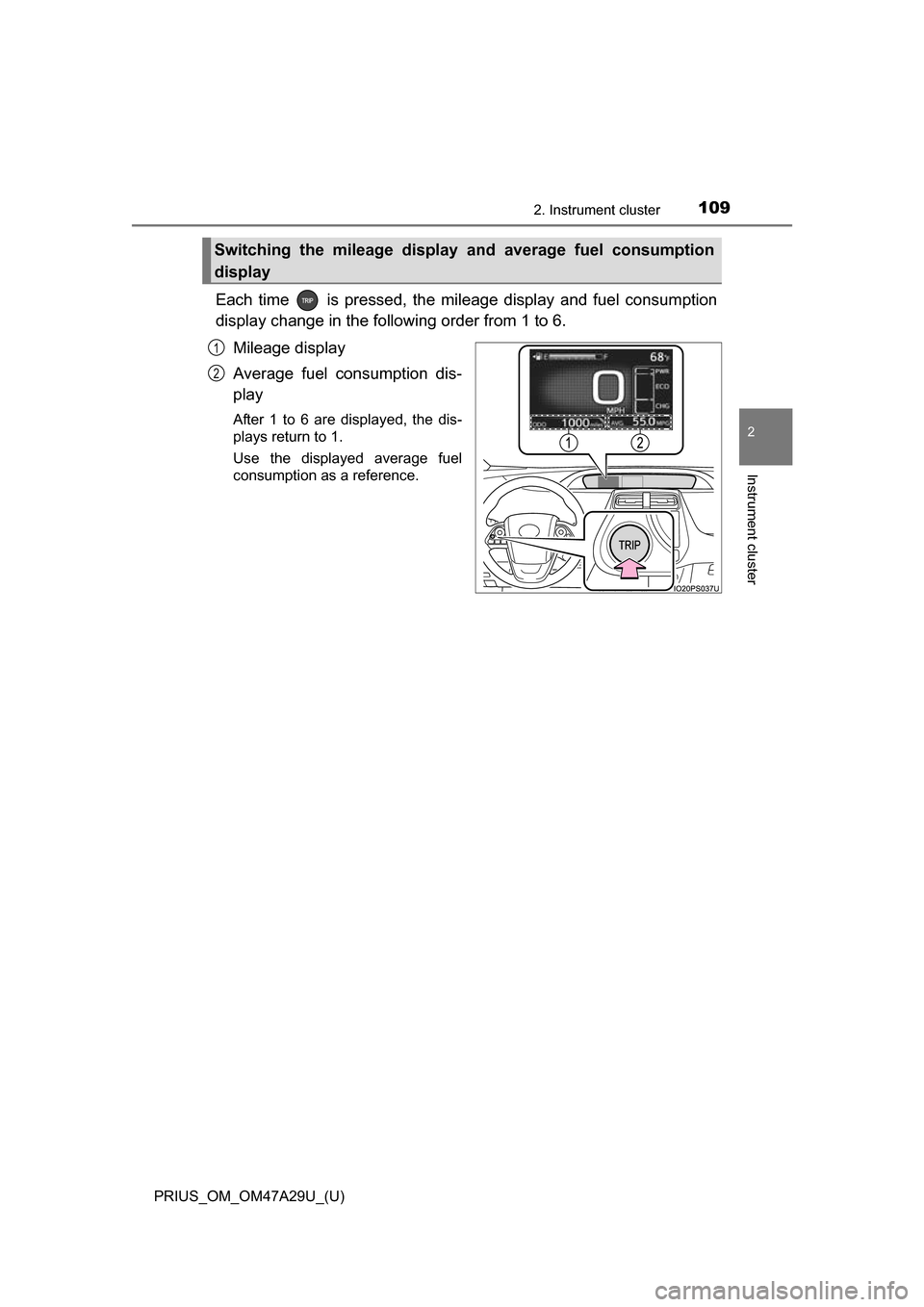

Each time is pressed, the mileage display and fuel consumption
display change in the following order from 1 to 6.
Mileage display
Average fuel consumption dis-
play
After 1 to 6 are displayed, the dis-
plays return to 1.
Use the displayed average fuel
consumption as a reference.
Switching the mileage display and average fuel consumption
display
1
2

110
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

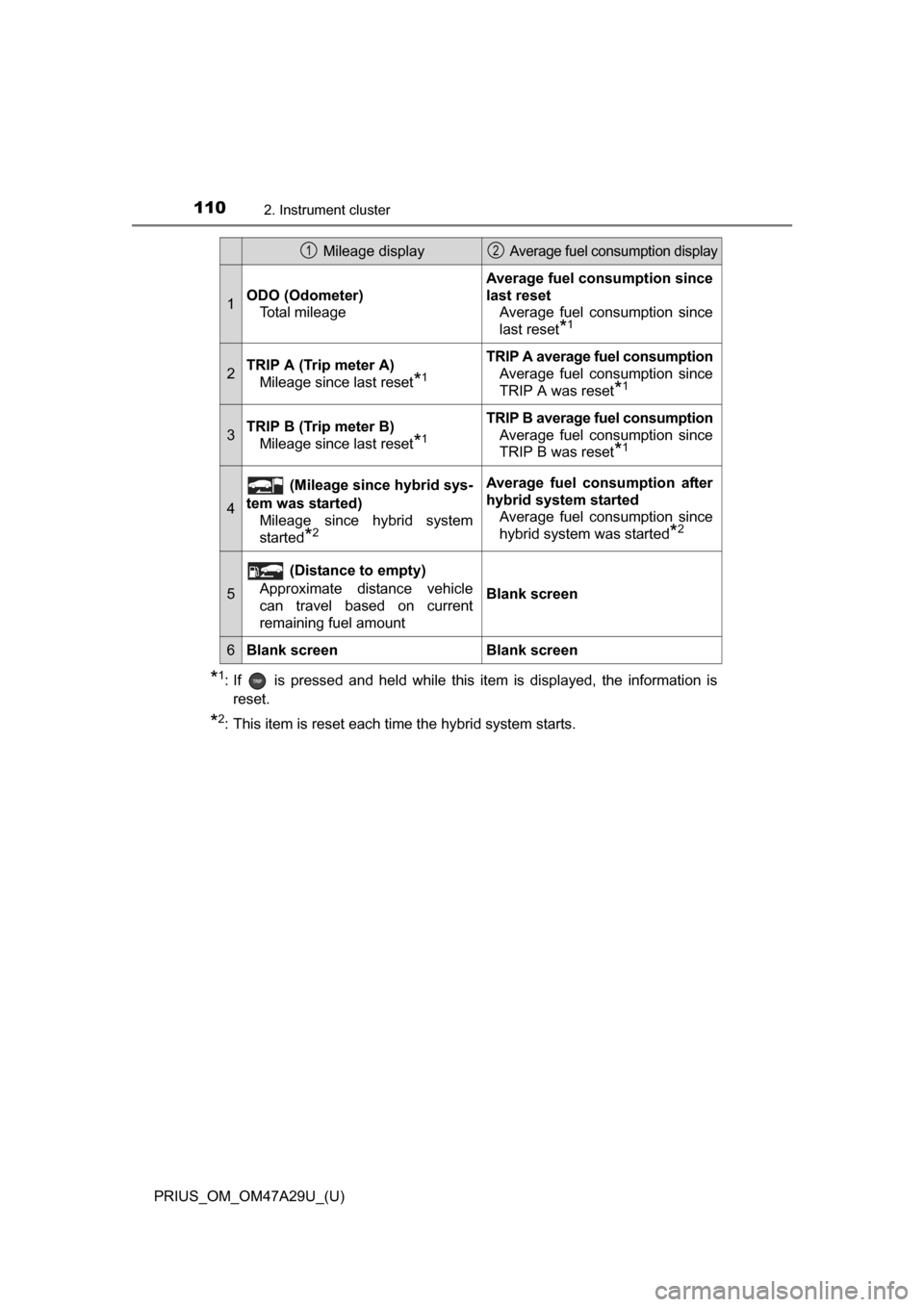

*1: If is pressed and held while this item is displayed, the information isreset.
*2: This item is reset each time the hybrid system starts.
Mileage display Average fuel consumption display
1ODO (Odometer) Total mileage
Average fuel consumption since
last resetAverage fuel consumption since
last reset
*1
2TRIP A (Trip meter A)Mileage since last reset
*1
TRIP A average fuel consumption
Average fuel consumption since
TRIP A was reset
*1
3TRIP B (Trip meter B)Mileage since last reset
*1
TRIP B average fuel consumptionAverage fuel consumption since
TRIP B was reset
*1
4
(Mileage since hybrid sys-
tem was started) Mileage since hybrid system
started
*2
Average fuel consumption after
hybrid system startedAverage fuel consumption since
hybrid system was started
*2
5
(Distance to empty)
Approximate distance vehicle
can travel based on current
remaining fuel amount
Blank screen
6Blank screenBlank screen
12

PRIUS_OM_OM47A29U_(U)
1112. Instrument cluster
2
Instrument cluster

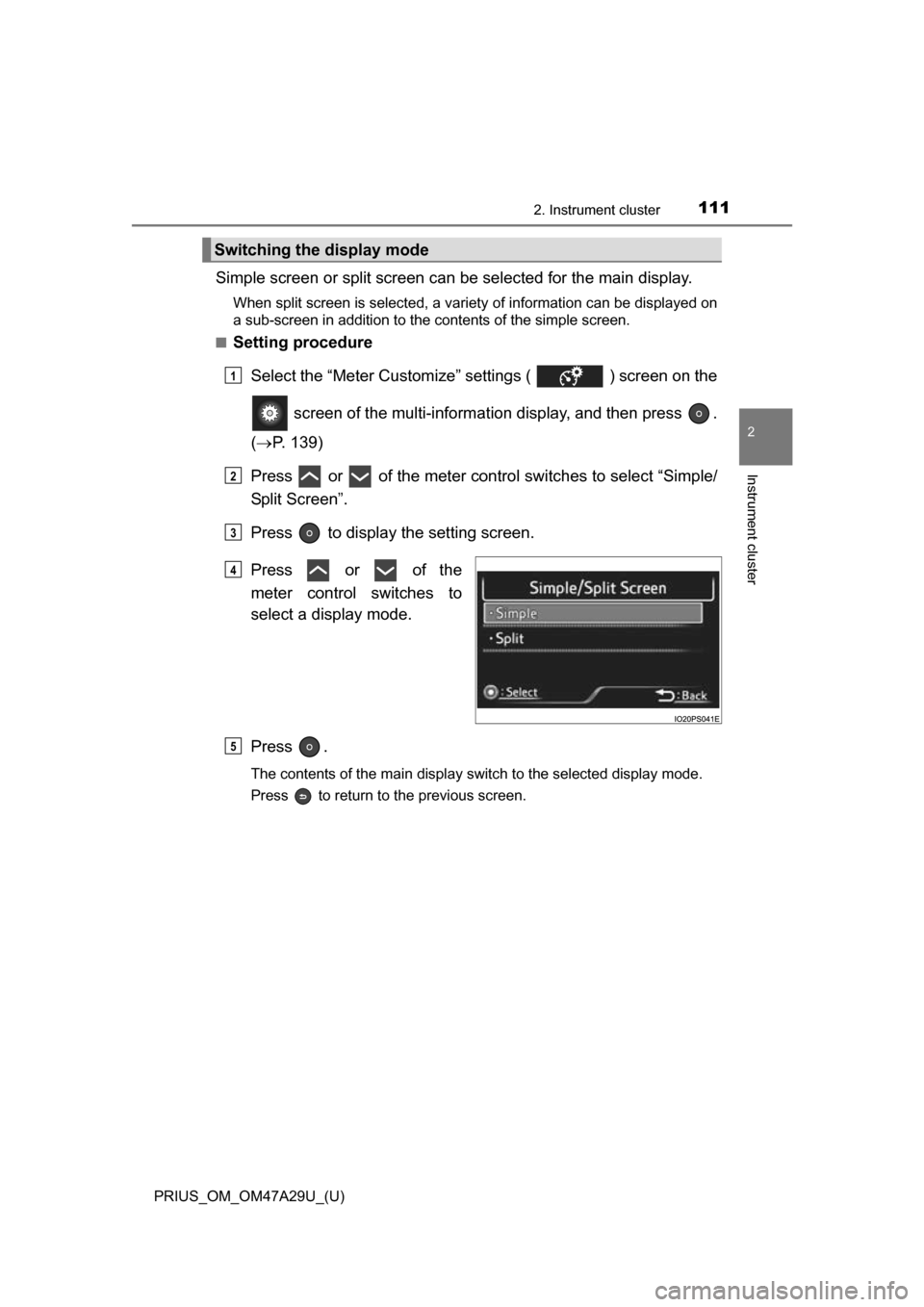

Simple screen or split screen can be selected for the main display.
When split screen is selected, a variety of information can be displayed on
a sub-screen in addition to the contents of the simple screen.
■
Setting procedure
Select the “Meter Customize” settings ( ) screen on the
screen of the multi-informat ion display, and then press .
(  P. 139)
Press or of the meter contro l switches to select “Simple/
Split Screen”.
Press to display the setting screen.
Press or of the
meter control switches to
select a display mode.
Press .
The contents of the main display switch to the selected display mode.
Press to return to the previous screen.
Switching the display mode
1
2
3
4
5

112
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

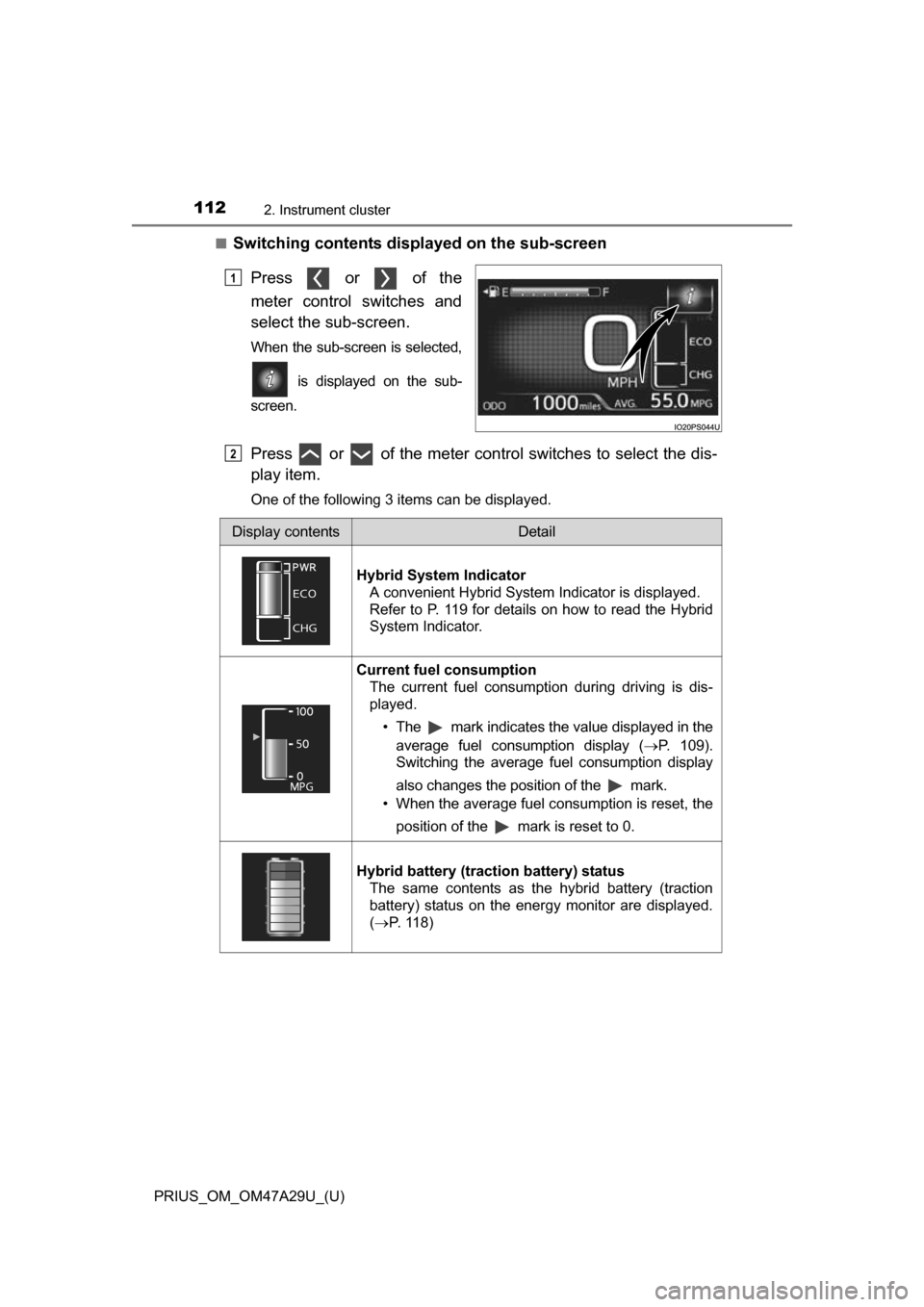

■Switching contents displayed on the sub-screenPress or of the
meter control switches and
select the sub-screen.
When the sub-screen is selected,
is displayed on the sub-
screen.
Press or of the meter control switches to select the dis-
play item.
One of the following 3 items can be displayed.
1
2
Display contentsDetail
Hybrid System Indicator A convenient Hybrid System Indicator is displayed.
Refer to P. 119 for details on how to read the Hybrid
System Indicator.
Current fuel consumption
The current fuel consumption during driving is dis-
played.
• The mark indicates the value displayed in theaverage fuel consumption display ( P. 109).
Switching the average fuel consumption display
also changes the position of the mark.
• When the average fuel consumption is reset, the
position of the mark is reset to 0.
Hybrid battery (traction battery) statusThe same contents as the hybrid battery (traction
battery) status on the energy monitor are displayed.
(P. 118)
