2016 TOYOTA PRIUS Owners Manual

7218-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
8
When trouble arises

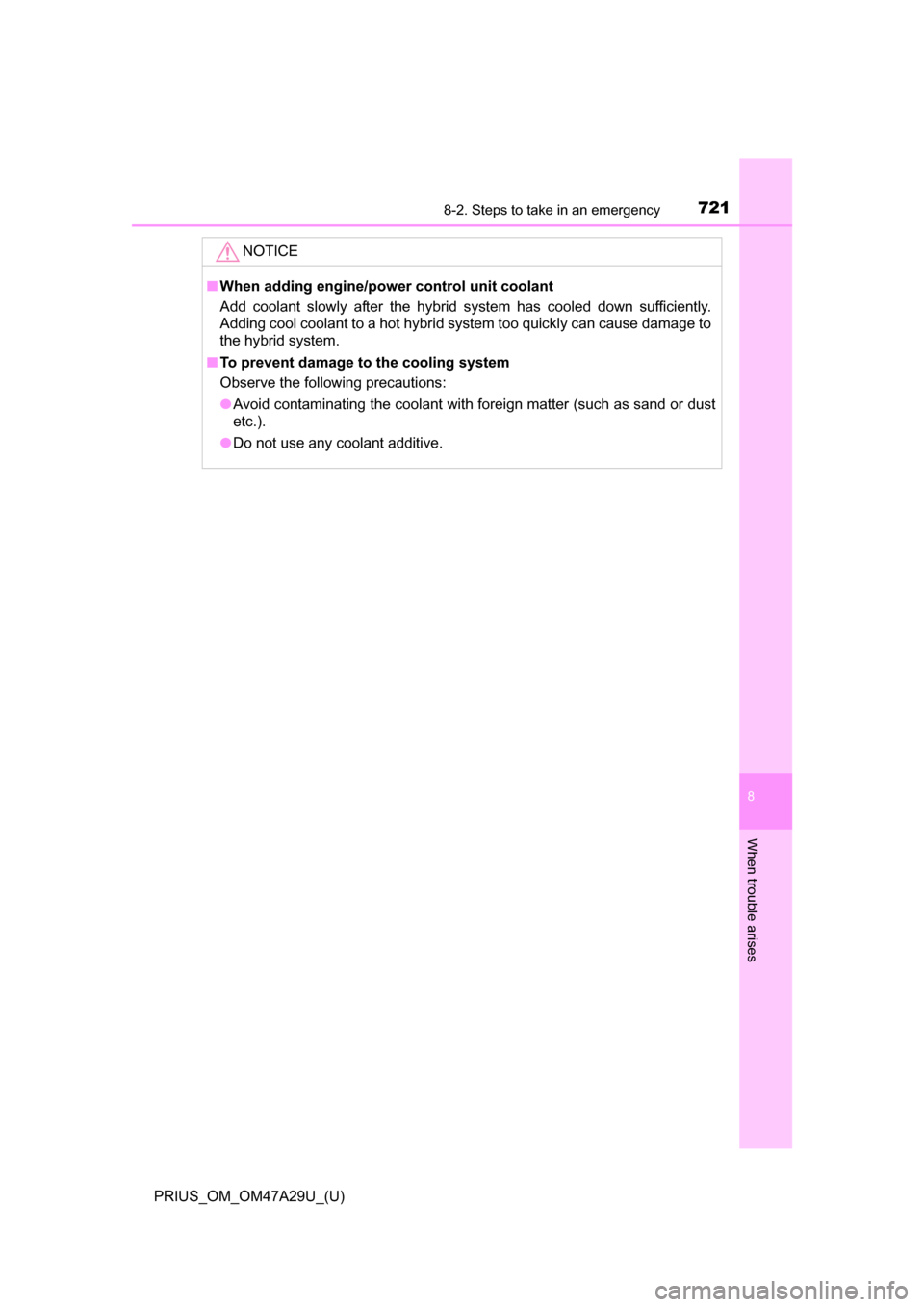

NOTICE
■When adding engine/power control unit coolant
Add coolant slowly after the hybrid system has cooled down sufficiently.
Adding cool coolant to a hot hybrid system too quickly can cause damage to
the hybrid system.
■ To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
● Do not use any coolant additive.

722
PRIUS_OM_OM47A29U_(U)
8-2. Steps to take in an emergency
If the vehicle becomes stuck
Set the parking brake and shift the shift position to P. Stop the
hybrid system.
Remove the mud, snow or sand from around the front wheels.
Place wood, stones or some othe r material under the front wheels
to help provide traction.
Restart the hybrid system.
Shift the shift position to D or R and release the parking brake.
Then, while exercising caution, depress the accelerator pedal.
■ When it is difficult to free the vehicle
Carry out the following procedures if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:
Press to turn off TRAC. ( P. 406)
1
2
3
4
5

7238-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
8
When trouble arises

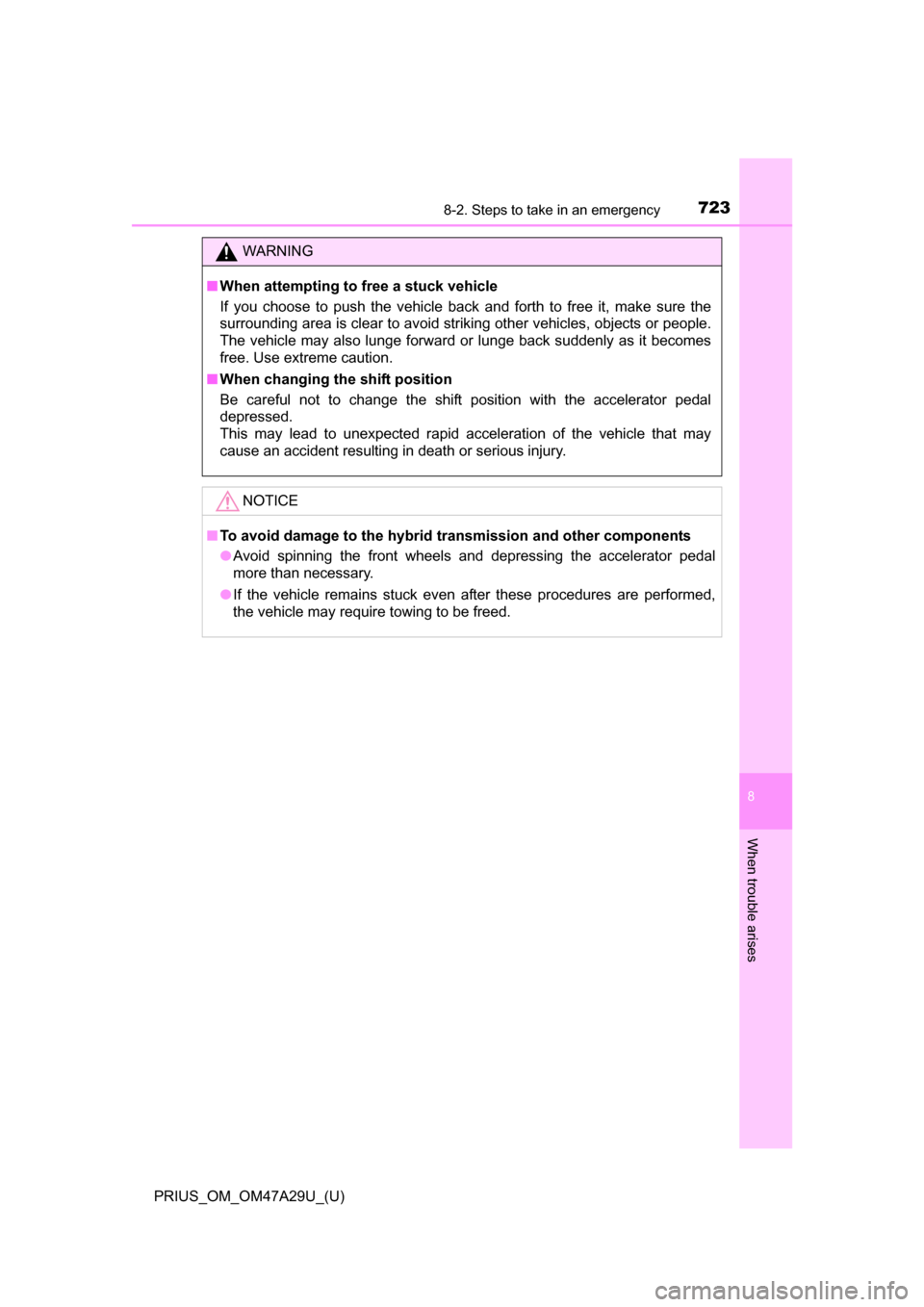

WARNING
■When attempting to free a stuck vehicle
If you choose to push the vehicle back and forth to free it, make sure the
surrounding area is clear to avoid striking other vehicles, objects or people.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
■ When changing the shift position
Be careful not to change the shift position with the accelerator pedal
depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident resulting in death or serious injury.
NOTICE
■To avoid damage to the hybrid transmission and other components
● Avoid spinning the front wheels and depressing the accelerator pedal
more than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

7248-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)

725
PRIUS_OM_OM47A29U_(U)

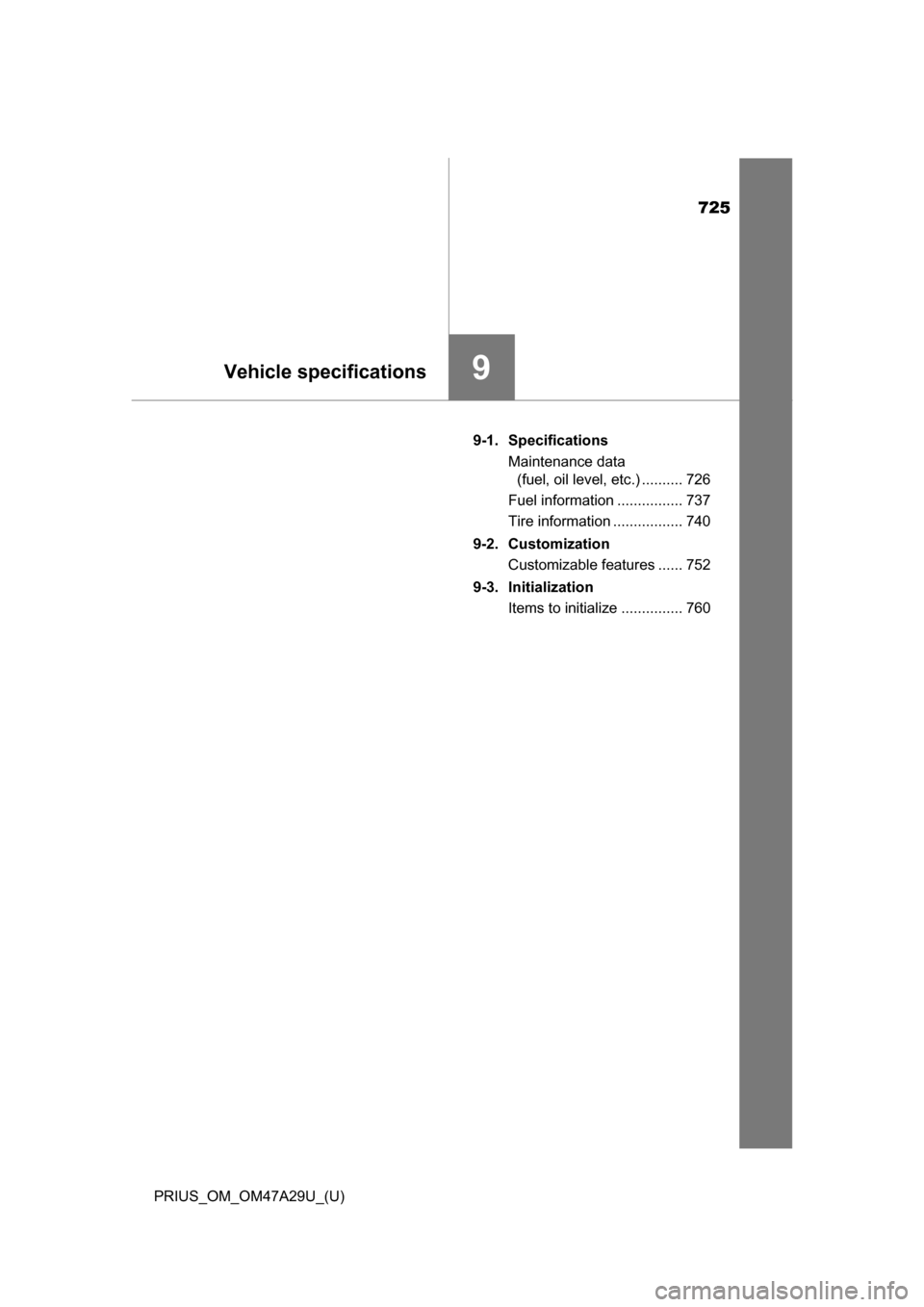

9Vehicle specifications
9-1. SpecificationsMaintenance data (fuel, oil level, etc.) .......... 726
Fuel information ................ 737
Tire information ................. 740
9-2. Customization Customizable features ...... 752
9-3. Initialization Items to initialize ............... 760

726
PRIUS_OM_OM47A29U_(U)
9-1. Specifications
Maintenance data (fuel, oil level, etc.)
*1: Unladen vehicle
*2: Vehicles with 15-inch tires
*3: Vehicles with 17-inch tires
Dimensions and weight
Overall length178.7 in. (4540 mm)
Overall width69.3 in. (1760 mm)
Overall height*158.1 in. (1475 mm)
Wheelbase106.3 in. (2700 mm)
Tread*1
Front60.2 in. (1530 mm)*2
59.4 in. (1510 mm)*3
Rear60.8 in. (1545 mm)*2
60.0 in. (1525 mm)*3
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)

PRIUS_OM_OM47A29U_(U)
7279-1. Specifications
9
Vehicle specifications
■Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also stamped
under the right-hand front seat.
This number is also on the Cer-
tification label.
Vehicle identification

728
PRIUS_OM_OM47A29U_(U)
9-1. Specifications

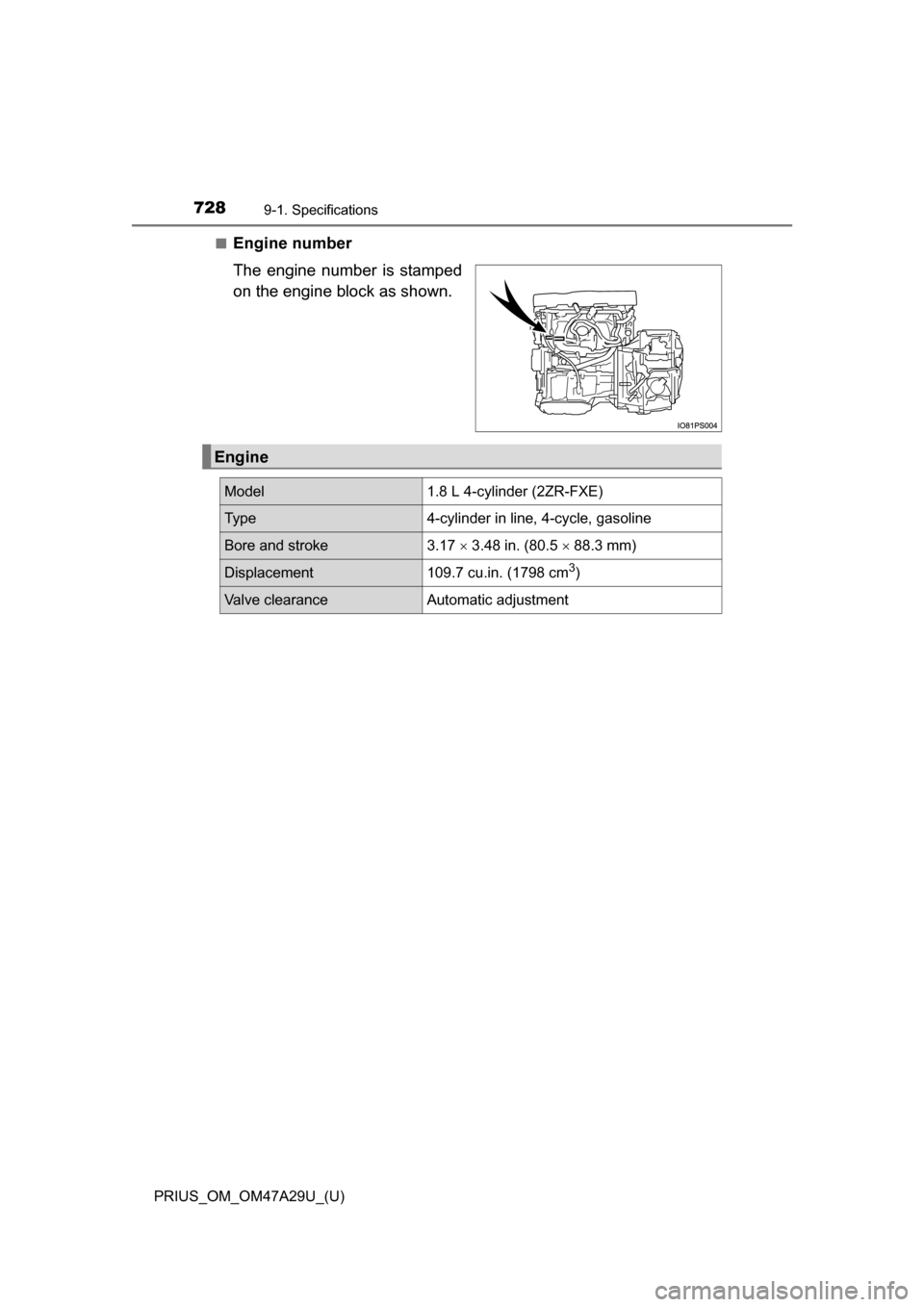

■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.17  3.48 in. (80.5  88.3 mm)
Displacement109.7 cu.in. (1798 cm3)
Valve clearanceAutomatic adjustment
