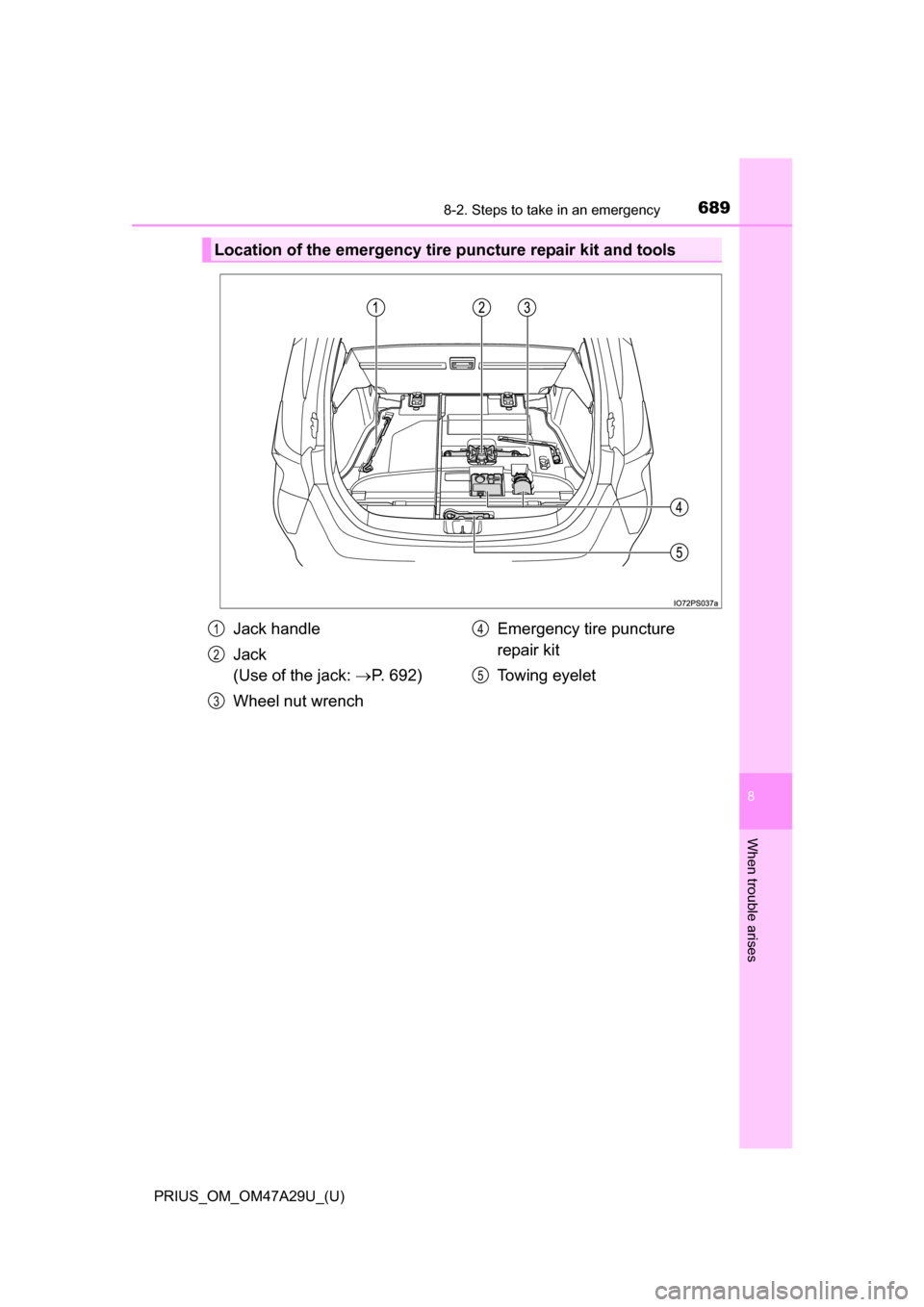

Location of the emergency tire puncture repair kit and tools
Jack handle
Jack
(Use of the jack: P. 692)
Wheel nut wrench Emergency tire puncture
repair kit
Towing eyelet1
2
3
4
5

6908-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)

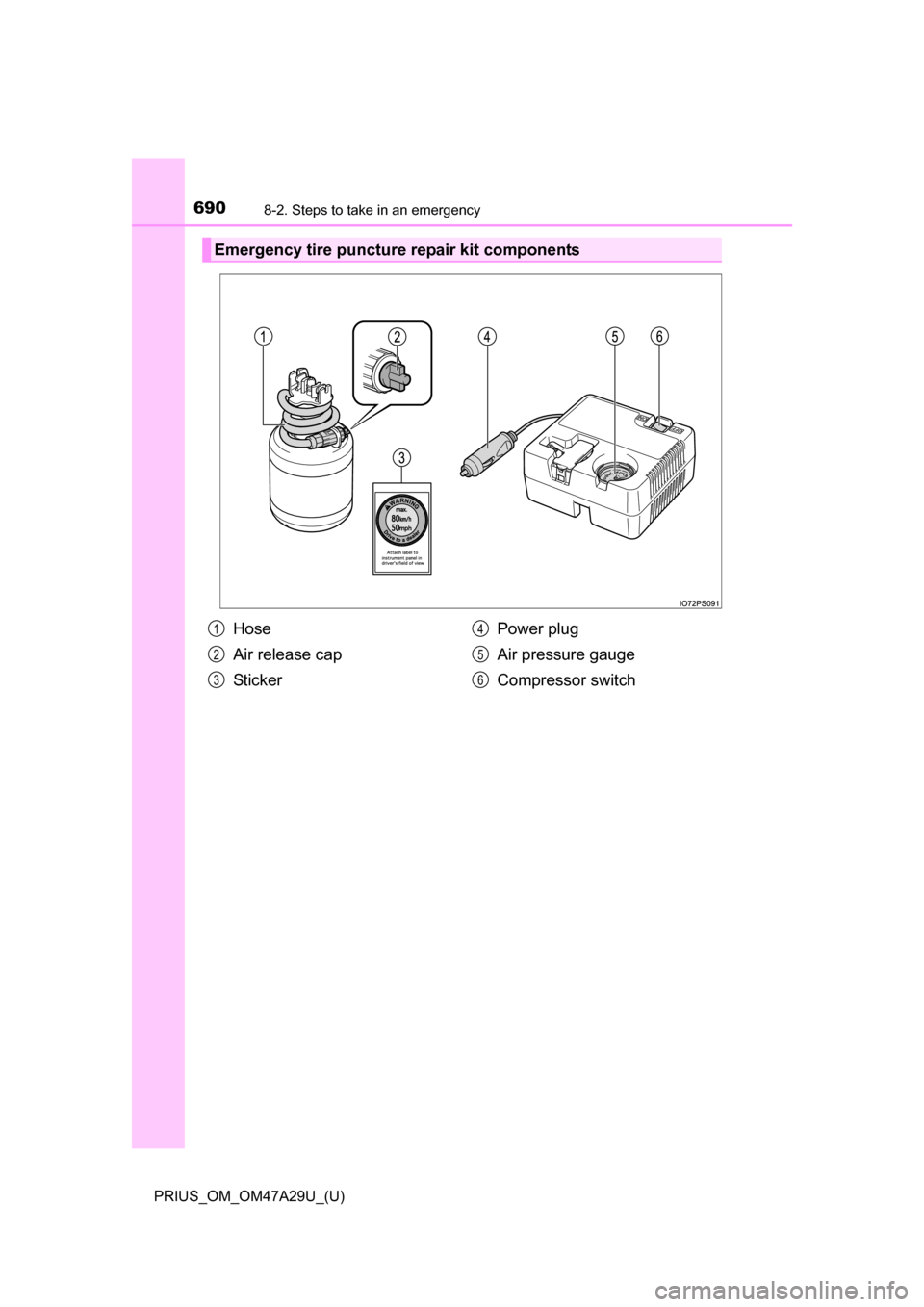

Emergency tire puncture repair kit components
Hose
Air release cap
St i ck erPower plug
Air pressure gauge
Compressor switch1
2
3
4
5
6

6918-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
8
When trouble arises
Pull up the handle to open the
deck board.
Secure the deck board using
the grocery bag hooks.
( P. 535)
Take out the emergency tire
puncture repair kit.
If the luggage cover* is stowed,
turn over the tonneau cover to
take out the emergency tire punc-
ture repair kit.
*: Type A only ( P. 537)

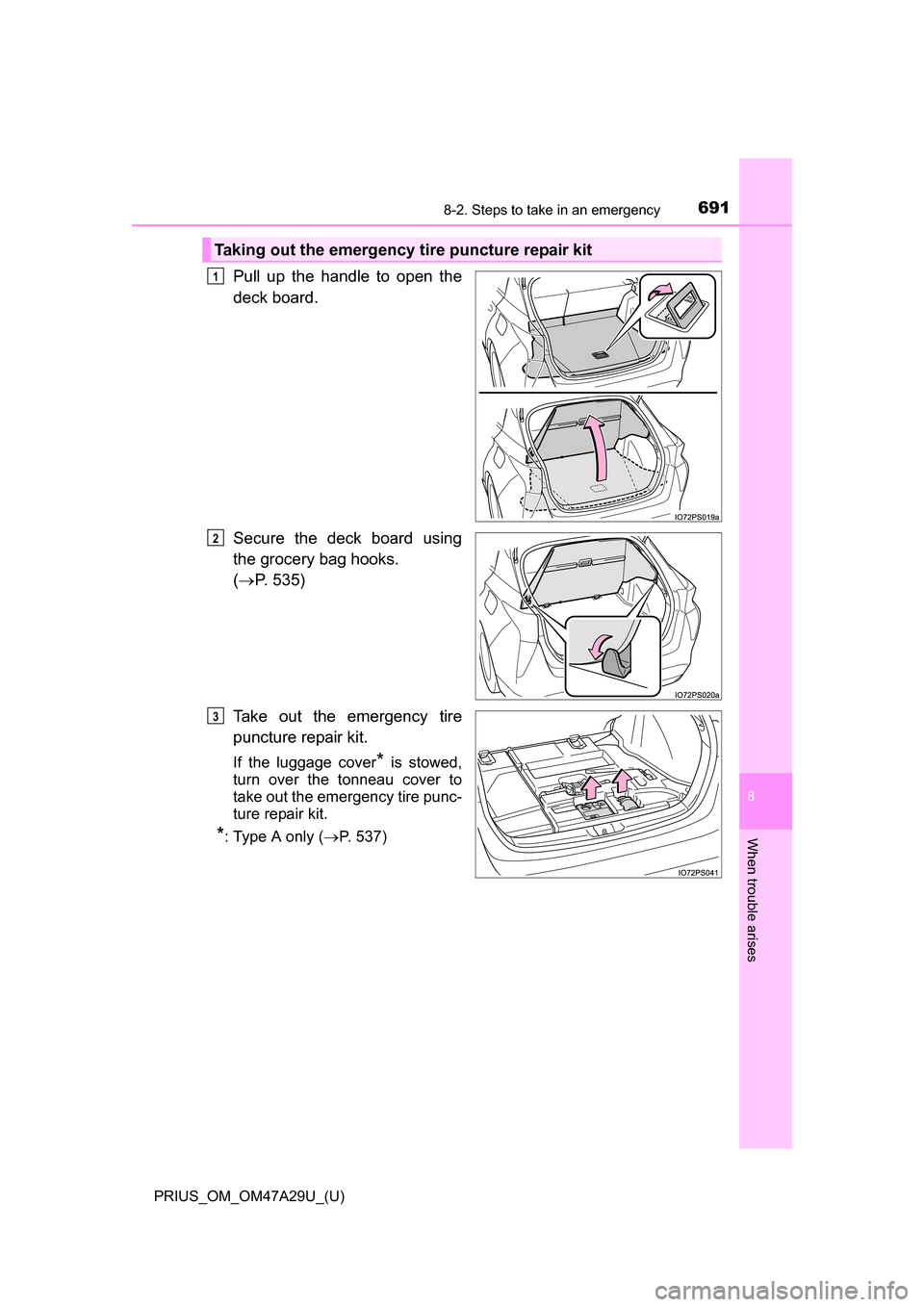

Taking out the emergency tire puncture repair kit
1
2
3

6928-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)

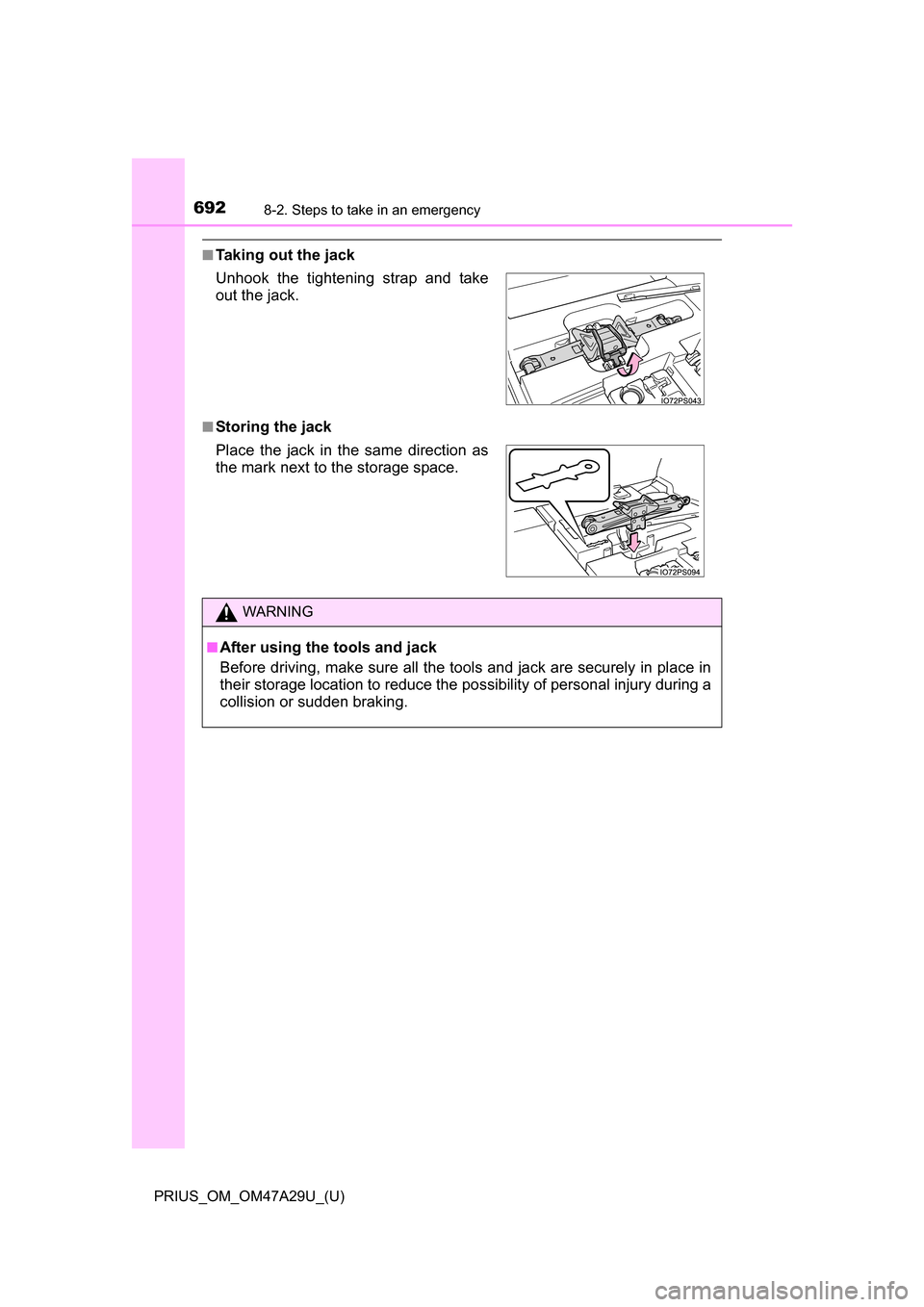

■Taking out the jack
■Storing the jack Unhook the tightening strap and take
out the jack.
Place the jack in the same direction as
the mark next to the storage space.
WARNING
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in
their storage location to reduce the possibility of personal injury during a
collision or sudden braking.

6938-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
8
When trouble arises
Take out the repair kit from the plastic bag.
Remove the valve cap from the
valve of the punctured tire.
Extend the hose. Remove the
air release cap from the hose.
Attach the sticker enclosed with
the bottle on the specified loca-
tions. (See step .)
You will use the air release cap
again. Therefore keep it in a safe
place.
Connect the hose to the valve.
Screw the end of the hose clock-
wise as far as possible.

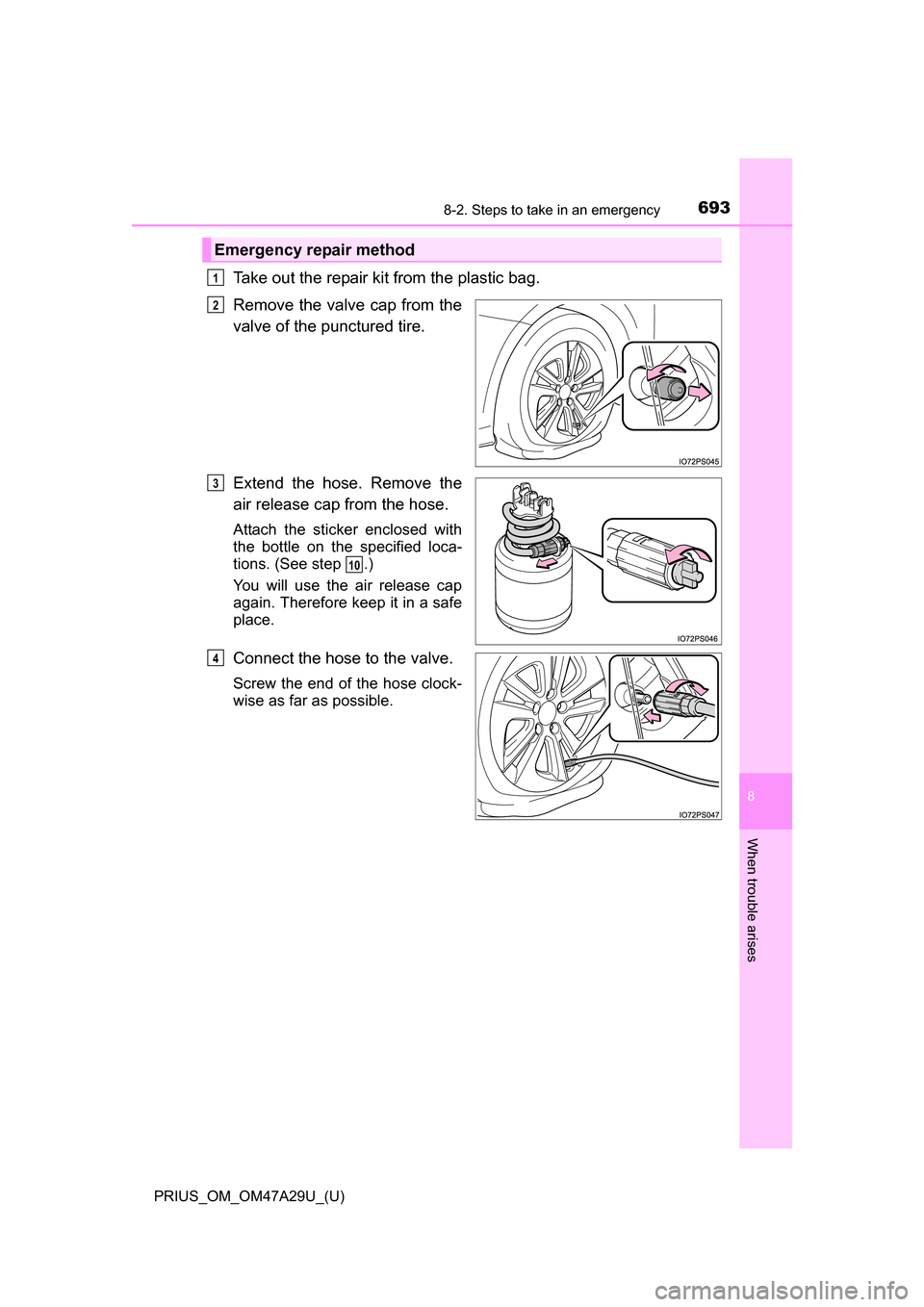

Emergency repair method
1
2
3
10
4

6948-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)

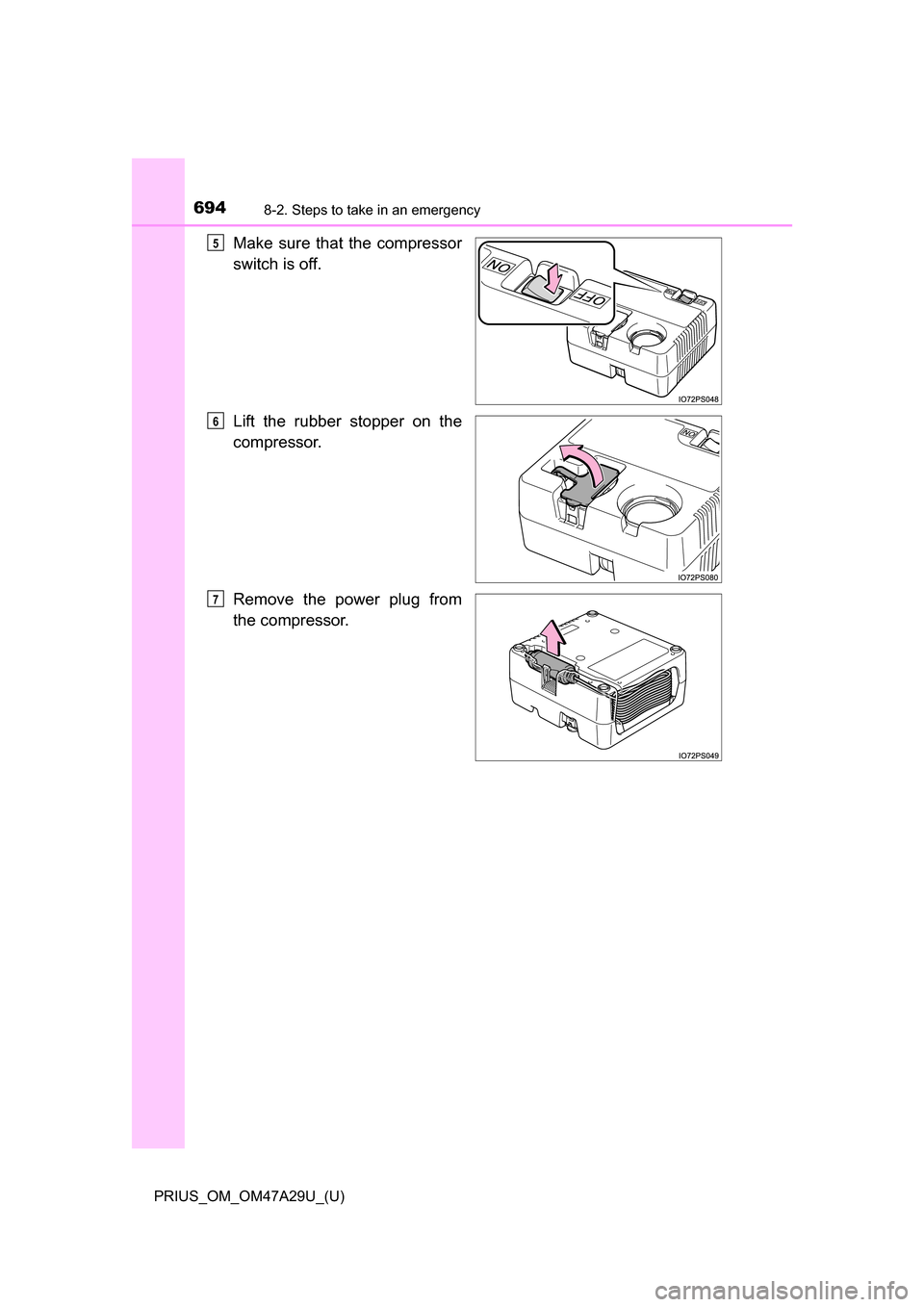

Make sure that the compressor
switch is off.
Lift the rubber stopper on the
compressor.
Remove the power plug from
the compressor.5
6
7

6958-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)
8
When trouble arises

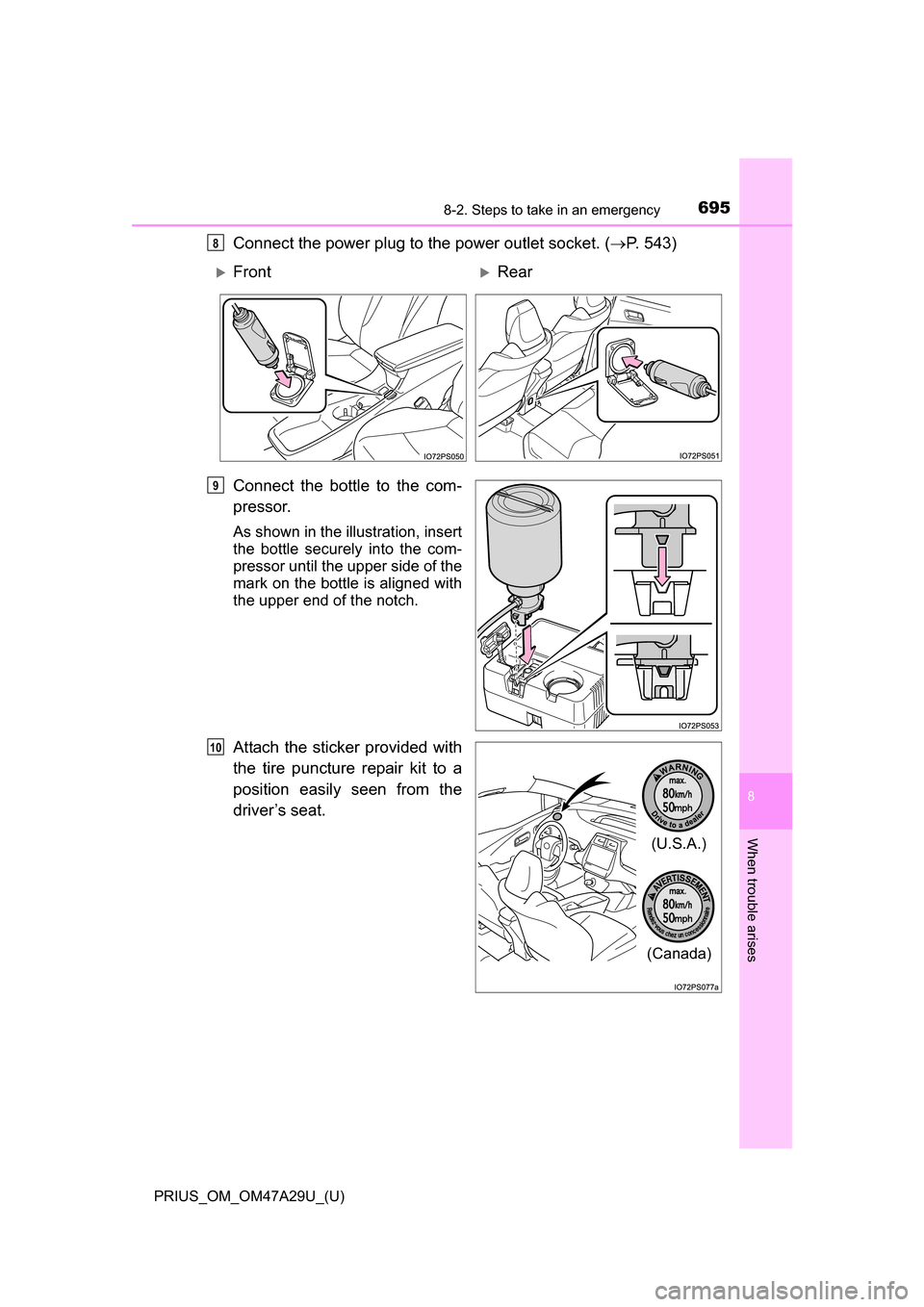

Connect the power plug to the power outlet socket. (P. 543)
Connect the bottle to the com-
pressor.
As shown in the illustration, insert
the bottle securely into the com-
pressor until the upper side of the
mark on the bottle is aligned with
the upper end of the notch.
Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.
8
FrontRear
9
(U.S.A.)
(Canada)
10

6968-2. Steps to take in an emergency
PRIUS_OM_OM47A29U_(U)

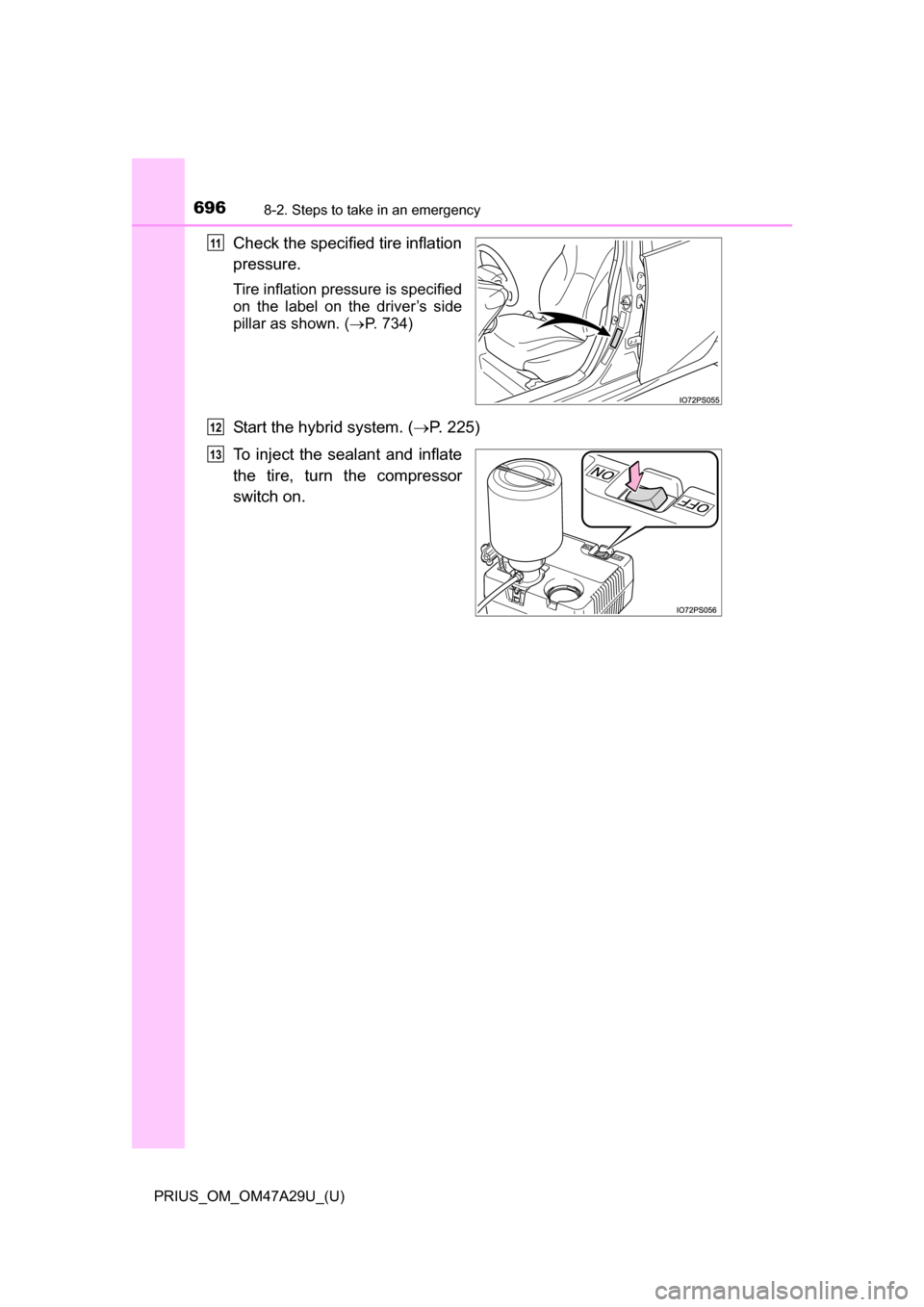

Check the specified tire inflation
pressure.
Tire inflation pressure is specified
on the label on the driver’s side
pillar as shown. (P. 734)
Start the hybrid system. ( P. 225)
To inject the sealant and inflate
the tire, turn the compressor
switch on.
11
12
13
