2016 TOYOTA PRIUS Owners Manual

PRIUS_OM_OM47A29U_(U)
5376-3. Using the storage features
6
Interior features

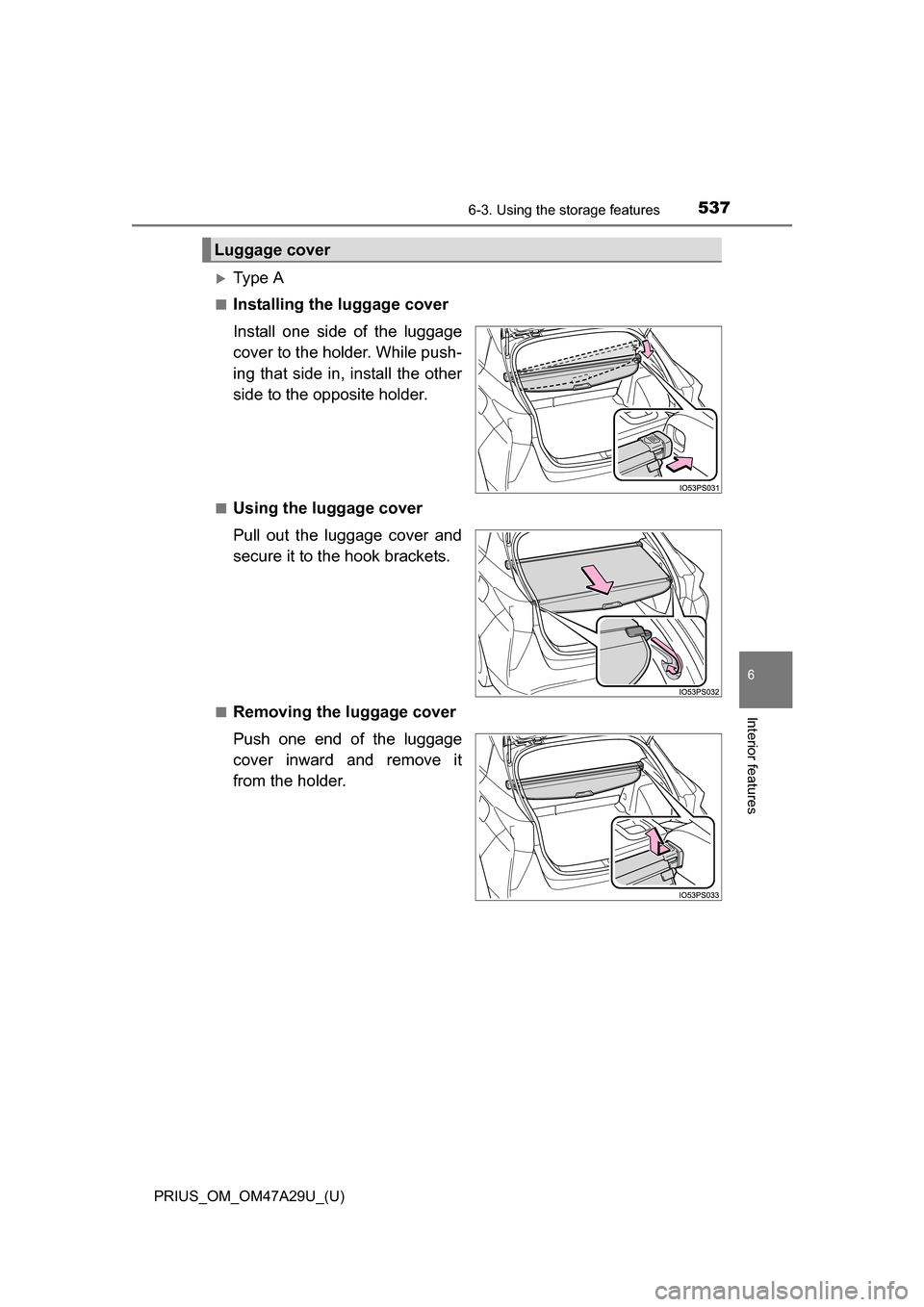

Ty p e A
■Installing the luggage cover
Install one side of the luggage
cover to the holder. While push-
ing that side in, install the other
side to the opposite holder.
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
■Removing the luggage cover
Push one end of the luggage
cover inward and remove it
from the holder.
Luggage cover

538
PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features

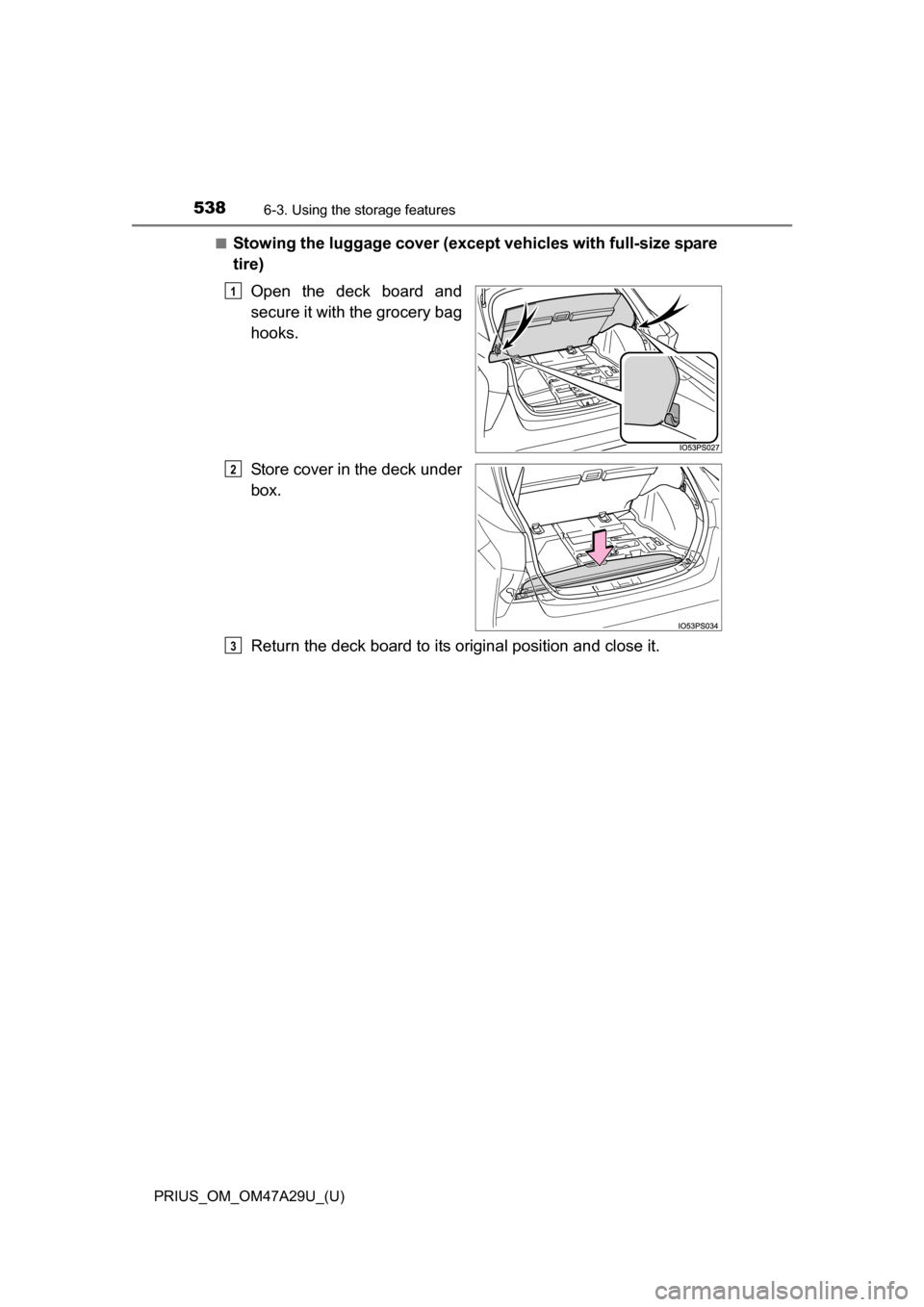

■Stowing the luggage cover (except vehicles with full-size spare
tire)
Open the deck board and
secure it with the grocery bag
hooks.
Store cover in the deck under
box.
Return the deck board to its or iginal position and close it.
1
2
3

PRIUS_OM_OM47A29U_(U)
5396-3. Using the storage features
6
Interior features

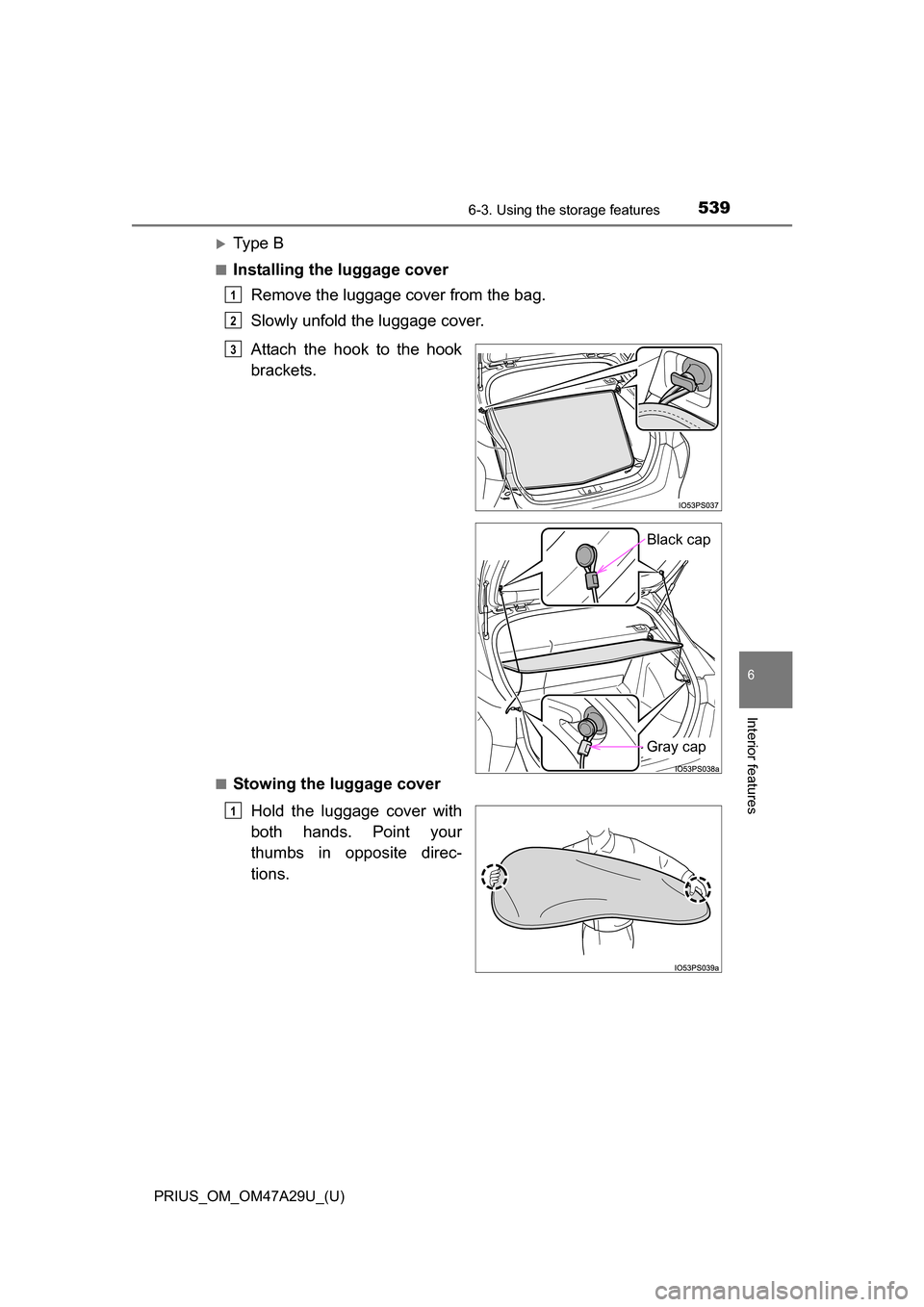

Ty p e B
■Installing the luggage coverRemove the luggage cover from the bag.
Slowly unfold the luggage cover.
■Stowing the luggage cover
Hold the luggage cover with
both hands. Point your
thumbs in opposite direc-
tions.
1
2
Attach the hook to the hook
brackets.3
Black cap
Gray cap
1

540
PRIUS_OM_OM47A29U_(U)
6-3. Using the storage features

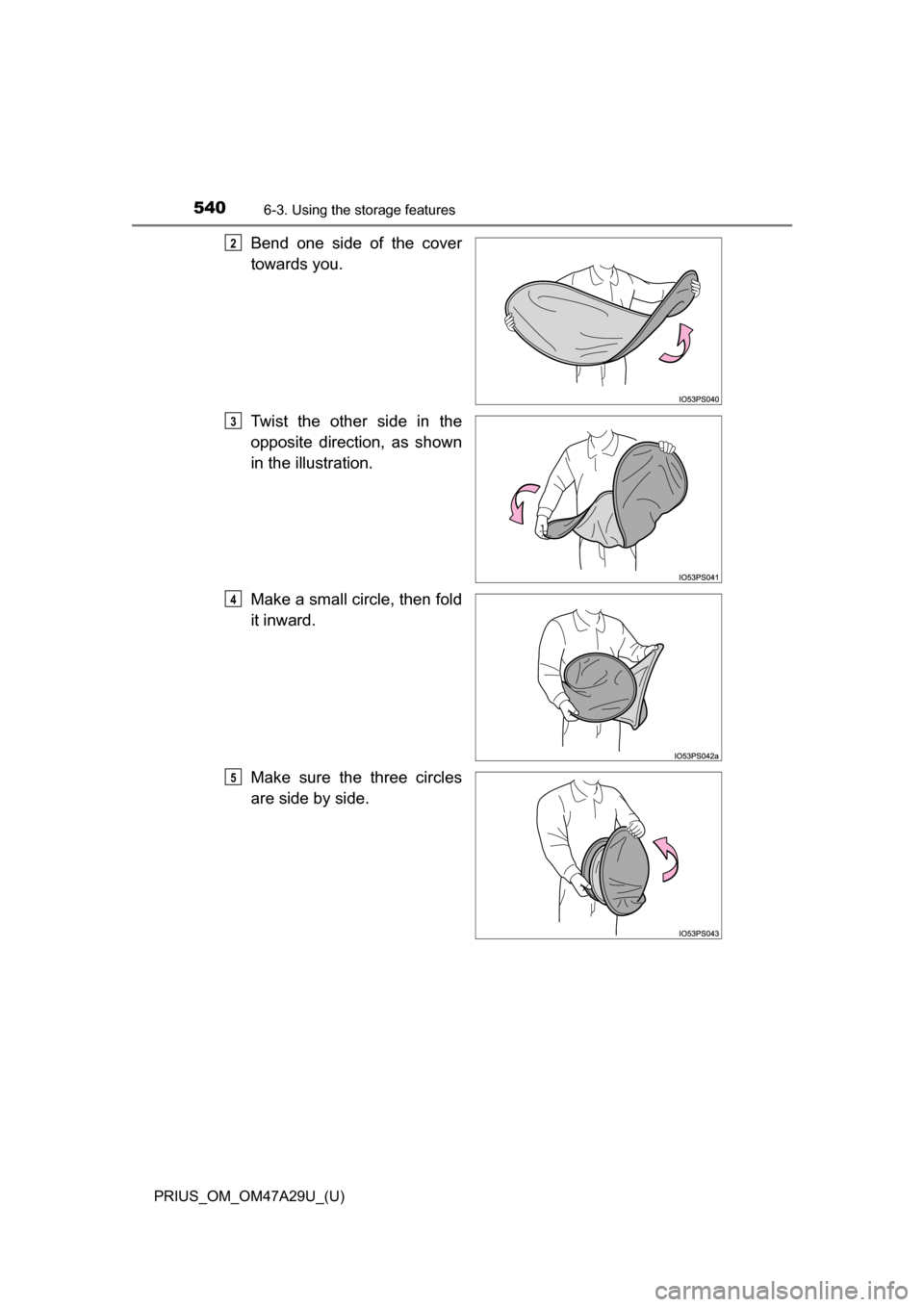

Bend one side of the cover
towards you.
Twist the other side in the
opposite direction, as shown
in the illustration.
Make a small circle, then fold
it inward.
Make sure the three circles
are side by side.2
3
4
5

PRIUS_OM_OM47A29U_(U)
5416-3. Using the storage features
6
Interior features

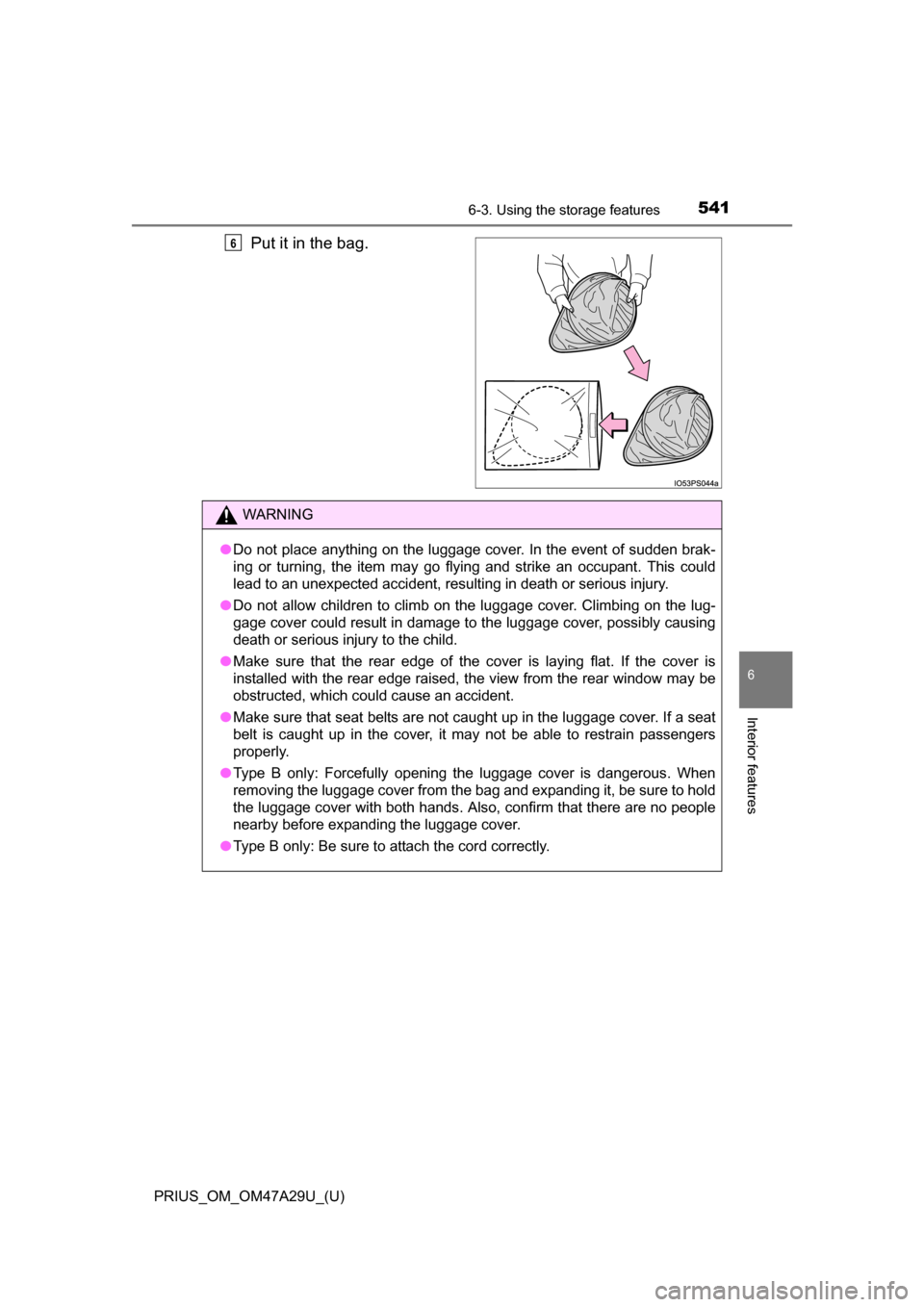

Put it in the bag.6
WARNING
●Do not place anything on the luggage cover. In the event of sudden brak-
ing or turning, the item may go flying and strike an occupant. This could
lead to an unexpected accident, resulting in death or serious injury.
● Do not allow children to climb on the luggage cover. Climbing on the lug-
gage cover could result in damage to the luggage cover, possibly causing
death or serious injury to the child.
● Make sure that the rear edge of the cover is laying flat. If the cover is
installed with the rear edge raised, the view from the rear window may be
obstructed, which could cause an accident.
● Make sure that seat belts are not caught up in the luggage cover. If a seat
belt is caught up in the cover, it may not be able to restrain passengers
properly.
● Type B only: Forcefully opening the luggage cover is dangerous. When
removing the luggage cover from the bag and expanding it, be sure to hold
the luggage cover with both hands. Also, confirm that there are no people
nearby before expanding the luggage cover.
● Type B only: Be sure to attach the cord correctly.

542
PRIUS_OM_OM47A29U_(U)
6-4. Using the other interior features

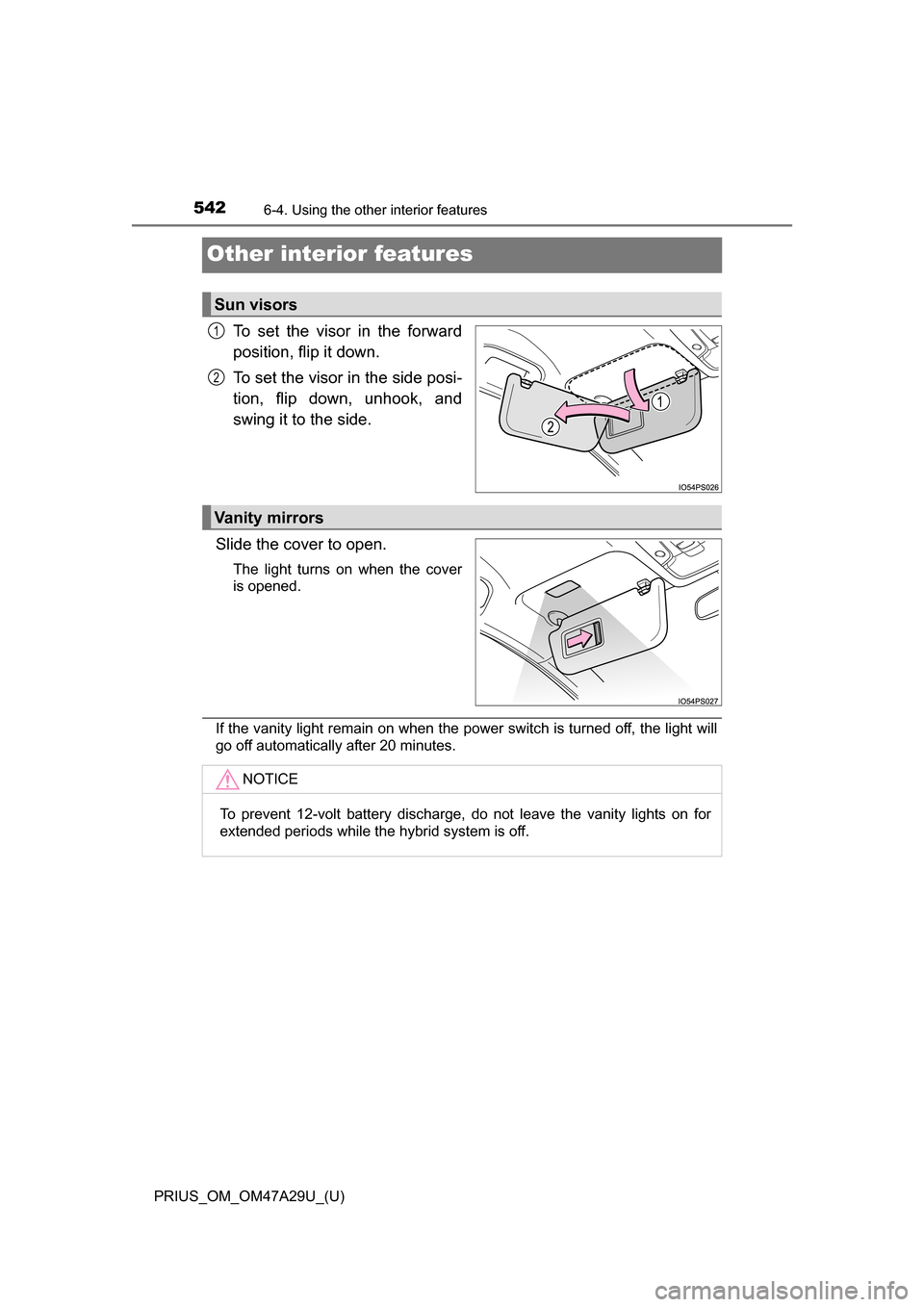

Other interior features
To set the visor in the forward
position, flip it down.
To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover
is opened.
If the vanity light remain on when the power switch is turned off, the light will
go off automatically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for
extended periods while the hybrid system is off.

PRIUS_OM_OM47A29U_(U)
5436-4. Using the other interior features
6
Interior features

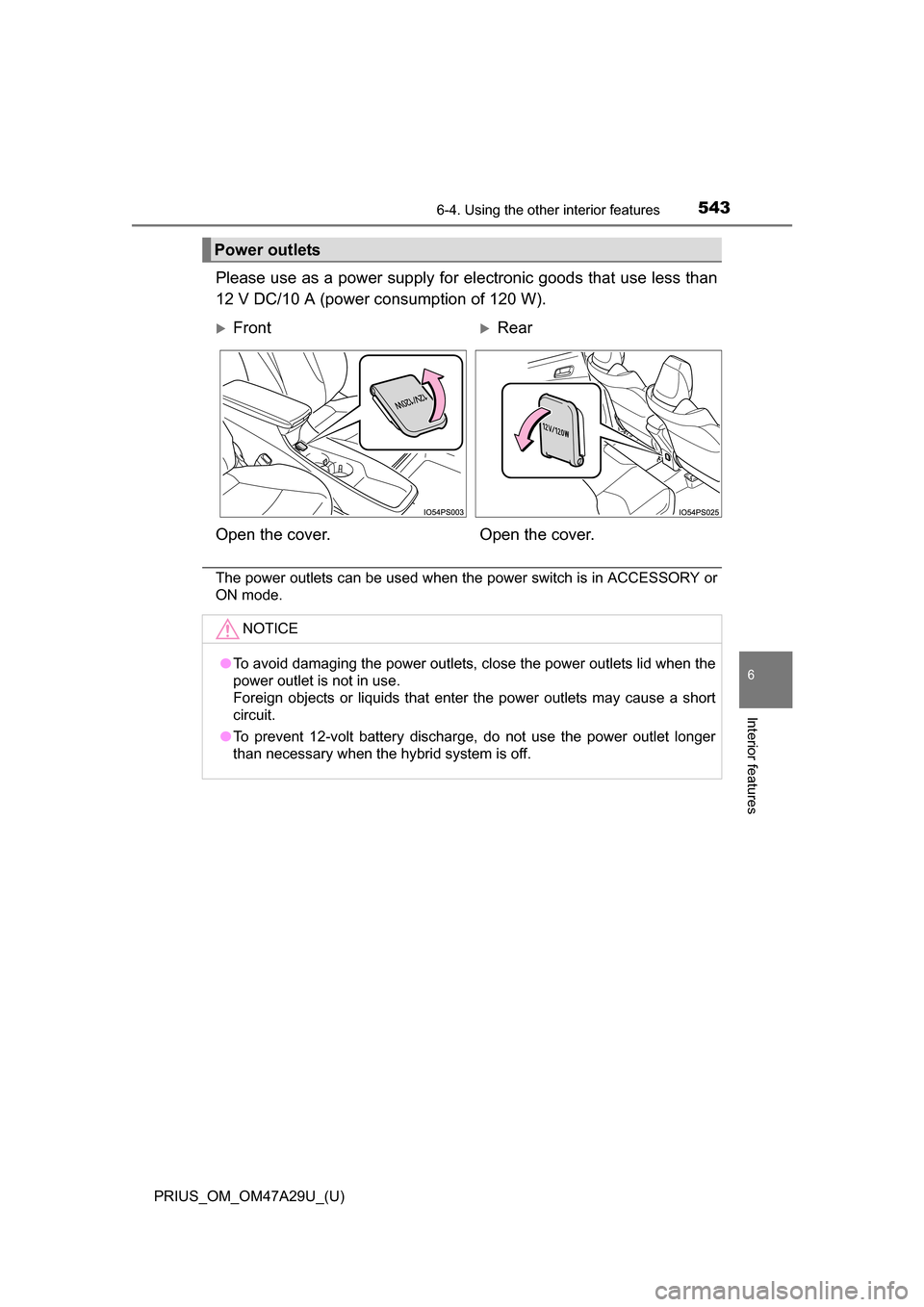

Please use as a power supply for electronic goods that use less than
12 V DC/10 A (power consumption of 120 W).
The power outlets can be used when the power switch is in ACCESSORY or
ON mode.
Power outlets
FrontRear
Open the cover. Open the cover.
NOTICE
● To avoid damaging the power outlets, close the power outlets lid when the
power outlet is not in use.
Foreign objects or liquids that enter the power outlets may cause a short
circuit.
● To prevent 12-volt battery discharge, do not use the power outlet longer
than necessary when the hybrid system is off.

544
PRIUS_OM_OM47A29U_(U)
6-4. Using the other interior features

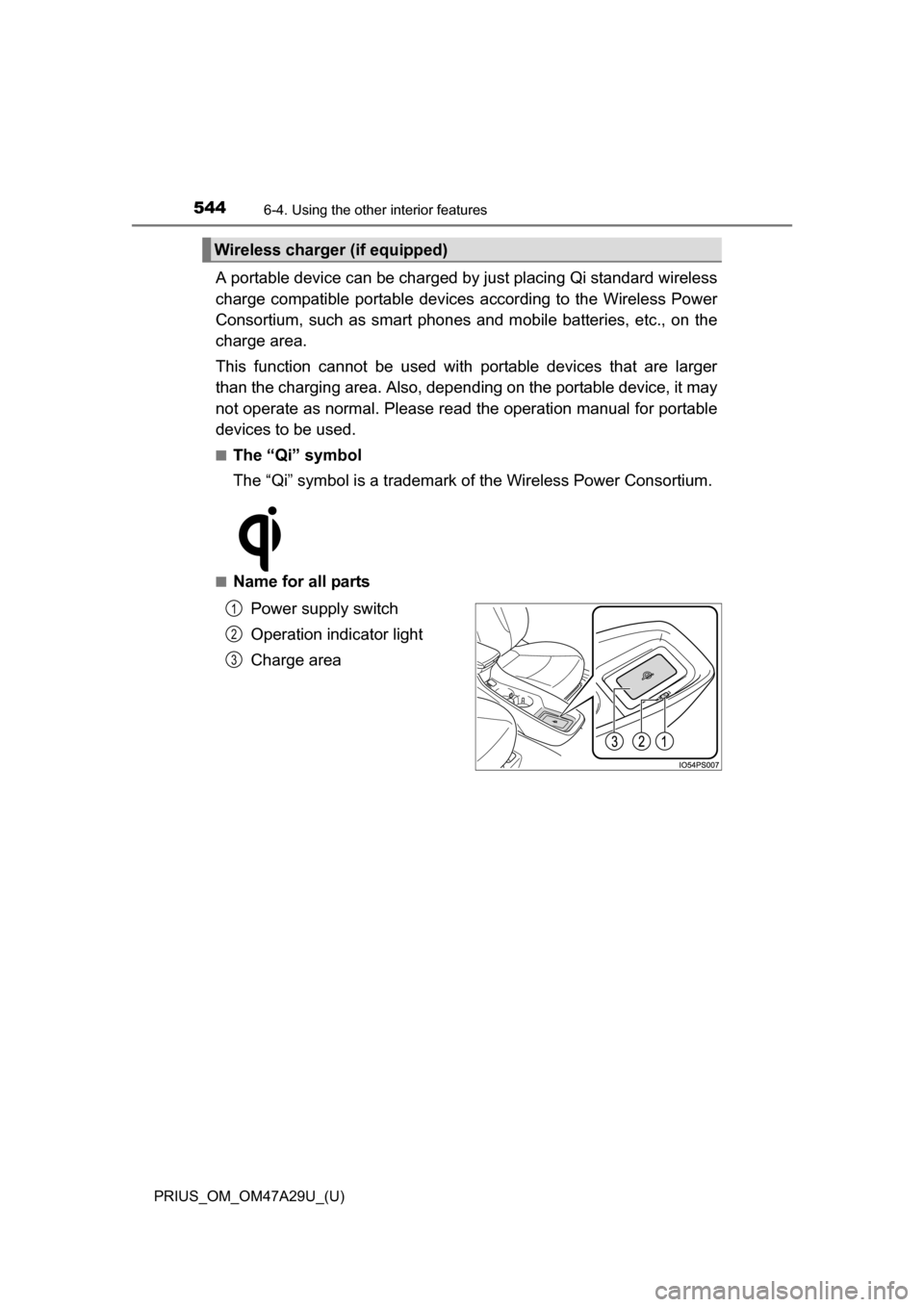

A portable device can be charged by just placing Qi standard wireless
charge compatible portable devices according to the Wireless Power
Consortium, such as smart phones an d mobile batteries, etc., on the
charge area.
This function cannot be used with portable devices that are larger
than the charging area. Also, dependin g on the portable device, it may
not operate as normal. Please read the operation manual for portable
devices to be used.
■The “Qi” symbol
The “Qi” symbol is a trademark of the Wireless Power Consortium.
■Name for all parts
Power supply switch
Operation indicator light
Charge area
Wireless charger (if equipped)
1
2
3
