1292. Instrument cluster
2
Instrument cluster

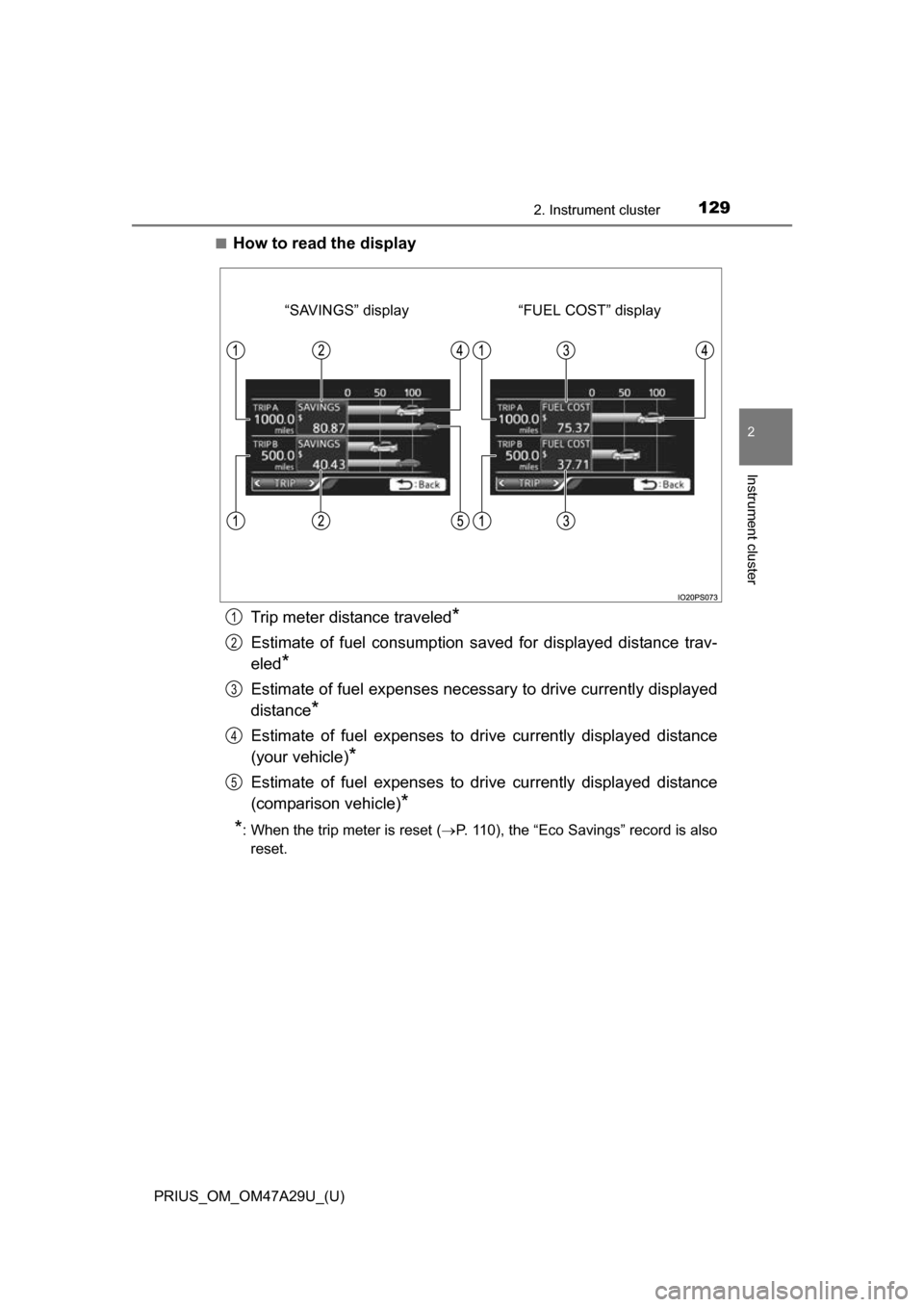

■How to read the displayTrip meter distance traveled
*
Estimate of fuel consumption saved for displayed distance trav-
eled
*
Estimate of fuel expenses necessa ry to drive currently displayed
distance
*
Estimate of fuel expenses to drive currently displayed distance
(your vehicle)
*
Estimate of fuel expenses to drive currently displayed distance
(comparison vehicle)
*
*
: When the trip meter is reset ( P. 110), the “Eco Savings” record is also
reset.
“FUEL COST” display
“SAVINGS” display
1
2
3
4
5

130
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

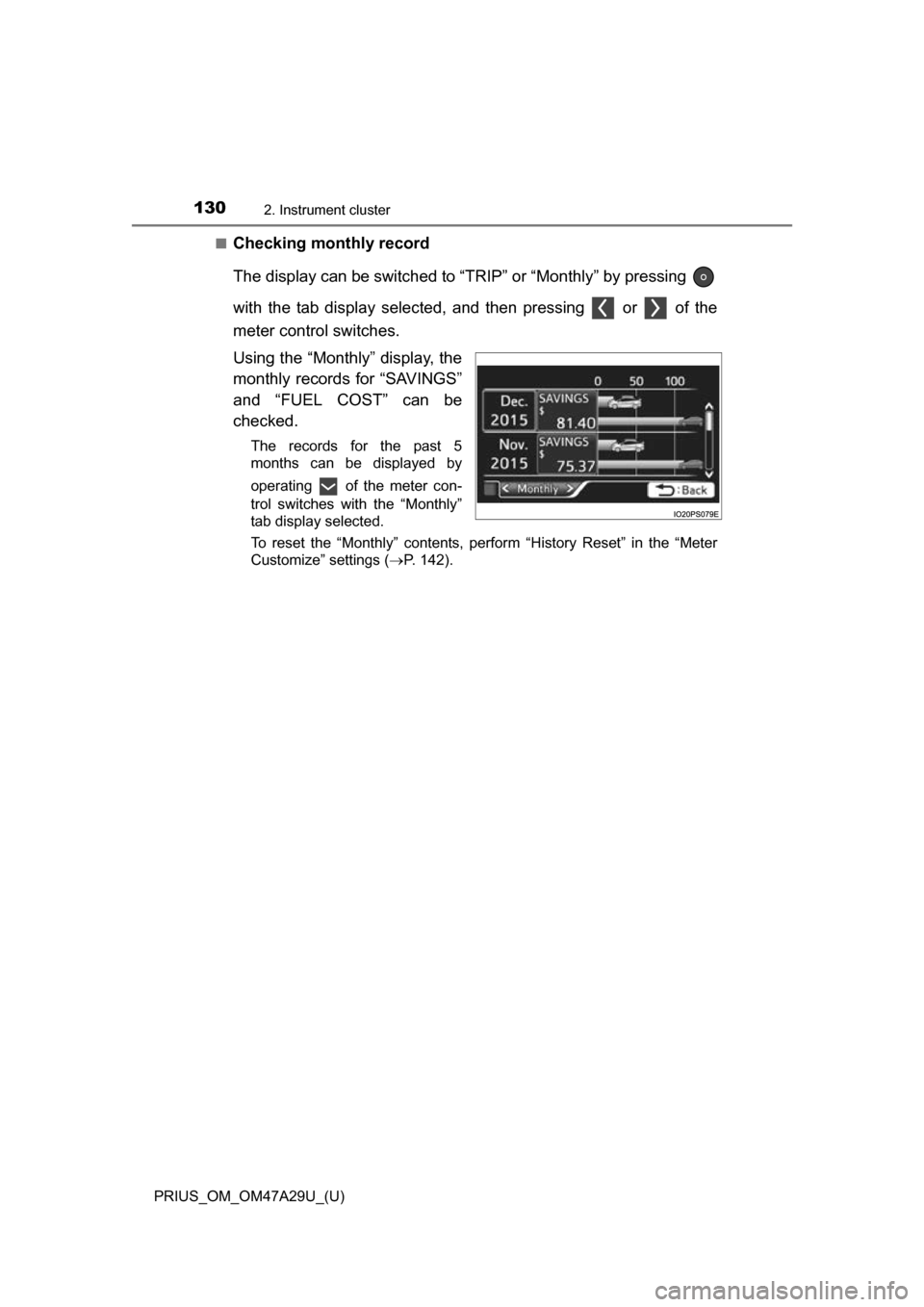

■Checking monthly record
The display can be switched to “TRIP” or “Monthly” by pressing
with the tab display selected, and then pressing or of the
meter control switches.
Using the “Monthly” display, the
monthly records for “SAVINGS”
and “FUEL COST” can be
checked.
The records for the past 5
months can be displayed by
operating of the meter con-
trol switches with the “Monthly”
tab display selected.
To reset the “Monthly” contents, perform “History Reset” in the “Meter
Customize” settings (P. 142).

PRIUS_OM_OM47A29U_(U)
1312. Instrument cluster
2
Instrument cluster
◆“Eco-Diary”
The distance traveled and average fuel consumption history can be
displayed in a table according to day (“Daily”) or month (“Monthly”)
units.

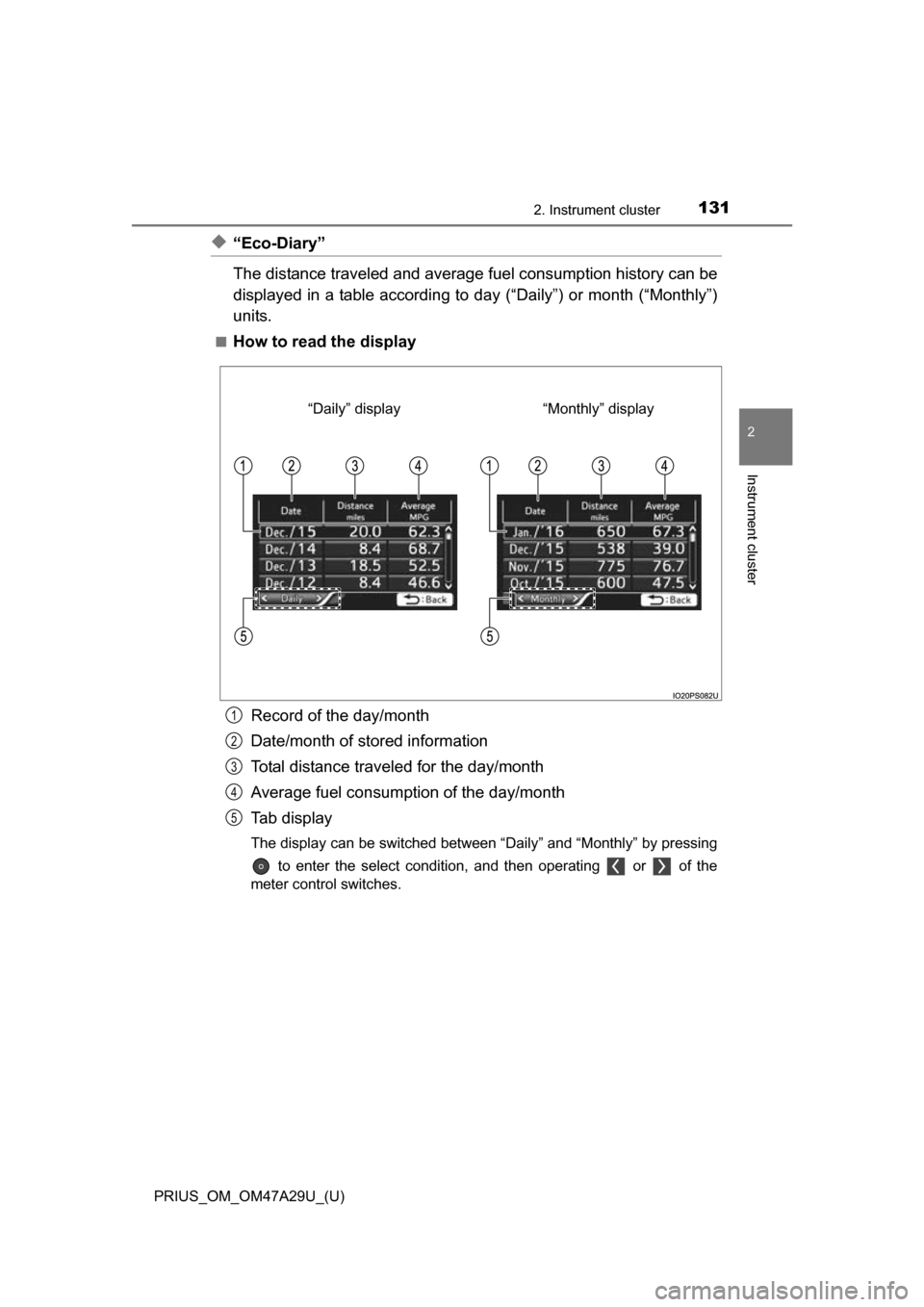

■How to read the display
Record of the day/month
Date/month of stored information
Total distance traveled for the day/month
Average fuel consumpt ion of the day/month
Tab display
The display can be switched between “Daily” and “Monthly” by pressing to enter the select condition, and then operating or of the
meter control switches.
“Monthly” display
“Daily” display
1
2
3
4
5

132
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

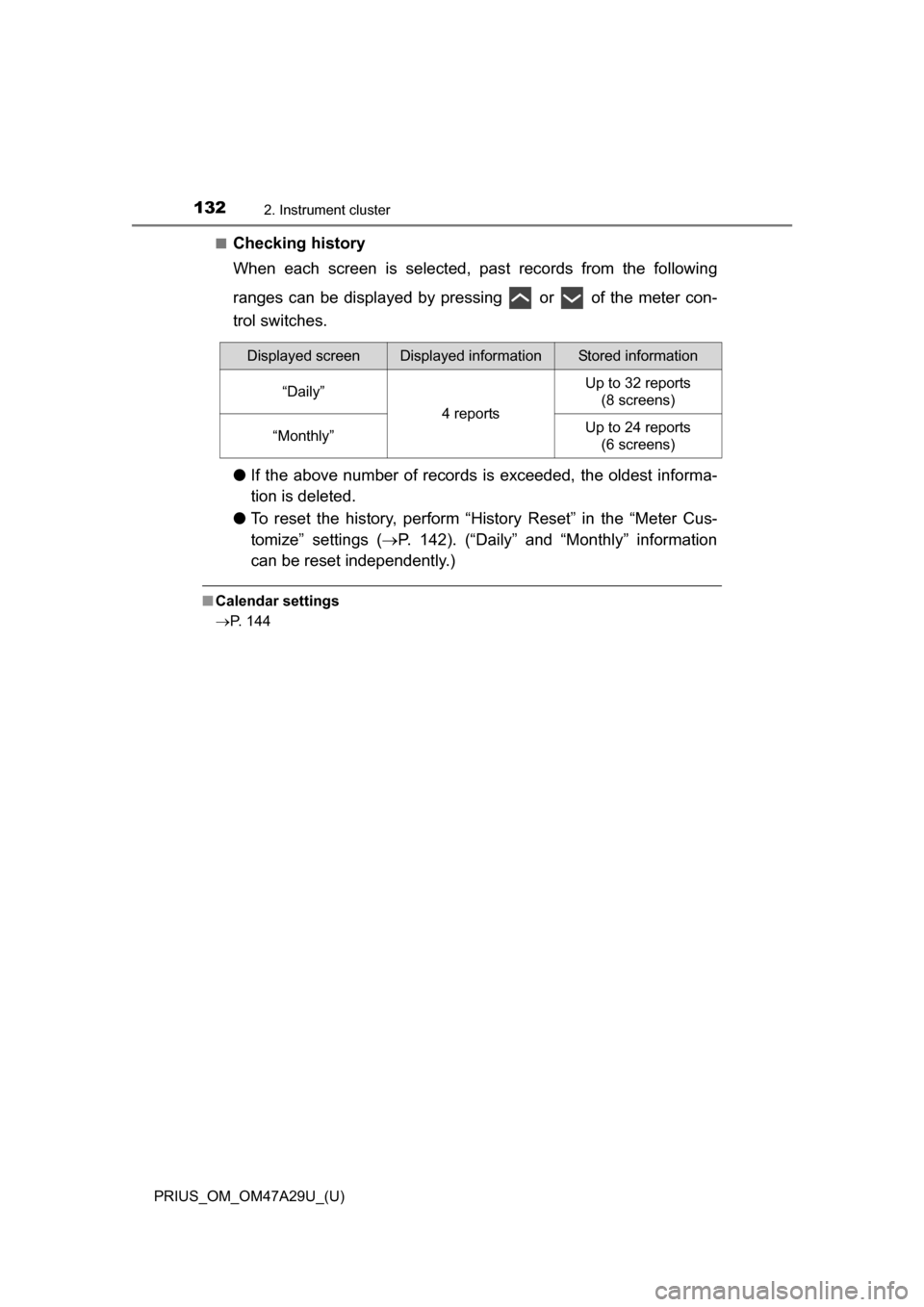

■Checking history
When each screen is selected, past records from the following
ranges can be displayed by pressing or of the meter con-
trol switches.
● If the above number of records is exceeded, the oldest informa-
tion is deleted.
● To reset the history, perform “History Reset” in the “Meter Cus-
tomize” settings ( P. 142). (“Daily” and “Monthly” information
can be reset independently.)
■ Calendar settings
P. 144
Displayed screenDisplayed informationStored information
“Daily”
4 reports
Up to 32 reports
(8 screens)
“Monthly”Up to 24 reports (6 screens)

PRIUS_OM_OM47A29U_(U)
1332. Instrument cluster
2
Instrument cluster

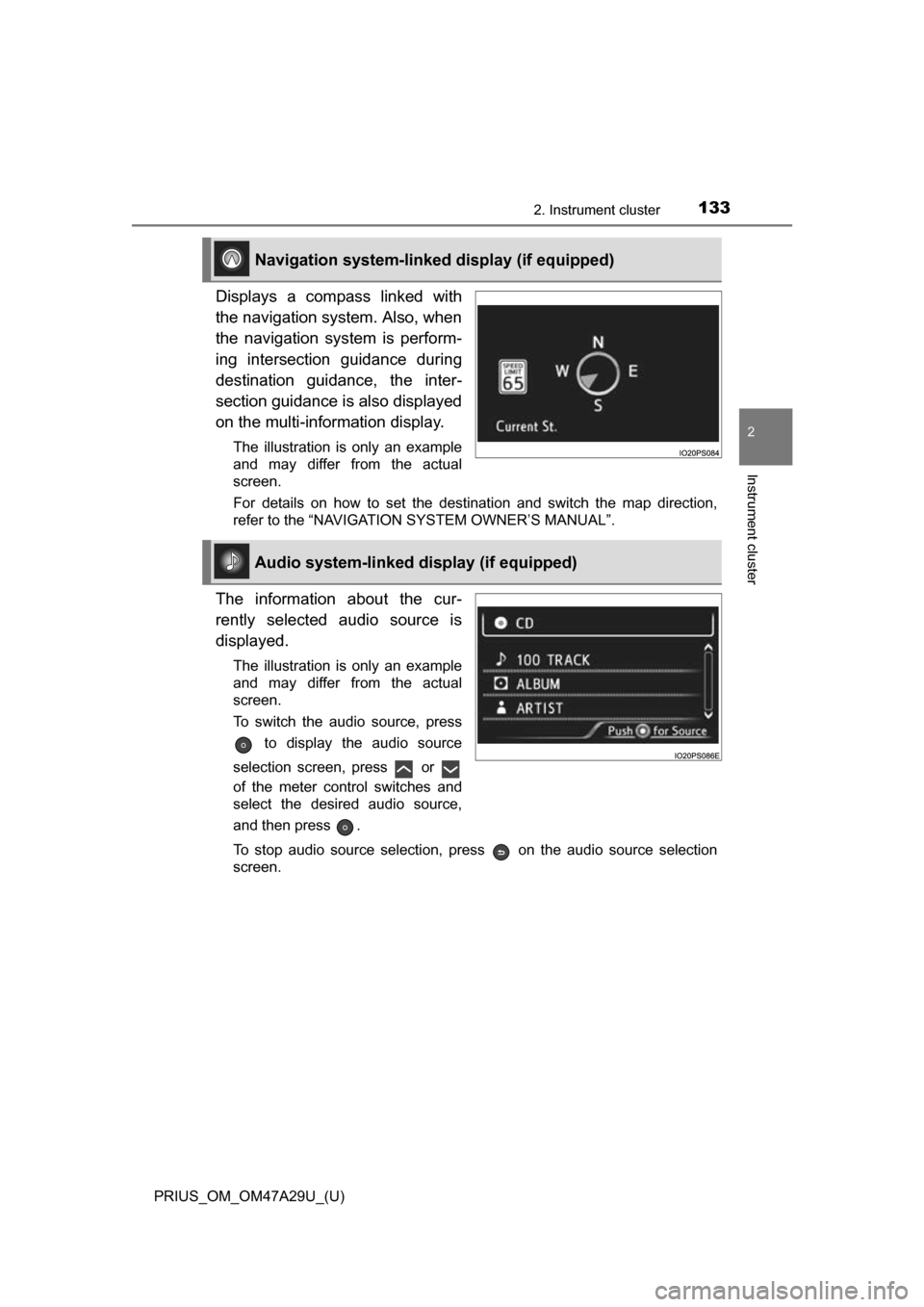

Displays a compass linked with
the navigation system. Also, when
the navigation system is perform-
ing intersection guidance during
destination guidance, the inter-
section guidance is also displayed
on the multi-information display.
The illustration is only an example
and may differ from the actual
screen.
For details on how to set the destination and switch the map direction,
refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
The information about the cur-
rently selected audio source is
displayed.
The illustration is only an example
and may differ from the actual
screen.
To switch the audio source, press to display the audio source
selection screen, press or
of the meter control switches and
select the desired audio source,
and then press .
To stop audio source selection, press on the audio source selection
screen.
Navigation system-linked display (if equipped)
Audio system-linked display (if equipped)

134
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster

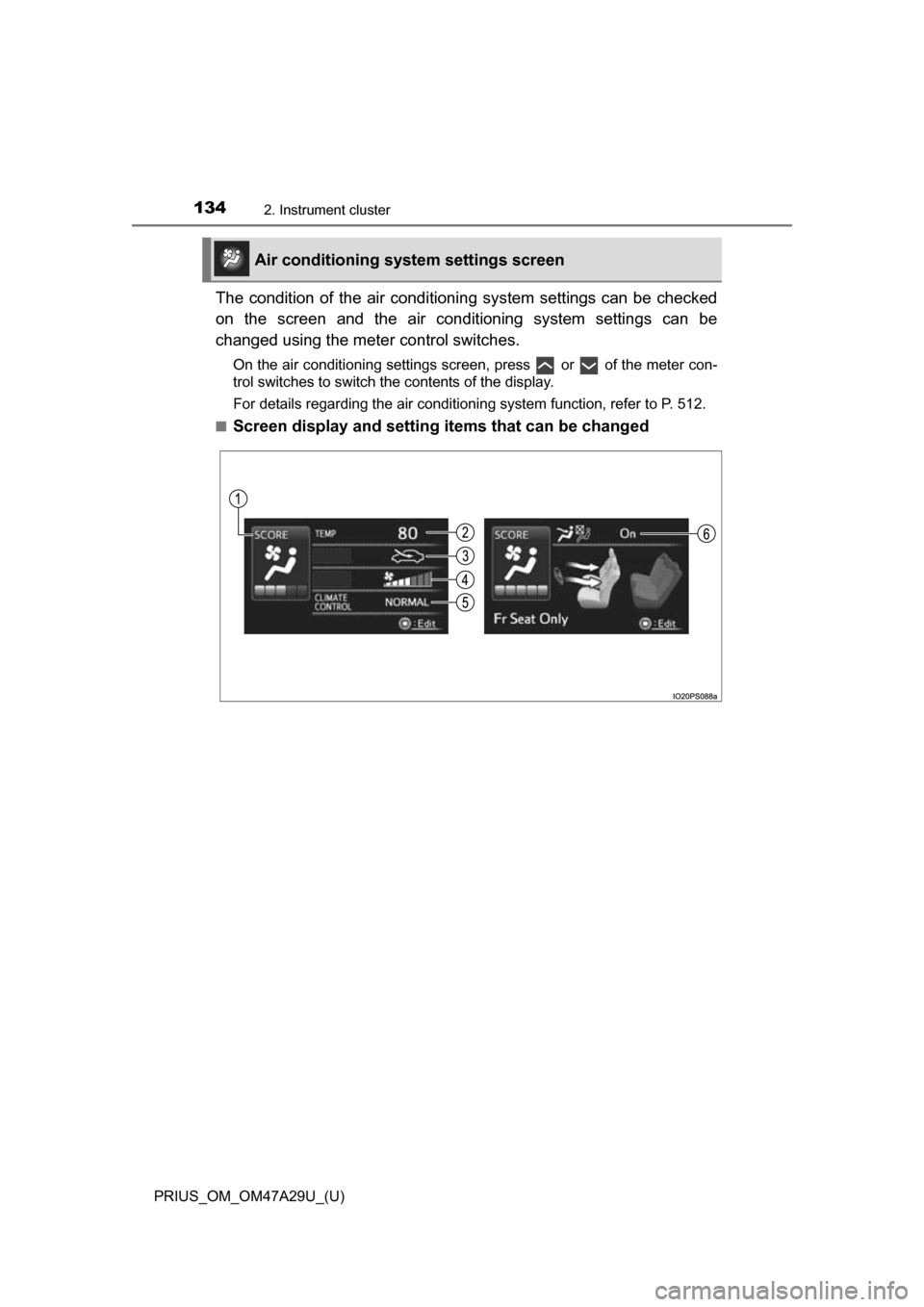

The condition of the air conditioning system settings can be checked
on the screen and the air conditioning system settings can be
changed using the meter control switches.
On the air conditioning settings screen, press or of the meter con-
trol switches to switch the contents of the display.
For details regarding the air conditioning system function, refer to P. 512.
■
Screen display and setting items that can be changed
Air conditioning system settings screen

PRIUS_OM_OM47A29U_(U)
1352. Instrument cluster
2
Instrument cluster
*1: “LO” is displayed if the temperature is adjusted to the lowest setting\
, and“HI” is displayed if the temperature is adjusted to the highest se\
tting.
*2: The selectable modes differ depending on whether a passenger is present.( P. 514)
■
Adjusting the settings
Press to display the cursor.
Press or of the meter control switches to select the
desired item to set.
Press or of the meter control switches to select the set-
ting item or setting value.
ItemSettings
Eco score
(A/C score)P. 136
Temperature
settingChanges according to operation of the meter control switches
*1
Outside air and
recirculated air
modes

(Outside air mode)
(Recirculated air mode)
Fan speed1 to 7
“CLIMATE
CONTROL”“NORMAL”“ECO”
S-FLOW mode“On (Driver Priority)”
*2“On (Fr Seat Only)”
*2“Off (All seat)”
1
2
3
4
5
6
1
2
3

136
PRIUS_OM_OM47A29U_(U)
2. Instrument cluster
■Eco score (A/C score)
The current air conditioning system usage status is evaluated in 5
levels to determine whether it is Eco-friendly.
The evaluation changes according to the air conditioning system
usage status. When the power switch is turned off, the current total
driving score
*1 and advice*2 related to using the air conditioning
system are displayed. ( P. 9 6 )
Low score
*3
High score
Avoiding excessive use of the
air conditioning system and
using the air conditioning sys-
tem at the appropriate setting
according to the ambient tem-
perature and number of passen-
gers and with the S-FLOW
mode ( ) and “CLIMATE
CONTROL” will result in a high
evaluation.
*1: The Eco score (A/C score) is not evaluated for approximately 1 minute after the power switch is turned to ON mode.
*2: This advice may not be displayed depending on the situation.
*3: For items not evaluated with an Eco score (A/C score), the displayreads 0.
■ Operating switches of the air c onditioning system operation panel
● The pop-up display function that displays when the air conditioning settings
are changed using the air conditioning system switches can be turned off in
the “Meter Customize” settings. ( P. 142)
1
2
●When the air conditioning system
switches are operated to change the air
conditioning settings while a screen
other than the air conditioning system
settings screen is displayed on the multi-
information display, a pop-up display for
the air conditioning settings contents is
displayed. However, air conditioning
system settings cannot be changed on
the pop-up display.
