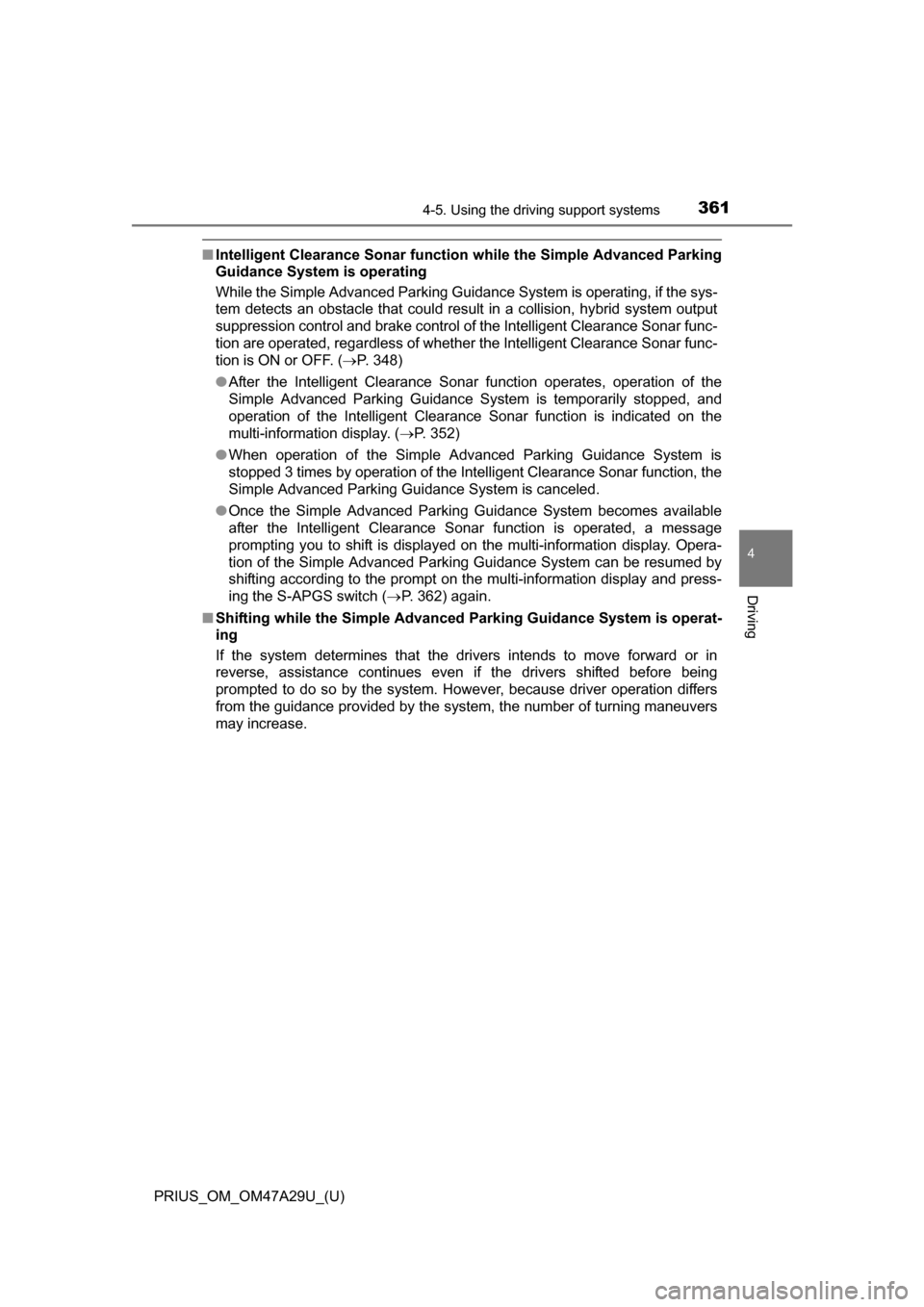

■Intelligent Clearance Sonar function while the Simple Advanced Parking
Guidance System is operating
While the Simple Advanced Parking Guidance System is operating, if the sys-
tem detects an obstacle that could result in a collision, hybrid system output
suppression control and brake control of the Intelligent Clearance Sonar func-
tion are operated, regardless of whether the Intelligent Clearance Sonar\
func-
tion is ON or OFF. ( P. 348)
● After the Intelligent Clearance Sonar function operates, operation of the
Simple Advanced Parking Guidance System is temporarily stopped, and
operation of the Intelligent Clearance Sonar function is indicated on the
multi-information display. ( P. 352)
● When operation of the Simple Advanced Parking Guidance System is
stopped 3 times by operation of the Intelligent Clearance Sonar function, the
Simple Advanced Parking Guidance System is canceled.
● Once the Simple Advanced Parking Guidance System becomes available
after the Intelligent Clearance Sonar function is operated, a message
prompting you to shift is displayed on the multi-information display. Opera-
tion of the Simple Advanced Parking Guidance System can be resumed by
shifting according to the prompt on the multi-information display and press-
ing the S-APGS switch ( P. 362) again.
■ Shifting while the Simple Advanced Parking Guidance System is operat-
ing
If the system determines that the drivers intends to move forward or in
reverse, assistance continues even if the drivers shifted before being
prompted to do so by the system. However, because driver operation differs
from the guidance provided by the system, the number of turning maneuvers
may increase.

362
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems

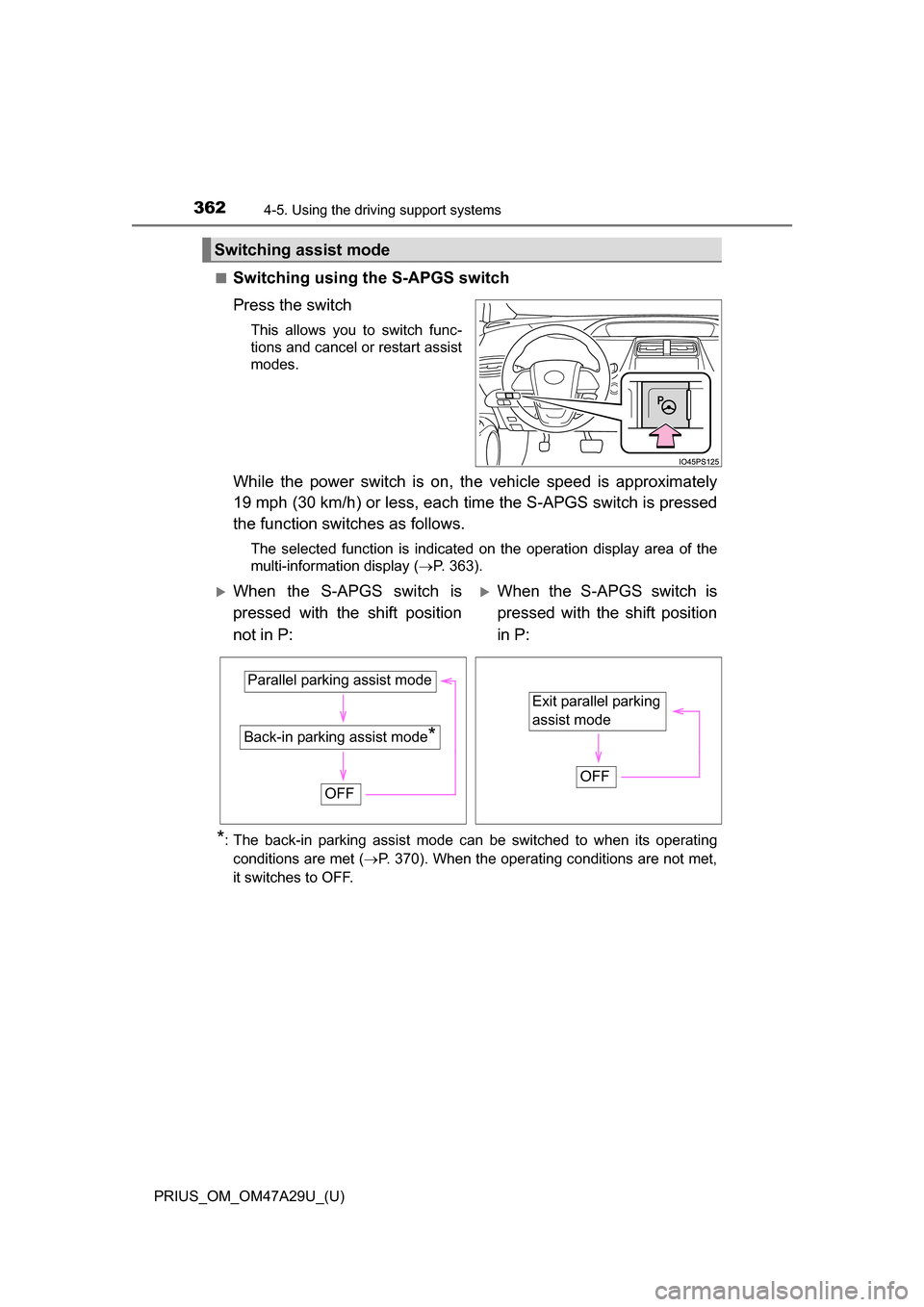

■Switching using the S-APGS switch
Press the switch
This allows you to switch func-
tions and cancel or restart assist
modes.
While the power switch is on, th e vehicle speed is approximately
19 mph (30 km/h) or less, each time the S-APGS switch is pressed
the function switches as follows.
The selected function is indicated on the operation display area of the
multi-information display ( P. 363).
*: The back-in parking assist mode can be switched to when its operating
conditions are met ( P. 370). When the operating conditions are not met,
it switches to OFF.
Switching assist mode
When the S-APGS switch is
pressed with the shift position
not in P:When the S-APGS switch is
pressed with the shift position
in P:
Back-in parking assist mode*
Parallel parking assist mode
OFF
Exit parallel parking
assist mode OFF

PRIUS_OM_OM47A29U_(U)
3634-5. Using the driving support systems
4
Driving

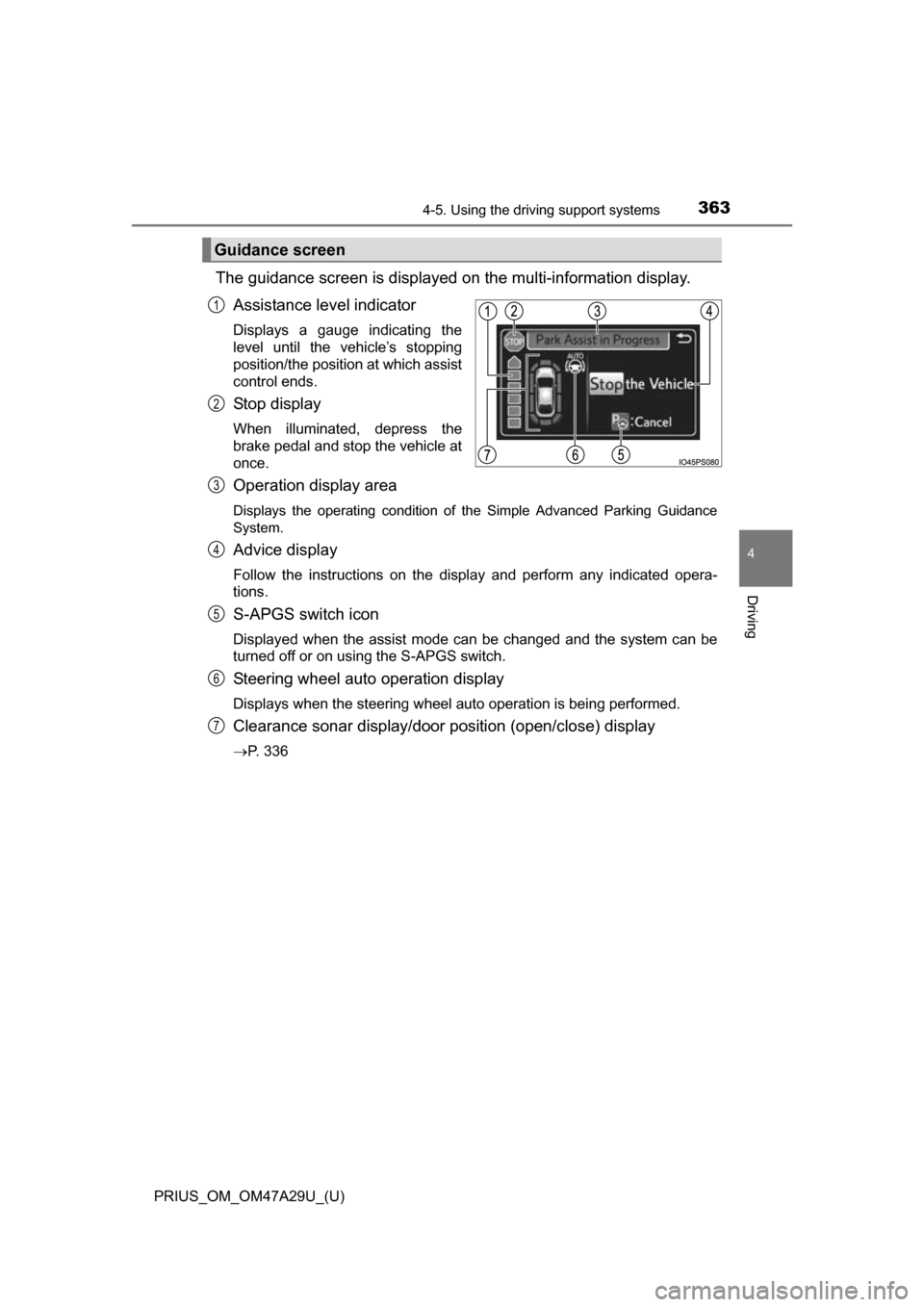

The guidance screen is displayed on the multi-information display.
Assistance level indicator
Displays a gauge indicating the
level until the vehicle’s stopping
position/the position at which assist
control ends.
St op d is pl ay
When illuminated, depress the
brake pedal and stop the vehicle at
once.
Operation display area
Displays the operating condition of the Simple Advanced Parking Guidance
System.
Advice display
Follow the instructions on the display and perform any indicated opera-
tions.
S-APGS switch icon
Displayed when the assist mode can be changed and the system can be
turned off or on using the S-APGS switch.
Steering wheel auto operation display
Displays when the steering wheel auto operation is being performed.
Clearance sonar display/door position (open/close) display
P. 336
Guidance screen
1
2
3
4
5
6
7

364
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems
■S-APGS indicator inside the meter ( P. 104)
This indicator illuminates when the steering wheel auto operation is being
performed by the Simple Advanced Parking Guidance System. After control
ends, the indicator blinks for a short period of time and then turns off.
■ Clearance sonar pop-up display
While the Simple Advanced Parking Guidance System is operating, if the
clearance sonar function detects an obstacle, the clearance sonar display
automatically pops up on the guidance screen ( P. 336), regardless of
whether the clearance sonar function is ON or OFF ( P. 335).

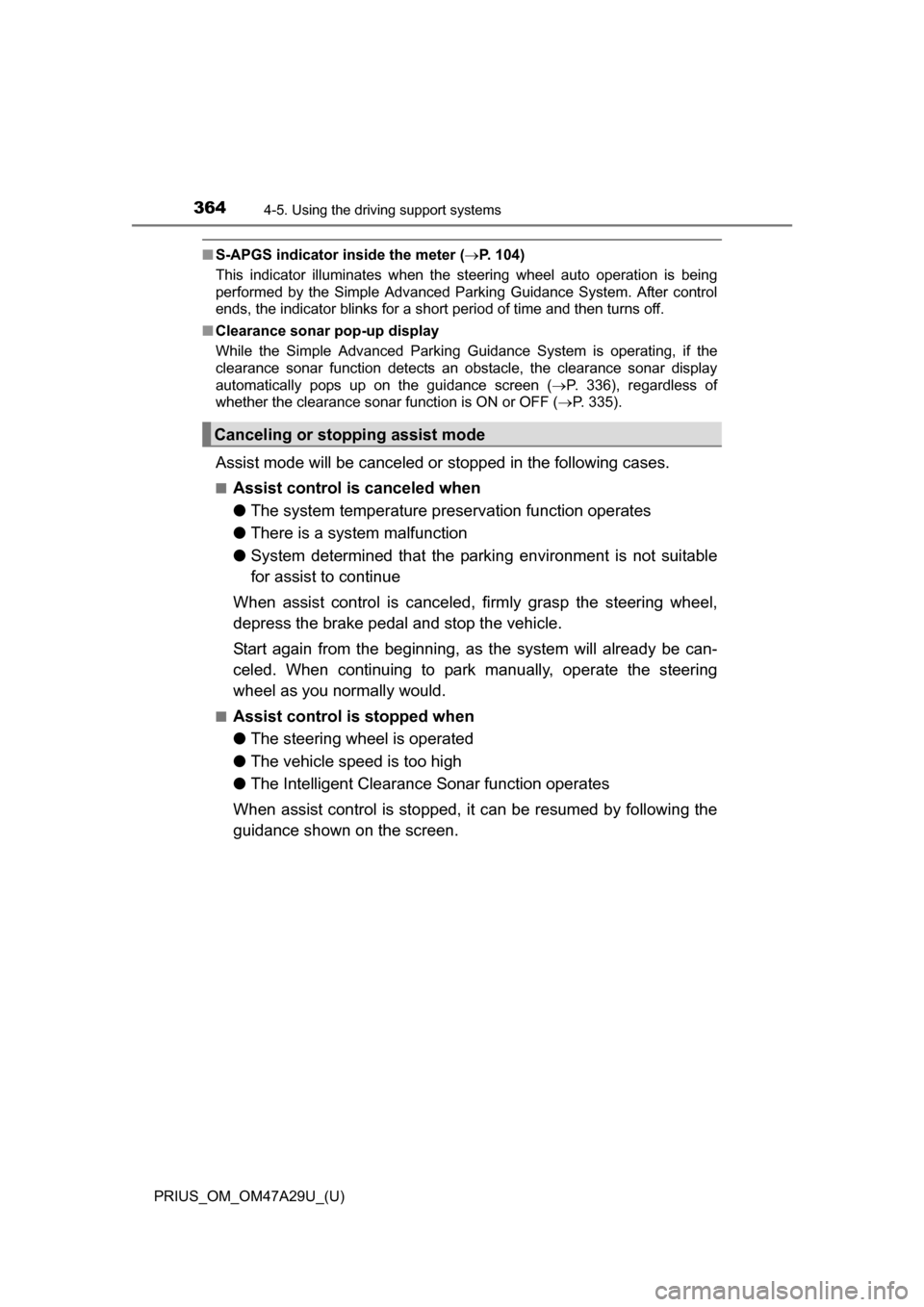

Assist mode will be canceled or stopped in the following cases.
■Assist control is canceled when
●The system temperature preservation function operates
● There is a system malfunction
● System determined that the parking environment is not suitable
for assist to continue
When assist control is canceled, firmly grasp the steering wheel,
depress the brake pedal and stop the vehicle.
Start again from the beginning, as the system will already be can-
celed. When continuing to pa rk manually, operate the steering
wheel as you normally would.
■Assist control is stopped when
● The steering wheel is operated
● The vehicle speed is too high
● The Intelligent Clearance Sonar function operates
When assist control is stopped, it can be resumed by following the
guidance shown on the screen.
Canceling or stopping assist mode

PRIUS_OM_OM47A29U_(U)
3654-5. Using the driving support systems
4
Driving
■Function summary
Stop so that the center of the target parking spot appears nearly
perpendicular to the vehicle. If the space is detectable, the forward
guidance function can be used. Furthermore, depending on the
parking space and other conditions, multi-turn maneuvering assist
control is also provided if necessary.
Stop so that the center of the
target parking spot appears
nearly perpendicular to the
vehicle. Then press the
S-APGS switch 2 times to
select back-in parking assist
mode.
Steering wheel auto opera-
tion starts when the vehicle
begins to move.
A sound is issued and a dis-
play is shown to notify you
when the vehicle reaches the
position to start backing up
from.
If the detected parking space or
road width (distance to the side
of the road across from the park-
ing space) is narrow, or if there
are obstacles in front of the vehi-
cle, guidance will not be issued.
Parking is complete
This completes the assist mode.
Depending on the condition of the parking space, guidance to starting
points for moving forward and backing up, as well as the steering wheel
auto operation, are repeated any time multi-turn maneuvering is neces-
sary following step from the time the vehicle begins backing up until
parking completes.

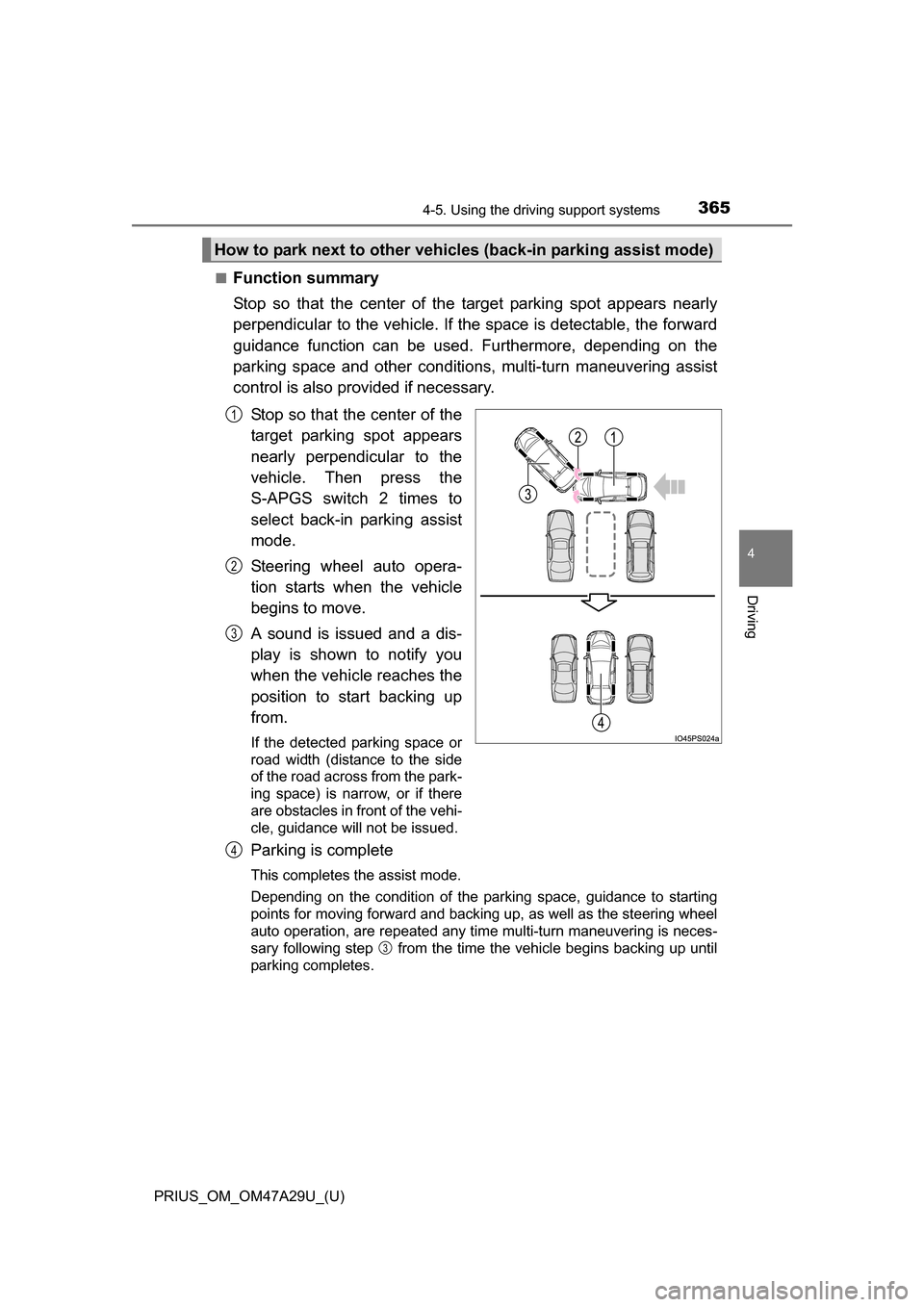

How to park next to other vehicles (back-in parking assist mode)
1
2
3
4
3

366
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems

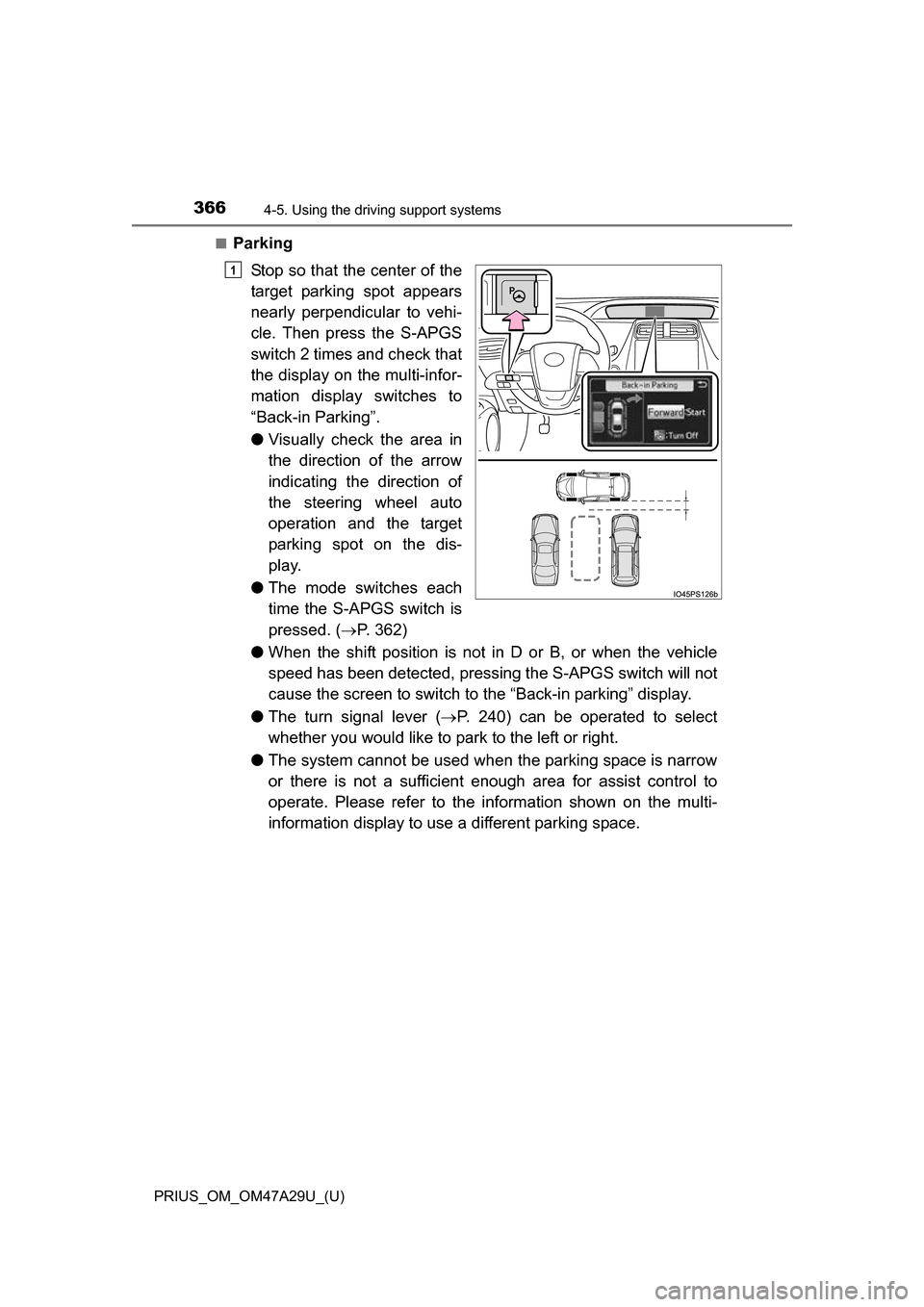

■Parking
Stop so that the center of the
target parking spot appears
nearly perpendicular to vehi-
cle. Then press the S-APGS
switch 2 times and check that
the display on the multi-infor-
mation display switches to
“Back-in Parking”.
●Visually check the area in
the direction of the arrow
indicating the direction of
the steering wheel auto
operation and the target
parking spot on the dis-
play.
● The mode switches each
time the S-APGS switch is
pressed. ( P. 362)
● When the shift position is not in D or B, or when the vehicle
speed has been detected, pressing the S-APGS switch will not
cause the screen to switch to the “Back-in parking” display.
● The turn signal lever ( P. 240) can be operated to select
whether you would like to park to the left or right.
● The system cannot be used when the parking space is narrow
or there is not a sufficient enough area for assist control to
operate. Please refer to the information shown on the multi-
information display to use a different parking space.
1

PRIUS_OM_OM47A29U_(U)
3674-5. Using the driving support systems
4
Driving

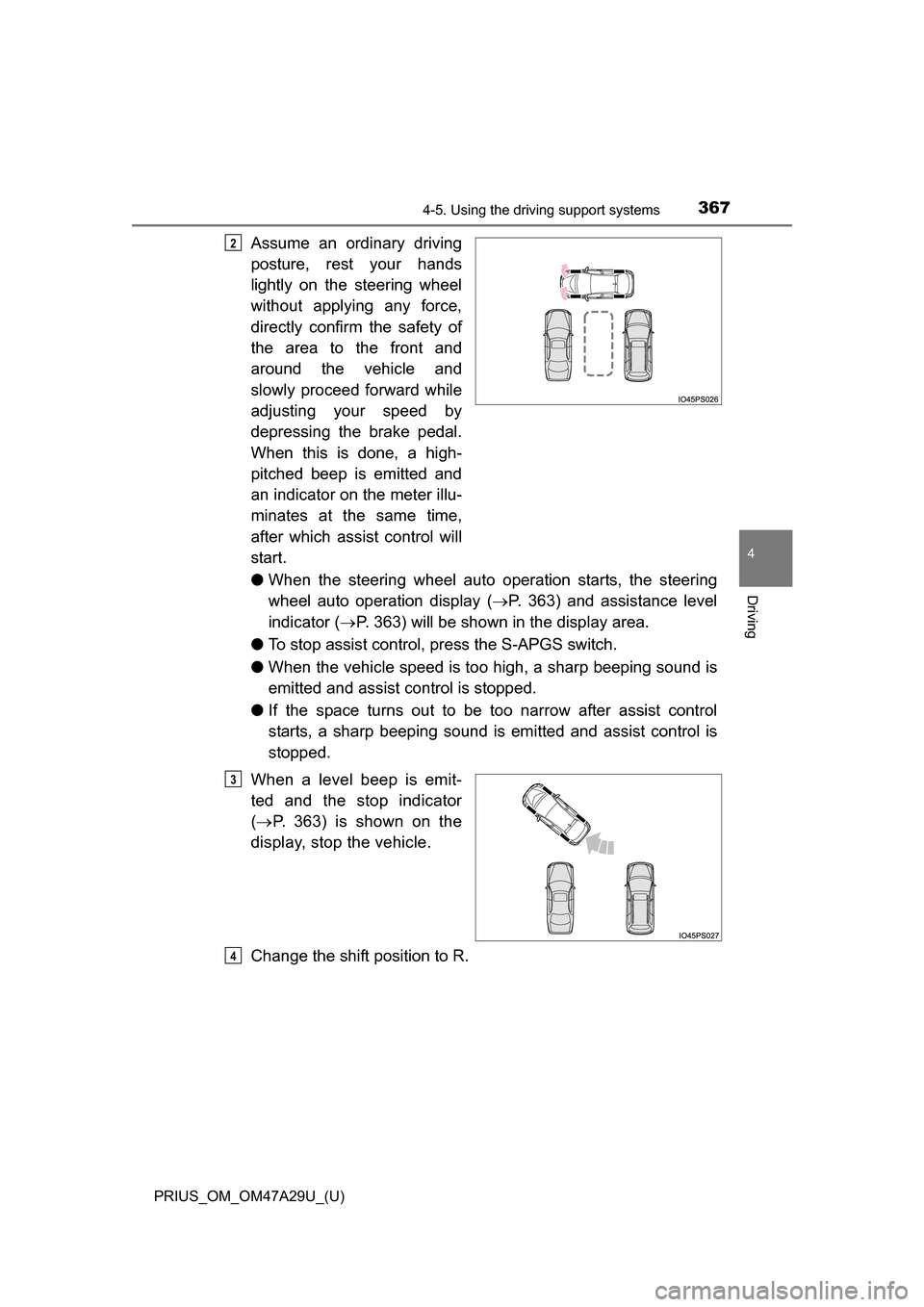

Assume an ordinary driving
posture, rest your hands
lightly on the steering wheel
without applying any force,
directly confirm the safety of
the area to the front and
around the vehicle and
slowly proceed forward while
adjusting your speed by
depressing the brake pedal.
When this is done, a high-
pitched beep is emitted and
an indicator on the meter illu-
minates at the same time,
after which assist control will
start.
●When the steering wheel auto operation starts, the steering
wheel auto operation display ( P. 363) and assistance level
indicator ( P. 363) will be shown in the display area.
● To stop assist control, press the S-APGS switch.
● When the vehicle speed is to o high, a sharp beeping sound is
emitted and assist control is stopped.
● If the space turns out to be too narrow after assist control
starts, a sharp beeping sound is emitted and assist control is
stopped.
When a level beep is emit-
ted and the stop indicator
(  P. 363) is shown on the
display, stop the vehicle.
Change the shift position to R.2
3
4

368
PRIUS_OM_OM47A29U_(U)
4-5. Using the driving support systems

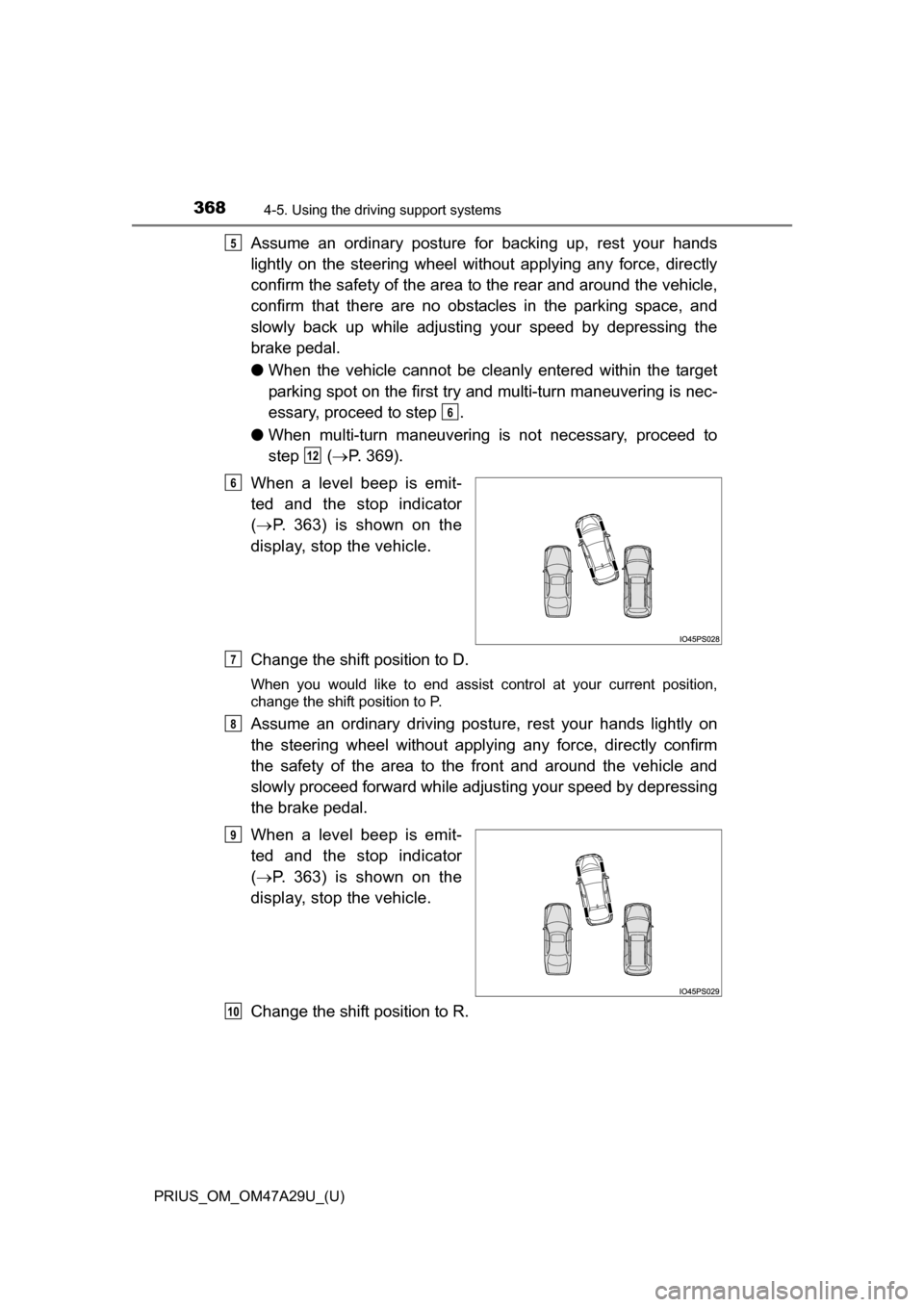

Assume an ordinary posture for backing up, rest your hands
lightly on the steering wheel wi thout applying any force, directly
confirm the safety of the area to the rear and around the vehicle,
confirm that there are no obstacl es in the parking space, and
slowly back up while adjusting your speed by depressing the
brake pedal.
● When the vehicle cannot be cleanly entered within the target
parking spot on the first try and multi-turn maneuvering is nec-
essary, proceed to step .
● When multi-turn maneuvering is not necessary, proceed to
step ( P. 369).
When a level beep is emit-
ted and the stop indicator
(  P. 363) is shown on the
display, stop the vehicle.
Change the shift position to D.
When you would like to end assist control at your current position,
change the shift position to P.
Assume an ordinary driving postu re, rest your hands lightly on
the steering wheel without applying any force, directly confirm
the safety of the area to the front and around the vehicle and
slowly proceed forward while adjus ting your speed by depressing
the brake pedal.
When a level beep is emit-
ted and the stop indicator
(  P. 363) is shown on the
display, stop the vehicle.
Change the shift position to R.
5
6
12
6
7
8
9
10
