2016 SUBARU WRX Owners Manual

Audio/Phone operation (Hands – free system for cellular phones)
Type A
Type B ! Voice command system
Press this switch to operate the voice
command system.
& 1
Talk switch
. The voice command system and its list
of commands can be operated. Refer to
“ Voice command system operation ” F 5-
108.
NOTE . The other party ’ s voice will be heard
from the front speakers. The audio/
visual system will be muted during
phone calls or when hands-free voice
commands are used.
. Talk alternately with the other party
on the phone. If both parties speak at
the same time, the other party may not hear what has been said. (This is not a
malfunction.)
. Keep call volume down. Otherwise,
the other party ’ s voice may be audible
outside the vehicle and voice echo may
increase. When talking on the phone,
speak clearly towards the microphone.
. The other party may not hear you
clearly when:
– Drivingonanunpavedroad.
(Making excessive traffic noise.)
– Driving at high speeds.
– The roof or windows are open.
– The air conditioning vents are
pointed towards the microphone.
– The sound of the air conditioning
fan is loud.
– Thereisanegativeeffecton
sound quality due to the phone
and/or network being used.
! About the contacts in the contact
list
. The following data is stored for every
registered phone. When another phone is
connected, the following registered data
cannot be read:
– Contact data
NOTE
When a phone ’ s registration is deleted,
the above-mentioned data is also de-5-90

leted.
! When selling or disposing of the
vehicle
A lot of personal data is registered when
the hands-free system is used. When
selling or disposing of the vehicle, initialize
the data. Refer to “ Other settings ” F 5-10.
. The following data in the system can
be initialized:
– Contact data
NOTE Once initialized, the data and settings
will be erased. Pay much attention
when initializing the data. & Calling on the Bluetooth
phone After a Bluetooth phone has been regis-
tered, a call can be made using the hands-
free system. There are several methods
by which a call can be made, as described
below.
1. Select
.
2. Select
PHONE (PHONE).
3. Select the desired tab to call from. . On the PHONE screen, select “ Incom-
ing Calls ” to open the Incoming Calls
screen. Refer to “ Quick reference ” F 5-87.
Incoming Calls screenAudio/Phone operation (Hands – free system for cellular phones)
– CONTINUED –5-91

Audio/Phone operation (Hands – free system for cellular phones)
. On the PHONE screen, select “ Out-
going Calls ” to open the Outgoing Calls
screen. Refer to “ Quick reference ” F 5-87.
Outgoing Calls screen . On the PHONE screen, select “ Con-
tacts ” to open the Contacts screen. Refer
to “ Quick reference ” F 5-87.
Contacts screen . On the PHONE screen, select “ Dia-
lpad ” to open the Dialpad screen. Refer to
“ Quick reference ” F 5-87.
PHONE (Dialpad) screen
How to make a call list Page
By call history 5-93
By contacts list 5-95
By dialpad *1
5-97
By off hook switch 5-98
By voice command system 5-108 *1
: The operation cannot be performed while
driving.5-92

! By call history
! Incoming Calls
. On the PHONE screen, select “ Incom-
ing Calls ” to open the Incoming Calls
screen.
. Up to ten items in the incoming call
history are listed. Scroll the screen to see
items that are not on the screen.
. You can make a call by selecting an
item in the incoming call history list.
Incoming Calls screen
. If there is no incoming call history, a
message appears to indicate that there is
no incoming call history data. Incoming Calls screen (No incoming call
history)
Incoming Calls screen (Confirmation to
delete incoming call history) No. Function
& 1
“ Outgoing Calls ” key: Opens the Out-
going Calls screen.
& 2
“ Contacts ” key: Opens the Contacts
screen.
& 3
“ Delete All ” key: Deletes all incoming
call history data. The “ Delete All ” key
is disabled when there is no incoming
call history.
& 4
“ OK ” key: Deletes incoming call his-
tory.
& 5
“ Cancel ” key: Cancels the deletion of
incoming call history. The screen
returns to the Incoming Calls screen.
NOTE . When making a call to the same
number continuously, only the most
recent call is listed in call history.
. When a phone number registered in
the contact list is received, the name is
displayed.
. Number-withheld calls are also
memorized in the system.
. International phone calls may not be
made depending on the type of cellular
phone you have.
. The list should group together con-
secutive entries with the same phone
number and same call type.Audio/Phone operation (Hands – free system for cellular phones)
– CONTINUED –5-93

Audio/Phone operation (Hands – free system for cellular phones)
! Outgoing Calls
. On the PHONE screen, select “ Out-
going Calls ” to open the Outgoing Calls
screen.
. Up to ten items in the outgoing call
history are listed. Scroll the screen to see
items that are not on the screen.
. You can make a call by selecting an
item in the outgoing call history list.
. If there is no outgoing call history, a
message appears to indicate that there is
no outgoing call history data.
Outgoing Calls screen Outgoing Calls screen (No outgoing call
history)
Outgoing Calls screen (Confirmation to
delete outgoing call history) No. Function
& 1
“ Incoming Calls ” key: Opens the
Incoming Calls screen.
& 2
“ Contacts ” key: Opens the Contacts
screen.
& 3
“ Delete All ” key: Deletes all outgoing
call history data. The “ Delete All ” key
is disabled when there is no outgoing
call history.
& 4
“ OK ” key: Deletes outgoing call his-
tory.
& 5
“ Cancel ” key: Cancels to delete out-
going call history. The screen will go
back to the Outgoing Calls screen.
NOTE . When making a call to the same
number continuously, only the most
recent call is listed in call history.
. When a phone number registered in
the contact list is received, the name is
displayed.
. Number-withheld calls are also
memorized in the system.
. International phone calls may not be
made depending on the type of cellular
phone you have.
. The list should group together con-
secutive entries with the same phone
number and same call type.5-94

! By contacts list
. Up to 1000 items in the contact data
are listed. Scroll the screen to see items
that are not on the screen.
. Select an item in the contact list to
open the Phone Number List screen.
. You can make a call by selecting an
item in the phone number list (up to five
phone numbers are listed).
. If there is no contact data, a message
is displayed to indicate that there is no
contact data.
Contacts screen Phone Number List screen (Example when
“ Adam ” is selected)
Contacts screen (When there is no data) No. Function
& 1
“ Incoming Calls ” key: Opens the
Incoming Calls screen.
& 2
“ Outgoing Calls ” key: Opens the Out-
going Calls screen.
& 3
“ Download Contacts ” key: Opens a
pop-up screen for starting the down-
load of contact data.
& 4
“ Delete All ” key: Deletes all contact
data. The “ Delete All ” key is disabled
when there is no contact data.
& 5
“ Search ” key: Opens a list of contacts
that starts with the selected character.
This key is cross-hatched and cannot
be selected if there is no contact data
that starts with the selected character,
Select the up/down arrow key to scroll the
“ Search ” key.
! When the contact is empty
For PBAP incompatible but OPP com-
patible Bluetooth phones
. On the Contacts screen, select “ Down-
load Contacts ” . A screen where you can
select how to download contacts opens.
. You can select to download all items or
download one item.
*: To download all items, you may need to
change the settings in your cellular phone
beforehand.Audio/Phone operation (Hands – free system for cellular phones)
– CONTINUED –5-95

Audio/Phone operation (Hands – free system for cellular phones)

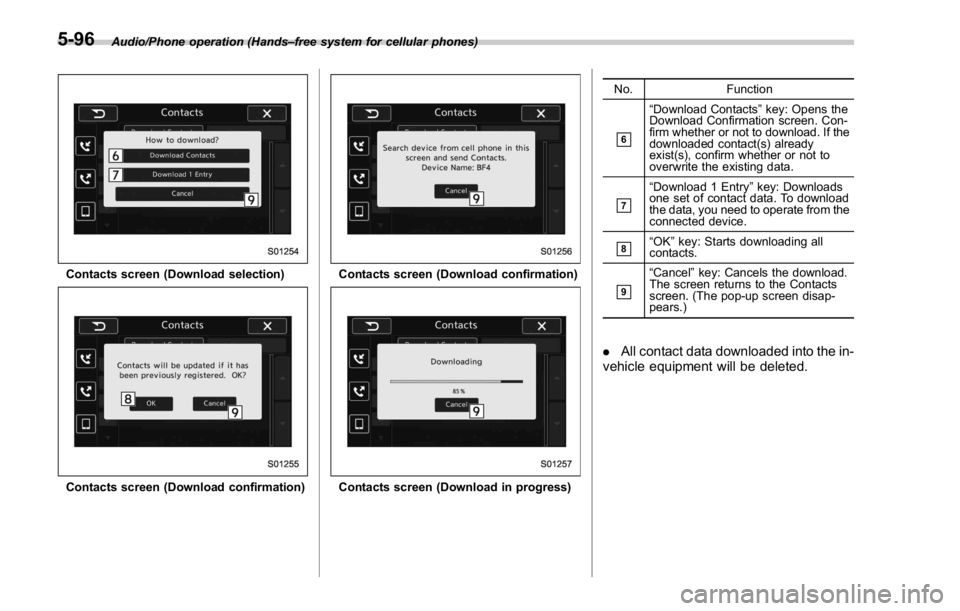

Contacts screen (Download selection)
Contacts screen (Download confirmation) Contacts screen (Download confirmation)
Contacts screen (Download in progress) No. Function
& 6
“ Download Contacts ” key: Opens the
Download Confirmation screen. Con-
firm whether or not to download. If the
downloaded contact(s) already
exist(s), confirm whether or not to
overwrite the existing data.
& 7
“ Download 1 Entry ” key: Downloads
one set of contact data. To download
the data, you need to operate from the
connected device.
& 8
“ OK ” key: Starts downloading all
contacts.
& 9
“ Cancel ” key: Cancels the download.
The screen returns to the Contacts
screen. (The pop-up screen disap-
pears.)
. All contact data downloaded into the in-
vehicle equipment will be deleted.5-96

Contacts screen (Confirmation to delete
contact data)
No. Function
& 10
“ OK ” key: Deletes all downloaded
contact data.
& 11
“ Cancel ” key: Cancels the deletion.
The screen returns to the Contacts
screen.
NOTE . Manual transfer operation cannot be
performed while driving.
. If your cellular phone is neither
PBAP nor OPP compatible, the con-
tacts cannot be transferred.
. Depending on the type of Bluetooth
phone:
– It may be necessary to perform
additional steps on the phone when transferring contact data.
! By Dialpad
The Outgoing Call screen opens when
you perform the following operations.
. When you enter a phone number on
the PHONE (Dialpad) screen and select
the “ OFF_Hook ” key, the Outgoing Call
screen opens.
. When you select an item in the incom-
ing call history list on the Incoming Calls
screen, the Outgoing Call screen opens.
. When you select an item in the out-
going call history list on the Outgoing Call
screen, the Outgoing Call screen opens.
. When you select a phone number on
the Contacts (Phone Number List) screen,
the Outgoing Call screen opens. Outgoing Call screen
No. Function
& 1
“ Option ” key: Opens the Options
(volume settings) screen.
& 2
“ ON_Hook ” key: Aborts the call. The
screen returns to the Phone (Menu)
screen. This is the same as pressing
the “ ON_Hook ” switch on the steering
wheel.
NOTE Depending on the type of Bluetooth
phone being connected, it may be
necessary to perform additional steps
on the phone.Audio/Phone operation (Hands – free system for cellular phones)
