2016 SUBARU WRX Owners Manual

Audio/Media operation
Media operation & CD! Overview
The CD operation screen can be reached
by the following methods:
. Insert a disc. Refer to “ Loading and
unloading a disc ” F 5-5.
. Select
DISC (DISC) on the “ Select
Audio Source (Select Audio Source) ”
screen. Refer to “ Selecting an audio
source ” F 5-13.5-50

Control screen
Left: Audio CD, Right: MP3/WMA/AAC disc
Control panel No. Function
& 1
Select to display the audio source
selection screen.
& 2
Select to display Trick Play Settings
screen.
& 3
Audio CD
Select to display a track list.
MP3/WMA/AAC disc
Select to display a folder list
& 4
Shows progress.
& 5
The tracks in the disc are played
back for ten seconds each from the
beginning of the track.
& 6
MP3/WMA/AAC disc
Select to choose a folder.
& 7
Select to display the sound setting
screen. Refer to “ Basic operation ”
F 5-12.
& 8
Turn to adjust volume.
Press to turn the audio system on/
off.
& 9
Press to eject a disc.
& 10
Disc slot
& 11
Turn to select a track/file.
Press to select an audio mode.
& 12
Select to select a track/file.
Select and hold to fast forward/
rewind. Audio/Media operation
– CONTINUED –5-51

Audio/Media operation
Control screen (Trick Play)
Left: Audio CD, Right: MP3/WMA/AAC disc No. Function
& 1
Select to start 1 Track Repeat.
& 2
Select to start Repeat All.
& 3
Select to start Shuffle All.
& 4
Return to the control screen.
& 5
Select to start Folder Repeat.
& 6
Select to start Shuffle Folder.
NOTE . If a disc contains CD-DA files and
MP3/WMA/AAC files, only the CD-DA
files can be played back.
. If a CD-TEXT disc is inserted, the
title of the disc and track will be
displayed. Up to 32 characters can be
displayed.
. If the disc contains no CD-TEXT,
only the track number would be dis-
played on the screen.
. If you press the “ Mute ” switch on
the steering wheel during playback, the
track pauses. If you press the “ Mute ”
switch once again, the playback will
resume.5-52

& USB memory Audio files on the USB memory can be
played back.
! Overview
The USB Audio playback screen can be
reached by the following methods:
. Connect a USB memory. Refer to
“ Connecting and disconnecting a USB
memory/portable device ” F 5-6.
. Select
USB/iPod (USB/iPod) on the
“ Select Audio Source (Select Audio
Source) ” screen. Refer to “ Selecting an
audio source ” F 5-13. Audio/Media operation
– CONTINUED –5-53

Audio/Media operation
Control screen
Control panel No. Function
& 1
Select to display the audio source
selection screen.
& 2
Select to display Trick Play Settings
screen.
& 3
Select to display Folders List.
& 4
Shows progress.
& 5
The tracks in the disc are played back
ten seconds each from the beginning
of the track.
& 6
Select to choose a folder.
& 7
Select to display the sound setting
screen. Refer to “ Basic operation ”
F 5-12.
& 8
Turn to adjust volume.
Press to turn the audio system on/off.
& 9
Turn to select a file/track.
Press to select an audio mode.
& 10
Select to select a file/track.
Select and hold to fast forward/re-
wind.5-54

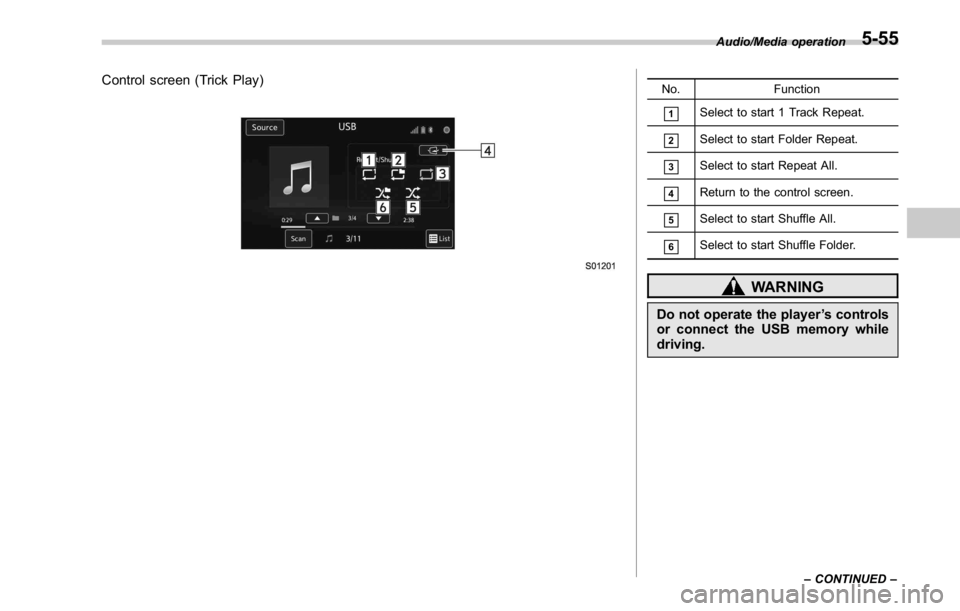

Control screen (Trick Play) No. Function
& 1
Select to start 1 Track Repeat.
& 2
Select to start Folder Repeat.
& 3
Select to start Repeat All.
& 4
Return to the control screen.
& 5
Select to start Shuffle All.
& 6
Select to start Shuffle Folder.
WARNINGDo not operate the player ’ s controls
or connect the USB memory while
driving. Audio/Media operation
– CONTINUED –5-55

Audio/Media operation
CAUTION. Do not leave your portable player
in the car. In particular, high
temperatures inside the vehicle
may damage the portable player.
. Do not push down on or apply
unnecessary pressure to the por-
table player while it is connected
as this may damage the portable
player or its terminal.
. Do not insert foreign objects into
the port as this may damage the
portable player or its terminal.
NOTE If you press the “ Mute ” switch on the
steering wheel during playback, the
track pauses. If you press the “ Mute ”
switch once again, the playback will
resume. & iPod ! Overview
TheiPodoperationscreencanbe
reached by the following methods:
. Connect an iPod. Refer to “ Connecting
and disconnecting a USB memory/porta-
ble device ” F 5-6.
. Select
USB/iPod (USB/iPod) on the
“ Select Audio Source (Select Audio
Source) ” screen. Refer to “ Selecting an
audio source ” F 5-13.5-56

Control screen
Control panel No. Function
& 1
Select to display the audio source
selection screen.
& 2
Select to display Trick Play Settings
screen.
& 3
Select to display iPod List.
& 4
Shows progress.
& 5
Select to display the sound setting
screen. Refer to “ Basic operation ” F 5-
12.
& 6
Turn to adjust volume.
Press to turn the audio system on/off.
& 7
Turn to select a track/file.
Press to select an audio mode.
& 8
Select to select a track/file.
Select and hold to fast forward/rewind. Audio/Media operation
– CONTINUED –5-57
