2016 SUBARU WRX Owners Manual

Specifications/Fuses and circuits
& Fuse panel located in the engine compartment! STI
A) Main fuse Fuse
panel Fuse
rating Circuit
1 30A
. ABS unit
. Vehicle Dynamics Con-
trol unit
2 25A
. Main fan (cooling fan)
3 25A
. Sub fan (cooling fan)
4
Empty
5
25A
. Audio
6
30A
. Headlight (low beam)
7
15A
. Headlight (high beam)
8 20A
. Back-up
9 15A
. Horn
10 25A
. Rear window defogger
. Mirror heater
11 15A
. Fuel pump
12 10A
. Transmission control
unit
13 7.5A
. Engine control unit
14 15A
. Turn and hazard warn-
ing flasher
15 15A
. Tail and illumination re-
lay
16 7.5A
. Alternator12-12

Fuse
panel Fuse
rating Circuit
17 Empty
18 20A
. Injection
19 15A
. Headlight (low beam –
right hand)
20 15A
. Headlight (low beam –
left hand)
21 10A
. Secondary air combina-
tion valve Specifications/Fuses and circuits
– CONTINUED –12-13

Specifications/Fuses and circuits
! Except STI
A) Main fuse Fuse
panel Fuse
rating Circuit
1 30A
. ABS unit
. Vehicle Dynamics Con-
trol unit
2 25A
. Main fan (cooling fan)
3 25A
. Sub fan (cooling fan)
4
Empty
5
25A
. Audio
6
30A
. Headlight (low beam)
7
15A
. Headlight (high beam)
8 20A
. Back-up
9 15A
. Horn
10 25A
. Rear window defogger
. Mirror heater
11 15A
. Fuel pump
12 20A
. Transmission control
unit
13 7.5A
. Engine control unit
14 15A
. Turn and hazard warn-
ing flasher
15 15A
. Tail and illumination re-
lay
16 7.5A
. Alternator12-14

Fuse
panel Fuse
rating Circuit
17 Empty
18 20A
. Injection
19 15A
. Headlight (low beam –
right hand)
20 15A
. Headlight (low beam –
left hand) Specifications/Fuses and circuits
12-15

Specifications/Bulb chart

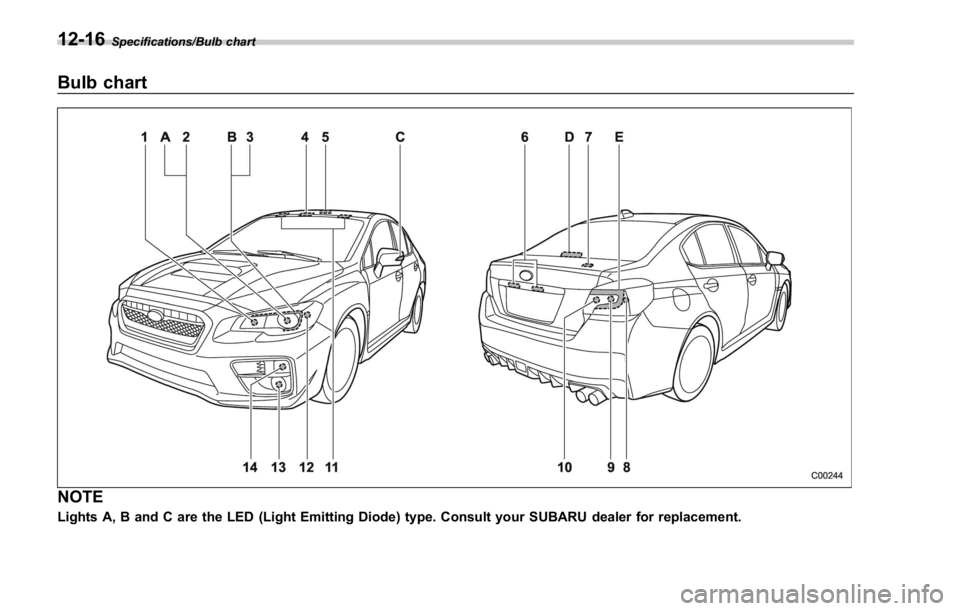

Bulb chart
NOTE Lights A, B and C are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.12-16

Wattage Bulb No.
1) High beam headlight 12V-60W HB3
2) Low beam headlight (models without LED headlights) 12V-55W H11
3) Parking light (models without LED headlights) 12V-5W W5W
4) Map light
12V-8W –
5) Dome light 12V-8W –
6) License plate light 12V-5W W5W
7)
Trunk light 12V-5W W5W
8)
Rear side marker light 12V-5W W5W
9)
Backup light 12V-16W W16W
10)
Rear turn signal light 12V-21W WY21W
11 )
Vanity mirror light 12V-2W –
12)
Front side marker light (if equipped) 12V-5W W5W
13)
Front fog light (models without steering responsive fog
lights system) 12V-19W H16
Front fog light (models with steering responsive fog
lights system) 12V-55W H11
14)
Front turn signal light 12V-21W WY21W
A)
Low beam headlight (models with LED headlights) ––
B)
Parking light (models with LED headlights) ––
C)
Side turn signal light (if equipped) ––
D)
High-mounted stop light ––
E)
Stop light/Tail light – – WARNINGBulbs may become very hot while
illuminated. Before replacing bulbs,
turn off the lights and wait until the
bulbs cool down. Otherwise, there is
a risk of sustaining a burn injury.
CAUTIONReplace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could
result in a fire. Specifications/Bulb chart
12-17

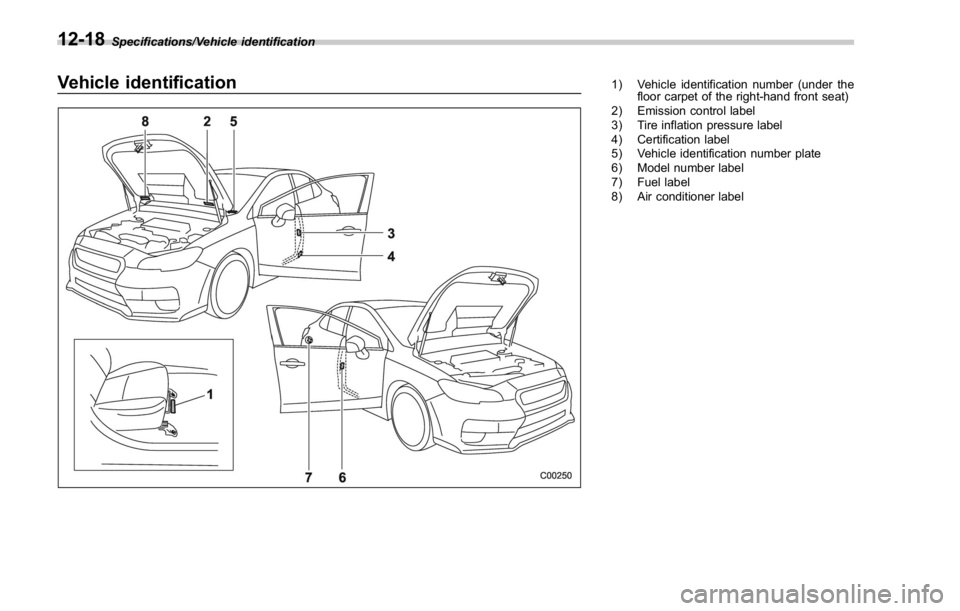

Specifications/Vehicle identification
Vehicle identification 1) Vehicle identification number (under the
floor carpet of the right-hand front seat)
2) Emission control label
3) Tire inflation pressure label
4) Certification label
5) Vehicle identification number plate
6) Model number label
7) Fuel label
8) Air conditioner label
12-18

For U.S.A. ........................................................... 13-2
Tire information .................................................. 13-2Tire labeling ....................................................... 13-2
Recommended tire inflation pressure .................. 13-4
Glossary of tire terminology ............................... 13-5
Tire care – maintenance and safety
practices ........................................................ 13-10
Vehicle load limit – how to determine ................ 13-10 Determining compatibility of tire and vehicle
load capacities .............................................. 13-13
Adverse safety consequences of overloading
on handling and stopping and on tires ........... 13-13
Steps for Determining Correct Load Limit ......... 13-14
Uniform tire quality grading standards .......... 13-14Treadwear ....................................................... 13-15
Traction AA, A, B, C ......................................... 13-15
Temperature A, B, C ......................................... 13-15
Reporting safety defects (U.S.A.) ................... 13-16
Consumer information and Reporting safety defects
