2016 SUBARU WRX Owners Manual

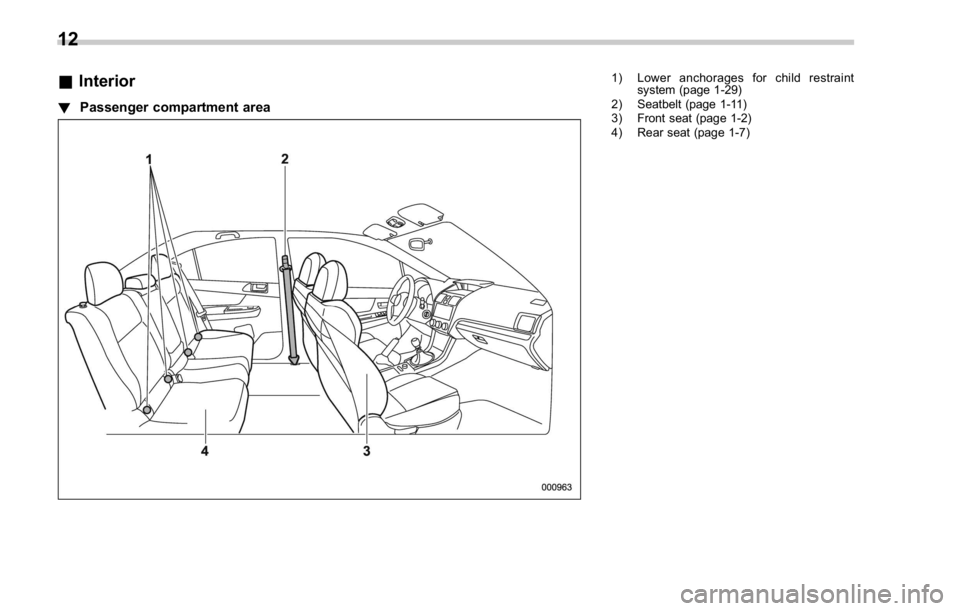

& Interior! Passenger compartment area 1) Lower anchorages for child restraint
system (page 1-29)
2) Seatbelt (page 1-11)
3) Front seat (page 1-2)
4) Rear seat (page 1-7)
12

(STI) 1) Center console (page 6-5)
2) Seat heater (page 1-6)
3) Cup holder (page 6-6)
4) Parking brake lever (page 7-44)
5) Power windows (page 2-32)
6) Door locks (page 2-5)
7) Outside mirror switch (page 3-111)
8) Glove box (page 6-5)
9) Front power supply socket (page 6-8)
10) Shift lever (page 7-17)
11) SI-DRIVE (page 7-29)
12) Driver ’ s Control Center Differential
(C.DIFF/DCCD) (page 7-19)
– CONTINUED –13

(Except STI) (models without the EyeSight system) 1) Center console (page 6-5)
2) Seat heater (page 1-6)
3) Cup holder (page 6-6)
4) Parking brake lever (page 7-44)
5) Power windows (page 2-32)
6) Door locks (page 2-5)
7) Outside mirror switch (page 3-111)
8) Glove box (page 6-5)
9) Front power supply socket (page 6-8)
10) Shift lever (MT) (page 7-17)/Select lever
(CVT) (page 7-24)
14

(Except STI) (models with the EyeSight system) 1) Center console (page 6-5)
2) Seat heater (page 1-6)
3) Cup holder (page 6-6)
4) Parking brake switch (page 7-44)
5) Power windows (page 2-32)
6) Door locks (page 2-5)
7) Outside mirror switch (page 3-111)
8) Glove box (page 6-5)
9) Front power supply socket (page 6-8)
10) Shift lever (MT) (page 7-17)/Select lever
(CVT) (page 7-24)
11) Hill Holder switch (page 7-47)
– CONTINUED –15

& Instrument panel 1) Illumination brightness control
(page 3-98)
2) Trunk lid opener switch (page 2-36)
3) Combination meter (page 3-8)
4) Multi function display (page 3-48)
5) Hazard warning flasher switch (page 3-8)
6) Multi function display control switches
(page 3-48)
7) Audio (page 5-1)
8) Climate control (page 4-1)
9) Tilt/telescopic steering (page 3-113)
10) Horn (page 3-114)
11) SRS airbag (page 1-33)
12) Vehicle Dynamics Control OFF switch
(page 7-40)
13) Fuse box (page 11-42)
14) Hood lock release knob (page 11-9)
15) Steering responsive fog lights OFF
switch (if equipped) (page 3-99)
16) BSD/RCTA OFF switch (if equipped)
(page 7-56)
NOTE For models with the EyeSight system:
Refer to the Owner ’ s Manual supple-
ment for the EyeSight system.16

& Steering wheel 1) Audio control buttons (page 5-18)
2) Cruise control (page 7-52)
3) Shift paddle (page 7-26)
4) Hands-free switches (page 5-87)
5) Multi information display control switches
(page 3-37)
6) SRS airbag (page 1-33)
7) Horn (page 3-114)
8) SI-DRIVE switches (except STI)
(page 7-32)
– CONTINUED –17

& Light control and wiper control levers/switches 1) Windshield wiper (page 3-101)
2) Mist (page 3-102)
3) Windshield washer (page 3-103)
4) Wiper intermittent time control switch
(page 3-102)
5) Wiper control lever (page 3-102)
6) Light control switch (page 3-94)
7) Fog light switch (page 3-99)
8) Headlight ON/OFF/AUTO (page 3-95)
9) Headlight flasher High/Low beam
change (page 3-96)
10) Turn signal lever (page 3-97)
18

& Combination meter ! U.S.-spec. models
The illustration above is a typical example. For some models, the combination meter
may be slightly different than that shown in the illustration. 1) Tachometer (page 3-10)
2) Multi information display (page 3-37)
3) Select lever/gear position indicator
(page 3-34)
4) Speedometer (page 3-9)
5) Trip knob (page 3-9)
6) Fuel gauge (page 3-10)
7) Trip meter and odometer (page 3-9)
8) Temperature gauge (page 3-11)
– CONTINUED –19
