2016 NISSAN LEAF Owners Manual

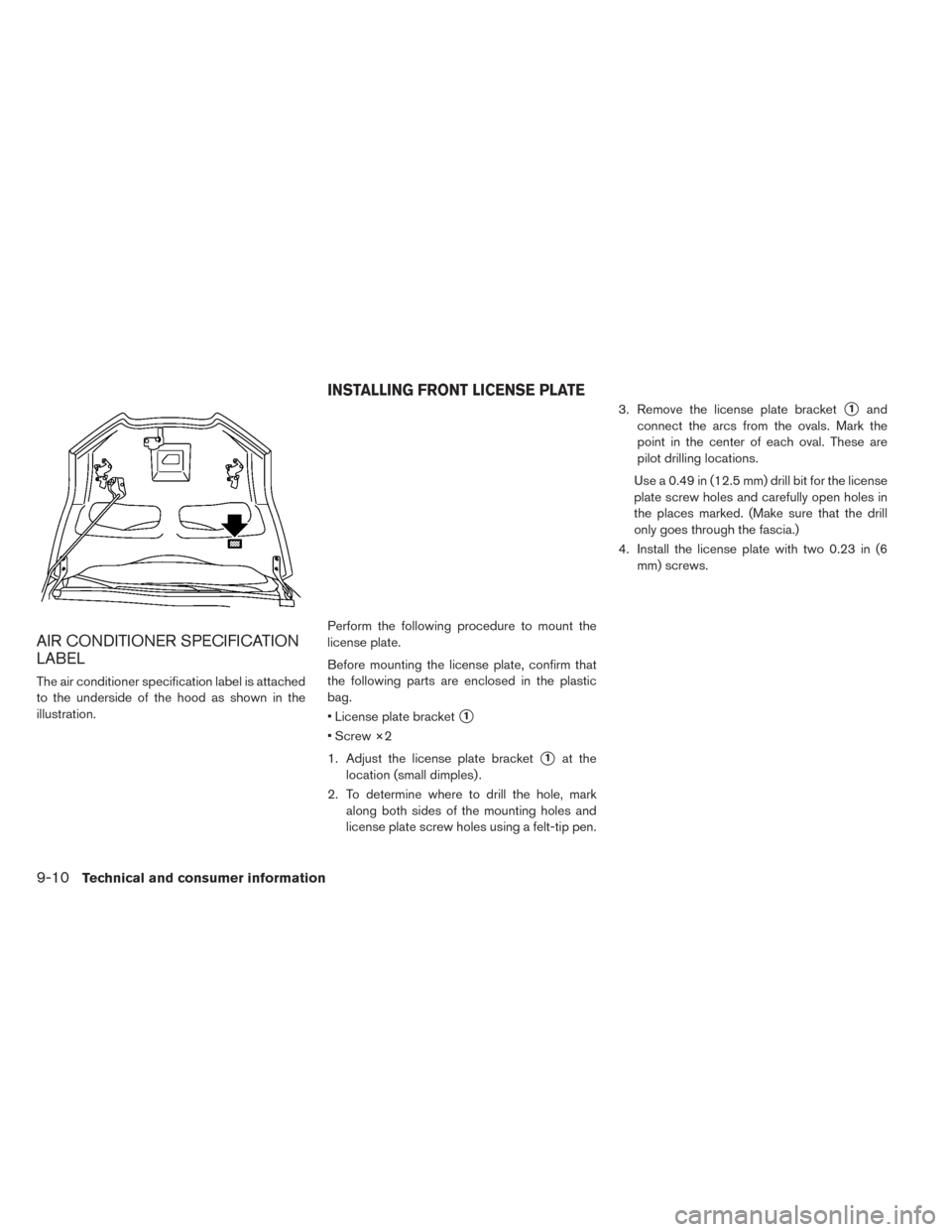

AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is attached
to the underside of the hood as shown in the
illustration.Perform the following procedure to mount the
license plate.
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
• License plate bracket
1
• Screw ×2
1. Adjust the license plate bracket
1at the
location (small dimples) .
2. To determine where to drill the hole, mark along both sides of the mounting holes and
license plate screw holes using a felt-tip pen. 3. Remove the license plate bracket
1and
connect the arcs from the ovals. Mark the
point in the center of each oval. These are
pilot drilling locations.
Use a 0.49 in (12.5 mm) drill bit for the license
plate screw holes and carefully open holes in
the places marked. (Make sure that the drill
only goes through the fascia.)
4. Install the license plate with two 0.23 in (6 mm) screws.
INSTALLING FRONT LICENSE PLATE
9-10Technical and consumer information

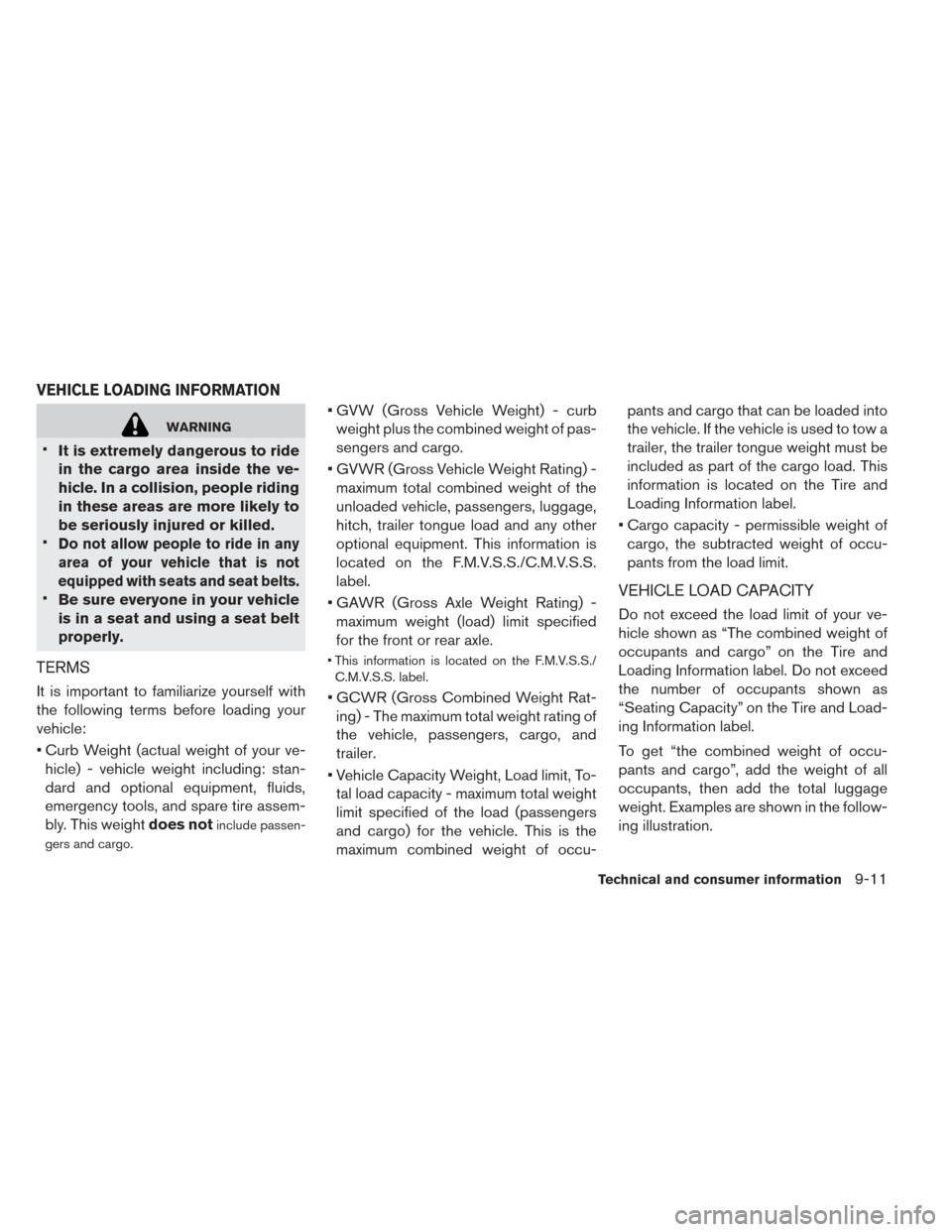

WARNING
•
It is extremely dangerous to ride
in the cargo area inside the ve-
hicle. In a collision, people riding
in these areas are more likely to
be seriously injured or killed.
•Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
•Be sure everyone in your vehicle
is in a seat and using a seat belt
properly.
TERMS
It is important to familiarize yourself with
the following terms before loading your
vehicle:
• Curb Weight (actual weight of your ve- hicle) - vehicle weight including: stan-
dard and optional equipment, fluids,
emergency tools, and spare tire assem-
bly. This weight does not
include passen-
gers and cargo.
• GVW (Gross Vehicle Weight) - curb weight plus the combined weight of pas-
sengers and cargo.
• GVWR (Gross Vehicle Weight Rating) - maximum total combined weight of the
unloaded vehicle, passengers, luggage,
hitch, trailer tongue load and any other
optional equipment. This information is
located on the F.M.V.S.S./C.M.V.S.S.
label.
• GAWR (Gross Axle Weight Rating) - maximum weight (load) limit specified
for the front or rear axle.
• This information is located on the F.M.V.S.S./
C.M.V.S.S. label.
• GCWR (Gross Combined Weight Rat-ing) - The maximum total weight rating of
the vehicle, passengers, cargo, and
trailer.
• Vehicle Capacity Weight, Load limit, To- tal load capacity - maximum total weight
limit specified of the load (passengers
and cargo) for the vehicle. This is the
maximum combined weight of occu- pants and cargo that can be loaded into
the vehicle. If the vehicle is used to tow a
trailer, the trailer tongue weight must be
included as part of the cargo load. This
information is located on the Tire and
Loading Information label.
• Cargo capacity - permissible weight of cargo, the subtracted weight of occu-
pants from the load limit.
VEHICLE LOAD CAPACITY
Do not exceed the load limit of your ve-
hicle shown as “The combined weight of
occupants and cargo” on the Tire and
Loading Information label. Do not exceed
the number of occupants shown as
“Seating Capacity” on the Tire and Load-
ing Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in the follow-
ing illustration.
VEHICLE LOADING INFORMATION
Technical and consumer information9-11

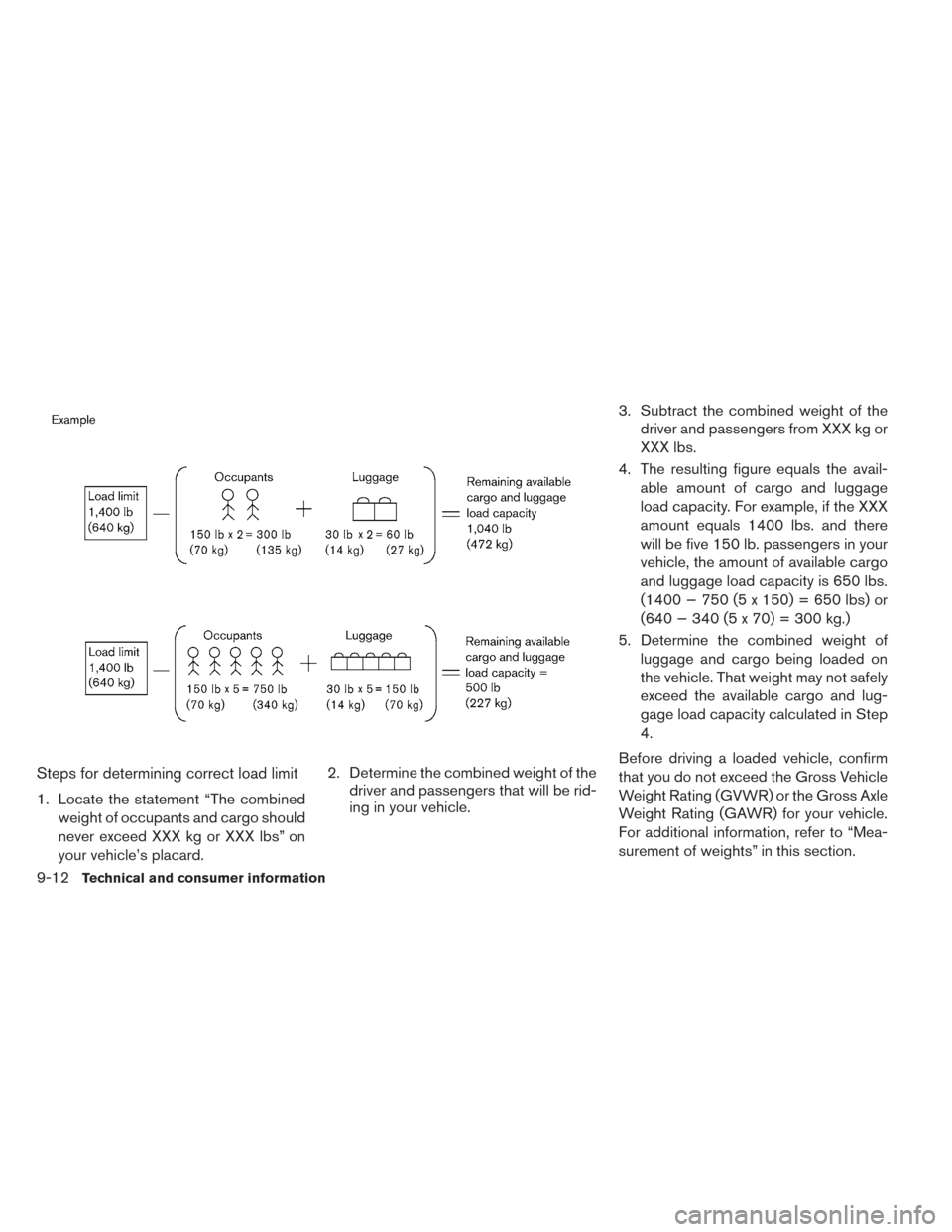

Steps for determining correct load limit
1. Locate the statement “The combinedweight of occupants and cargo should
never exceed XXX kg or XXX lbs” on
your vehicle’s placard. 2. Determine the combined weight of the
driver and passengers that will be rid-
ing in your vehicle. 3. Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
4. The resulting figure equals the avail- able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400 − 750 (5 x 150) = 650 lbs) or
(640 − 340 (5 x 70) = 300 kg.)
5. Determine the combined weight of luggage and cargo being loaded on
the vehicle. That weight may not safely
exceed the available cargo and lug-
gage load capacity calculated in Step
4.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
For additional information, refer to “Mea-
surement of weights” in this section.
9-12Technical and consumer information

Also check tires for proper inflation pres-
sures. For additional information, refer to
the Tire and Loading Information label.
LOADING TIPS
• The GVW must not exceed the GVWRor GAWR as specified on the
F.M.V.S.S./C.M.V.S.S. certification label.
• Do not load the front and rear axle to the GAWR. Doing so will exceed the
GVWR.
WARNING
•
Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or colli-
sion, unsecured cargo could
cause personal injury.
•Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts of your vehicle
can break, tire damage could oc-
cur, or it can change the way your
vehicle handles. This could result
in loss of control and cause per-
sonal injury.
•Overloading not only can
shorten the life of your vehicle
and the tire, but can cause un-
safe vehicle handling and longer
braking distances. This may
cause a premature tire failure,
which could result in a serious
accident and personal injury.
Failures caused by overloading
are not covered by the vehicle’s
warranty.
MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels separately to determine axle
loads. Individual axle loads should not ex-
ceed either of the Gross Axle Weight
Ratings (GAWR) . The total of the axle
loads should not exceed the Gross Ve-
hicle Weight Rating (GVWR) . These rat-
ings are given on the vehicle certification
label. If weight ratings are exceeded,
move or remove items to bring all weights
below the ratings.
Technical and consumer information9-13

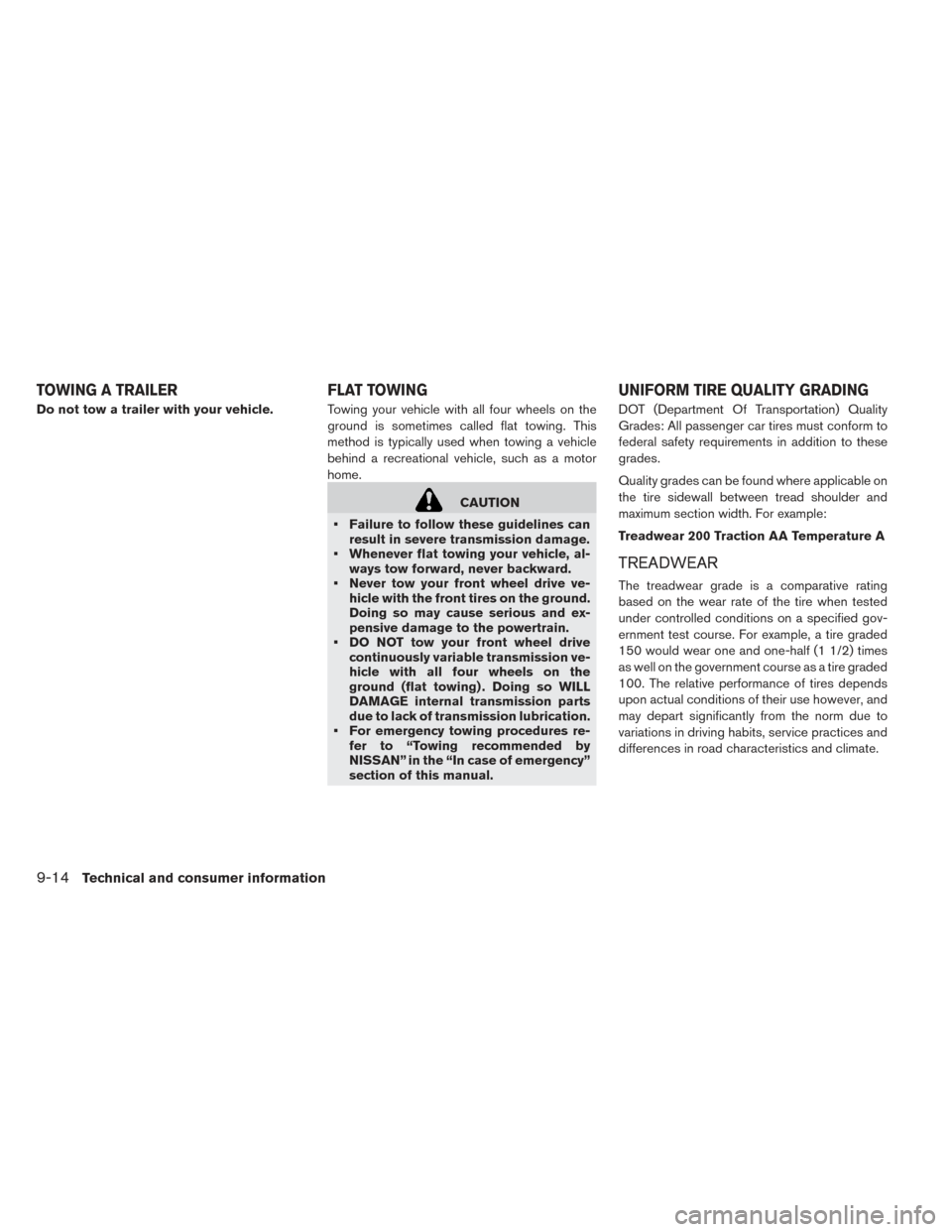

Do not tow a trailer with your vehicle.Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is typically used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
• Failure to follow these guidelines can result in severe transmission damage.
• Whenever flat towing your vehicle, al- ways tow forward, never backward.
• Never tow your front wheel drive ve- hicle with the front tires on the ground.
Doing so may cause serious and ex-
pensive damage to the powertrain.
• DO NOT tow your front wheel drive continuously variable transmission ve-
hicle with all four wheels on the
ground (flat towing) . Doing so WILL
DAMAGE internal transmission parts
due to lack of transmission lubrication.
• For emergency towing procedures re- fer to “Towing recommended by
NISSAN” in the “In case of emergency”
section of this manual. DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon actual conditions of their use however, and
may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
TOWING A TRAILER
FLAT TOWINGUNIFORM TIRE QUALITY GRADING
9-14Technical and consumer information

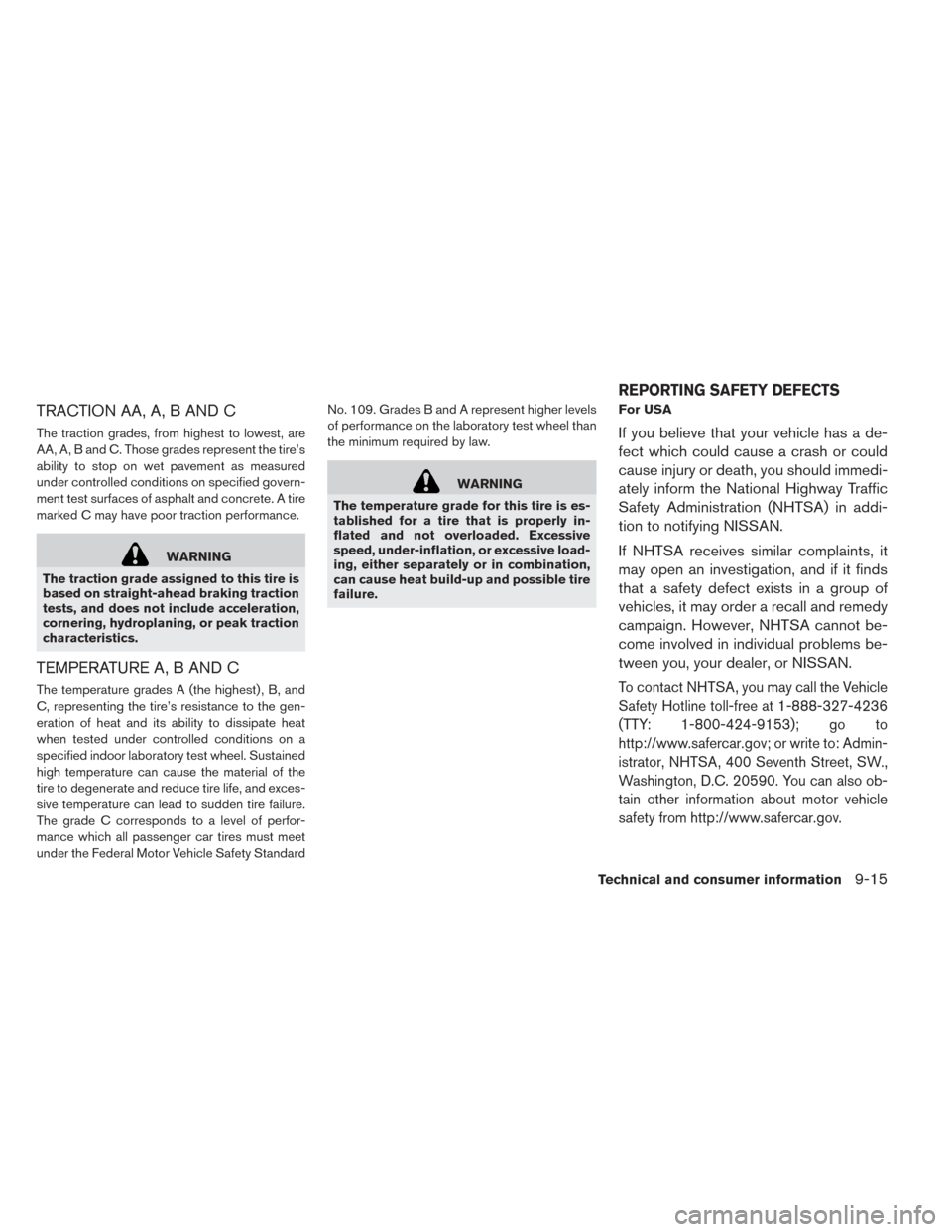

TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the tire’s
ability to stop on wet pavement as measured
under controlled conditions on specified govern-
ment test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest) , B, and
C, representing the tire’s resistance to the gen-
eration of heat and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly in-
flated and not overloaded. Excessive
speed, under-inflation, or excessive load-
ing, either separately or in combination,
can cause heat build-up and possible tire
failure. For USA
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform the National Highway Traffic
Safety Administration (NHTSA) in addi-
tion to notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236
(TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Admin-
istrator, NHTSA, 400 Seventh Street, SW.,
Washington, D.C. 20590. You can also ob-
tain other information about motor vehicle
safety from http://www.safercar.gov.
REPORTING SAFETY DEFECTS
Technical and consumer information9-15

You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-877-NOGASEV (1-877-664-2738) .
For Canada
If you believe that your vehicle has a de-
fect which could cause a crash or could
cause injury or death, you should immedi-
ately inform Transport Canada in addition
to notifying NISSAN.
If Transport Canada receives complaints,
it may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request a recall campaign.
However, Transport Canada cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division
toll free at 1-800-333-0510. You may
also report safety defects online at: http://
www.tc.gc.ca/eng/motorvehiclesafety/
safevehicles-defectinvestigations-index-76.htm
(English speakers) orhttp://www.tc.gc.ca/fra/securiteautomobile/
VehiculesSecuritaires-Enquetes-index-76.htm
(French speakers)
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers) .
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.
In addition to Event Data Recorders (EDRs) dis-
cussed elsewhere in this Owner’s Manual, this
vehicle is equipped with electronic modules that
monitor, control and record data concerning vari-
ous vehicle systems, including the motor, batter-
ies, braking and electrical systems. Other elec-
tronic modules record information concerning
driving conditions, including idling, braking, ac-
celeration, trip and other related data, information
about your use of the car and its features such as
air conditioner or headlight usage, diagnostic
trouble codes, vehicle charging, vehicle speed,
direction and/or location.
Some of this data is stored by the vehicle for use
during vehicle servicing. Other data concerning
your vehicle’s operation and performance is wire-
lessly transmitted by cellular connection through
the vehicle onboard telematics system upon ve-
hicle start-up or at other intervals to NISSAN.
This data may be used by NISSAN for various
purposes, including: to provide you with Nissan-
Connect
SMEV Services (refer to LEAF Naviga-
tion System Owner’s Manual for details); trouble-
shooting; evaluation of your vehicle’s quality,
functionality and performance; analysis and re-
search by NISSAN designed to, among other
things, optimize performance of future electric
vehicles including improvements in future battery
TELEMATICS OVERVIEW (MODELS
WITH NAVIGATION SYSTEM)
9-16Technical and consumer information

life; to offer you new or additional products or
services; and as otherwise may be required by
law. Such data may be shared with NISSAN’s
parents, subsidiaries, affiliates, successors or as-
signees; authorized NISSAN certified LEAF deal-
ers; NISSAN’s marketing partners; your fleet
company, if your vehicle is a fleet vehicle; your
rental company, if your vehicle is a rental vehicle;
and third party service providers such as cellular,
information systems and data management pro-
viders.
State and provincial laws allow access and use of
data recorded by vehicle devices with the con-
sent of the vehicle owner or pursuant to subscrip-
tion agreement. While you are not required to
allow such access and use, if you do not so agree
NISSAN may be unable under applicable law to
activate the vehicle telematics system in your
vehicle, and certain features of your vehicle which
are dependent on vehicle telematics will not op-
erate as intended or designed. These may in-
clude features such as automatic charging sta-
tion map updates, remote battery state of charge
check, charging complete notice, remote plug in
reminder, remote charging on, remote climate
control on, drive route planning, driving tips to
improve range, driving history, billing simulation,
ECO ranking, ECO forest, maintenance remind-ers, etc. Other features that may be developed
and offered by NISSAN in the future may also not
function without telematics data transmission.
NissanConnect
SMEV Services telematics ser-
vices are provided by NISSAN pursuant to a
subscription services agreement covering your
vehicle. This agreement is necessary for all own-
ers. This agreement, and an explanation of its
terms and conditions, can be found at the
NISSAN Owner’s Portal webpage. Further, the
operator of the vehicle must also touch [OK] on
the Navi screen to indicate assent each time he or
she starts the car. If you decide at any time that
you do not want your vehicle to transmit data to
NISSAN, you can deactivate the telematics ac-
count associated with this vehicle by canceling
the subscription services agreement by visiting
the NISSAN Owner’s Portal Webpage or calling
NISSAN at 1-877-NOGASEV
(1-877-664-2738) . The service can be reacti-
vated later upon request if you choose. Simply
visit the same website or call the number above.
Alternatively, you can turn off the transmission of
certain categories of data through the use of
settings found in the Navigation system under
Menu, NissanConnect
SMEV Services, Vehicle
Information Sharing with NISSAN. Note, turning
off “Vehicle Information Sharing with NISSAN” will only disable the automatic sharing of informa-
tion at vehicle start-up. Certain categories of data
may still be transmitted if vehicle telematics fea-
tures are accessed either in the vehicle or re-
motely.
Your agreement to the transmission and use of
data by NISSAN can be provided in various ways.
The vehicle is equipped with a “pop up” screen
on the vehicle navigation system that will ask for
your consent to this data transfer. A version of the
following message will appear: “Pursuant to sub-
scription agreement, your vehicle wirelessly
transmits recorded vehicle data to NISSAN for
various purposes, including NissanConnect
SM
EV Services services, product evaluation, re-
search and development. By pressing OK, you
consent to the transmission and use of your
vehicle data. Refer to the Owner’s Manual or
NISSAN Owner’s portal webpage for terms and
details.” If you press [OK], your vehicle will trans-
mit data as designed in connection with the ve-
hicle telematics system. If you press [Decline]
your vehicle will not transmit data. However, the
telematics features referenced above, and per-
haps others, will not be available to you. The
vehicle’s static navigation system will remain op-
erational, and you will be able to access your
radio and climate controls.
Technical and consumer information9-17
