Disconnect the battery negative cable before
replacing bulbs.
1. Remove the connector
1.
2. Turn the headlight bulb, and then remove the bulb
2.

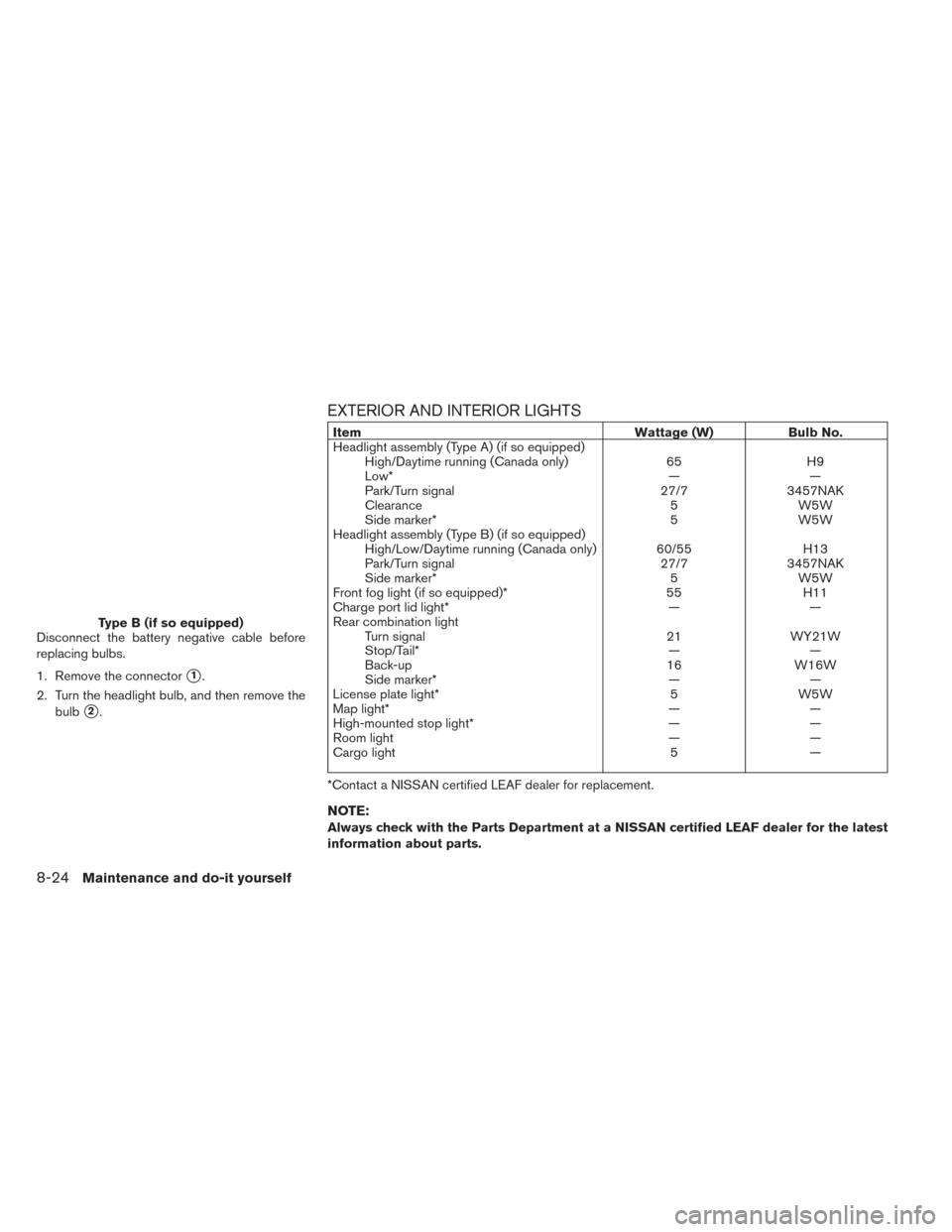

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.
Headlight assembly (Type A) (if so equipped) High/Daytime running (Canada only) 65H9
Low* ——
Park/Turn signal 27/73457NAK
Clearance 5W5W
Side marker* 5W5W
Headlight assembly (Type B) (if so equipped) High/Low/Daytime running (Canada only) 60/55 H13
Park/Turn signal 27/73457NAK
Side marker* 5W5W
Front fog light (if so equipped)* 55H11
Charge port lid light* ——
Rear combination light Turn signal 21WY21W
Stop/Tail* ——
Back-up 16W16W
Side marker* ——
License plate light* 5W5W
Map light* ——
High-mounted stop light* ——
Room light ——
Cargo light 5—
*Contact a NISSAN certified LEAF dealer for replacement.
NOTE:
Always check with the Parts Department at a NISSAN certified LEAF dealer for the latest
information about parts.
Type B (if so equipped)
8-24Maintenance and do-it yourself

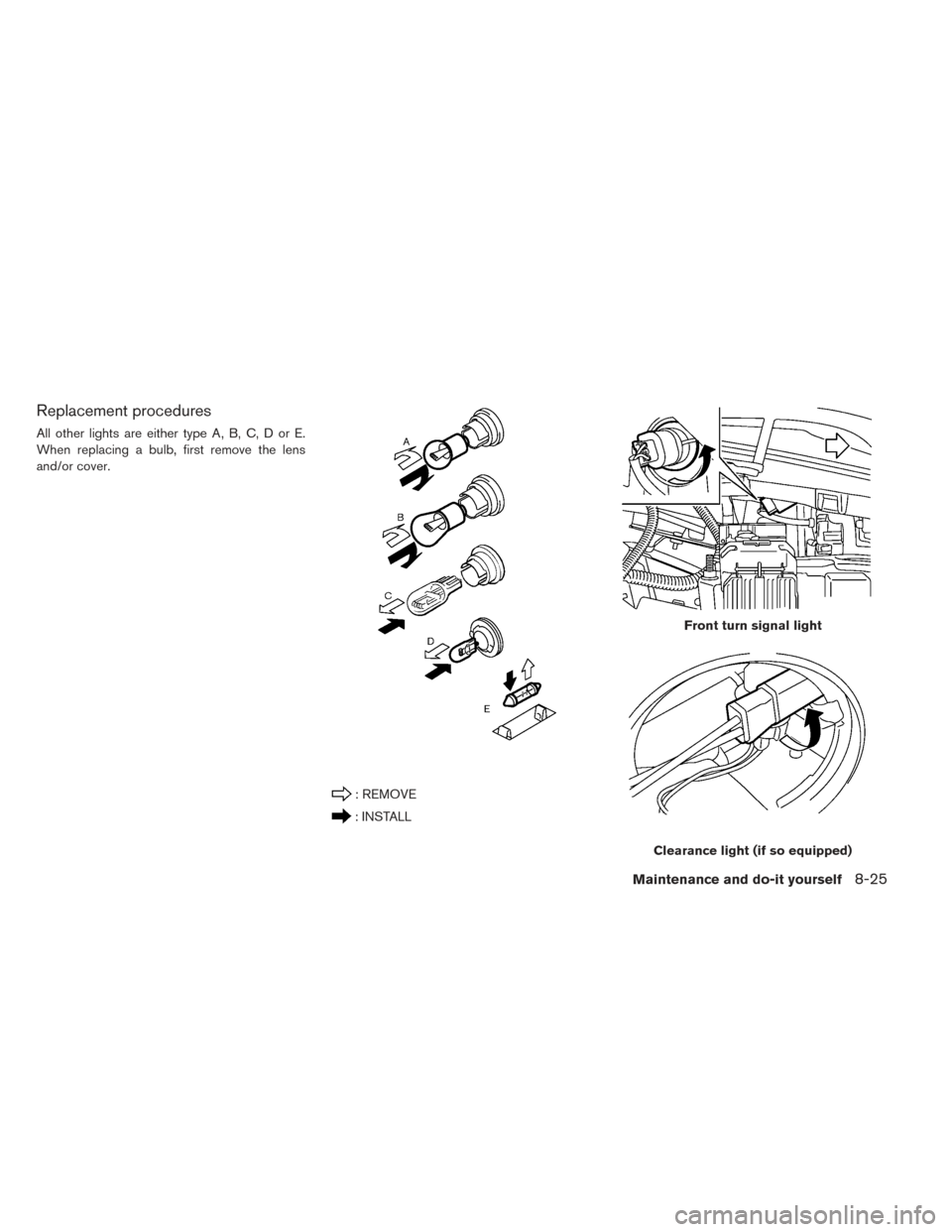

Replacement procedures
All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
: REMOVE
: INSTALL
Front turn signal light
Clearance light (if so equipped)
Maintenance and do-it yourself8-25

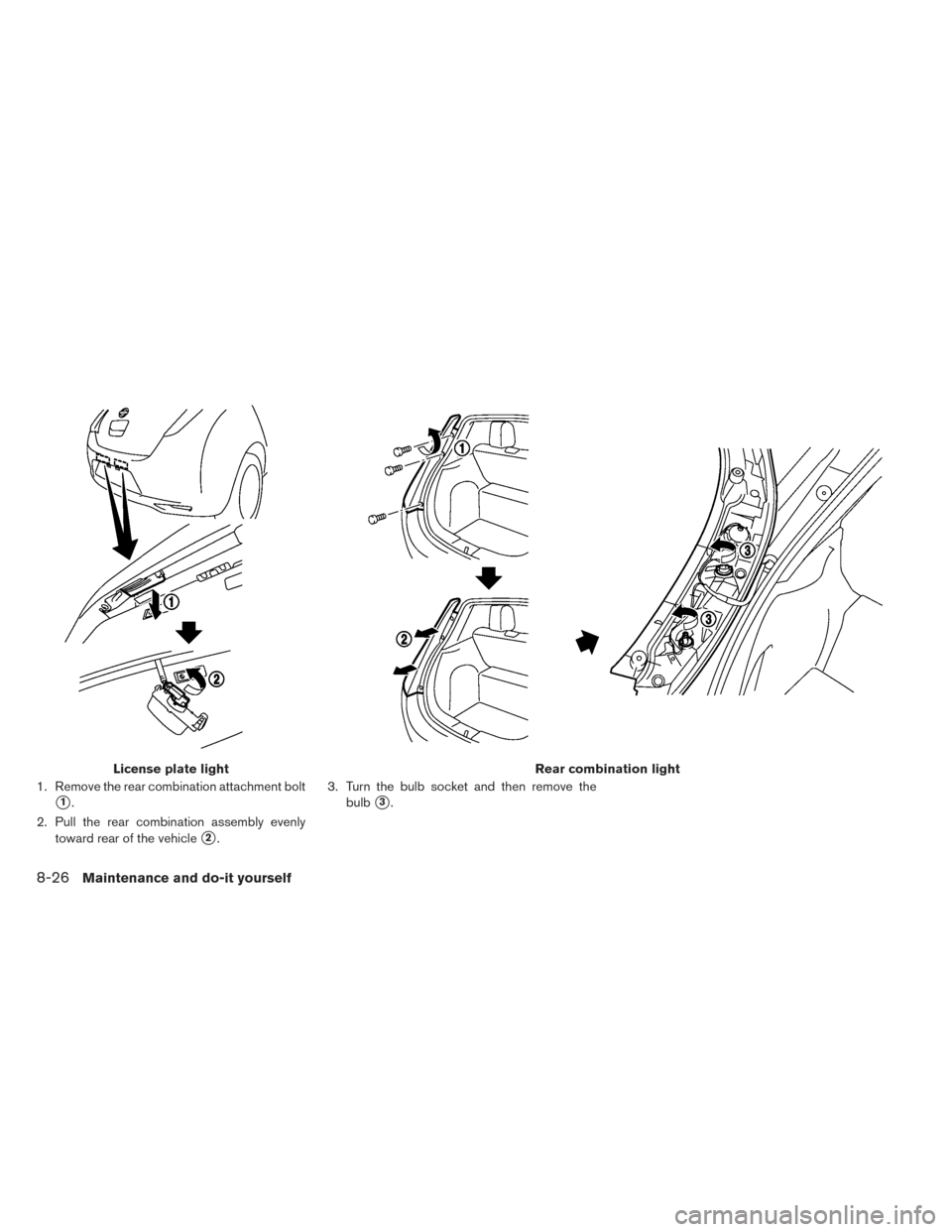

1. Remove the rear combination attachment bolt
1.
2. Pull the rear combination assembly evenly toward rear of the vehicle
2. 3. Turn the bulb socket and then remove the
bulb
3.
License plate lightRear combination light
8-26Maintenance and do-it yourself

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS) . It
monitors tire pressure of all tires. When
the low tire pressure warning light is lit,
and the CHECK TIRE PRESSURE warn-
ing appears on the vehicle information
display, one or more of your tires is signifi-
cantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 mph
(25 km/h) . Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving) .
For additional information, refer to “Low
tire pressure warning light” in the “Instru-
ments and controls” section, “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting and driving” section and “TirePressure Monitoring System (TPMS)” in
the “In case of emergency” section of this
manual.
Tire inflation pressure
Check the pressure of the tires often and
always prior to long distance trips. The
recommended tire pressure specifica-
tions are shown on the F.M.V.S.S/
C.M.V.S.S certification label or Tire and
Loading Information label under the “Cold
Tire Pressure” heading. The Tire and
Loading Information label is affixed to the
driver side center pillar. Tire pressures
should be checked regularly because:
• Most tires naturally lose air over time.
• Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are con-
sidered COLD after the vehicle has been
parked for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate speeds.

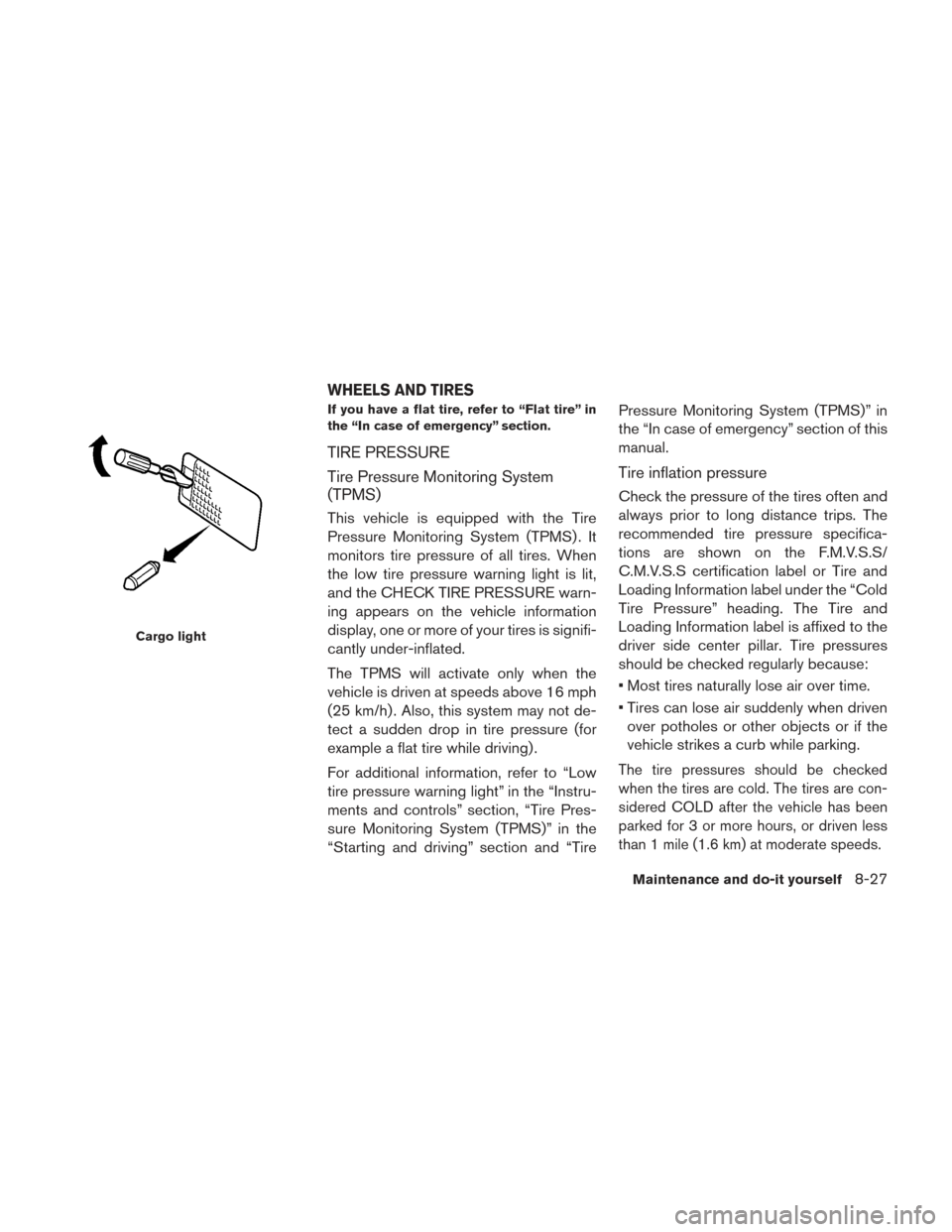

Cargo light
WHEELS AND TIRES
Maintenance and do-it yourself8-27

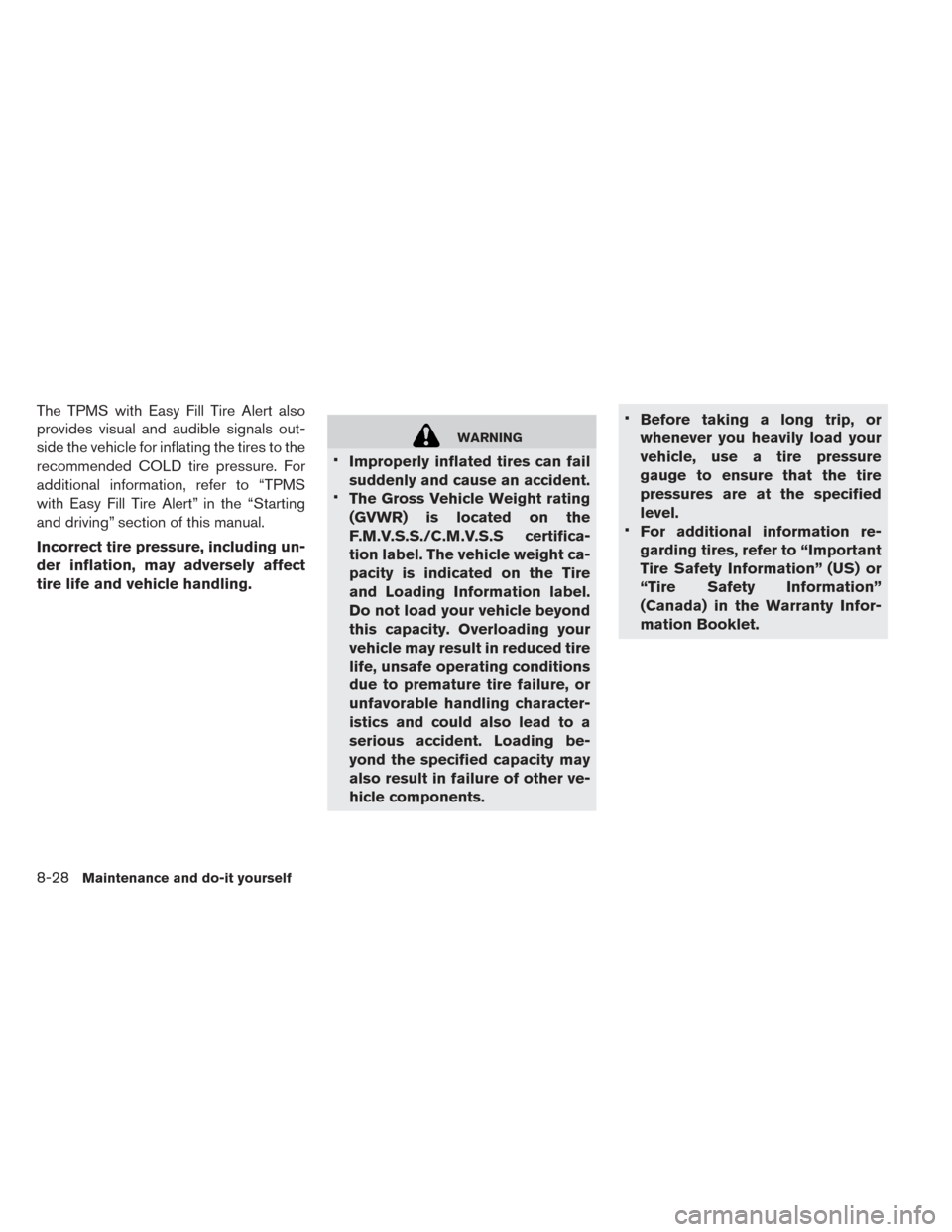

The TPMS with Easy Fill Tire Alert also
provides visual and audible signals out-
side the vehicle for inflating the tires to the
recommended COLD tire pressure. For
additional information, refer to “TPMS
with Easy Fill Tire Alert” in the “Starting
and driving” section of this manual.
Incorrect tire pressure, including un-
der inflation, may adversely affect
tire life and vehicle handling.
WARNING
•
Improperly inflated tires can fail
suddenly and cause an accident.
•The Gross Vehicle Weight rating
(GVWR) is located on the
F.M.V.S.S./C.M.V.S.S certifica-
tion label. The vehicle weight ca-
pacity is indicated on the Tire
and Loading Information label.
Do not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced tire
life, unsafe operating conditions
due to premature tire failure, or
unfavorable handling character-
istics and could also lead to a
serious accident. Loading be-
yond the specified capacity may
also result in failure of other ve-
hicle components.
•Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
•For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information”
(Canada) in the Warranty Infor-
mation Booklet.
8-28
Maintenance and do-it yourself

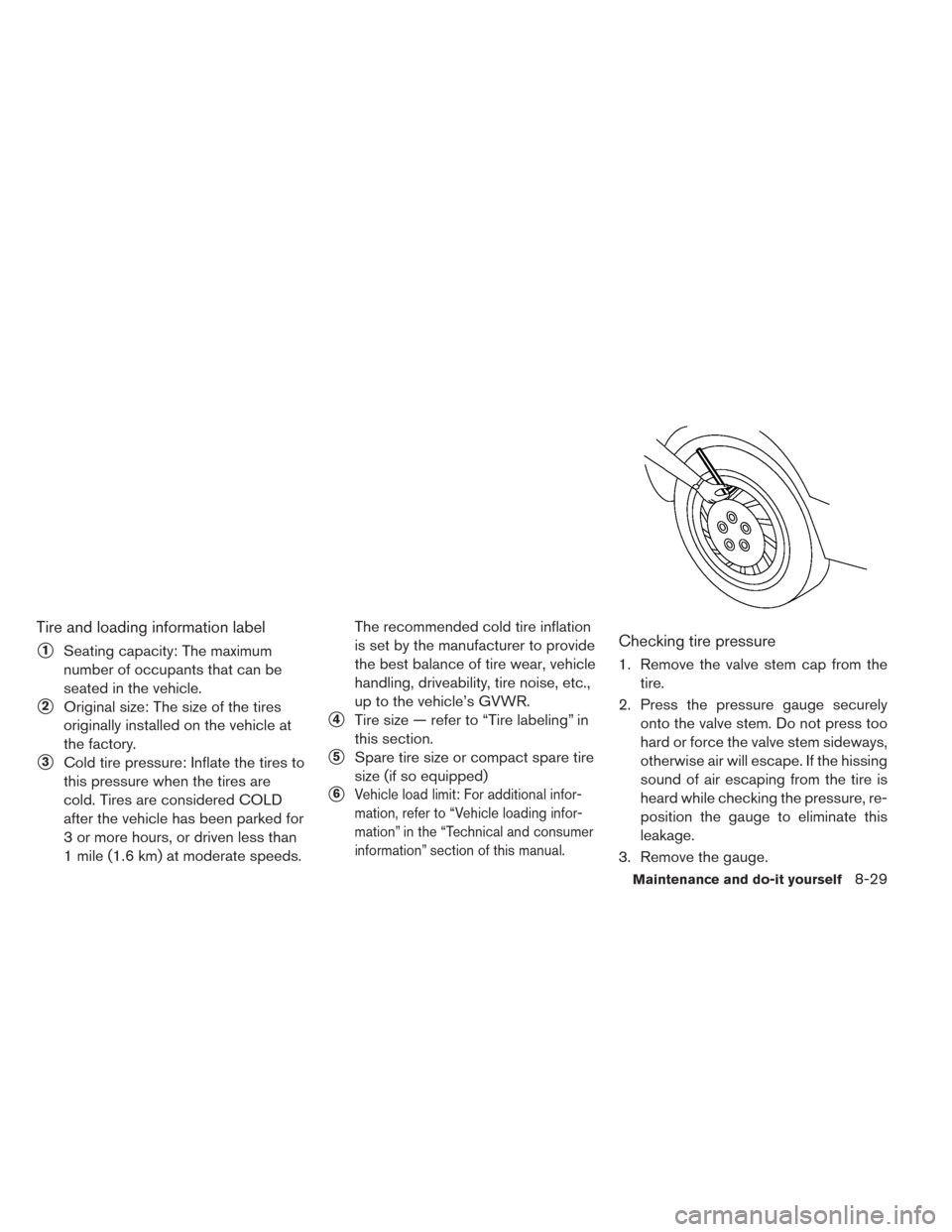

Tire and loading information label
1Seating capacity: The maximum
number of occupants that can be
seated in the vehicle.
2Original size: The size of the tires
originally installed on the vehicle at
the factory.
3Cold tire pressure: Inflate the tires to
this pressure when the tires are
cold. Tires are considered COLD
after the vehicle has been parked for
3 or more hours, or driven less than
1 mile (1.6 km) at moderate speeds. The recommended cold tire inflation
is set by the manufacturer to provide
the best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle’s GVWR.
4Tire size — refer to “Tire labeling” in
this section.
5Spare tire size or compact spare tire
size (if so equipped)
6Vehicle load limit: For additional infor-
mation, refer to “Vehicle loading infor-
mation” in the “Technical and consumer
information” section of this manual.
Checking tire pressure
1. Remove the valve stem cap from the tire.
2. Press the pressure gauge securely onto the valve stem. Do not press too
hard or force the valve stem sideways,
otherwise air will escape. If the hissing
sound of air escaping from the tire is
heard while checking the pressure, re-
position the gauge to eliminate this
leakage.
3. Remove the gauge.
Maintenance and do-it yourself8-29

4. Read the tire pressure on the gaugestem and compare it to the specifica-
tion shown on the Tire and Loading
Information label.
5. Add air to the tire as necessary. If too much air is added, press the core of
the valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as necessary.
6. Install the valve stem cap.
7. Check the pressure of all of the tires.
SIZE COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGI-
NAL TIRE P205/55R16
89H 250 kPa,
36 PSI
FRONT
ORIGI-
NAL TIRE P215/50R17
90V 250 kPa,
36 PSI
REAR
ORIGI-
NAL TIRE P205/55R16
89H 250 kPa,
36 PSI
REAR
ORIGI-
NAL TIRE P215/50R17
90V 250 kPa,
36 PSI

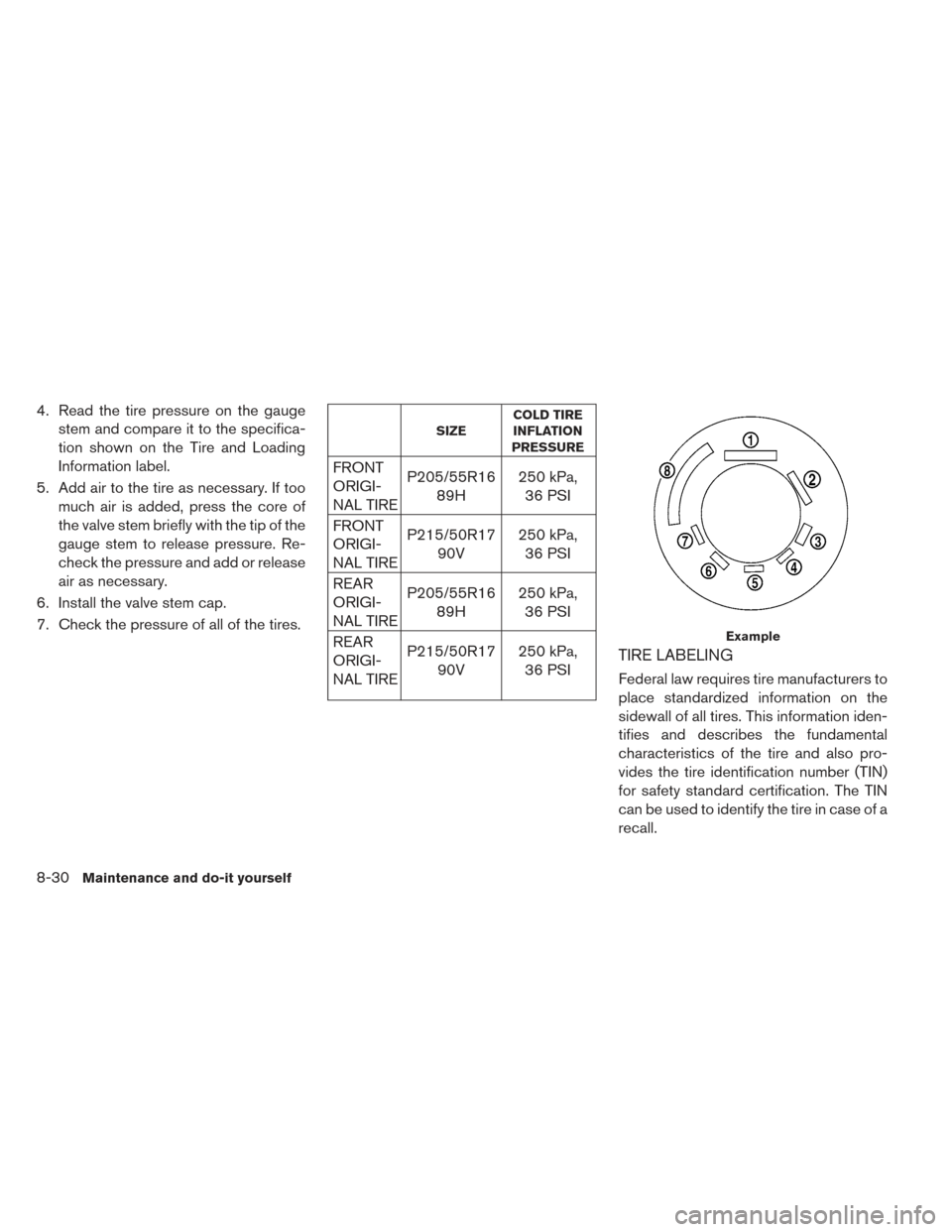

TIRE LABELING
Federal law requires tire manufacturers to
place standardized information on the
sidewall of all tires. This information iden-
tifies and describes the fundamental
characteristics of the tire and also pro-
vides the tire identification number (TIN)
for safety standard certification. The TIN
can be used to identify the tire in case of a
recall.
Example
8-30Maintenance and do-it yourself

1Tire size (example: P215/
60R16 94H)
1. P: The “P” indicates the tire is de- signed for passenger vehicles. (Not all
tires have this information.)
2. Three-digit number (215): This num- ber gives the width in millimeters of the
tire from sidewall edge to sidewall
edge. 3. Two-digit number (60): This number,
known as the aspect ratio, gives the
tire’s ratio of height to width.
4. R: The “R” stands for radial.
5. Two-digit number (16): This number is the wheel or rim diameter in inches.
6. Two- or three-digit number (94): This number is the tire’s load index. It is a
measurement of how much weight
each tire can support. You may not find
this information on all tires because it
is not required by law.
7. H: Tire speed rating. You should not drive the vehicle faster than the tire
speed rating.
Example
