2016 NISSAN LEAF Owners Manual

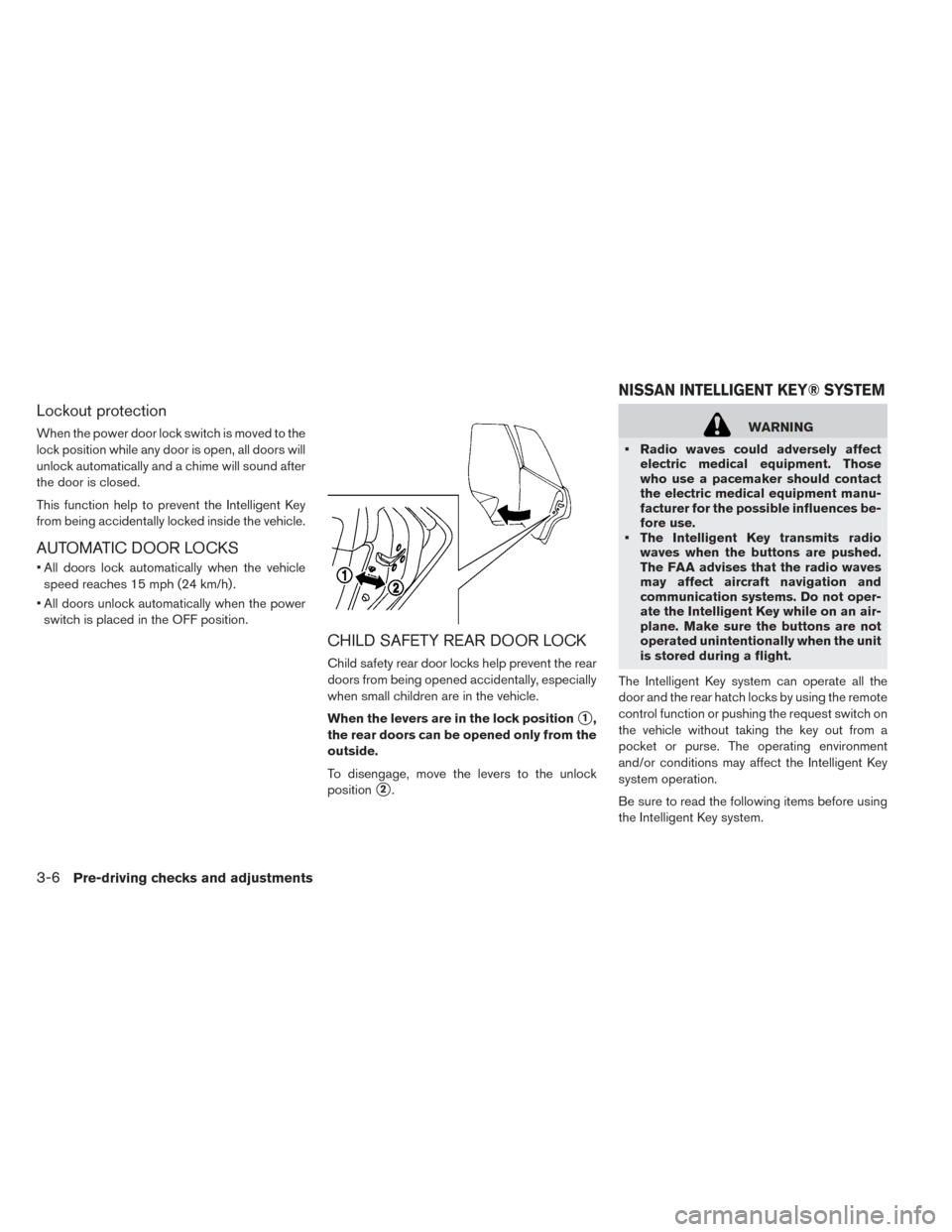

Lockout protection
When the power door lock switch is moved to the
lock position while any door is open, all doors will
unlock automatically and a chime will sound after
the door is closed.
This function help to prevent the Intelligent Key
from being accidentally locked inside the vehicle.
AUTOMATIC DOOR LOCKS
• All doors lock automatically when the vehiclespeed reaches 15 mph (24 km/h) .
• All doors unlock automatically when the power switch is placed in the OFF position.
CHILD SAFETY REAR DOOR LOCK
Child safety rear door locks help prevent the rear
doors from being opened accidentally, especially
when small children are in the vehicle.
When the levers are in the lock position
1,
the rear doors can be opened only from the
outside.
To disengage, move the levers to the unlock
position
2.
WARNING
• Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
• The Intelligent Key transmits radio waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and
communication systems. Do not oper-
ate the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
The Intelligent Key system can operate all the
door and the rear hatch locks by using the remote
control function or pushing the request switch on
the vehicle without taking the key out from a
pocket or purse. The operating environment
and/or conditions may affect the Intelligent Key
system operation.
Be sure to read the following items before using
the Intelligent Key system.
NISSAN INTELLIGENT KEY® SYSTEM
3-6Pre-driving checks and adjustments

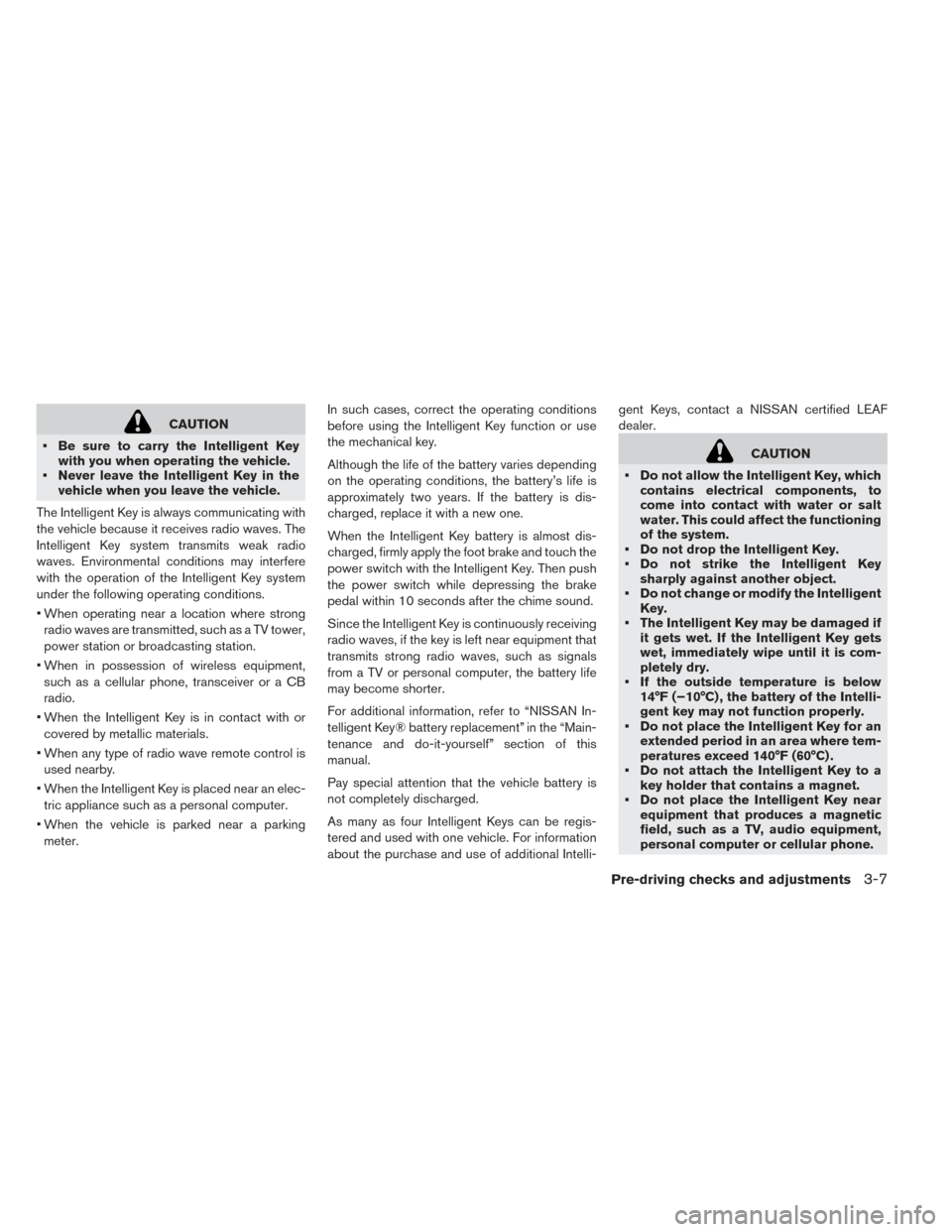

CAUTION
• Be sure to carry the Intelligent Key with you when operating the vehicle.
• Never leave the Intelligent Key in the vehicle when you leave the vehicle.
The Intelligent Key is always communicating with
the vehicle because it receives radio waves. The
Intelligent Key system transmits weak radio
waves. Environmental conditions may interfere
with the operation of the Intelligent Key system
under the following operating conditions.
• When operating near a location where strong radio waves are transmitted, such as a TV tower,
power station or broadcasting station.
• When in possession of wireless equipment, such as a cellular phone, transceiver or a CB
radio.
• When the Intelligent Key is in contact with or covered by metallic materials.
• When any type of radio wave remote control is used nearby.
• When the Intelligent Key is placed near an elec- tric appliance such as a personal computer.
• When the vehicle is parked near a parking meter. In such cases, correct the operating conditions
before using the Intelligent Key function or use
the mechanical key.
Although the life of the battery varies depending
on the operating conditions, the battery’s life is
approximately two years. If the battery is dis-
charged, replace it with a new one.
When the Intelligent Key battery is almost dis-
charged, firmly apply the foot brake and touch the
power switch with the Intelligent Key. Then push
the power switch while depressing the brake
pedal within 10 seconds after the chime sound.
Since the Intelligent Key is continuously receiving
radio waves, if the key is left near equipment that
transmits strong radio waves, such as signals
from a TV or personal computer, the battery life
may become shorter.
For additional information, refer to “NISSAN In-
telligent Key® battery replacement” in the “Main-
tenance and do-it-yourself” section of this
manual.
Pay special attention that the vehicle battery is
not completely discharged.
As many as four Intelligent Keys can be regis-
tered and used with one vehicle. For information
about the purchase and use of additional Intelli- gent Keys, contact a NISSAN certified LEAF
dealer.
CAUTION
• Do not allow the Intelligent Key, which contains electrical components, to
come into contact with water or salt
water. This could affect the functioning
of the system.
• Do not drop the Intelligent Key.
• Do not strike the Intelligent Key sharply against another object.
• Do not change or modify the Intelligent Key.
• The Intelligent Key may be damaged if it gets wet. If the Intelligent Key gets
wet, immediately wipe until it is com-
pletely dry.
• If the outside temperature is below 14°F (−10°C) , the battery of the Intelli-
gent key may not function properly.
• Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C) .
• Do not attach the Intelligent Key to a key holder that contains a magnet.
• Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment,
personal computer or cellular phone.
Pre-driving checks and adjustments3-7

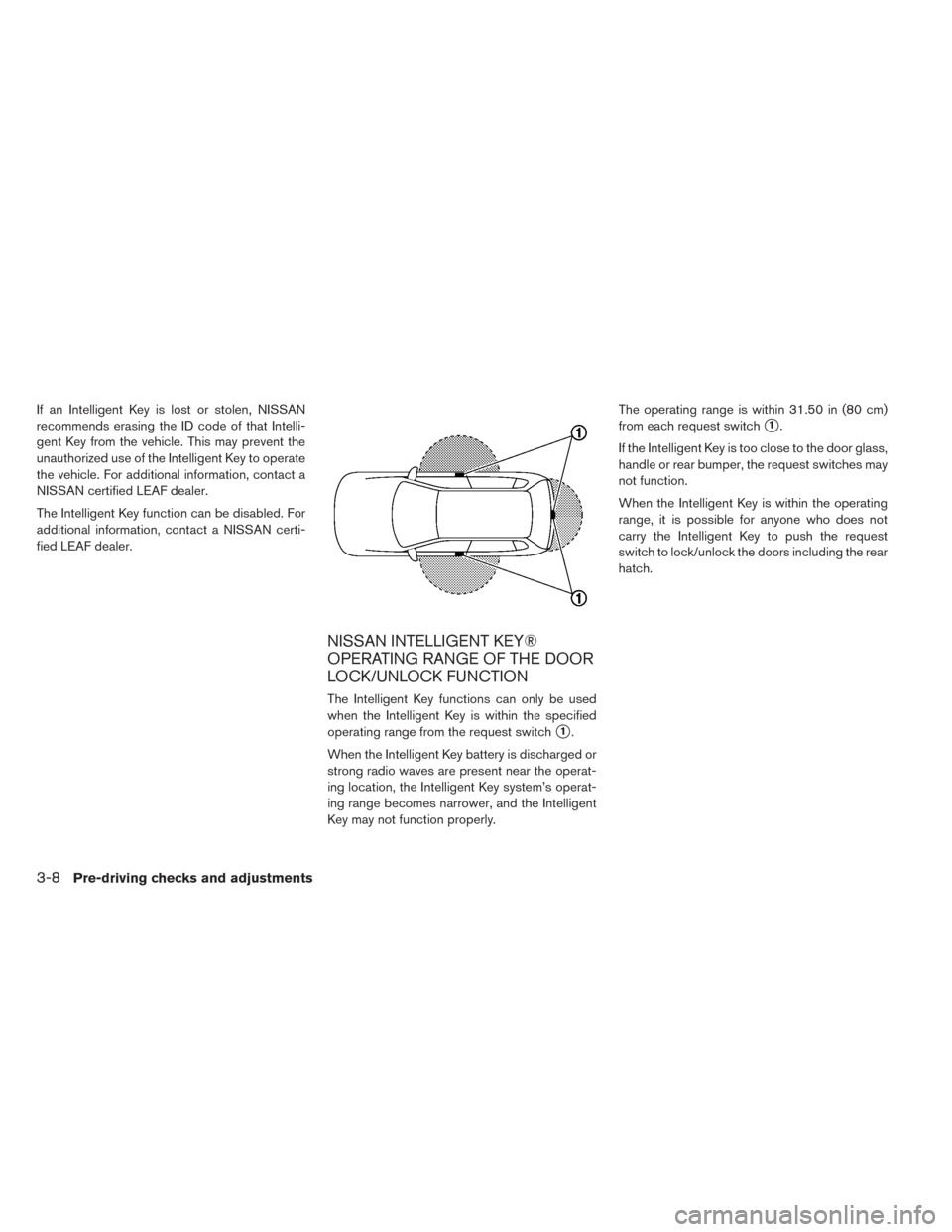

If an Intelligent Key is lost or stolen, NISSAN
recommends erasing the ID code of that Intelli-
gent Key from the vehicle. This may prevent the
unauthorized use of the Intelligent Key to operate
the vehicle. For additional information, contact a
NISSAN certified LEAF dealer.
The Intelligent Key function can be disabled. For
additional information, contact a NISSAN certi-
fied LEAF dealer.
NISSAN INTELLIGENT KEY®
OPERATING RANGE OF THE DOOR
LOCK/UNLOCK FUNCTION
The Intelligent Key functions can only be used
when the Intelligent Key is within the specified
operating range from the request switch
1.
When the Intelligent Key battery is discharged or
strong radio waves are present near the operat-
ing location, the Intelligent Key system’s operat-
ing range becomes narrower, and the Intelligent
Key may not function properly. The operating range is within 31.50 in (80 cm)
from each request switch
1.
If the Intelligent Key is too close to the door glass,
handle or rear bumper, the request switches may
not function.
When the Intelligent Key is within the operating
range, it is possible for anyone who does not
carry the Intelligent Key to push the request
switch to lock/unlock the doors including the rear
hatch.
3-8Pre-driving checks and adjustments

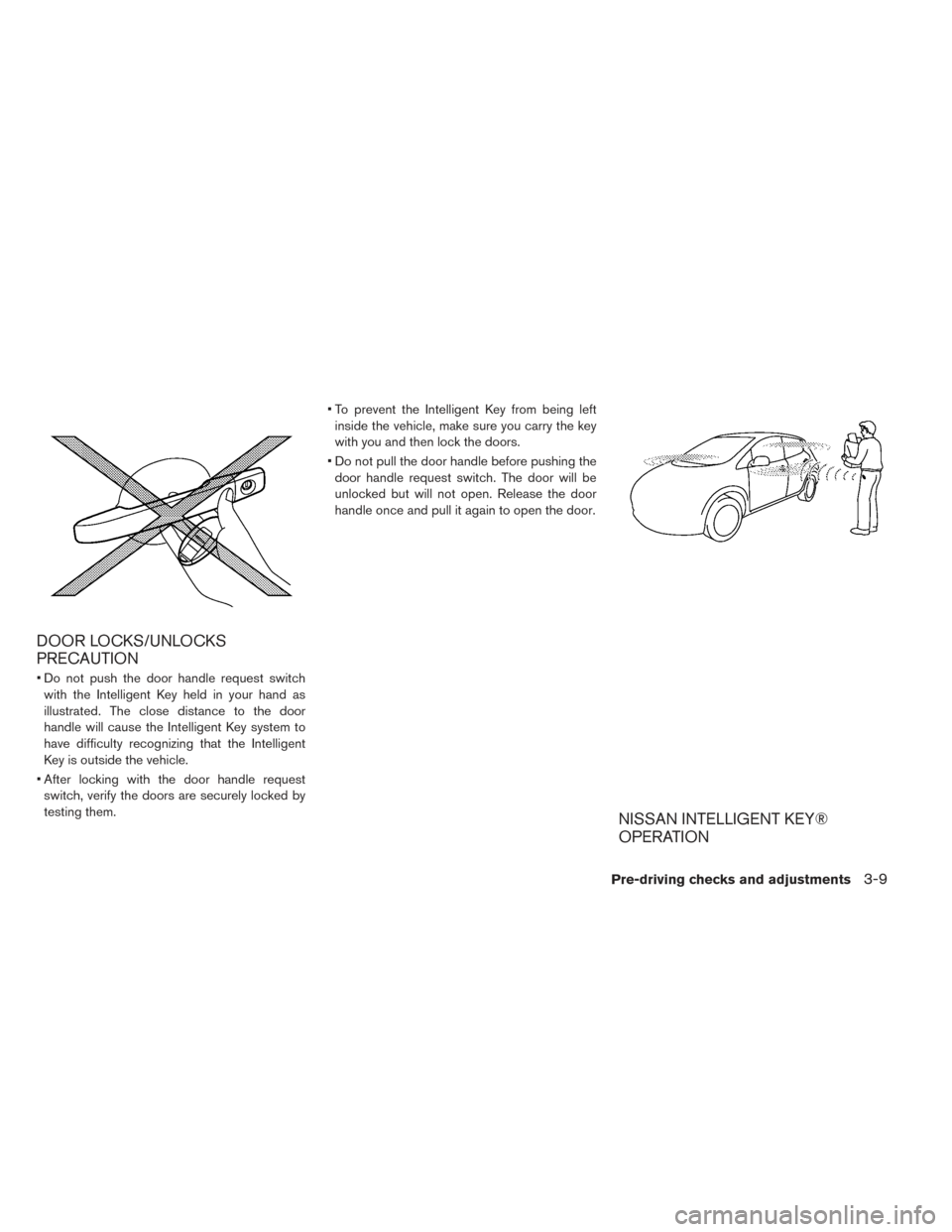

DOOR LOCKS/UNLOCKS
PRECAUTION
• Do not push the door handle request switchwith the Intelligent Key held in your hand as
illustrated. The close distance to the door
handle will cause the Intelligent Key system to
have difficulty recognizing that the Intelligent
Key is outside the vehicle.
• After locking with the door handle request switch, verify the doors are securely locked by
testing them. • To prevent the Intelligent Key from being left
inside the vehicle, make sure you carry the key
with you and then lock the doors.
• Do not pull the door handle before pushing the door handle request switch. The door will be
unlocked but will not open. Release the door
handle once and pull it again to open the door.
NISSAN INTELLIGENT KEY®
OPERATION
Pre-driving checks and adjustments3-9

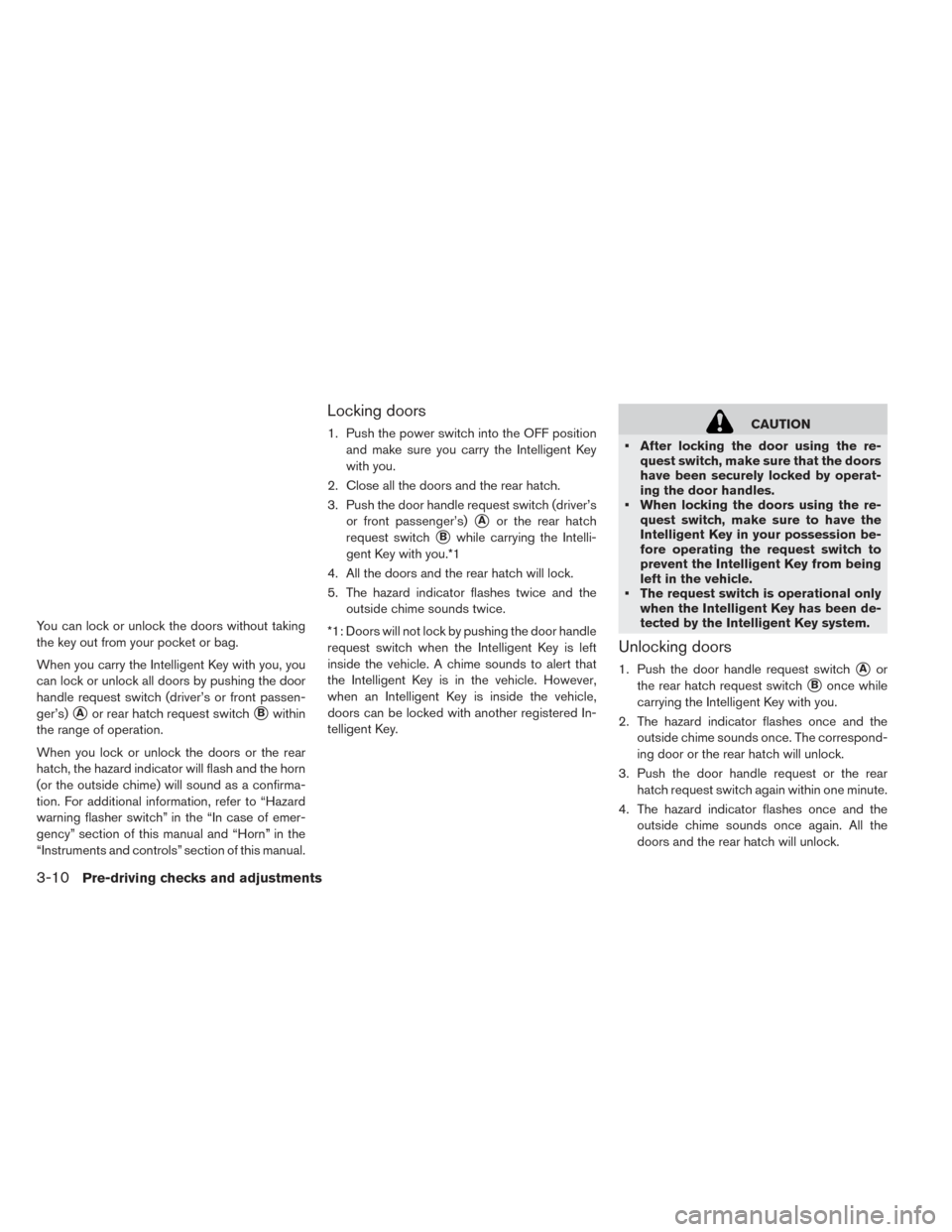

You can lock or unlock the doors without taking
the key out from your pocket or bag.
When you carry the Intelligent Key with you, you
can lock or unlock all doors by pushing the door
handle request switch (driver’s or front passen-
ger’s)
Aor rear hatch request switchBwithin
the range of operation.
When you lock or unlock the doors or the rear
hatch, the hazard indicator will flash and the horn
(or the outside chime) will sound as a confirma-
tion. For additional information, refer to “Hazard
warning flasher switch” in the “In case of emer-
gency” section of this manual and “Horn” in the
“Instruments and controls” section of this manual.
Locking doors
1. Push the power switch into the OFF position and make sure you carry the Intelligent Key
with you.
2. Close all the doors and the rear hatch.
3. Push the door handle request switch (driver’s or front passenger’s)
Aor the rear hatch
request switch
Bwhile carrying the Intelli-
gent Key with you.*1
4. All the doors and the rear hatch will lock.
5. The hazard indicator flashes twice and the outside chime sounds twice.
*1: Doors will not lock by pushing the door handle
request switch when the Intelligent Key is left
inside the vehicle. A chime sounds to alert that
the Intelligent Key is in the vehicle. However,
when an Intelligent Key is inside the vehicle,
doors can be locked with another registered In-
telligent Key.
CAUTION
• After locking the door using the re- quest switch, make sure that the doors
have been securely locked by operat-
ing the door handles.
• When locking the doors using the re- quest switch, make sure to have the
Intelligent Key in your possession be-
fore operating the request switch to
prevent the Intelligent Key from being
left in the vehicle.
• The request switch is operational only when the Intelligent Key has been de-
tected by the Intelligent Key system.
Unlocking doors
1. Push the door handle request switchAor
the rear hatch request switch
Bonce while
carrying the Intelligent Key with you.
2. The hazard indicator flashes once and the outside chime sounds once. The correspond-
ing door or the rear hatch will unlock.
3. Push the door handle request or the rear hatch request switch again within one minute.
4. The hazard indicator flashes once and the outside chime sounds once again. All the
doors and the rear hatch will unlock.
3-10Pre-driving checks and adjustments

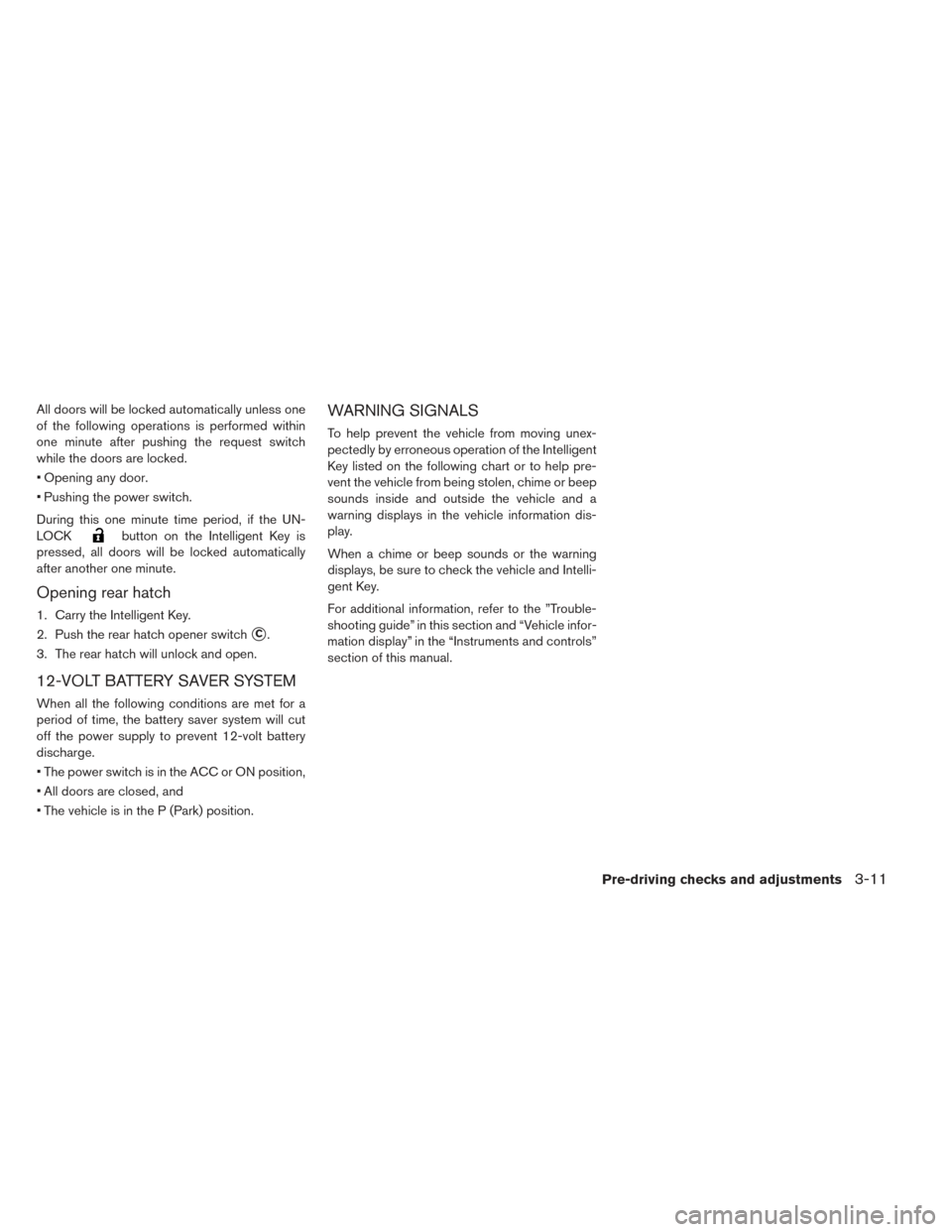

All doors will be locked automatically unless one
of the following operations is performed within
one minute after pushing the request switch
while the doors are locked.
• Opening any door.
• Pushing the power switch.
During this one minute time period, if the UN-
LOCK
button on the Intelligent Key is
pressed, all doors will be locked automatically
after another one minute.
Opening rear hatch
1. Carry the Intelligent Key.
2. Push the rear hatch opener switch
C.
3. The rear hatch will unlock and open.
12-VOLT BATTERY SAVER SYSTEM
When all the following conditions are met for a
period of time, the battery saver system will cut
off the power supply to prevent 12-volt battery
discharge.
• The power switch is in the ACC or ON position,
• All doors are closed, and
• The vehicle is in the P (Park) position.
WARNING SIGNALS
To help prevent the vehicle from moving unex-
pectedly by erroneous operation of the Intelligent
Key listed on the following chart or to help pre-
vent the vehicle from being stolen, chime or beep
sounds inside and outside the vehicle and a
warning displays in the vehicle information dis-
play.
When a chime or beep sounds or the warning
displays, be sure to check the vehicle and Intelli-
gent Key.
For additional information, refer to the ”Trouble-
shooting guide” in this section and “Vehicle infor-
mation display” in the “Instruments and controls”
section of this manual.
Pre-driving checks and adjustments3-11

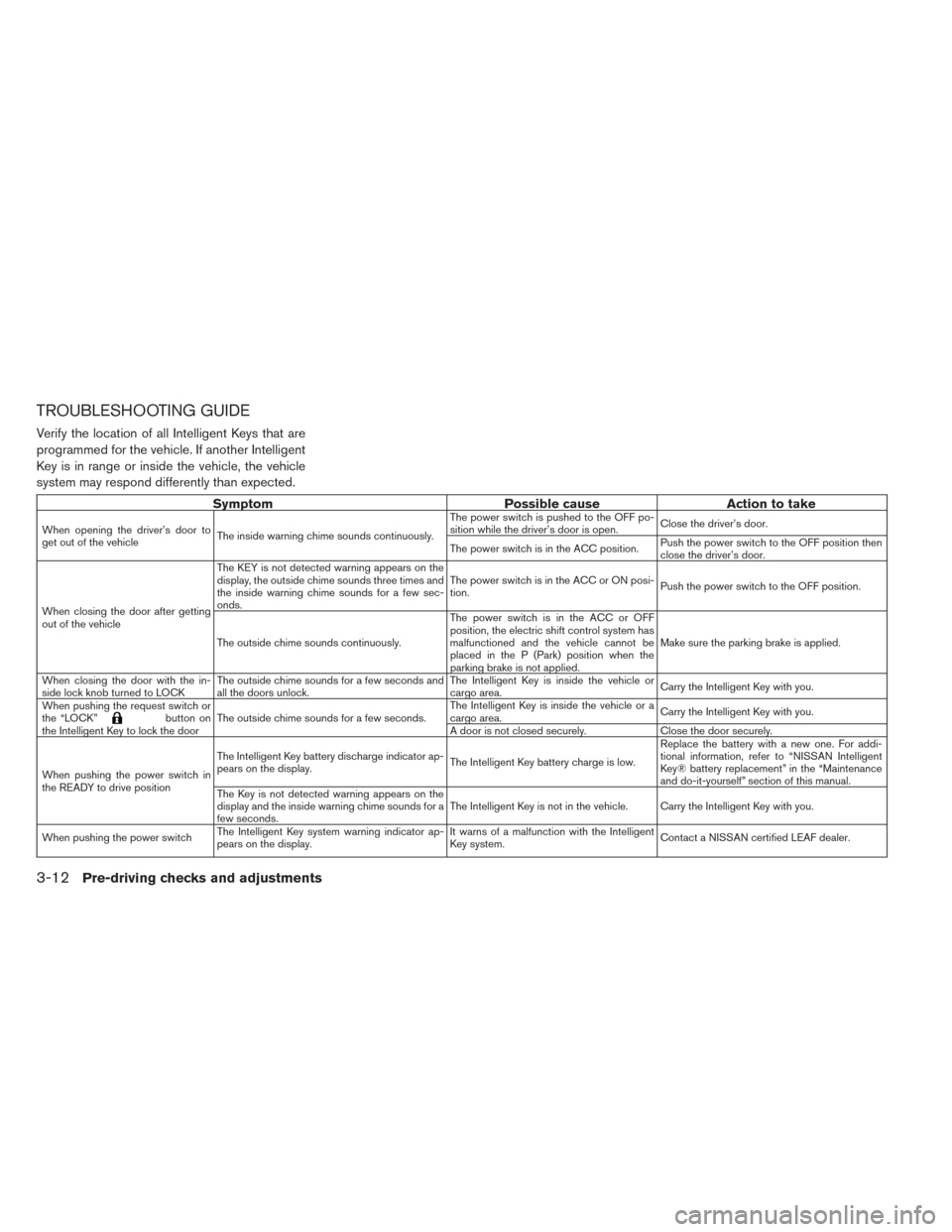

TROUBLESHOOTING GUIDE
Verify the location of all Intelligent Keys that are
programmed for the vehicle. If another Intelligent
Key is in range or inside the vehicle, the vehicle
system may respond differently than expected.
SymptomPossible causeAction to take
When opening the driver’s door to
get out of the vehicleThe inside warning chime sounds continuously. The power switch is pushed to the OFF po-
sition while the driver’s door is open.
Close the driver’s door.
The power switch is in the ACC position. Push the power switch to the OFF position then
close the driver’s door.
When closing the door after getting
out of the vehicle The KEY is not detected warning appears on the
display, the outside chime sounds three times and
the inside warning chime sounds for a few sec-
onds.
The power switch is in the ACC or ON posi-
tion.
Push the power switch to the OFF position.
The outside chime sounds continuously. The power switch is in the ACC or OFF
position, the electric shift control system has
malfunctioned and the vehicle cannot be
placed in the P (Park) position when the
parking brake is not applied.Make sure the parking brake is applied.
When closing the door with the in-
side lock knob turned to LOCK The outside chime sounds for a few seconds and
all the doors unlock. The Intelligent Key is inside the vehicle or
cargo area.
Carry the Intelligent Key with you.
When pushing the request switch or
the “LOCK”
button on
the Intelligent Key to lock the door The outside chime sounds for a few seconds. The Intelligent Key is inside the vehicle or a
cargo area.
Carry the Intelligent Key with you.
A door is not closed securely. Close the door securely.
When pushing the power switch in
the READY to drive position The Intelligent Key battery discharge indicator ap-
pears on the display.
The Intelligent Key battery charge is low.Replace the battery with a new one. For addi-
tional information, refer to “NISSAN Intelligent
Key® battery replacement” in the “Maintenance
and do-it-yourself” section of this manual.
The Key is not detected warning appears on the
display and the inside warning chime sounds for a
few seconds. The Intelligent Key is not in the vehicle. Carry the Intelligent Key with you.
When pushing the power switch The Intelligent Key system warning indicator ap-
pears on the display. It warns of a malfunction with the Intelligent
Key system.
Contact a NISSAN certified LEAF dealer.
3-12Pre-driving checks and adjustments

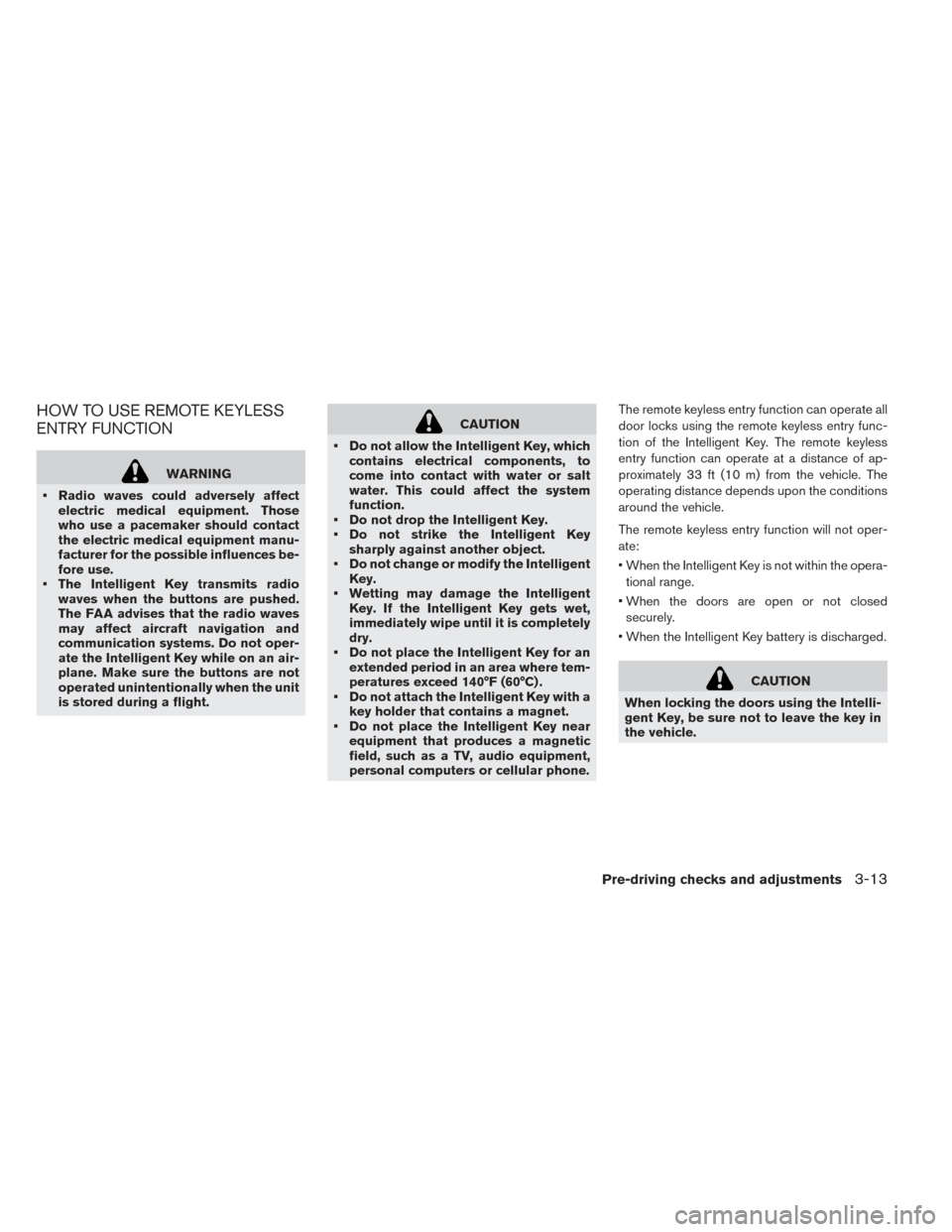

HOW TO USE REMOTE KEYLESS
ENTRY FUNCTION
WARNING
• Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use.
• The Intelligent Key transmits radio waves when the buttons are pushed.
The FAA advises that the radio waves
may affect aircraft navigation and
communication systems. Do not oper-
ate the Intelligent Key while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
• Do not allow the Intelligent Key, which contains electrical components, to
come into contact with water or salt
water. This could affect the system
function.
• Do not drop the Intelligent Key.
• Do not strike the Intelligent Key sharply against another object.
• Do not change or modify the Intelligent Key.
• Wetting may damage the Intelligent Key. If the Intelligent Key gets wet,
immediately wipe until it is completely
dry.
• Do not place the Intelligent Key for an extended period in an area where tem-
peratures exceed 140°F (60°C) .
• Do not attach the Intelligent Key with a key holder that contains a magnet.
• Do not place the Intelligent Key near equipment that produces a magnetic
field, such as a TV, audio equipment,
personal computers or cellular phone. The remote keyless entry function can operate all
door locks using the remote keyless entry func-
tion of the Intelligent Key. The remote keyless
entry function can operate at a distance of ap-
proximately 33 ft (10 m) from the vehicle. The
operating distance depends upon the conditions
around the vehicle.
The remote keyless entry function will not oper-
ate:
• When the Intelligent Key is not within the opera-
tional range.
• When the doors are open or not closed securely.
• When the Intelligent Key battery is discharged.
CAUTION
When locking the doors using the Intelli-
gent Key, be sure not to leave the key in
the vehicle.
Pre-driving checks and adjustments3-13
