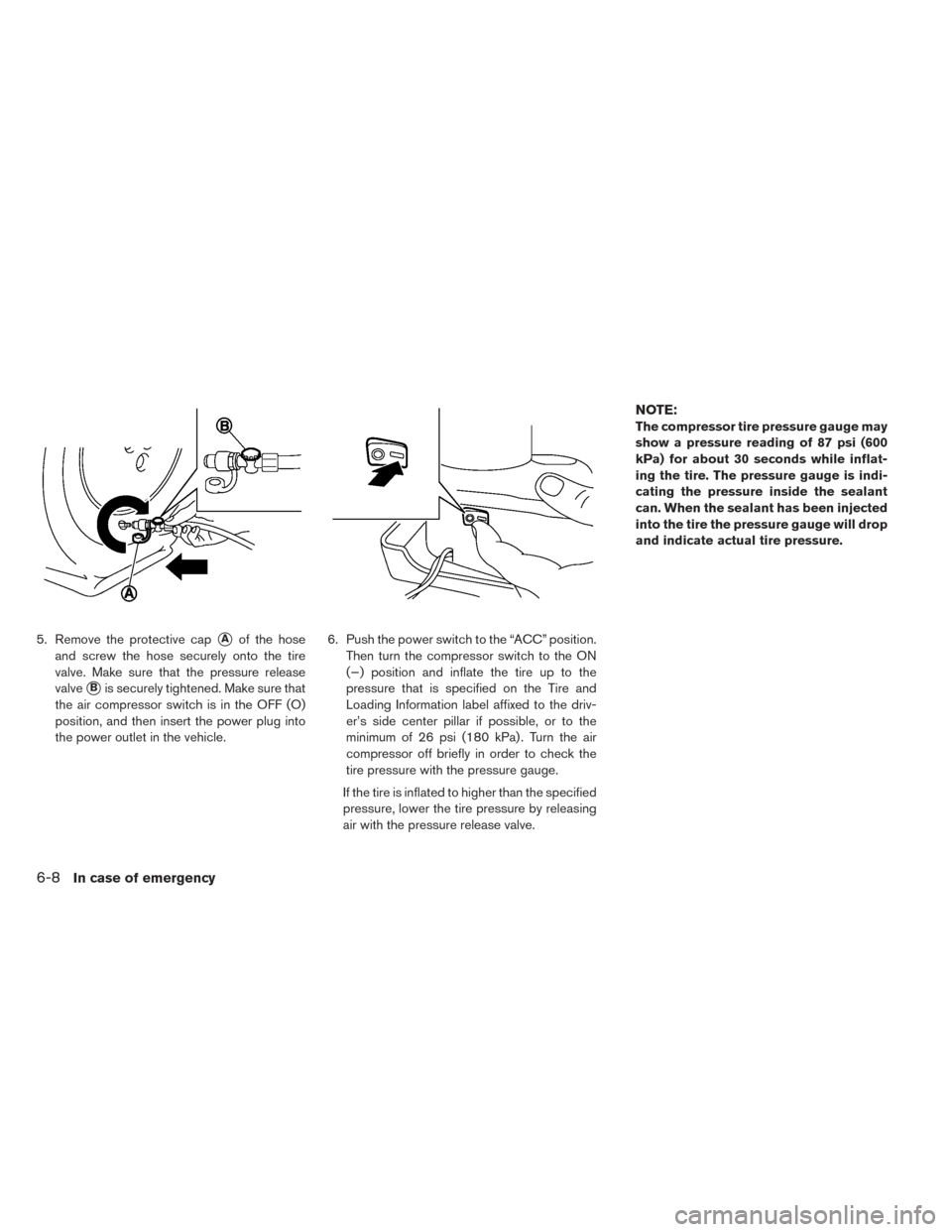

5. Remove the protective capAof the hose
and screw the hose securely onto the tire
valve. Make sure that the pressure release
valve
Bis securely tightened. Make sure that
the air compressor switch is in the OFF (O)
position, and then insert the power plug into
the power outlet in the vehicle. 6. Push the power switch to the “ACC” position.
Then turn the compressor switch to the ON
(−) position and inflate the tire up to the
pressure that is specified on the Tire and
Loading Information label affixed to the driv-
er’s side center pillar if possible, or to the
minimum of 26 psi (180 kPa) . Turn the air
compressor off briefly in order to check the
tire pressure with the pressure gauge.
If the tire is inflated to higher than the specified
pressure, lower the tire pressure by releasing
air with the pressure release valve.
NOTE:
The compressor tire pressure gauge may
show a pressure reading of 87 psi (600
kPa) for about 30 seconds while inflat-
ing the tire. The pressure gauge is indi-
cating the pressure inside the sealant
can. When the sealant has been injected
into the tire the pressure gauge will drop
and indicate actual tire pressure.
6-8In case of emergency

WARNING
To avoid serious personal injury while us-
ing the emergency tire puncture repair kit:
• Securely tighten the compressor hoseto the tire valve. Failure to do so can
cause the sealant to spray into the air
and get into your eyes or on the skin.
• Do not stand directly beside the dam- aged tire while it is being inflated be-
cause of the risk of the rupture. If there
are any cracks or bumps, turn the com-
pressor off immediately.
If the tire pressure does not increase to 26 psi
(180 kPa) within 10 minutes, the tire may
be seriously damaged and the tire cannot
be repaired with this tire repair kit. Con-
tact a NISSAN certified LEAF dealer.
7. When the tire pressure is at the specified amount, turn the air compressor off. If the tire
cannot be inflated to the specified amount,
the air compressor can be turned off at the
minimum of 26 psi (180 kPa) . Remove the
power plug from the power outlet and quickly
remove the hose from the tire valve. Attach the
protective cap and valve cap. Properly stow
the emergency tire puncture repair kit in the
cargo area.
CAUTION
To avoid serious personal injury when
stowing the emergency tire puncture re-
pair kit:
•
Keep the sealant bottle screwed into the
compressor. Failure to do so can cause
the sealant to spray into the air and get
into your eyes or on the skin.
8. Immediately drive the vehicle for 10 minutes or 2 miles (3 km) at a speed below 50 mph
(80 km/h) .
9. After driving, make sure that the air compres- sor switch is in the OFF position, then screw
the hose securely onto the tire valve. Check
the tire pressure with the pressure gauge.
Temporary repair is completed if the tire pres-
sure does not drop.
Make sure the pressure is adjusted to the
pressure that is specified on the Tire and
Loading Information label before driving.
10. If the tire pressure drops, repeat the steps from 5 to 9. If the pressure drops again or
under 19 psi (130 kPa) , the tire cannot be
repaired with this tire repair kit. Contact
a NISSAN certified LEAF dealer. The sealant bottle and hose cannot be reused
to repair another punctured tire. Contact a
NISSAN certified LEAF dealer to purchase
replacements.
After repairing tire:
See a NISSAN certified LEAF dealer for tire
repair/replacement as soon as possible.WARNING
• After using Emergency Tire Sealant to
repair a minor tire puncture, do not
drive the vehicle at speeds faster than
50 mph (80 km/h) .
• Immediately after using Emergency
Tire Sealant to repair a minor tire
puncture, take your vehicle to a
NISSAN certified LEAF dealer to in-
spect, and repair or replace the tire.
The Emergency Tire Sealant cannot
permanently seal a punctured tire.
Continuing operation of the vehicle
without a permanent tire repair can
lead to a crash.
• Do not inject any tire liquid or aerosol tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
In case of emergency6-9

• If you used the Emergency Tire Sealantto repair a minor tire puncture, a
NISSAN certified LEAF dealer will also
need to replace the TPMS sensor in
addition to repairing or replacing the
tire.
• NISSAN recommends using only NISSAN Genuine Emergency Tire Seal-
ant provided with your vehicle. Other
tire sealants may damage the valve
stem seal which can cause the tire to
lose air pressure. To start your EV system with a booster battery,
the instructions and precautions below must be
followed.
Jump starting provides power to the 12-volt sys-
tem to allow the electrical systems to operate.
The electrical systems must be operating to allow
the Li-ion battery to be charged. Jump starting
does not charge the Li-ion battery. The Li-ion
battery must be charged before the vehicle can
be driven.
WARNING
• If done incorrectly, jump starting can lead to a 12-volt battery explosion, re-
sulting in severe injury or death. It
could also damage your vehicle.
• Explosive hydrogen gas is always present in the vicinity of the 12-volt
battery. Keep all sparks and flames
away from the 12-volt battery.
• Do not allow battery fluid to come into contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a cor-
rosive sulfuric acid solution that can
cause severe burns. If the fluid comes
into contact with anything, immedi-
ately flush the contacted area with wa-
ter. • Keep the 12-volt battery out of the
reach of children.
• The booster battery must be rated at 12 volt. Use of an improperly rated
battery can damage your vehicle.
• Whenever working on or near a 12-volt battery, always wear suitable eye pro-
tectors (for example, goggles or indus-
trial safety spectacles) and remove
rings, metal bands, or any other jew-
elry. Do not lean over the 12-volt bat-
tery when jump starting.
• Do not attempt to jump start a frozen battery. It could explode and cause se-
rious injury.
• Your vehicle has an automatic cooling fan. It could come on at any time. Keep
hands and other objects away from it.
JUMP STARTING
6-10In case of emergency

WARNING
• Always follow the instructions below. Failure to do so could result in damage
to the DC/DC converter and cause per-
sonal injury.
• Do not attempt to perform a jump start on the 12-volt battery at the same time
that the Li-ion battery is being
charged. Doing so may damage the
vehicle or charging equipment and
could cause an injury.
CAUTION
LEAF cannot be used as a booster vehicle
because it cannot supply enough power
to start a gasoline engine. However, a
gasoline engine vehicle can be used to
jump start LEAF’s 12-volt battery.
1. If the booster battery is in another vehicle
B,
position the two vehicles (
AandB) to bring
their 12-volt batteries into close proximity to
each other.
Do not allow the two vehicles to touch. 2. Apply the parking brake.
If the 12-volt battery is discharged, the
power switch cannot be moved from the
OFF position. Connect the jumper cables
to the booster vehicle
Bbefore pushing
the power switch.
3. Push the P (Park) position switch to place the vehicle in the P (Park) position.
4. Switch off all unnecessary electrical systems (headlights, heater, air conditioner, etc.) .
5. Place the power switch in the OFF position.
6. Ensure vent caps are level and tight.
7. Connect jumper cables in the sequence as illustrated (
1→2→3→4).
CAUTION
• Always connect positive (+) to positive
(+) and negative (−) to body ground (for
example, as illustrated) , not to the 12-
volt battery.
• Make sure the jumper cables do not touch moving parts in the motor com-
partment and that the cable clamps do
not contact any other metal.
8. Start the engine of the booster vehicle
B.
In case of emergency6-11

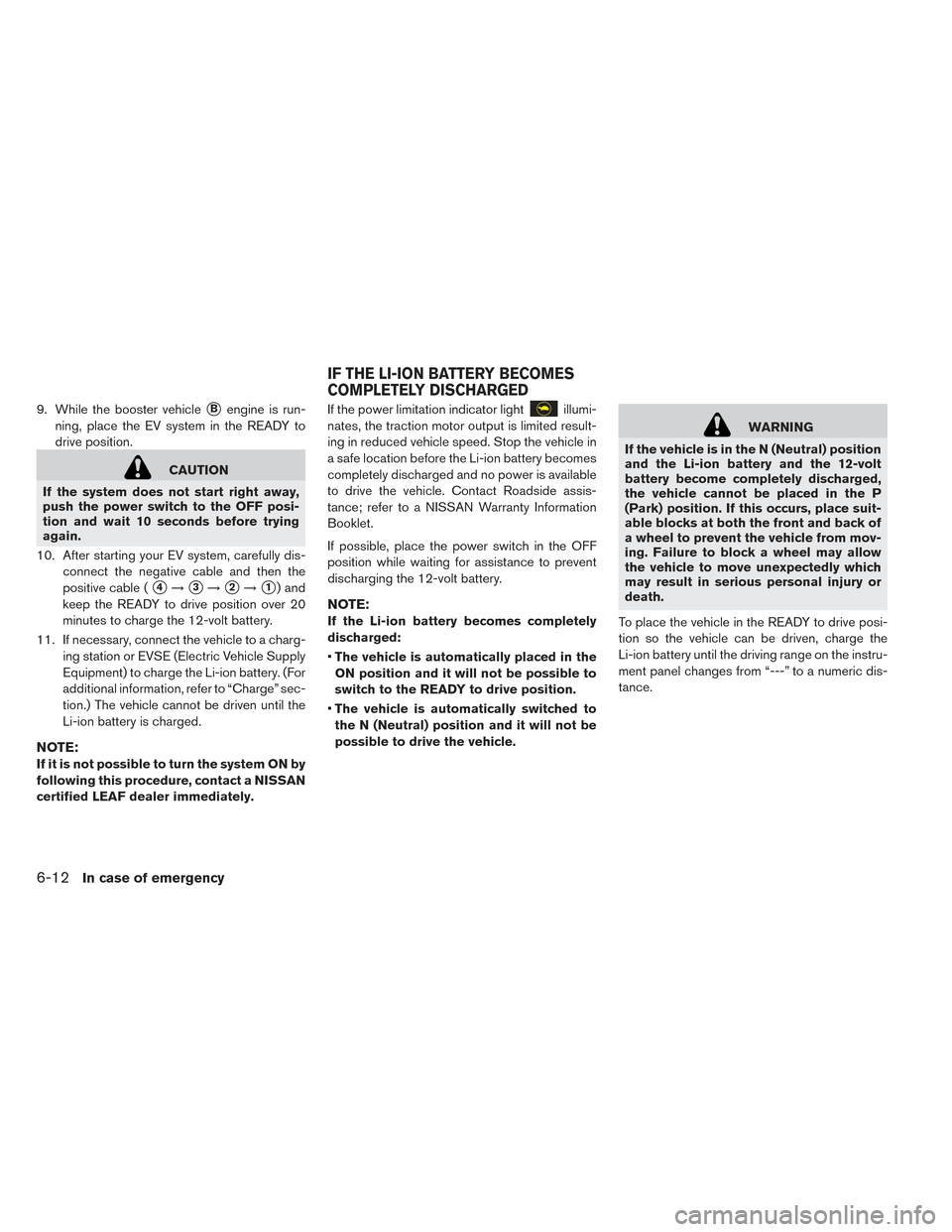

9. While the booster vehicleBengine is run-
ning, place the EV system in the READY to
drive position.
CAUTION
If the system does not start right away,
push the power switch to the OFF posi-
tion and wait 10 seconds before trying
again.
10. After starting your EV system, carefully dis- connect the negative cable and then the
positive cable (
4→3→2→1) and
keep the READY to drive position over 20
minutes to charge the 12-volt battery.
11. If necessary, connect the vehicle to a charg- ing station or EVSE (Electric Vehicle Supply
Equipment) to charge the Li-ion battery. (For
additional information, refer to “Charge” sec-
tion.) The vehicle cannot be driven until the
Li-ion battery is charged.
NOTE:
If it is not possible to turn the system ON by
following this procedure, contact a NISSAN
certified LEAF dealer immediately. If the power limitation indicator light
illumi-
nates, the traction motor output is limited result-
ing in reduced vehicle speed. Stop the vehicle in
a safe location before the Li-ion battery becomes
completely discharged and no power is available
to drive the vehicle. Contact Roadside assis-
tance; refer to a NISSAN Warranty Information
Booklet.
If possible, place the power switch in the OFF
position while waiting for assistance to prevent
discharging the 12-volt battery.
NOTE:
If the Li-ion battery becomes completely
discharged:
• The vehicle is automatically placed in the
ON position and it will not be possible to
switch to the READY to drive position.
• The vehicle is automatically switched to
the N (Neutral) position and it will not be
possible to drive the vehicle.
WARNING
If the vehicle is in the N (Neutral) position
and the Li-ion battery and the 12-volt
battery become completely discharged,
the vehicle cannot be placed in the P
(Park) position. If this occurs, place suit-
able blocks at both the front and back of
a wheel to prevent the vehicle from mov-
ing. Failure to block a wheel may allow
the vehicle to move unexpectedly which
may result in serious personal injury or
death.
To place the vehicle in the READY to drive posi-
tion so the vehicle can be driven, charge the
Li-ion battery until the driving range on the instru-
ment panel changes from “---” to a numeric dis-
tance.
IF THE LI-ION BATTERY BECOMES
COMPLETELY DISCHARGED
6-12In case of emergency

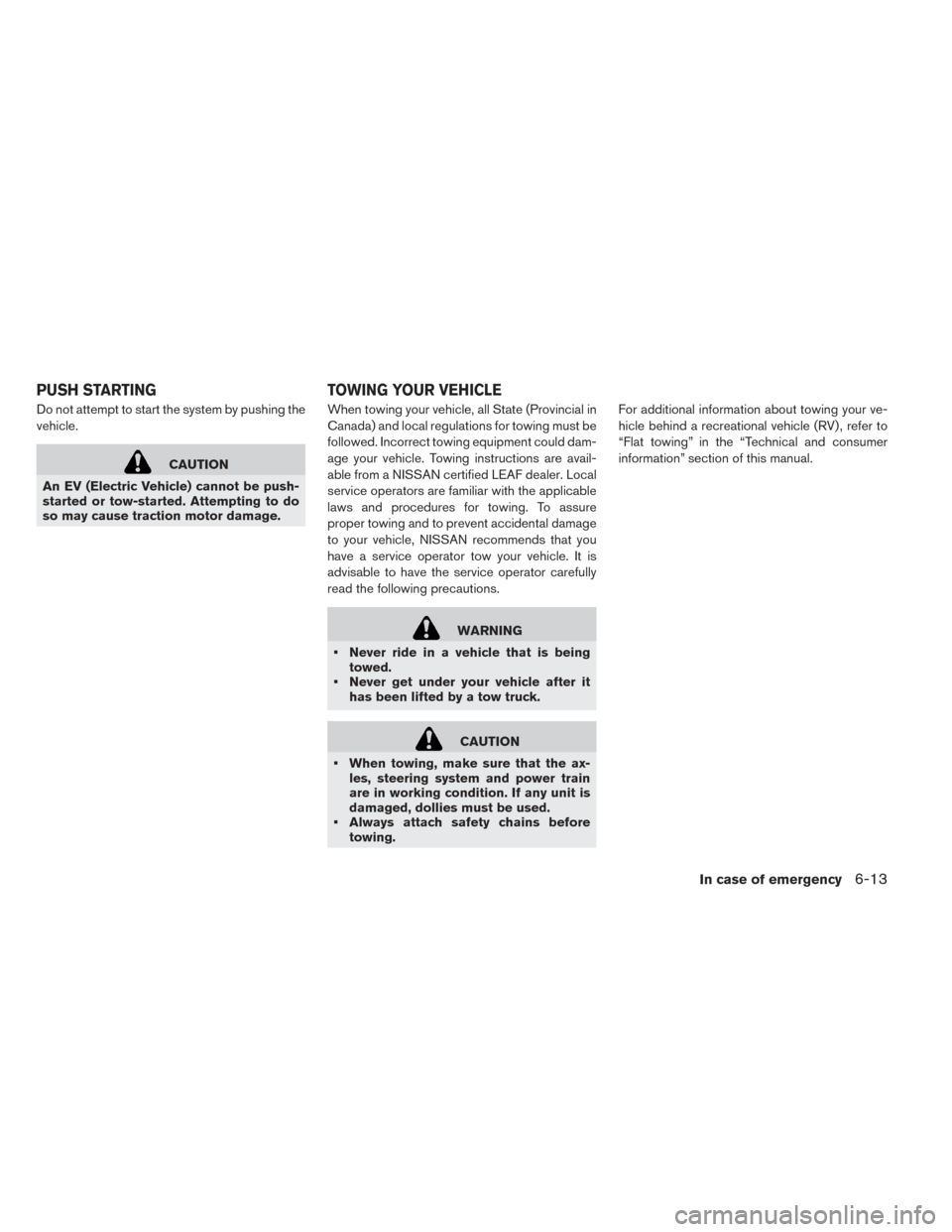

Do not attempt to start the system by pushing the
vehicle.
CAUTION
An EV (Electric Vehicle) cannot be push-
started or tow-started. Attempting to do
so may cause traction motor damage. When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must be
followed. Incorrect towing equipment could dam-
age your vehicle. Towing instructions are avail-
able from a NISSAN certified LEAF dealer. Local
service operators are familiar with the applicable
laws and procedures for towing. To assure
proper towing and to prevent accidental damage
to your vehicle, NISSAN recommends that you
have a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions.
WARNING
• Never ride in a vehicle that is being towed.
• Never get under your vehicle after it has been lifted by a tow truck.
CAUTION
• When towing, make sure that the ax- les, steering system and power train
are in working condition. If any unit is
damaged, dollies must be used.
• Always attach safety chains before towing. For additional information about towing your ve-
hicle behind a recreational vehicle (RV) , refer to
“Flat towing” in the “Technical and consumer
information” section of this manual.
PUSH STARTING
TOWING YOUR VEHICLE
In case of emergency6-13

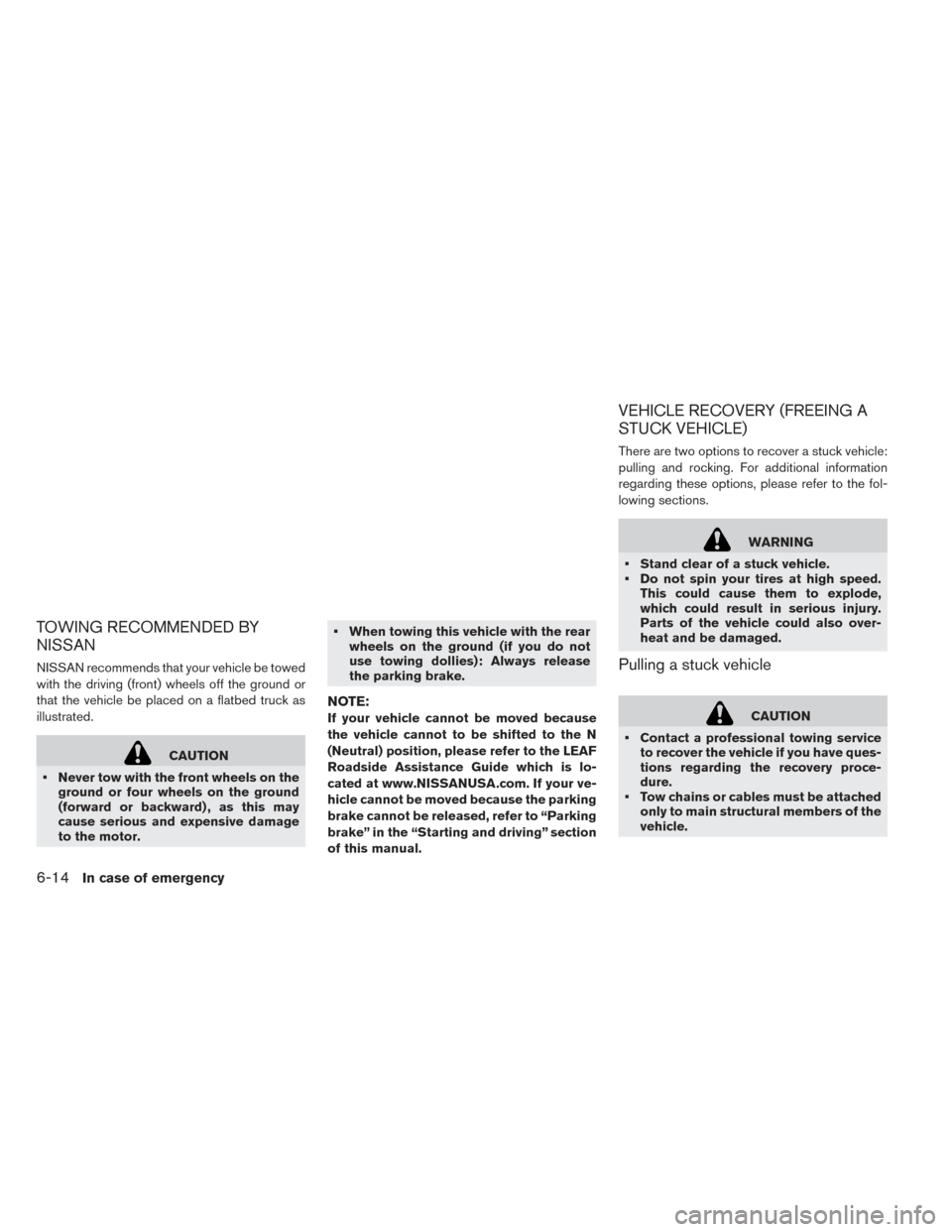

TOWING RECOMMENDED BY
NISSAN
NISSAN recommends that your vehicle be towed
with the driving (front) wheels off the ground or
that the vehicle be placed on a flatbed truck as
illustrated.
CAUTION
• Never tow with the front wheels on the ground or four wheels on the ground
(forward or backward) , as this may
cause serious and expensive damage
to the motor. • When towing this vehicle with the rear
wheels on the ground (if you do not
use towing dollies): Always release
the parking brake.
NOTE:
If your vehicle cannot be moved because
the vehicle cannot to be shifted to the N
(Neutral) position, please refer to the LEAF
Roadside Assistance Guide which is lo-
cated at www.NISSANUSA.com. If your ve-
hicle cannot be moved because the parking
brake cannot be released, refer to “Parking
brake” in the “Starting and driving” section
of this manual.
VEHICLE RECOVERY (FREEING A
STUCK VEHICLE)
There are two options to recover a stuck vehicle:
pulling and rocking. For additional information
regarding these options, please refer to the fol-
lowing sections.
WARNING
• Stand clear of a stuck vehicle.
• Do not spin your tires at high speed. This could cause them to explode,
which could result in serious injury.
Parts of the vehicle could also over-
heat and be damaged.
Pulling a stuck vehicle
CAUTION
• Contact a professional towing service to recover the vehicle if you have ques-
tions regarding the recovery proce-
dure.
• Tow chains or cables must be attached only to main structural members of the
vehicle.
6-14In case of emergency

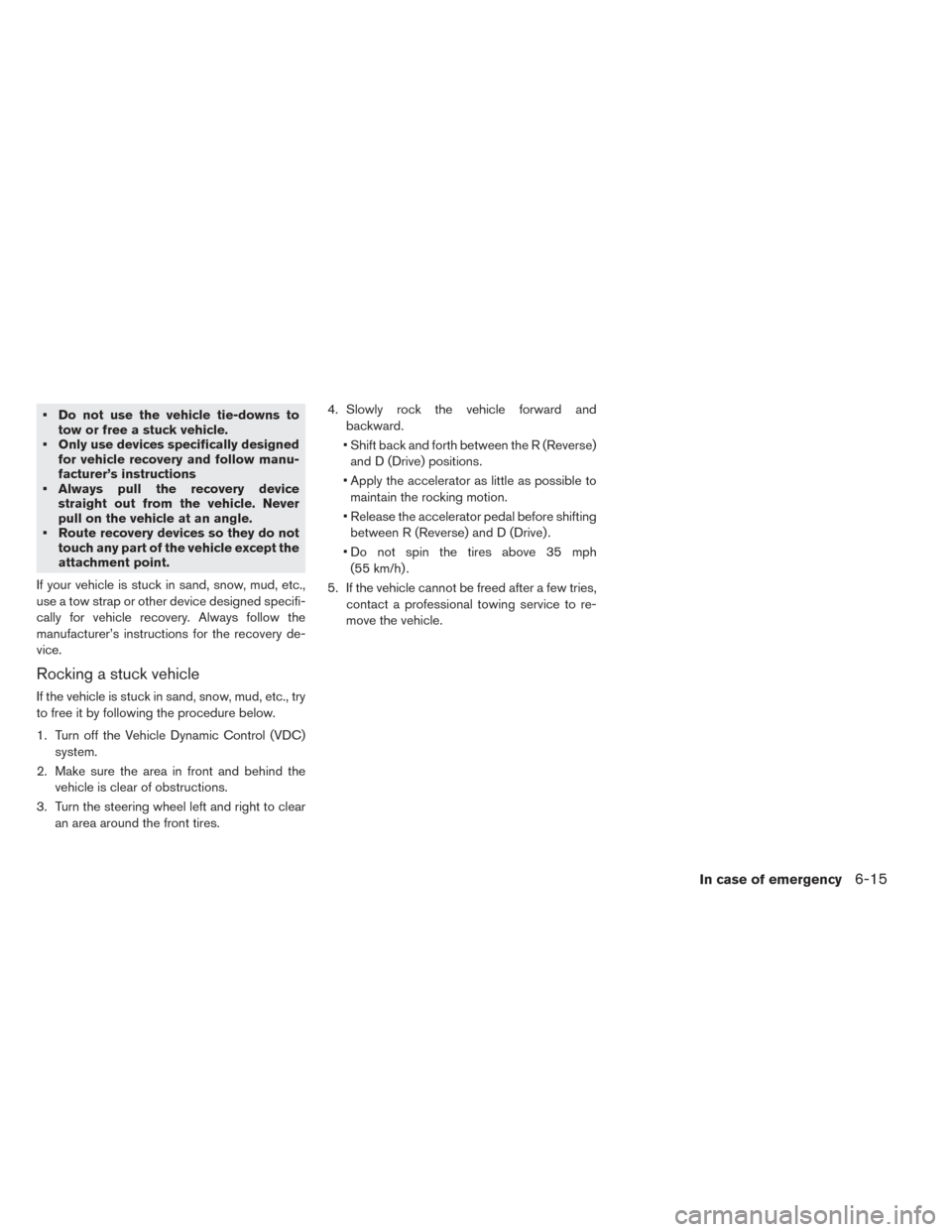

• Do not use the vehicle tie-downs totow or free a stuck vehicle.
• Only use devices specifically designed for vehicle recovery and follow manu-
facturer’s instructions
• Always pull the recovery device straight out from the vehicle. Never
pull on the vehicle at an angle.
• Route recovery devices so they do not touch any part of the vehicle except the
attachment point.
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed specifi-
cally for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
Rocking a stuck vehicle
If the vehicle is stuck in sand, snow, mud, etc., try
to free it by following the procedure below.
1. Turn off the Vehicle Dynamic Control (VDC) system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel left and right to clear an area around the front tires. 4. Slowly rock the vehicle forward and
backward.
• Shift back and forth between the R (Reverse) and D (Drive) positions.
• Apply the accelerator as little as possible to maintain the rocking motion.
• Release the accelerator pedal before shifting between R (Reverse) and D (Drive) .
• Do not spin the tires above 35 mph (55 km/h) .
5. If the vehicle cannot be freed after a few tries, contact a professional towing service to re-
move the vehicle.
In case of emergency6-15
