2016 NISSAN LEAF Owners Manual

•When the Charging Timer and the Climate
Ctrl. Timer are set at the same time, the
charging start time moves to an earlier
time.
• Depending on the Li-ion battery condition
and the power source status, charging
may end earlier than the charging end
time. This is not a malfunction.
1. Push the
switchAon the left side of
the combination meter panel.
2. Push the
switchBto highlight “Charg-
ing Timer” on the vehicle information display
and then push the switch. 3. The “Charging Timer” screen is displayed. To
change the time or turn the timer on or off,
push the
switch.

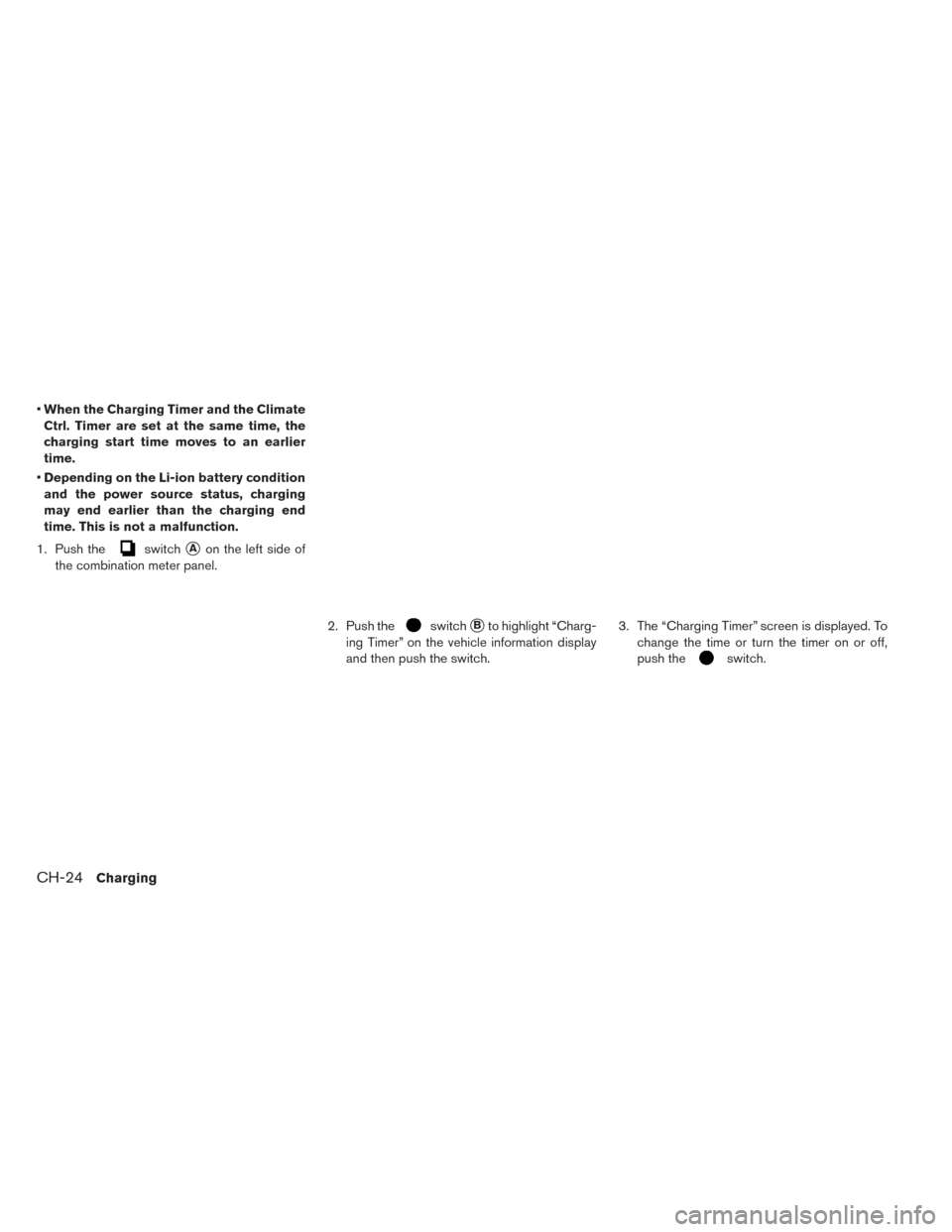

CH-24Charging

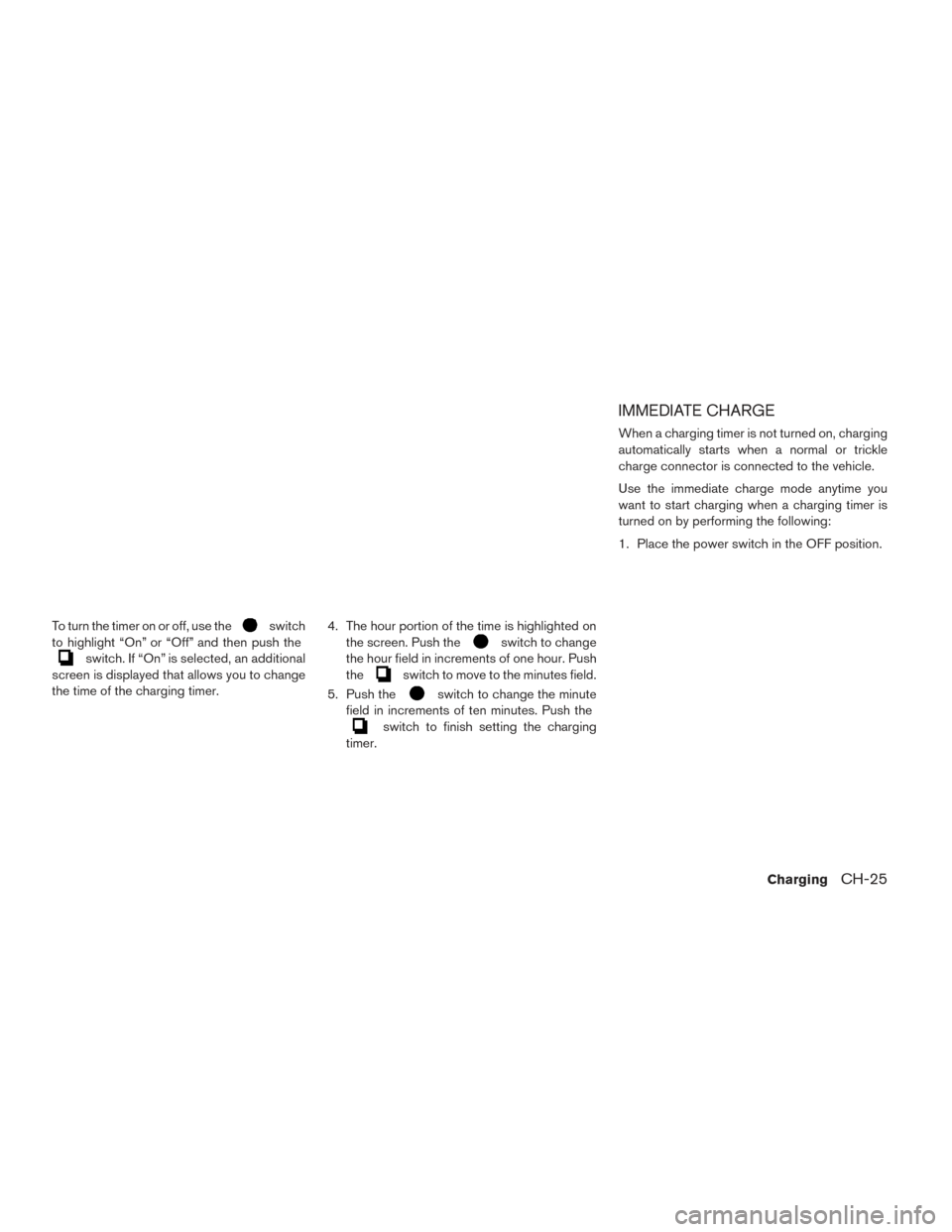

To turn the timer on or off, use theswitch
to highlight “On” or “Off” and then push the
switch. If “On” is selected, an additional
screen is displayed that allows you to change
the time of the charging timer. 4. The hour portion of the time is highlighted on
the screen. Push the
switch to change
the hour field in increments of one hour. Push
the
switch to move to the minutes field.
5. Push the
switch to change the minute
field in increments of ten minutes. Push the
switch to finish setting the charging
timer.
IMMEDIATE CHARGE
When a charging timer is not turned on, charging
automatically starts when a normal or trickle
charge connector is connected to the vehicle.
Use the immediate charge mode anytime you
want to start charging when a charging timer is
turned on by performing the following:
1. Place the power switch in the OFF position.
ChargingCH-25

2. Press the immediate charge switch.
3. Connect the normal or trickle charge cablewhen the charging status indicator light
changes to display immediate charge mode.
For additional information, refer to “Charging
status indicator lights” in this section.
NOTE:
•You have 15 minutes to connect a normal
or trickle charge connector to the vehicle
after the immediate charge switch is
pressed. If a charge connector is not con-
nected to the vehicle within 15 minutes,
the vehicle automatically returns to the
previous setting.
• Immediate charge will be available for 15
minutes before returning automatically to
the previous setting.
• To cancel immediate charge mode press
the immediate charge switch again.
• If the charge cable is disconnected, the
Li-ion battery automatically switches to
charging timer. To perform an immediate
charge again, press the immediate charge
switch and connect the charge cable.
• If the charge cable is already connected,
press the immediate charge switch to
start performing an immediate charge.
CHARGING RELATED REMOTE
FUNCTION (MODELS WITH
NAVIGATION SYSTEM)
This vehicle incorporates a communication de-
vice that is called a TCU (Telematics Communi-
cation Unit) . The communication connection be-
tween this unit and NISSAN Data Center allows
for various remote function services.
• Li-ion battery status check:
The charging status of the Li-ion battery can
be checked using your personal computer or
internet enabled smart phone even if you are
not in the vehicle.
• Remote charge:
The function of starting the Li-ion battery
charge or starting the heater and air condi-
tioner is available using your personal com-
puter or internet enabled smart phone.
• Unplugged status:
A notification e-mail will be sent to your per-
sonal computer or internet enabled smart
phone if the plug is not connected at the
specific time you selected, after turning off the
power switch.
CH-26Charging

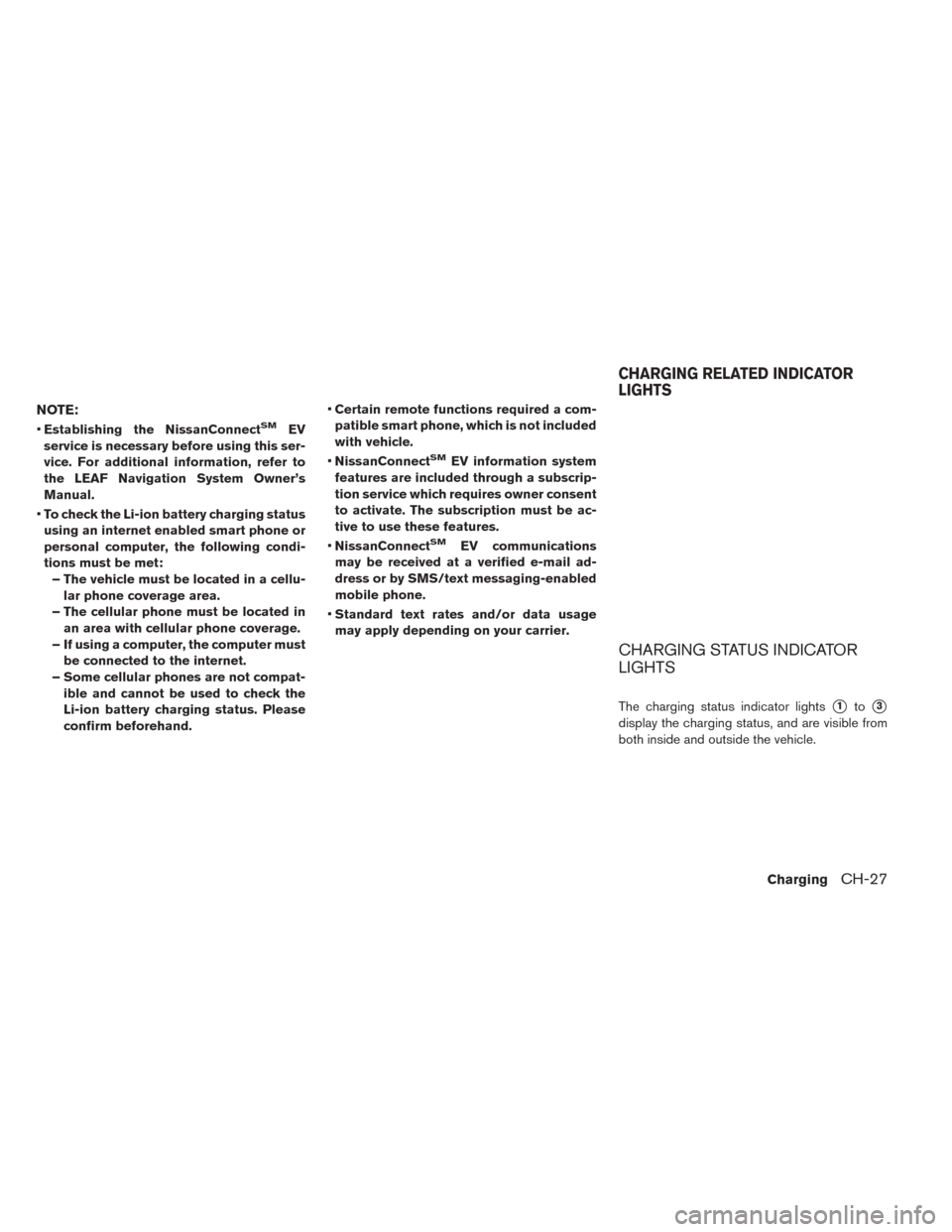

NOTE:
•Establishing the NissanConnectSMEV
service is necessary before using this ser-
vice. For additional information, refer to
the LEAF Navigation System Owner’s
Manual.
• To check the Li-ion battery charging status
using an internet enabled smart phone or
personal computer, the following condi-
tions must be met: – The vehicle must be located in a cellu- lar phone coverage area.
– The cellular phone must be located in an area with cellular phone coverage.
– If using a computer, the computer must be connected to the internet.
– Some cellular phones are not compat- ible and cannot be used to check the
Li-ion battery charging status. Please
confirm beforehand. •
Certain remote functions required a com-
patible smart phone, which is not included
with vehicle.
• NissanConnect
SMEV information system
features are included through a subscrip-
tion service which requires owner consent
to activate. The subscription must be ac-
tive to use these features.
• NissanConnect
SMEV communications
may be received at a verified e-mail ad-
dress or by SMS/text messaging-enabled
mobile phone.
• Standard text rates and/or data usage
may apply depending on your carrier.
CHARGING STATUS INDICATOR
LIGHTS
The charging status indicator lights1to3
display the charging status, and are visible from
both inside and outside the vehicle.
CHARGING RELATED INDICATOR
LIGHTS
ChargingCH-27

When the normal charge connector lock is
unlocked
All of the indicator lights,
1to3, will flash and
a beep will sound three times when the normal
charge connector lock switch on the Intelligent
Key or the charge port lid opener switch is
pushed.
When the normal charge connector is con-
nected incorrectly
All of the indicator lights,
1to3, will flash and
a beep will sound three times within 30 seconds
when the charge connector is connected incor-
rectly to the normal charge port. Ready for charging timer
If the charging timer is set, the indicator lights
illuminate in order from
1to3. The indicator
lights turn off after approximately 5 minutes. Ready for immediate charge
When the power switch is off and if the immedi-
ate charge switch is pressed while the charge
cable is not connected, the indicator light
2
illuminates.
This indicator light
2illuminates when the ve-
hicle is ready for immediate charge. You have 15
minutes to connect the charge connector to the
vehicle. If the charge connector is not connected
within 15 minutes, the indicator light
2turns off
and you must start the immediate charge mode
again to charge the Li-ion battery.
CH-28Charging

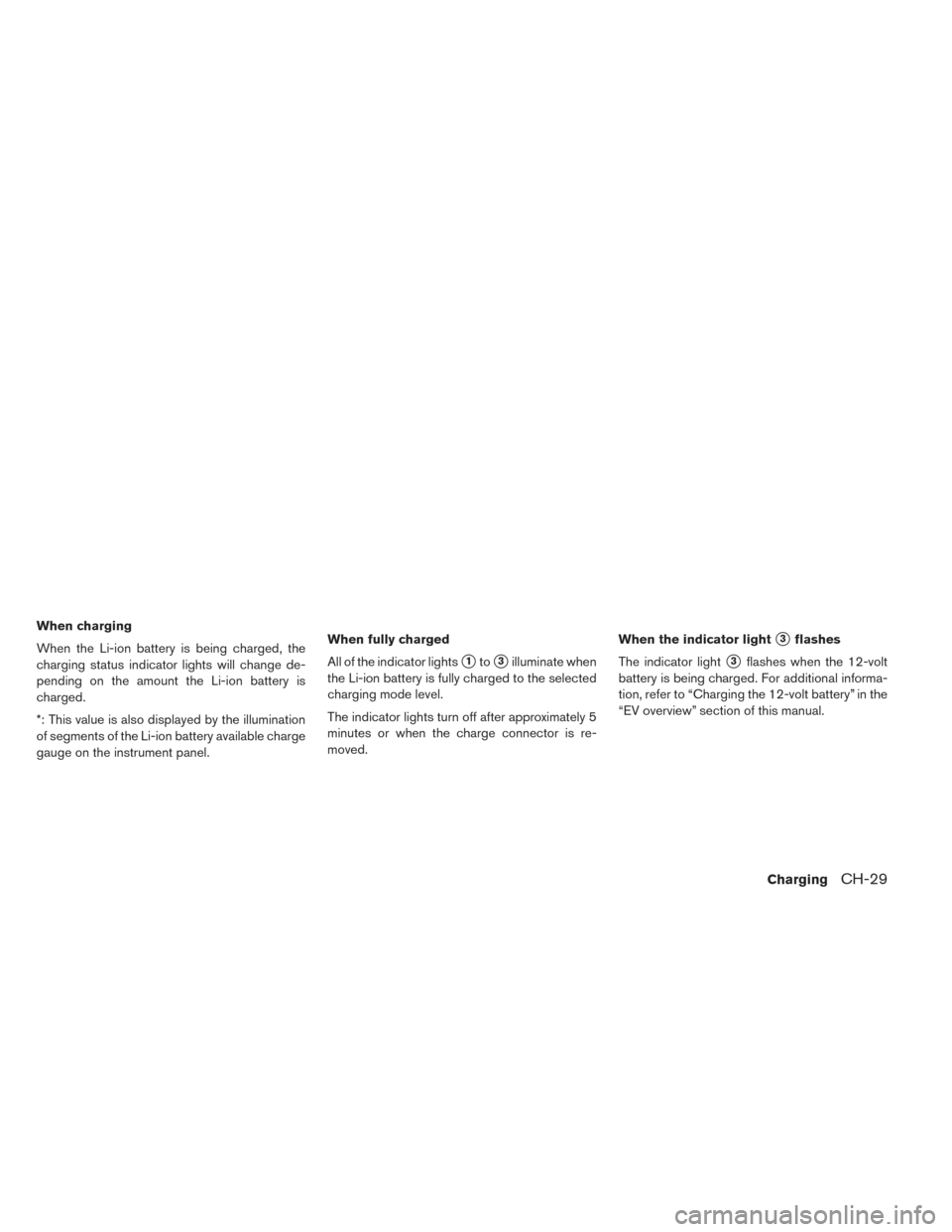

When charging
When the Li-ion battery is being charged, the
charging status indicator lights will change de-
pending on the amount the Li-ion battery is
charged.
*: This value is also displayed by the illumination
of segments of the Li-ion battery available charge
gauge on the instrument panel.When fully charged
All of the indicator lights
1to3illuminate when
the Li-ion battery is fully charged to the selected
charging mode level.
The indicator lights turn off after approximately 5
minutes or when the charge connector is re-
moved. When the indicator light
3flashes
The indicator light
3flashes when the 12-volt
battery is being charged. For additional informa-
tion, refer to “Charging the 12-volt battery” in the
“EV overview” section of this manual.
ChargingCH-29

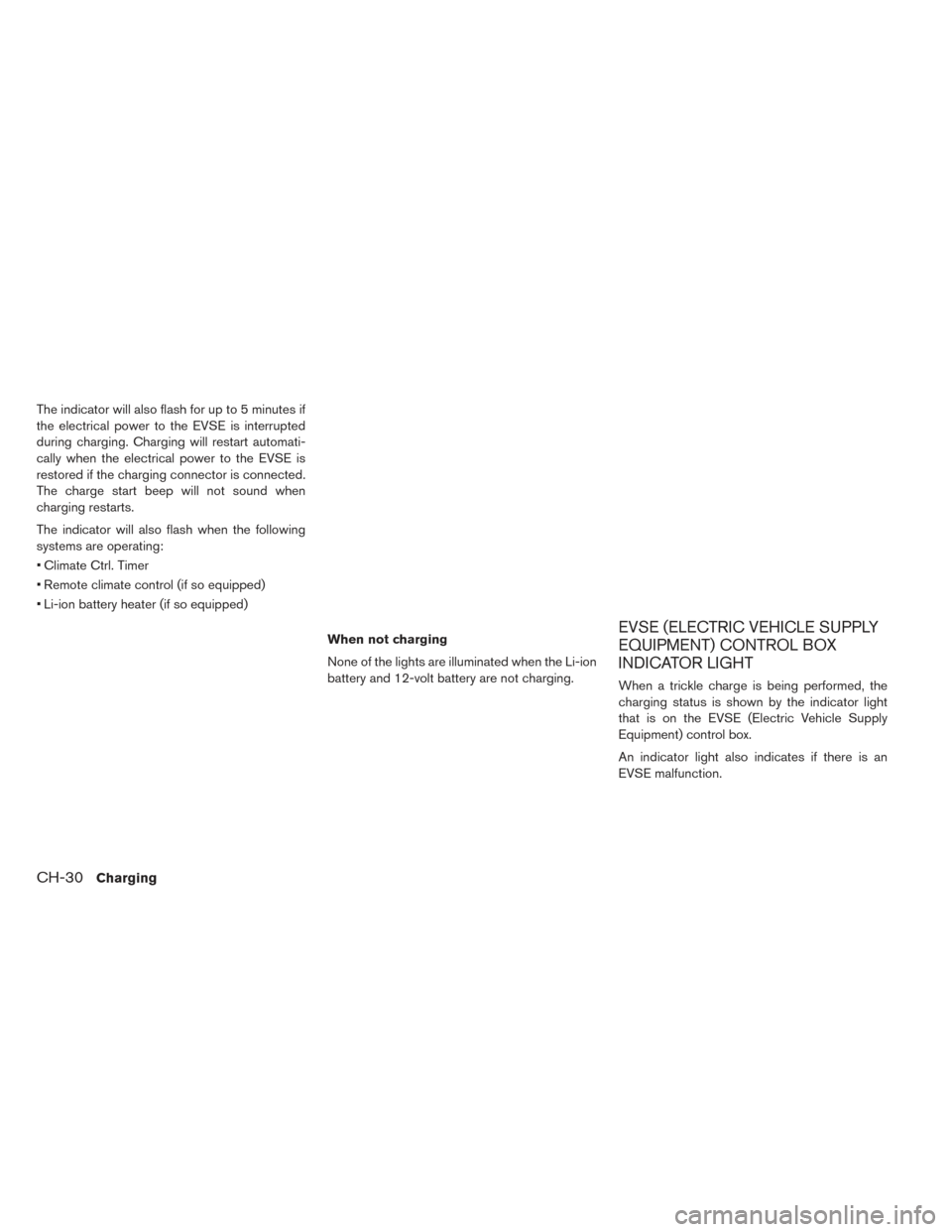

The indicator will also flash for up to 5 minutes if
the electrical power to the EVSE is interrupted
during charging. Charging will restart automati-
cally when the electrical power to the EVSE is
restored if the charging connector is connected.
The charge start beep will not sound when
charging restarts.
The indicator will also flash when the following
systems are operating:
• Climate Ctrl. Timer
• Remote climate control (if so equipped)
• Li-ion battery heater (if so equipped)When not charging
None of the lights are illuminated when the Li-ion
battery and 12-volt battery are not charging.
EVSE (ELECTRIC VEHICLE SUPPLY
EQUIPMENT) CONTROL BOX
INDICATOR LIGHT
When a trickle charge is being performed, the
charging status is shown by the indicator light
that is on the EVSE (Electric Vehicle Supply
Equipment) control box.
An indicator light also indicates if there is an
EVSE malfunction.
CH-30Charging

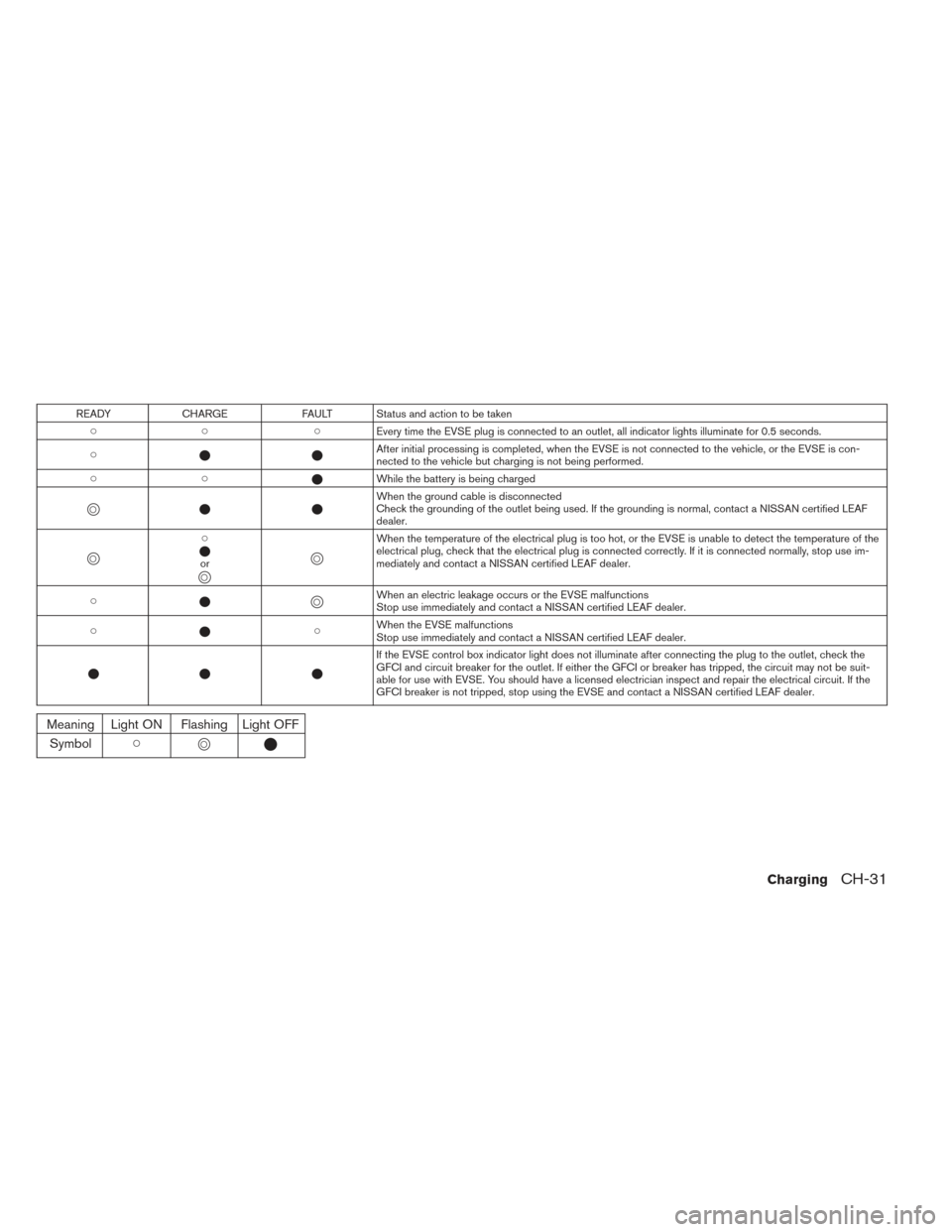

READYCHARGE FAULT Status and action to be taken
  Every time the EVSE plug is connected to an outlet, all indicator lights illuminate for 0.5 seconds.
  After initial processing is completed, when the EVSE is not connected to the vehicle, or the EVSE is con-
nected to the vehicle but charging is not being performed.
 While the battery is being charged

 When the ground cable is disconnected
Check the grounding of the outlet being used. If the grounding is normal, contact a NISSAN certified LEAF
dealer.



 or


When the temperature of the electrical plug is too hot, or the EVSE is unable to detect the temperature of the
electrical plug, check that the electrical plug is connected correctly. If it is connected normally, stop use im-
mediately and contact a NISSAN certified LEAF dealer.


When an electric leakage occurs or the EVSE malfunctions
Stop use immediately and contact a NISSAN certified LEAF dealer.
  When the EVSE malfunctions
Stop use immediately and contact a NISSAN certified LEAF dealer.
  If the EVSE control box indicator light does not illuminate after connecting the plug to the outlet, check the
GFCI and circuit breaker for the outlet. If either the GFCI or breaker has tripped, the circuit may not be suit-
able for use with EVSE. You should have a licensed electrician inspect and repair the electrical circuit. If the
GFCI breaker is not tripped, stop using the EVSE and contact a NISSAN certified LEAF dealer.
Meaning Light ON Flashing Light OFF
Symbol

ChargingCH-31
