2016 NISSAN LEAF Owners Manual

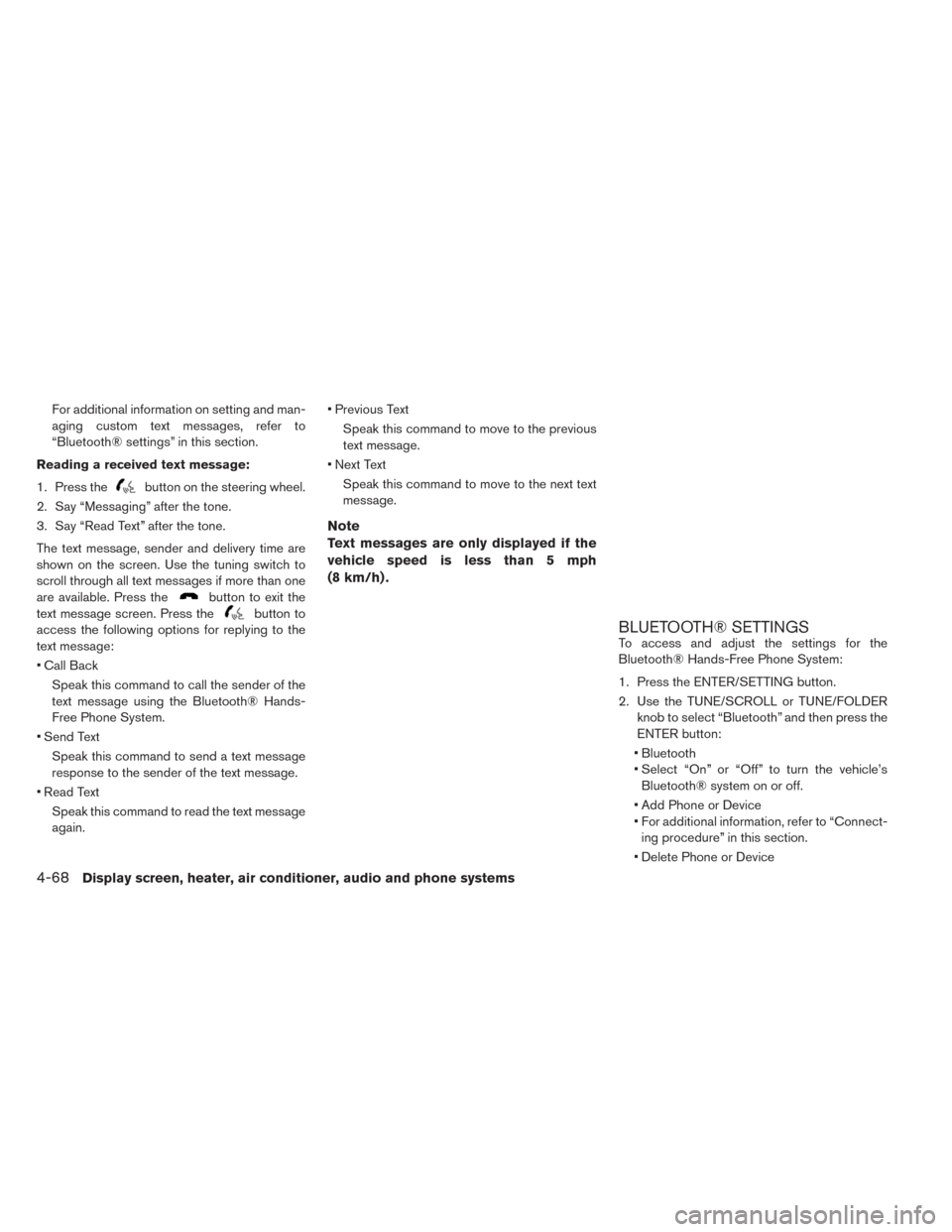

For additional information on setting and man-
aging custom text messages, refer to
“Bluetooth® settings” in this section.
Reading a received text message:
1. Press the
button on the steering wheel.
2. Say “Messaging” after the tone.
3. Say “Read Text” after the tone.
The text message, sender and delivery time are
shown on the screen. Use the tuning switch to
scroll through all text messages if more than one
are available. Press the
button to exit the
text message screen. Press the
button to
access the following options for replying to the
text message:
• Call Back
Speak this command to call the sender of the
text message using the Bluetooth® Hands-
Free Phone System.
• Send Text Speak this command to send a text message
response to the sender of the text message.
• Read Text Speak this command to read the text message
again. • Previous Text
Speak this command to move to the previous
text message.
• Next Text Speak this command to move to the next text
message.
Note
Text messages are only displayed if the
vehicle speed is less than 5 mph
(8 km/h) .
BLUETOOTH® SETTINGSTo access and adjust the settings for the
Bluetooth® Hands-Free Phone System:
1. Press the ENTER/SETTING button.
2. Use the TUNE/SCROLL or TUNE/FOLDER knob to select “Bluetooth” and then press the
ENTER button:
• Bluetooth
• Select “On” or “Off” to turn the vehicle’s Bluetooth® system on or off.
• Add Phone or Device
• For additional information, refer to “Connect- ing procedure” in this section.
• Delete Phone or Device
4-68Display screen, heater, air conditioner, audio and phone systems

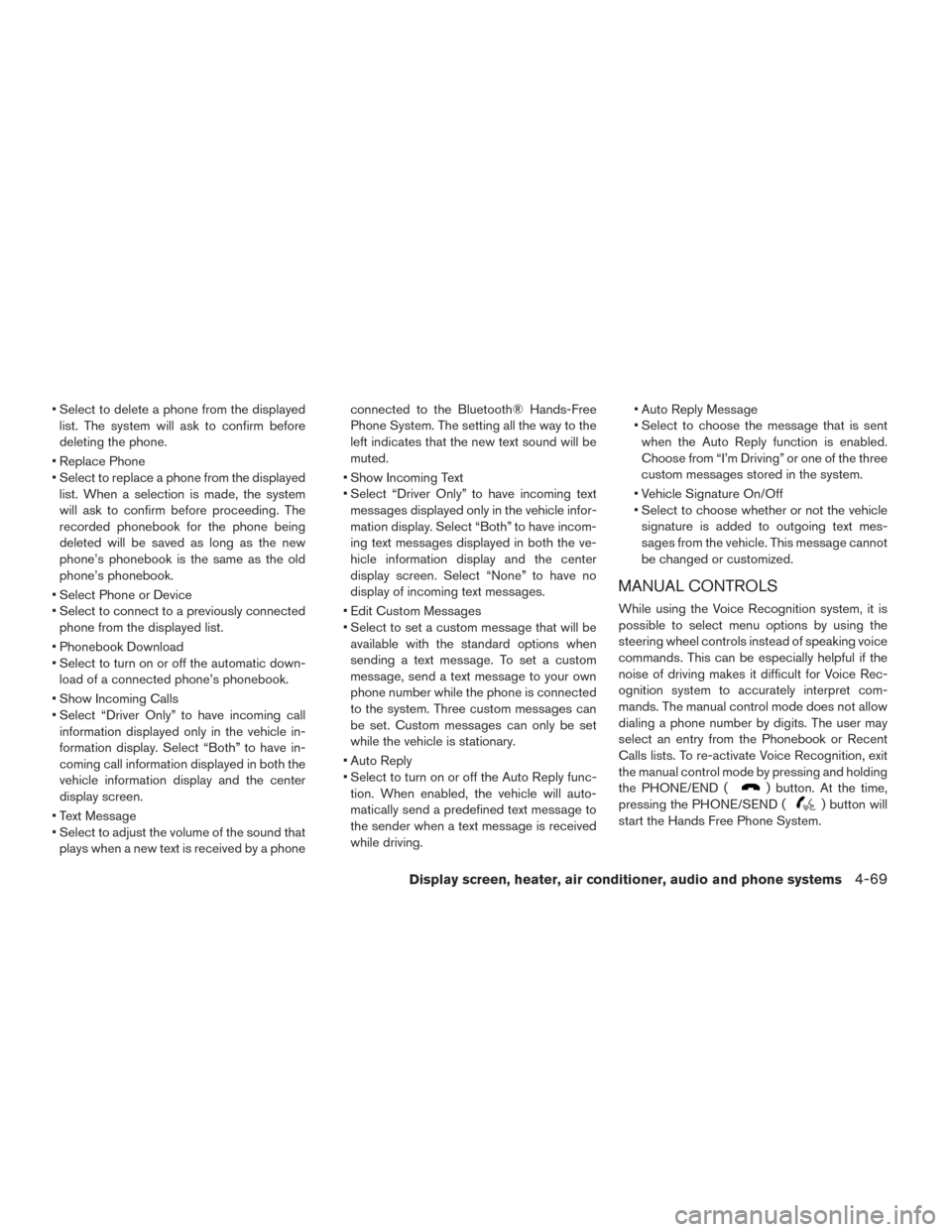

• Select to delete a phone from the displayedlist. The system will ask to confirm before
deleting the phone.
• Replace Phone
• Select to replace a phone from the displayed list. When a selection is made, the system
will ask to confirm before proceeding. The
recorded phonebook for the phone being
deleted will be saved as long as the new
phone’s phonebook is the same as the old
phone’s phonebook.
• Select Phone or Device
• Select to connect to a previously connected phone from the displayed list.
• Phonebook Download
• Select to turn on or off the automatic down- load of a connected phone’s phonebook.
• Show Incoming Calls
• Select “Driver Only” to have incoming call information displayed only in the vehicle in-
formation display. Select “Both” to have in-
coming call information displayed in both the
vehicle information display and the center
display screen.
• Text Message
• Select to adjust the volume of the sound that plays when a new text is received by a phone connected to the Bluetooth® Hands-Free
Phone System. The setting all the way to the
left indicates that the new text sound will be
muted.
• Show Incoming Text
• Select “Driver Only” to have incoming text messages displayed only in the vehicle infor-
mation display. Select “Both” to have incom-
ing text messages displayed in both the ve-
hicle information display and the center
display screen. Select “None” to have no
display of incoming text messages.
• Edit Custom Messages
• Select to set a custom message that will be available with the standard options when
sending a text message. To set a custom
message, send a text message to your own
phone number while the phone is connected
to the system. Three custom messages can
be set. Custom messages can only be set
while the vehicle is stationary.
• Auto Reply
• Select to turn on or off the Auto Reply func- tion. When enabled, the vehicle will auto-
matically send a predefined text message to
the sender when a text message is received
while driving. • Auto Reply Message
• Select to choose the message that is sent
when the Auto Reply function is enabled.
Choose from “I’m Driving” or one of the three
custom messages stored in the system.
• Vehicle Signature On/Off
• Select to choose whether or not the vehicle signature is added to outgoing text mes-
sages from the vehicle. This message cannot
be changed or customized.
MANUAL CONTROLS
While using the Voice Recognition system, it is
possible to select menu options by using the
steering wheel controls instead of speaking voice
commands. This can be especially helpful if the
noise of driving makes it difficult for Voice Rec-
ognition system to accurately interpret com-
mands. The manual control mode does not allow
dialing a phone number by digits. The user may
select an entry from the Phonebook or Recent
Calls lists. To re-activate Voice Recognition, exit
the manual control mode by pressing and holding
the PHONE/END (
) button. At the time,
pressing the PHONE/SEND (
) button will
start the Hands Free Phone System.
Display screen, heater, air conditioner, audio and phone systems4-69

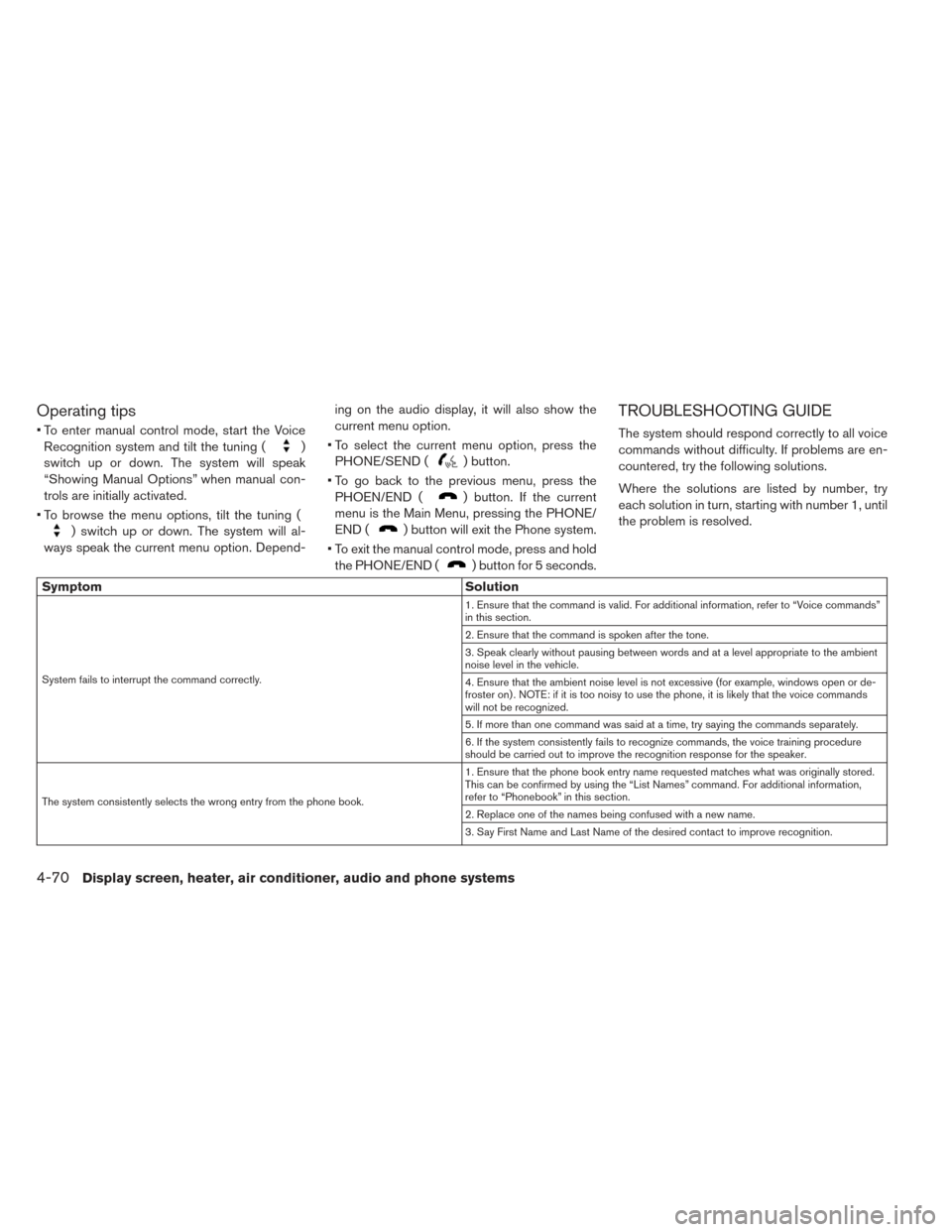

Operating tips
• To enter manual control mode, start the VoiceRecognition system and tilt the tuning (
)
switch up or down. The system will speak
“Showing Manual Options” when manual con-
trols are initially activated.
• To browse the menu options, tilt the tuning (
) switch up or down. The system will al-
ways speak the current menu option. Depend- ing on the audio display, it will also show the
current menu option.
• To select the current menu option, press the PHONE/SEND (
) button.
• To go back to the previous menu, press the PHOEN/END (
) button. If the current
menu is the Main Menu, pressing the PHONE/
END (
) button will exit the Phone system.
• To exit the manual control mode, press and hold the PHONE/END (
) button for 5 seconds.
TROUBLESHOOTING GUIDE
The system should respond correctly to all voice
commands without difficulty. If problems are en-
countered, try the following solutions.
Where the solutions are listed by number, try
each solution in turn, starting with number 1, until
the problem is resolved.
Symptom Solution
System fails to interrupt the command correctly. 1. Ensure that the command is valid. For additional information, refer to “Voice commands”
in this section.
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient
noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or de-
froster on) . NOTE: if it is too noisy to use the phone, it is likely that the voice commands
will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure
should be carried out to improve the recognition response for the speaker.
The system consistently selects the wrong entry from the phone book. 1. Ensure that the phone book entry name requested matches what was originally stored.
This can be confirmed by using the “List Names” command. For additional information,
refer to “Phonebook” in this section.
2. Replace one of the names being confused with a new name.
3. Say First Name and Last Name of the desired contact to improve recognition.
4-70Display screen, heater, air conditioner, audio and phone systems

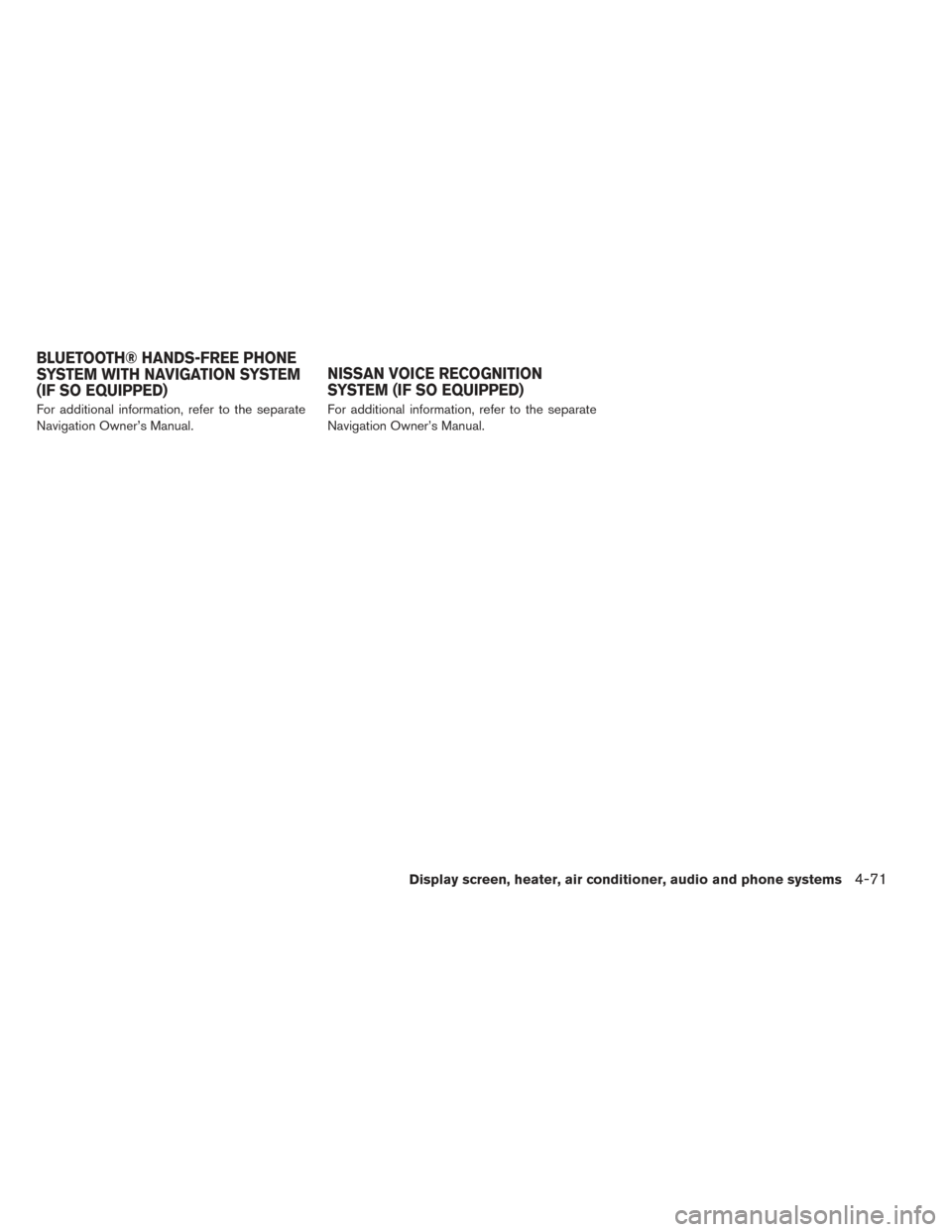

For additional information, refer to the separate
Navigation Owner’s Manual.For additional information, refer to the separate
Navigation Owner’s Manual.
BLUETOOTH® HANDS-FREE PHONE
SYSTEM WITH NAVIGATION SYSTEM
(IF SO EQUIPPED)
NISSAN VOICE RECOGNITION
SYSTEM (IF SO EQUIPPED)
Display screen, heater, air conditioner, audio and phone systems4-71

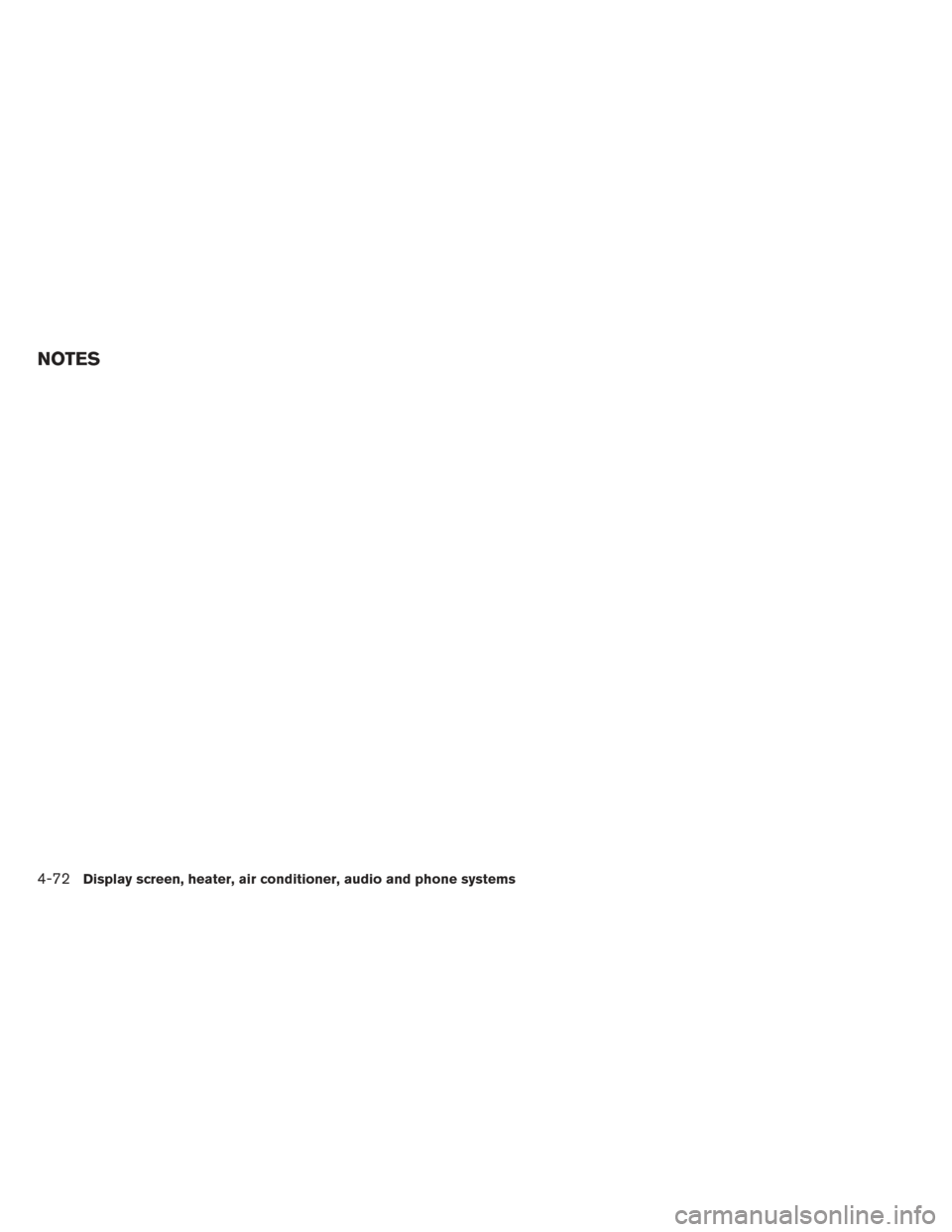

NOTES
4-72Display screen, heater, air conditioner, audio and phone systems

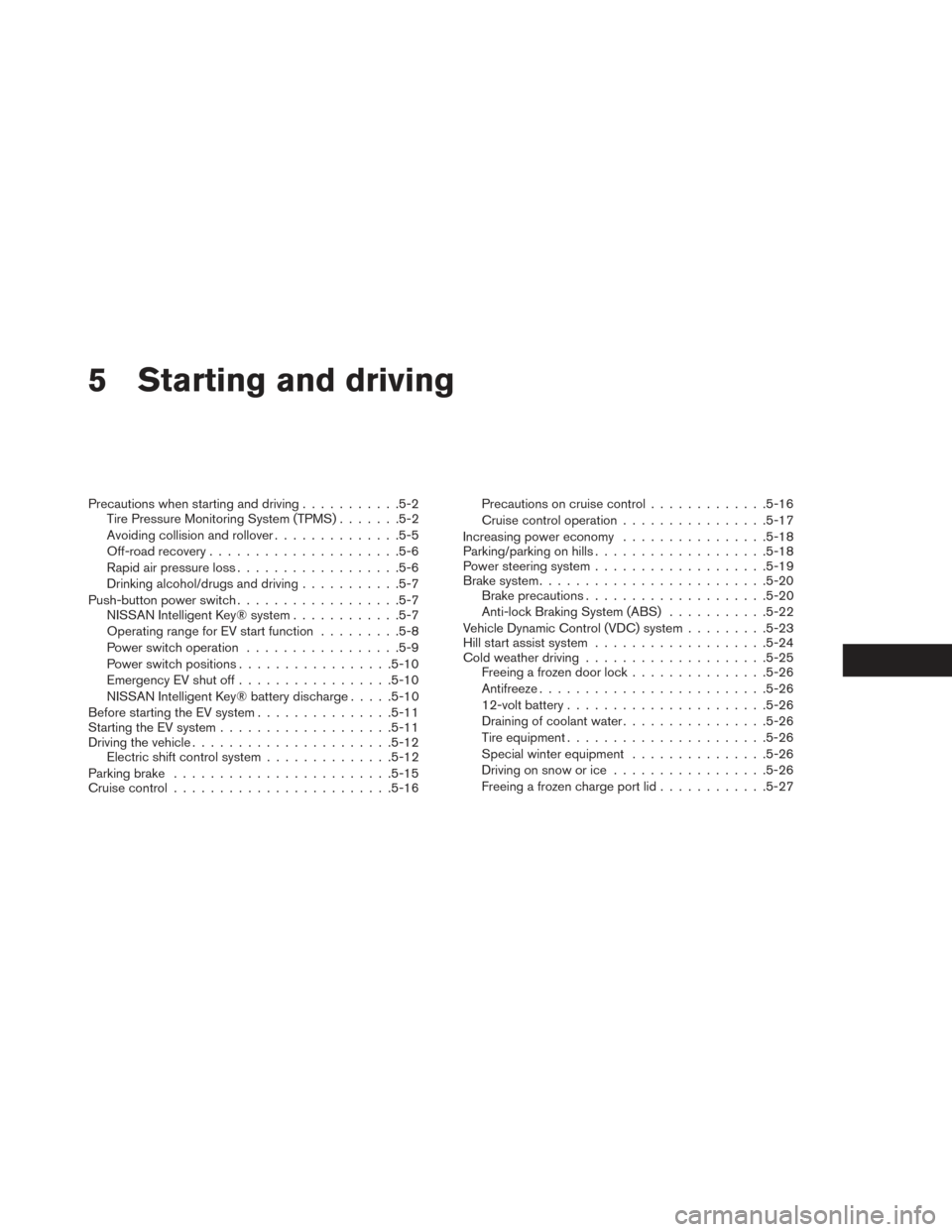

5 Starting and driving
Precautions when starting and driving...........5-2
Tire Pressure Monitoring System (TPMS) .......5-2
Avoiding collision and rollover ..............5-5
Off-road recovery .................... .5-6
Rapid air pressure loss ................. .5-6
Drinking alcohol/drugs and driving ...........5-7
Push-button power switch ................. .5-7
NISSAN Intelligent Key® system ............5-7
Operating range for EV start function .........5-8
Power switch operation ................ .5-9
Power switch positions ................ .5-10
Emergency EV shut off ................ .5-10
NISSAN Intelligent Key® battery discharge .....5-10
Before starting the EV system ...............5-11
Starting the EV system .................. .5-11
Driving the vehicle ..................... .5-12
Electric shift control system ..............5-12
Parking brake ....................... .5-15
Cruise control ....................... .5-16Precautions on cruise control
.............5-16
Cruise control operation ................5-17
Increasing power economy ................5-18
Parking/parking on hills .................. .5-18
Power steering system .................. .5-19
Brake system ........................ .5-20
Brake precautions ................... .5-20
Anti-lock Braking System (ABS) ...........5-22
Vehicle Dynamic Control (VDC) system .........5-23
Hill start assist system .................. .5-24
Cold weather driving ................... .5-25
Freeing a frozen door lock ...............5-26
Antifreeze ........................ .5-26
12-volt battery ..................... .5-26
Draining of coolant water ................5-26
Tire

equipment ..................... .5-26
Special winter equipment ...............5-26
Driving on snow or ice ................ .5-26
Freeing a frozen charge port lid ............5-27

WARNING
• Do not leave children or adults who would normally require the support of
others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves or
others through inadvertent operation
of the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
• Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop or
collision, unsecured cargo could cause
personal injury.
TIRE PRESSURE MONITORING
SYSTEM (TPMS)
Each tire, should be checked monthly when cold
and inflated to the inflation pressure recom-
mended by the vehicle manufacturer on the ve-
hicle placard or tire inflation pressure label. (If
your vehicle has tires of a different size than the
size indicated on the vehicle placard or tire infla- tion pressure label, you should determine the
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been
equipped with a Tire Pressure Monitoring System
(TPMS) that illuminates a low tire pressure telltale
when one or more of your tires is significantly
under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them to the proper pressure. Driving on a signifi-
cantly under-inflated tire causes the tire to over-
heat and can lead to tire failure. Under-inflation
also reduces power efficiency and tire tread life,
and may affect the vehicle’s handling and stop-
ping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level to
trigger illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when the
system is not operating properly. The TPMS mal-
function indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction, the telltale will flash for approxi-mately one minute and then remain continuously
illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the mal-
function exists. When the malfunction indicator is
illuminated, the system may not be able to detect
or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons,
including the installation of replacement or alter-
nate tires or wheels on the vehicle that prevent
the TPMS from functioning properly. Always
check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to
ensure that the replacement or alternate tires and
wheels allow the TPMS to continue to function
properly.
Additional information
• Since the spare tire is not equipped with the
TPMS, the TPMS does not monitor the tire
pressure of the spare tire.
• The TPMS will activate only when the vehicle is driven at speeds above 16 mph (25 km/h) . Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving) .
• The low tire pressure warning light does not automatically turn off when the tire pressure is
adjusted. After the tire is inflated to the recom-
mended pressure, the vehicle must be driven at
PRECAUTIONS WHEN STARTING
AND DRIVING
5-2Starting and driving

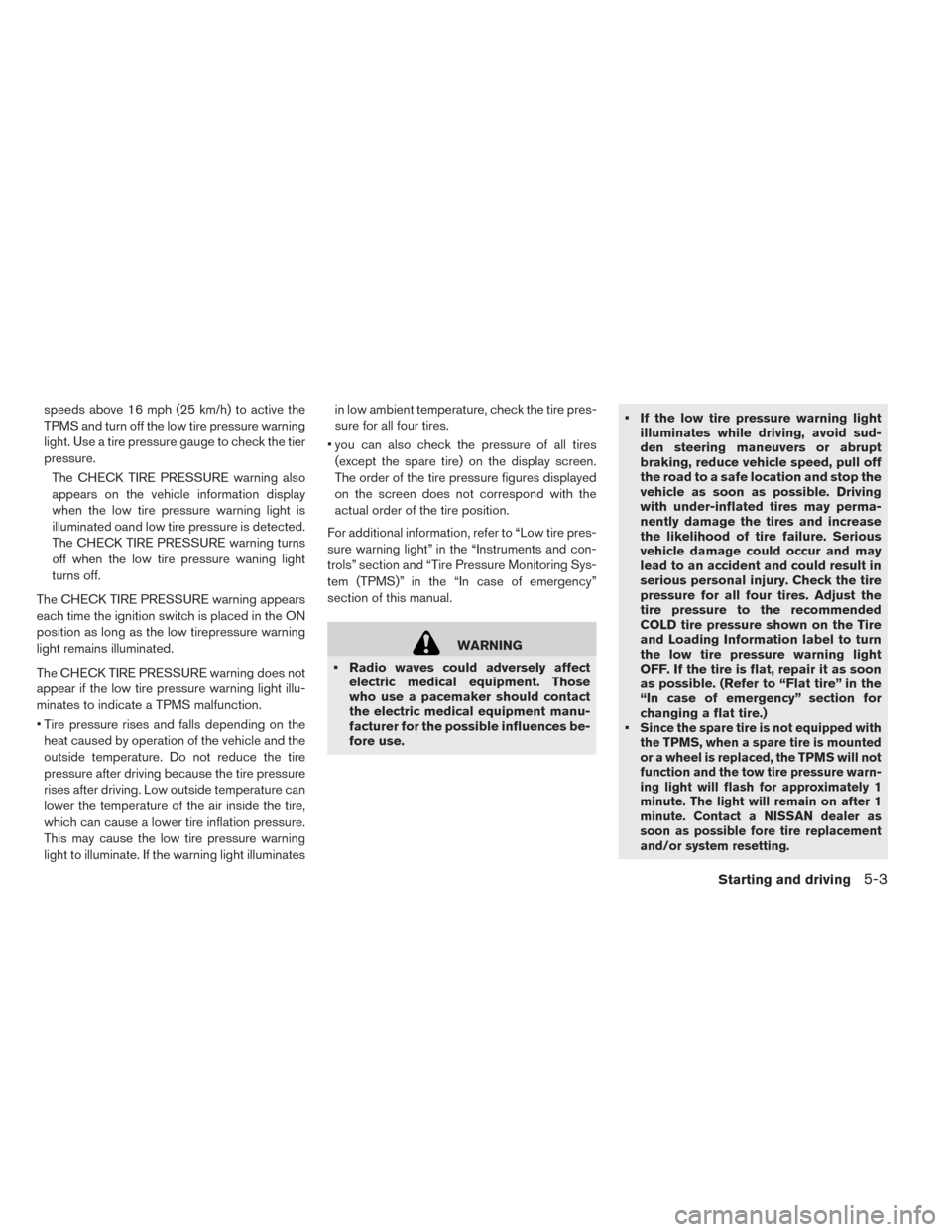

speeds above 16 mph (25 km/h) to active the
TPMS and turn off the low tire pressure warning
light. Use a tire pressure gauge to check the tier
pressure.The CHECK TIRE PRESSURE warning also
appears on the vehicle information display
when the low tire pressure warning light is
illuminated oand low tire pressure is detected.
The CHECK TIRE PRESSURE warning turns
off when the low tire pressure waning light
turns off.
The CHECK TIRE PRESSURE warning appears
each time the ignition switch is placed in the ON
position as long as the low tirepressure warning
light remains illuminated.
The CHECK TIRE PRESSURE warning does not
appear if the low tire pressure warning light illu-
minates to indicate a TPMS malfunction.
• Tire pressure rises and falls depending on the heat caused by operation of the vehicle and the
outside temperature. Do not reduce the tire
pressure after driving because the tire pressure
rises after driving. Low outside temperature can
lower the temperature of the air inside the tire,
which can cause a lower tire inflation pressure.
This may cause the low tire pressure warning
light to illuminate. If the warning light illuminates in low ambient temperature, check the tire pres-
sure for all four tires.
• you can also check the pressure of all tires (except the spare tire) on the display screen.
The order of the tire pressure figures displayed
on the screen does not correspond with the
actual order of the tire position.
For additional information, refer to “Low tire pres-
sure warning light” in the “Instruments and con-
trols” section and “Tire Pressure Monitoring Sys-
tem (TPMS)” in the “In case of emergency”
section of this manual.
WARNING
• Radio waves could adversely affect electric medical equipment. Those
who use a pacemaker should contact
the electric medical equipment manu-
facturer for the possible influences be-
fore use. • If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull off
the road to a safe location and stop the
vehicle as soon as possible. Driving
with under-inflated tires may perma-
nently damage the tires and increase
the likelihood of tire failure. Serious
vehicle damage could occur and may
lead to an accident and could result in
serious personal injury. Check the tire
pressure for all four tires. Adjust the
tire pressure to the recommended
COLD tire pressure shown on the Tire
and Loading Information label to turn
the low tire pressure warning light
OFF. If the tire is flat, repair it as soon
as possible. (Refer to “Flat tire” in the
“In case of emergency” section for
changing a flat tire.)
•
Since the spare tire is not equipped with
the TPMS, when a spare tire is mounted
or a wheel is replaced, the TPMS will not
function and the tow tire pressure warn-
ing light will flash for approximately 1
minute. The light will remain on after 1
minute. Contact a NISSAN dealer as
soon as possible fore tire replacement
and/or system resetting.
Starting and driving5-3
