2016 NISSAN LEAF Owners Manual

SUPPLEMENTAL AIR BAG
WARNING LABELS
A. Supplemental front-impact air bag system
warning labels
SRS air bag warning labels
The warning labels are located on the surface of
the sun visors.
SUPPLEMENTAL AIR BAG
WARNING LIGHT
The supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits of the Air bag Control Unit (ACU) , satel-
lite sensors, crash zone sensor, occupant classi-
fication sensor, the supplemental front-impact air
bag, front seat-mounted side-impact supple-
mental air bag, roof-mounted curtain side-impact
supplemental air bag and seat belt pretensioner
systems. The monitored circuits include air bag
systems, pretensioner(s) and all related wiring. When the power switch is in the ON position, the
supplemental air bag warning light illuminates for
about 7 seconds and then turns off. This means
the system is operational.
If any of the following conditions occur, the front
air bag, side air bag, curtain air bag and preten-
sioner systems need servicing:
• The supplemental air bag warning light remains
on after approximately 7 seconds.
• The supplemental air bag warning light flashes intermittently.
• The supplemental air bag warning light does not come on at all.
Under these conditions, the front air bag, side air
bag, curtain air bag and pretensioner systems
may not operate properly. They must be checked
and repaired. Take your vehicle to the nearest
NISSAN certified LEAF dealer.
1-54Safety–Seats, seat belts and supplemental restraint system

WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or pre-
tensioner systems will not operate in an
accident. To help avoid injury to yourself
or others, have your vehicle checked by a
NISSAN certified LEAF dealer as soon as
possible.
Repair and replacement procedure
The front air bags, side air bags, curtain air bags
and pretensioner(s) are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these systems
should be done only by a NISSAN certified LEAF
dealer.
When maintenance work is required on the ve-
hicle, the front air bags, side air bags, curtain air
bags and pretensioner(s) and related parts
should be pointed out to the person performing
the maintenance. The power switch should al-
ways be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
• Once a front air bag, side air bag or curtain air bag has inflated, the air bag
module will not function again and
must be replaced. Additionally, the ac-
tivated pretensioner(s) must also be
replaced. The air bag module and pre-
tensioner(s) should be replaced by a
NISSAN certified LEAF dealer. The air
bag modules and pretensioner system
cannot be repaired.
• The front air bag, side air bag and curtain air bag systems, and preten-
sioner system should be inspected by
a NISSAN certified LEAF dealer if there
is any damage to the front end or side
portion of the vehicle.
• If you need to dispose of a supplemen- tal air bag or pretensioner system or
scrap the vehicle, contact a NISSAN
certified LEAF dealer. Correct supple-
mental air bag and pretensioner sys-
tem disposal procedures are set forth
in the appropriate NISSAN Service
Manual. Incorrect disposal procedures
could cause personal injury. • If there is an impact to your vehicle
from any direction, your Occupant
Classification Sensor (OCS) should be
checked by a NISSAN certified LEAF
dealer to verify it is still functioning
correctly. The OCS should be checked
even if no air bags deploy as a result of
the impact. Failure to verify proper
OCS function may result in an im-
proper air bag deployment resulting in
injury or death.
Safety–Seats, seat belts and supplemental restraint system1-55

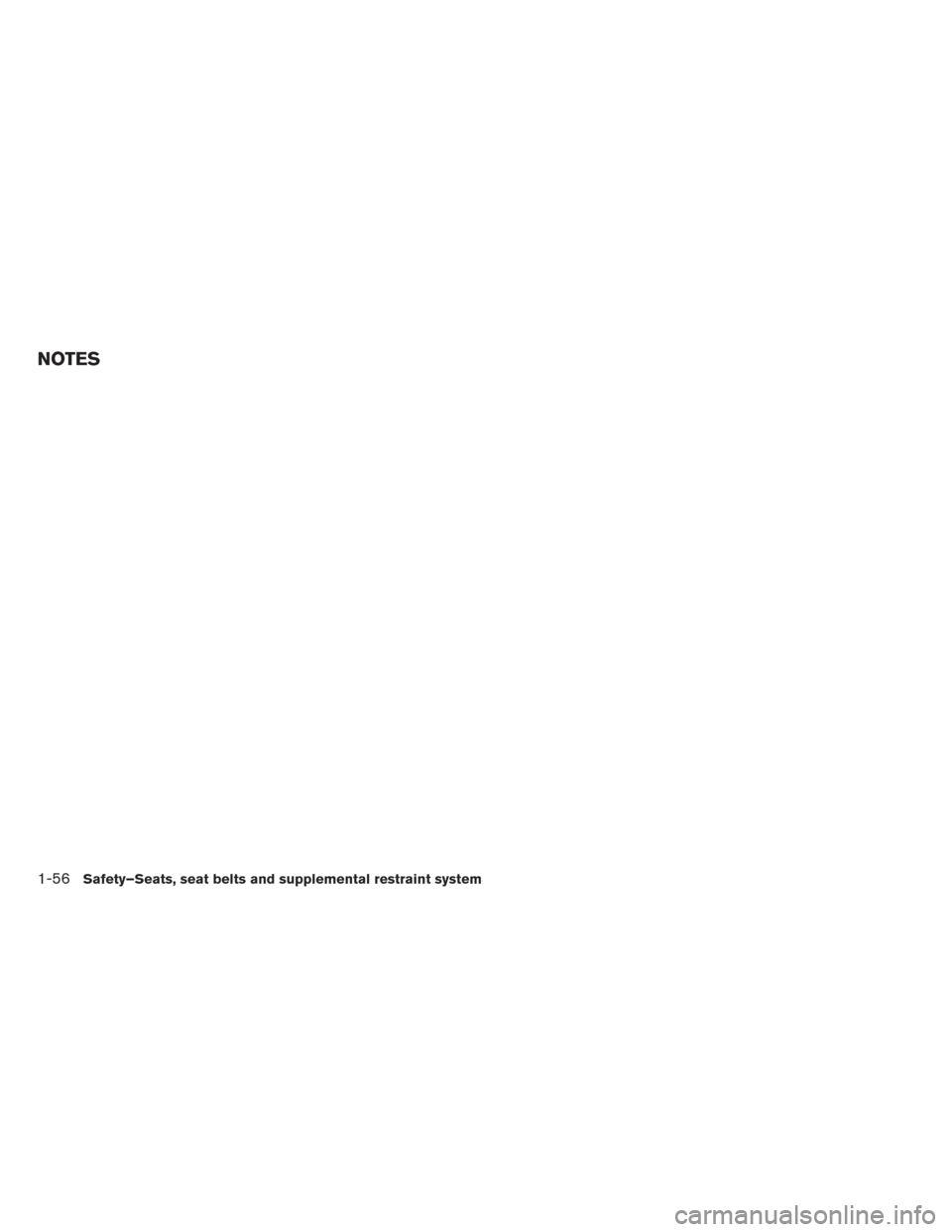

NOTES
1-56Safety–Seats, seat belts and supplemental restraint system

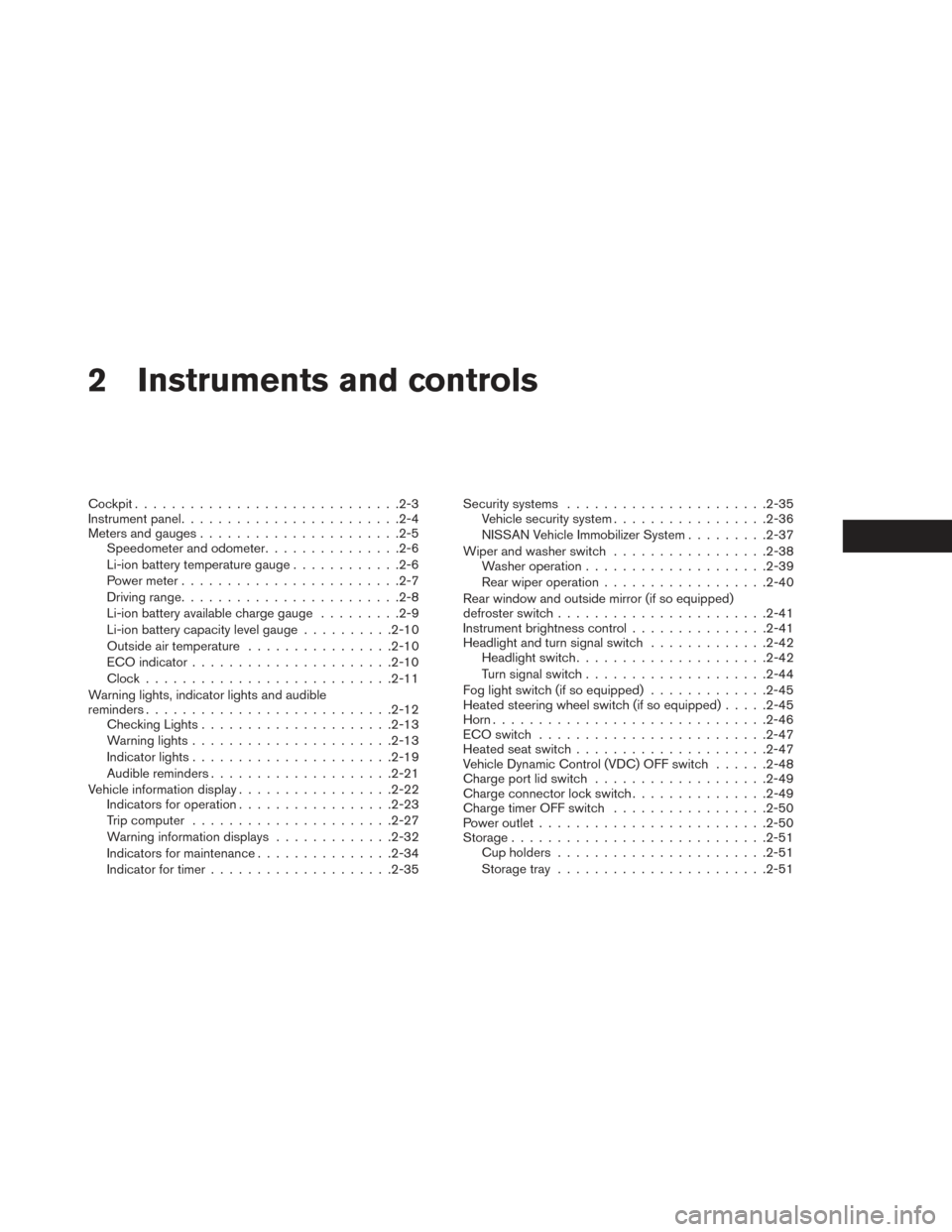

2 Instruments and controls
Cockpit............................ .2-3
Instrument panel ....................... .2-4
Meters and gauges ..................... .2-5
Speedometer and odometer ...............2-6
Li-ion battery temperature gauge ............2-6
Power meter ....................... .2-7
Driving range ....................... .2-8
Li-ion battery available charge gauge .........2-9
Li-ion battery capacity level gauge ..........2-10
Outside air temperature ................2-10
ECO indicator ..................... .2-10
Clock .......................... .2-11
Warning lights, indicator lights and audible
reminders .......................... .2-12
Checking Lights .................... .2-13
Warning lights ..................... .2-13
Indicator lights ..................... .2-19
Audible reminders ................... .2-21
Vehicle information display .................2-22
Indicators for operation ................ .2-23
Trip computer ..................... .2-27
Warning information displays .............2-32
Indicators for maintenance ...............2-34
Indicator for timer ................... .2-35Security systems
..................... .2-35
Vehicle security system ................ .2-36
NISSAN Vehicle Immobilizer System .........2-37
Wiper and washer switch .................2-38
Washer operation ................... .2-39
Rear wiper operation ................. .2-40
Rear window and outside mirror (if so equipped)
defroster switch ...................... .2-41
Instrument brightness control ...............2-41
Headlight and turn signal switch .............2-42
Headlight switch .................... .2-42
Turn signal switch ................... .2-44
Fog
light switch (if so equipped) .............2-45
Heated steering wheel switch (if so equipped) .....2-45
Horn ............................. .2-46
ECO switch ........................ .2-47
Heated seat switch .................... .2-47
Vehicle Dynamic Control (VDC) OFF switch ......2-48
Charge port lid switch .................. .2-49
Charge connector lock switch ...............2-49
Charge timer OFF switch .................2-50
Power outlet ........................ .2-50
Storage ........................... .2-51
Cup holders ...................... .2-51
Storage tray ...................... .2-51

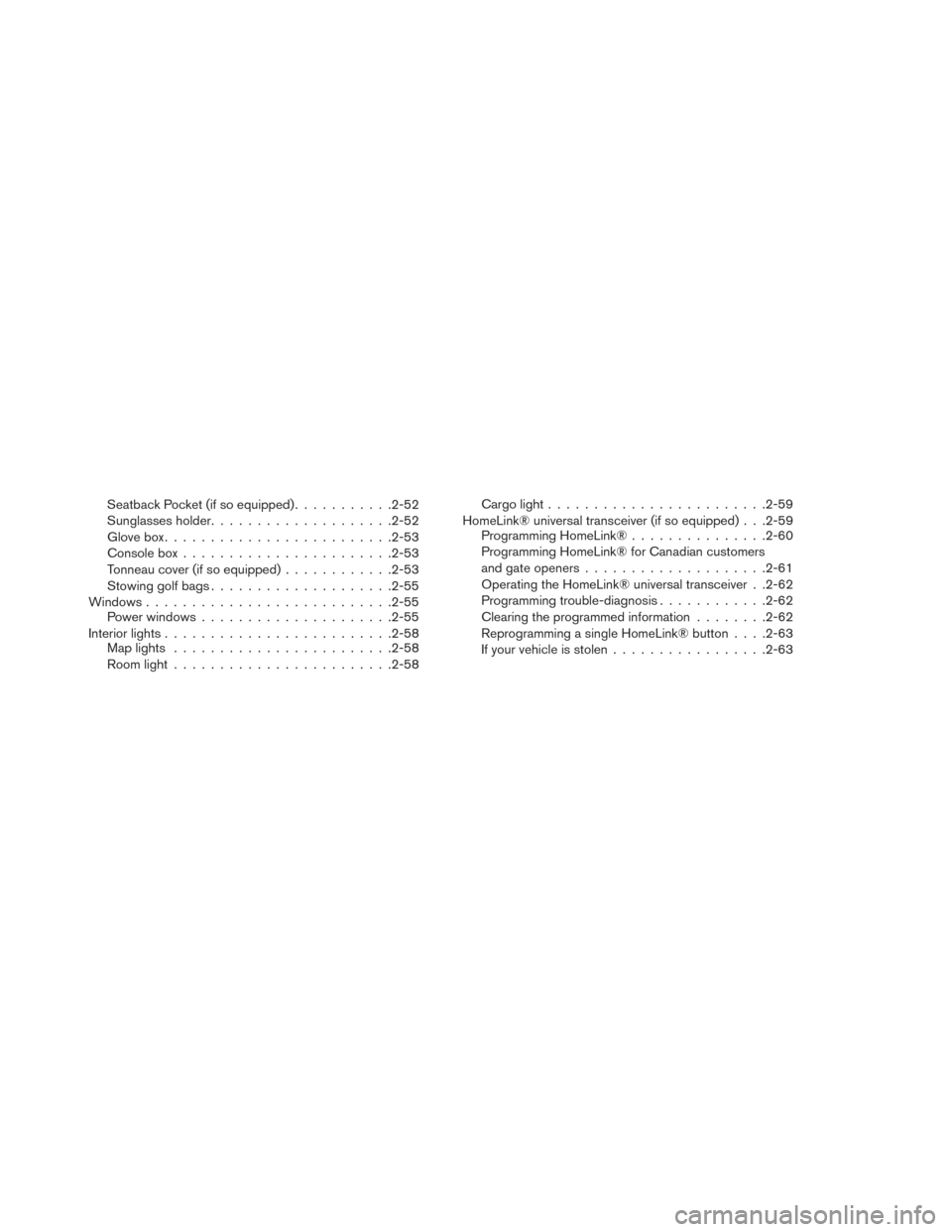

Seatback Pocket (if so equipped)...........2-52
Sunglasses holder ................... .2-52
Glove box ........................ .2-53
Console box ...................... .2-53
Tonneau cover (if so equipped) ............2-53
Stowing golf bags ................... .2-55
Windows .......................... .2-55
Power windows .................... .2-55
Interior lights ........................ .2-58
Map lights ....................... .2-58
Room light ....................... .2-58Cargo light
....................... .2-59
HomeLink® universal transceiver (if so equipped) . . .2-59 Programming HomeLink® ...............2-60
Programming HomeLink® for Canadian customers
and gate openers ................... .2-61
Operating the HomeLink® universal transceiver . .2-62
Programming trouble-diagnosis ............2-62
Clearing the programmed information ........2-62
Reprogramming a single HomeLink® button . . . .2-63
If your vehicle is stolen ................ .2-63

1. TRIP switch for twin trip odometer (P. 2-5)
2. Trip computer switch (P. 2-22)
3. Instrument brightness control switch(P. 2-41)
4. Headlight, fog light and turn signal switch — Headlight (P. 2-42)
— Turn signal light (P. 2-42) — Fog light (if so equipped) (P. 2-45)
5. Steering-wheel-mounted controls (left side) — Audio control (P. 4-56)
— Bluetooth® Hands-Free Phone System
control (P. 4-71) 6. Steering wheel
— Power steering system (P. 5-19)
— Horn (P. 2-46)
— Driver’s supplemental air bag (P. 1-38)
7. Wiper and washer switch (P. 2-38)
8. Steering-wheel-mounted controls (right side)
— Cruise control switches (P. 5-16)
— ECO button (P. 2-47)
9. Console box (P. 2-51)
10. Shift lever (P. 5-12)
11. Front heated seat switch (P. 2-47)
12. Tilting steering wheel lever (P. 3-21)
13. Charge port lid switch (P. 3-19)
14. Charge connector lock switch (P. CH-5)
15. Charge timer OFF switch (P. 2-50)
16. Vehicle Dynamic Control (VDC) OFF switch (P. 2-48)
17. Heated steering wheel switch (if so equipped) (P. 2-45)
18. Fuse box cover (P. 8-17)
COCKPIT
Instruments and controls2-3

1. Side vents (P. 4-22)
2. Meters and gauges (P. 2-5)
3. Center multi-function control panel— Navigation system (Refer to LEAF Naviga-
tion System Owner’s Manual)
— Without navigation system (P. 4-38)
4. Hazard warning flasher switch (P. 6-2) 5. Center vents (P. 4-21)
6. Rear window defroster switch (P. 2-41)
7. Front passenger supplemental air bag
(P. 1-38)
8. Glove box (P. 2-51) 9. Front passenger air bag status light, Ap-
proaching Vehicle Sound for Pedestrians
(VSP) system warning light (P. 1-38, 2-14)
10. Auxiliary input jack (P. 4-38)
11. Power outlet (P. 2-50)
12. Heater and air conditioner control (P. 4-22 )
13. iPod® connector/USB connector (P. 4-38)
14. Push-button power switch (P. 5-7)
15. Hood release handle (P. 3-17)
INSTRUMENT PANEL
2-4Instruments and controls

This vehicle is equipped with an upper display
and a lower display.
1. Master warning lights (P. 2-18)
2. ECO indicator (P. 2-10)
3. Speedometer (P. 2-6)
4. Clock (P. 2-11)5. Outside air temperature (P. 2-10)
6. Turn signal/Hazard indicator light (P. 2-21)
7. Li-ion battery capacity level gauge (P. 2-10)
8. Li-ion battery available charge gauge
(P. 2-9)
9. Driving range (P. 2-8)
10. Vehicle information display (P. 2-22) 11. READY to drive indicator light (P. 2-20)
12. ECO mode indicator light
—ECO switch (P. 2-47
— Odometer/twin trip odometer (P. 2-6)
— Trip computer (P. 2-27)
— Shift “P” warning (P. 2-26)
— Indicator for timer (P. 2-35)
13. Power meter (P. 2-7)
14. Warning and indicator lights (P. 2-12)
15. Li-ion battery temperature gauge (P. 2-6)
METERS AND GAUGES
Instruments and controls2-5
