2016 NISSAN LEAF Owners Manual

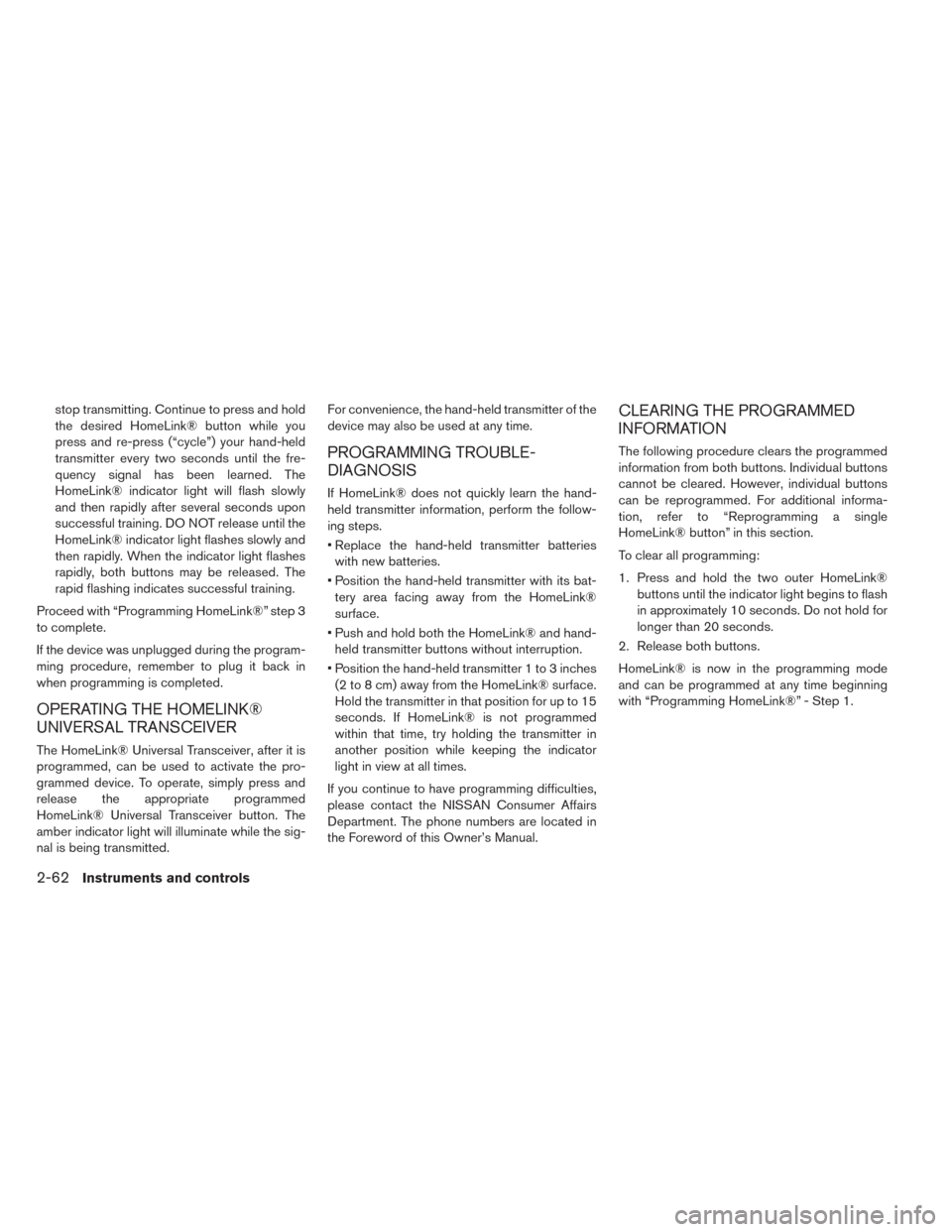

stop transmitting. Continue to press and hold
the desired HomeLink® button while you
press and re-press (“cycle”) your hand-held
transmitter every two seconds until the fre-
quency signal has been learned. The
HomeLink® indicator light will flash slowly
and then rapidly after several seconds upon
successful training. DO NOT release until the
HomeLink® indicator light flashes slowly and
then rapidly. When the indicator light flashes
rapidly, both buttons may be released. The
rapid flashing indicates successful training.
Proceed with “Programming HomeLink®” step 3
to complete.
If the device was unplugged during the program-
ming procedure, remember to plug it back in
when programming is completed.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device. To operate, simply press and
release the appropriate programmed
HomeLink® Universal Transceiver button. The
amber indicator light will illuminate while the sig-
nal is being transmitted. For convenience, the hand-held transmitter of the
device may also be used at any time.
PROGRAMMING TROUBLE-
DIAGNOSIS
If HomeLink® does not quickly learn the hand-
held transmitter information, perform the follow-
ing steps.
• Replace the hand-held transmitter batteries
with new batteries.
• Position the hand-held transmitter with its bat- tery area facing away from the HomeLink®
surface.
• Push and hold both the HomeLink® and hand- held transmitter buttons without interruption.
• Position the hand-held transmitter 1 to 3 inches (2 to 8 cm) away from the HomeLink® surface.
Hold the transmitter in that position for up to 15
seconds. If HomeLink® is not programmed
within that time, try holding the transmitter in
another position while keeping the indicator
light in view at all times.
If you continue to have programming difficulties,
please contact the NISSAN Consumer Affairs
Department. The phone numbers are located in
the Foreword of this Owner’s Manual.
CLEARING THE PROGRAMMED
INFORMATION
The following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed. For additional informa-
tion, refer to “Reprogramming a single
HomeLink® button” in this section.
To clear all programming:
1. Press and hold the two outer HomeLink® buttons until the indicator light begins to flash
in approximately 10 seconds. Do not hold for
longer than 20 seconds.
2. Release both buttons.
HomeLink® is now in the programming mode
and can be programmed at any time beginning
with “Programming HomeLink®” - Step 1.
2-62Instruments and controls

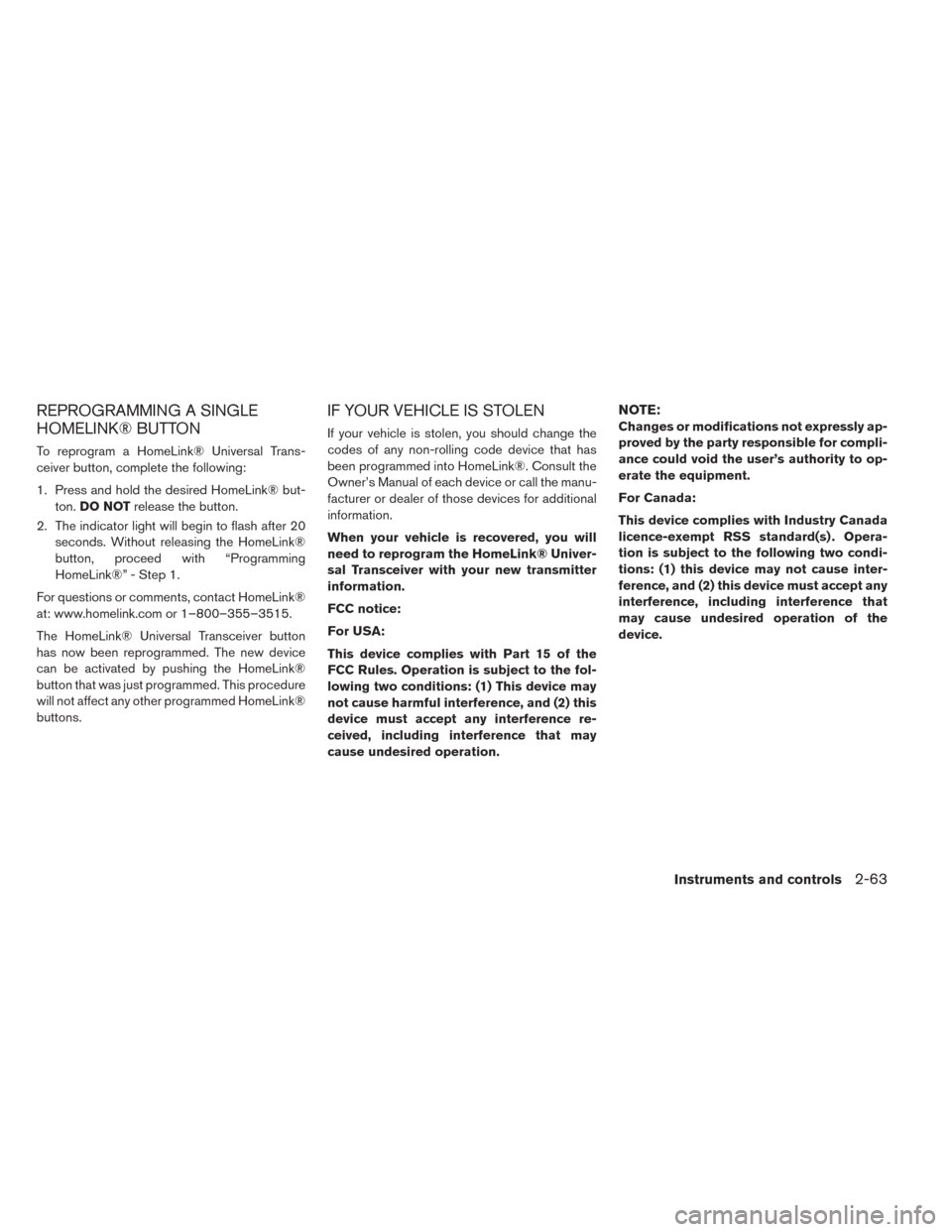

REPROGRAMMING A SINGLE
HOMELINK® BUTTON
To reprogram a HomeLink® Universal Trans-
ceiver button, complete the following:
1. Press and hold the desired HomeLink® but-ton. DO NOT release the button.
2. The indicator light will begin to flash after 20 seconds. Without releasing the HomeLink®
button, proceed with “Programming
HomeLink®” - Step 1.
For questions or comments, contact HomeLink®
at: www.homelink.com or 1–800–355–3515.
The HomeLink® Universal Transceiver button
has now been reprogrammed. The new device
can be activated by pushing the HomeLink®
button that was just programmed. This procedure
will not affect any other programmed HomeLink®
buttons.
IF YOUR VEHICLE IS STOLEN
If your vehicle is stolen, you should change the
codes of any non-rolling code device that has
been programmed into HomeLink®. Consult the
Owner’s Manual of each device or call the manu-
facturer or dealer of those devices for additional
information.
When your vehicle is recovered, you will
need to reprogram the HomeLink® Univer-
sal Transceiver with your new transmitter
information.
FCC notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the
device.
Instruments and controls2-63

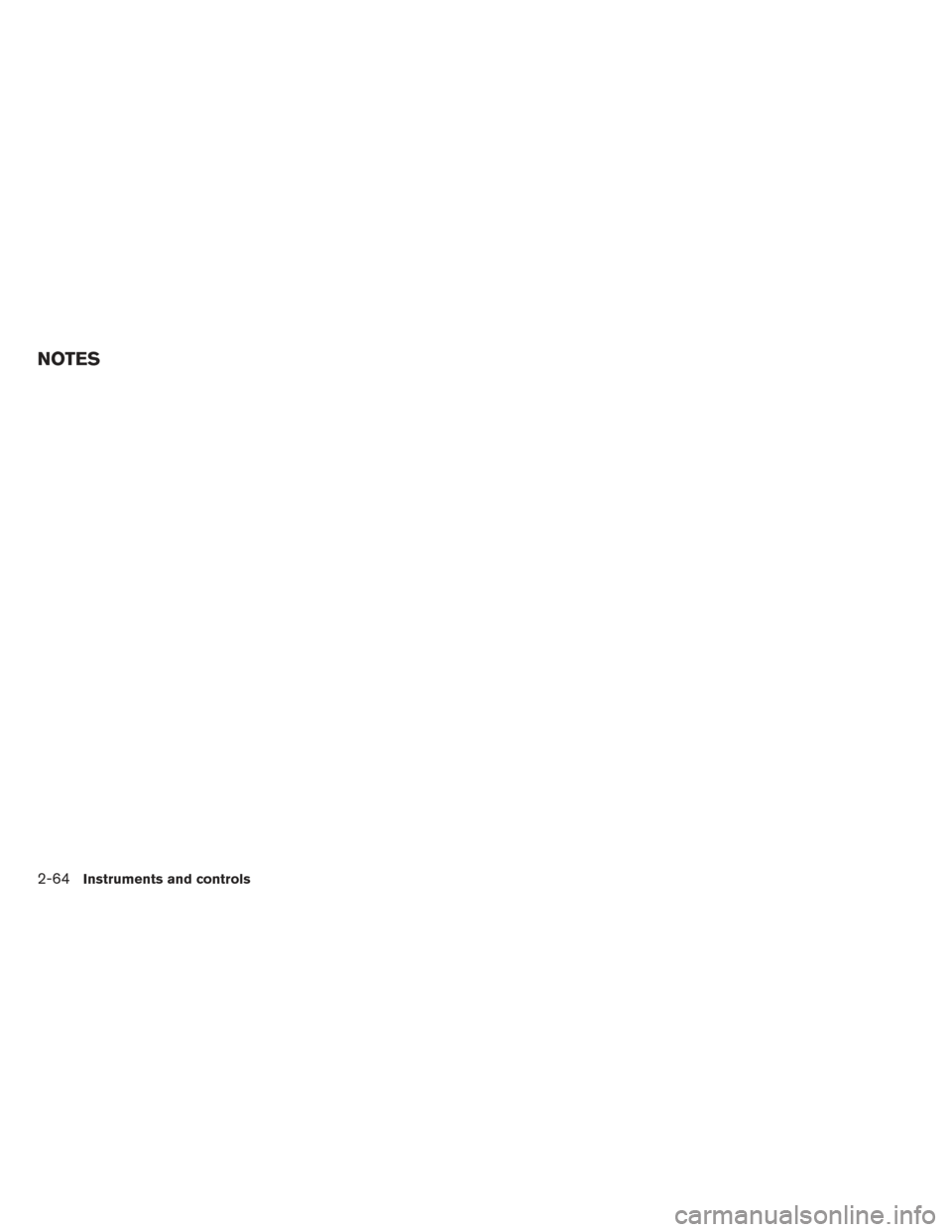

NOTES
2-64Instruments and controls

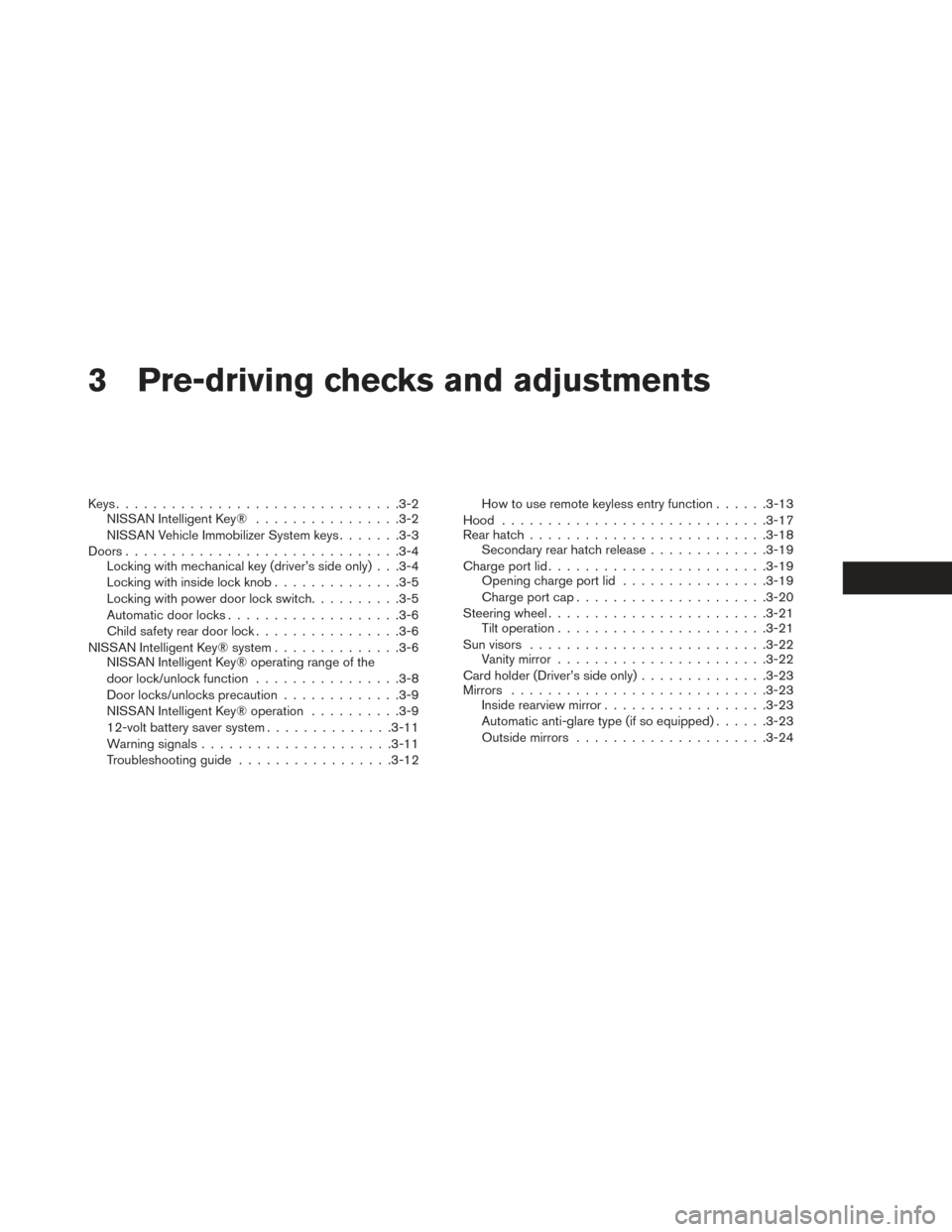

3 Pre-driving checks and adjustments
Keys...............................3-2
NISSAN Intelligent Key® ................3-2
NISSAN Vehicle Immobilizer System keys .......3-3
Doors ............................. .3-4
Locking with mechanical key (driver’s side only) . . .3-4
Locking with inside lock knob ..............3-5
Locking with power door lock switch ..........3-5
Automatic door locks .................. .3-6
Child safety rear door lock ................3-6
NISSAN Intelligent Key® system ..............3-6
NISSAN Intelligent Key® operating range of the
door lock/unlock function ................3-8
Door locks/unlocks precaution .............3-9
NISSAN Intelligent Key® operation ..........3-9
12-volt battery saver system ..............3-11
Warning signals .................... .3-11
Troubleshooting guide ................ .3-12How to use remote keyless entry function
......3-13
Hood ............................ .3-17
Rear hatch ......................... .3-18
Secondary rear hatch release .............3-19
Charge port lid ....................... .3-19
Opening charge port lid ................3-19
Charge port cap .................... .3-20
Steering wheel ....................... .3-21
Tilt operation ...................... .3-21
Sun visors ......................... .3-22
Vanity mirror ...................... .3-22
Card holder (Driver’s side only) ..............3-23
Mirrors ........................... .3-23
Inside rearview mirror ................. .3-23
Automatic anti-glare type (if so equipped) ......3-23
Outside mirrors .................... .3-24

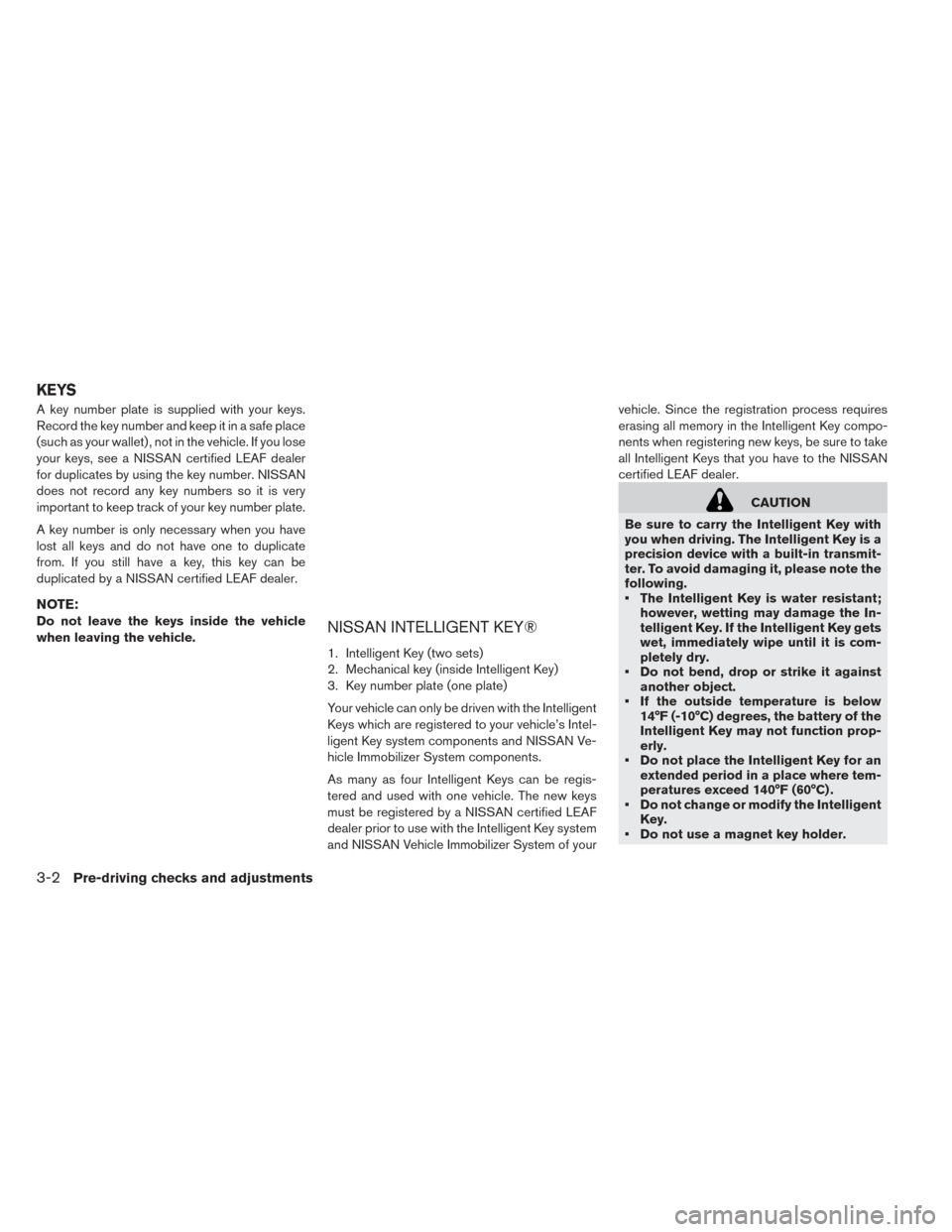

A key number plate is supplied with your keys.
Record the key number and keep it in a safe place
(such as your wallet) , not in the vehicle. If you lose
your keys, see a NISSAN certified LEAF dealer
for duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN certified LEAF dealer.
NOTE:
Do not leave the keys inside the vehicle
when leaving the vehicle.NISSAN INTELLIGENT KEY®
1. Intelligent Key (two sets)
2. Mechanical key (inside Intelligent Key)
3. Key number plate (one plate)
Your vehicle can only be driven with the Intelligent
Keys which are registered to your vehicle’s Intel-
ligent Key system components and NISSAN Ve-
hicle Immobilizer System components.
As many as four Intelligent Keys can be regis-
tered and used with one vehicle. The new keys
must be registered by a NISSAN certified LEAF
dealer prior to use with the Intelligent Key system
and NISSAN Vehicle Immobilizer System of yourvehicle. Since the registration process requires
erasing all memory in the Intelligent Key compo-
nents when registering new keys, be sure to take
all Intelligent Keys that you have to the NISSAN
certified LEAF dealer.
CAUTION
Be sure to carry the Intelligent Key with
you when driving. The Intelligent Key is a
precision device with a built-in transmit-
ter. To avoid damaging it, please note the
following.
• The Intelligent Key is water resistant; however, wetting may damage the In-
telligent Key. If the Intelligent Key gets
wet, immediately wipe until it is com-
pletely dry.
• Do not bend, drop or strike it against another object.
• If the outside temperature is below 14°F (-10°C) degrees, the battery of the
Intelligent Key may not function prop-
erly.
• Do not place the Intelligent Key for an extended period in a place where tem-
peratures exceed 140°F (60°C) .
• Do not change or modify the Intelligent Key.
• Do not use a magnet key holder.
KEYS
3-2Pre-driving checks and adjustments

• Do not place the Intelligent Key nearan electric appliance such as a televi-
sion set, personal computer or cellular
phone.
• Do not allow the Intelligent Key to come into contact with water or salt
water, and do not wash it in a washing
machine. This could affect the system
function.
If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will pre-
vent the Intelligent Key from unauthor-
ized use to unlock the vehicle. For infor-
mation regarding the erasing procedure,
contact a NISSAN certified LEAF dealer.

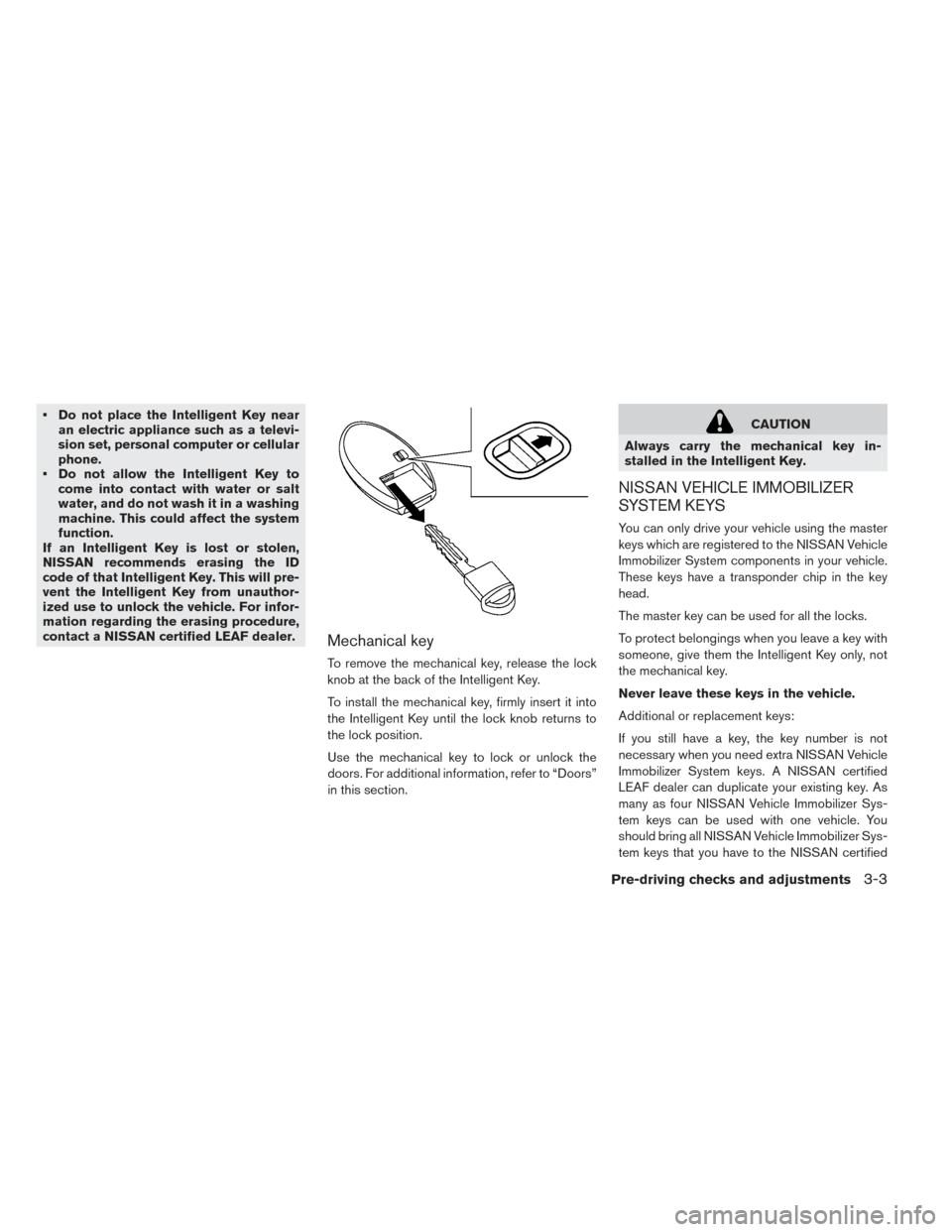

Mechanical key
To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors. For additional information, refer to “Doors”
in this section.
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
NISSAN VEHICLE IMMOBILIZER
SYSTEM KEYS
You can only drive your vehicle using the master
keys which are registered to the NISSAN Vehicle
Immobilizer System components in your vehicle.
These keys have a transponder chip in the key
head.
The master key can be used for all the locks.
To protect belongings when you leave a key with
someone, give them the Intelligent Key only, not
the mechanical key.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. A NISSAN certified
LEAF dealer can duplicate your existing key. As
many as four NISSAN Vehicle Immobilizer Sys-
tem keys can be used with one vehicle. You
should bring all NISSAN Vehicle Immobilizer Sys-
tem keys that you have to the NISSAN certified
Pre-driving checks and adjustments3-3

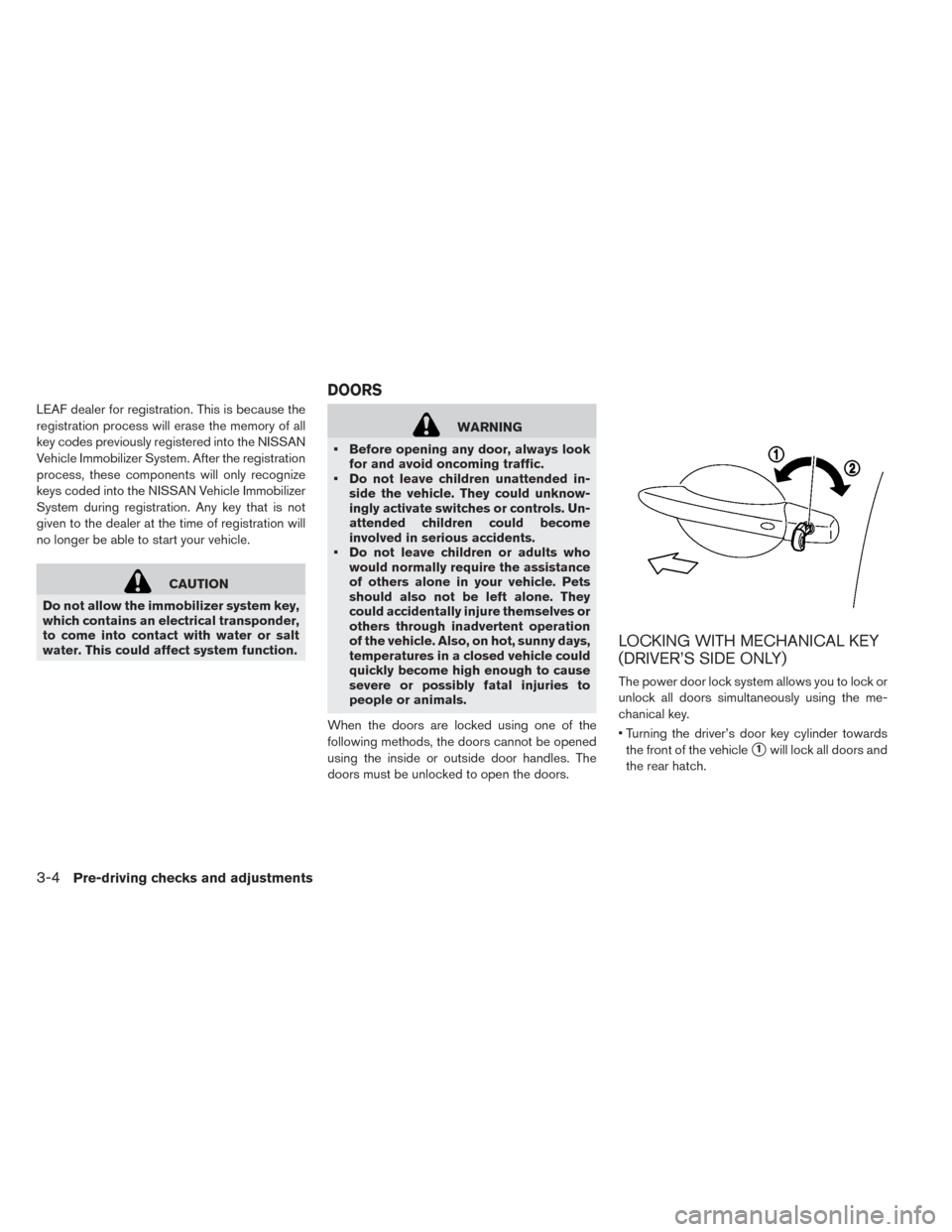

LEAF dealer for registration. This is because the
registration process will erase the memory of all
key codes previously registered into the NISSAN
Vehicle Immobilizer System. After the registration
process, these components will only recognize
keys coded into the NISSAN Vehicle Immobilizer
System during registration. Any key that is not
given to the dealer at the time of registration will
no longer be able to start your vehicle.
CAUTION
Do not allow the immobilizer system key,
which contains an electrical transponder,
to come into contact with water or salt
water. This could affect system function.
WARNING
• Before opening any door, always look for and avoid oncoming traffic.
• Do not leave children unattended in- side the vehicle. They could unknow-
ingly activate switches or controls. Un-
attended children could become
involved in serious accidents.
• Do not leave children or adults who would normally require the assistance
of others alone in your vehicle. Pets
should also not be left alone. They
could accidentally injure themselves or
others through inadvertent operation
of the vehicle. Also, on hot, sunny days,
temperatures in a closed vehicle could
quickly become high enough to cause
severe or possibly fatal injuries to
people or animals.
When the doors are locked using one of the
following methods, the doors cannot be opened
using the inside or outside door handles. The
doors must be unlocked to open the doors.
LOCKING WITH MECHANICAL KEY
(DRIVER’S SIDE ONLY)
The power door lock system allows you to lock or
unlock all doors simultaneously using the me-
chanical key.
• Turning the driver’s door key cylinder towards the front of the vehicle
1will lock all doors and
the rear hatch.
DOORS
3-4Pre-driving checks and adjustments

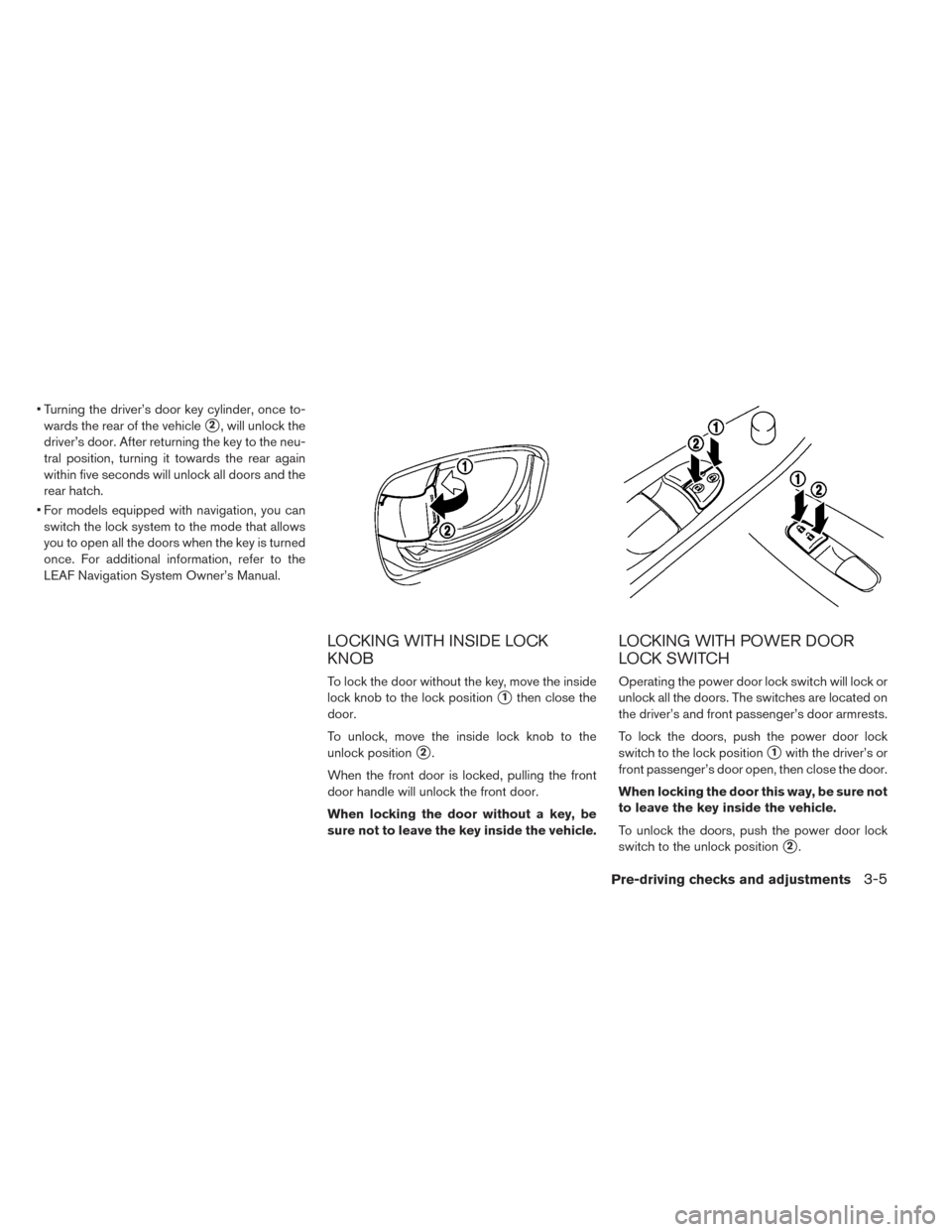

• Turning the driver’s door key cylinder, once to-wards the rear of the vehicle
2, will unlock the
driver’s door. After returning the key to the neu-
tral position, turning it towards the rear again
within five seconds will unlock all doors and the
rear hatch.
• For models equipped with navigation, you can switch the lock system to the mode that allows
you to open all the doors when the key is turned
once. For additional information, refer to the
LEAF Navigation System Owner’s Manual.
LOCKING WITH INSIDE LOCK
KNOB
To lock the door without the key, move the inside
lock knob to the lock position
1then close the
door.
To unlock, move the inside lock knob to the
unlock position
2.
When the front door is locked, pulling the front
door handle will unlock the front door.
When locking the door without a key, be
sure not to leave the key inside the vehicle.
LOCKING WITH POWER DOOR
LOCK SWITCH
Operating the power door lock switch will lock or
unlock all the doors. The switches are located on
the driver’s and front passenger’s door armrests.
To lock the doors, push the power door lock
switch to the lock position
1with the driver’s or
front passenger’s door open, then close the door.
When locking the door this way, be sure not
to leave the key inside the vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
2.
Pre-driving checks and adjustments3-5
