2016 NISSAN LEAF Owners Manual

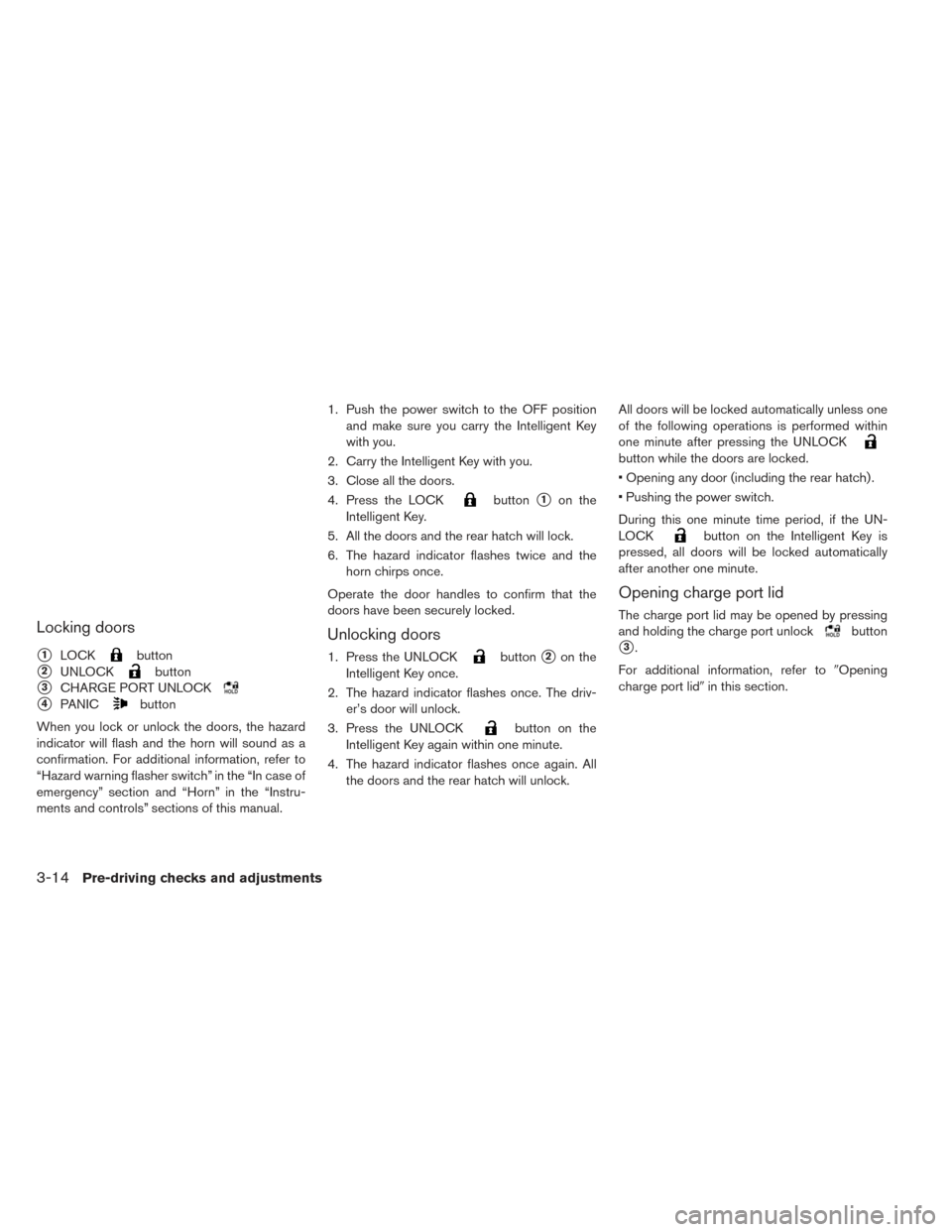

Locking doors
1LOCKbutton
2UNLOCKbutton
3CHARGE PORT UNLOCK
4PANICbutton
When you lock or unlock the doors, the hazard
indicator will flash and the horn will sound as a
confirmation. For additional information, refer to
“Hazard warning flasher switch” in the “In case of
emergency” section and “Horn” in the “Instru-
ments and controls” sections of this manual. 1. Push the power switch to the OFF position
and make sure you carry the Intelligent Key
with you.
2. Carry the Intelligent Key with you.
3. Close all the doors.
4. Press the LOCK
button1on the
Intelligent Key.
5. All the doors and the rear hatch will lock.
6. The hazard indicator flashes twice and the horn chirps once.
Operate the door handles to confirm that the
doors have been securely locked.
Unlocking doors
1. Press the UNLOCKbutton2on the
Intelligent Key once.
2. The hazard indicator flashes once. The driv- er’s door will unlock.
3. Press the UNLOCK
button on the
Intelligent Key again within one minute.
4. The hazard indicator flashes once again. All the doors and the rear hatch will unlock. All doors will be locked automatically unless one
of the following operations is performed within
one minute after pressing the UNLOCK
button while the doors are locked.
• Opening any door (including the rear hatch) .
• Pushing the power switch.
During this one minute time period, if the UN-
LOCK
button on the Intelligent Key is
pressed, all doors will be locked automatically
after another one minute.
Opening charge port lid
The charge port lid may be opened by pressing
and holding the charge port unlock
button
3.
For additional information, refer to Opening
charge port lid in this section.
3-14Pre-driving checks and adjustments

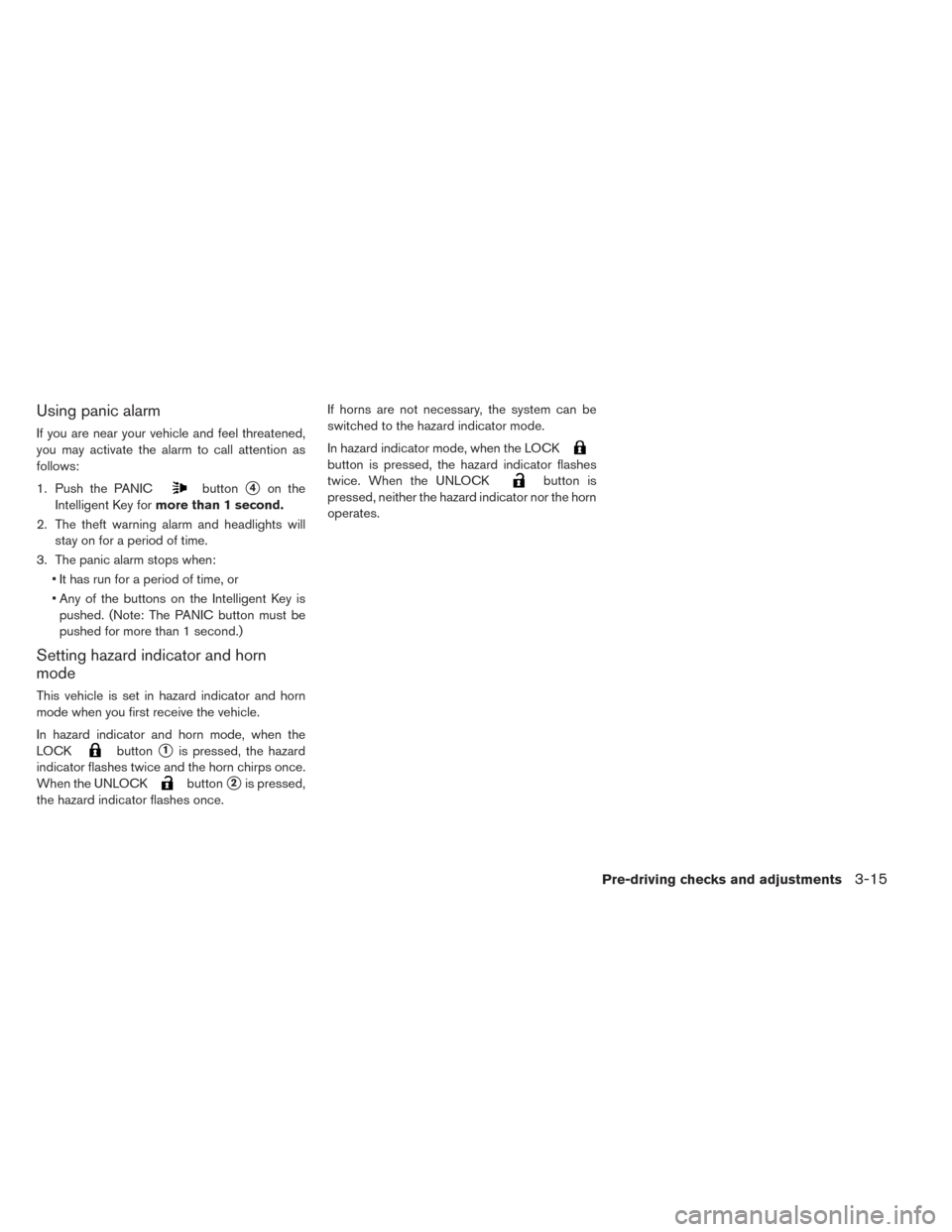

Using panic alarm
If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button4on the
Intelligent Key for more than 1 second.
2. The theft warning alarm and headlights will stay on for a period of time.
3. The panic alarm stops when: • It has run for a period of time, or
• Any of the buttons on the Intelligent Key ispushed. (Note: The PANIC button must be
pushed for more than 1 second.)
Setting hazard indicator and horn
mode
This vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button1is pressed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button2is pressed,
the hazard indicator flashes once. If horns are not necessary, the system can be
switched to the hazard indicator mode.
In hazard indicator mode, when the LOCK
button is pressed, the hazard indicator flashes
twice. When the UNLOCK
button is
pressed, neither the hazard indicator nor the horn
operates.
Pre-driving checks and adjustments3-15

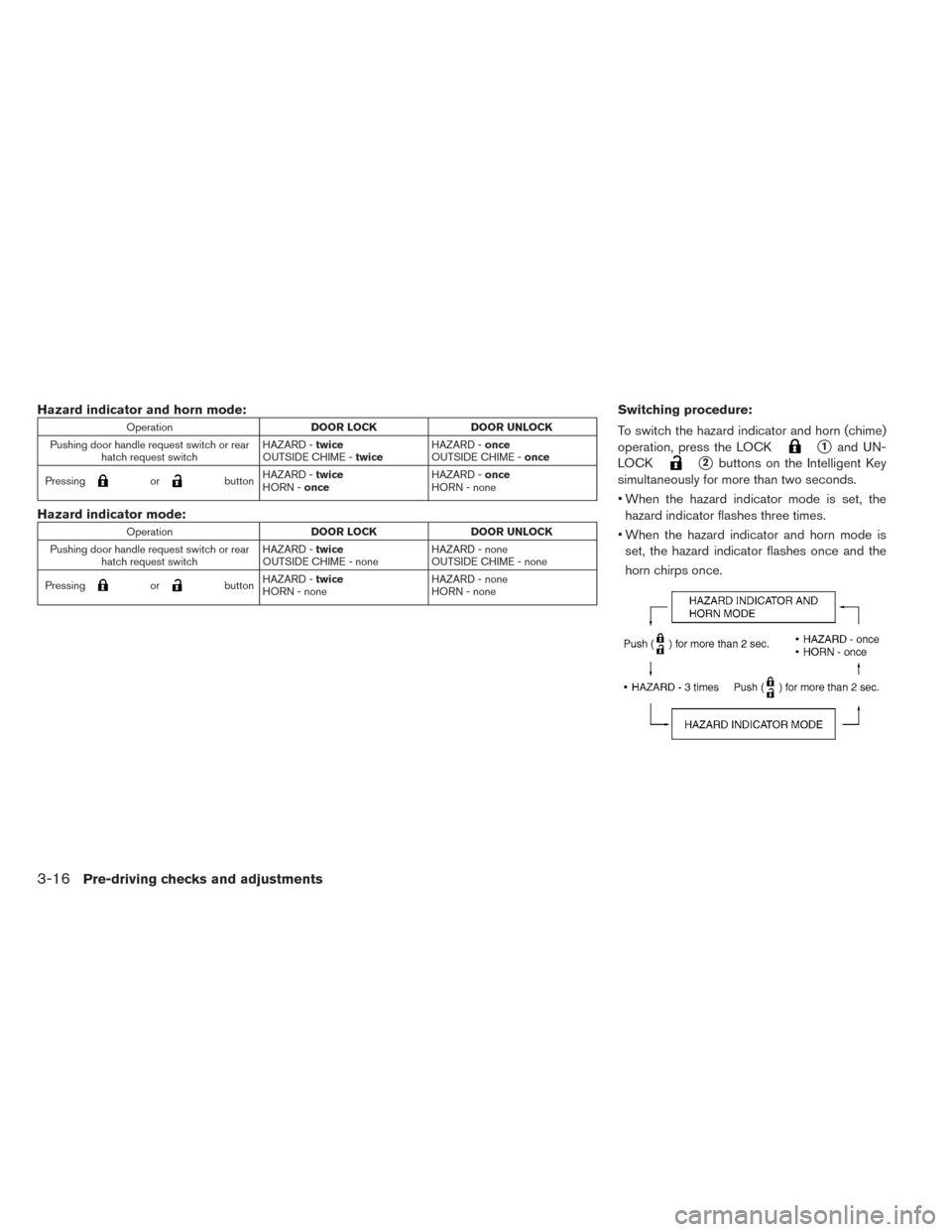

Hazard indicator and horn mode:
OperationDOOR LOCK DOOR UNLOCK
Pushing door handle request switch or rear hatch request switch HAZARD -
twice
OUTSIDE CHIME - twiceHAZARD -
once
OUTSIDE CHIME - once
Pressing
orbutton HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode:
Operation DOOR LOCK DOOR UNLOCK
Pushing door handle request switch or rear hatch request switch HAZARD -
twice
OUTSIDE CHIME - none HAZARD - none
OUTSIDE CHIME - none
Pressing
orbutton HAZARD -
twice
HORN - none HAZARD - none
HORN - none
Switching procedure:
To switch the hazard indicator and horn (chime)
operation, press the LOCK
1and UN-
LOCK
2buttons on the Intelligent Key
simultaneously for more than two seconds.
• When the hazard indicator mode is set, the hazard indicator flashes three times.
• When the hazard indicator and horn mode is set, the hazard indicator flashes once and the
horn chirps once.
3-16Pre-driving checks and adjustments

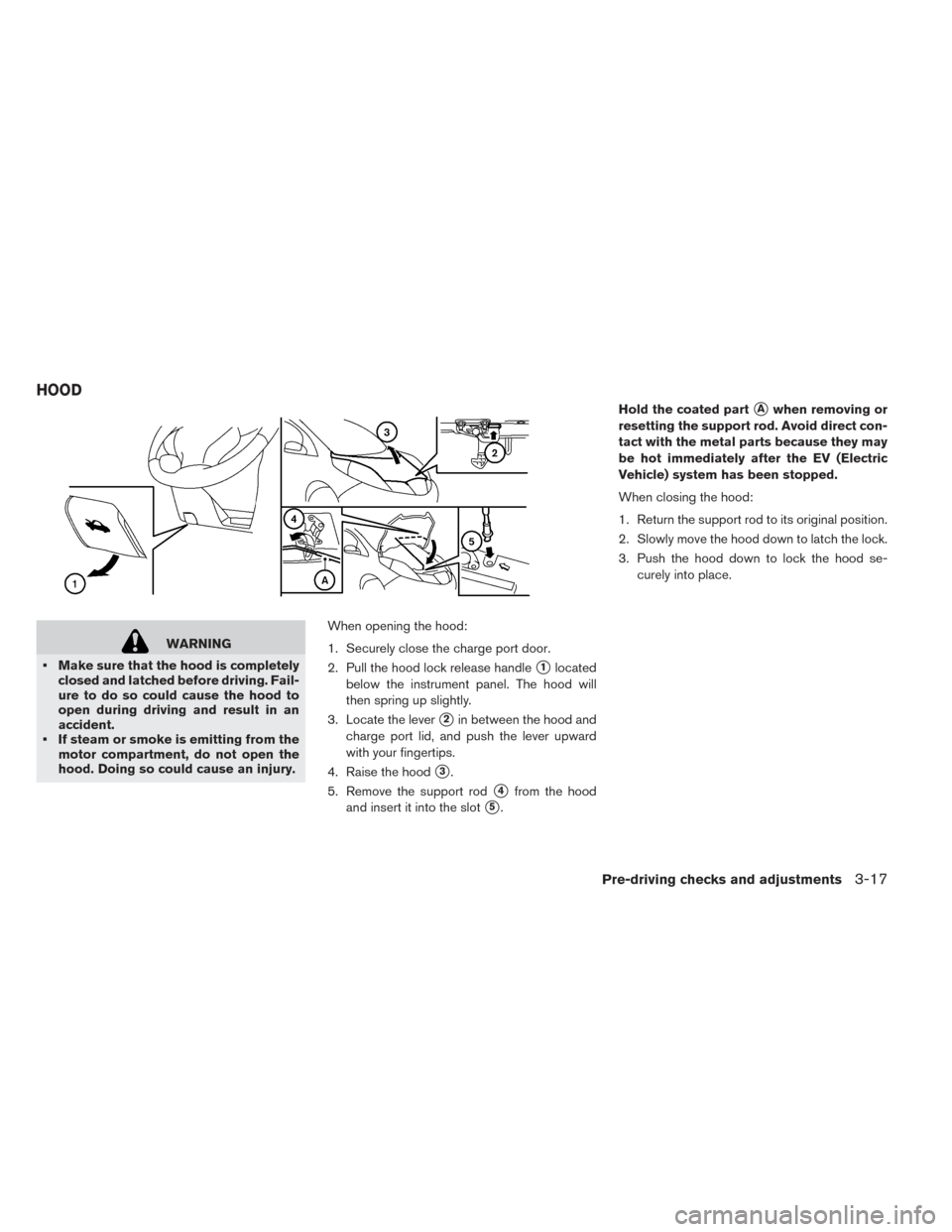

WARNING
• Make sure that the hood is completely closed and latched before driving. Fail-
ure to do so could cause the hood to
open during driving and result in an
accident.
• If steam or smoke is emitting from the motor compartment, do not open the
hood. Doing so could cause an injury. When opening the hood:
1. Securely close the charge port door.
2. Pull the hood lock release handle
1located
below the instrument panel. The hood will
then spring up slightly.
3. Locate the lever
2in between the hood and
charge port lid, and push the lever upward
with your fingertips.
4. Raise the hood
3.
5. Remove the support rod
4from the hood
and insert it into the slot
5. Hold the coated part
Awhen removing or
resetting the support rod. Avoid direct con-
tact with the metal parts because they may
be hot immediately after the EV (Electric
Vehicle) system has been stopped.
When closing the hood:
1. Return the support rod to its original position.
2. Slowly move the hood down to latch the lock.
3. Push the hood down to lock the hood se- curely into place.
HOOD
Pre-driving checks and adjustments3-17

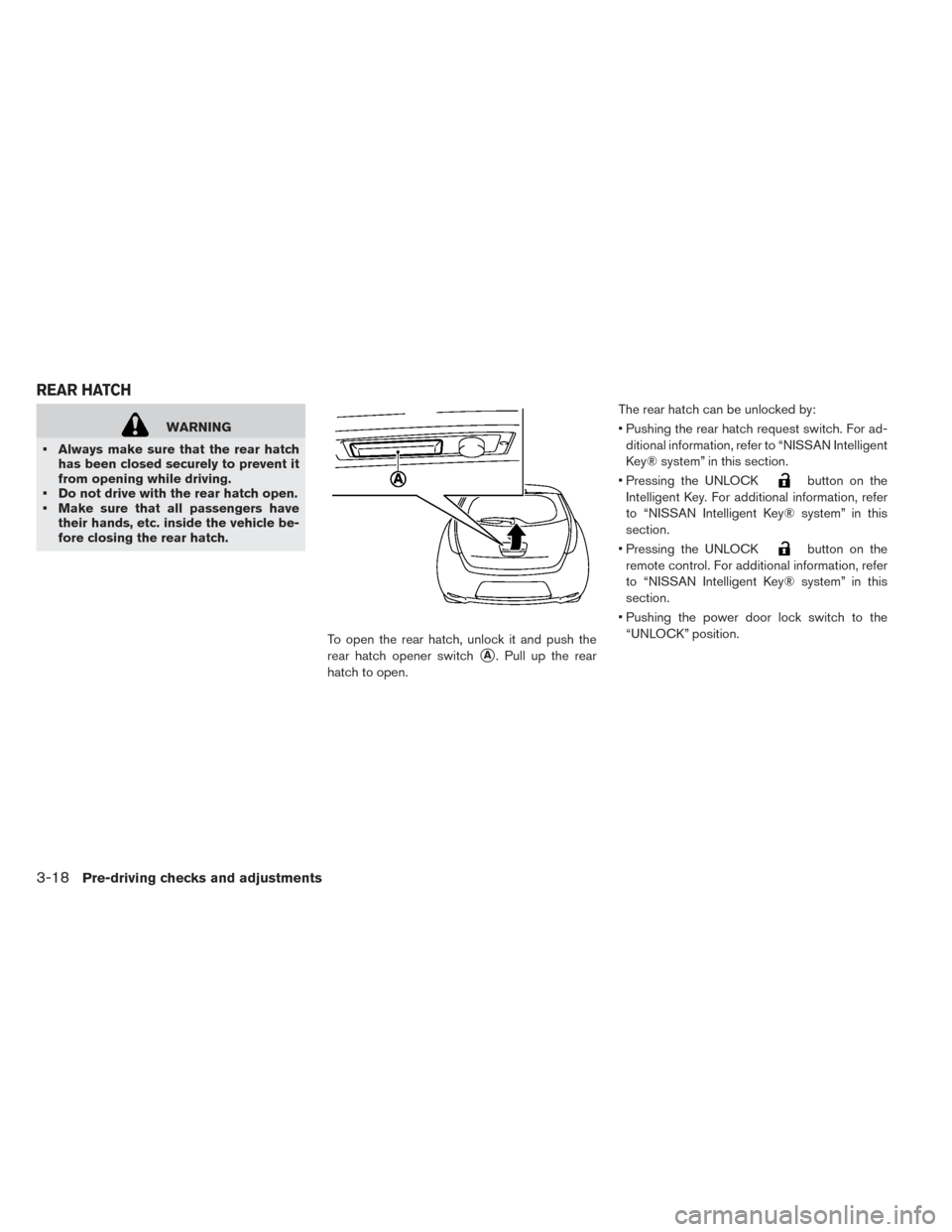

WARNING
• Always make sure that the rear hatch has been closed securely to prevent it
from opening while driving.
• Do not drive with the rear hatch open.
• Make sure that all passengers have their hands, etc. inside the vehicle be-
fore closing the rear hatch.
To open the rear hatch, unlock it and push the
rear hatch opener switch
A. Pull up the rear
hatch to open. The rear hatch can be unlocked by:
• Pushing the rear hatch request switch. For ad-
ditional information, refer to “NISSAN Intelligent
Key® system” in this section.
• Pressing the UNLOCK
button on the
Intelligent Key. For additional information, refer
to “NISSAN Intelligent Key® system” in this
section.
• Pressing the UNLOCK
button on the
remote control. For additional information, refer
to “NISSAN Intelligent Key® system” in this
section.
• Pushing the power door lock switch to the “UNLOCK” position.
REAR HATCH
3-18Pre-driving checks and adjustments

SECONDARY REAR HATCH
RELEASE
The secondary rear hatch release mechanism
allows the rear hatch to be opened in the event of
a discharged battery, etc.
Push the lever to the right to open the rear hatch
with a suitable tool.
If you had to open the rear hatch using this
lever, have the vehicle checked by a
NISSAN certified LEAF dealer as soon as
possible.
OPENING CHARGE PORT LID
CAUTION
Make sure that the charge port lid is
completely closed and latched before
driving. Failure to do so could cause the
lid to open suddenly during driving.
Switch
Button
CHARGE PORT LID
Pre-driving checks and adjustments3-19

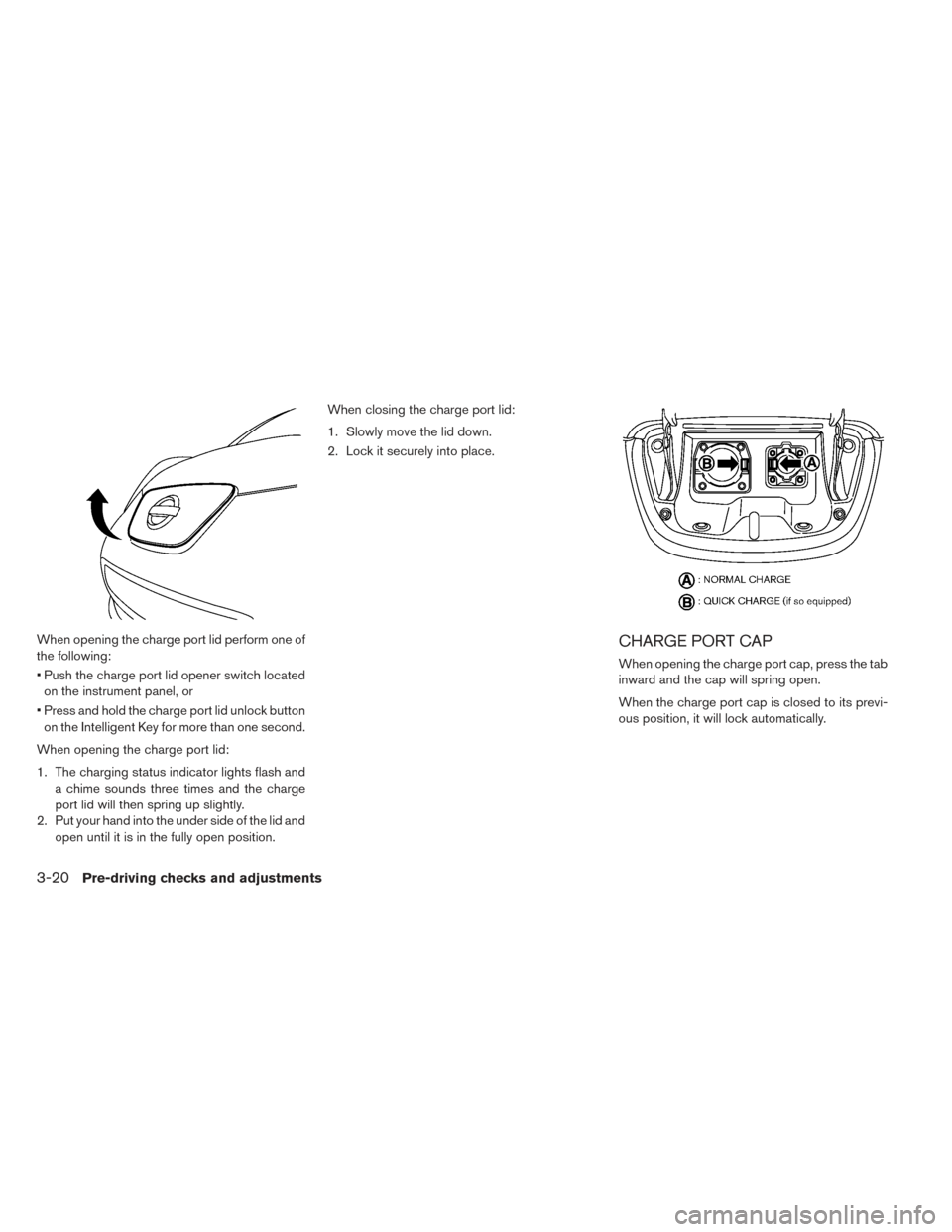

When opening the charge port lid perform one of
the following:
• Push the charge port lid opener switch locatedon the instrument panel, or
• Press and hold the charge port lid unlock button on the Intelligent Key for more than one second.
When opening the charge port lid:
1. The charging status indicator lights flash and a chime sounds three times and the charge
port lid will then spring up slightly.
2. Put your hand into the under side of the lid and open until it is in the fully open position. When closing the charge port lid:
1. Slowly move the lid down.
2. Lock it securely into place.CHARGE PORT CAP
When opening the charge port cap, press the tab
inward and the cap will spring open.
When the charge port cap is closed to its previ-
ous position, it will lock automatically.
3-20Pre-driving checks and adjustments

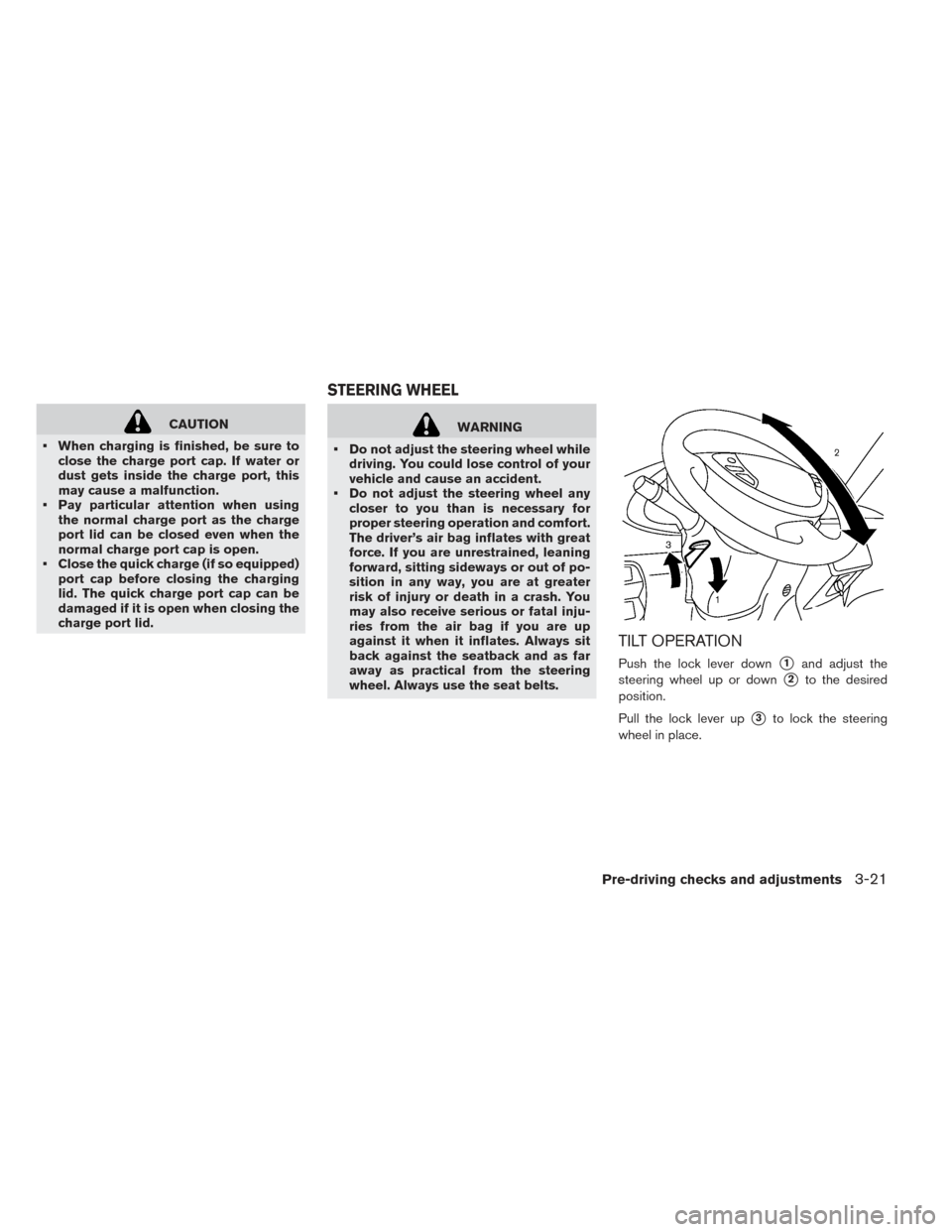

CAUTION
• When charging is finished, be sure to close the charge port cap. If water or
dust gets inside the charge port, this
may cause a malfunction.
• Pay particular attention when using the normal charge port as the charge
port lid can be closed even when the
normal charge port cap is open.
• Close the quick charge (if so equipped) port cap before closing the charging
lid. The quick charge port cap can be
damaged if it is open when closing the
charge port lid.WARNING
• Do not adjust the steering wheel while driving. You could lose control of your
vehicle and cause an accident.
• Do not adjust the steering wheel any closer to you than is necessary for
proper steering operation and comfort.
The driver’s air bag inflates with great
force. If you are unrestrained, leaning
forward, sitting sideways or out of po-
sition in any way, you are at greater
risk of injury or death in a crash. You
may also receive serious or fatal inju-
ries from the air bag if you are up
against it when it inflates. Always sit
back against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.
TILT OPERATION
Push the lock lever down1and adjust the
steering wheel up or down
2to the desired
position.
Pull the lock lever up
3to lock the steering
wheel in place.
STEERING WHEEL
Pre-driving checks and adjustments3-21
