2016 FIAT 500L Owners Manual

3. Briefly push and release theMENUbutton and
“month” will flash on the display.
4. Push and release the UP
or DOWNbutton for
setting.
5. Briefly push and release the MENUbutton and “day”
will flash on the display.
6. Push and release the UP
or DOWNbutton for
setting.
NOTE: The setting will increase or decrease by one unit
each time the UP
or DOWNbutton is pushed.
Push and hold the UP
or DOWNbutton to
increase/decrease the setting rapidly. Save the setting
by briefly pushing the button when you approach the
required setting.
• Briefly push and release the MENUbutton to go back
to the menu screen, or push and hold the MENUbutton (approximately one second) to go back to the
main screen without storing the settings.
First Page (Display Of Information On The Main
Screen)
This function allows you to choose the information you
would like to see on the main screen. You can view the
date or the trip distance.
To make your choice, proceed as follows:
•
Briefly push the MENUbutton.Initial page will be
displayed.
• Briefly push the MENUbutton again to display the
date andengine info options.
• Push the UPorDOWN buttons to select the informa-
tion you wish to see on the main page of the display.4
UNDERSTANDING YOUR INSTRUMENT PANEL 199

•Briefly push the MENUbutton to go back to the menu
screen or hold the button down to go back to the
standard screen without saving.
When the key is turned to MAR/ON and the initial check
stage is over, the display will show the information
selected via the First Pagemenu function.
Audio Repetition (Repeat Audio Information)
With this function active, the EVIC display shows infor-
mation relevant to the sound system.
•Radio: tuned radio station frequency, automatic tuning
activation or AutoStore.
• CD audio, CD MP3: track number. To activate (On) or to deactivate (Off) the sound system
info displaying, proceed as follows:
1. Briefly push and release the
MENUbutton. Push and
release the UP
or Downbutton to highlight
See Radio and push and release the MENUbutton.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release the MENUbutton to go back
to the menu screen, or push and hold the MENU
button (approximately one second) to go back to the
main screen without storing the settings.
If the radio has Uconnect, refer to the appropriate
“Uconnect Radio Supplement” for further information.
200 UNDERSTANDING YOUR INSTRUMENT PANEL

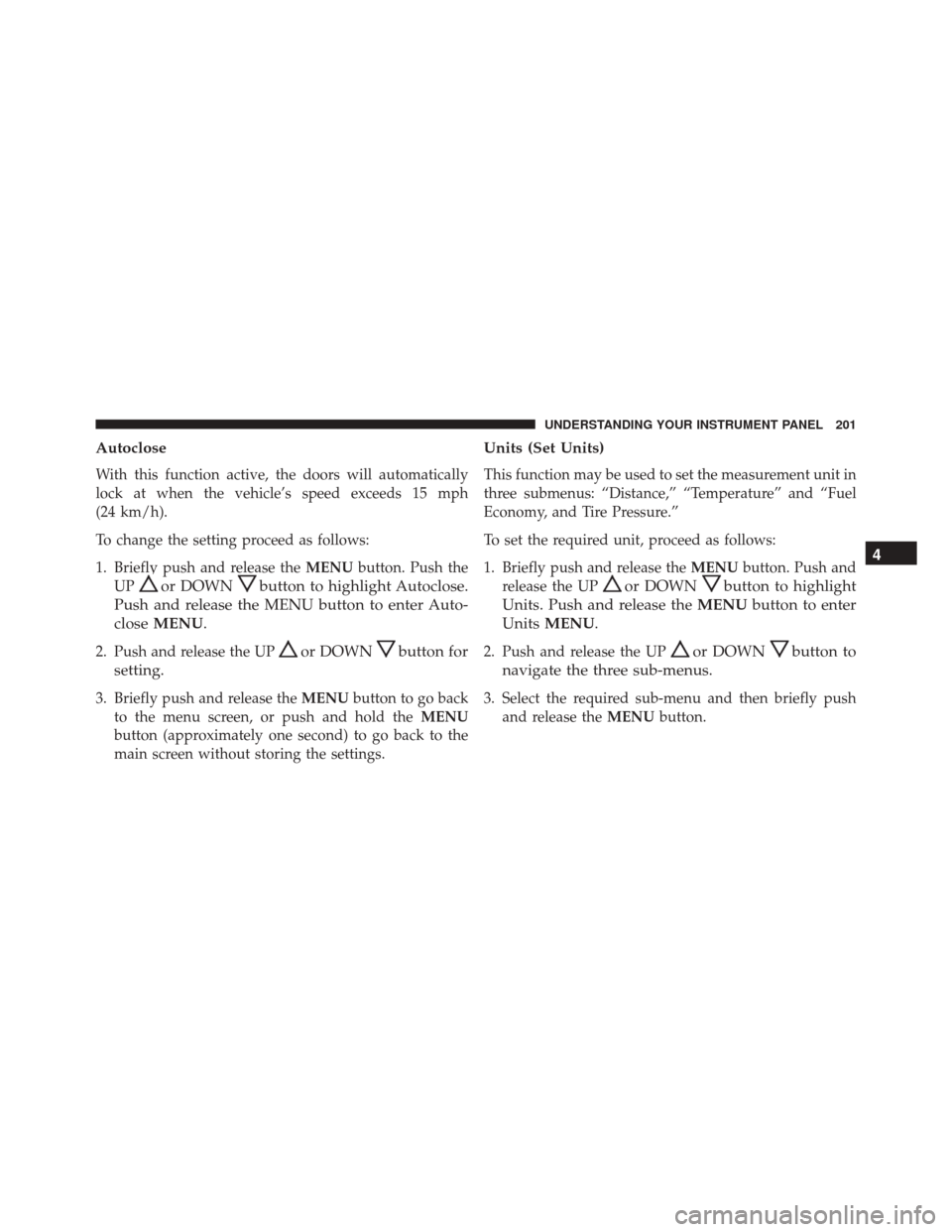

Autoclose
With this function active, the doors will automatically
lock at when the vehicle’s speed exceeds 15 mph
(24 km/h).
To change the setting proceed as follows:
1. Briefly push and release theMENUbutton. Push the
UP
or DOWNbutton to highlight Autoclose.
Push and release the MENU button to enter Auto-
close MENU.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release the MENUbutton to go back
to the menu screen, or push and hold the MENU
button (approximately one second) to go back to the
main screen without storing the settings.
Units (Set Units)
This function may be used to set the measurement unit in
three submenus: “Distance,” “Temperature” and “Fuel
Economy, and Tire Pressure.”
To set the required unit, proceed as follows:
1. Briefly push and release the MENUbutton. Push and
release the UP
or DOWNbutton to highlight
Units. Push and release the MENUbutton to enter
Units MENU.
2. Push and release the UPor DOWNbutton to
navigate the three sub-menus.
3. Select the required sub-menu and then briefly push and release the MENUbutton.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 201

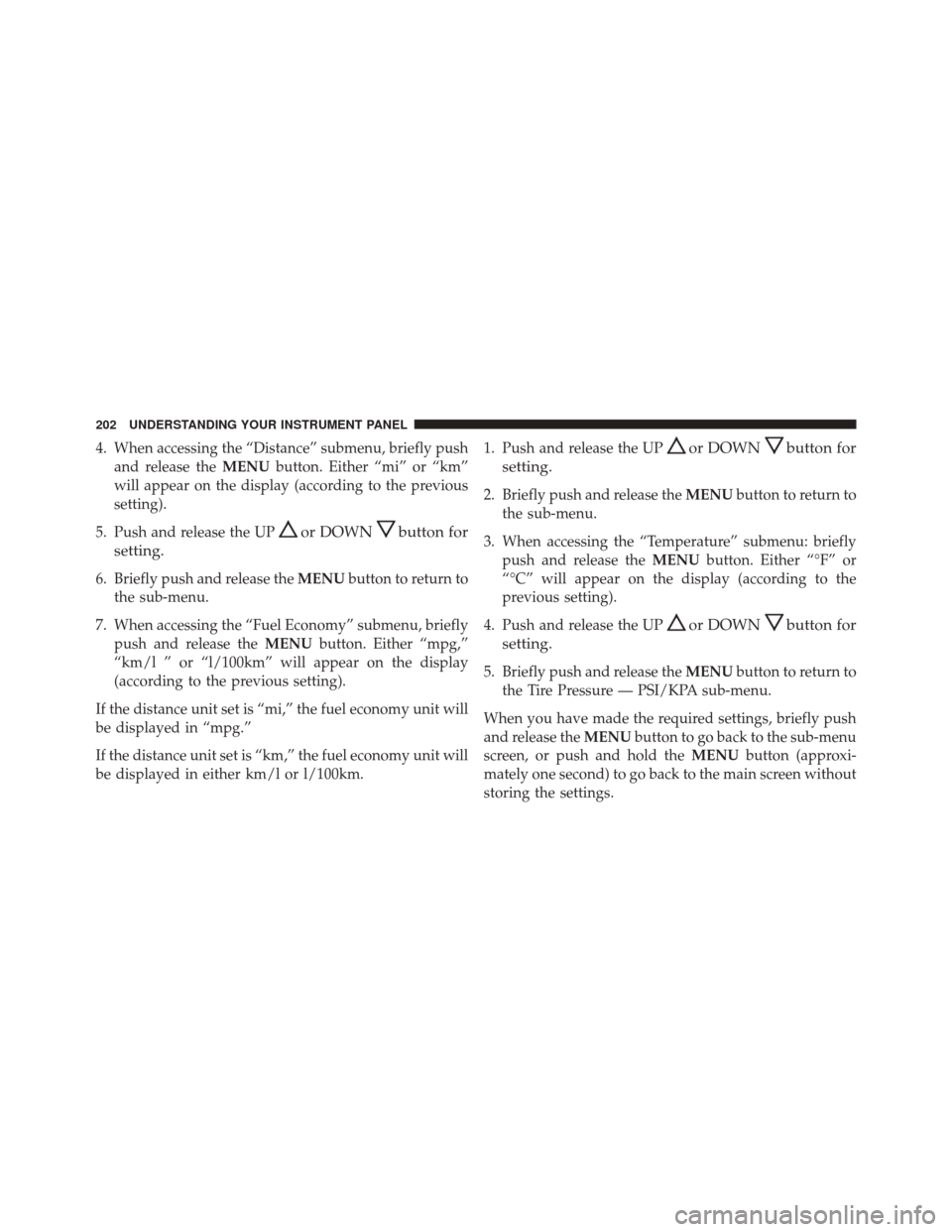

4. When accessing the “Distance” submenu, briefly pushand release the MENUbutton. Either “mi” or “km”
will appear on the display (according to the previous
setting).
5. Push and release the UP
or DOWNbutton for
setting.
6. Briefly push and release the MENUbutton to return to
the sub-menu.
7. When accessing the “Fuel Economy” submenu, briefly push and release the MENUbutton. Either “mpg,”
“km/l ” or “l/100km” will appear on the display
(according to the previous setting).
If the distance unit set is “mi,” the fuel economy unit will
be displayed in “mpg.”
If the distance unit set is “km,” the fuel economy unit will
be displayed in either km/l or l/100km. 1. Push and release the UP
or DOWNbutton for
setting.
2. Briefly push and release the MENUbutton to return to
the sub-menu.
3. When accessing the “Temperature” submenu: briefly push and release the MENUbutton. Either “°F” or
“°C” will appear on the display (according to the
previous setting).
4. Push and release the UP
or DOWNbutton for
setting.
5. Briefly push and release the MENUbutton to return to
the Tire Pressure — PSI/KPA sub-menu.
When you have made the required settings, briefly push
and release the MENUbutton to go back to the sub-menu
screen, or push and hold the MENUbutton (approxi-
mately one second) to go back to the main screen without
storing the settings.
202 UNDERSTANDING YOUR INSTRUMENT PANEL

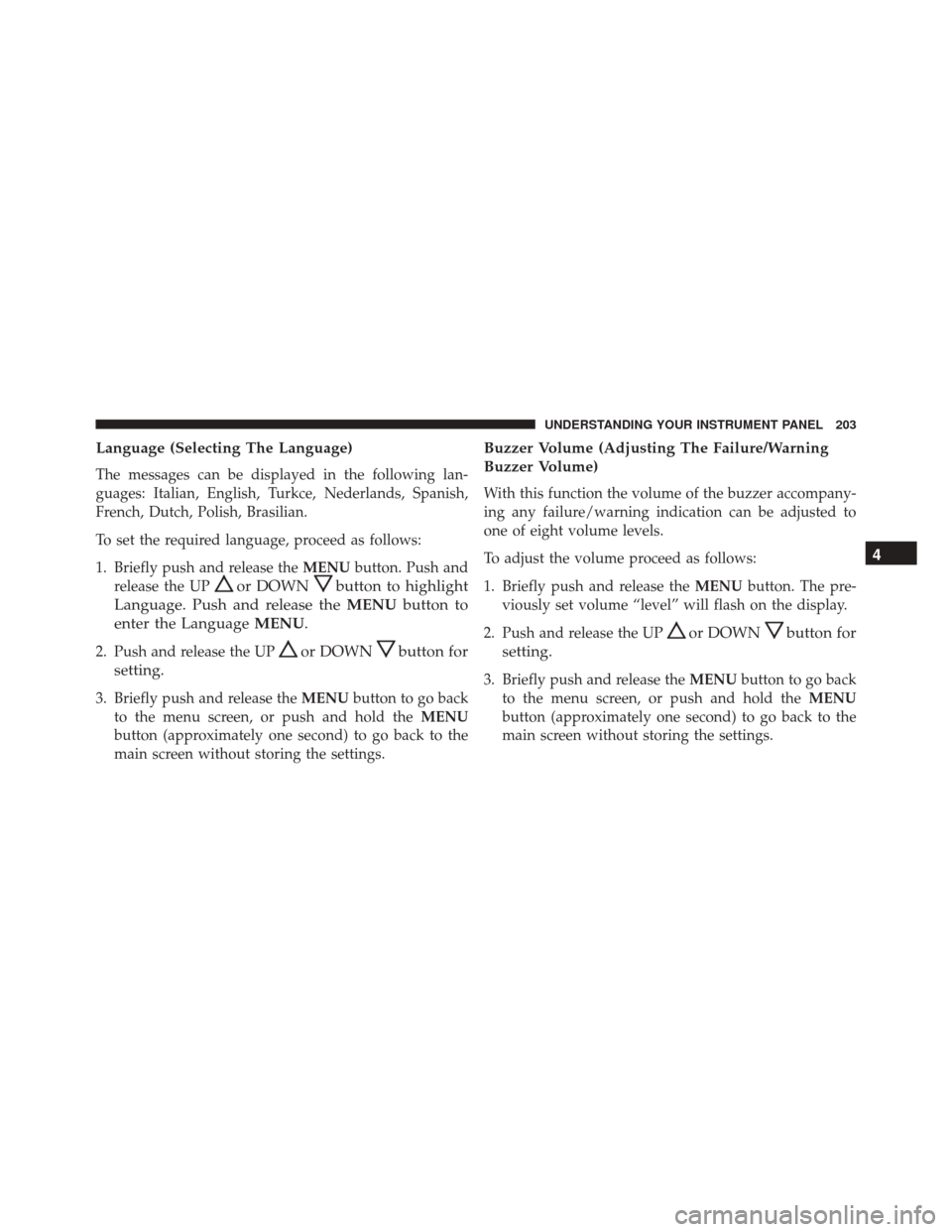

Language (Selecting The Language)
The messages can be displayed in the following lan-
guages: Italian, English, Turkce, Nederlands, Spanish,
French, Dutch, Polish, Brasilian.
To set the required language, proceed as follows:
1. Briefly push and release theMENUbutton. Push and
release the UP
or DOWNbutton to highlight
Language. Push and release the MENUbutton to
enter the Language MENU.
2. Push and release the UPor DOWNbutton for
setting.
3. Briefly push and release the MENUbutton to go back
to the menu screen, or push and hold the MENU
button (approximately one second) to go back to the
main screen without storing the settings.
Buzzer Volume (Adjusting The Failure/Warning
Buzzer Volume)
With this function the volume of the buzzer accompany-
ing any failure/warning indication can be adjusted to
one of eight volume levels.
To adjust the volume proceed as follows:
1. Briefly push and release the MENUbutton. The pre-
viously set volume “level” will flash on the display.
2. Push and release the UP
or DOWNbutton for
setting.
3. Briefly push and release the MENUbutton to go back
to the menu screen, or push and hold the MENU
button (approximately one second) to go back to the
main screen without storing the settings.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 203

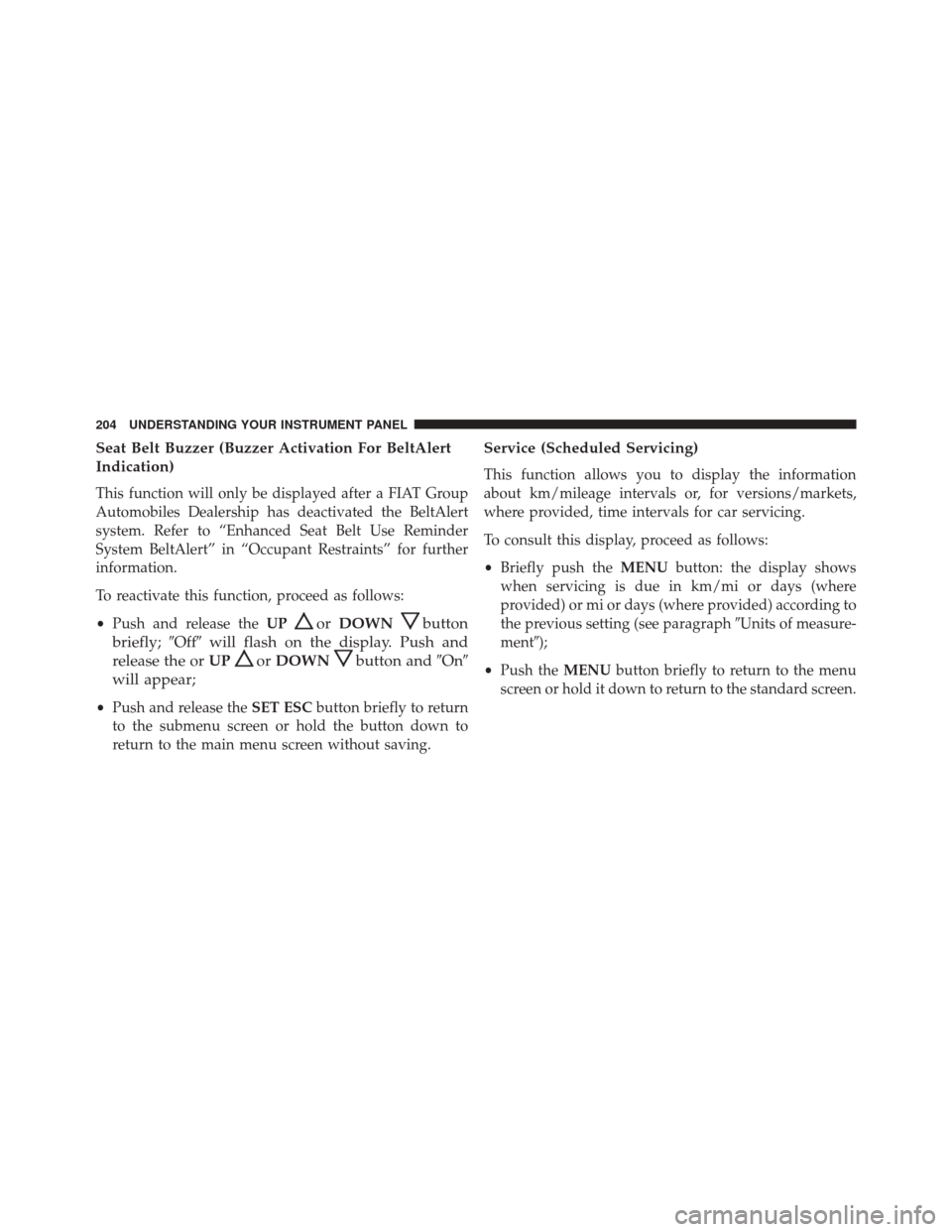

Seat Belt Buzzer (Buzzer Activation For BeltAlert
Indication)
This function will only be displayed after a FIAT Group
Automobiles Dealership has deactivated the BeltAlert
system. Refer to “Enhanced Seat Belt Use Reminder
System BeltAlert” in “Occupant Restraints” for further
information.
To reactivate this function, proceed as follows:
•Push and release the UP
orDOWNbutton
briefly; Offwill flash on the display. Push and
release the or UP
orDOWNbutton and On
will appear;
• Push and release the SET ESCbutton briefly to return
to the submenu screen or hold the button down to
return to the main menu screen without saving.
Service (Scheduled Servicing)
This function allows you to display the information
about km/mileage intervals or, for versions/markets,
where provided, time intervals for car servicing.
To consult this display, proceed as follows:
• Briefly push the MENUbutton: the display shows
when servicing is due in km/mi or days (where
provided) or mi or days (where provided) according to
the previous setting (see paragraph Units of measure-
ment);
• Push the MENUbutton briefly to return to the menu
screen or hold it down to return to the standard screen.
204 UNDERSTANDING YOUR INSTRUMENT PANEL

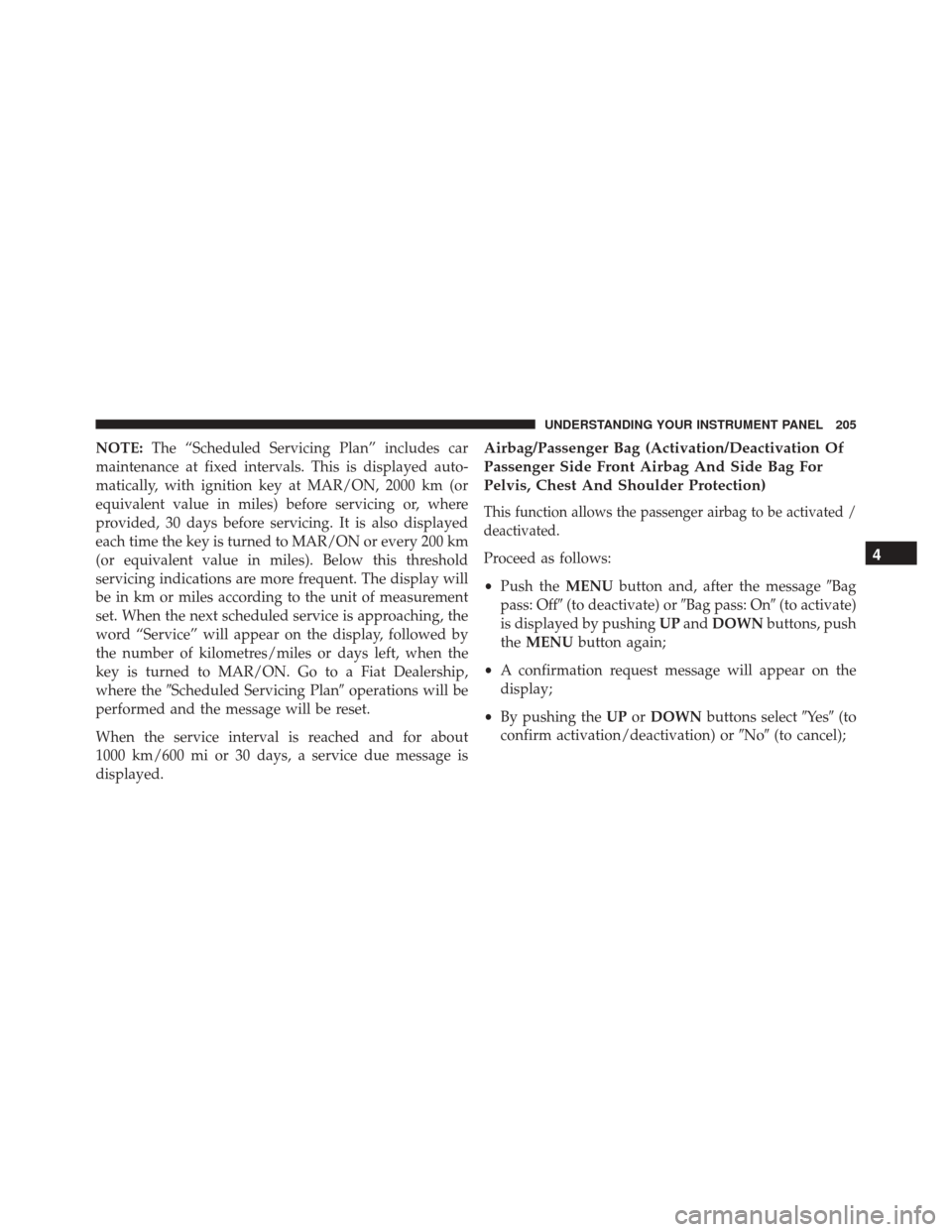

NOTE:The “Scheduled Servicing Plan” includes car
maintenance at fixed intervals. This is displayed auto-
matically, with ignition key at MAR/ON, 2000 km (or
equivalent value in miles) before servicing or, where
provided, 30 days before servicing. It is also displayed
each time the key is turned to MAR/ON or every 200 km
(or equivalent value in miles). Below this threshold
servicing indications are more frequent. The display will
be in km or miles according to the unit of measurement
set. When the next scheduled service is approaching, the
word “Service” will appear on the display, followed by
the number of kilometres/miles or days left, when the
key is turned to MAR/ON. Go to a Fiat Dealership,
where the Scheduled Servicing Plan operations will be
performed and the message will be reset.
When the service interval is reached and for about
1000 km/600 mi or 30 days, a service due message is
displayed.Airbag/Passenger Bag (Activation/Deactivation Of
Passenger Side Front Airbag And Side Bag For
Pelvis, Chest And Shoulder Protection)
This function allows the passenger airbag to be activated /
deactivated.
Proceed as follows:
• Push the MENUbutton and, after the message Bag
pass: Off (to deactivate) or Bag pass: On(to activate)
is displayed by pushing UPand DOWN buttons, push
the MENU button again;
• A confirmation request message will appear on the
display;
• By pushing the UPorDOWN buttons select Ye s(to
confirm activation/deactivation) or No(to cancel);4
UNDERSTANDING YOUR INSTRUMENT PANEL 205

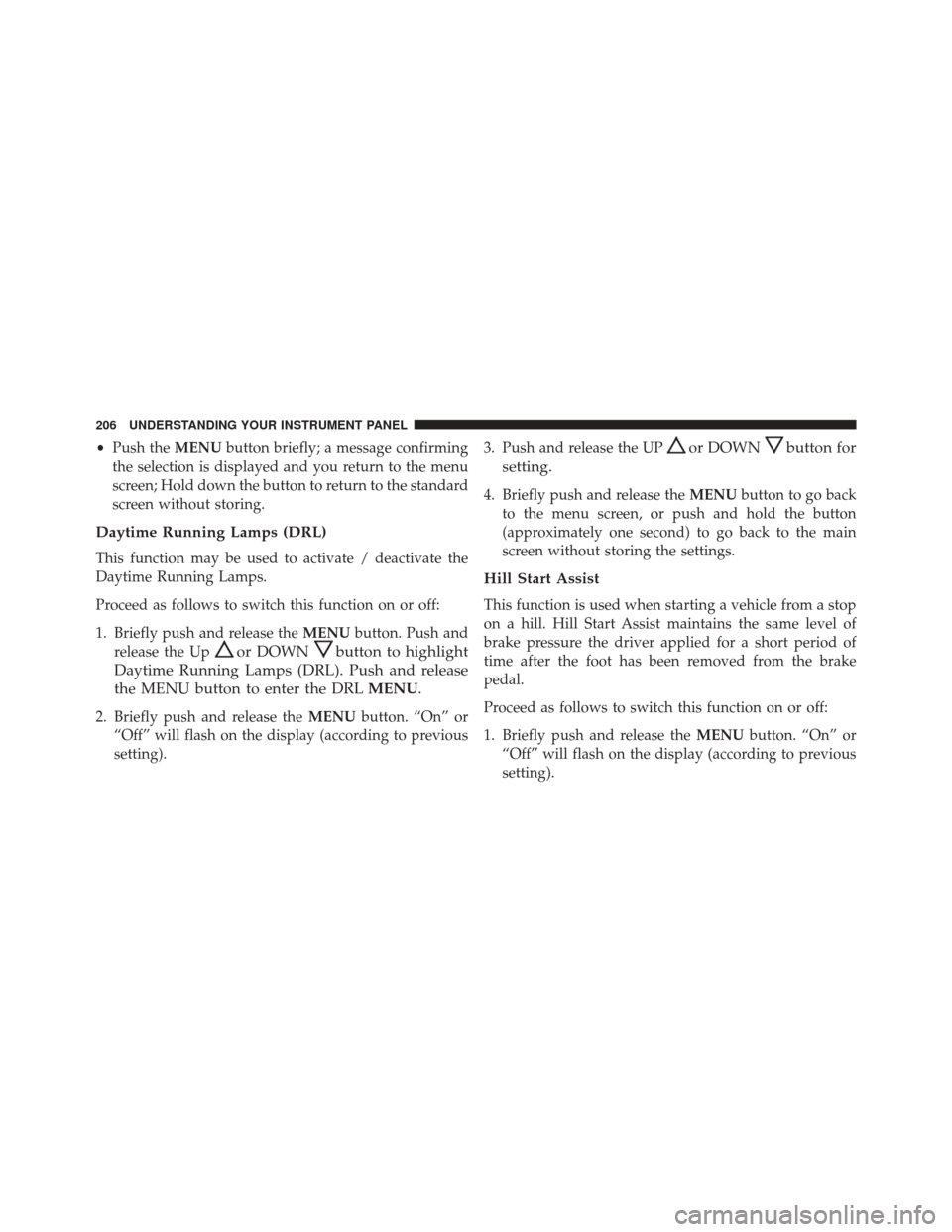

•Push the MENUbutton briefly; a message confirming
the selection is displayed and you return to the menu
screen; Hold down the button to return to the standard
screen without storing.
Daytime Running Lamps (DRL)
This function may be used to activate / deactivate the
Daytime Running Lamps.
Proceed as follows to switch this function on or off:
1. Briefly push and release the MENUbutton. Push and
release the Up
or DOWNbutton to highlight
Daytime Running Lamps (DRL). Push and release
the MENU button to enter the DRL MENU.
2. Briefly push and release theMENUbutton. “On” or
“Off” will flash on the display (according to previous
setting). 3. Push and release the UP
or DOWNbutton for
setting.
4. Briefly push and release the MENUbutton to go back
to the menu screen, or push and hold the button
(approximately one second) to go back to the main
screen without storing the settings.
Hill Start Assist
This function is used when starting a vehicle from a stop
on a hill. Hill Start Assist maintains the same level of
brake pressure the driver applied for a short period of
time after the foot has been removed from the brake
pedal.
Proceed as follows to switch this function on or off:
1. Briefly push and release the MENUbutton. “On” or
“Off” will flash on the display (according to previous
setting).
206 UNDERSTANDING YOUR INSTRUMENT PANEL
