2016 FIAT 500L Owners Manual

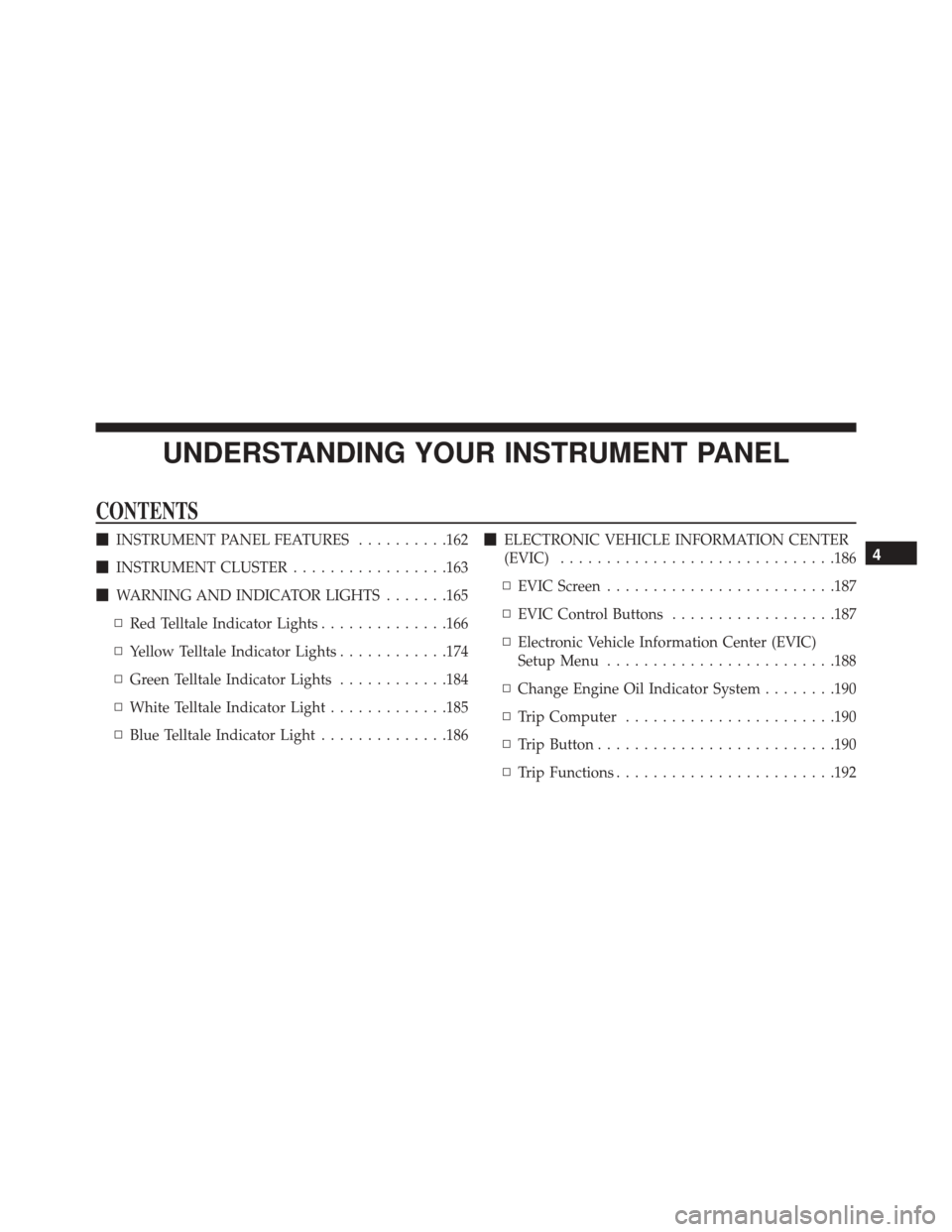

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
INSTRUMENT PANEL FEATURES ..........162
 INSTRUMENT CLUSTER .................163
 WARNING AND INDICATOR LIGHTS .......165
▫ Red Telltale Indicator Lights ..............166
▫ Yellow Telltale Indicator Lights ............174
▫ Green Telltale Indicator Lights ............184
▫ White Telltale Indicator Light .............185
▫ Blue Telltale Indicator Light ..............186
ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC) ............................. .186
▫ EVIC Screen ........................ .187
▫ EVIC Control Buttons ..................187
▫ Electronic Vehicle Information Center (EVIC)
Setup Menu ........................ .188
▫ Change Engine Oil Indicator System ........190
▫ Trip Computer ...................... .190
▫ Trip Button ......................... .190

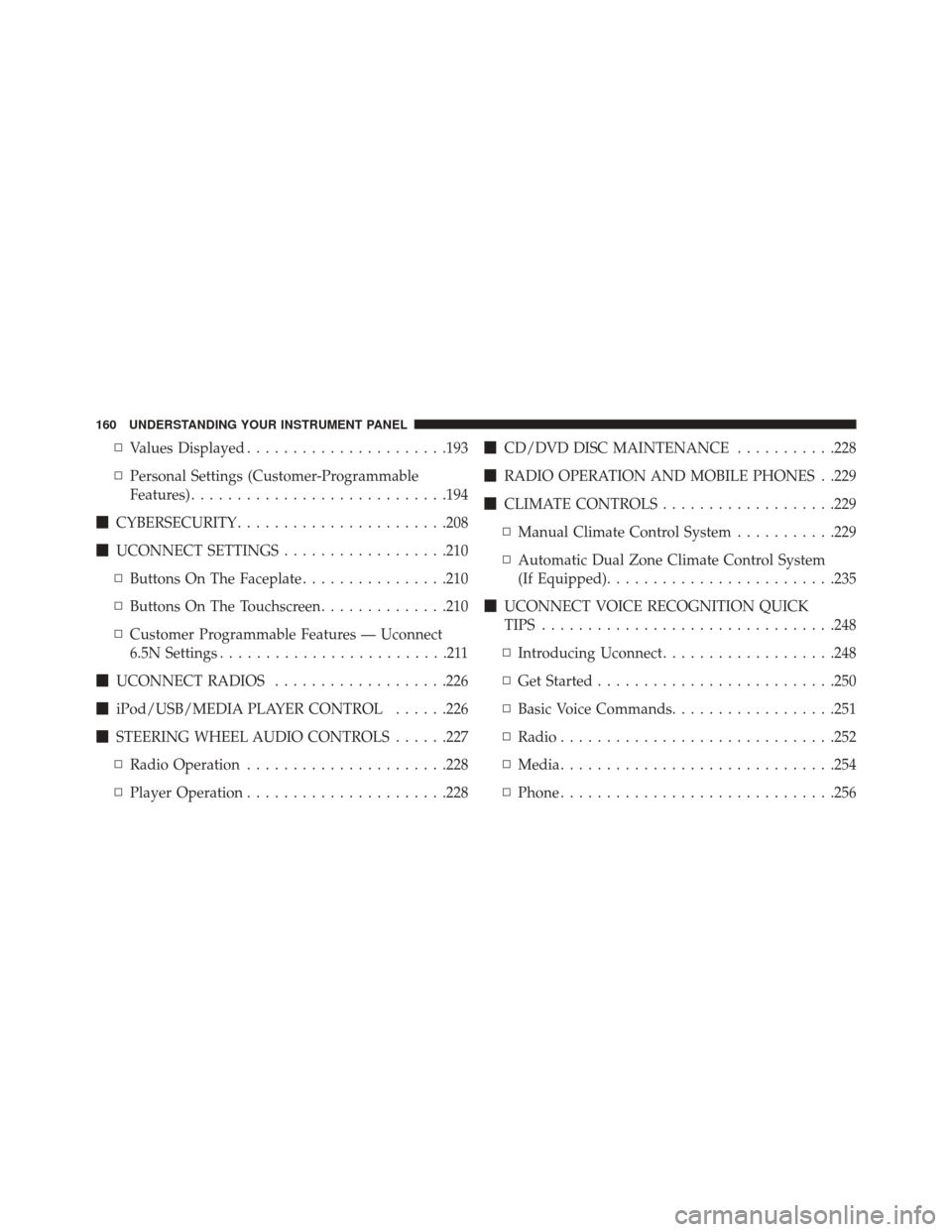

▫ Trip Functions ....................... .1924

▫Values Displayed ..................... .193
▫ Personal Settings (Customer-Programmable
Features) ........................... .194
 CYBERSECURITY ...................... .208
 UCONNECT SETTINGS ..................210
▫ Buttons On The Faceplate ................210
▫ Buttons On The Touchscreen ..............210
▫ Customer Programmable Features — Uconnect
6.5N Settings .........................211
 UCONNECT RADIOS ...................226
 iPod/USB/MEDIA PLAYER CONTROL ......226
 STEERING WHEEL AUDIO CONTROLS ......227
▫ Radio Operation ..................... .228
▫ Player Operation ..................... .228
CD/DVD DISC MAINTENANCE ...........228
 RADIO OPERATION AND MOBILE PHONES . .229
 CLIMATE CONTROLS ...................229
▫ Manual Climate Control System ...........229
▫ Automatic Dual Zone Climate Control System
(If Equipped) ........................ .235
 UCONNECT VOICE RECOGNITION QUICK
TIPS ............................... .248
▫ Introducing Uconnect ...................248
▫ Get Started ......................... .250
▫ Basic Voice Commands ..................251
▫ Radio ............................. .252
▫ Media ............................. .254
▫ Phone ............................. .256
160 UNDERSTANDING YOUR INSTRUMENT PANEL

▫Navigation (6.5A/6.5AN) ................257
▫ Voice Text Reply ..................... .258▫
General Information ...................259
▫ Additional Information .................260
4
UNDERSTANDING YOUR INSTRUMENT PANEL 161

INSTRUMENT PANEL FEATURES
1 — Side Vent7 — Fixed Upper Air Vent13 — Climate Controls
2 — Steering Wheel Audio Control — Lo-
cated On Back Side Of Steering Wheel 8 — Passenger Advanced Front Air Bag 14 — USB Port/SD Card/AUX Socket
3 — Multifunction Lever – Light Control 9 — Upper Glove Compartment 15 — Uconnect Audio System
4—
Instrument Cluster And Warning Lights10 — Storage Compartment 16 — Ignition Switch
5—Windshield Wiper, Washer, Trip Computer11 — Lower Glove Compartment 17 —Driver Advanced Front Air Bag / Horn6 — Central Air Vents 12 — Upper Switch Bank18 — Electronic Speed Control Located On
Steering Wheel
162 UNDERSTANDING YOUR INSTRUMENT PANEL

INSTRUMENT CLUSTER
EVIC Instrument Cluster
4
UNDERSTANDING YOUR INSTRUMENT PANEL 163

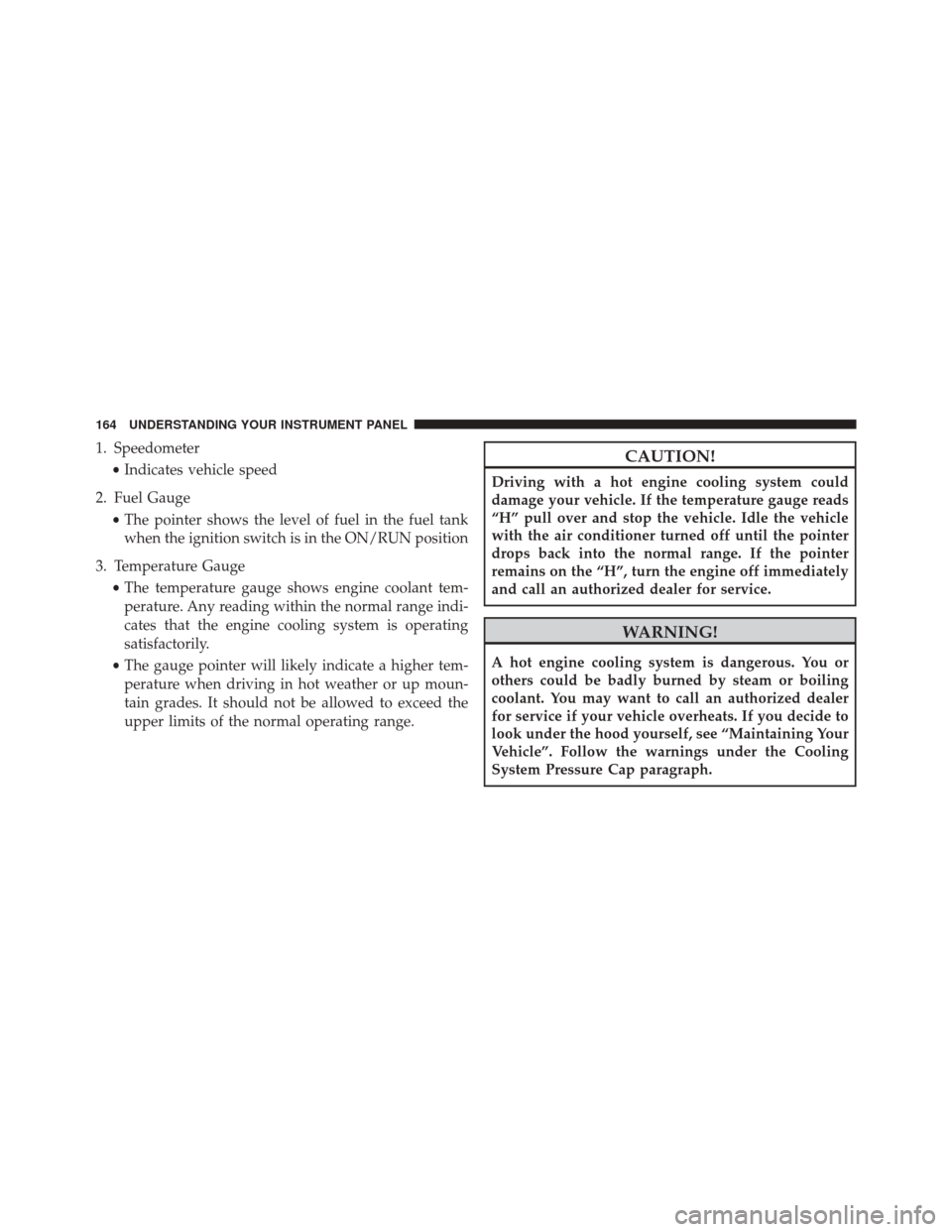

1. Speedometer•Indicates vehicle speed
2. Fuel Gauge •The pointer shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN position
3. Temperature Gauge •The temperature gauge shows engine coolant tem-
perature. Any reading within the normal range indi-
cates that the engine cooling system is operating
satisfactorily.
• The gauge pointer will likely indicate a higher tem-
perature when driving in hot weather or up moun-
tain grades. It should not be allowed to exceed the
upper limits of the normal operating range.CAUTION!
Driving with a hot engine cooling system could
damage your vehicle. If the temperature gauge reads
“H” pull over and stop the vehicle. Idle the vehicle
with the air conditioner turned off until the pointer
drops back into the normal range. If the pointer
remains on the “H”, turn the engine off immediately
and call an authorized dealer for service.
WARNING!
A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call an authorized dealer
for service if your vehicle overheats. If you decide to
look under the hood yourself, see “Maintaining Your
Vehicle”. Follow the warnings under the Cooling
System Pressure Cap paragraph.
164 UNDERSTANDING YOUR INSTRUMENT PANEL

4. Tachometer•Indicates the engine speed in revolutions per minute
(RPM x 1000).
5. Electronic Vehicle Information Center (EVIC) •When the appropriate conditions exist, this display
shows the Electronic Vehicle Information Center
(EVIC) messages. Refer to “Electronic Vehicle Infor-
mation Center” in “Understanding Your Instrument
Panel” for further informationWARNING AND INDICATOR LIGHTS
IMPORTANT: The warning / indicator light switches on
in the instrument panel together with a dedicated mes-
sage and/or acoustic signal when applicable. These
indications are indicative and precautionary and as such
must not be considered as exhaustive and/or alternative
to the information contained in the Owner Manual,
which you are advised to read carefully in all cases.
Always refer to the information in this chapter in the
event of a failure indication.
All active telltales will display first if applicable. The
system check menu may appear different based upon
equipment options and current vehicle status. Some
telltales are optional and may not appear.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 165

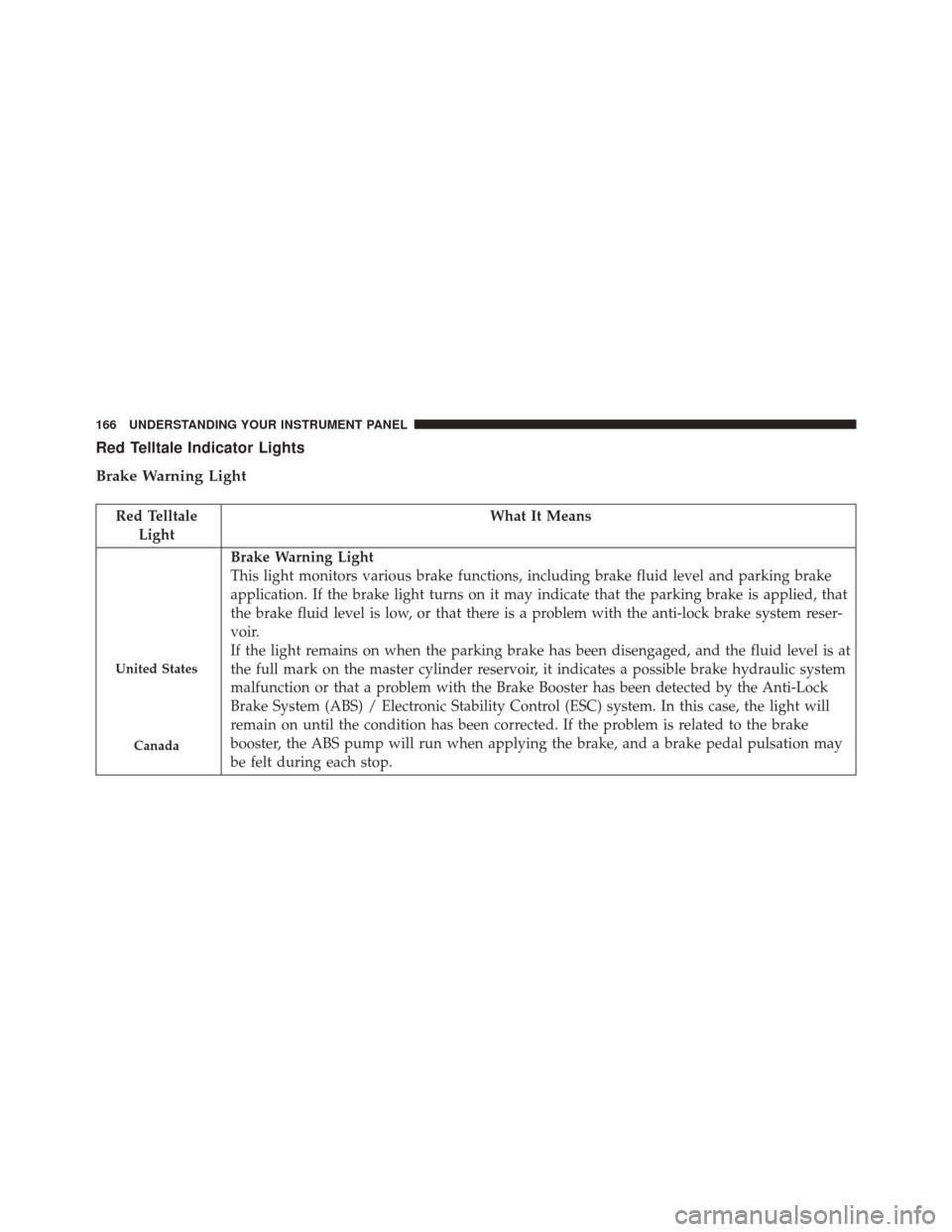

Red Telltale Indicator Lights
Brake Warning Light
Red TelltaleLight What It Means
United States
Canada
Brake Warning Light
This light monitors various brake functions, including brake fluid level and parking brake
application. If the brake light turns on it may indicate that the parking brake is applied, that
the brake fluid level is low, or that there is a problem with the anti-lock brake system reser-
voir.
If the light remains on when the parking brake has been disengaged, and the fluid level is at
the full mark on the master cylinder reservoir, it indicates a possible brake hydraulic system
malfunction or that a problem with the Brake Booster has been detected by the Anti-Lock
Brake System (ABS) / Electronic Stability Control (ESC) system. In this case, the light will
remain on until the condition has been corrected. If the problem is related to the brake
booster, the ABS pump will run when applying the brake, and a brake pedal pulsation may
be felt during each stop.
