Glow Plug Light — If Equipped
Yellow TelltaleLight What It Means
Glow Plug Light — If Equipped
This vehicle will inhibit engine cranking when the ambient temperature is less than –22° F
(–30° C) and the oil temperature sensor reading indicates an engine block heater has not
been used. The Glow Plug light will flash during in cold weather for up to 10 seconds.
If equipped with a block heater harness the message
Plug In Engine Heater, will be dis-
played in the instrument cluster when the ambient temperature is below 5°F (-15° C) at the
time the engine is shut off as a reminder to avoid possible crank delays at the next cold
start.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

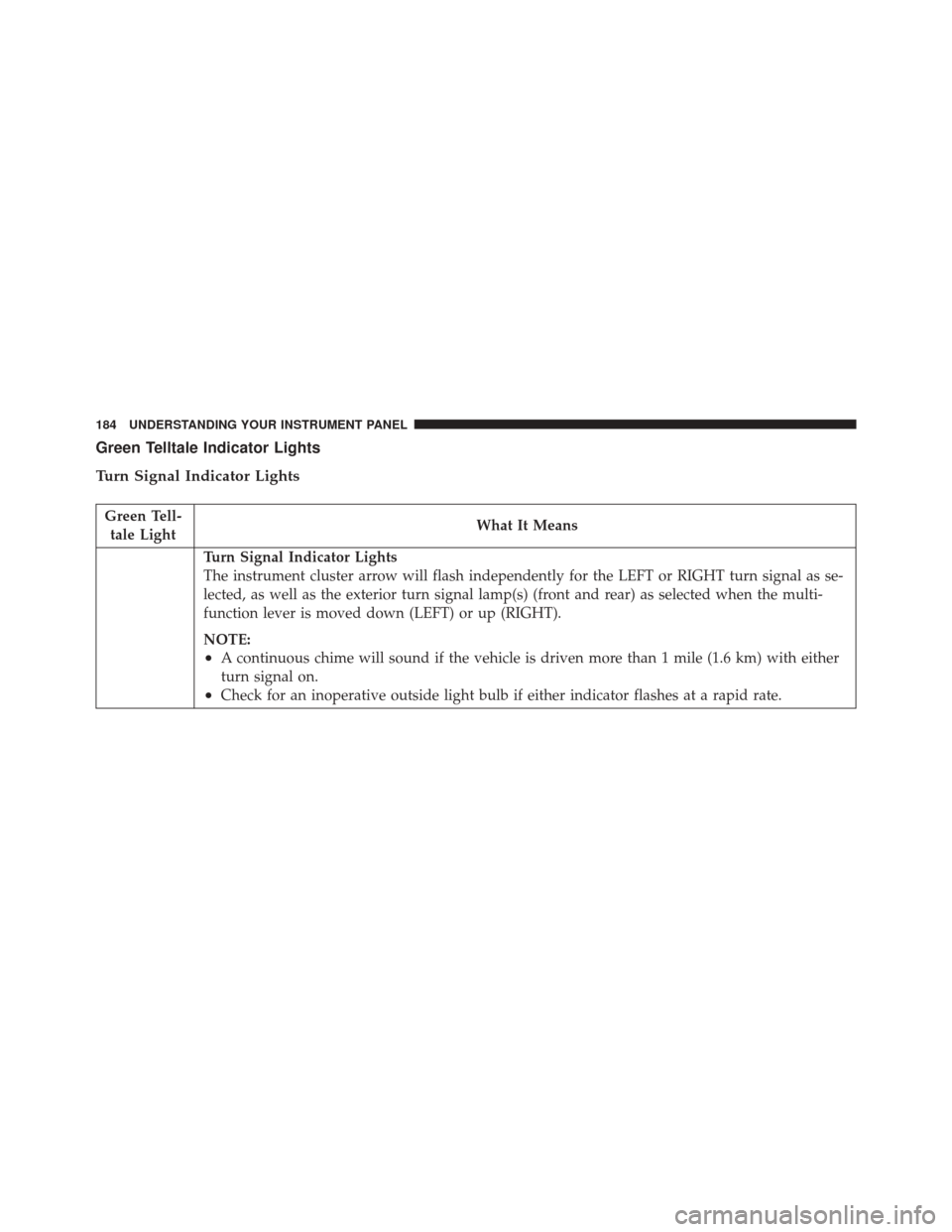

Green Telltale Indicator Lights
Turn Signal Indicator Lights
Green Tell-tale Light What It Means
Turn Signal Indicator Lights
The instrument cluster arrow will flash independently for the LEFT or RIGHT turn signal as se-
lected, as well as the exterior turn signal lamp(s) (front and rear) as selected when the multi-
function lever is moved down (LEFT) or up (RIGHT).
NOTE:
•A continuous chime will sound if the vehicle is driven more than 1 mile (1.6 km) with either
turn signal on.
•Check for an inoperative outside light bulb if either indicator flashes at a rapid rate.
184 UNDERSTANDING YOUR INSTRUMENT PANEL

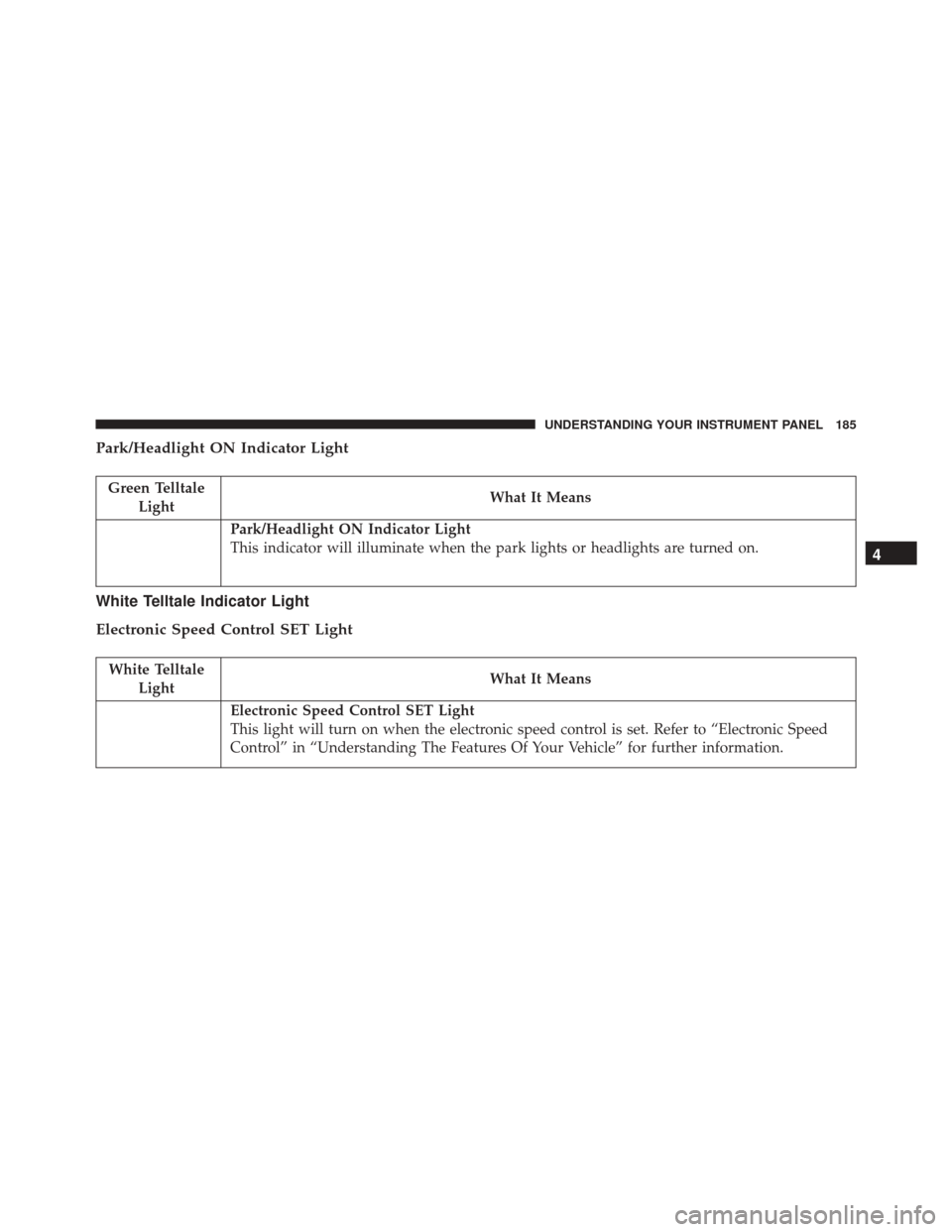

Park/Headlight ON Indicator Light
Green TelltaleLight What It Means
Park/Headlight ON Indicator Light
This indicator will illuminate when the park lights or headlights are turned on.
White Telltale Indicator Light
Electronic Speed Control SET Light
White Telltale
Light What It Means
Electronic Speed Control SET Light
This light will turn on when the electronic speed control is set. Refer to “Electronic Speed
Control” in “Understanding The Features Of Your Vehicle” for further information.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

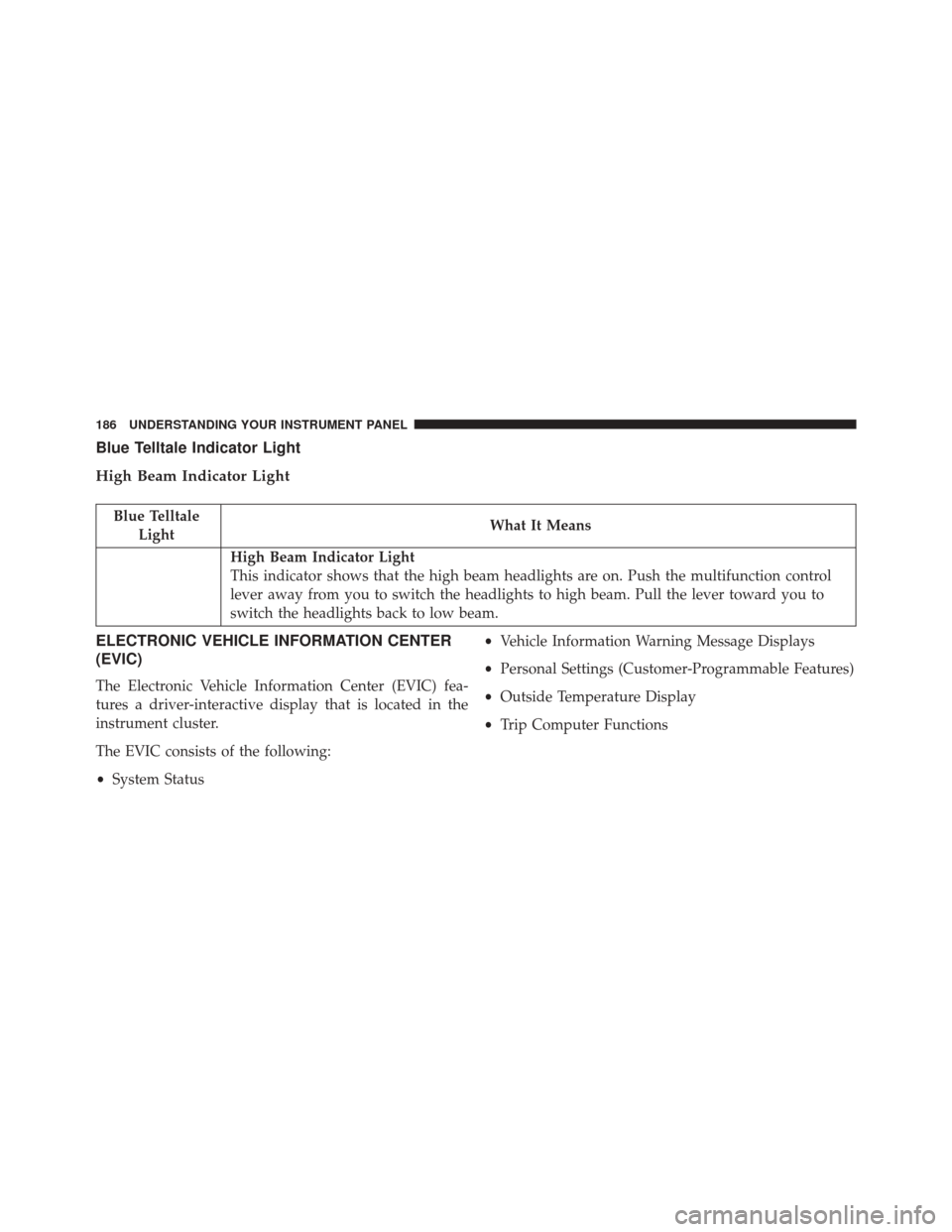

Blue Telltale Indicator Light
High Beam Indicator Light
Blue TelltaleLight What It Means
High Beam Indicator Light
This indicator shows that the high beam headlights are on. Push the multifunction control
lever away from you to switch the headlights to high beam. Pull the lever toward you to
switch the headlights back to low beam.
ELECTRONIC VEHICLE INFORMATION CENTER
(EVIC)
The Electronic Vehicle Information Center (EVIC) fea-
tures a driver-interactive display that is located in the
instrument cluster.
The EVIC consists of the following:
•
System Status •
Vehicle Information Warning Message Displays
• Personal Settings (Customer-Programmable Features)
• Outside Temperature Display
• Trip Computer Functions
186 UNDERSTANDING YOUR INSTRUMENT PANEL

EVIC Screen
The EVIC will display the following:
•Time
• Date or trip distance display in miles or kilometers
• Outside temperature
• Gear Indicator
• Odometer (display of distance travelled in miles/
kilometers)
• Car status indication (e.g. doors open, possible ice on
road, service, etc.)
EVIC Control Buttons
The EVIC control buttons are located on the instrument
panel below the radio.
Push and release the MENUbutton briefly to access the
menu and/or go to next screen or to confirm the required menu option. Push and hold the
MENUbutton (approxi-
mately one second) to return to the main screen.
Push and release the UP
button to scroll upward
through the displayed menu and the related options
or to increase the displayed value.
Push and release the DOWNbutton to scroll down-
ward through the displayed menu and the related
options or to decrease the value displayed.
NOTE: UPand DOWNbuttons activate differ-
ent functions according to the following situations:
• To scroll the menu options upwards or downwards.
• To increase or decrease values during settings.
NOTE: When opening one of the front doors, the EVIC
display will turn on the clock, the external temperature
and the miles or kilometers covered (for versions/
markets, where provided) for a few seconds.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

Electronic Vehicle Information Center (EVIC)
Setup Menu
The menu comprises a series of functions arranged in a
cycle. The menu includes the following functions:
NOTE:Some of the Menu Items could be managed by
Uconnect (if equipped). In that case, some of these are not
present in EVIC but in Uconnect.
• Dimmer
• Headlight Adj
• Speed Buzzer
• Headlamp Sensor
• Cornering Lights
• Rain Sensor
• Trip B Data •
Set Time
• Set Date
• First Page
• See Radio
• Autoclose
• Units
• Language
• Buzzer Volume
• Seat Belt Buzzer
• Service
• Passenger Airbag
• Day Lights
• Hill Start
188 UNDERSTANDING YOUR INSTRUMENT PANEL

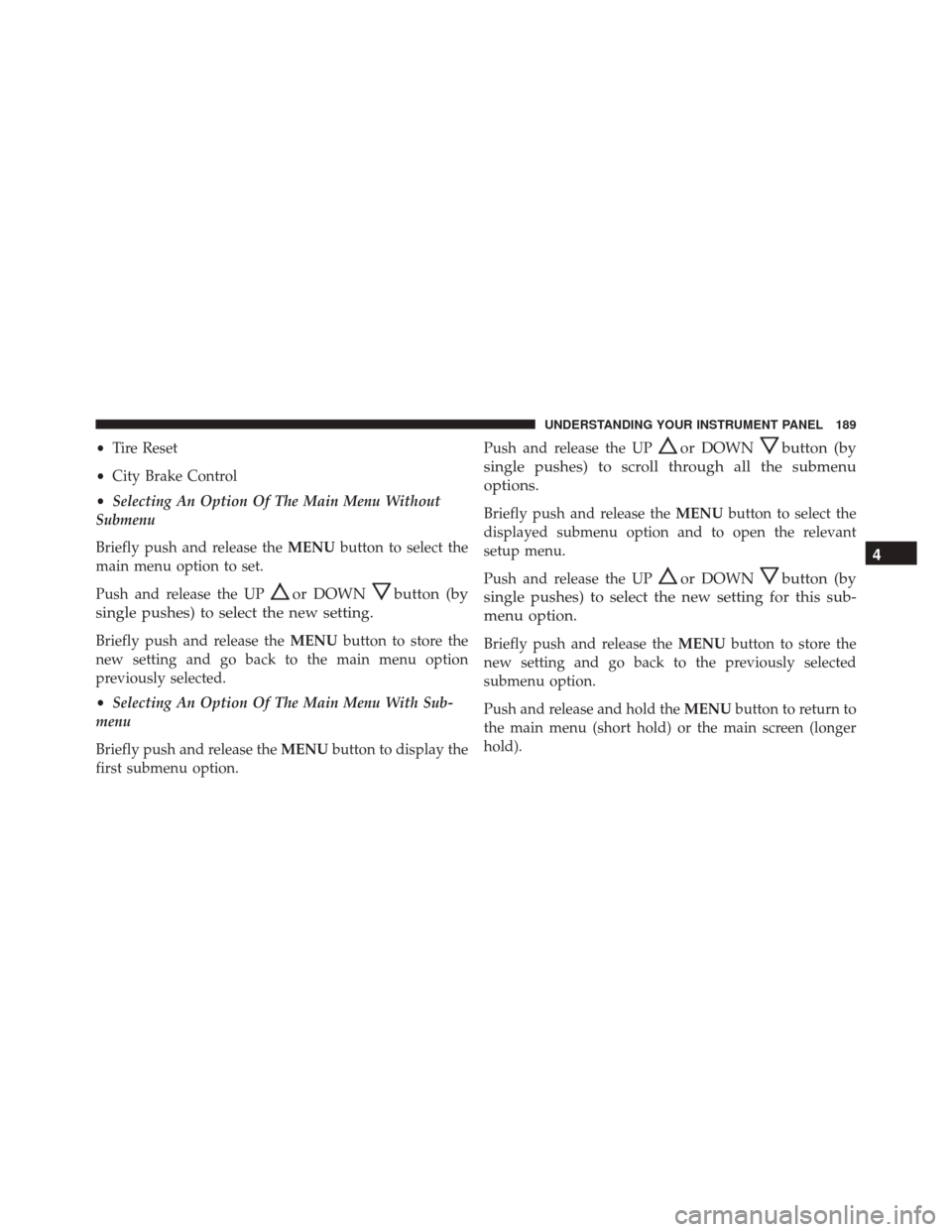

•Tire Reset
• City Brake Control
• Selecting An Option Of The Main Menu Without
Submenu
Briefly push and release the MENUbutton to select the
main menu option to set.
Push and release the UP
or DOWNbutton (by
single pushes) to select the new setting.
Briefly push and release the MENUbutton to store the
new setting and go back to the main menu option
previously selected.
• Selecting An Option Of The Main Menu With Sub-
menu
Briefly push and release the MENUbutton to display the
first submenu option. Push and release the UP
or DOWNbutton (by
single pushes) to scroll through all the submenu
options.
Briefly push and release the MENUbutton to select the
displayed submenu option and to open the relevant
setup menu.
Push and release the UP
or DOWNbutton (by
single pushes) to select the new setting for this sub-
menu option.
Briefly push and release the MENUbutton to store the
new setting and go back to the previously selected
submenu option.
Push and release and hold the MENUbutton to return to
the main menu (short hold) or the main screen (longer
hold).
4
UNDERSTANDING YOUR INSTRUMENT PANEL 189

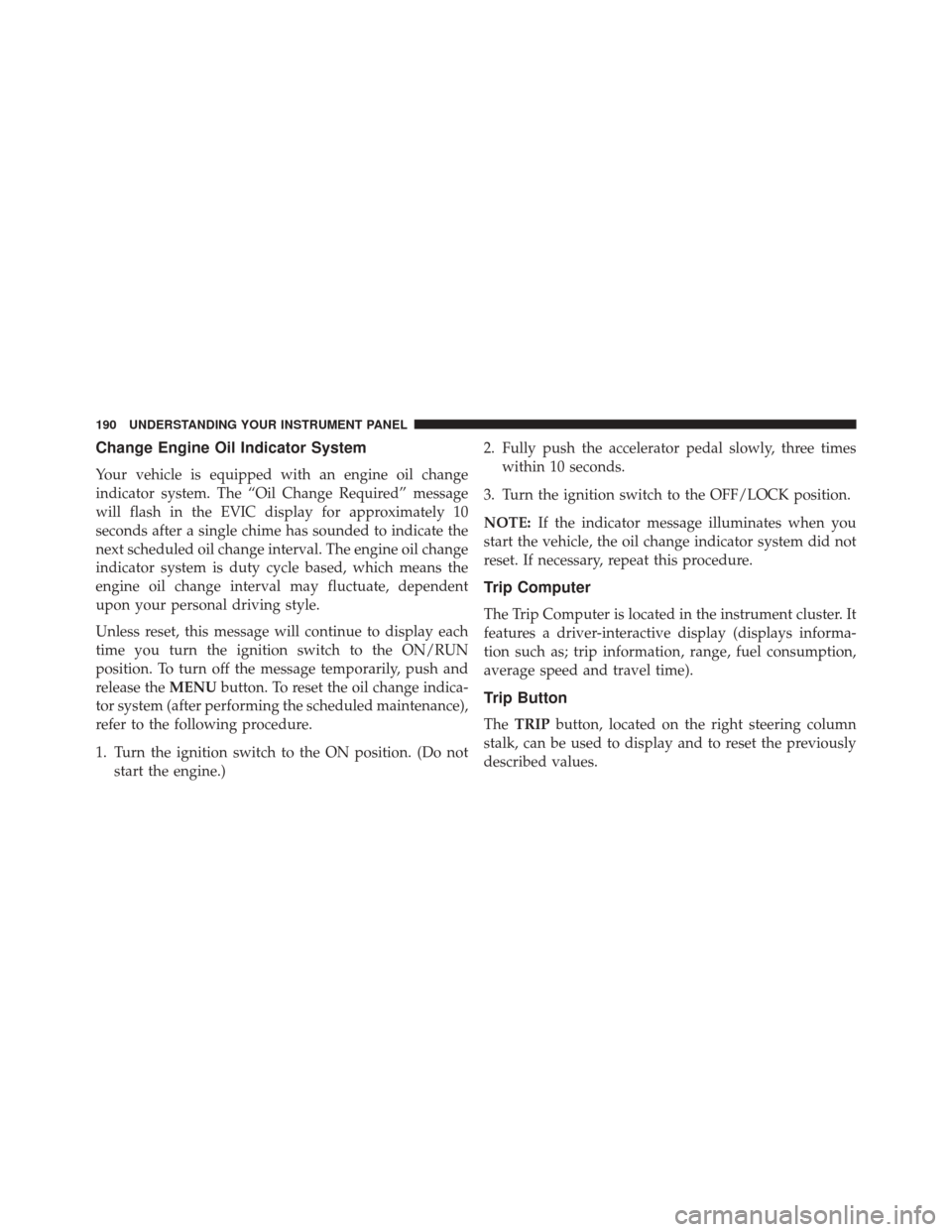

Change Engine Oil Indicator System
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will flash in the EVIC display for approximately 10
seconds after a single chime has sounded to indicate the
next scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent
upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, push and
release theMENUbutton. To reset the oil change indica-
tor system (after performing the scheduled maintenance),
refer to the following procedure.
1. Turn the ignition switch to the ON position. (Do not start the engine.) 2. Fully push the accelerator pedal slowly, three times
within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
Trip Computer
The Trip Computer is located in the instrument cluster. It
features a driver-interactive display (displays informa-
tion such as; trip information, range, fuel consumption,
average speed and travel time).
Trip Button
The TRIP button, located on the right steering column
stalk, can be used to display and to reset the previously
described values.
