2016 FIAT 500L Owners Manual

Fuse Panel Cavity Locations
7
MAINTAINING YOUR VEHICLE 423

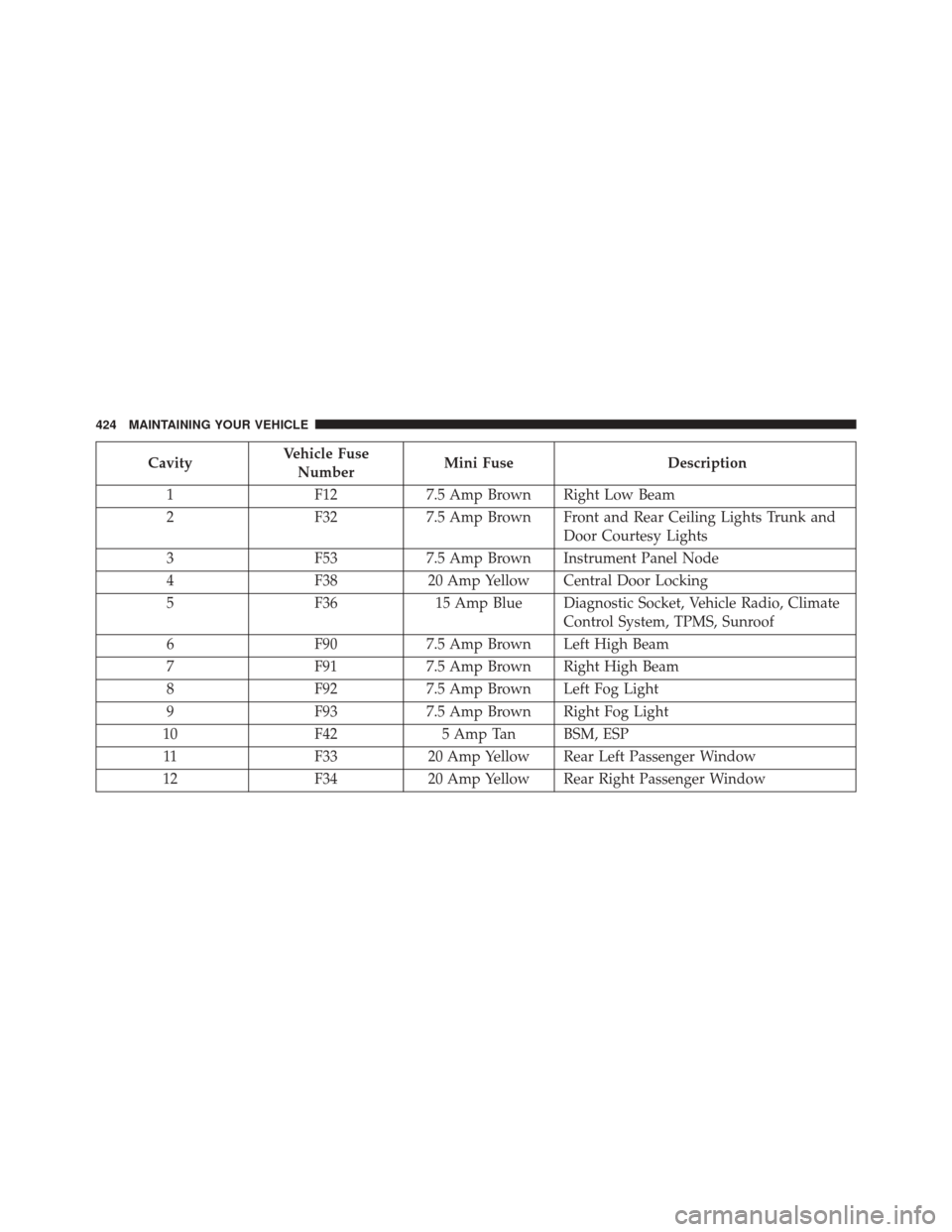

CavityVehicle Fuse
Number Mini Fuse
Description
1 F127.5 Amp Brown Right Low Beam
2 F327.5 Amp Brown Front and Rear Ceiling Lights Trunk and
Door Courtesy Lights
3 F537.5 Amp Brown Instrument Panel Node
4 F3820 Amp Yellow Central Door Locking
5 F3615 Amp Blue Diagnostic Socket, Vehicle Radio, Climate
Control System, TPMS, Sunroof
6 F907.5 Amp Brown Left High Beam
7 F917.5 Amp Brown Right High Beam
8 F927.5 Amp Brown Left Fog Light
9 F937.5 Amp Brown Right Fog Light
10 F425 Amp Tan BSM, ESP
11 F3320 Amp Yellow Rear Left Passenger Window
12 F3420 Amp Yellow Rear Right Passenger Window
424 MAINTAINING YOUR VEHICLE

CavityVehicle Fuse
Number Mini Fuse
Description
13 F4320 Amp Yellow Bi-Directional Washer
14 F4820 Amp Yellow Passenger Power Window
15 F137.5 Amp Brown Left Low Beam, Headlamp Leveling
16 F507.5 Amp Brown Airbag
17 F515 Amp Tan Vehicle Radio Switch, Climate Control Sys-
tem, Stop Light, Clutch, Reverse Gear,
Sunroof, Parking Sensor, Rear Camera
18 F377.5 Amp Brown Stop Light Switch, Instrument Panel Node
19 F495 Amp Tan Exterior Mirror, GPS, Electric Mirror, Park-
ing Sensor
20 F315 Amp Tan Climate Control, Seat Regulation
21 F4720 Amp Yellow Driver Power Window
7
MAINTAINING YOUR VEHICLE 425

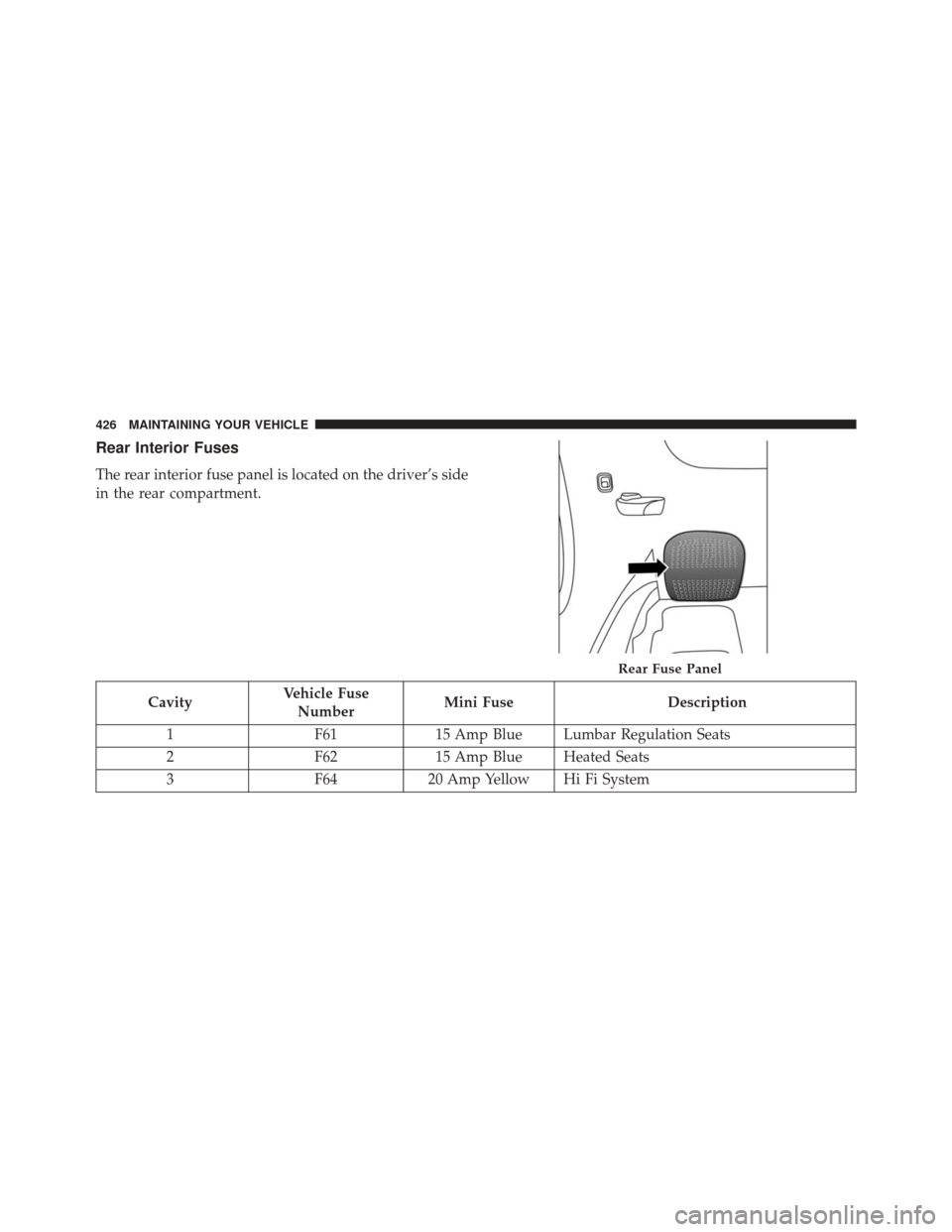

Rear Interior Fuses
The rear interior fuse panel is located on the driver’s side
in the rear compartment.
CavityVehicle Fuse
Number Mini Fuse
Description
1 F6115 Amp Blue Lumbar Regulation Seats
2 F6215 Amp Blue Heated Seats
3 F6420 Amp Yellow Hi Fi System
Rear Fuse Panel
426 MAINTAINING YOUR VEHICLE

CavityVehicle Fuse
Number Mini Fuse
Description

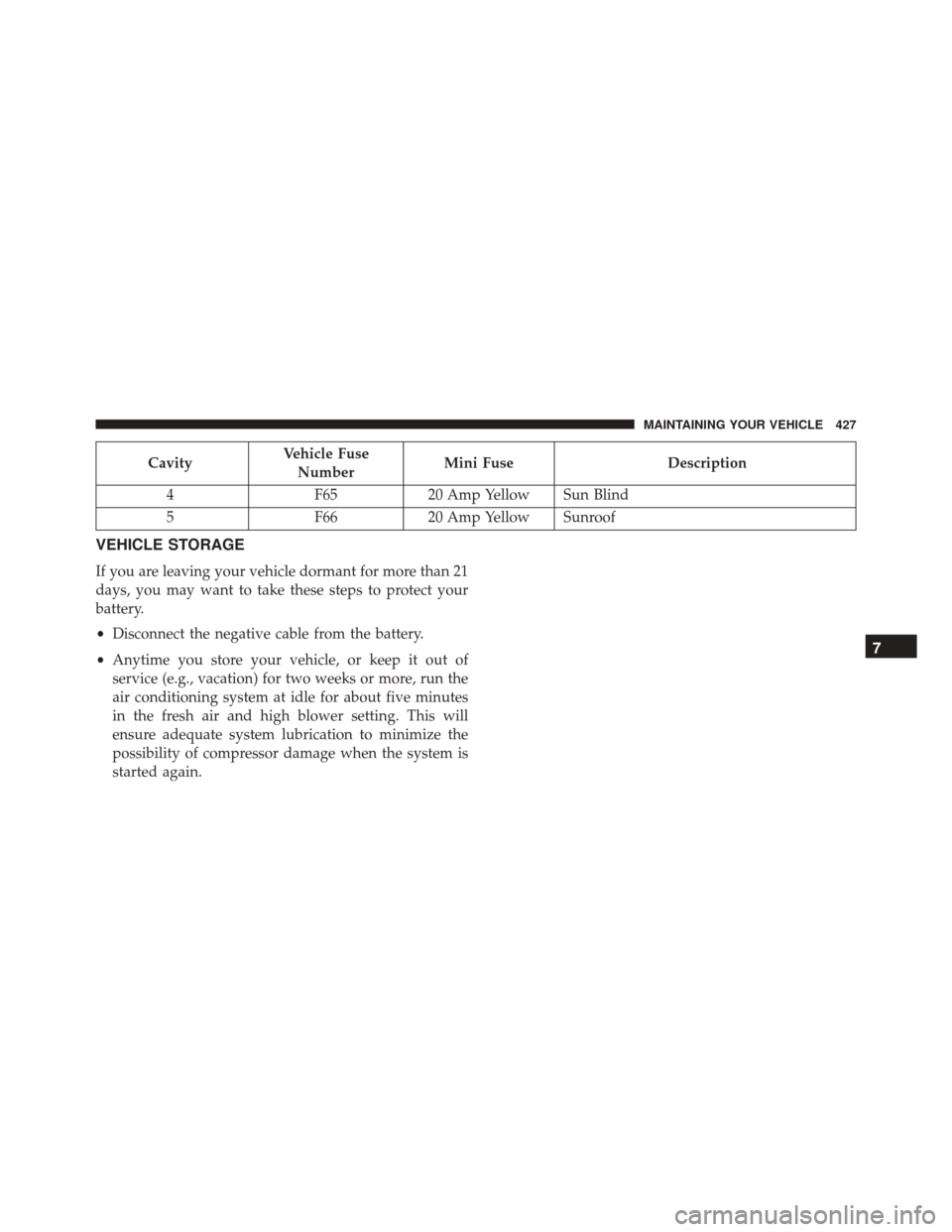

4 F6520 Amp Yellow Sun Blind
5 F6620 Amp Yellow Sunroof
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 427

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Overhead Lamp C5W
Sun Visors C5W
Courtesy Lamp W5W
Glove Compartment C5W
Rear Courtesy Lamp C5W
Exterior Bulbs
Bulb Number
Front Low and High Beam Headlamp HIR2LL
Front Turn Signal Lamps WY21W
Front Parking/Daytime Running Lamps W21/5W
Front Side Marker Lamps LED (See Authorized dealer)
428 MAINTAINING YOUR VEHICLE

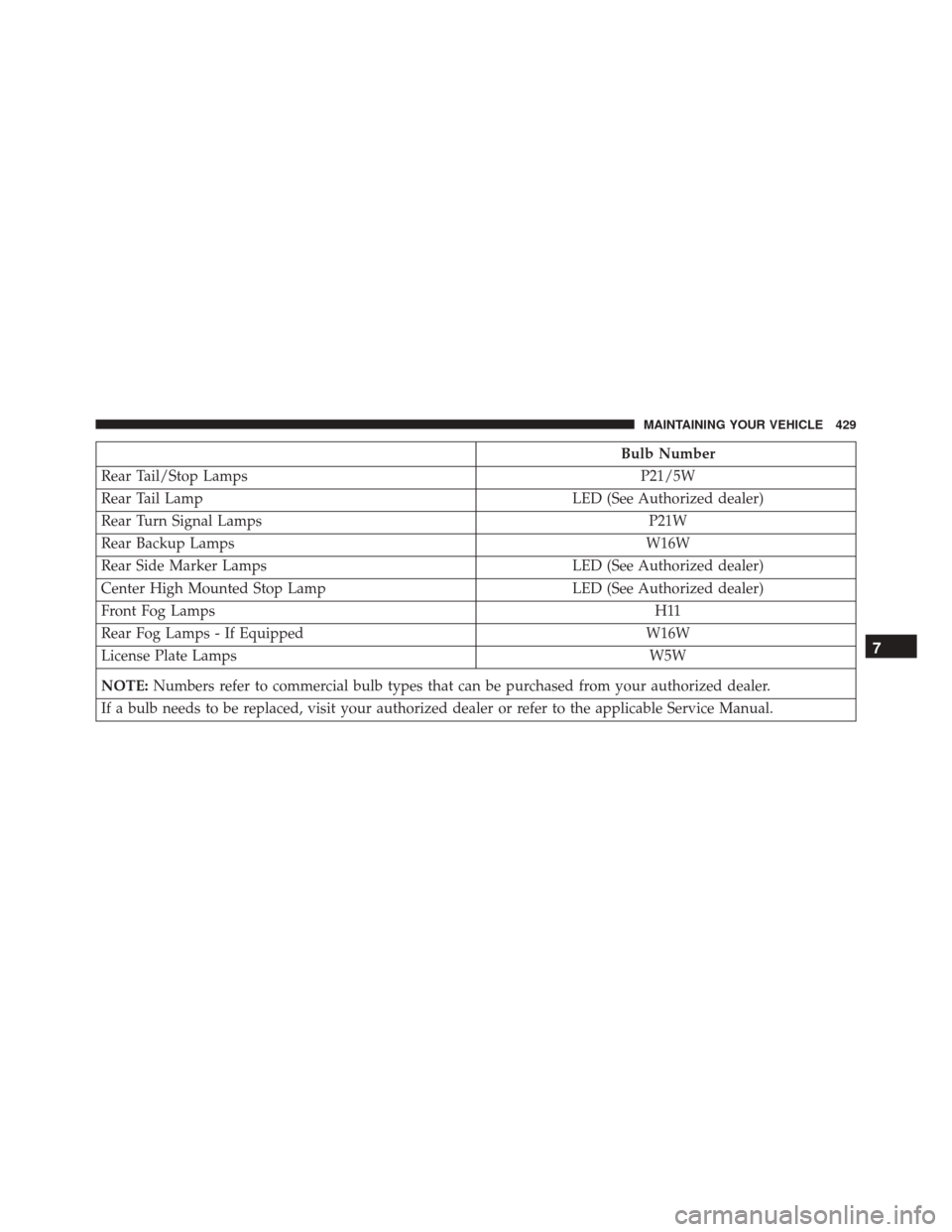

Bulb Number
Rear Tail/Stop Lamps P21/5W
Rear Tail Lamp LED (See Authorized dealer)
Rear Turn Signal Lamps P21W
Rear Backup Lamps W16W
Rear Side Marker Lamps LED (See Authorized dealer)
Center High Mounted Stop Lamp LED (See Authorized dealer)
Front Fog Lamps H11
Rear Fog Lamps - If Equipped W16W
License Plate Lamps W5W
NOTE: Numbers refer to commercial bulb types that can be purchased from your authorized dealer.
If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual.
7
MAINTAINING YOUR VEHICLE 429

BULB REPLACEMENT
NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
Headlamps Low Beam and High Beam
1. Remove the plastic sealing cap from the back of the headlamp housing by turning it counterclockwise.
Headlamp Sealing Cap Removal
430 MAINTAINING YOUR VEHICLE
