Page 417 of 473
7-54
Maintenance

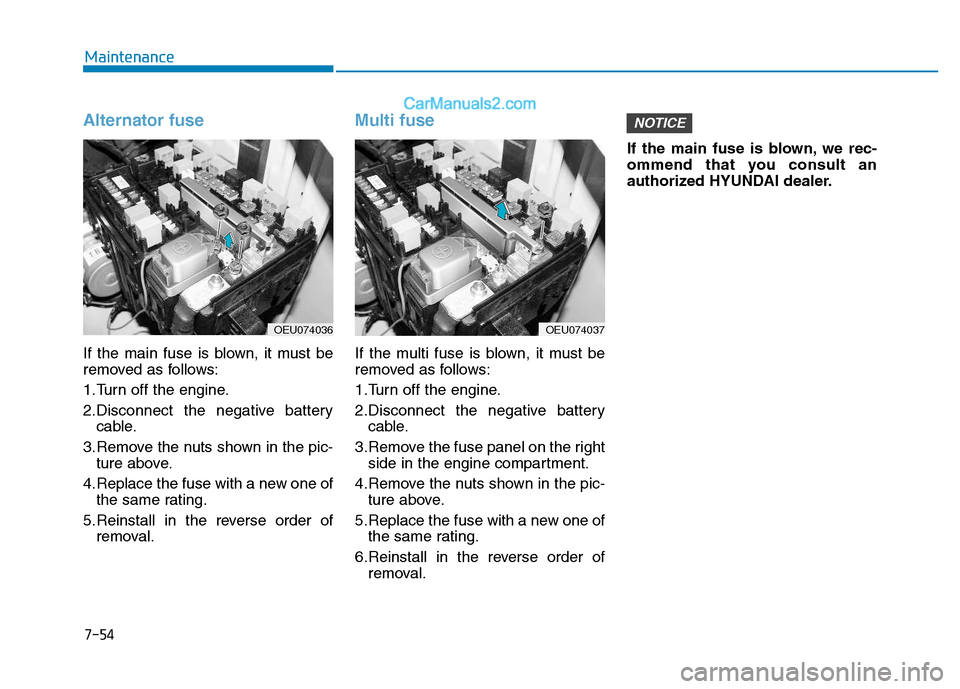

Alternator fuse
If the main fuse is blown, it must be
removed as follows:
1.Turn off the engine.
2.Disconnect the negative batterycable.
3.Remove the nuts shown in the pic- ture above.
4.Replace the fuse with a new one of the same rating.
5.Reinstall in the reverse order of removal.
Multi fuse
If the multi fuse is blown, it must be
removed as follows:
1.Turn off the engine.
2.Disconnect the negative batterycable.
3.Remove the fuse panel on the right side in the engine compartment.
4.Remove the nuts shown in the pic- ture above.
5.Replace the fuse with a new one of the same rating.
6.Reinstall in the reverse order of removal. If the main fuse is blown, we rec-
ommend that you consult an
authorized HYUNDAI dealer.
NOTICE
OEU074036OEU074037
Page 418 of 473
7-55
7
Maintenance
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at thetime of printing.
When you inspect the fuse box on
your vehicle, refer to the fuse boxlabel.
NOTICE
■Inner fuse box (Driver’s seat side)
OEU074059/OEU074060/OEU074058/OEU074039
■
Inner fuse box (Instrument panel)
■Main fuse box
■Battery fuse box
Fuse/Relay panel description
Inside the fuse/relay box covers, you can find the fuse/relay label describing
fuse/relay name and capacity.
Page 419 of 473
7-56
Maintenance

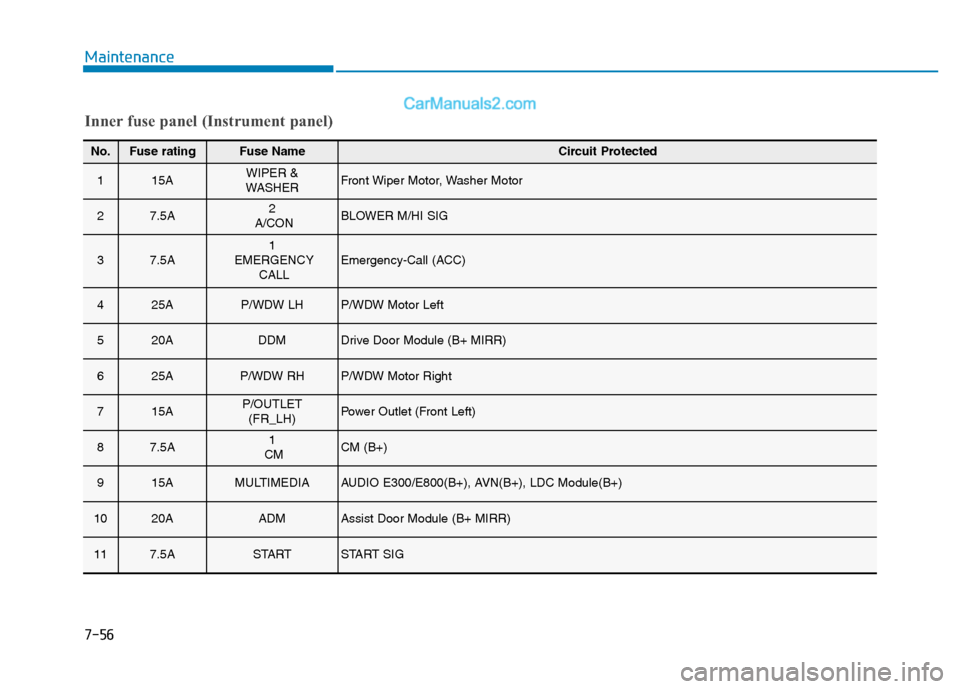

Inner fuse panel (Instrument panel)
No.Fuse ratingFuse NameCircuit Protected
115AWIPER &
WASHERFront Wiper Motor, Washer Motor
27.5A2
A/CONBLOWER M/HI SIG
37.5A1
EMERGENCY CALLEmergency-Call (ACC)
425AP/WDW LHP/WDW Motor Left
520ADDMDrive Door Module (B+ MIRR)
625AP/WDW RHP/WDW Motor Right
715AP/OUTLET(FR_LH)Power Outlet (Front Left)
87.5A1
CMCM (B+)
915AMULTIMEDIAAUDIO E300/E800(B+), AVN(B+), LDC Module(B+)
1020AADMAssist Door Module (B+ MIRR)
117.5ASTARTSTART SIG
Page 420 of 473
7-57
7
Maintenance
No.Fuse ratingFuse NameCircuit Protected
1210AMEMORYCluster (B+), A/C Control Module(B+), Drive Door Module(B+ECU), Assist Door Module(B+ECU), DTG(B+), OBDII (B+)
137.5ABRAKE SWBrake Switch, Stop Lamp
1410AMODULE E-3Cluster, Drive Door Module, Assist Door Module, A/C Control Module, Seat HTD Switch
Left/Right, VDC off Switch, AVN, Seat HTD Module Left/Right, DTG, LDWS Module, RPAS
Sensor, Yaw Rate Sensor, Fuel Water Sensor
1510AMIDDLE
DR LOCKMiddle Door Lock Actuator
1610ATAILGATE DR LOCKTailgate Door Lock Actuator
1710AMODULE E-4AUDIO E300/E800(ACC), AVN(ACC), LDC Module(ACC), CM(ACC)
1820AENG BOX (IG1)UH BOX (ABS3 7.5A, SNSR5 7.5A, INHIBITOR 7.5A, BACK UP LAMP 7.5A)
1910ADCUSEAT BOX (DCU SNSR Relay 'S')
207.5A2
CMCM (IG1)
217.5AMODULE-1Rain Sensor
2210AINTERIOR LAMPSEAT BOX(PASS ROOM LAMP Relay 'S'), Key Warning Switch, Step Lamp(MID/ASS),
OH_CONSOLE Lamp, Map Lamp, Passenger Reading Lamp, Cargo_Lamp(Middle / TGAT)
Page 421 of 473
7-58
Maintenance
No.Fuse ratingFuse NameCircuit Protected
2310AMODULE-2HLLD Actuator Left/Right, Glow Relay Module(IG1), Brake Switch, FPAS Sensor, C/PAD Switch, BEZEL Switch, LDC Module(IG1)
247.5AMODULE-5I_S_MIRR(IG2), CM(IG2), Passenger Heater Module(IG2), Seat HTD Module Left/Right(IG2),
F/FILTER Relay 'S'
2510A2
IMMOImmobilizer Module(B+), Key Warning Switch
267.5A1
IMMOImmobilizer Module(IG1)
2720ASEAT BOX (IG2)SEAT BOX (ELECTRIC VENTILATOR2 10A, A/CON RR(IG2) 10A, IG2 10A(AUX POWER(IG2)
Relay 'S'))
287.5A1
A/CONA/C Control Module(IG2)
2915AA/BAGA/BAG Control Module(IG1)
307.52
EMERGENCY CALLEmergency-Call(IG1)
Page 422 of 473
7-59
7
Maintenance

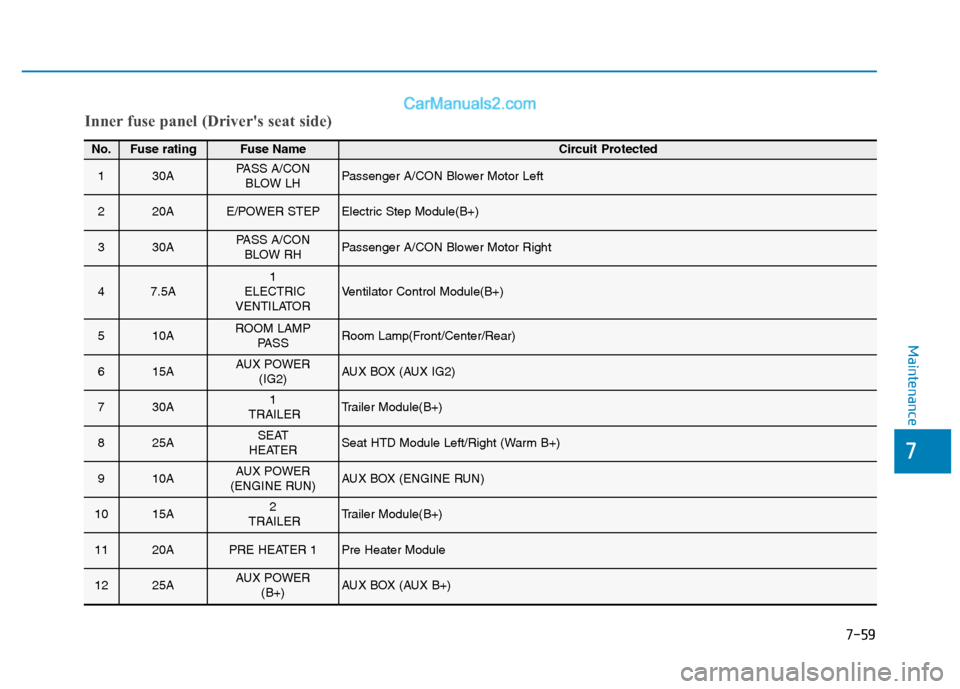

Inner fuse panel (Driver's seat side)
No.Fuse ratingFuse Name Circuit Protected
130APASS A/CONBLOW LHPassenger A/CON Blower Motor Left
220AE/POWER STEPElectric Step Module(B+)
330APASS A/CONBLOW RHPassenger A/CON Blower Motor Right
47.5A1
ELECTRIC
VENTILATORVentilator Control Module(B+)
510AROOM LAMP PASSRoom Lamp(Front/Center/Rear)
615AAUX POWER (IG2)AUX BOX (AUX IG2)
730A1
TRAILERTrailer Module(B+)
825ASEAT
HEATERSeat HTD Module Left/Right (Warm B+)
910AAUX POWER
(ENGINE RUN)AUX BOX (ENGINE RUN)
1015A2
TRAILERTrailer Module(B+)
1120APRE HEATER 1Pre Heater Module
1225AAUX POWER (B+)AUX BOX (AUX B+)
Page 423 of 473
7-60
Maintenance
No.Fuse ratingFuse Name Circuit Protected
1315A3
TRAILERTrailer Module(B+)
1430APASS A/CON C/FAN LHPassenger A/CON Blower Motor Left
1510ABATTERYSENSORBattery Sensor
1630AFUEL HTRFuel Filter HTR
177.5APASS HTR/BLOW SIG FRPassenger Heater Control Module (Blower Motor SIG Front)
1815ADCU
SENSORPM Sensor, NOX Sensor (front/Rear), Dosing Control Module (IG1 INPUT)
1920A1
DCUDosing Control Module(B+)
207.5APASS HTR/BLOW SIG RRPassenger Heater Control Module (Blower Motor SIG Rear)
2110A2
ELECTRIC
VENTILATORVentilator Control Module (IG2)
227.5APASS A/CON
BLOW SIG LHA/C Control Module Rear (Blower Motor SIG Left)
237.5APASS A/CON
BLOW SIG RHA/C Control Module Rear (Blower Motor SIG Right)
2410AA/CON RR (IG2)A/C Control module Rear
Page 424 of 473
7-61
7
Maintenance
No.Fuse ratingFuse Name Circuit Protected
2520A2
DCUDosing Control Module(B+)
2620A3
DCUDosing Control Module(B+)
2710AIG2Electric Step Module, SEAT BOX(AUX POWER (IG2) Relay 'S')
2830APASS A/CON C/FAN RHPassenger A/CON Blower Motor Right
2925APASS HTR FRTPassenger Heater Blower Motor Front
3025APASS HTR RRPassenger Heater Blower Motor Rear
