2015 Hyundai H350 Owner's Manual

3-51
Convenient features of your vehicle
3

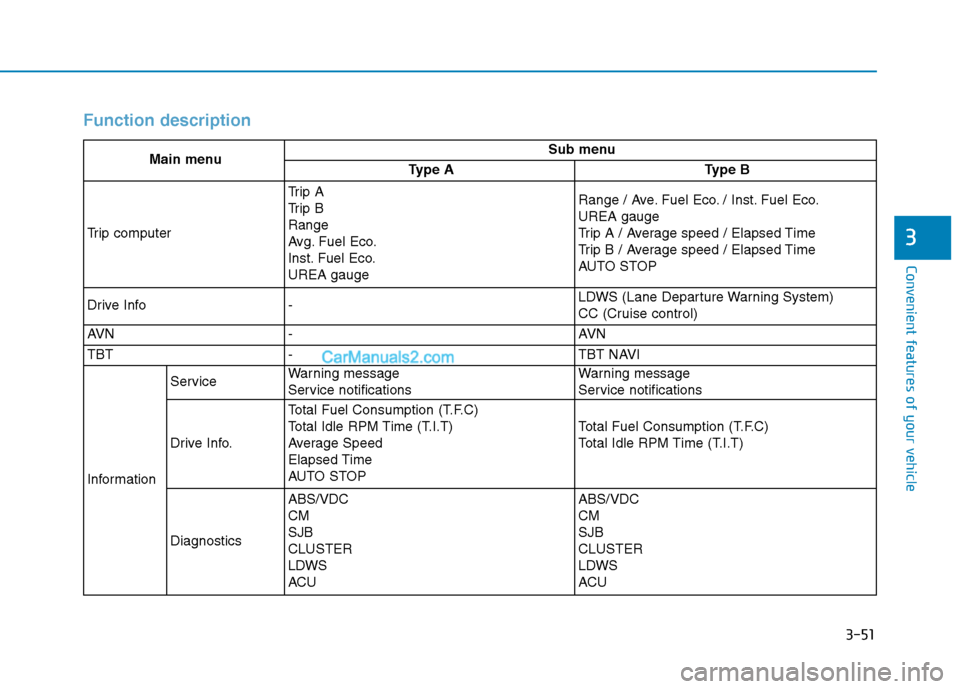

Function description
Main menuSub menu
Type AType B
Trip computer
Trip A
Trip BRange
Avg. Fuel Eco.
Inst. Fuel Eco.UREA gaugeRange / Ave. Fuel Eco. / Inst. Fuel Eco. UREA gauge
Trip A / Average speed / Elapsed Time
Trip B / Average speed / Elapsed Time
AUTO STOP
Drive Info-LDWS (Lane Departure Warning System)
CC (Cruise control)
AV N-AV N
TBT-TBT NAVI
Information
ServiceWarning message
Service notificationsWarning message
Service notifications
Drive Info.
Total Fuel Consumption (T.F.C)
Total Idle RPM Time (T.I.T)
Average SpeedElapsed Time
AUTO STOP
Total Fuel Consumption (T.F.C)
Total Idle RPM Time (T.I.T)
Diagnostics
ABS/VDC CMSJBCLUSTER
LDWS
ACUABS/VDC CMSJBCLUSTER
LDWS
ACU

3-52
Convenient features of your vehicle

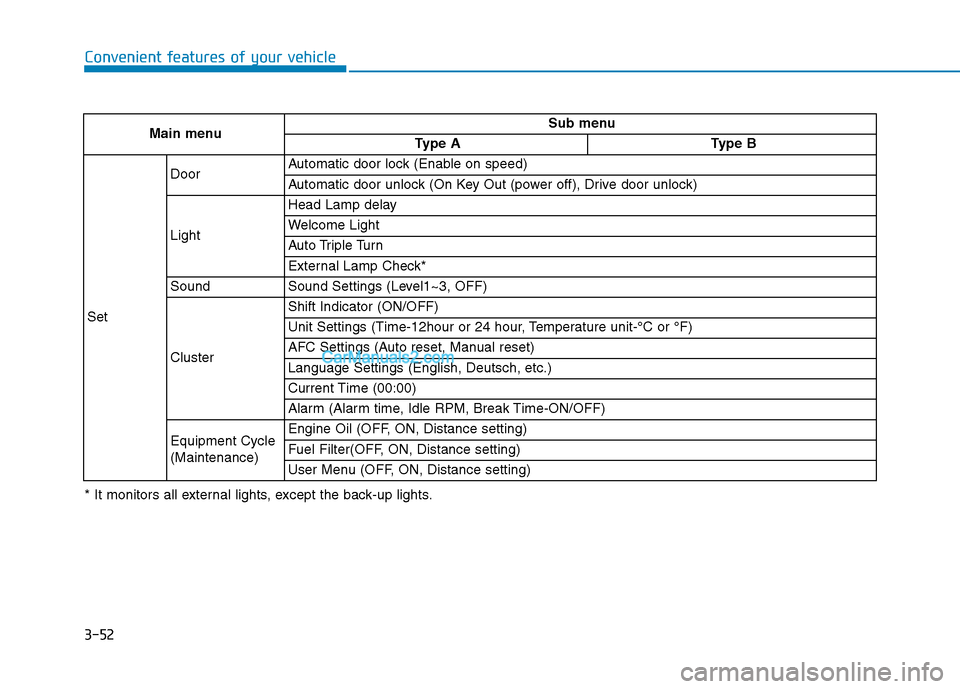

Main menuSub menu
Type AType B
Set
DoorAutomatic door lock (Enable on speed)
Automatic door unlock (On Key Out (power off), Drive door unlock)
Light
Head Lamp delay
Welcome Light
Auto Triple Turn
External Lamp Check*
SoundSound Settings (Level1~3, OFF)
Cluster
Shift Indicator (ON/OFF)
Unit Settings (Time-12hour or 24 hour, Temperature unit-°C or °F)
AFC Settings (Auto reset, Manual reset)
Language Settings (English, Deutsch, etc.)
Current Time (00:00)
Alarm (Alarm time, Idle RPM, Break Time-ON/OFF)
Equipment Cycle (Maintenance)Engine Oil (OFF, ON, Distance setting)
Fuel Filter(OFF, ON, Distance setting)
User Menu (OFF, ON, Distance setting)
* It monitors all external lights, except the back-up lights.

3-53
Convenient features of your vehicle
3

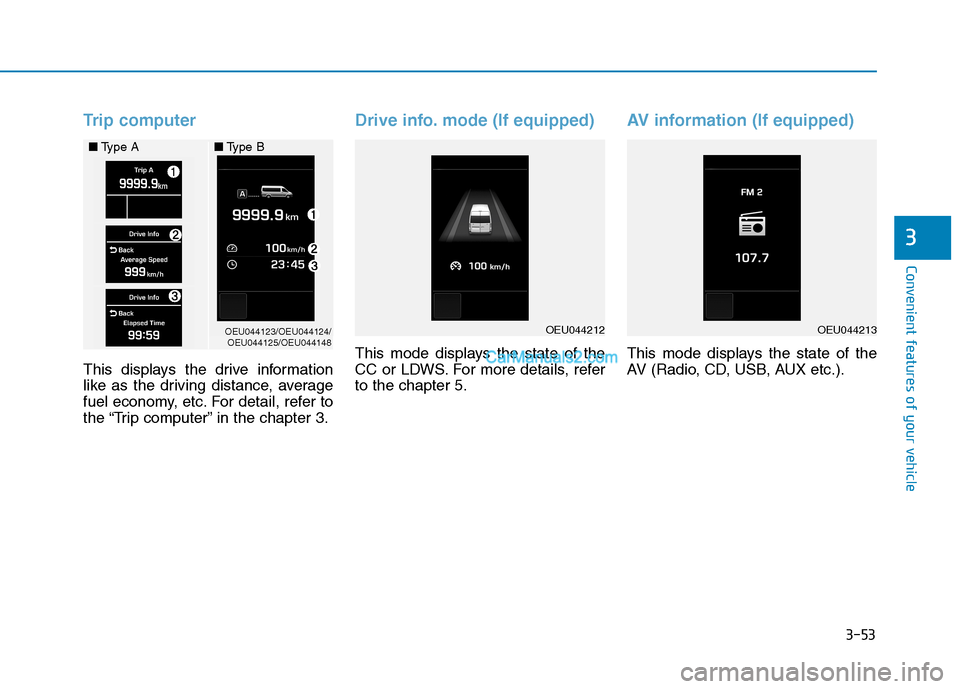

Trip computer
This displays the drive information
like as the driving distance, average
fuel economy, etc. For detail, refer to
the “Trip computer” in the chapter 3.
Drive info. mode (If equipped)
This mode displays the state of the
CC or LDWS. For more details, referto the chapter 5.
AV information (If equipped)
This mode displays the state of the
AV (Radio, CD, USB, AUX etc.).
OEU044123/OEU044124/OEU044125/OEU044148
■
Type A ■Type BOEU044212OEU044213

3-54
Convenient features of your vehicle

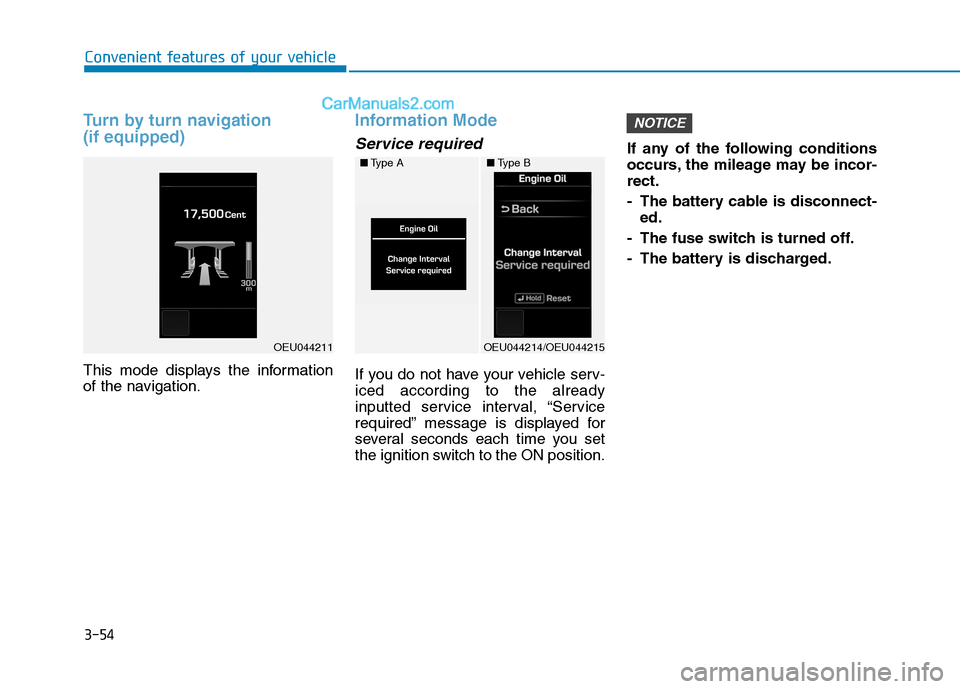

Turn by turn navigation (if equipped)
This mode displays the information
of the navigation.
Information Mode
Service required
If you do not have your vehicle serv- iced according to the already
inputted service interval, “Service
required” message is displayed for
several seconds each time you set
the ignition switch to the ON position.If any of the following conditions
occurs, the mileage may be incor-rect.
- The battery cable is disconnect-
ed.
- The fuse switch is turned off.
- The battery is discharged.
NOTICE
■ Type A
OEU044214/OEU044215
■Type B
OEU044211

3-55
Convenient features of your vehicle
3

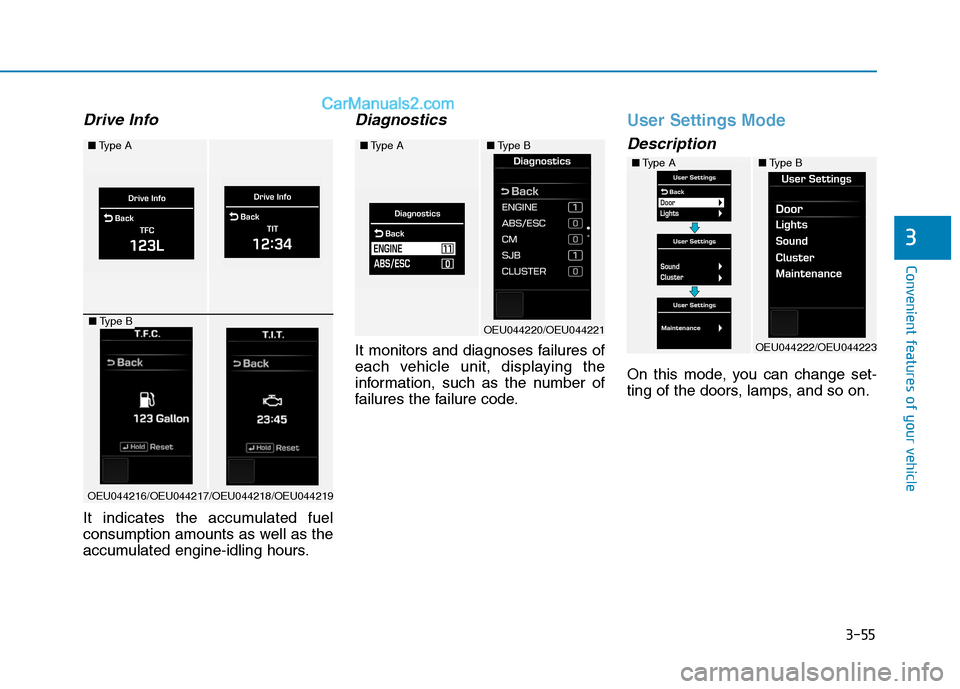

Drive Info
It indicates the accumulated fuel
consumption amounts as well as the
accumulated engine-idling hours.
Diagnostics
It monitors and diagnoses failures of
each vehicle unit, displaying the
information, such as the number of
failures the failure code.
User Settings Mode
Description
On this mode, you can change set-
ting of the doors, lamps, and so on.
■Type A
OEU044216/OEU044217/OEU044218/OEU044219
■Type B
■Type A
OEU044220/OEU044221
■Type B
■Type A
OEU044222/OEU044223
■Type B

3-56
Convenient features of your vehicle
Door
Auto Door Lock (if equipped)
Off:The auto door lock operation willbe deactivated.
Enable on speed: All doors will be automaticallylocked when the vehicle speed
exceeds 15km/h (9.3mph).
Auto Door Unlock (if equipped)
Key Out or Power Off:
All doors will be automaticallyunlocked when the ignition key is
removed from ignition switch to theOFF position.
Driver Door Unlock:
All doors will be automatically
unlocked if the driver's door is
unlocked.
Light
Head Lamp Delay (if equipped)
If this item is checked, the headlamp
delay will be activated.
Welcome Light (if equipped)
When it is selected, the headlamp
welcome function automatically acti-
vates.
Auto Triple Turn (if equipped)
When it is selected, the auto triple
turn function activates.
External Lamp Check (if equipped)
When it is selected, the external
lamps automatically activate.
* It monitors all external lamps,except the back-up lights.
Sound
The sound volume can be adjusted
from level 0 (OFF) to 3.
Cluster
Shift gear
It is turned ON or OFF.
Unit Settings
Time unit
The time unit can be converted from
12 hours to 24 hours, and vice versa.
Temperature unit
The temperature unit can be convert-
ed from °C to °F, and vice versa.

3-57
Convenient features of your vehicle
3
AFC setting
It can be automatically or manually
reset to the default. ❇AFC : Average Fuel Consumption
Language setting
A preferred language can be chosen
on the LCD display.
Current time
The time can be adjusted.
Alarm
The alarm, idle-rpm time, break time can be set in.
Equipment cycle(Maintenance)
Engine oil, fuel filter
The maintenance alarm can be
turned ON or OFF. Also, the driving
distance for an oil/filter maintenance
alarm can be set in.
User Menu
The maintenance alarm message
displays on the LCD display, as arbi-
trarily set in.
Warning Messages
In below cases, the warning mes-
sage displays for 10 seconds. Some
messages will be saved in the infor-
mation group after few seconds dis-
playing for future reference.

3-58
Convenient features of your vehicle
Lamp disconnection (CHECK LAMP)
This indicator displays which lamp is disconnected.
Doors open
This indicator displays which doorsare opened.
Parking Assist System (PAS) (if equipped)
When the engine is turned ON, and
when the PAS sensor detects an
obstacle, while driving either for-
wards or backwards, the PAS
informs the driver of a location and a
distance of/with the obstacle.
For further information, refer to the
Parking Assist System in the chapter3.
■ Type A
OEU044118/OEU044143
■Type B
■Type A
OEU044114/OEU044139
■Type B
OEU044141
■Type B
