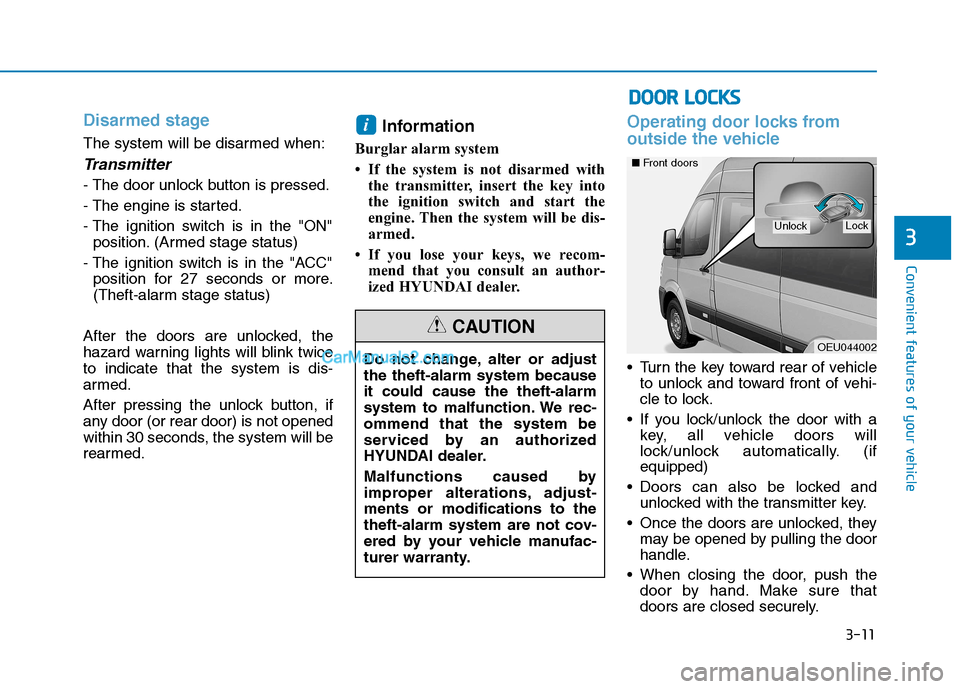

2015 Hyundai H350 Owner's Manual

3-11
Convenient features of your vehicle
3
Disarmed stage
The system will be disarmed when:
Transmitter
- The door unlock button is pressed.
- The engine is started.
- The ignition switch is in the "ON"position. (Armed stage status)
- The ignition switch is in the "ACC" position for 27 seconds or more.
(Theft-alarm stage status)
After the doors are unlocked, the
hazard warning lights will blink twiceto indicate that the system is dis-
armed.
After pressing the unlock button, if
any door (or rear door) is not opened
within 30 seconds, the system will be
rearmed. Information
Burglar alarm system
 If the system is not disarmed with the transmitter, insert the key into
the ignition switch and start the
engine. Then the system will be dis-
armed.
 If you lose your keys, we recom- mend that you consult an author-
ized HYUNDAI dealer.
Operating door locks from
outside the vehicle
Turn the key toward rear of vehicleto unlock and toward front of vehi-
cle to lock.
If you lock/unlock the door with a key, all vehicle doors will
lock/unlock automatically. (ifequipped)
Doors can also be locked and unlocked with the transmitter key.
Once the doors are unlocked, they may be opened by pulling the door
handle.
When closing the door, push the door by hand. Make sure that
doors are closed securely.
i
Do not change, alter or adjust the theft-alarm system becauseit could cause the theft-alarm
system to malfunction. We rec-ommend that the system be
serviced by an authorized
HYUNDAI dealer.
Malfunctions caused by
improper alterations, adjust-ments or modifications to the
theft-alarm system are not cov-
ered by your vehicle manufac-
turer warranty.
CAUTION
DDOO OORR LL OO CCKK SS
OEU044002
LockUnlock
■Front doors

3-12
Convenient features of your vehicle
In cold and wet climates, doorlock and door mechanisms may
not work properly due to freez-ing conditions.
If the door is locked/unlocked multiple times in rapid succes-
sion with either the vehicle key
or door lock switch, the system
may stop operating temporarily
in order to protect the circuit
and prevent damage to systemcomponents.
Operating door locks from
inside the vehicle
With the door lock button
To unlock front driver's door andfront passenger's door, press the
unlock switch (1).
To lock front driver's door and front passenger's door, press the lock
switch (2).
To open a door, pull the door han- dle outward. If the inner door handle of all doors
are pulled when the door lock but-
ton is in the lock position, the but-
ton will unlock and the door will
open. (if equipped)
Front doors cannot be locked if the ignition key is in the ignition switch
and any front door is opened.
NOTICE
If you don't close the door
securely, the door may open
again.
Be careful that someone's
body and hands are not
trapped when closing the
door.
WARNING OEU045008
■Driver’s doors

3-13
Convenient features of your vehicle
3
With central door lock switch
Operate by depressing the central
door lock switch.
When pushing down lock button(1), all vehicle doors will lock.
When pushing down unlock button (2), all vehicle doors will unlock. However, if any door (and rear
door) is open, the doors will not
lock even though the central door
lock switch is pressed.
OEU044190
OEU044189
Doors
The doors should always be
fully closed and locked while
the vehicle is in motion to pre-vent accidental opening of the
door. Locked doors will also
discourage potential intruders
when the vehicle stops or
slows.
Be careful when opening
doors and watch for vehicles,
motorcycles, bicycles or
pedestrians approaching the
vehicle in the path of the door.Opening a door when some-
thing is approaching can
cause damage or injury.
WARNING
Unlocked vehicles
Must be locked the outside door
by using key or remote key.
Leaving your vehicle unlocked
can invite theft or possible harm
to you or others from someone
hiding in your vehicle while you
are gone. Always remove the
ignition key, engage the parking
brake, close all windows and
lock all doors when leaving
your vehicle unattended.
WARNING

3-14
Deadlocks (if equipped)
Some vehicles are equipped with a
deadlocking system. Deadlocks pre-
vent opening of a door from either
inside or outside the vehicle once the
deadlocks have been activated pro-
viding an additional measure of vehi-
cle security.
To lock the vehicle using the dead-
lock function, the doors must be
locked using the Remote keyless
entry transmitter. To unlock the vehi-
cle, the transmitter must again beused.
Speed sensing door lock sys- tem (if equipped)
All doors will be automatically locked
after the vehicle speed exceeds 15
km/h. And all doors will be automati-
cally unlocked when you turn the
engine off or when you remove the
ignition key. (if equipped)
Convenient features of your vehicle
Unattended children
An enclosed vehicle can
become extremely hot, causing
death or severe injury to unat-
tended children or animals who
cannot escape the vehicle.
Furthermore, children might
operate features of the vehicle
that could injure them, or theycould encounter other harm,
possibly from someone gaining
entry to the vehicle. Never leave
children or animals unattended
in your vehicle.
WARNING
Do not lock the doors with the
transmitter with anybody left in
the vehicle. The passenger in
the vehicle cannot unlock the
doors with the door lock button.
For example, if the door is
locked with the transmitter, the
passenger in the vehicle cannot
unlock the door without the
transmitter.
WARNING

3-15
Convenient features of your vehicle
Your vehicle's sliding door may be
equipped with an electrical step.When opening and closing the slid-
ing door, observe the notes on the
electrical step. (if equipped)
Opening/closing from the out- side
The sliding door is equipped with an
active retainer, which engages thedoor at the end stop when opened.Your vehicle may be equippedwith a long sliding door with anintermediate detent.
You can also lock the sliding door
in place around halfway when
opening/closing. If you do this, the
door does not have to be opened
fully when getting into or out of
the vehicle. The sliding door is not
fully engaged when in the interme-diate detent.
To open:
Pull door handle (1).
Push back the sliding door using
door handle (1) until it engages.
Check the sliding door detent.
To close: Slide the sliding door firm-
ly forwards by handle (1) until it clos-
es.
NOTICE
3
Your vehicle's sliding door may be equipped with an electrical
step. When opening and closing
the sliding doors, observe thenotes on the electrical step.
WARNING
MM IIDD SS LLIIDD IINN GG DD OO OORR (( IIFF EE QQ UUIIPP PPEEDD ))
Only open the door, when vehi-
cle is parked on a flat ground.Make sure that there is suffi-
cient clearance when opening
the doors. Otherwise, It may
cause damage of your vehicle
or other vehicles.
CAUTION
OEU044004

3-16
Opening/closing from the inside
The sliding door is equipped with an
active retainer, which engages thedoor at the end stop when opened.
You can only open a sliding door
from the inside if the child-proof locks
have not been activated. Locking
knob (2) pops up when you open a
locked door. Only this sliding door is
unlocked. The other doors remain
locked.Information
Your vehicle may be equipped with a
long sliding door with an intermediate
detent.
You can also lock the sliding door in
place around halfway when
opening/closing. If you do this, the
door does not have to be opened fully
when getting into or out of the vehicle.
The sliding door is not fully engaged
when in the intermediate detent.
To open: Slide the sliding door by
handle (1) back to the stop.
Check the sliding door detent.
The sliding door must be engaged.
To close: Slide the sliding door firm-
ly forwards by handle (1) until it
engages.
Child-protector mid sliding
door lock (if equipped)
The child safety lock is provided to
help prevent children from acciden-tally opening the mid sliding door
from inside the vehicle. The mid slid-
ing door safety locks should be used
whenever children are in the vehicle.
1.Open the sliding door.
2.Push the child safety lock located on the mid sliding edge of the door to
the "Lock" position. When the child
safety lock is in the "Lock ( )"position, mid sliding door will not
open even though the inner door
handle is pulled inside the vehicle.
i
Convenient features of your vehicle
OEU044005OEU044003

3-17
Convenient features of your vehicle
3. Close the mid sliding door.
To open the mid sliding door, pull the
outside door handle.
Even though the door may be
unlocked, the mid sliding door will
not open by pulling the inner doorhandle until mid sliding door child
safety lock is unlocked.Your vehicle's mid sliding door may
be equipped with an electrical step.
When getting in and out of the vehi-
cle, use the grab handles and electri-
cal step.If you turn on the step switch to oper-
ate the electrical step, the electrical
step automatically extends when themid sliding door is opened and
retracts when it is closed. When the
electrical step is either in operation
or extended out, the electrical step
indicator illuminates on the instru-
ment cluster.
3
Mid sliding door lock
If children accidentally open the mid sliding door while the vehi-
cle is in motion, they could fall
out and be severely injured or
killed. To prevent children fromopening the mid sliding door
from the inside, the mid sliding
door safety lock should be used
whenever children are in the
vehicle.
WARNINGOEU044188
OEU044048
EE
LLEE CCTT RR IICC AA LL SS TT EEPP (( IIFF EE QQ UUIIPP PPEEDD ))

3-18The default setting of the STEP
switch is the ON position.
Press the STEP switch, when the
electrical step is not in use in regard-less of opening/closing of the mid-
sliding door.
In this case, the LED indicator on the
STEP switch goes OFF.
To use the electrical step, re-press
the STEP switch. Then, the LED indi-
cator on the STEP switch will illumi-
nate.
Conditions to extend the electrical step:
1) The vehicle is stopped.
2) The shift gear is in N (Neutral).
3) Either the parking brake or the
foot brake is applied.
The electrical step automatically
retracts in from the “extending-out”position, when the conditions 1 and 2are unsatisfied. When the electrical step is extend-
ed out, the accelerator inter-lock
operates to block the vehicle
acceleration for your safety.
NOTICE
Convenient features of your vehicle
Never move the shift lever,
when any passengers exit or
enter the vehicle through the
mid sliding door. In this situa-
tion, shifting the gear out of N(Neutral) causes the electrical
step to abruptly retract and the
passengers to fall from it, caus-
ing the serious body injury.
Always make sure that all pas-
sengers enter or exit the vehi-
cle, before shifting the gear.
WARNING
If you do not use the grab han-
dle and the step, you could
injure yourself when getting in
and out of the vehicle.
To prevent risks:
Draw the passengers' atten-
tion to the electrical step. Wait
until the electrical step is fully
extended.
Do not jump out of the vehi-
cle.
Only use the grab handle and
step. Only they are designed
for such a load.
Keep grab handles, access
steps and entry sills free from
dirt, e.g. mud, clay, snow and
ice.
WARNING
