2015 Hyundai H350 Owner's Manual

2-37
Safety system of your vehicle
2

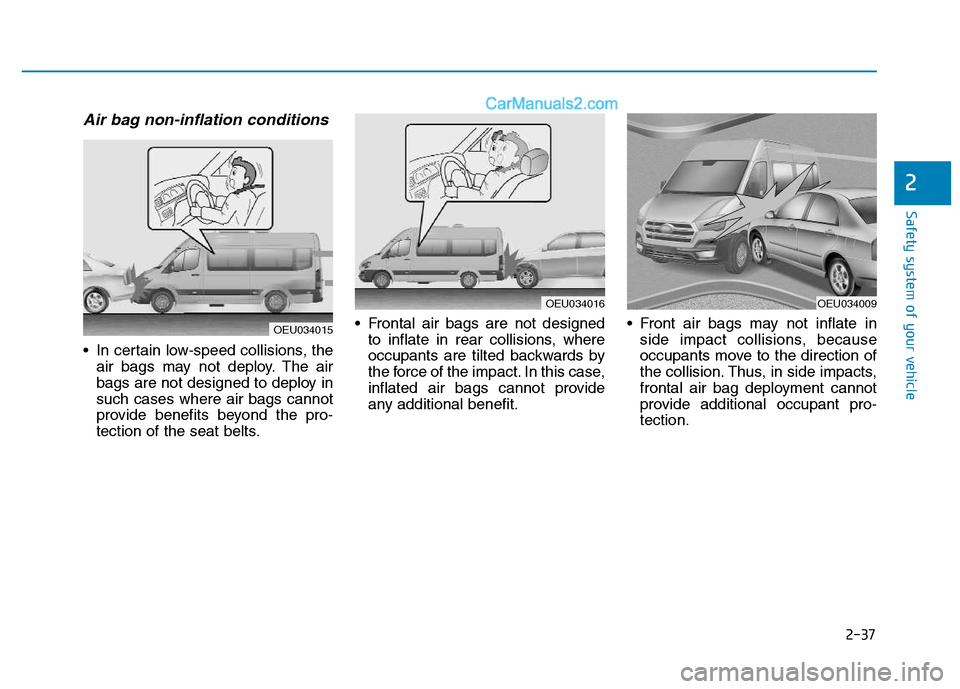

Air bag non-inflation conditions
In certain low-speed collisions, theair bags may not deploy. The air
bags are not designed to deploy insuch cases where air bags cannot
provide benefits beyond the pro-
tection of the seat belts. Frontal air bags are not designed
to inflate in rear collisions, where
occupants are tilted backwards by
the force of the impact. In this case,
inflated air bags cannot provide
any additional benefit. Front air bags may not inflate in
side impact collisions, because
occupants move to the direction of
the collision. Thus, in side impacts,
frontal air bag deployment cannot
provide additional occupant pro-tection.
OEU034015
OEU034016OEU034009

2-38
Safety system of your vehicle
In an angled collision, the force ofimpact may direct the occupants in a direction where the air bags can-
not provide any additional benefit.
Thus, the sensors may not deploy
any air bags. Just before an impact, drivers often
brake heavily. Such heavy braking
lowers the front portion of the vehi-
cle, causing it to "ride" under a
vehicle ahead with a higher ground
clearance.
Air bags may not inflate in this
"under-ride" collision, because
deceleration may significantly
reduce the impact force, which is to
be detected by the sensor. Air bags may not inflate in rollover
accidents because air bag deploy-
ment cannot provide protection to
the occupants.
1TQA2089OEU034019OEU034010

2-39
Safety system of your vehicle
2
Air bags may not inflate, when thevehicle collides with objects such
as utility poles or trees, where the
impacts are concentrated to one
point. This is because the full force
of the impact is not delivered to the
sensors.
SRS Care
The SRS is virtually maintenance-
free. Thus, you do not need to main-
tain any SRS parts by yourself. When
the SRS air bag warning light does
not Illuminate, or when it continuous-
ly remains ON, we recommend that
the system be inspected by an
authorized HYUNDAI dealer.
OEU034021
Modification to SRS compo-
nents or wirings, such as
adding badges or the pad cov-
ers or body-structure modifi-
cations, may adversely affect
SRS performance and lead to
possible injury.
Use only a soft, dry cloth or the one moistened with plain
water to clean the air pad
cover. Solvents or cleaners
may adversely affect the air
bag covers and proper
deployment.
No objects should be placed
over or near the air bag mod-ules on the steering wheel,
the instrument cluster, and
the front panel above the
glove box. Any such object
may cause harm, when the
vehicle is in a crash severe
enough to inflate the air bags.
(Continued)
WARNING

2-40
Safety system of your vehicle
Additional safety precautions
Never let passengers ride in the
trunk or on top of a foldeddown
seatback. All occupants should sit
upright, fully back in their seats
with their seat belts fastened and
their feet rested on the floor.
Passengers should not move
out of their seats or change their
seat positions, when the vehicleis in motion. A passenger, who
does not fasten a seat belt during a
crash or emergency stop, may be
thrown against the vehicle interior,
against other occupants, or out of
the vehicle.
Each seat belt is designed torestrain one occupant. When
more than one person uses the
same seat belt, they may be seri-ously injured or killed in a collision.
Do not use any accessories onseat belts. Devices, which the
manufacturers claim to improve
occupants’ comfort, may reduce
the protection provided by the seat
belt and increase the risk of seri-
ous injury in a crash.
(Continued)When the air bags inflate, we recommend that the system
be replaced by an authorized
HYUNDAI dealer.
Do not modify or disconnect SRS wirings or other SRS
components. Such attempts
may result in injury, because
an air bag may accidentally
inflate or deactivate the SRSsystem.
Observe any safety precau-
tions to discard the air bagsystem or to scrape the vehi-
cle. An authorized HYUNDAI
dealer knows these precau-
tions and can give you the
necessary information.
Failure to follow these precau-
tions and procedures may
increase the risk of personal
injury.
(Continued)
(Continued)
When your vehicle is flooded or when the floor mats are
soaked with water, do not
attempt to start the engine. We
recommend that you contact
an authorized HYUNDAI deal-
er.

2-41
Safety system of your vehicle
2
Passengers should not place
hard or sharp objects between
themselves and the air bags.
Carrying hard or sharp objects on
your laps or in your mouth may
result in injury, when an air bag
inflates.
Keep occupants away from the
air bag covers. All occupants
should sit upright, fully back in their
seats with their seat belts fastened
and their feet rested on the floor.When occupants are too close to
the air bag, they may be injured byan inflating air bag.
Do not attach or place objects
on or near the air bag covers.
Any object attached to or placed
on the front air bag covers may
interfere with the proper operation
of the air bags.
Do not modify the front seats.
Modification of the front seats may
interfere with the sensing operation
of the supplemental restraint sys-tem.
Do not place items under the
front seats. Placing items under
the front seats may interfere with
the sensing operation of the sup-
plemental restraint system and
wiring harnesses.
Never hold an infant or child on
your laps. The infant or child may
be seriously injured or killed in the
event of a crash. All infants and
children should be properly
restrained in appropriate child
safety seats or seat belts in a rearseat.
Sitting improperly or out of
position may cause occu-
pants to be shifted too close
to a deploying air bag, strikethe interior structure or be
thrown out of the vehicle,
resulting in serious injury ordeath.
Always sit upright with the
seatback in an upright posi-
tion, centered on the seat
cushion with your seat belt
on, legs comfortably extended
and feet rested on the floor.
WARNING

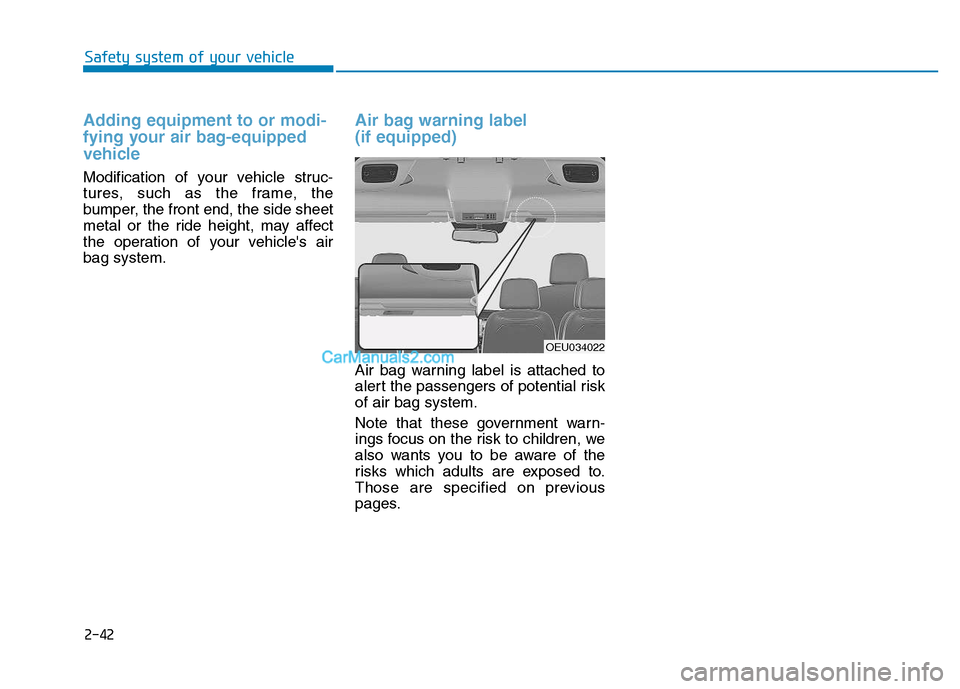

Adding equipment to or modi-
fying your air bag-equipped
vehicle
Modification of your vehicle struc-
tures, such as the frame, the
bumper, the front end, the side sheet
metal or the ride height, may affect
the operation of your vehicle's airbag system.
Air bag warning label (if equipped)
Air bag warning label is attached to
alert the passengers of potential riskof air bag system.
Note that these government warn-
ings focus on the risk to children, we
also wants you to be aware of the
risks which adults are exposed to.
Those are specified on previous
pages.
OEU034022
