2015 Hyundai H350 Owner's Manual

Page 353 of 473

Hyundai H350 2015  Owners Manual 6-18
What to do in an emergency
11. Reinstall wheel nuts
To reinstall the wheel, hold it on the
studs, put the wheel nuts on thestuds and tighten them finger tight.Jiggle the tire to be sure it is c

Page 354 of 473

Hyundai H350 2015  Owners Manual 6-19
What to do in an emergency
6

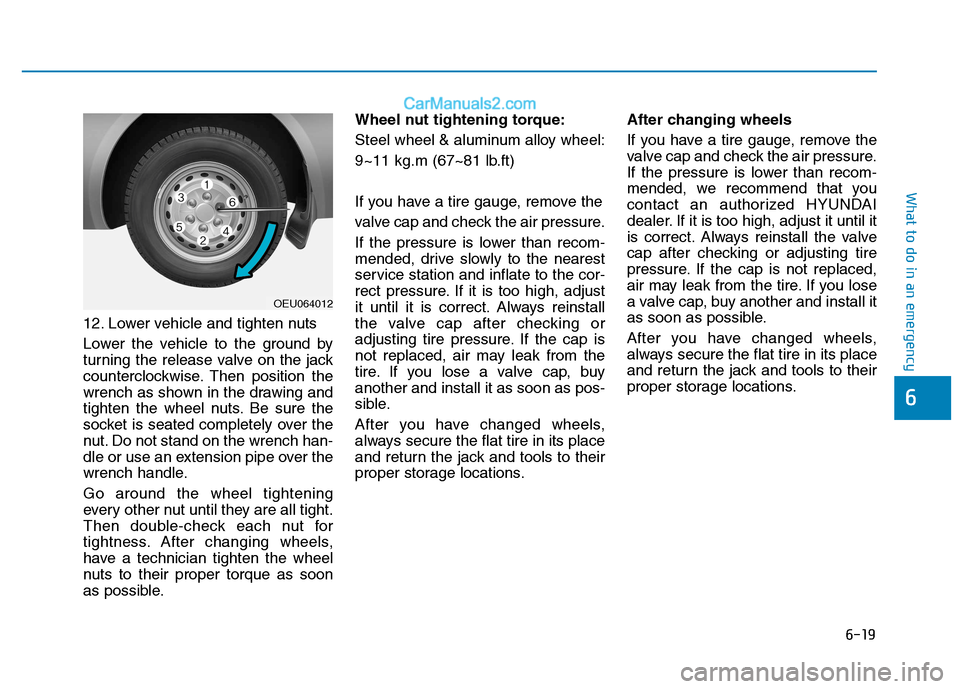

12. Lower vehicle and tighten nuts
Lower the vehicle to the ground by
turning the release valve on the jack
counterclockwise. Then position the
wrench as shown in t

Page 355 of 473

Hyundai H350 2015  Owners Manual 6-20
What to do in an emergency

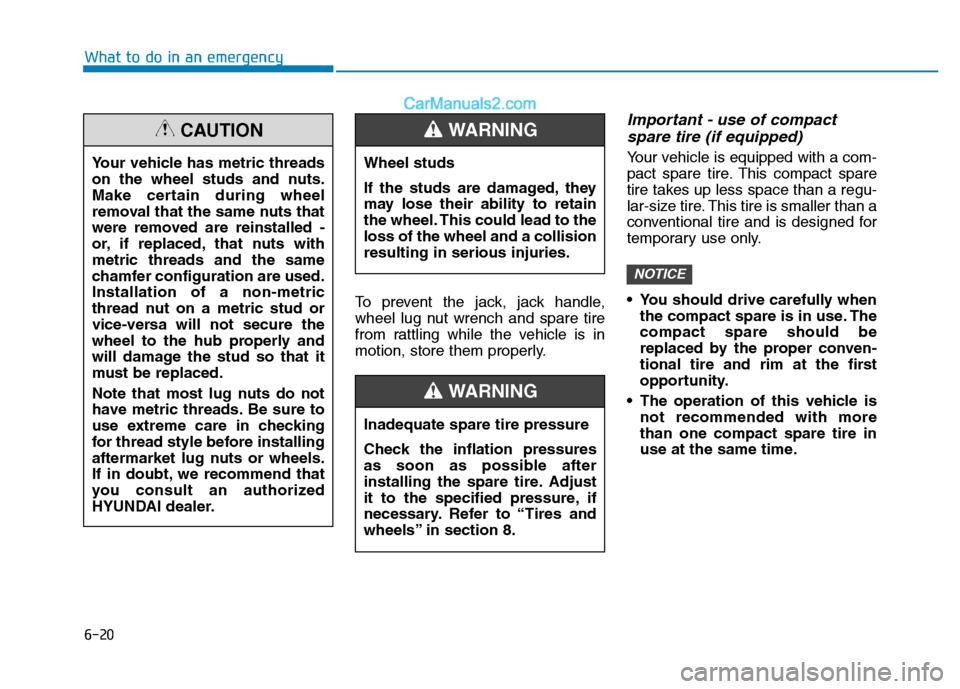

To prevent the jack, jack handle,
wheel lug nut wrench and spare tire
from rattling while the vehicle is in
motion, store them properly.
Important - use of compactspar

Page 356 of 473

Hyundai H350 2015  Owners Manual 6-21
What to do in an emergency
6

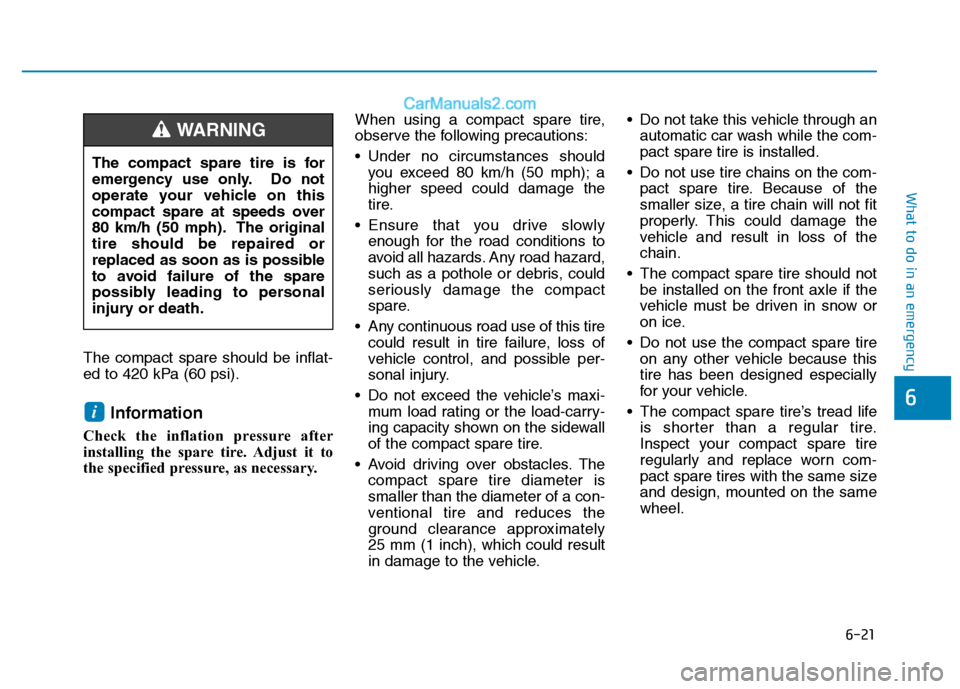

The compact spare should be inflat-
ed to 420 kPa (60 psi).Information
Check the inflation pressure after
installing the spare tire. Adjust it to
the specified pres

Page 357 of 473

Hyundai H350 2015  Owners Manual 6-22
What to do in an emergency

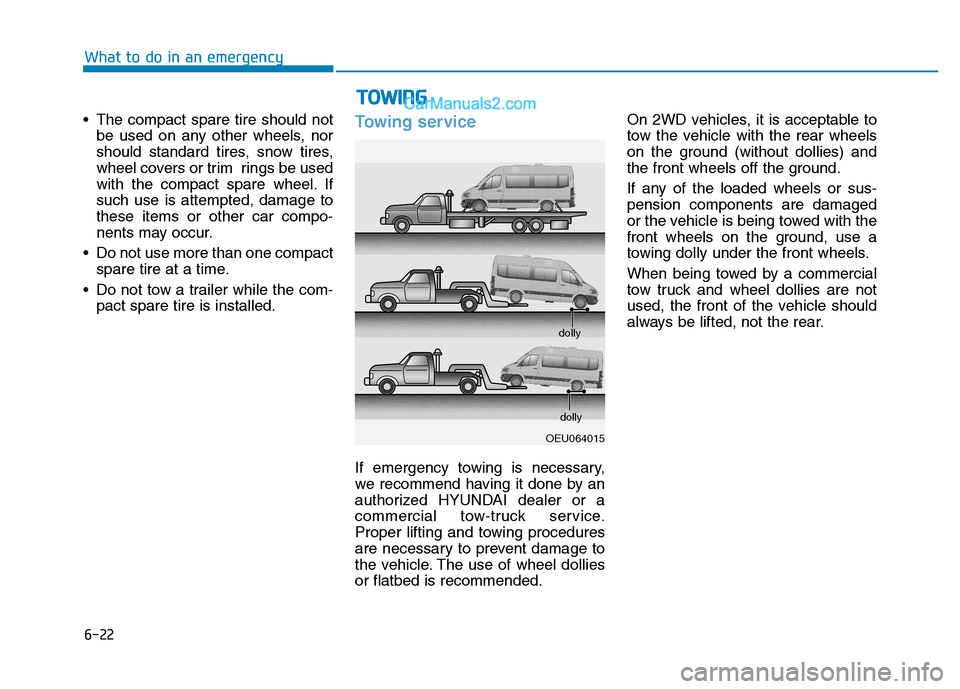

 The compact spare tire should notbe used on any other wheels, nor
should standard tires, snow tires,
wheel covers or trim  rings be used
with the compact spare wheel.

Page 358 of 473

Hyundai H350 2015  Owners Manual 6-23
What to do in an emergency
6

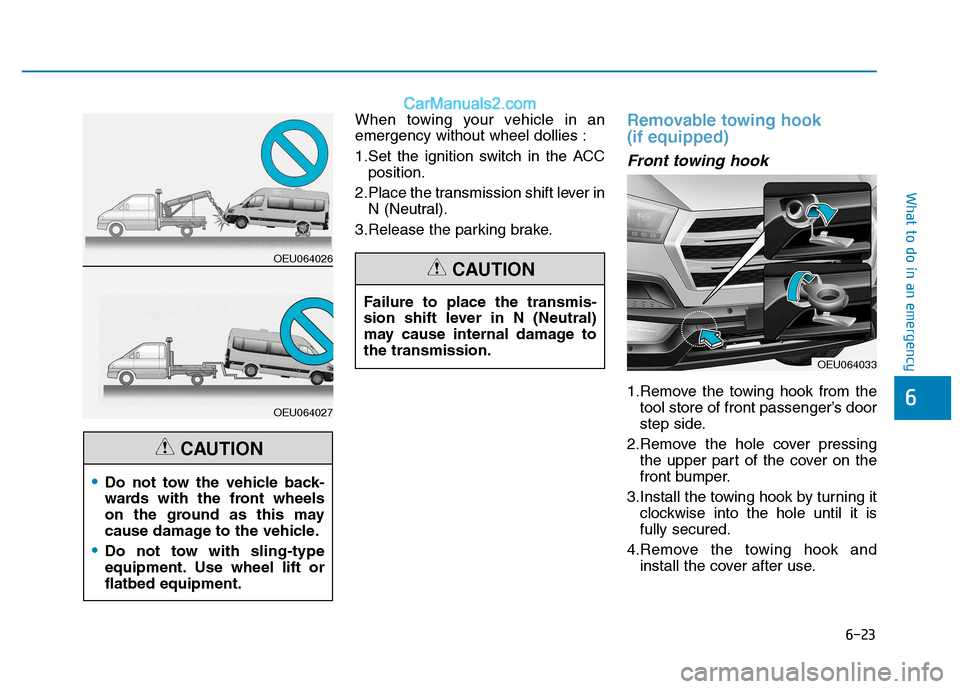

When towing your vehicle in an emergency without wheel dollies :
1.Set the ignition switch in the ACCposition.
2.Place the transmission shift lever in N (Neutral).
3

Page 359 of 473

Hyundai H350 2015  Owners Manual 6-24
What to do in an emergency
Emergency towing
If towing is necessary, we recom-
mend you to have it done by an
authorized HYUNDAI dealer or a
commercial tow truck service.If towing service is not

Page 360 of 473

Hyundai H350 2015  Owners Manual 6-25
What to do in an emergency
6

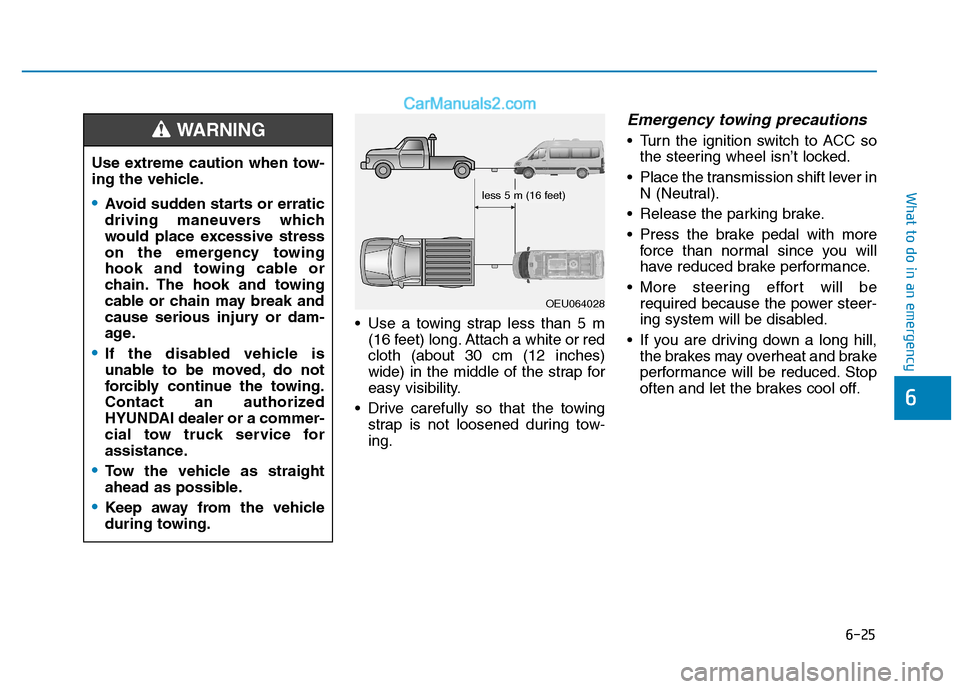

 Use a towing strap less than 5 m(16 feet) long. Attach a white or red cloth (about 30 cm (12 inches)
wide) in the middle of the strap for
easy visibility.
 Drive car
