2014 TOYOTA SIENNA Owners Manual

5
When trouble arises
777
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
Emergency start function (vehicles with a smart key system)
When the engine does not start, the following steps can be used as
an interim measure to start the engine if the “ENGINE START STOP”
switch is functioning normally: Set the parking brake.
Shift the shift lever to P.
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch for about
15 seconds while depressing the brake pedal firmly.
Even if the engine can be start ed using the above steps, the system
may be malfunctioning. Have the vehicle inspected by your Toyota
dealer.
■ The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
● One or both of the battery terminals may be disconnected.
● The battery may be discharged. ( P. 784)
● There may be a malfunction in the steering lock system (vehi-
cle with a smart key system).
Contact your Toyota dealer if the problem cannot be repaired, or if
repair procedures are unknown.
STEP1
STEP2
STEP3
STEP4

778
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

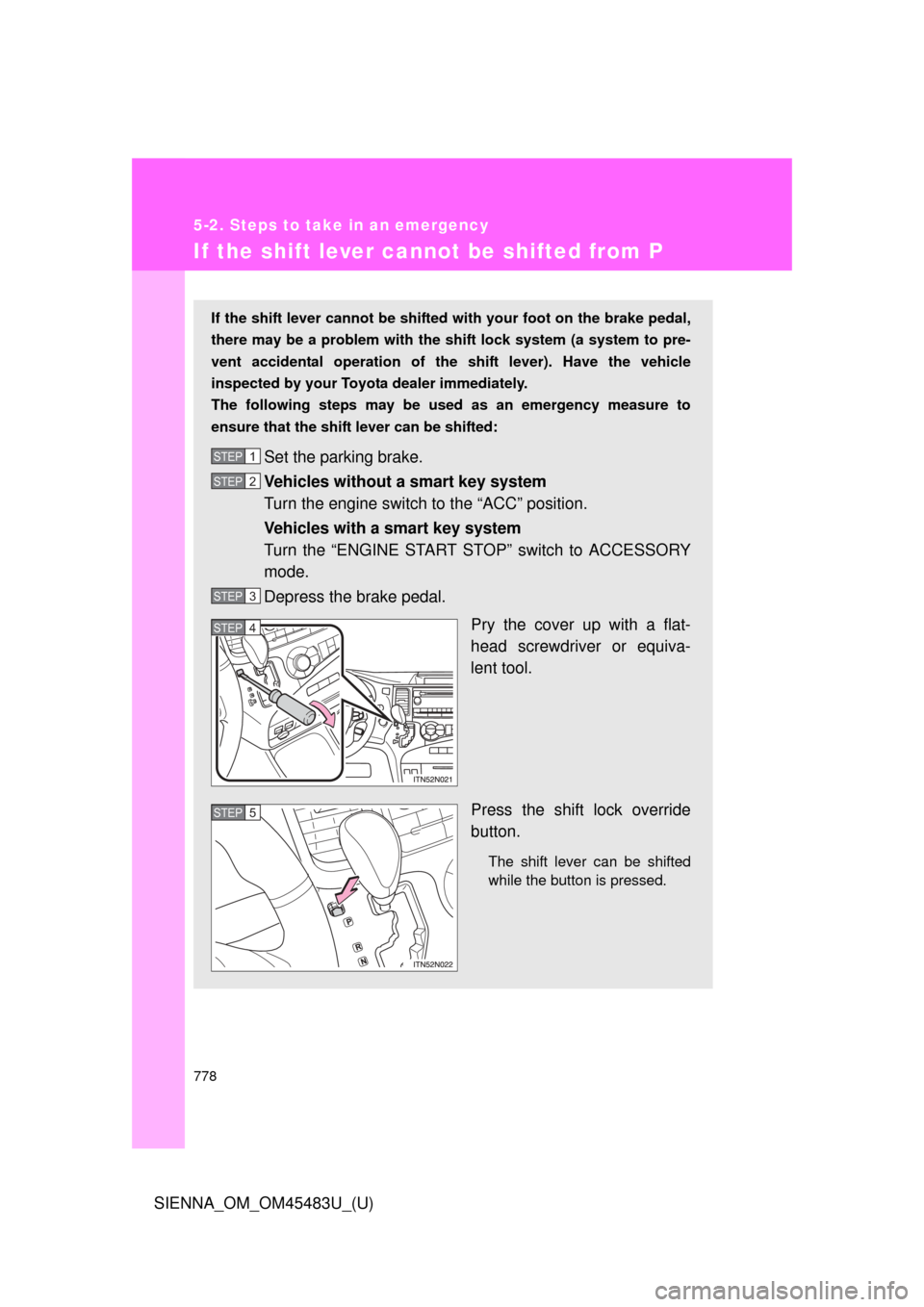

If the shift lever cannot be shifted from P
If the shift lever cannot be shifted with your foot on the brake pedal,
there may be a problem with the sh ift lock system (a system to pre-
vent accidental operation of the shift lever). Have the vehicle
inspected by your Toyo ta dealer immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted:
Set the parking brake.
Vehicles without a smart key system
Turn the engine switch to the “ACC” position.
Vehicles with a smart key system
Turn the “ENGINE START STOP” switch to ACCESSORY
mode.
Depress the brake pedal.
Pry the cover up with a flat-
head screwdriver or equiva-
lent tool.
Press the shift lock override
button.
The shift lever can be shifted
while the button is pressed.
STEP1
STEP2
STEP3
STEP4
STEP5

5
When trouble arises
779
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
■
If the beep sounds continuously when the shift lever is shifted from P
(vehicles with an AUTO ACCESS SEAT)
The AUTO ACCESS SEAT may not be locked in place.
For details, refer to “AUTO ACCESS SEAT OWNER’S MANUAL”.

780
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

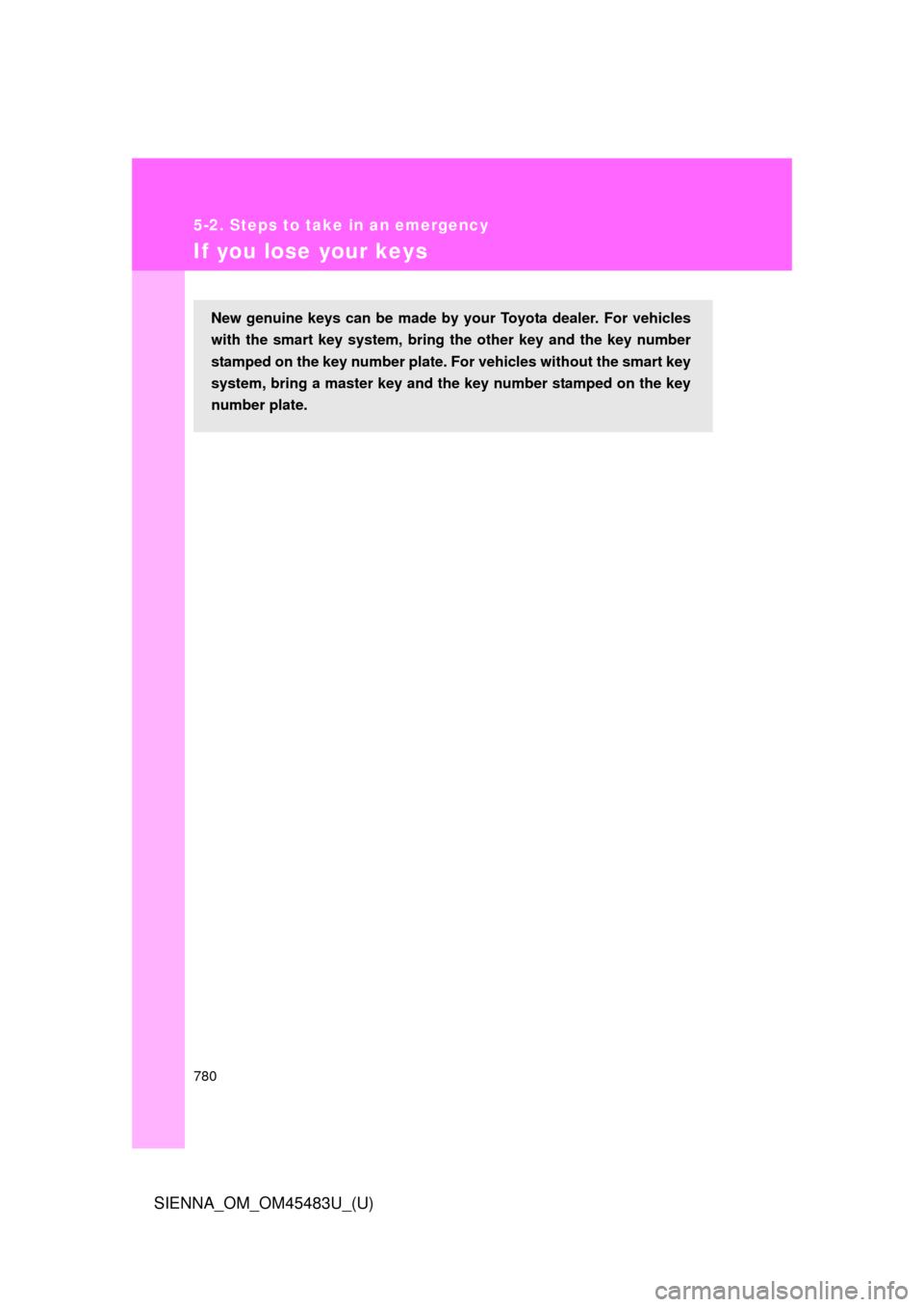

If you lose your keys
New genuine keys can be made by your Toyota dealer. For vehicles
with the smart key system, bring the other key and the key number
stamped on the key number plate. For vehicles without the smart key
system, bring a master key and the key number stamped on the key
number plate.

5
When trouble arises
781
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
If the electronic key does not operate properly
Locking and unlocking the doors and key linked functions
Using the mechanical key
( P. 33) in order to perform
the following operations.
Locks all doors
Unlocks all doors
Turning the key rearward unlocks
the driver’s door. Turning the key
once again within 3 seconds
unlocks the other doors.
: If equipped
For vehicles with a smart key system : If communication between the
electronic key and vehic le is interrupted (P. 36) or the electronic
key cannot be used because the batt ery is depleted, the smart key
system and wireless remote contro l cannot be used. In such cases,
the doors can be opened or the engine can be started by following
the procedure below.

782 5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
Starting the engineShift the shift lever to P and apply the brakes. Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE START
STOP” switch if any of the doors
is opened and closed while the
key is touched to the switch.
Press the “ENGINE START STOP” switch within 10 seconds
after the buzzer sounds, keepin g the brake pedal depressed.
In the event that the “ENGINE START STOP” switch cannot be oper-
ated, contact your Toyota dealer.
STEP1
STEP2
STEP3

5
When trouble arises
783
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)
■
Stopping the engine
Shift the shift lever to P and press the “ENGINE START STOP” switch as
you normally do when stopping the engine.
■ Replacing the key battery
As this above procedure is a temporary measure, it is recommended that the
electronic key battery be replaced immediately when the battery depletes.
(P. 708)
■ Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. ( P. 163)
■ Changing “ENGINE START STOP” switch modes
Within 10 seconds of the buzzer sounding, release the brake pedal and
press the “ENGINE START STOP” switch.
The engine does not start and modes will be changed each time the switch
is pressed. ( P. 233)

784
5-2. Steps to take in an emergency
SIENNA_OM_OM45483U_(U)

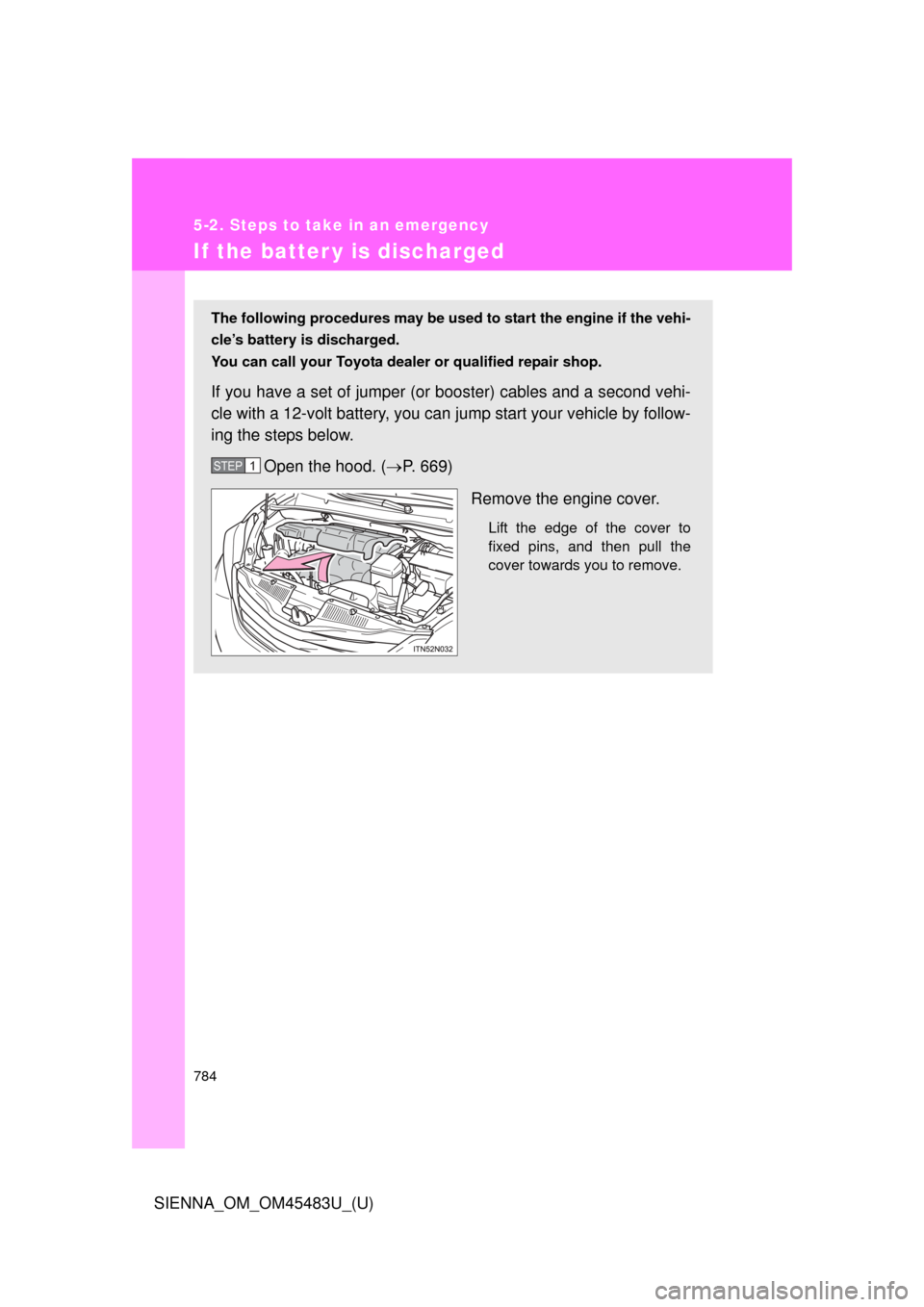

If the batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle’s battery is discharged.
You can call your Toyota dealer or qualified repair shop.
If you have a set of jumper (or boo ster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your vehicle by follow-
ing the steps below.
Open the hood. ( P. 669)
Remove the engine cover.
Lift the edge of the cover to
fixed pins, and then pull the
cover towards you to remove.
STEP1
