2014 TOYOTA SIENNA Owners Manual

713
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)

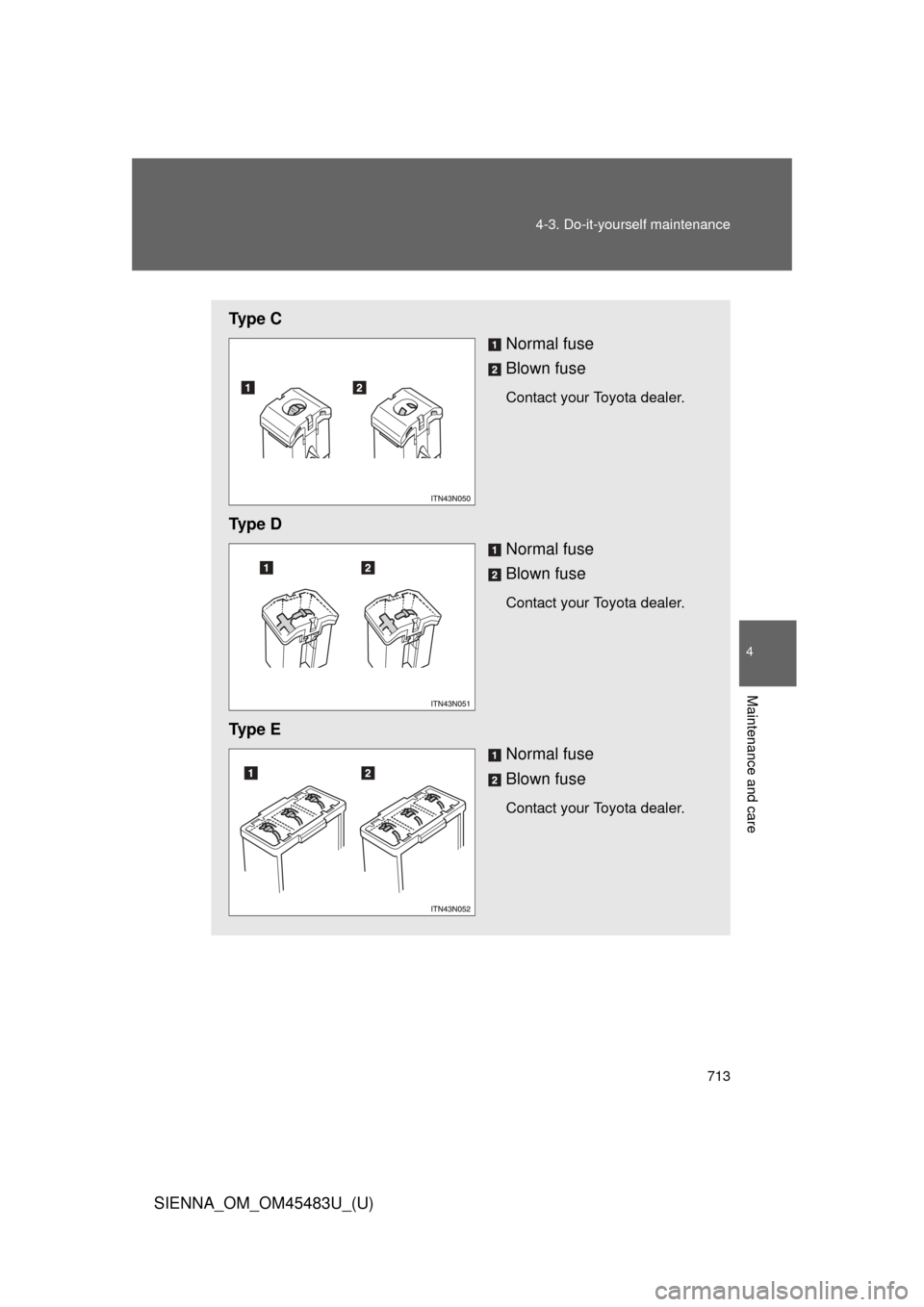

Ty p e C
Normal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e DNormal fuse
Blown fuse
Contact your Toyota dealer.
Ty p e ENormal fuse
Blown fuse
Contact your Toyota dealer.

714 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)

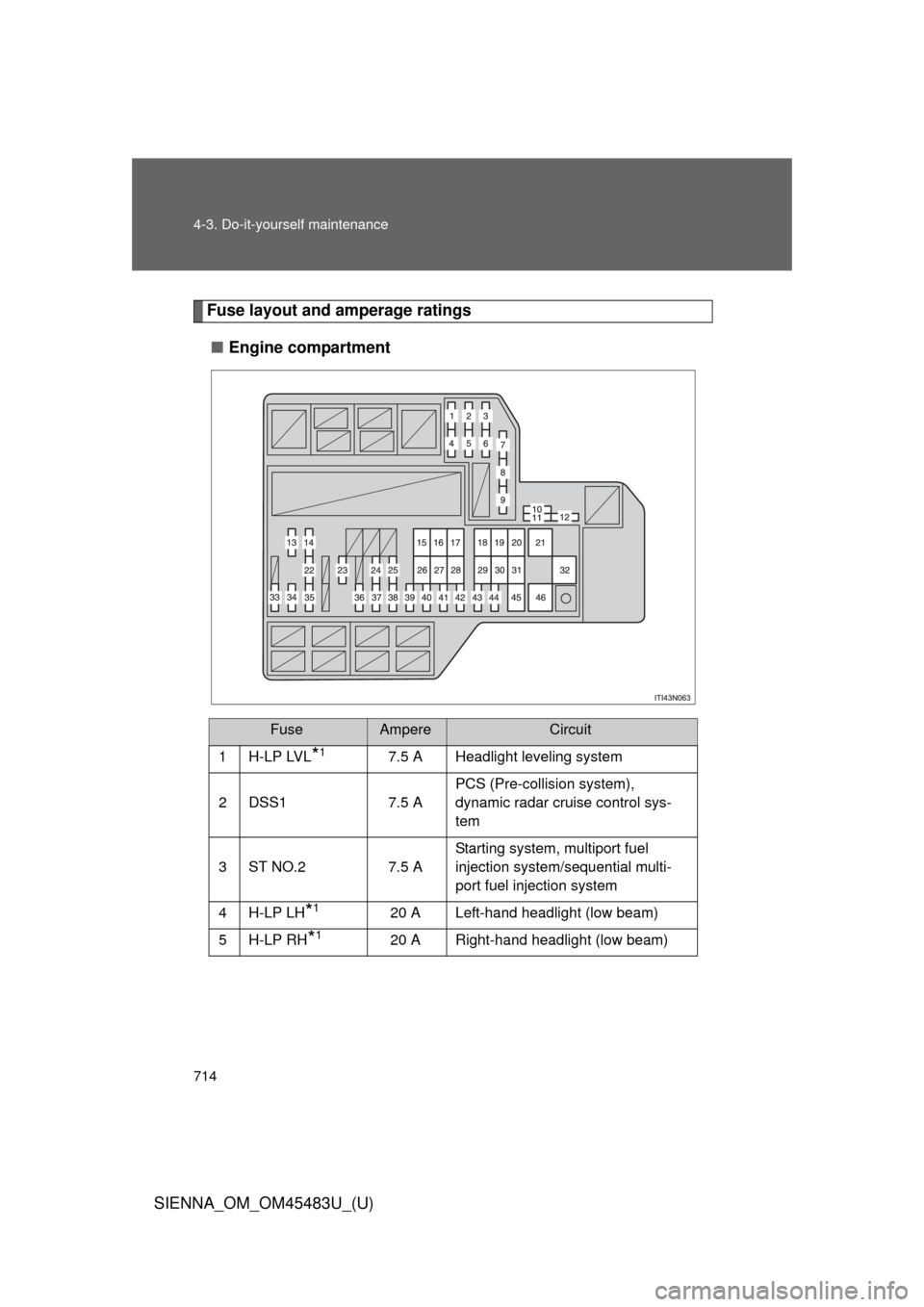

Fuse layout and amperage ratings■ Engine compartment
FuseAmpereCircuit
1H-LP LVL
*17.5 A Headlight leveling system
2 DSS1 7.5 A PCS (Pre-collision system),
dynamic radar cruise control sys-
tem
3 ST NO.2 7.5 A Starting system, multiport fuel
injection system/sequential multi-
port fuel injection system
4H-LP LH
*120 A Left-hand headlight (low beam)
5H-LP RH
*120 A Right-hand headlight (low beam)

715
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
6 ECT 7.5 A Multiport fuel injection system/
sequential multiport fuel injection
system, automatic transaxle
7 EFI NO.2 10 A Multiport fuel injection system/
sequential multiport fuel injection
system
8 H-LP RH HI 10 A Right-hand headlight (high beam)
9 H-LP LH HI 10 A Left-hand headlight (high beam)
10 SPARE 10 A Spare-fuse
11 SPARE 15 A Spare-fuse
12 SPARE 20 A Spare-fuse
13 MG CLT 7.5 A A/C magnetic clutch
14 INV 20 A Inverter
15 A/C RR 40 A Rear air conditioning system
16 PBD 30 A Power back door
17 FOLD SEAT 30 A Power third seat
18 HTR 50 A Air conditioning system
19 PSB 30 A Pre-collision seat belt
20 A/A SEAT 30 A AUTO ACCESS SEAT

716 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
21 FAN 60 A Electric cooling fans
22 HAZ 15 ATurn signal lights, gauges and
meters
23 RSE 15 A Rear seat entertainment system
24 MIRROR 10 AOutside rear view mirror control,
outside rear view mirror heaters
25 AMP 30 A Audio system
26 VSC NO.2 30 A Vehicle dynamics integrated man-
agement, ABS, vehicle stability
control
27 ST 30 A Starting system
28 P/I 40 AHorn, left-hand headlight (low
beam), right-hand headlight (low
beam)
29 H-LP MAIN
*140 A Discharge headlight
SPARE
*230 A Spare-fuse
30 AM2
*330 A “ST NO.2”, “GAUGE NO.2” and
“IG2” fuses
31 VSC NO.1 50 A Vehicle dynamics integrated man-
agement, ABS, vehicle stability
control

717
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
32 ALT 140 A Charging system, horn, left-hand
headlight (low beam), right-hand
headlight (low beam), fog light, out-
side rear view mirror heaters, rear
window defoggers, windshield
wiper de-icer
33 RAD NO.1 15 A Audio system
34 DOME 7.5 AVanity lights, personal/interior
lights, personal lights, engine
switch light, rear ceiling lights, door
courtesy lights, luggage compart-
ment light, gauges and meters,
clock
35 ECU-B 10 AMain body ECU, smart key system,
wireless remote control, power
back door, power sliding door, rear
view monitor, multi information dis-
play, power window, outside rear
view mirror control, steering angle
sensor, auto-anti glare inside rear
view mirror, AUTO ACCESS SEAT
remote control, front passenger
occupant classification system
36 ETCS 10 AMultiport fuel injection system/
sequential multiport fuel injection
system
37 A/F 20 AMultiport fuel injection system/
sequential multiport fuel injection
system
38 STRG LOCK
*420 A Steering lock system
39 ALT-S 7.5 A Charging system

718 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)
*1: Vehicles with discharge headlights only
*2: Vehicles without discharge headlights only
*3: Vehicles without a smart key system only
*4: Vehicles with a smart key system only
FuseAmpereCircuit
40 INJ 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, “IG NO.2” and “IG2” fuses
41 ECU-B NO.2 7.5 A Air conditioning system
42 AM2 NO.2
*47.5 A Multiplex communication system,
starting system
43 EFI NO.1 25 A Multiport fuel injection system/
sequential multiport fuel injection
system, “ECT” and “EFI NO.2”
fuses
44 SMART
*45 A Smart key system
45 DRL 30 A Daytime running light system, “H-
LP LH (HI)” and “H-LP RH (HI)”
fuses
46 EPS 60 A Electric power steering

719
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_OM_OM45483U_(U)
■

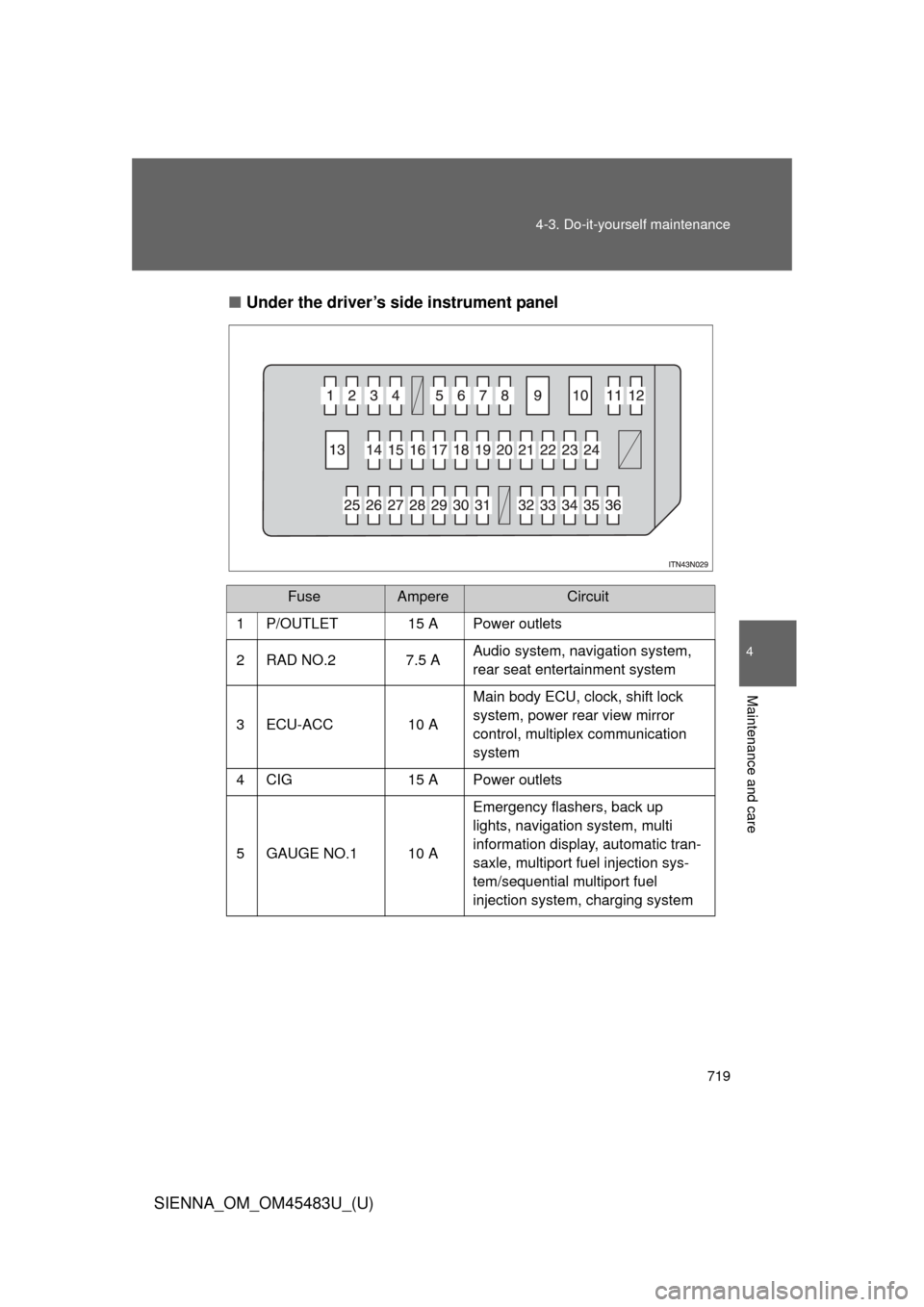

Under the driver’s side instrument panel
FuseAmpereCircuit
1P/OUTLET15 APower outlets
2 RAD NO.2 7.5 A Audio system, navigation system,
rear seat entertainment system
3 ECU-ACC 10 A Main body ECU, clock, shift lock
system, power rear view mirror
control, multiplex communication
system
4 CIG 15 A Power outlets
5 GAUGE NO.1 10 A Emergency flashers, back up
lights, navigation system, multi
information display, automatic tran-
saxle, multiport fuel injection sys-
tem/sequential multiport fuel
injection system, charging system

720 4-3. Do-it-yourself maintenance
SIENNA_OM_OM45483U_(U)
FuseAmpereCircuit
6 ECU-IG NO.1 10 A Multiplex communication system,
stop lights, navigation system,
vehicle stability control system,
Active Torque Control 4WD, intui-
tive parking assist, auto anti-glare
inside rear view mirror, pre-collision
seat belt, outside rear view mirror,
seat heater, TPMS, yaw rate & G
sensor, steering angle sensor,
AUTO ACCESS SEAT, main body
ECU, Blind Spot Monitor
7 P/W RL 20 A Rear power windows (left-side)
8 D/L 15 A Power door lock system
9 P/SEAT FR 30 A Power front seat (right-side)
10 S/ROOF 30 A Moon roof 11 P/W RR 20 A Rear power windows (right-side)
12 P/W FR 20 A Front power windows (right-side)
13 P/SEAT FL 30 A Power front seat (left-side), driving
position memory system
14 STOP 10 A Stop lights, ABS, vehicle stability
control system, rear combination
light, high mounted stop light, auto-
matic transaxle, shift lock system,
multiplex communication system,
power third seat switch, multiport
fuel injection system/sequential
multiport fuel injection system,
trailer lights (stop lights)
15 P/W FL 20 A Front power windows (left-side)
