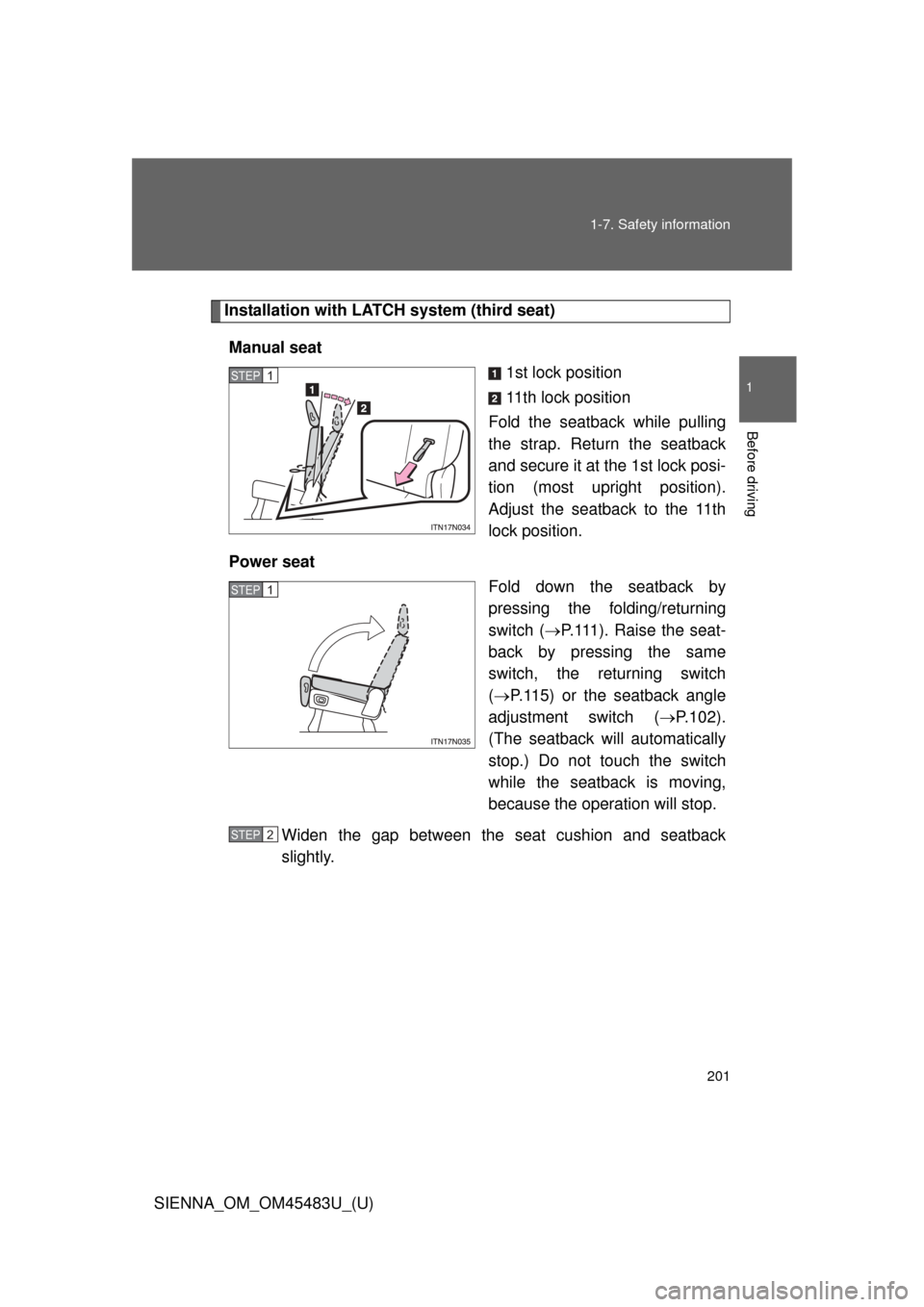

Installation with LATCH system (third seat)
Manual seat 1st lock position
11th lock position
Fold the seatback while pulling
the strap. Return the seatback
and secure it at the 1st lock posi-
tion (most upright position).
Adjust the seatback to the 11th
lock position.
Power seat Fold down the seatback by
pressing the folding/returning
switch (P.111). Raise the seat-
back by pressing the same
switch, the returning switch
(  P.115) or the seatback angle
adjustment switch ( P.102).
(The seatback will automatically
stop.) Do not touch the switch
while the seatback is moving,
because the operation will stop.
Widen the gap between the seat cushion and seatback
slightly.
STEP1
STEP1
STEP2

202 1-7. Safety information
SIENNA_OM_OM45483U_(U)Ty p e A

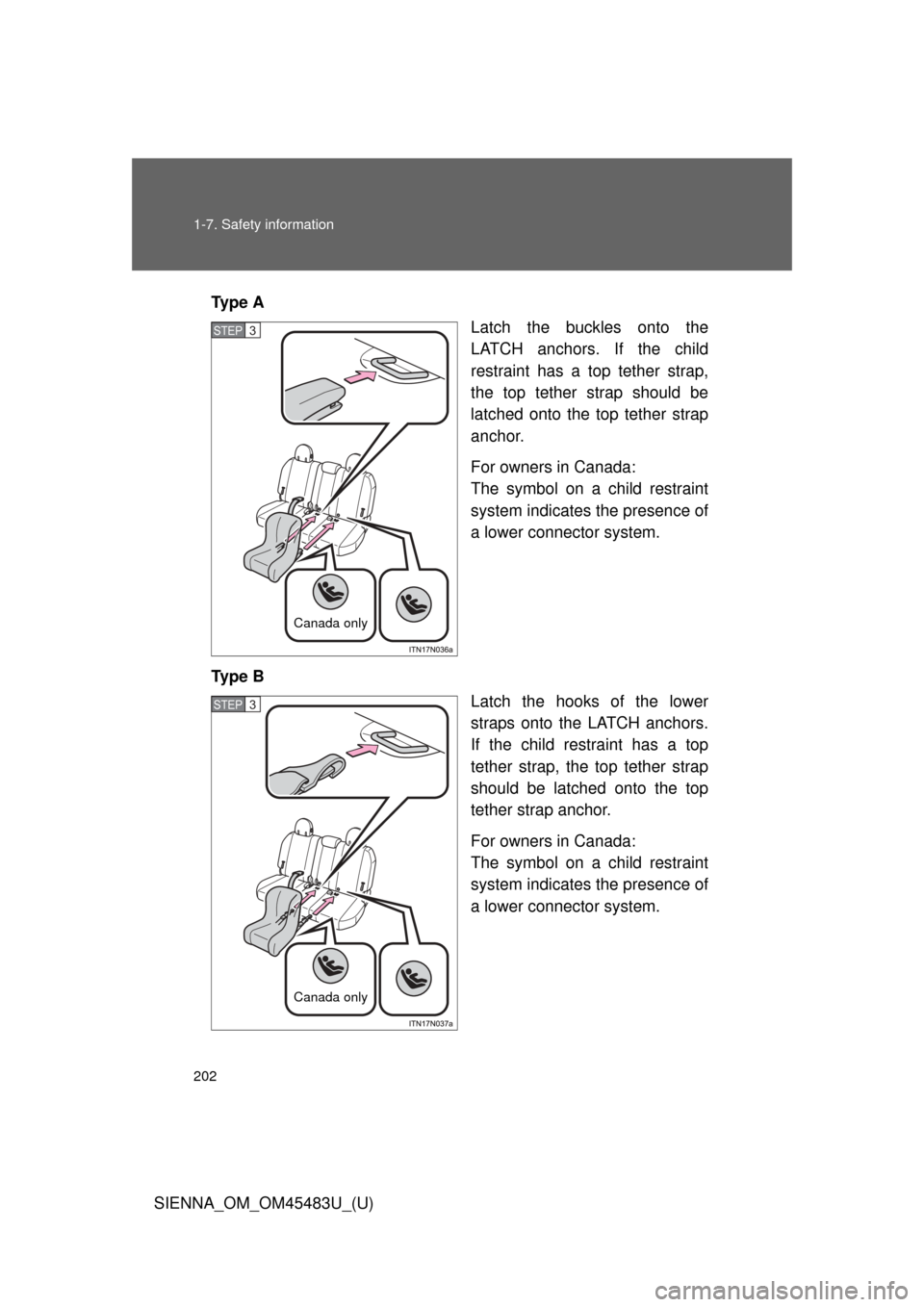

Latch the buckles onto the
LATCH anchors. If the child
restraint has a top tether strap,
the top tether strap should be
latched onto the top tether strap
anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
Ty p e B Latch the hooks of the lower
straps onto the LATCH anchors.
If the child restraint has a top
tether strap, the top tether strap
should be latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower connector system.
STEP3
Canada only
STEP3
Canada only

203
1-7. Safety information
1
Before driving
SIENNA_OM_OM45483U_(U)
Installing child restraints using a
seat belt (child restraint lock
function belt)

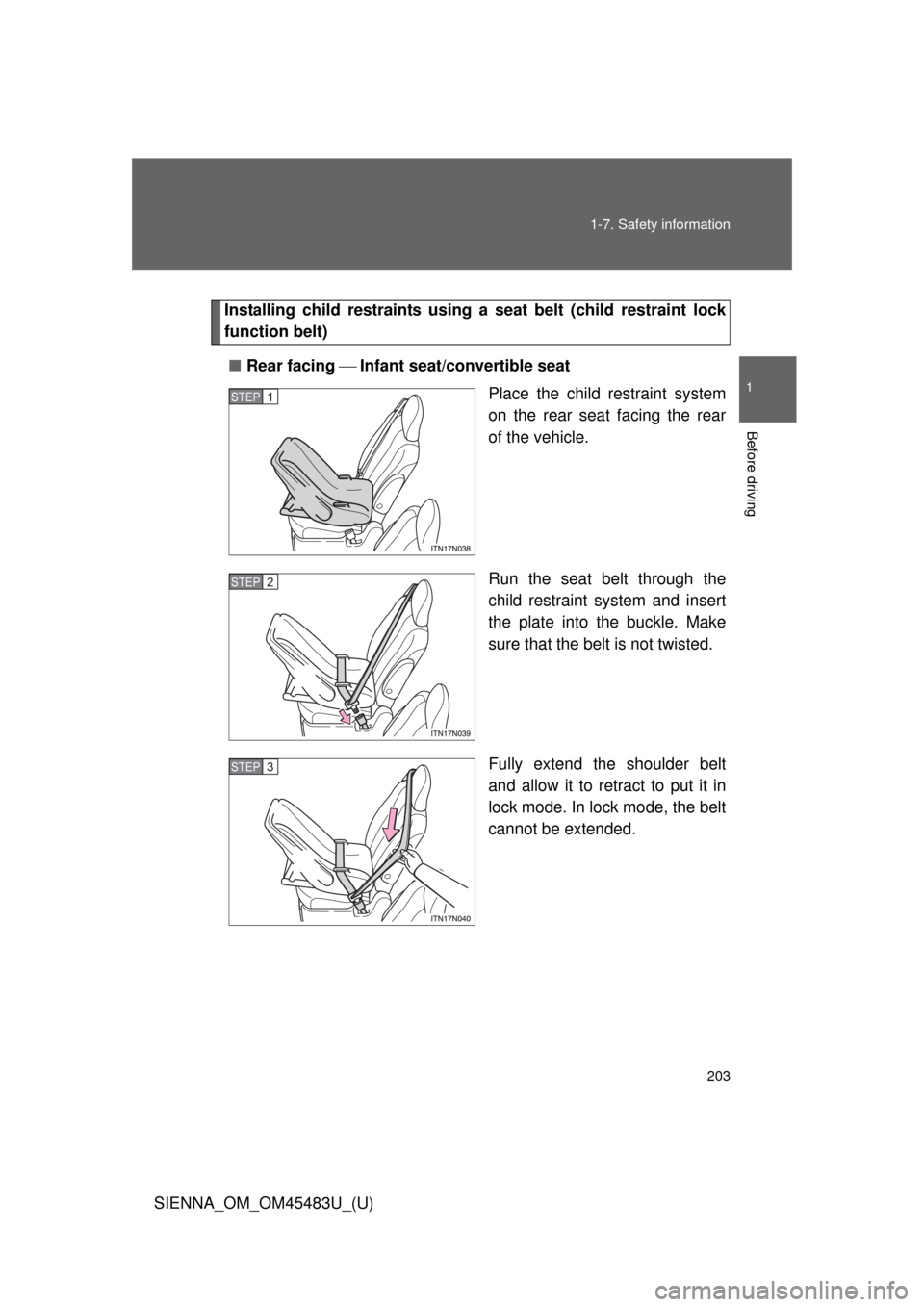

■ Rear facing Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.

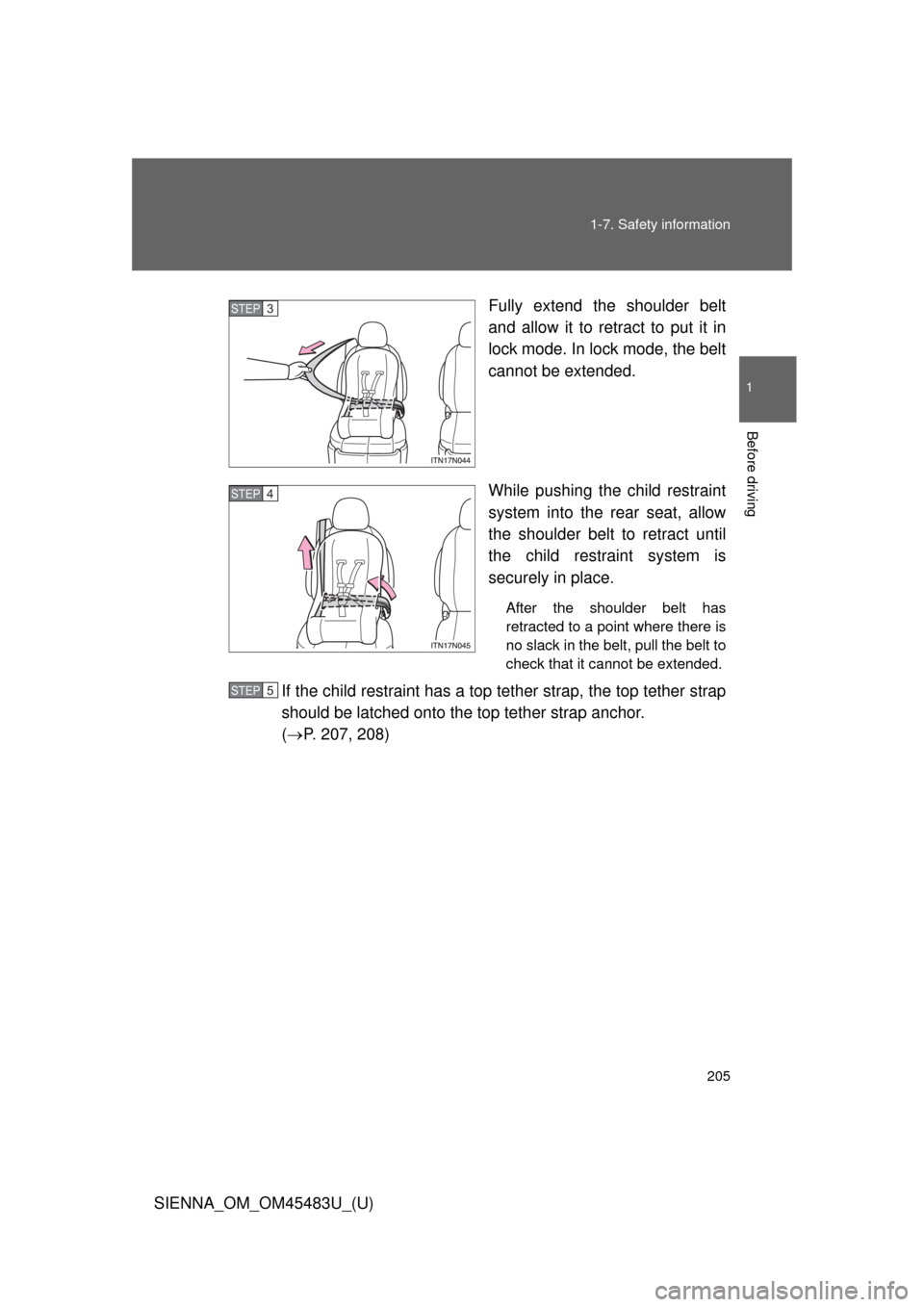

Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
STEP1
STEP2
STEP3

204 1-7. Safety information

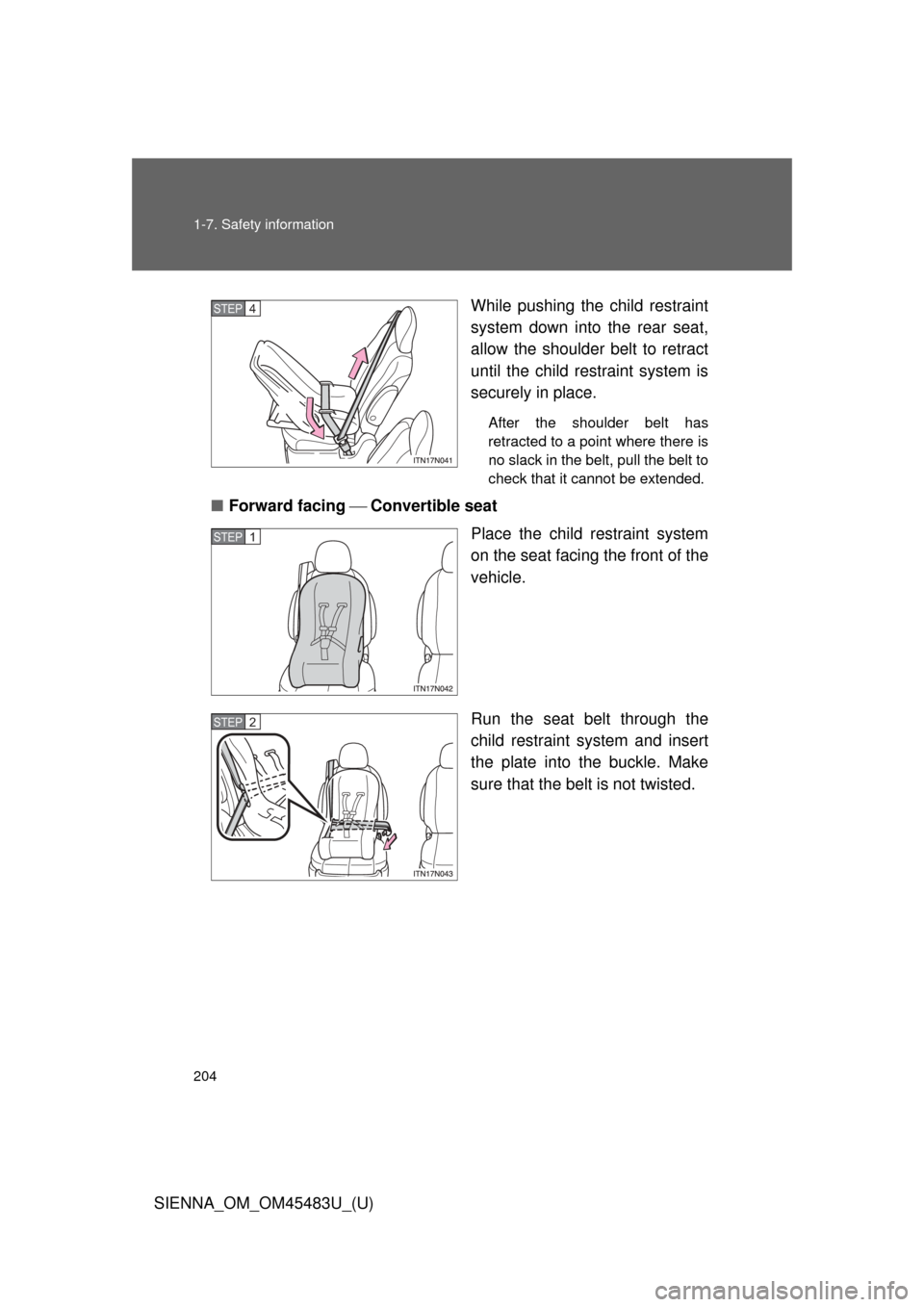

SIENNA_OM_OM45483U_(U)While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■
Forward facing Convertible seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
STEP4
STEP1
STEP2

205
1-7. Safety information
1
Before driving
SIENNA_OM_OM45483U_(U)
Fully extend the shoulder belt
and allow it to retract to put it in
lock mode. In lock mode, the belt
cannot be extended.
While pushing the child restraint
system into the rear seat, allow
the shoulder belt to retract until
the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top te
ther strap, the top tether strap
should be latched onto the top tether strap anchor.
(  P. 207, 208)
STEP3
STEP4
STEP5

206 1-7. Safety information
SIENNA_OM_OM45483U_(U)■

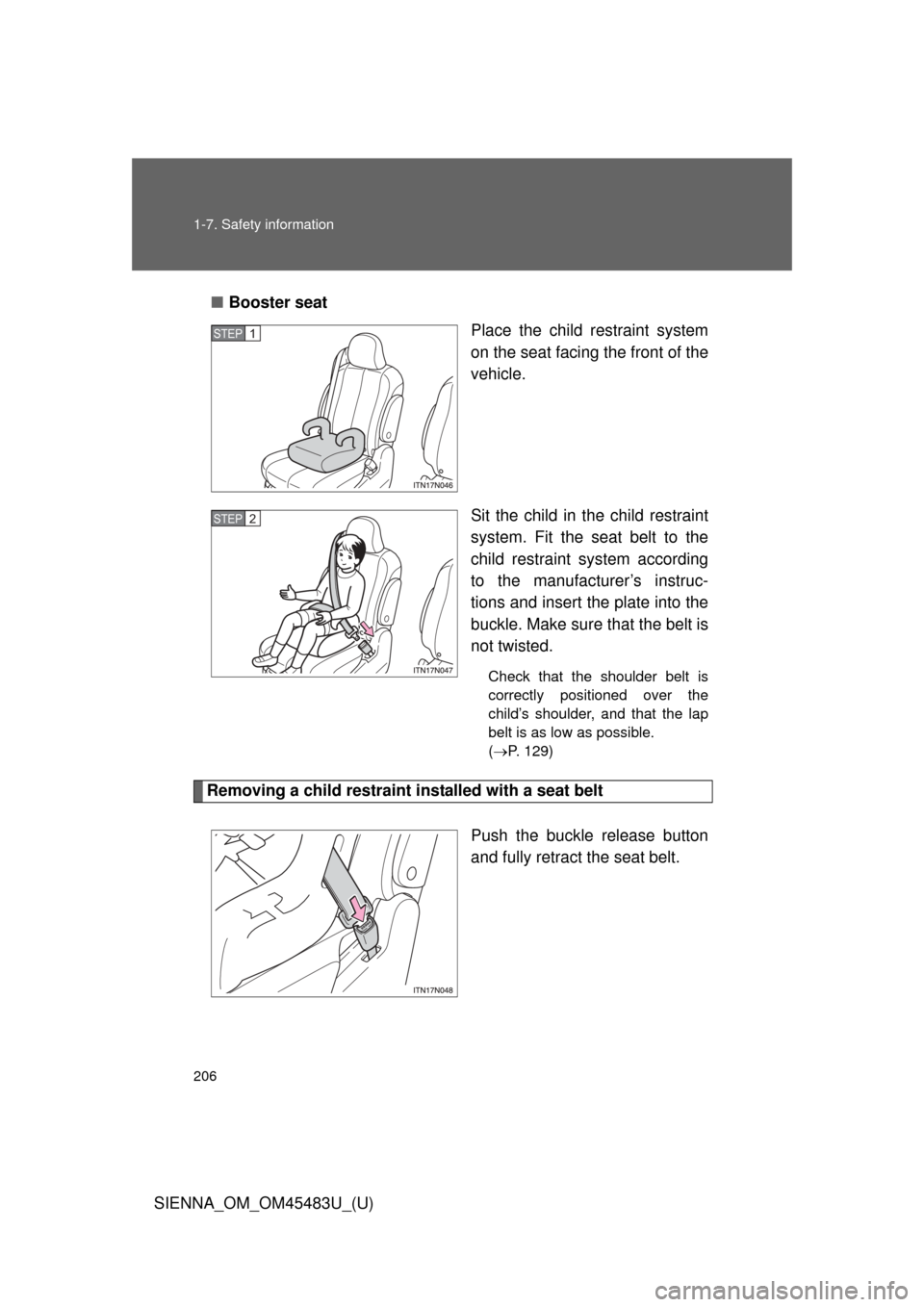

Booster seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
( P. 129)
Removing a child restraint installed with a seat belt
Push the buckle release button
and fully retract the seat belt.
STEP1
STEP2

207
1-7. Safety information
1
Before driving
SIENNA_OM_OM45483U_(U)

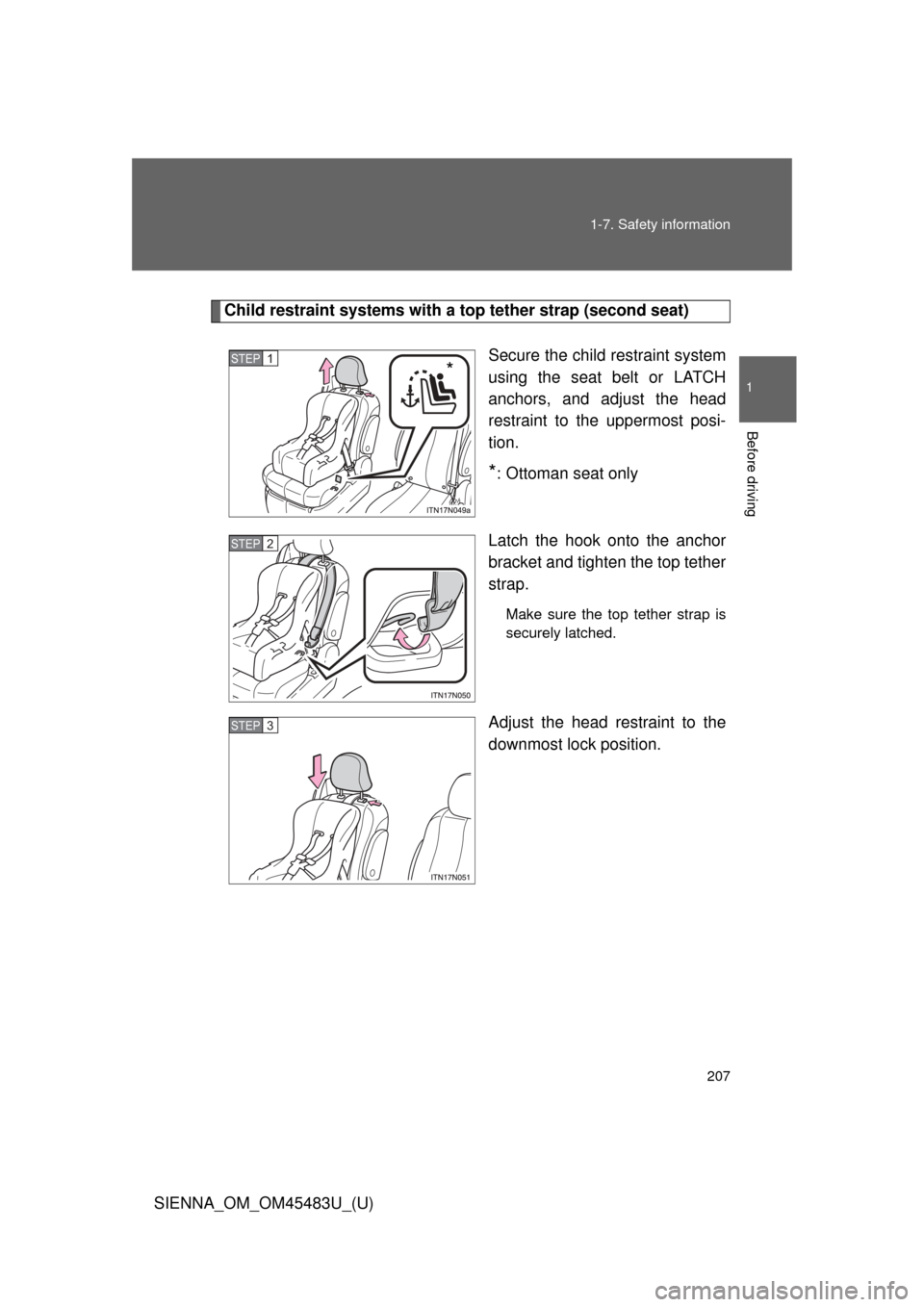

Child restraint systems with a
top tether strap (second seat)

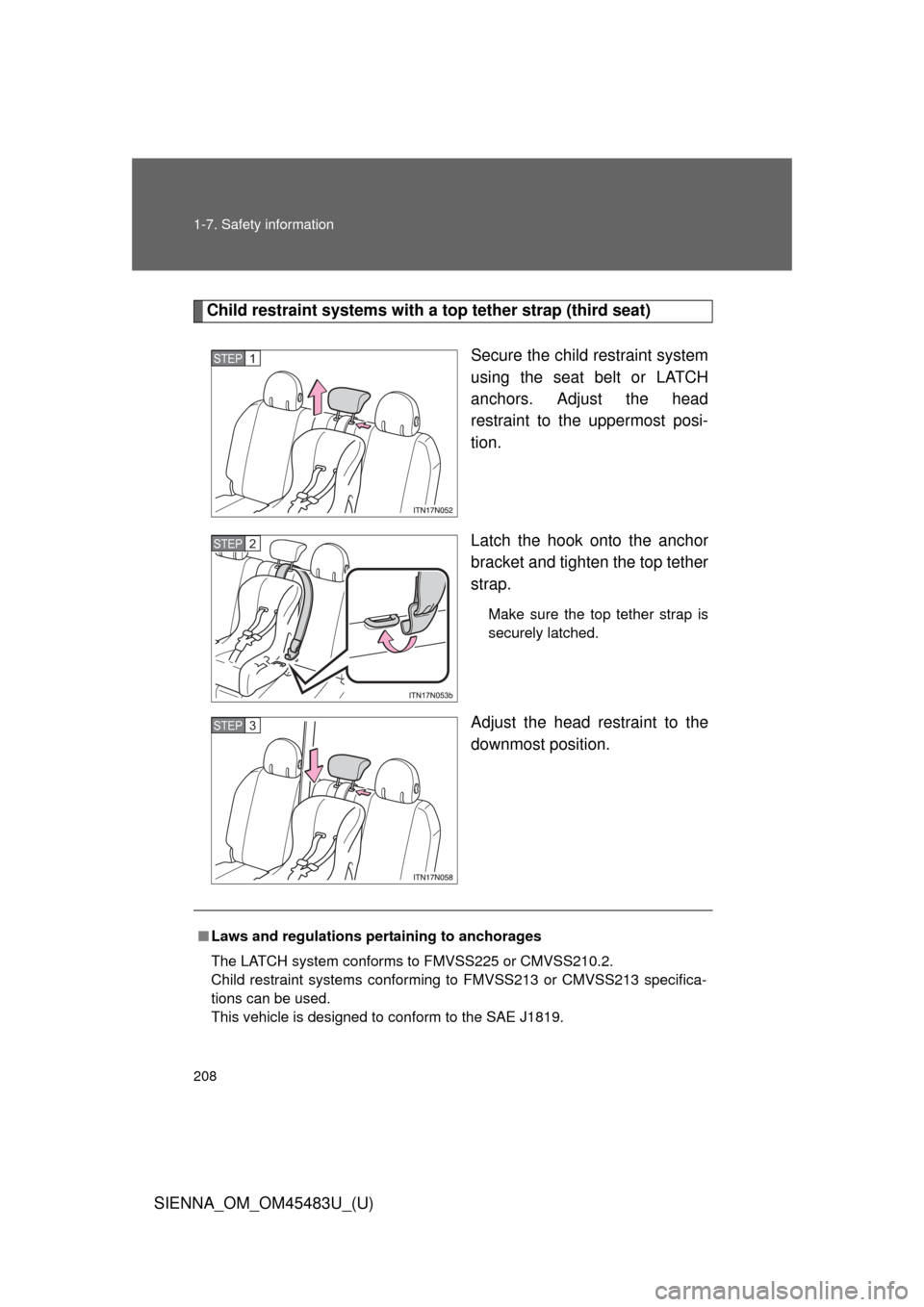

Secure the child restraint system
using the seat belt or LATCH
anchors, and adjust the head
restraint to the uppermost posi-
tion.
*: Ottoman seat only
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Adjust the head restraint to the
downmost lock position.
STEP1*
STEP2
STEP3

208 1-7. Safety information
SIENNA_OM_OM45483U_(U)
Child restraint systems with a top tether strap (third seat)Secure the child restraint system
using the seat belt or LATCH
anchors. Adjust the head
restraint to the uppermost posi-
tion.
Latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
Adjust the head restraint to the
downmost position.
STEP1
STEP2
STEP3
■Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.
