2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45483U_(U)
Indicators and warning lights
The indicator and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
■ Instrument cluster
■ Center display

250 2-2. Instrument cluster and information display
SIENNA_OM_OM45483U_(U)
■Outside rear view mirrors (if equipped)

251
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45483U_(U)
■

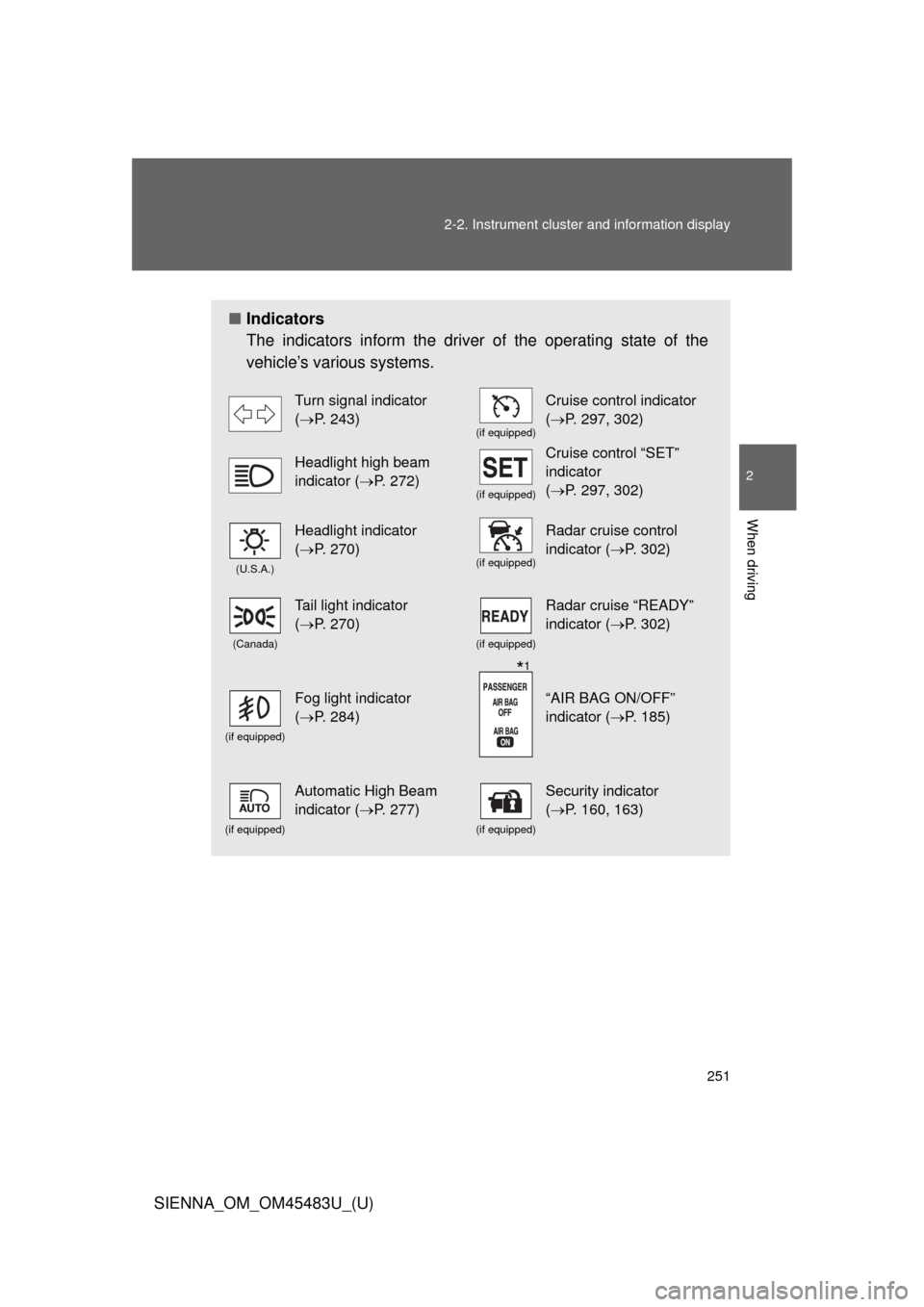

Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 243)
(if equipped)
Cruise control indicator
(P. 297, 302)
Headlight high beam
indicator ( P. 272)
(if equipped)
Cruise control “SET”
indicator
(P. 297, 302)
(U.S.A.)
Headlight indicator
(P. 270)
(if equipped)
Radar cruise control
indicator (P. 302)
(Canada)
Tail light indicator
(P. 270)
(if equipped)
Radar cruise “READY”
indicator (P. 302)
(if equipped)
Fog light indicator
(P. 284)“AIR BAG ON/OFF”
indicator (P. 185)
(if equipped)
Automatic High Beam
indicator ( P. 277)
(if equipped)
Security indicator
(P. 160, 163)
*1

252 2-2. Instrument cluster and information display
SIENNA_OM_OM45483U_(U)
*1: These lights turn on when the engine switch is turned to the “ON”position (vehicles without a smart key system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does
not come on, or if the lights do not turn off. Have the vehicle
inspected by your Toyota dealer.
*2: The light flashes to indicate that the system is operating.
*3: The light turns on when the system is turned off. The light flashesquickly to indicate that the system is operating.
Slip indicator
(P. 332, 337)Shift position indicators
(P. 240)
VSC OFF indicator
(P. 333)Eco Driving Indicator
Light ( P. 268)
“TRAC OFF” indicator
(P. 333)
(if equipped)
“PCS” warning
(P. 340)
BSM outside rear view
mirror indicators
(P. 348)
*1, 2
*1*1
*1*1, 3
*4

253
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45483U_(U)

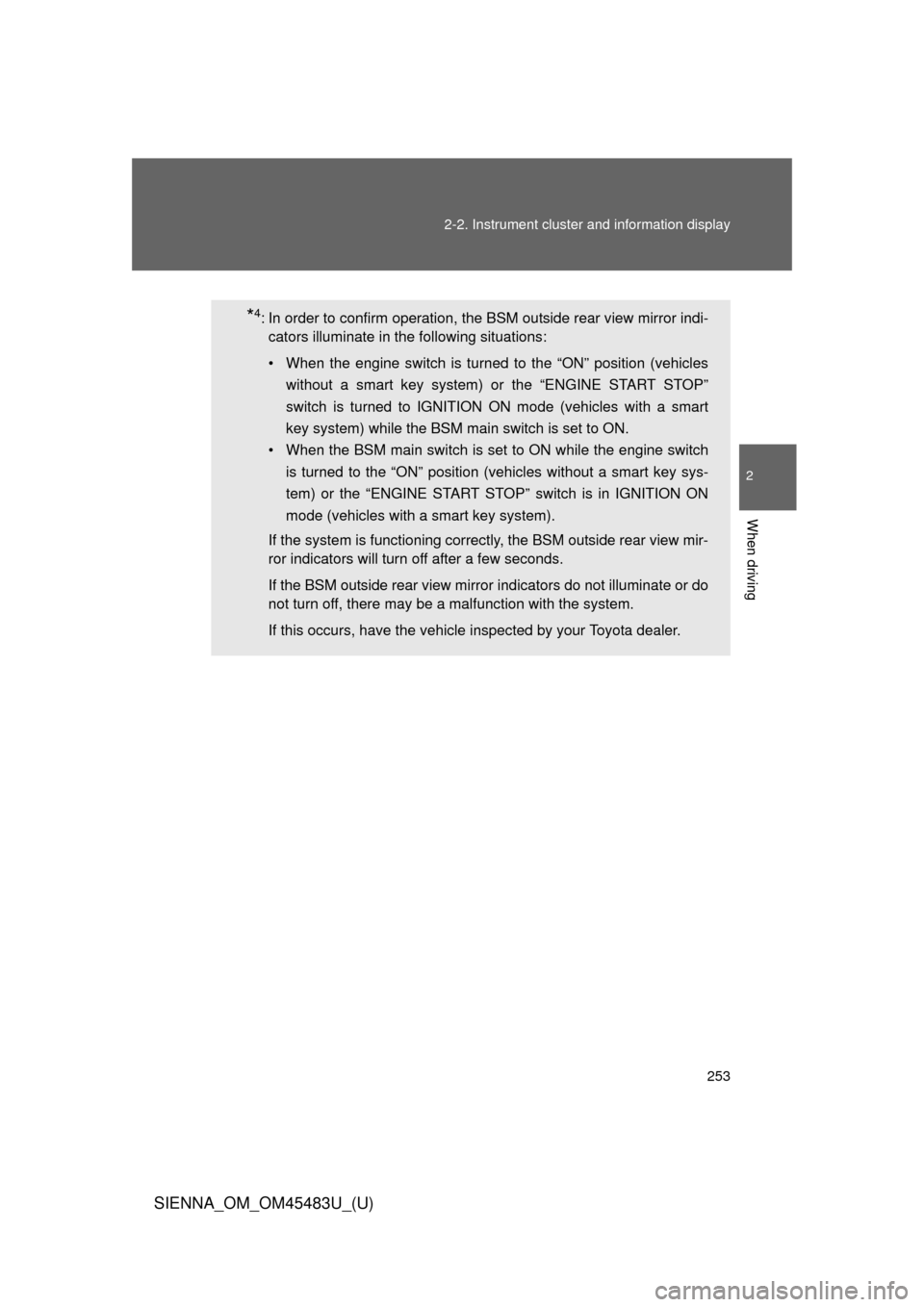

*4: In order to confirm operation, the BSM outside rear view mirror indi-
cators illuminate in the following situations:
• When the engine switch is turned to the “ON” position (vehicles
without a smart key system) or the “ENGINE START STOP”
switch is turned to IGNITION ON mode (vehicles with a smart
key system) while the BSM main switch is set to ON.
• When the BSM main switch is set to ON while the engine switch is turned to the “ON” position (vehicles without a smart key sys-
tem) or the “ENGINE START STOP” switch is in IGNITION ON
mode (vehicles with a smart key system).
If the system is functioning correctly, the BSM outside rear view mir-
ror indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do
not turn off, there may be a malfunction with the system.
If this occurs, have the vehicle inspected by your Toyota dealer.

254 2-2. Instrument cluster and information display
SIENNA_OM_OM45483U_(U)

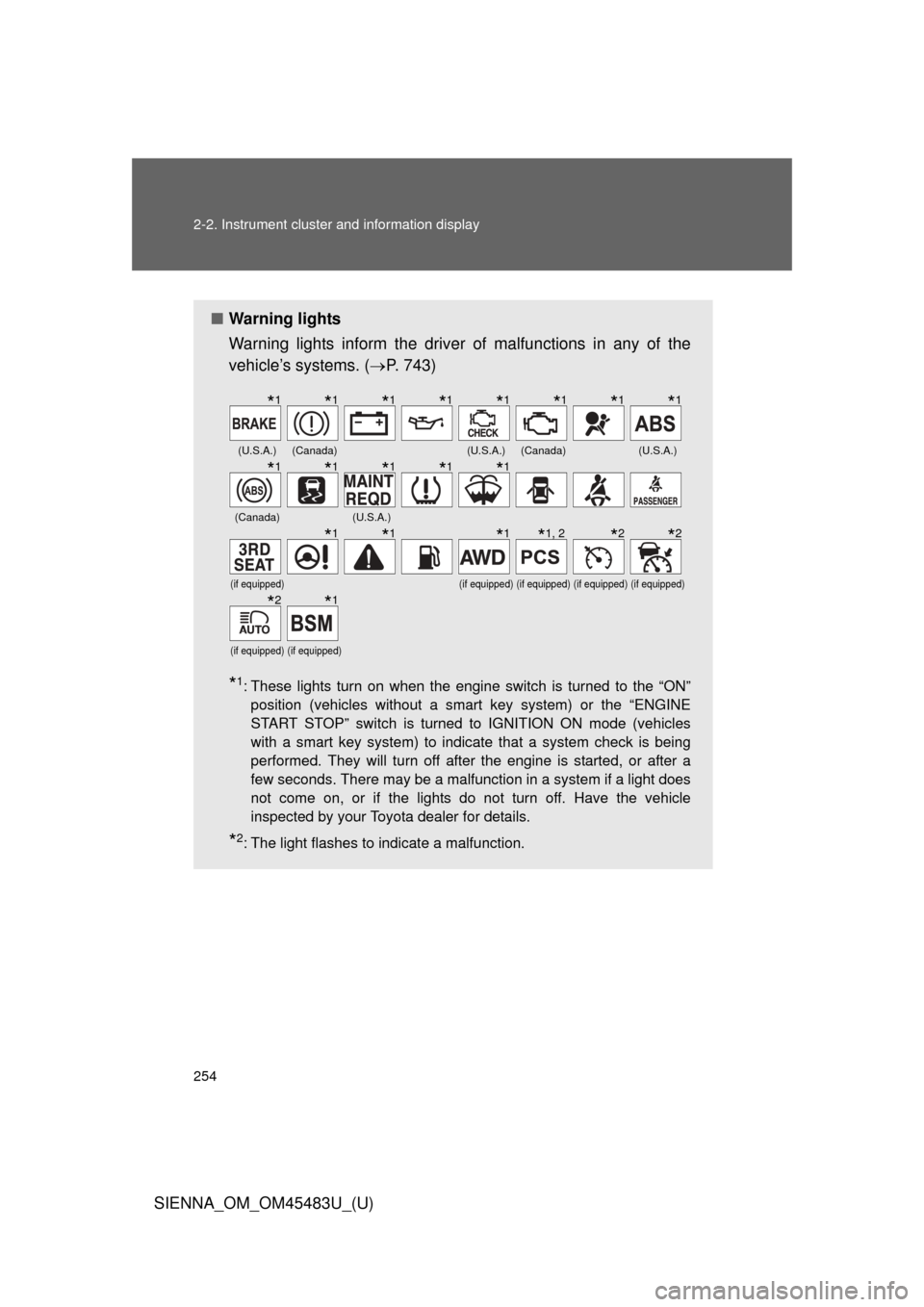

■Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. ( P. 743)
*1: These lights turn on when the engine switch is turned to the “ON”
position (vehicles without a smart key system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles
with a smart key system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a
few seconds. There may be a malfunction in a system if a light does
not come on, or if the lights do not turn off. Have the vehicle
inspected by your Toyota dealer for details.
*2: The light flashes to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada)(U.S.A.)
(Canada)(U.S.A.)
(if equipped)(if equipped)(if equipped)(if equipped)(if equipped)
(if equipped)(if equipped)
*1*1*1*1*1*1*1*1
*1*1*1*1*1
*1*1*1*1, 2*2*2
*2*1

255
2-2. Instrument cluster and information display
2
When driving
SIENNA_OM_OM45483U_(U)
CAUTION
■
If a safety system warning light does not come on
Should a safety system light such as the ABS or SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by your Toyota dealer
immediately if this occurs.

256
2-2. Instrument cluster and information display
SIENNA_OM_OM45483U_(U)

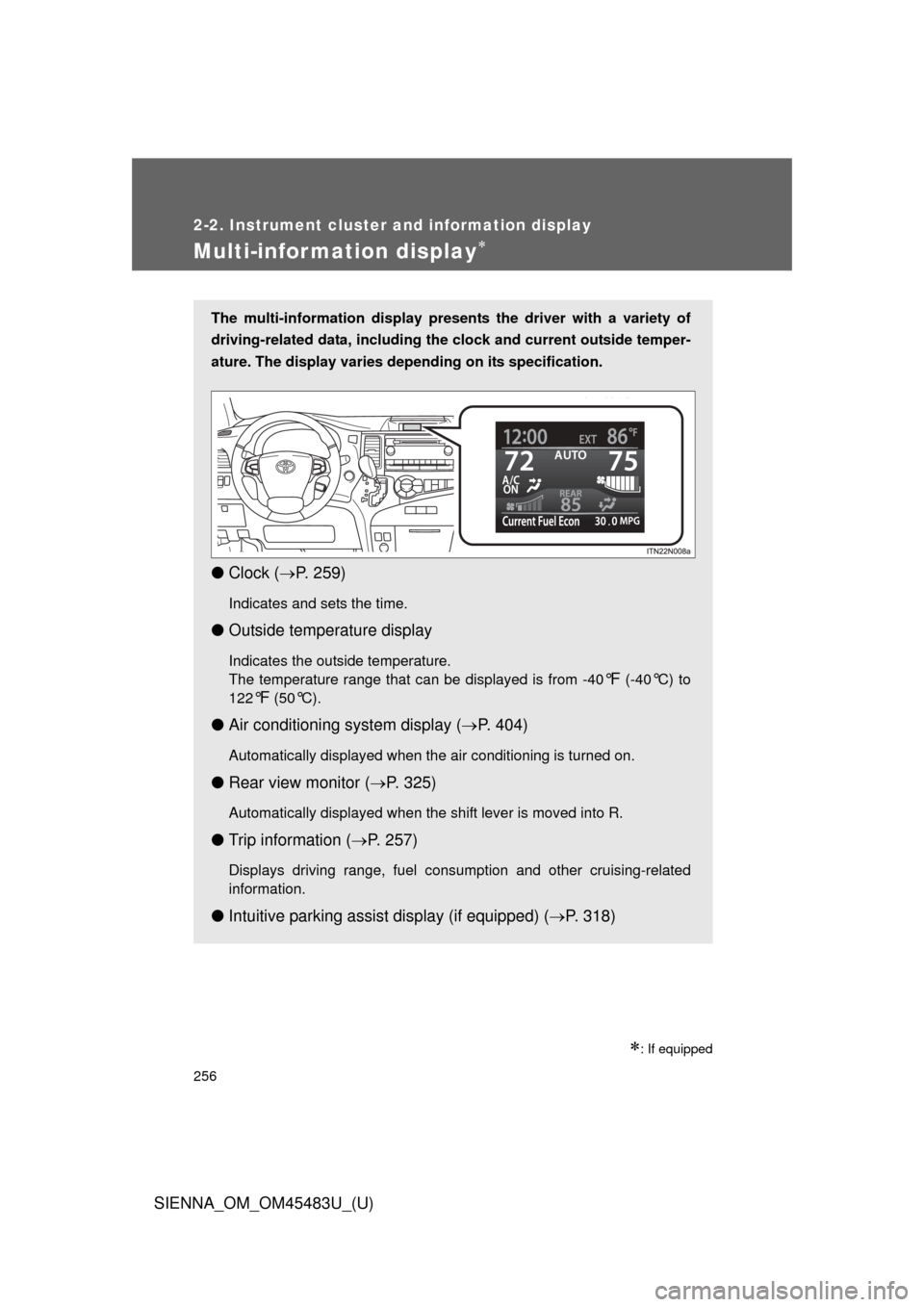

Multi-information display
: If equipped
The multi-information display presents the driver with a variety of
driving-related data, including the clock and current outside temper-
ature. The display varies depending on its specification.
● Clock ( P. 259)
Indicates and sets the time.
● Outside temperature display
Indicates the outside temperature.
The temperature range that can be displayed is from -40
°F (-40°C) to
122
°F (50°C).
● Air conditioning system display ( P. 404)
Automatically displayed when the air conditioning is turned on.
● Rear view monitor ( P. 325)
Automatically displayed when the shift lever is moved into R.
● Trip information ( P. 257)
Displays driving range, fuel consumption and other cruising-related
information.
● Intuitive parking assist display (if equipped) ( P. 318)
