2014 TOYOTA SIENNA Owners Manual

529
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45483U_(U)

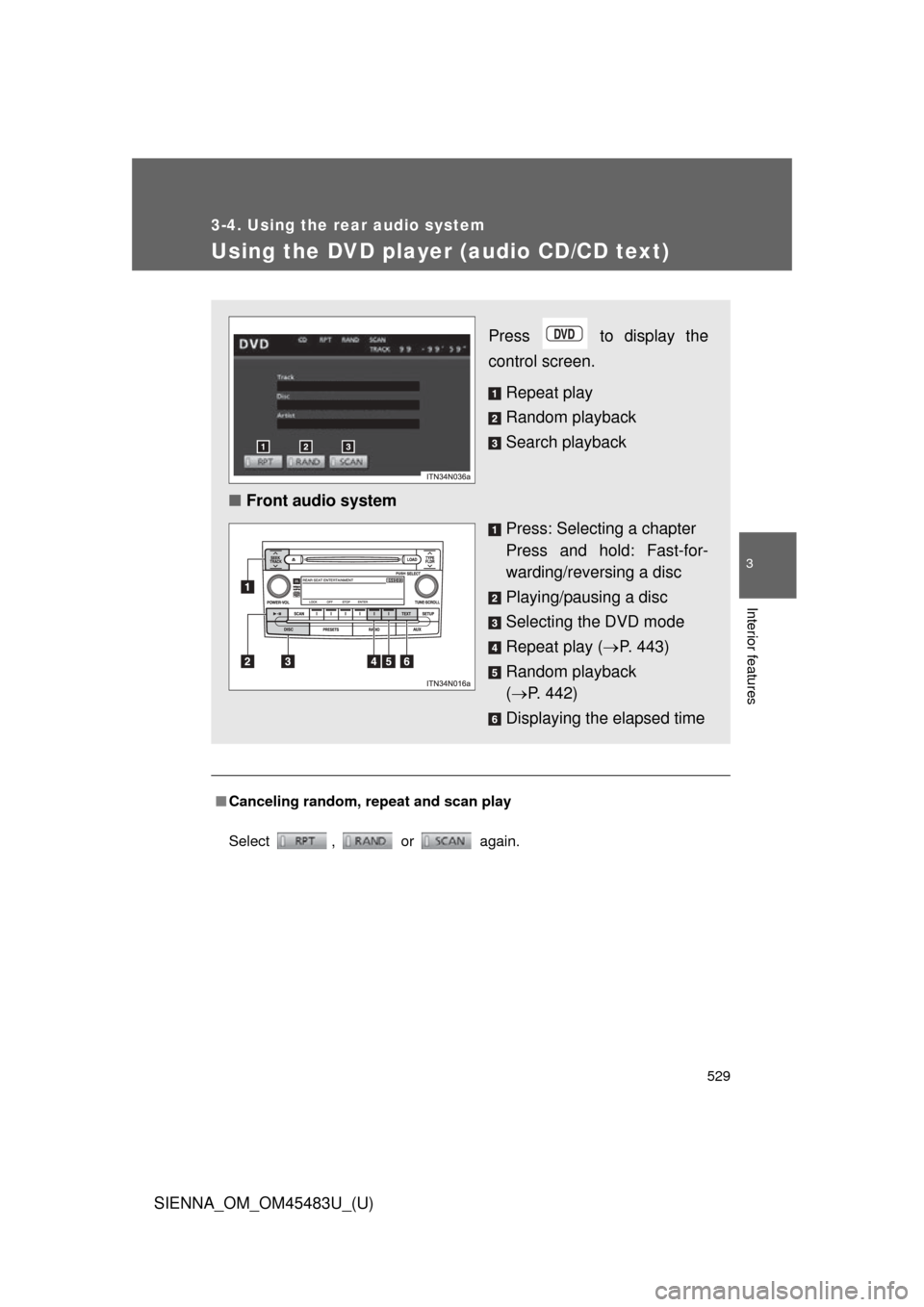

Using the DVD player (audio CD/CD text)
■Canceling random, repeat and scan play
Select , or again.
Press to display the
control screen.
Repeat play
Random playback
Search playback
■ Front audio system
Press: Selecting a chapter
Press and hold: Fast-for-
warding/reversing a disc
Playing/pausing a disc
Selecting the DVD mode
Repeat play (P. 443)
Random playback
(  P. 442)
Displaying the elapsed time

530
3-4. Using the rear audio system
SIENNA_OM_OM45483U_(U)

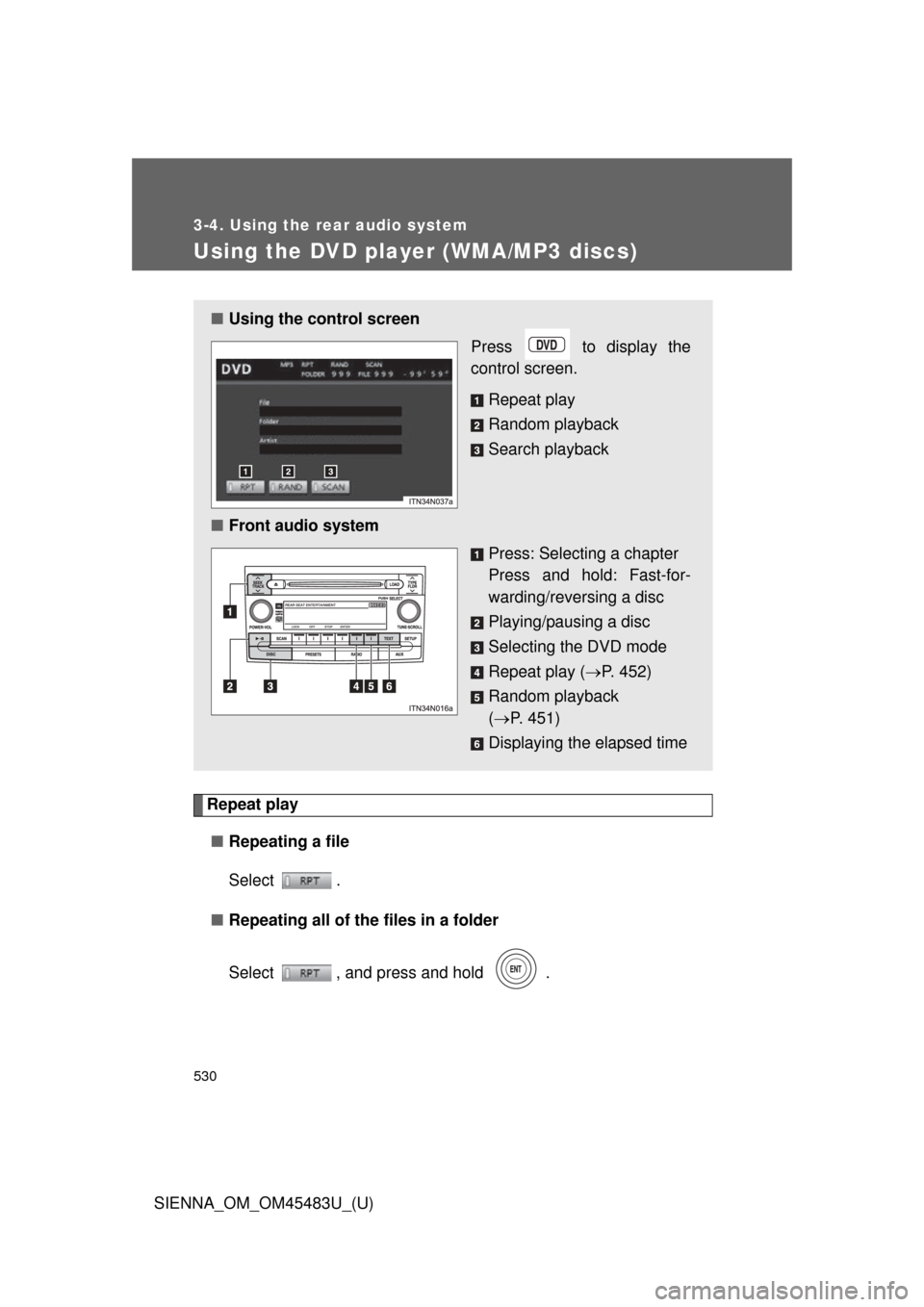

Using the DVD player (WMA/MP3 discs)
Repeat play■ Repeating a file
Select .
■ Repeating all of the files in a folder
Select , and press and hold .
■Using the control screen
Press to display the
control screen.
Repeat play
Random playback
Search playback
■ Front audio system
Press: Selecting a chapter
Press and hold: Fast-for-
warding/reversing a disc
Playing/pausing a disc
Selecting the DVD mode
Repeat play (P. 452)
Random playback
(  P. 451)
Displaying the elapsed time

531
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
Random playback
■ Playing files from a particular folder in random order
Select .
■ Playing all of the files on a disc in random order
Select , and press and hold .
Search playback
■ Selecting the desired file by cueing the files in the folder
Select .
The player will scan all the files in the folder. Each file will be
played for 10 seconds.
■ Selecting the desired file by cueing the folders on the disc
Select , and press and hold .
The player will scan all the folders on the disc. The first file in each
folder will be played for 10 seconds.
■ Canceling random, repeat and play back
Select , or again.

532
3-4. Using the rear audio system
SIENNA_OM_OM45483U_(U)

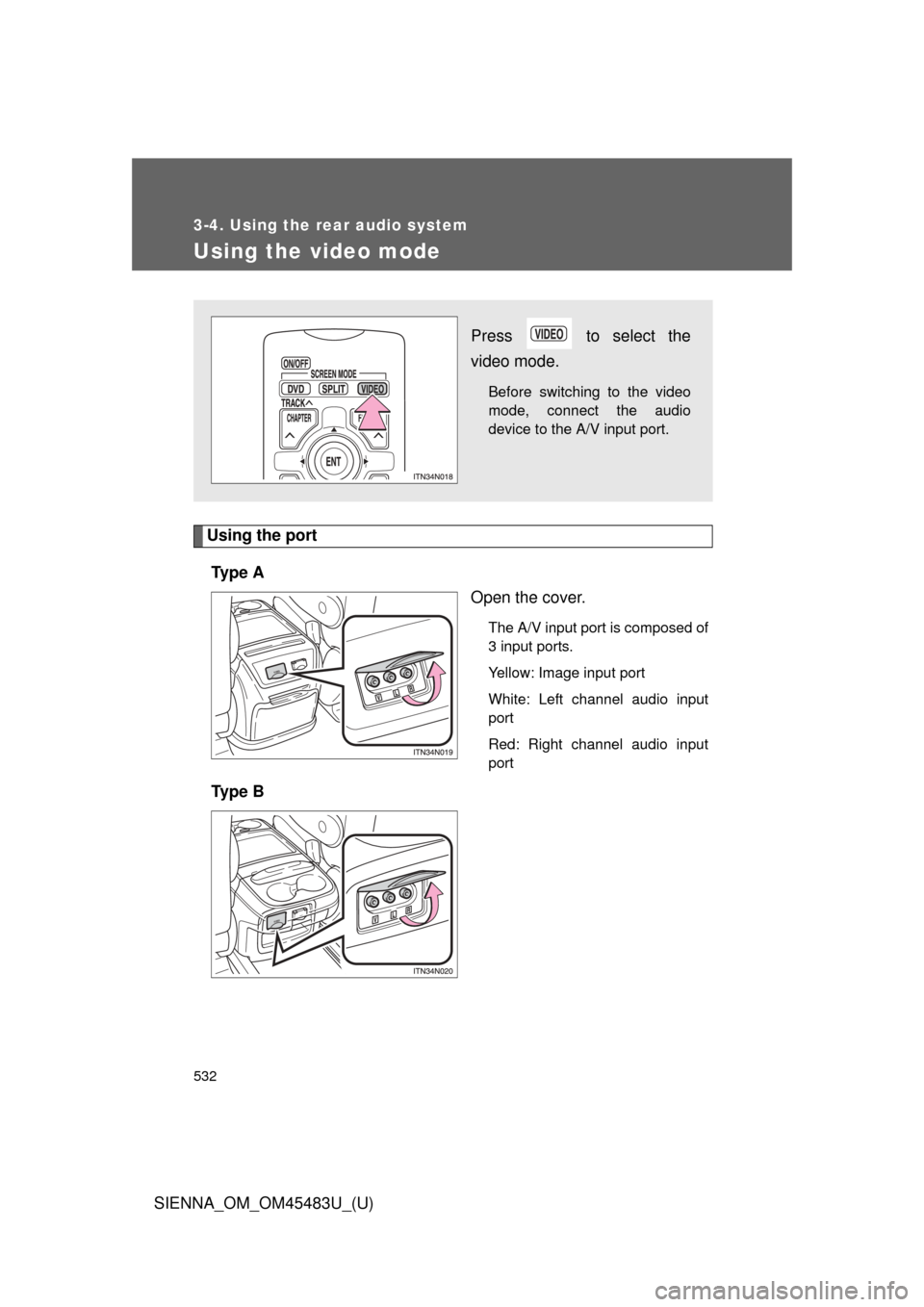

Using the video mode
Using the portTy p e A Open the cover.
The A/V input port is composed of
3 input ports.
Yellow: Image input port
White: Left channel audio input
port
Red: Right channel audio input
port
Ty p e B
Press to select the
video mode.
Before switching to the video
mode, connect the audio
device to the A/V input port.

533
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
■
A/V input port
The rear seat entertainment system plays video and sound when an audio-
video device is connected to the A/V input port. For details, refer to the man-
ufacturer’s instructions.
■ Power outlet
The power outlet is used to connect the audio device. ( P. 610)
NOTICE
■When the A/V input port is not in use
Keep the A/V input port cover closed.
Inserting anything other than an appropriate plug may cause electrical fail-
ure or short circuit.

534
3-4. Using the rear audio system
SIENNA_OM_OM45483U_(U)

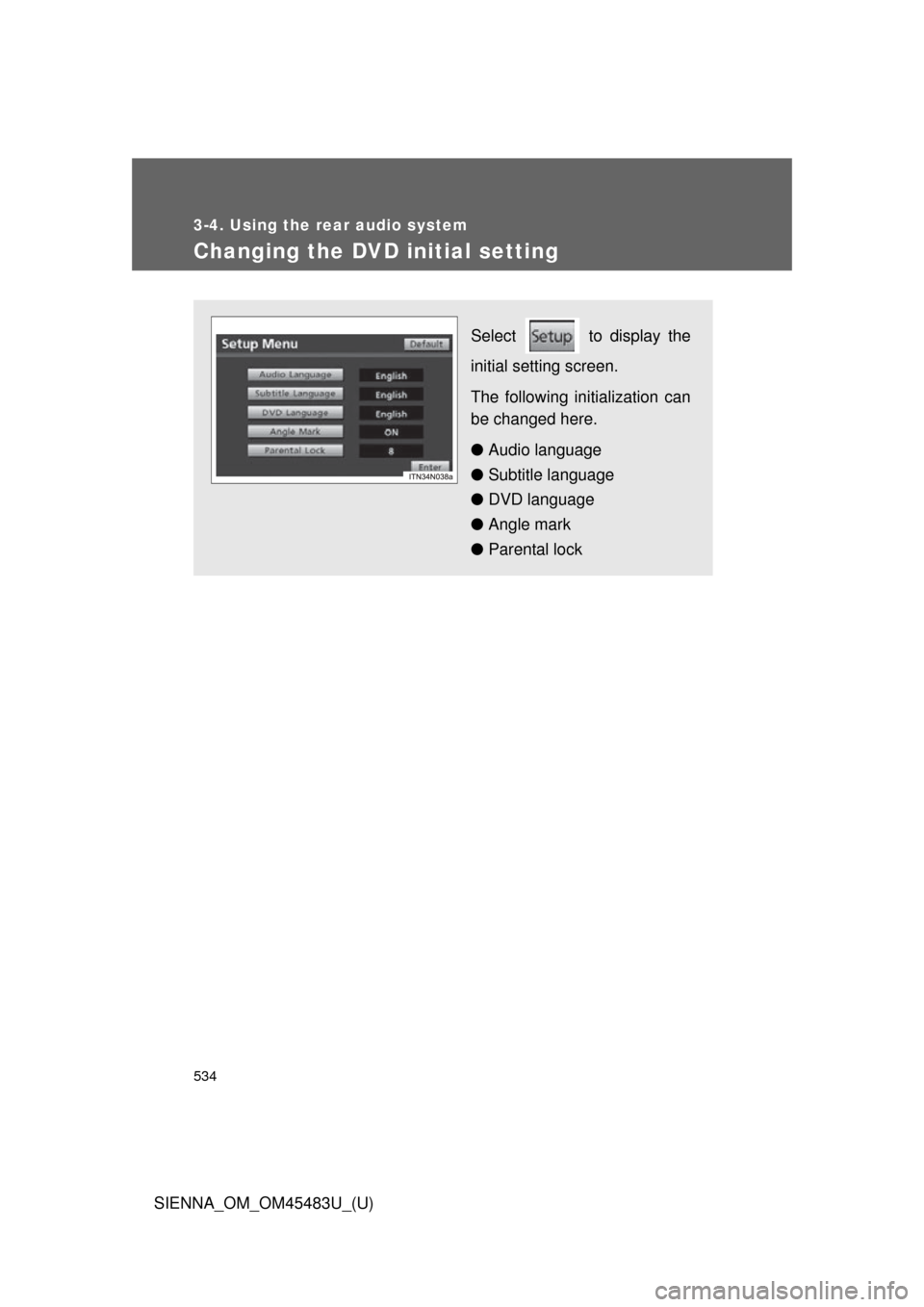

Changing the DVD initial setting
Select to display the
initial setting screen.
The following initialization can
be changed here.
● Audio language
● Subtitle language
● DVD language
● Angle mark
● Parental lock

535
3-4. Using the rear audio system
3
Interior features
SIENNA_OM_OM45483U_(U)
Changing the audio language
Select “Audio Language”.
Select the language you want to
hear, and press to input
it.
: returns to the previousscreen
Select “Others” if you cannot find
the language you want to hear.
Enter the appropriate 4-digit lan-
guage code. ( P. 542)
Input the desired audio language
code and the select .
: deletes the last inputnumber
: returns to the previous screen
If a code that is not in the list is
entered, “Incorrect Code” will
appear on the screen.

536 3-4. Using the rear audio system
SIENNA_OM_OM45483U_(U)
Changing the subtitle languageSelect “Subtitle Language”.
Select the language you want to
read, and press to input
it.
: returns to the previousscreen
Select “Others” if you cannot find
the language you want to read.
Enter the appropriate 4-digit lan-
guage code. ( P. 542)
Input the desired subtitle lan-
guage code and the select
.
: deletes the last inputnumber
: returns to the previous screen
If a code that is not in the list is
entered, “Incorrect Code” will
appear on the screen.
