617
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45483U_(U)
■
Adjusting the armrests (if equipped)
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
Push the armrest down while pressing
the button.

618
3-8. Other interior features
SIENNA_OM_OM45483U_(U)
Assist grips
CAUTION
■Assist grip (Type A)
Do not use the assist grip (Type A) when getting in or out of the vehicle or
rising from your seat.
NOTICE
■To prevent damage of the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip (Type A) installed on the ceiling can be used to sup-
port your body while sitting on the seat.
An assist grip (Type B) installed on the pillar can be used when get-
ting in or out of the vehicle and others.
Assist grip (Type A)
Assist grip (Type B)

619
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45483U_(U)
Rear side sunshades
: If equipped
NOTICE
■To ensure normal operation of the sunshade
Observe the following precautions.
●Do not place anything where it may hinder the opening/closing of the sun-
shade.
● Do not place anything on the sunshade.
Rear door window
Pull the tab up.
Secure the sunshade using
the hooks.
To retract the sunshade, pull
the tab up slightly to unhook
the sunshade, and lower the
sunshade slowly.
Rear quarter windowPull the tab up.
Secure the sunshade using
the hooks.
To retract the sunshade, pull
the tab up slightly to unhook
the sunshade, and lower the
sunshade slowly.

620
3-8. Other interior features
SIENNA_OM_OM45483U_(U)

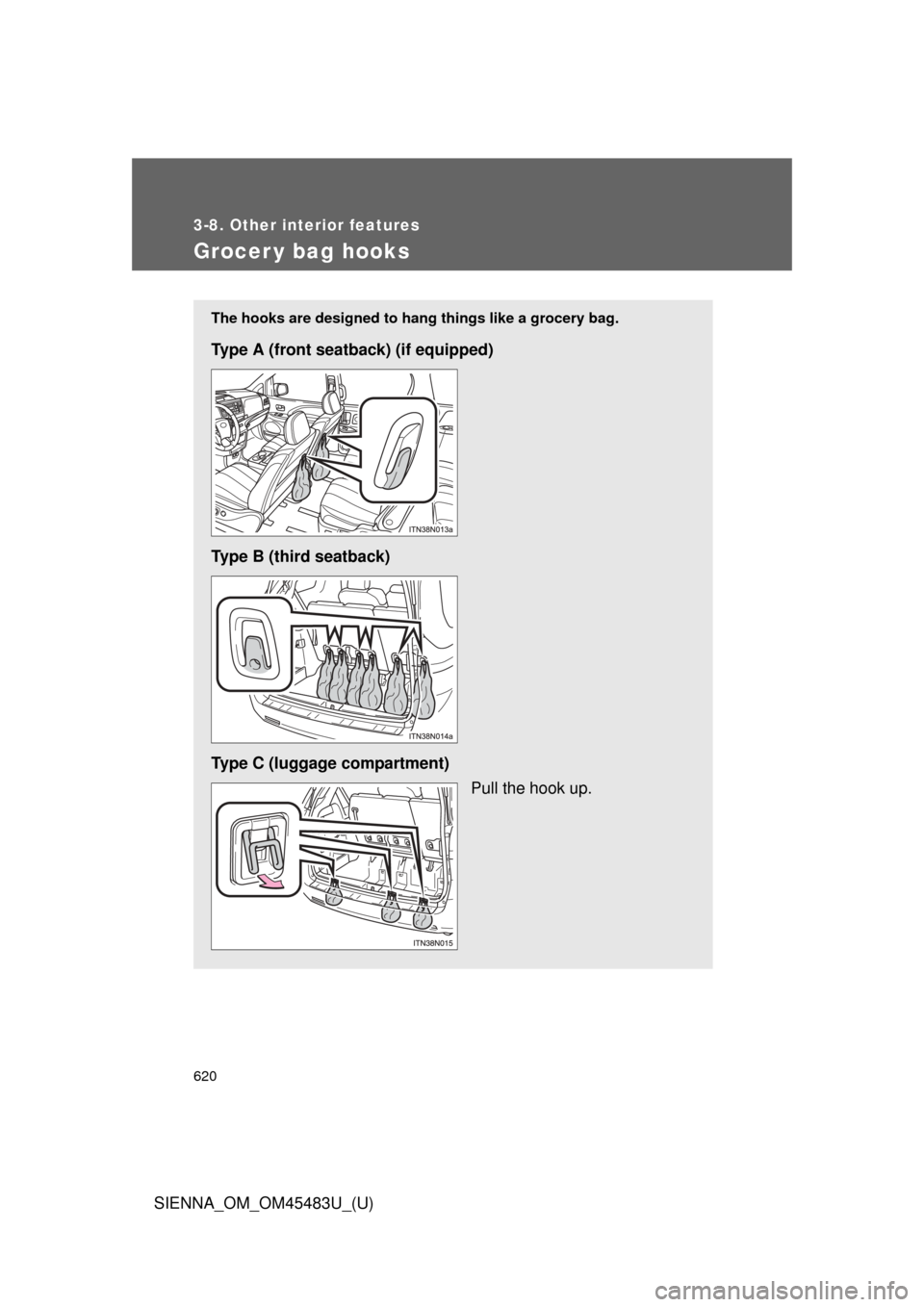

Grocer y bag hooks
The hooks are designed to hang things like a grocery bag.
Type A (front seatback) (if equipped)
Type B (third seatback)
Type C (luggage compartment)
Pull the hook up.

621
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45483U_(U)
CAUTION
■
When not in use (type C)
Keep the grocery bag hook stowed.
Injuries may result in the event of sudden braking, sudden swerving or an
accident.
NOTICE
■Grocery bag hook weight capacity (type A and B)
Do not hang any object heavier than 8.8 lb. (4 kg) on the grocery bag hook.
Type D (luggage compartment)
ITN38N036

622
3-8. Other interior features
SIENNA_OM_OM45483U_(U)

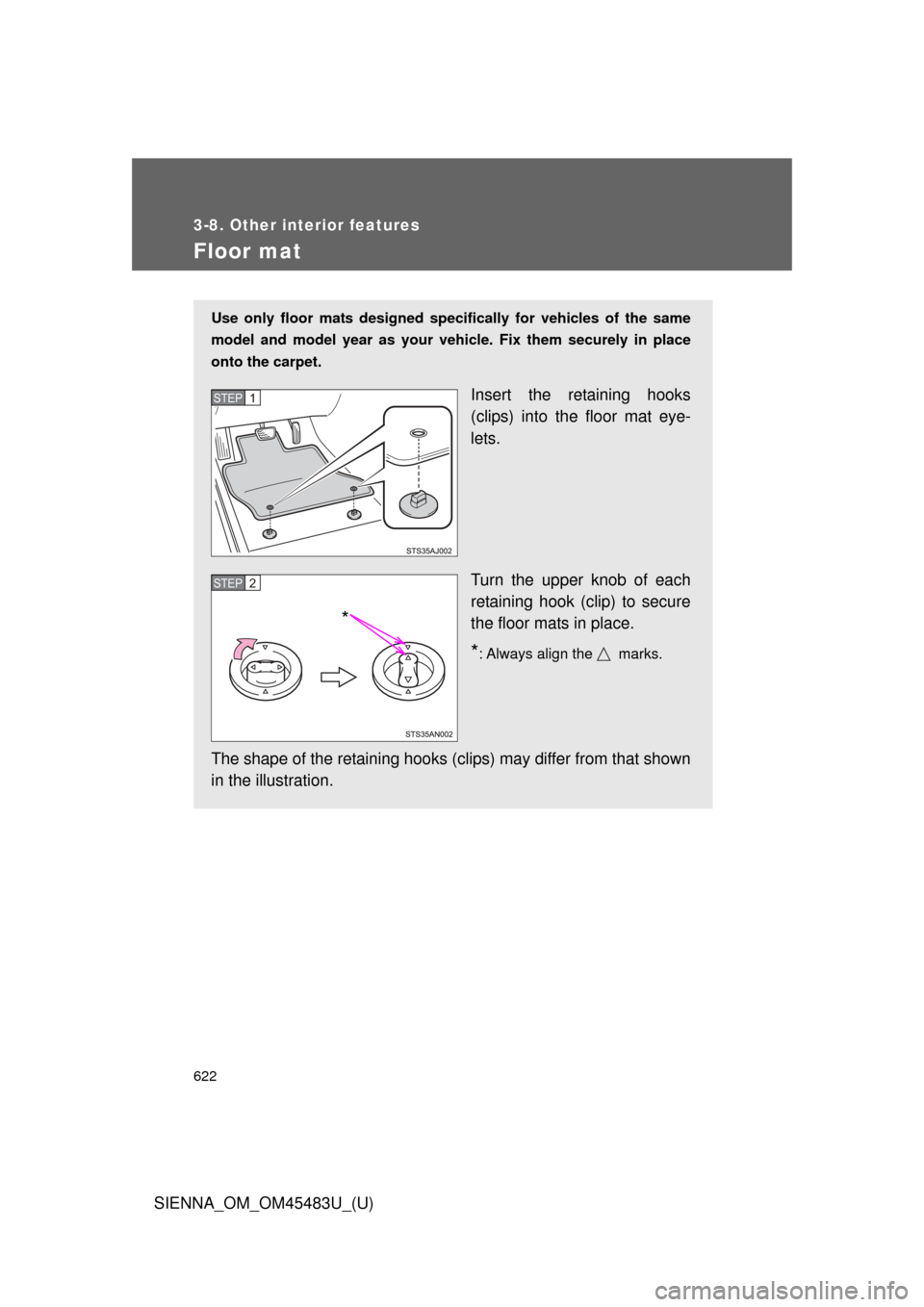

Floor mat
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Insert the retaining hooks
(clips) into the floor mat eye-
lets.
Turn the upper knob of each
retaining hook (clip) to secure
the floor mats in place.
*: Always align the marks.
The shape of the retaining hooks (clip s) may differ from that shown
in the illustration.
STEP1
STEP2
*

623
3-8. Other interior features
3
Interior features
SIENNA_OM_OM45483U_(U)
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■
When installing the driver’s floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
●Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not inter-
fere with the floor mat.

624
3-8. Other interior features
SIENNA_OM_OM45483U_(U)

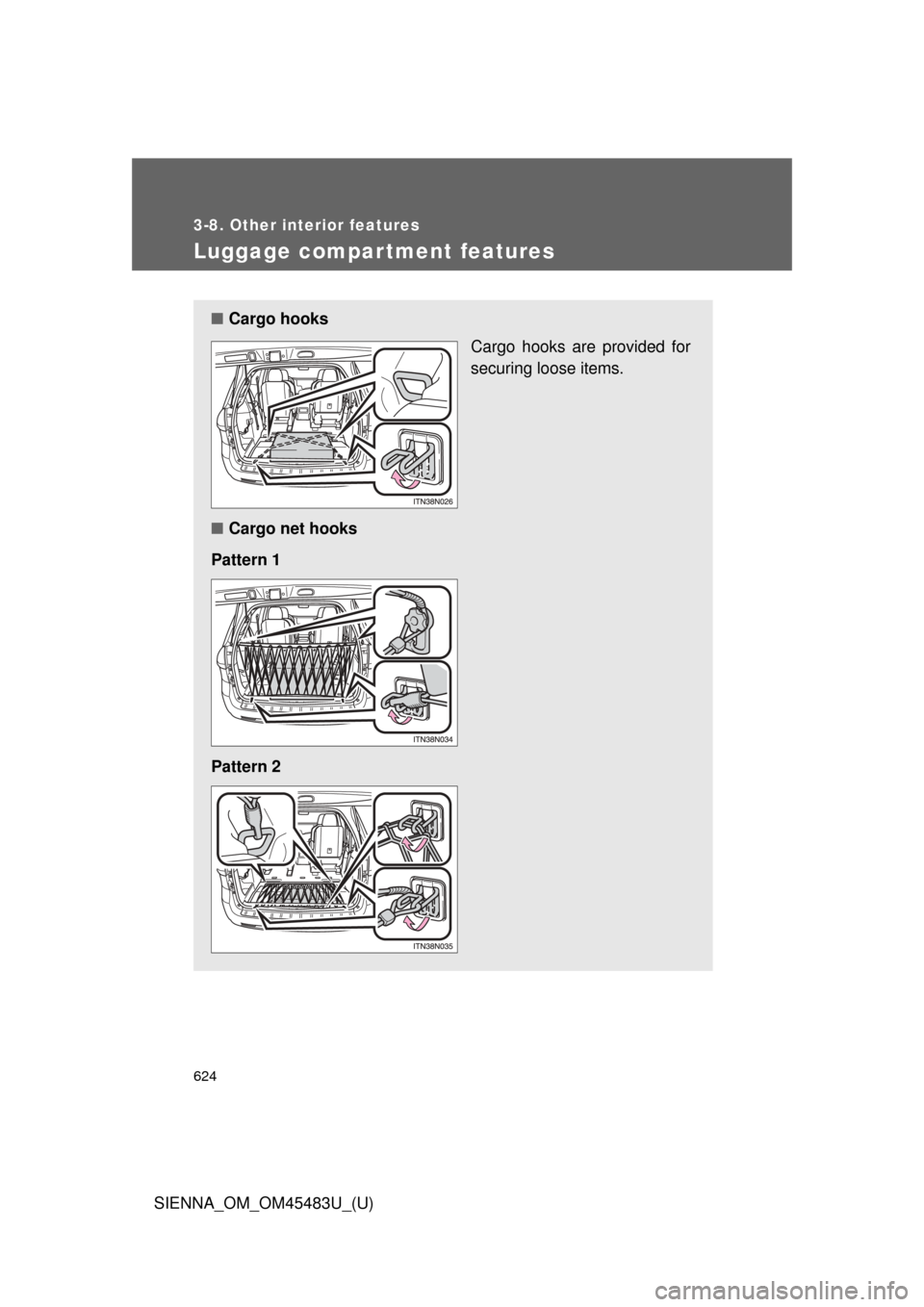

Luggage compartment features
■Cargo hooks
Cargo hooks are provided for
securing loose items.
■ Cargo net hooks
Pattern 1
Pattern 2
