2014 NISSAN ROGUE SELECT Owners Manual

Black plate (15,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
GUID-65B13399-03E2-4AC9-B527-1CEEE81B9182
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light (AWD models)* 2-10
Anti-lock Braking System (ABS)
warning light2-10
Brake warning light
2-11
Charge warning light2-11
Electric power steering warning
light 2-11
Engine oil pressure warning
light2-12
Low fuel warning light
2-12
Low tire pressure warning light 2-12
Master warning light 2-13
Seat belt warning light 2-13
Supplemental air bag warning
light 2-14
Vehicle Dynamic Control (VDC)
warning light2-14Indicator
light Name
Page
All-Wheel Drive (AWD) LOCK
indicator light (AWD models)* 2-14
Exterior light indicator
2-14
Front passenger air bag status
light 2-14
High beam indicator light 2-15
Malfunction Indicator Light
(MIL)2-15
Overdrive off indicator light 2-15
Security indicator light
2-15
SPORT mode indicator light 2-16
Turn signal/hazard indicator
lights 2-16
Vehicle Dynamic Control (VDC)
off indicator light2-16
*: if so equipped
Illustrated table of contents0-9
WARNING AND INDICATOR LIGHTS
Condition:

Black plate (16,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
0-10Illustrated table of contents

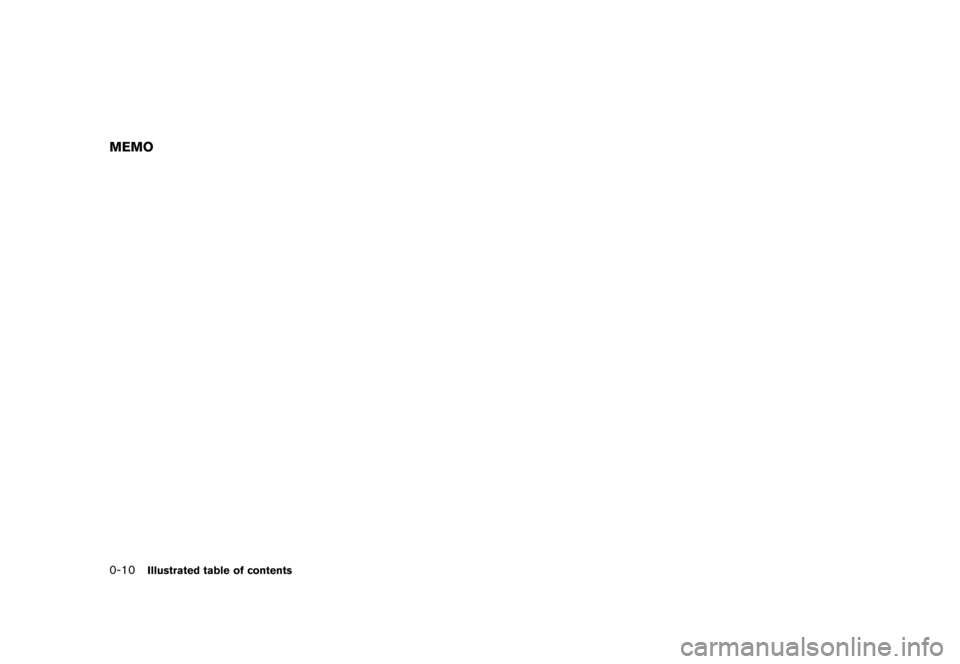

MEMO
Condition:

Black plate (17,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
1 Safety — Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats ...
........................................................................\
..... 1-4
Head restraints/Headrests ...
...................................................... 1-5
Adjustable head restraint/headrest components ...
........ 1-6
Non-adjustable head
restraint/headrest components ...
........................................ 1-6
Remove ...
........................................................................\
.......... 1-6
Install ...
........................................................................\
.............. 1-7
Adjust ...
........................................................................\
............. 1-7
Seat belts ...
........................................................................\
............ 1-9
Precautions on seat belt usage ...
....................................... 1-9
Pregnant women ...
.............................................................. 1-11
Injured persons ...
................................................................. 1-11
Three-point type seat belt ...
.............................................. 1-11
Seat belt extenders ...
.......................................................... 1-18
Seat belt maintenance ...
.................................................... 1-18
Child safety ...
........................................................................\
...... 1-19
Infants ...
........................................................................\
.......... 1-20
Small children ...
.................................................................... 1-20
Larger children ...
.................................................................. 1-20
Child restraints ...
........................................................................\
1-21
Precautions on child restraints ...
..................................... 1-21 Lower Anchors and Tethers for CHildren
System (LATCH)
...
............................................................ 1-22
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-25
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-27
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-30
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-31
Installing top tether strap ...
............................................. 1-35
Booster seats ...
.................................................................. 1-35
Supplemental Restraint System ...
........................................ 1-39
Precautions on Supplemental Restraint System ...
..... 1-39
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-45
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact and
rollover supplemental air bag systems ...
..................... 1-50
Seat belts with pretensioners (front seats) ...
............. 1-51
Supplemental air bag warning labels ...
....................... 1-52
Supplemental air bag warning light ...
.......................... 1-53
Repair and replacement procedure ...
.......................... 1-53
Condition:

Black plate (18,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
1-2Safety — Seats, seat belts and supplemental restraint system
S35-D-110201-E7A0F37F-C118-45BC-AF57-B050BFBD9D51

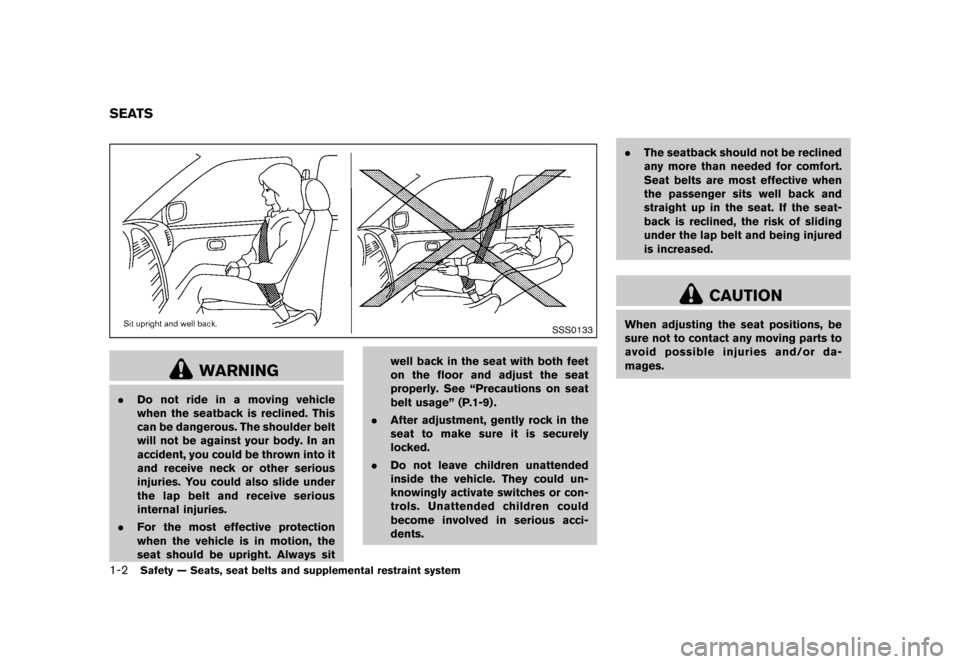

SSS0133
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. See “Precautions on seat
belt usage” (P.1-9) .
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents. .
The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or da-
mages.
SEATS
Condition:

Black plate (19,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

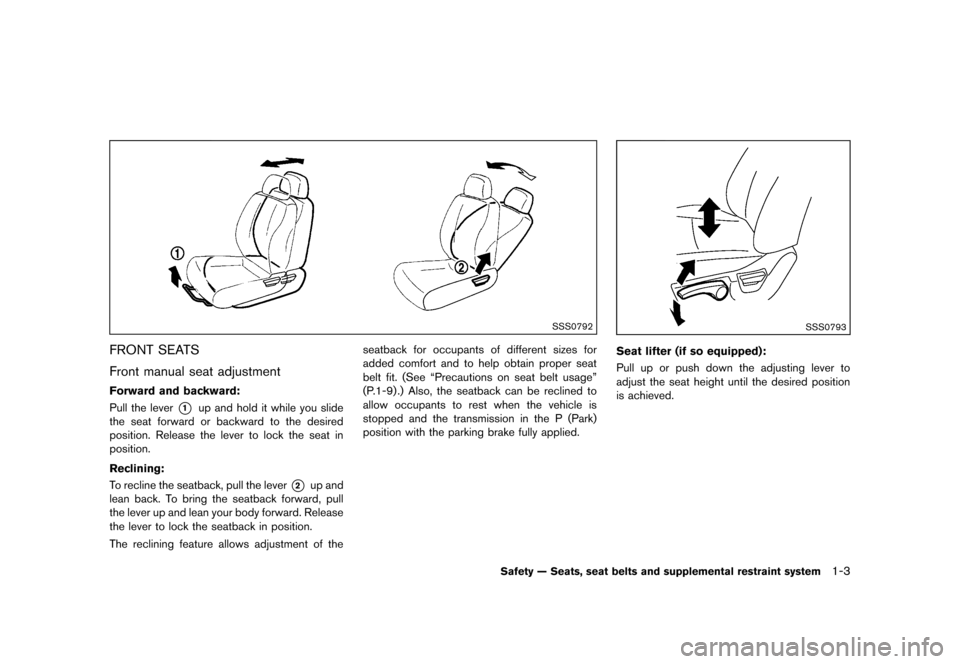

SSS0792
FRONT SEATSS35-D-110201-0B2F8171-4FBB-4017-8E6D-A2ADBA98B68B
Front manual seat adjustmentS35-D-110201-39869990-85F6-41BF-8D6F-13366F5484E7
Forward and backward:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull the lever*1up and hold it while you slide
the seat forward or backward to the desired
position. Release the lever to lock the seat in
position.
Reclining:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To recline the seatback, pull the lever*2up and
lean back. To bring the seatback forward, pull
the lever up and lean your body forward. Release
the lever to lock the seatback in position.
The reclining feature allows adjustment of the seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. (See “Precautions on seat belt usage”
(P.1-9) .) Also, the seatback can be reclined to
allow occupants to rest when the vehicle is
stopped and the transmission in the P (Park)
position with the parking brake fully applied.
SSS0793
Seat lifter (if so equipped):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pull up or push down the adjusting lever to
adjust the seat height until the desired position
is achieved.
Safety — Seats, seat belts and supplemental restraint system1-3
Condition:

Black plate (20,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
1-4Safety — Seats, seat belts and supplemental restraint system
SSS0797
REAR SEATSS35-D-110201-F1069FCA-D94F-46E4-9FA4-8088C2EFB096
FoldingS35-D-110201-F3098F1C-3843-46A3-9934-E20A6D0E0E98
Before folding the rear seats:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Secure the seat belts on the seat belt hooks
on the side wall. (See “Seat belt hooks”
(P.1-15) .)
. Release the connector tongue of the rear
center seat belt from the buckle, and store
the connector and seat belt tongues into the
retractor base on the ceiling. (See “Rear
center seat belt” (P.1-15) .)
. If necessary, move the front seats forward to
provide enough clearance so that the rear
seats can be folded down completely. To fold down the seatback of each rear seat, pull
the adjusting knob
*A.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
WARNING
. Do not use the rear seat belts when
the buckles are stowed in the seat
pockets. Failure to do so may re-
duce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
. Do not fold down the rear seats
when occupants are in the rear seat
area or any objects are on the rear
seats.
. Never allow anyone to ride in the
cargo area or on the rear seats
when they are in the fold-down
position. Use of these areas by
passengers without proper re-
straints could result in serious injury
in an accident or sudden stop.
. Properly secure all cargo with ropes
or straps to help prevent it from sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.
Condition:

Black plate (21,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-8707514E-311A-4F34-AD80-2FBAE21FA9C7
WARNING
Head restraint/headrest supplement
the other vehicle safety systems. They
may provide additional protection
against injury in certain rear end colli-
sions. Adjustable head restraints/head-
rests must be adjusted properly, as
specified in this section. Check the
adjustment after someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraint/headrest. Do
not use the seat if the head restraint/
headrest has been removed. If the head
restraint/headrest was removed, rein-
stall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to
follow these instructions can reduce the
effectiveness of the head restraint/
headrest. This may increase the risk of
serious injury or death in a collision.
JVR0051X
The illustration shows the seating positions
equipped with head restraint/headrest.
Indicates the seating position is equipped
with a head restraint.
Indicates the seating position is equipped
with a headrest.
+ indicates the seating position is not equipped
with a head restraint or headrest.
. Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable.
. Adjustable head restraints/headrests have
multiple notches along the stalk to lock them
in a desired adjustment position. .
The non-adjustable head restraints/head-
rests have a single locking notch to secure
them to the seat frame.
. Proper Adjustment:
— For the adjustable type, align the head
restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
— If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
. If the head restraint/headrest has been
removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
Safety — Seats, seat belts and supplemental restraint system1-5
HEAD RESTRAINTS/HEADRESTS
Condition:

Black plate (22,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
1-6Safety — Seats, seat belts and supplemental restraint system
SSS0992
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
GUID-DDD8B264-2306-4776-B3E1-9A8CEBB2AF8D1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
JVR0203X
NON-ADJUSTABLE HEAD RE-
STRAINT/HEADREST COMPONENTS
S35-D-110201-805BC978-8292-4E16-AEC0-DF1F8262FAB31. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
SSS1037
REMOVEGUID-C561A9AF-CBB2-4542-89D6-BD973A7B3031Use the following procedure to remove the head
restraint/headrest.
1. Pull the head restraint/headrest up to thehighest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
5. Reinstall and properly adjust the head
restraint/headrest before an occupant uses
the seating position.
Condition:
