2014 NISSAN ROGUE SELECT Owners Manual

Black plate (111,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
WARNING
.Drive extra carefully when the vehi-
cle is loaded at or near the cargo
carrying capacity, especially if the
significant portion of that load is
carried on the roof rack.
. Heavy loading of the roof rack has
the potential to affect the vehicle
stability and handling during sud-
den or unusual handling maneuvers.
. Roof rack load should be evenly
distributed.
. Do not exceed maximum roof rack
load weight capacity.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
CAUTION
Use care when placing or removing
items from the roof rack. If you cannot
comfortably lift the items onto the roof rack from the ground, use a ladder or
stool.
S35-D-110201-EF5A4CAB-3CE8-402A-B85B-F12E85049006POWER WINDOWSS35-D-110201-28870A1D-95F8-487F-8BEF-004065E33A6E
WARNING
.
Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols and become trapped in the
window. Unattended children could
become involved in serious acci-
dents.
The power windows operate when the ignition
switch is in the ON position, or for about 45
seconds after the ignition switch is turned to the
OFF position. If the driver’s or front passenger’s
door is opened during this period of about 45
seconds, power to the windows is canceled.
Instruments and controls2-41
WINDOWS
Condition:

Black plate (112,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-42Instruments and controls
SIC3507
1. Window lock button
2. Driver side window
3. Rear left passenger side window
4. Front passenger side window
5. Rear right passenger side window
Main power window switch (driver’s
side)
GUID-B6E7617E-E40E-40C3-9E55-437ACDA41B5ATo open or close the window, push down*Aor
pull up
*Bthe switch and hold it. The main
switch (driver side switches) will open or close
all the windows.
Locking passengers’ windowsGUID-21155F19-5215-4B78-A2CE-1C399D86BA17When the lock button*Cis pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
SIC3508
Passenger side power window switchGUID-6392E6CE-0551-411A-994B-8AC9D946BB5EThe passenger side switch will open or close
only the corresponding window. To open or
close the window, push down or pull up the
switch and hold it.
Condition:

Black plate (113,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

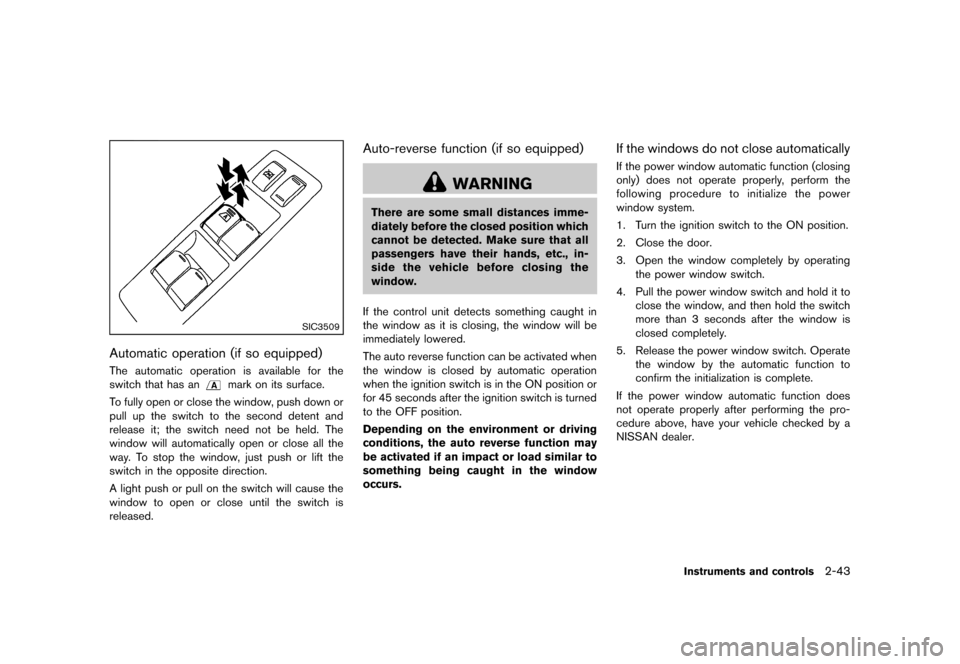

SIC3509
Automatic operation (if so equipped)GUID-E7474ECC-09DE-4A54-A358-7896B84E25A1The automatic operation is available for the
switch that has an
mark on its surface.
To fully open or close the window, push down or
pull up the switch to the second detent and
release it; the switch need not be held. The
window will automatically open or close all the
way. To stop the window, just push or lift the
switch in the opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto-reverse function (if so equipped)GUID-CD58E688-0E5F-4849-A2F9-9DCE763F2A71
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is turned
to the OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
If the windows do not close automaticallyGUID-4366A858-91A3-4739-91C0-DACFB774B6DEIf the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Turn the ignition switch to the ON position.
2. Close the door.
3. Open the window completely by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
If the power window automatic function does
not operate properly after performing the pro-
cedure above, have your vehicle checked by a
NISSAN dealer.
Instruments and controls2-43
Condition:

Black plate (114,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-44Instruments and controls
S35-D-110201-6554559D-EE81-4A45-B1ED-9C063E192D41

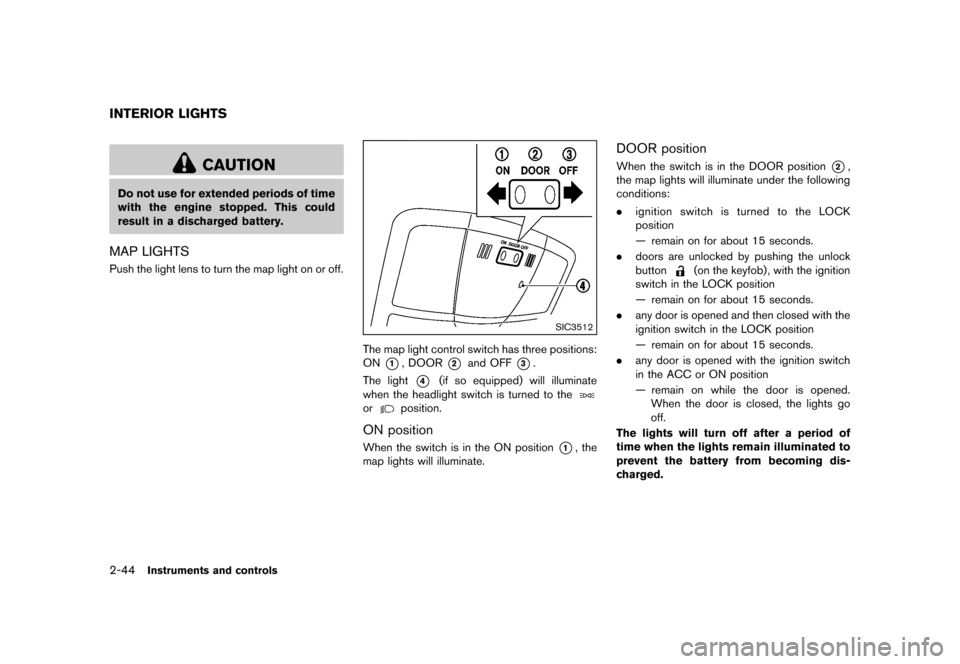

CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
MAP LIGHTSS35-D-110201-C243F5B9-4483-4D93-AA0B-1EA9F7CF9D9DPush the light lens to turn the map light on or off.
SIC3512
The map light control switch has three positions:
ON
*1, DOOR*2and OFF*3.
The light
*4(if so equipped) will illuminate
when the headlight switch is turned to the
orposition.
ON positionS35-D-110201-7683F6B1-A28E-4E34-903D-85E1BC5B2ED3When the switch is in the ON position*1, the
map lights will illuminate.
DOOR positionS35-D-110201-6D5F4D58-B171-4027-B458-15DB5CE5FB39When the switch is in the DOOR position*2,
the map lights will illuminate under the following
conditions:
. ignition switch is turned to the LOCK
position
— remain on for about 15 seconds.
. doors are unlocked by pushing the unlock
button
(on the keyfob) , with the ignition
switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
INTERIOR LIGHTS
Condition:

Black plate (115,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

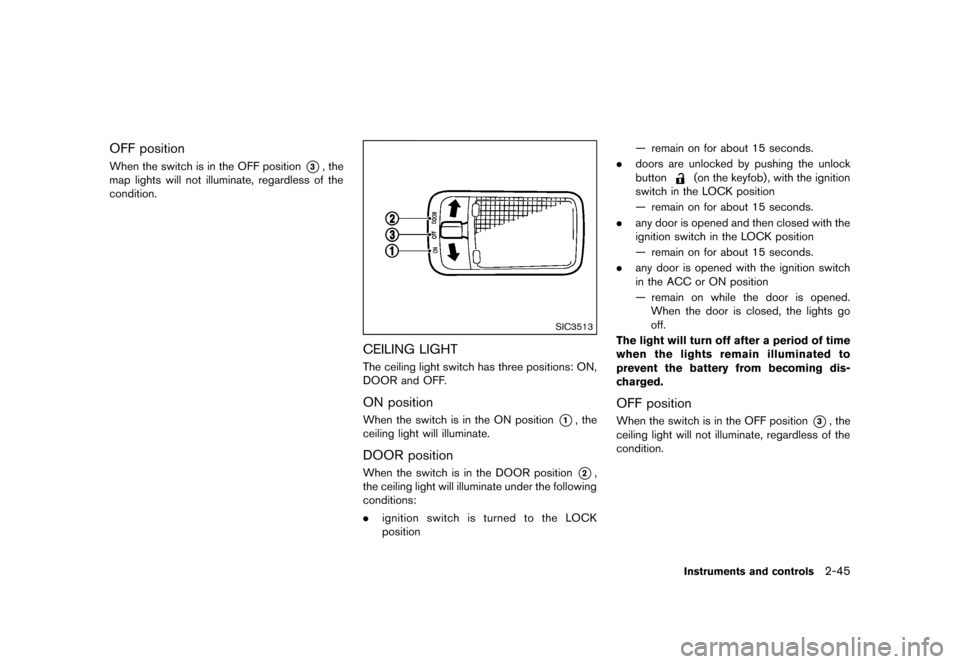

OFF positionS35-D-110201-55BC51B8-E593-4DF0-A4A4-C808144A2F0BWhen the switch is in the OFF position*3, the
map lights will not illuminate, regardless of the
condition.
SIC3513
CEILING LIGHTGUID-BE9CB642-0C31-473C-A93E-63673165372BThe ceiling light switch has three positions: ON,
DOOR and OFF.
ON positionS35-D-110201-70BCA29A-4C18-4168-8B6D-98BE0BE33E7FWhen the switch is in the ON position*1, the
ceiling light will illuminate.
DOOR positionS35-D-110201-96E5D9BB-55A7-44D8-B0DC-A27CDCB014C4When the switch is in the DOOR position*2,
the ceiling light will illuminate under the following
conditions:
. ignition switch is turned to the LOCK
position — remain on for about 15 seconds.
. doors are unlocked by pushing the unlock
button
(on the keyfob) , with the ignition
switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
— remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
— remain on while the door is opened.
When the door is closed, the lights go
off.
The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
OFF positionS35-D-110201-D2E4CC19-C6A3-43E3-A546-AEDCAD5B81E9When the switch is in the OFF position*3, the
ceiling light will not illuminate, regardless of the
condition.
Instruments and controls2-45
Condition:

Black plate (116,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-46Instruments and controls
S35-D-110201-60256316-8D60-44BF-B844-446DA9E30D11
SIC2064
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-AC455466-F059-41D4-A466-DD80D2F1310F
SIC2131A
When the switch is in the ON position*1, the
light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn off.
When the switch is in the OFF position
*2, the
light will turn off.
The light will turn off after a period of time
when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
VANITY MIRROR LIGHTS (if so
equipped) CARGO LIGHT
Condition:

Black plate (117,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-2
NISSAN Vehicle Immobilizer System keys ...
................... 3-2
Doors ...
........................................................................\
.................... 3-3
Locking with key ...
.................................................................. 3-3
Locking with inside lock knob ...
.......................................... 3-3
Locking with power door lock switch ...
............................ 3-4
Automatic door locks ...
......................................................... 3-4
Child safety rear door lock ...
............................................... 3-5
Remote keyless entry system ...
................................................ 3-5
How to use remote keyless entry system ...
..................... 3-6
Hood ...
........................................................................\
..................... 3-9 Lift gate
...
........................................................................\
............ 3-10
Lift gate release ...
.............................................................. 3-10
Fuel-filler door ...
........................................................................\
3-11
Opening the fuel-filler door ...
......................................... 3-11
Fuel-filler cap ...
.................................................................. 3-11
Steering wheel ...
....................................................................... 3-13
Tilt operation ...
................................................................... 3-13
Sun visors ...
........................................................................\
........ 3-13
Mirrors ...
........................................................................\
.............. 3-14
Inside mirror ...
..................................................................... 3-14
Outside mirrors ...
............................................................... 3-14
Vanity mirror ...
..................................................................... 3-15
Condition:

Black plate (118,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3-2Pre-driving checks and adjustments

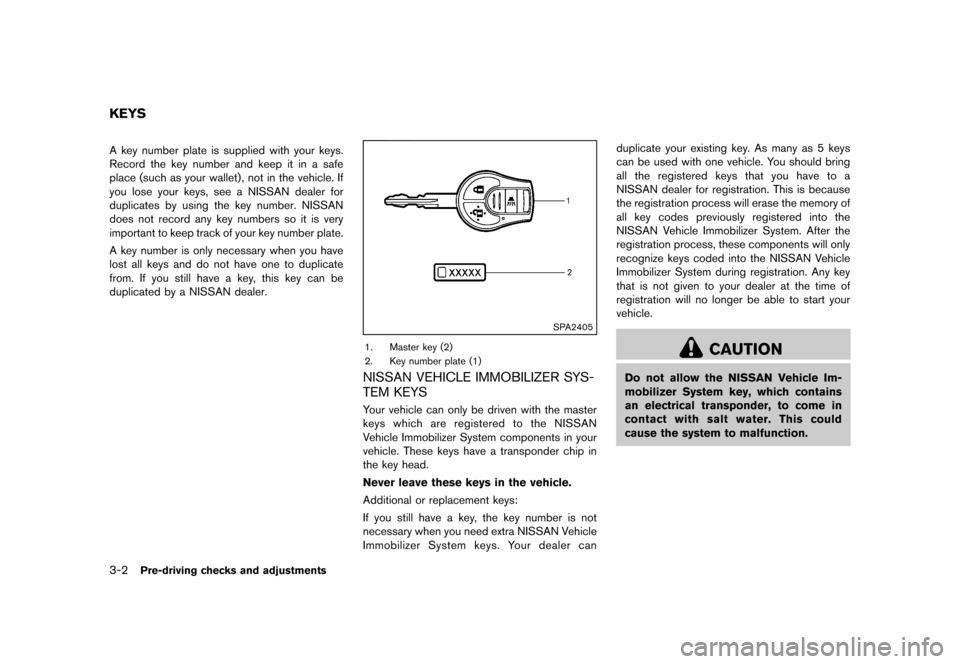

S35-D-110201-DE70668C-DA04-469B-B5C4-09EB700CFDF7A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet), not in the vehicle. If
you lose your keys, see a NISSAN dealer for
duplicates by using the key number. NISSAN
does not record any key numbers so it is very
important to keep track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a NISSAN dealer.
SPA2405
1. Master key (2)
2. Key number plate (1)
NISSAN VEHICLE IMMOBILIZER SYS-
TEM KEYS
S35-D-110201-9A9F7A26-2A31-4E79-9589-56D7FD9A686EYour vehicle can only be driven with the master
keys which are registered to the NISSAN
Vehicle Immobilizer System components in your
vehicle. These keys have a transponder chip in
the key head.
Never leave these keys in the vehicle.
Additional or replacement keys:
If you still have a key, the key number is not
necessary when you need extra NISSAN Vehicle
Immobilizer System keys. Your dealer canduplicate your existing key. As many as 5 keys
can be used with one vehicle. You should bring
all the registered keys that you have to a
NISSAN dealer for registration. This is because
the registration process will erase the memory of
all key codes previously registered into the
NISSAN Vehicle Immobilizer System. After the
registration process, these components will only
recognize keys coded into the NISSAN Vehicle
Immobilizer System during registration. Any key
that is not given to your dealer at the time of
registration will no longer be able to start your
vehicle.
CAUTION
Do not allow the NISSAN Vehicle Im-
mobilizer System key, which contains
an electrical transponder, to come in
contact with salt water. This could
cause the system to malfunction.
KEYS
Condition:
