Do not scratch the camera lens when
cleaning dirt or snow from the lens.
SAA2776
HOW TO READ THE DISPLAYED
LINES
S35-D-110201-90C6EB03-D1AD-43E9-8C29-AB01726784FAGuiding lines which indicate the vehicle width
and distances to objects with reference to the
bumper line
*Aare displayed on the monitor.
Distance guide lines:
Indicate distances from the vehicle body.
. Red line
*1: approx. 1.5 ft (0.5 m)
. Yellow line
*2: approx. 3 ft (1 m)
. Green line
*3: approx. 7 ft (2 m)
. Green line
*4: approx. 10 ft (3 m)
Vehicle width guide lines
*5:
Indicate the vehicle width when backing up.
DIFFERENCE BETWEEN PREDICTIVE
AND ACTUAL DISTANCES
S35-D-110201-65C6F016-3036-40CB-BCA9-7E6F60BB027EThe distance guide line and the vehicle width
guide line should be used as a reference only
when the vehicle is on a level, paved surface.
The distance viewed on the monitor is for
reference only and may be different than the
actual distance between the vehicle and dis-
played objects.
Heater, air conditioner, audio, phone and voice recognition systems4-3
Condition:

Black plate (136,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-4Heater, air conditioner, audio, phone and voice recognition systems
SAA1978
Backing up on a steep uphillS35-D-110201-723BFB5B-80F0-4A3F-AF31-9D21290A882EWhen backing up the vehicle up a hill, the
distance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on the hill is viewed in the monitor further than it
appears.
SAA3440
Backing up near a projecting objectS35-D-110201-E22A423E-6FA0-4A11-9EF7-E7C850FD6622The vehicle may seem to nearly clear the object
in the display. However, the vehicle may hit the
object if it projects over the actual backing up
course.
Condition:

Black plate (137,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SAA3475
Backing up behind a projecting objectS35-D-110201-5270CFCA-3E74-4D1F-B4B5-411B3FA93E38The position*Cis shown further than the
position
*Bin the display. However, the
position
*Cis actually at the same distance
as the position
*A. The vehicle may hit the
object when backing up to the position
*Aif
the object projects over the actual backing up course.
SAA1979
Backing up on a steep downhillS35-D-110201-18CD6E66-0435-45A8-9DDA-6E621AA373ADWhen backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown further than the actual distance.
For example, the display shows 3 ft (1 m) to the
place
*A, but the actual 3 ft (1 m) distance on
the hill is the place
*B. Note that any object on
Heater, air conditioner, audio, phone and voice recognition systems4-5
Condition:

Black plate (138,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-6Heater, air conditioner, audio, phone and voice recognition systems
the hill is viewed in the monitor closer than it
appears.
JVH0642X
HOW TO ADJUST THE SCREEN (if so
equipped)
S35-D-110201-13D61027-722A-45AE-AFC0-8CFDC52BE5FBTo set up the RearView Monitor to your
preferred settings, push the ENTER/SETTING
button
*2while the RearView Monitor screen is
displayed. Each time the ENTER/SETTING
button
*2is pushed, the next setting item is
selected. Turn the TUNE·SCROLL control knob
*1to adjust each item.
Available setting items:
. Brightness
. Contrast
. Language*
The setting items will disappear and the display will return to the original screen if ENTER/
SETTING button is pushed when the last setting
item is selected or if the screen is left without
operation for some time.
*: Only the language of the warning messages
on the camera screen can be switched.
OPERATING TIPSS35-D-110201-D230E307-9B7F-4AC1-8FCA-9B9030CC86BF.
When the shift lever is shifted to the R
(Reverse) position, the monitor screen auto-
matically changes to the RearView Monitor
mode. However, the radio can be heard.
. When the temperature is extremely high or
low, the screen may not clearly display
objects. This is not a malfunction.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly. This is not a malfunction.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper. This is not a malfunction.
. The screen may flicker under fluorescent
light. This is not a malfunction.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. This is not a malfunction.
. Objects on the monitor may not be clear in a
dark environment. This is not a malfunction.
Condition:

Black plate (139,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
.If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display object clearly. Clean the camera.
. Do not use alcohol, benzine or thinner to
clean the camera. This will cause discolora-
tion. To clean the camera, wipe with a cloth
dampened with diluted mild cleaning agent
and then wipe with a dry cloth.
. Do not damage the camera as the monitor
screen may be adversely affected.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.S35-D-110201-2902BFED-B9AA-4CF2-9D44-C5D05BF5B964
SAA1775

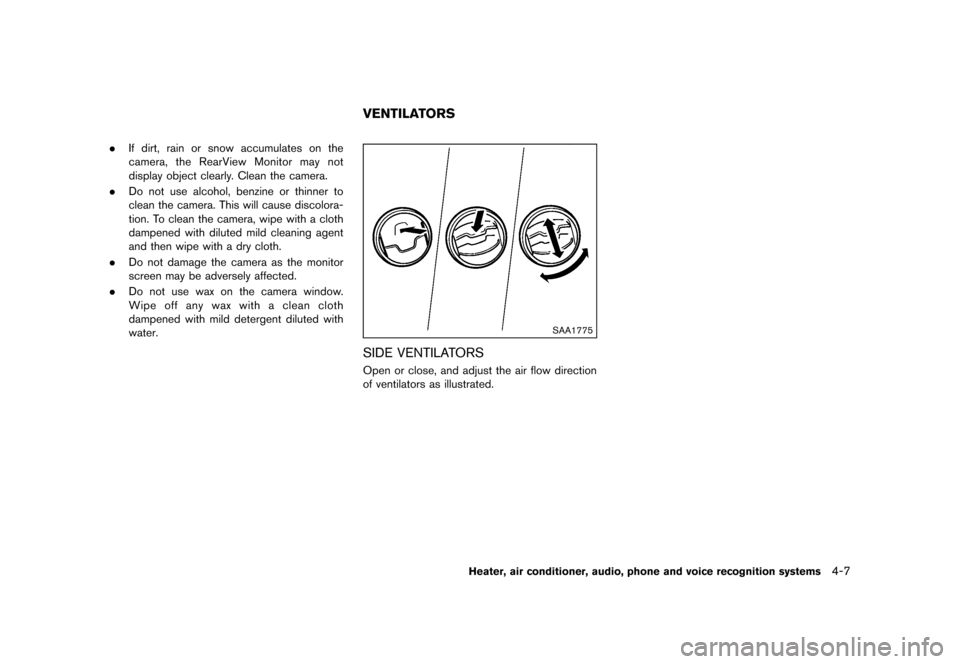

SIDE VENTILATORSGUID-7D2AD213-490F-4596-A188-7E529E37E640Open or close, and adjust the air flow direction
of ventilators as illustrated.
Heater, air conditioner, audio, phone and voice recognition systems4-7
VENTILATORS
Condition:

Black plate (140,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-8Heater, air conditioner, audio, phone and voice recognition systems
S35-D-110201-73A25172-06C8-4D8E-A6DC-5CBD131ADC3A
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
NOTE:
. Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents. .
When parking, set the heater and air
conditioner controls to turn off air
recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.
HEATER AND AIR CONDITIONER
Condition:

Black plate (141,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

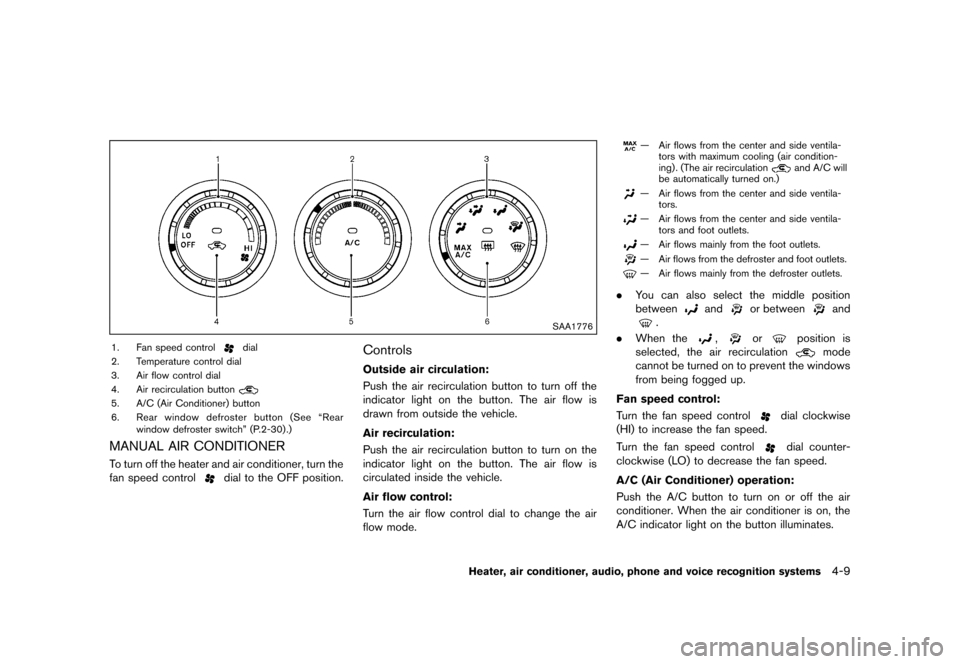

SAA1776
1. Fan speed controldial
2. Temperature control dial
3. Air flow control dial
4. Air recirculation button
5. A/C (Air Conditioner) button
6. Rear window defroster button (See “Rear
window defroster switch” (P.2-30) .)
MANUAL AIR CONDITIONERS35-D-110201-BAF28FD4-665D-44FA-9913-B21AC9730C36To turn off the heater and air conditioner, turn the
fan speed control
dial to the OFF position.
ControlsS35-D-110201-528D314D-1240-4D18-9E3F-DC4286AC735C
Outside air circulation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation button to turn off the
indicator light on the button. The air flow is
drawn from outside the vehicle.
Air recirculation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation button to turn on the
indicator light on the button. The air flow is
circulated inside the vehicle.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the air flow control dial to change the air
flow mode.
— Air flows from the center and side ventila-
tors with maximum cooling (air condition-
ing) . (The air recirculation
and A/C will
be automatically turned on.)
— Air flows from the center and side ventila- tors.
— Air flows from the center and side ventila-tors and foot outlets.
— Air flows mainly from the foot outlets.
— Air flows from the defroster and foot outlets.
— Air flows mainly from the defroster outlets.
.You can also select the middle position
between
andor betweenand
.
. When the
,orposition is
selected, the air recirculation
mode
cannot be turned on to prevent the windows
from being fogged up.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the fan speed controldial clockwise
(HI) to increase the fan speed.
Turn the fan speed control
dial counter-
clockwise (LO) to decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates.
Heater, air conditioner, audio, phone and voice recognition systems4-9
Condition:

Black plate (142,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-10Heater, air conditioner, audio, phone and voice recognition systems

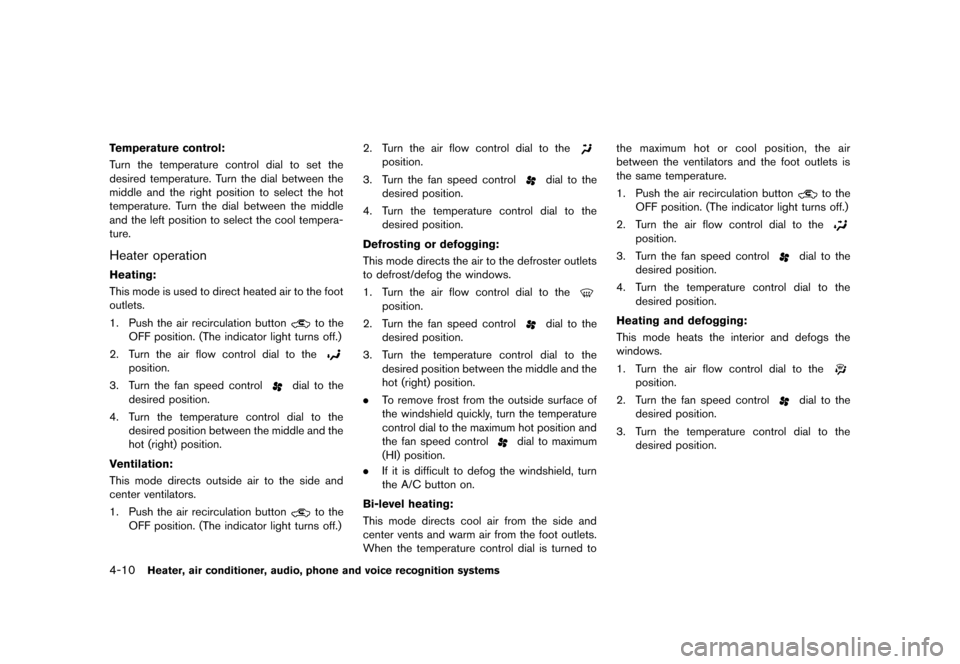

Temperature control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turn the temperature control dial to set the
desired temperature. Turn the dial between the
middle and the right position to select the hot
temperature. Turn the dial between the middle
and the left position to select the cool tempera-
ture.
Heater operationS35-D-110201-1491AD0D-22C6-45F1-B821-82C280A00A69
Heating:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to direct heated air to the foot
outlets.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
Ventilation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs outside air to the side and
center ventilators.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.) 2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Defrosting or defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs the air to the defroster outlets
to defrost/defog the windows.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position between the middle and the
hot (right) position.
. To remove frost from the outside surface of
the windshield quickly, turn the temperature
control dial to the maximum hot position and
the fan speed control
dial to maximum
(HI) position.
. If it is difficult to defog the windshield, turn
the A/C button on.
Bi-level heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs cool air from the side and
center vents and warm air from the foot outlets.
When the temperature control dial is turned to the maximum hot or cool position, the air
between the ventilators and the foot outlets is
the same temperature.
1. Push the air recirculation button
to the
OFF position. (The indicator light turns off.)
2. Turn the air flow control dial to the
position.
3. Turn the fan speed control
dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Heating and defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode heats the interior and defogs the
windows.
1. Turn the air flow control dial to the
position.
2. Turn the fan speed control
dial to the
desired position.
3. Turn the temperature control dial to the desired position.
Condition:
