2014 NISSAN ROGUE SELECT Owners Manual

Black plate (127,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-2B147586-63E0-4DF3-B881-8610B6736448
SPA2415
OPENING THE FUEL-FILLER DOORS35-D-110201-7CC1E09E-D8D3-41CA-9B6A-49166F375329To open the fuel-filler door, pull the left side of
the door.
SPA2338
FUEL-FILLER CAPS35-D-110201-2406F22D-9BA5-40C7-BA12-ABC92FD1B580To remove the fuel-filler cap:
1. Turn the fuel-filler cap counterclockwise toremove.
2. Put the fuel-filler cap on the cap holder
*A
while refueling.
To install the fuel-filler cap:
1. Insert the fuel-filler cap straight into the fuel- filler tube.
2. Turn the fuel-filler cap clockwise until a single click is heard.
WARNING
.Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on.
. Never pour fuel into the throttle
body to attempt to start your vehi-
cle.
Pre-driving checks and adjustments3-11
FUEL-FILLER DOOR
Condition:

Black plate (128,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

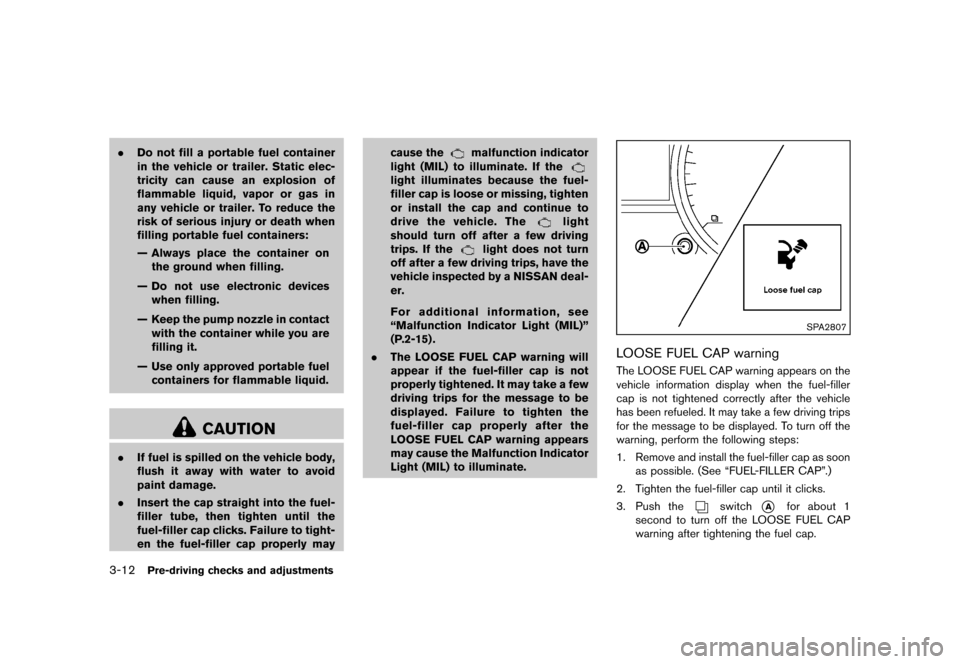

3-12Pre-driving checks and adjustments
.Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:
— Always place the container on
the ground when filling.
— Do not use electronic devices when filling.
— Keep the pump nozzle in contact with the container while you are
filling it.
— Use only approved portable fuel containers for flammable liquid.
CAUTION
. If fuel is spilled on the vehicle body,
flush it away with water to avoid
paint damage.
. Insert the cap straight into the fuel-
filler tube, then tighten until the
fuel-filler cap clicks. Failure to tight-
en the fuel-filler cap properly may cause the
malfunction indicator
light (MIL) to illuminate. If the
light illuminates because the fuel-
filler cap is loose or missing, tighten
or install the cap and continue to
drive the vehicle. The
light
should turn off after a few driving
trips. If the
light does not turn
off after a few driving trips, have the
vehicle inspected by a NISSAN deal-
er.
For additional information, see
“Malfunction Indicator Light (MIL)”
(P.2-15) .
. The LOOSE FUEL CAP warning will
appear if the fuel-filler cap is not
properly tightened. It may take a few
driving trips for the message to be
displayed. Failure to tighten the
fuel-filler cap properly after the
LOOSE FUEL CAP warning appears
may cause the Malfunction Indicator
Light (MIL) to illuminate.
SPA2807
LOOSE FUEL CAP warningS35-D-110201-7BDBA3A1-1B36-47D7-8D3F-6BCA39874459The LOOSE FUEL CAP warning appears on the
vehicle information display when the fuel-filler
cap is not tightened correctly after the vehicle
has been refueled. It may take a few driving trips
for the message to be displayed. To turn off the
warning, perform the following steps:
1. Remove and install the fuel-filler cap as soon
as possible. (See “FUEL-FILLER CAP”.)
2. Tighten the fuel-filler cap until it clicks.
3. Push the
switch*Afor about 1
second to turn off the LOOSE FUEL CAP
warning after tightening the fuel cap.
Condition:

Black plate (129,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-080D2004-4570-4B0C-B875-A5DE896B6841

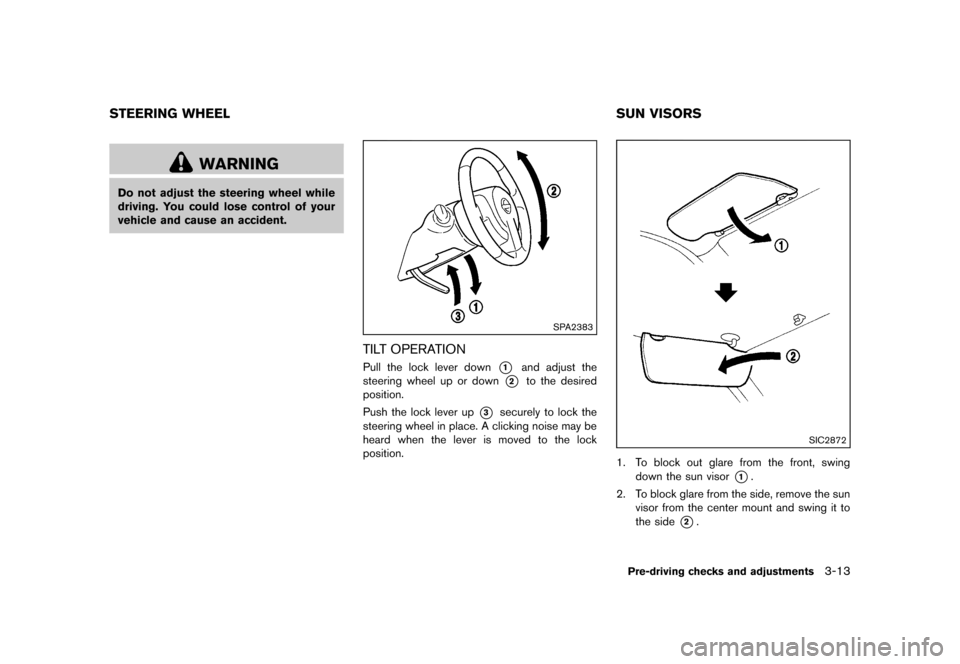

WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
SPA2383
TILT OPERATIONS35-D-110201-28BA420D-969D-46F3-B289-6F251133B52BPull the lock lever down*1and adjust the
steering wheel up or down
*2to the desired
position.
Push the lock lever up
*3securely to lock the
steering wheel in place. A clicking noise may be
heard when the lever is moved to the lock
position.
S35-D-110201-B266053D-0E25-4B84-A94E-88E6B81337A0
SIC2872
1. To block out glare from the front, swing down the sun visor
*1.
2. To block glare from the side, remove the sun visor from the center mount and swing it to
the side
*2.
Pre-driving checks and adjustments3-13
STEERING WHEEL SUN VISORS
Condition:

Black plate (130,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
3-14Pre-driving checks and adjustments
S35-D-110201-2C2A1443-F866-4FB7-8FF5-8337E541196D
SPA2447
INSIDE MIRRORS35-D-110201-67D1410D-36D6-4377-944E-434F7B628FFCAdjust the height and the angle of the inside
mirror to the desired position.
SPA2143
Manual anti-glare typeS35-D-110201-7FA2E3AD-51E8-43DF-93EA-2C31AEAE2711The night position*1will reduce glare from the
headlights of vehicles behind you at night.
Use the day position
*2when driving in daylight
hours.
WARNING
Use the night position only when ne-
cessary, because it reduces rear view
clarity.
SPA1390
OUTSIDE MIRRORSS35-D-110201-85E8C1B6-9131-460C-BDC1-2187D806CC2F
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
MIRRORS
Condition:

Black plate (131,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Adjusting outside mirrorsS35-D-110201-3F0FC23C-63BA-4C15-907F-D683589765C8The outside mirror control switch is located on
the left side of the instrument panel.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Turn the switch right or left to select the right or
left side mirror, then adjust using the control
switch.
SPA1829
Foldable outside mirrorsS35-D-110201-35753C78-8667-43C1-A202-7708082BAF4EFold the outside mirror by pushing it toward the
rear of the vehicle.
SIC2064
VANITY MIRRORGUID-077032A8-BE9E-45A3-9146-957D47A5EB9ATo use the front vanity mirror, pull down the sun
visor and pull up the cover.
Pre-driving checks and adjustments3-15
Condition:

Black plate (132,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

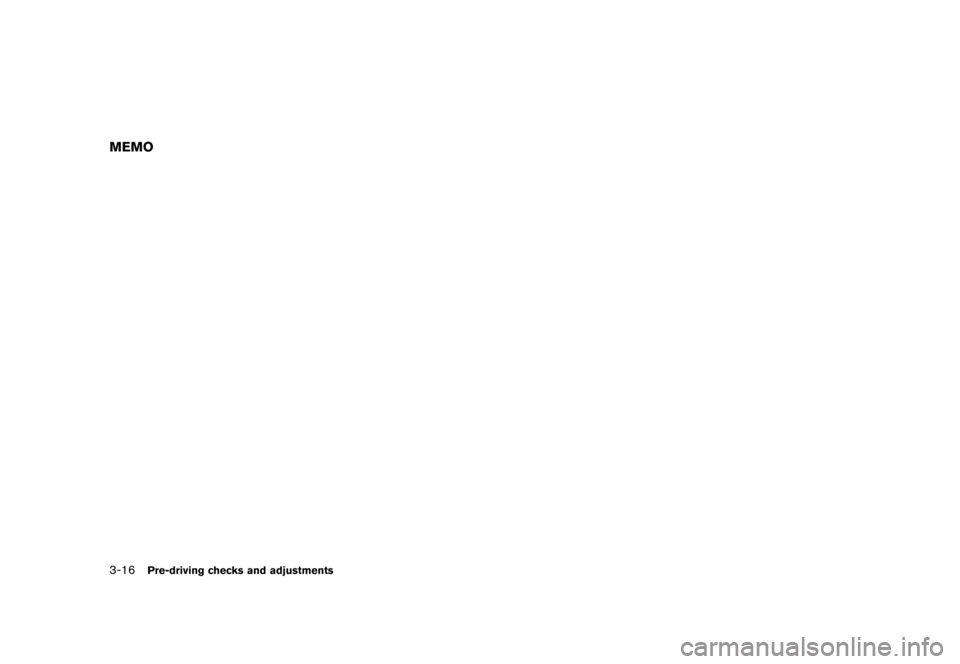

3-16Pre-driving checks and adjustments
MEMO
Condition:

Black plate (133,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4 Heater, air conditioner, audio, phone and voicerecognition systems
Safety note ...
........................................................................\
.......... 4-2
RearView monitor (if so equipped) ...
...................................... 4-2
How to read the displayed lines ...
..................................... 4-3
Difference between predictive and
actual distances ...
................................................................... 4-3
How to adjust the screen (if so equipped) ...
.................. 4-6
Operating tips ...
...................................................................... 4-6
Ventilators ...
........................................................................\
............ 4-7
Side ventilators ...
.................................................................... 4-7
Heater and air conditioner ...
...................................................... 4-8
Manual air conditioner ...
........................................................ 4-9
In-cabin microfilter ...
........................................................... 4-11
Servicing air conditioner ...
................................................. 4-11
Audio system ...
........................................................................\
... 4-12
Audio operation precautions ...
......................................... 4-12
FM-AM radio with Compact Disc (CD) player ...
......... 4-22 FM-AM-SAT(if so equipped) radio with Compact
Disc (CD) player
...
............................................................ 4-30
CD/DVD/USB memory care and cleaning ...
.............. 4-38
Steering wheel switch for audio control (if
so equipped) ...
................................................................... 4-38
Antenna ...
........................................................................\
.... 4-39
Car phone and CB radio ...
.................................................... 4-40
Bluetooth
®Hands-Free Phone System (if
so equipped) ...
........................................................................\
.. 4-41
Regulatory information ...
.................................................. 4-42
Using the system ...
........................................................... 4-42
Control buttons ...
............................................................... 4-44
Getting started ...
............................................................... 4-45
List of voice commands ...
............................................... 4-46
Speaker Adaptation (SA) mode ...
................................. 4-50
Troubleshooting guide ...
.................................................. 4-52
Condition:

Black plate (134,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-2Heater, air conditioner, audio, phone and voice recognition systems
S35-D-110201-085FF441-F2C8-4C6E-ABB3-F2123CE126F8
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
Do not attempt to operate the system in
extreme temperature conditions [below
−48F (−208C) and above 1588F (708C)].
Operating this system under these condi-
tions may result in system malfunctions.
S35-D-110201-2F64DC1B-3CBB-41D0-8176-3FF7CF94DB67The system is designed as an aid to the driver in
situations such as slot parking or parallel
parking.
When the shift lever is shifted into the R
(Reverse) position, the monitor display shows
the view to the rear of the vehicle.
WARNING
Failure to follow the warnings and
instructions for proper use of the Rear-
View Monitor could result in serious
injury or death.
. The RearView monitor is a conve-
nience but it is not a substitute for
proper backing. Always turn and
look out the windows, and check
mirrors to be sure that it is safe to
move before operating the vehicle.
Always back up slowly.
. The system is designed as an aid to
the driver in showing large station-
ary objects directly behind the vehi-
cle, to help avoid damaging the
vehicle.
. The system cannot completely elim-
inate blind spots and may not show
every object. .
Underneath the bumper and the
corner areas of the bumper cannot
be viewed on the RearView Monitor
because of its monitoring range
limitation. The system will not show
small objects below the bumper,
and may not show objects close to
the bumper or on the ground.
. Objects viewed in the RearView
Monitor differ from actual distance
because a wide-angle lens is used.
. Objects in the RearView Monitor
will appear visually opposite than
when viewed in the rear view and
outside mirrors.
. Make sure that the lift gate is
securely closed when backing up.
. Do not put anything on the Rear-
View camera.
. When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
SAFETY NOTE REARVIEW MONITOR (if so
equipped)
Condition:
