2014 NISSAN ROGUE SELECT Owners Manual

Black plate (239,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

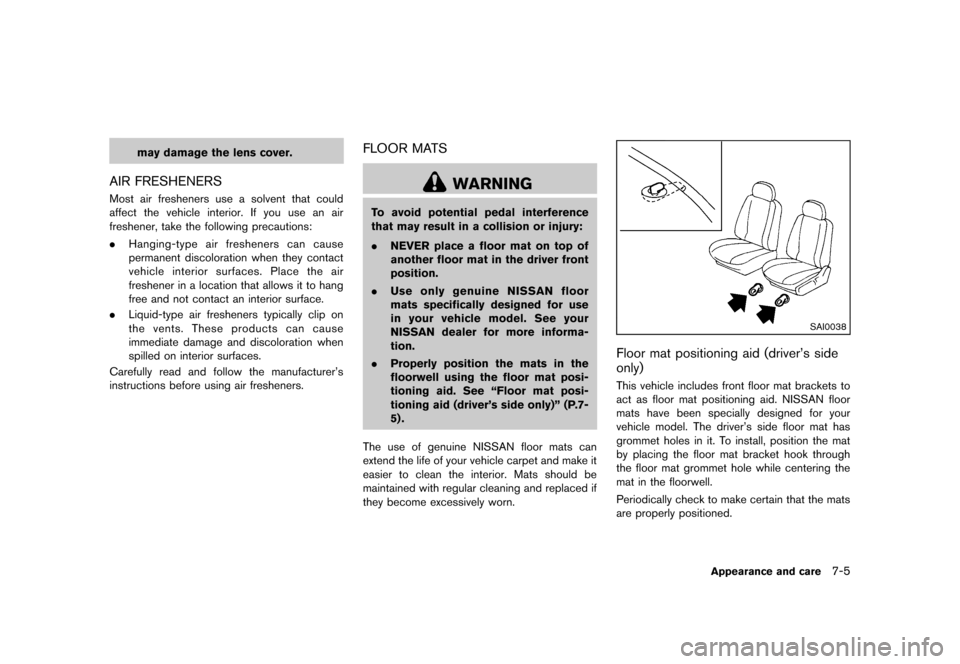

may damage the lens cover.
AIR FRESHENERSGUID-C3B241D4-0516-4BEC-97AC-5483C90DD06DMost air fresheners use a solvent that could
affect the vehicle interior. If you use an air
freshener, take the following precautions:
.Hanging-type air fresheners can cause
permanent discoloration when they contact
vehicle interior surfaces. Place the air
freshener in a location that allows it to hang
free and not contact an interior surface.
. Liquid-type air fresheners typically clip on
the vents. These products can cause
immediate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer’s
instructions before using air fresheners.
FLOOR MATSS35-D-110201-B2E74394-B3E1-4495-9910-3041A54BCA20
WARNING
To avoid potential pedal interference
that may result in a collision or injury:
. NEVER place a floor mat on top of
another floor mat in the driver front
position.
. Use only genuine NISSAN floor
mats specifically designed for use
in your vehicle model. See your
NISSAN dealer for more informa-
tion.
. Properly position the mats in the
floorwell using the floor mat posi-
tioning aid. See “Floor mat posi-
tioning aid (driver’s side only)” (P.7-
5) .
The use of genuine NISSAN floor mats can
extend the life of your vehicle carpet and make it
easier to clean the interior. Mats should be
maintained with regular cleaning and replaced if
they become excessively worn.
SAI0038
Floor mat positioning aid (driver’s side
only)
S35-D-110201-6BE4BC91-9348-4906-A18E-C294E0C5E93AThis vehicle includes front floor mat brackets to
act as floor mat positioning aid. NISSAN floor
mats have been specially designed for your
vehicle model. The driver’s side floor mat has
grommet holes in it. To install, position the mat
by placing the floor mat bracket hook through
the floor mat grommet hole while centering the
mat in the floorwell.
Periodically check to make certain that the mats
are properly positioned.
Appearance and care7-5
Condition:

Black plate (240,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
7-6Appearance and care
SEAT BELTSS35-D-110201-C770D13E-C383-46EE-A06C-46D1543B0A62The seat belts can be cleaned by wiping them
with a sponge dampened in a mild soap
solution. Allow the belts to dry completely in
the shade before using them.
See “Seat belts” (P.1-9).
WARNING
Do not allow wet seat belts to roll up in
the retractor. NEVER use bleach, dye, or
chemical solvents to clean the seat
belts, since these materials may se-
verely weaken the seat belt webbing.
S35-D-110201-F44B796D-CF5C-45AD-A73C-62C26924B2AFMOST COMMON FACTORS CONTRI-
BUTING TO VEHICLE CORROSION
S35-D-110201-445B63E4-1AAA-434C-9044-B3020018D404.The accumulation of moisture-retaining dirt
and debris in body panel sections, cavities,
and other areas.
. Damage to paint and other protective coat-
ings caused by gravel and stone chips or
minor traffic accidents.
ENVIRONMENTAL FACTORS INFLU-
ENCE THE RATE OF CORROSION
S35-D-110201-69B386BA-615F-4B49-A4C8-910975B562E2
MoistureS35-D-110201-B65B2839-2AB8-424B-AB21-FD3BD4D02E89Accumulation of sand, dirt and water on the
vehicle body underside can accelerate corro-
sion. Wet floor coverings will not dry completely
inside the vehicle, and should be removed for
drying to avoid floor panel corrosion.
Relative humidityS35-D-110201-A7199B6A-97DE-4938-84D8-1900B1E54AB3Corrosion will be accelerated in areas of high
relative humidity, especially those areas where
the temperatures stay above freezing where
atmospheric pollution exists, or where road salt
is used.
TemperatureS35-D-110201-661832A3-A326-4D3F-8EC4-669D839F9197A temperature increase will accelerate the rate
of corrosion to those parts which are not well
ventilated.
Air pollutionS35-D-110201-7FC55DDC-7BED-4DB0-B4B7-1A27762C50A3Industrial pollution, the presence of salt in the air
in coastal areas, or heavy road salt use will
accelerate the corrosion process. Road salt will
also accelerate the disintegration of paint
surfaces.
TO PROTECT YOUR VEHICLE FROM
CORROSION
S35-D-110201-A8AB3EBD-C334-46B0-9E9A-F382191A3E60.Wash and wax your vehicle often to keep the
vehicle clean.
. Always check for minor damage to the paint
and repair it as soon as possible.
. Keep drain holes at the bottom of the doors
open to avoid water accumulation.
. Check the underbody for accumulation of
sand, dirt or salt. If present, wash with water
as soon as possible.
CAUTION
.NEVER remove dirt, sand or other
debris from the passenger compart-
ment by washing it out with a hose.
CORROSION PROTECTION
Condition:

Black plate (241,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

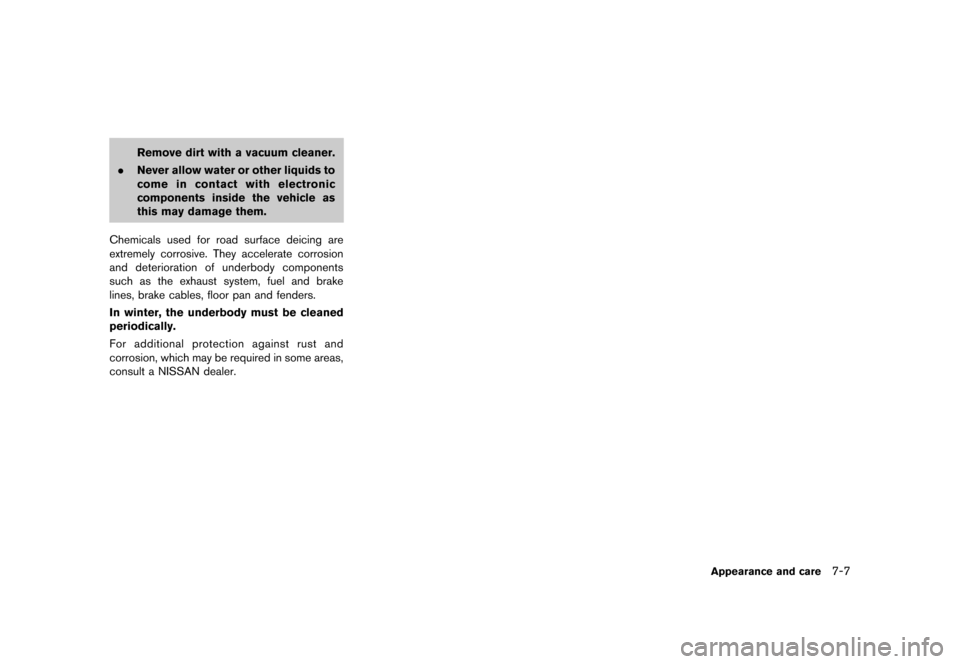

Remove dirt with a vacuum cleaner.
. Never allow water or other liquids to
come in contact with electronic
components inside the vehicle as
this may damage them.
Chemicals used for road surface deicing are
extremely corrosive. They accelerate corrosion
and deterioration of underbody components
such as the exhaust system, fuel and brake
lines, brake cables, floor pan and fenders.
In winter, the underbody must be cleaned
periodically.
For additional protection against rust and
corrosion, which may be required in some areas,
consult a NISSAN dealer.
Appearance and care7-7
Condition:

Black plate (242,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
7-8Appearance and care

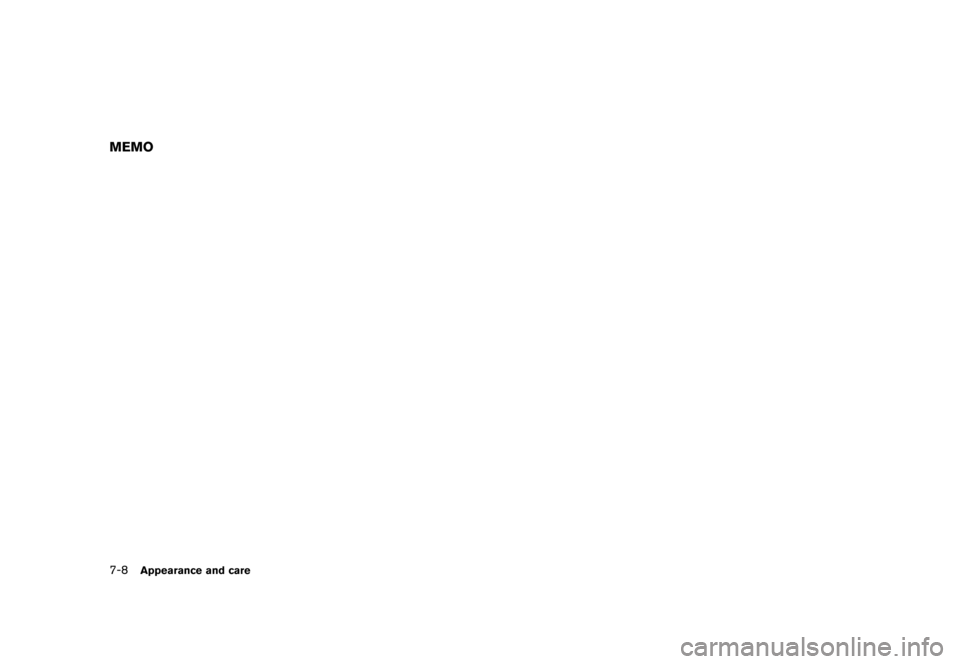

MEMO
Condition:

Black plate (243,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-2
Scheduled maintenance ...
.................................................... 8-2
General maintenance ...
......................................................... 8-2
Where to go for service ...
.................................................... 8-2
General maintenance ...
............................................................... 8-2
Explanation of maintenance items ...
................................... 8-2
Maintenance precautions ...
........................................................ 8-5
Engine compartment check locations ...
.................................. 8-6
QR25DE engine ...
.................................................................. 8-6
Engine cooling system ...
............................................................. 8-7
Checking engine coolant level ...
......................................... 8-8
Changing engine coolant ...
.................................................. 8-8
Engine oil ...
........................................................................\
............ 8-9
Checking engine oil level ...
.................................................. 8-9
Changing engine oil and filter ...
.......................................... 8-9
Continuously Variable Transmission (CVT) fluid ...
............ 8-11
Brake fluid ...
........................................................................\
........ 8-11
Window washer fluid ...
............................................................ 8-12
Battery ...
........................................................................\
............... 8-13
Jump starting ...
..................................................................... 8-14
Drive belts ...
........................................................................\
........ 8-14
Spark plugs ...
........................................................................\
..... 8-15
Replacing spark plugs ...
.................................................... 8-15 Air cleaner
...
........................................................................\
....... 8-16
Windshield wiper blades ...
..................................................... 8-17
Cleaning ...
........................................................................\
... 8-17
Replacing ...
........................................................................\
. 8-17
Rear window wiper blade ...
................................................... 8-18
Brakes ...
........................................................................\
.............. 8-18
Self-adjusting brakes ...
.................................................... 8-18
Brake pad wear indicators ...
.......................................... 8-18
Fuses ...
........................................................................\
................ 8-19
Engine compartment ...
..................................................... 8-19
Passenger compartment ...
.............................................. 8-20
Battery replacement ...
.............................................................. 8-22
Keyfob ...
........................................................................\
....... 8-22
Lights ...
........................................................................\
................ 8-24
Headlights ...
........................................................................\
8-25
Exterior and interior lights ...
............................................ 8-26
Wheels and tires ...
................................................................... 8-29
Tire pressure ...
................................................................... 8-29
Tire labeling ...
..................................................................... 8-32
Types of tires ...
................................................................... 8-34
Tire chains ...
....................................................................... 8-35
Changing wheels and tires ...
.......................................... 8-36
Condition:

Black plate (244,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-2Maintenance and do-it-yourself
S35-D-110201-308D6977-4CEB-447B-A914-761AA0FAFDCBSome day-to-day and regular maintenance is
essential to maintain your vehicle’s fine mechan-
ical condition, as well as its emission and engine
performance.
It is the owner’s responsibility to make sure that
the scheduled maintenance, as well as general
maintenance, is performed.
As the vehicle owner, you are the only one who
can ensure that your vehicle receives the proper
maintenance. You are a vital link in the main-
tenance chain.
SCHEDULED MAINTENANCES35-D-110201-3A1DEF4E-C7A4-410C-B164-394507FB9145For your convenience, both required and op-
tional scheduled maintenance items are de-
scribed and listed in your “NISSAN Service and
Maintenance Guide”. You must refer to that
guide to ensure that necessary maintenance is
performed on your vehicle at regular intervals.
GENERAL MAINTENANCES35-D-110201-EA45D551-31FD-45AC-84C7-86A06265D252General maintenance includes those items
which should be checked during normal day-
to-day operation. They are essential for proper
vehicle operation. It is your responsibility to
perform these procedures regularly as pre-
scribed.
Performing general maintenance checks re-
quires minimal mechanical skill and only a few
general automotive tools.These checks or inspections can be done by
yourself, a qualified technician or, if you prefer, a
NISSAN dealer.
WHERE TO GO FOR SERVICES35-D-110201-2F655382-40D8-4EAD-859C-6E05E2D5CEACIf maintenance service is required or your vehicle
appears to malfunction, have the systems
checked and serviced by a NISSAN dealer.
NISSAN technicians are well-trained specialists
and are kept up-to-date with the latest service
information through technical bulletins, service
tips, and in-dealership information systems.
They are completely qualified to work on
NISSAN vehicles
beforework begins.
You can be confident that a NISSAN dealer’s
service department performs the best job to
meet the maintenance requirements on your
vehicle.
S35-D-110201-D843A8B9-8AAA-4A7A-A67E-0EE527CB549ADuring the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have a
NISSAN dealer do it promptly. In addition, you
should notify a NISSAN dealer if you think that
repairs are required.
When performing any checks or maintenance
work, see “Maintenance precautions” (P.8-5) .
EXPLANATION OF MAINTENANCE
ITEMS
S35-D-110201-3BC260BA-690D-477C-91AC-4BE39984F115Additional information on the following
items with “*” is found later in this section.
Outside the vehicleS35-D-110201-BEFBD842-6721-4232-85DD-4674C0605138The maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood: Check that all doors
and the engine hood operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other
corrosive materials, check lubrication frequently.
Lights*: Clean the headlights on a regular basis.
MAINTENANCE REQUIREMENT GENERAL MAINTENANCE
Condition:

Black plate (245,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*:When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km) .
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires,
including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive
wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed. For additional information regarding tires, refer
to “Important Tire Safety Information” in the
Warranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicleS35-D-110201-CC243554-AEAC-47F1-92F5-9C00AD8195A2The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, see a NISSAN dealer immediately. Keep
the floor mat away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied. Continuously Variable Transmission (CVT)
P (Park) position mechanism:
On a fairly
steep hill, check that the vehicle is held securely
with the shift lever in the P (Park) position
without applying any brakes.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
adjusted, see a NISSAN dealer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints move up and down smoothly and that
the locks (if so equipped) hold securely in all
latched positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Maintenance and do-it-yourself8-3
Condition:

Black plate (246,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-4Maintenance and do-it-yourself
Windshield defroster:Check that the air
comes out of the defroster outlets properly and
in sufficient quantity when operating the heater
or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicleS35-D-110201-72861ABE-E4F3-407B-92C6-F64761D7062AThe maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) .
Battery*: Check the fluid level in each cell.
It should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe condition require frequent checks of the
battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances. In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*:
Make sure that the brake
fluid level is between the MAX and MIN lines on
the reservoir.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that the drive
belts are not frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level surface and turning off the
engine. Wait more than 10 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by a NISSAN dealer. (See
“Precautions when starting and driving” (P.5-2)
for exhaust gas (carbon monoxide) .)
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,
check for the cause and have it corrected
immediately. Radiator and hoses:
Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the end
of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean
those areas where mud and dirt may accumu-
late. For additional information, see “Cleaning
exterior” (P.7-2).
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
Condition:
