2014 NISSAN ROGUE SELECT buttons

Black plate (121,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
SPA2037
CHILD SAFETY REAR DOOR LOCKS35-D-110201-E7140EBB-C56B-4EFA-B4A0-B356D8C49F31Child safety rear door locks help prevent the rear
doors from being opened accidentally, espe-
cially when small children are in the vehicle.
When the levers are in the lock position
*1, the rear doors can be opened only
from the outside.
To disengage, move the levers to the unlock
position
*2.
S35-D-110201-1E00637E-1C0B-4FEB-811E-9997F446A105It is possible to lock/unlock all doors (including
the lift gate) , and activate the panic alarm by
using the keyfob from outside the vehicle.
Before locking the doors, make sure the
key is not left in the vehicle.
The keyfob can operate at a distance of
approximately 33 ft (10 m) from the vehicle.
(The effective distance depends upon the
conditions around the vehicle.)
As many as 5 keyfobs can be used with one
vehicle. For information concerning the pur-
chase and use of additional keyfobs, contact a
NISSAN dealer.
The keyfob will not function:
. When the keyfob is not within the opera-
tional range.
. When the doors are open or not closed
securely.
. When the key is in the ignition switch.
. When the battery is discharged.
WARNING
The remote keyless entry keyfob trans-
mits radio waves when the buttons are
pushed. The FAA advises that the radio
waves may affect aircraft navigation
and communication systems. Do not operate the keyfob while on an air-
plane. Make sure the buttons are not
operated unintentionally when the unit
is stored during a flight.
CAUTION
The following conditions or occur-
rences will damage the keyfob.
.
Do not allow the keyfob to become
wet.
. Do not drop the keyfob.
. Do not strike the keyfob sharply
against another object.
. If the outside temperature is below
148F (-108C) degrees, the battery of
keyfob may not function properly.
. Do not place the keyfob for an
extended period in an area where
temperatures exceed 1408F (608C) .
If a keyfob is lost or stolen, NISSAN
recommends erasing the ID code of that
keyfob. This will prevent the keyfob
from unauthorized use to unlock the
vehicle. For information regarding the
erasing procedure, please contact a
Pre-driving checks and adjustments3-5
REMOTE KEYLESS ENTRY SYSTEM
Condition:

Black plate (123,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Using panic alarmS35-D-110201-1BFE353E-D31D-455C-84CE-1BA2297CF9C6If you are near your vehicle and feel threatened,
you may activate the alarm to call attention as
follows:
1. Push the PANIC
button*3on the
keyfob for more than 1 second.
2. The theft warning alarm and headlights will stay on for 25 seconds.
3. The panic alarm stops when:
.It has run for 25 seconds, or.Any of the buttons on the keyfob is pushed. (Note: the PANIC button must
be pushed for more than 1 second.)
Battery indicator lightGUID-4BEFDF18-3946-464F-9CD9-A429F59D8F97The battery indicator light*4illuminates when
you push any button. If the light does not
illuminate, the battery is weak or needs replace-
ment. For information regarding replacement of
a battery, see “Battery replacement” (P.8-22) .
Setting hazard indicator and horn modeS35-D-110201-9248839D-3D23-438A-9E35-5533D7B6AFCAThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK
button*1is pushed, the hazard
indicator flashes twice and the horn chirps once.
When the UNLOCK
button*2is pushed,
the hazard indicator flashes once.
If the horn chirp is not necessary, you can switch
to hazard indicator only mode by following the
switching procedure.
In hazard indicator only mode, when the LOCK
button is pushed, the hazard indicator
flashes twice. When the UNLOCK
button is
pushed, neither the hazard indicator nor the horn
operates.
Pre-driving checks and adjustments3-7
Condition:

Black plate (124,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

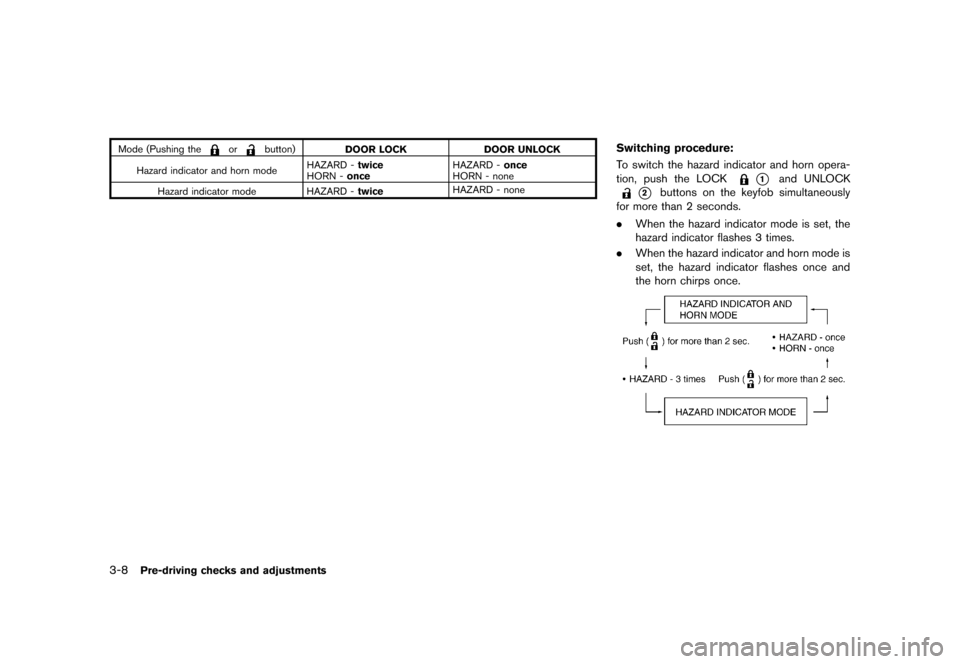

3-8Pre-driving checks and adjustments
Mode (Pushing theorbutton)DOOR LOCK DOOR UNLOCK
Hazard indicator and horn mode HAZARD -
twice
HORN - once HAZARD -
once
HORN - none
Hazard indicator mode HAZARD - twiceHAZARD - noneSwitching procedure:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To switch the hazard indicator and horn opera-
tion, push the LOCK
*1and UNLOCK
*2buttons on the keyfob simultaneously
for more than 2 seconds.
. When the hazard indicator mode is set, the
hazard indicator flashes 3 times.
. When the hazard indicator and horn mode is
set, the hazard indicator flashes once and
the horn chirps once.
NOS1695
Condition:

Black plate (133,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

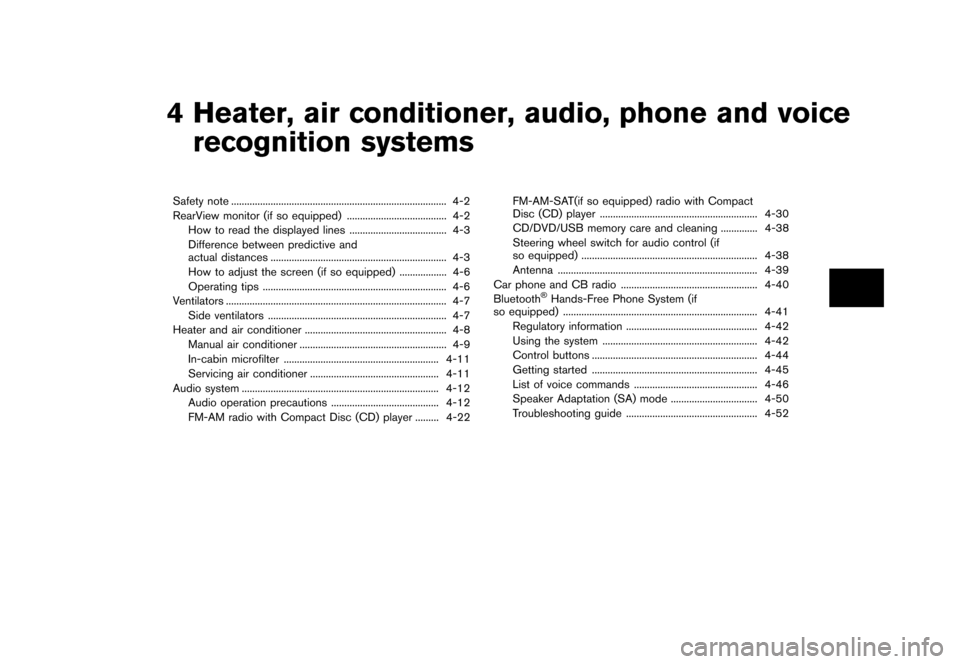

4 Heater, air conditioner, audio, phone and voicerecognition systems
Safety note ...
........................................................................\
.......... 4-2
RearView monitor (if so equipped) ...
...................................... 4-2
How to read the displayed lines ...
..................................... 4-3
Difference between predictive and
actual distances ...
................................................................... 4-3
How to adjust the screen (if so equipped) ...
.................. 4-6
Operating tips ...
...................................................................... 4-6
Ventilators ...
........................................................................\
............ 4-7
Side ventilators ...
.................................................................... 4-7
Heater and air conditioner ...
...................................................... 4-8
Manual air conditioner ...
........................................................ 4-9
In-cabin microfilter ...
........................................................... 4-11
Servicing air conditioner ...
................................................. 4-11
Audio system ...
........................................................................\
... 4-12
Audio operation precautions ...
......................................... 4-12
FM-AM radio with Compact Disc (CD) player ...
......... 4-22 FM-AM-SAT(if so equipped) radio with Compact
Disc (CD) player
...
............................................................ 4-30
CD/DVD/USB memory care and cleaning ...
.............. 4-38
Steering wheel switch for audio control (if
so equipped) ...
................................................................... 4-38
Antenna ...
........................................................................\
.... 4-39
Car phone and CB radio ...
.................................................... 4-40
Bluetooth
®Hands-Free Phone System (if
so equipped) ...
........................................................................\
.. 4-41
Regulatory information ...
.................................................. 4-42
Using the system ...
........................................................... 4-42
Control buttons ...
............................................................... 4-44
Getting started ...
............................................................... 4-45
List of voice commands ...
............................................... 4-46
Speaker Adaptation (SA) mode ...
................................. 4-50
Troubleshooting guide ...
.................................................. 4-52
Condition:

Black plate (154,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-22Heater, air conditioner, audio, phone and voice recognition systems
SAA2782
1. MUTE button
2. DISP (display)/TEXT button
3. FM·AM radio band select button
4. CD PLAY button
5. Station preset buttons
6. iPod
®button
7. AUX (auxiliary) button 8. Audio display
9. CLOCK button
10. CD EJECT button
11. iPod
®MENU button
12. SEEK/TRACK button
13. ENTER button
14 BACK button 15. PWR (power) button/VOL (volume) control knob
16 AUX IN jack
17. AUDIO button
18. TUNE/FF·REW button
19. SCAN/RPT (repeat) button
FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER
S35-D-110201-7F3EC8FB-22B5-4244-A10C-C0DBE2251A7FFor all operation precautions, see “Audio opera-
tion precautions” (P.4-12) .
Audio main operationS35-D-110201-CB88F338-7D68-4C7D-B2E4-2761839D6DD6
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the PWR button while
the system is off to call up the normal mode
(radio, CD, AUX and iPod
®) which was playing
immediately before the system was turned off.
While the system is on, pushing the PWR button
turns the system off.
Turn the VOL control knob to adjust the volume.
Condition:

Black plate (155,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
MUTE button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push thebutton to mute the audio sound.
Push the
button again to release the mute
setting.
AUDIO button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the AUDIO button to change the selecting
mode as follows.
NOS2545
Push the TUNE (,) or SEEK (,)
button to adjust Bass and Treble to the desired
level. Use the TUNE or SEEK button also to
adjust Fade or Balance modes. Fade adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the
right and left speakers.
To turn the beep sound off or on, push the TUNE
or SEEK button until the desired mode is
displayed. This turns on or off the beep sound
when audio buttons are pushed.
To change the Speed Sensitive Volume (Spd
Sen Vol) mode to OFF, LOW, MID or HIGH,
push the TUNE or SEEK button until the desired
mode is displayed.
Once you have adjusted the sound quality to the
desired level, push the AUDIO button repeatedly until the normal mode display reappears. Other-
wise, the normal mode display will automatically
reappear after approximately 5 seconds.
CLOCK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the CLOCK button to turn on or off the
CLOCK display.
SIC4131
Adjust the clock according to the following
procedure.
1. Push and hold the CLOCK button
*1until
the clock display starts to flash.
2. Push the SEEK/TRACK button
*2to adjust
the hours.
3. Push the TUNE/FF·REW button
*3to
adjust the minutes.
4. Push the CLOCK button
*1again to exit
the clock set mode.
The display will return to the regular clock
display after 5 seconds.
Heater, air conditioner, audio, phone and voice recognition systems4-23
Condition:

Black plate (156,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-24Heater, air conditioner, audio, phone and voice recognition systems
Radio operationS35-D-110201-5CFF91BB-BBB0-4B7F-B234-E74EABB5CC53
Radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the FM·AM radio band select button will
change the band as follows:
AM?FM1 ?FM2 ?AM
When the stereo broadcast signal is weak, the
radio will automatically change from stereo to
monaural reception.
When the radio band select button is pushed
while the ignition switch is in the ACC or ON
position, the radio will come on at the station last
played.
TUNE (Tuning):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the TUNE buttonorfor manual
tuning. To move quickly through the stations,
push and hold the TUNE button.
SEEK tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SEEK buttonorto tune from
low to high or high to low frequencies and to
stop at the next broadcasting station.
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the SCAN button to tune from low to high
frequencies and stops at each broadcasting
station for 5 seconds. Pushing the button again during this 5 seconds period will stop SCAN
tuning and the radio will remain tuned to that
station.
If the SCAN tuning button is not pushed within 5
seconds, SCAN tuning moves to the next
station.
toStation memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations can be set for the FM band (6 each
for FM1 and FM2), and 6 can be set for the AM
band for easy access.
1. Choose the radio band using the radio band
select button.
2. Tune to the desired station using the SEEK, SCAN or TUNE button.
3. Push and hold the desired radio station preset button
tountil a beep sound is
heard. (The radio mutes when the radio
station preset button is pushed.)
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the radio memory will be erased. In that
case, reset the desired stations. Radio Data System (RDS):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407RDS stands for Radio Data System, and is a
data information service transmitted by some
radio stations on the FM band (not AM band)
encoded within a regular radio broadcast.
Currently, most RDS stations are in large cities,
but many stations are now considering broad-
casting RDS data.
RDS can display:
.
Station call sign, such as “WHFR 98.3”.
. Station name, such as “The Groove”.
. Music or programming type such as “Clas-
sical”, “Country” or “Rock”.
. Traffic reports about delays or construction.
If the station broadcasts RDS information, the
RDS icon is displayed.
RADIO DISPLAY change:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISP button is pushed during the FM
radio mode, the radio display will change in the
following order.
FM radio:
Frequency ↔PS (Programme Service)/PTY
(Programme type)
In the FM radio mode, pushing the DISP button
will switch the frequency display to the PTY
display (if available) , and if the DISP button is
not pushed again within 5 seconds, it will
Condition:

Black plate (159,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

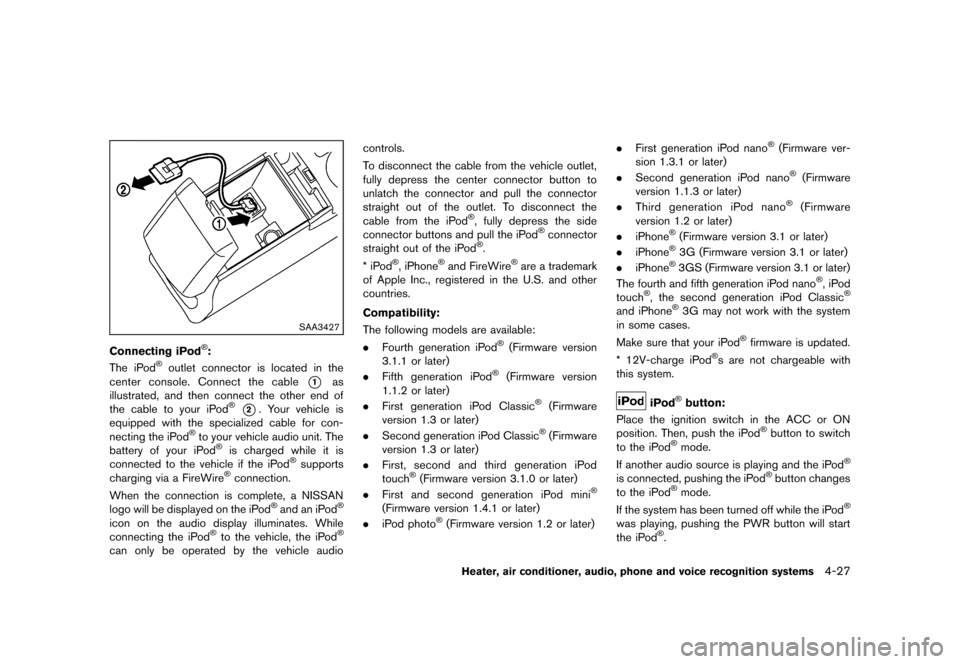

SAA3427
Connecting iPod®:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The iPod®outlet connector is located in the
center console. Connect the cable
*1as
illustrated, and then connect the other end of
the cable to your iPod
®*2. Your vehicle is
equipped with the specialized cable for con-
necting the iPod
®to your vehicle audio unit. The
battery of your iPod®is charged while it is
connected to the vehicle if the iPod®supports
charging via a FireWire®connection.
When the connection is complete, a NISSAN
logo will be displayed on the iPod
®and an iPod®
icon on the audio display illuminates. While
connecting the iPod®to the vehicle, the iPod®
can only be operated by the vehicle audio controls.
To disconnect the cable from the vehicle outlet,
fully depress the center connector button to
unlatch the connector and pull the connector
straight out of the outlet. To disconnect the
cable from the iPod
®, fully depress the side
connector buttons and pull the iPod®connector
straight out of the iPod®.
* iPod®, iPhone®and FireWire®are a trademark
of Apple Inc., registered in the U.S. and other
countries.
Compatibility:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The following models are available:
. Fourth generation iPod®(Firmware version
3.1.1 or later)
. Fifth generation iPod
®(Firmware version
1.1.2 or later)
. First generation iPod Classic
®(Firmware
version 1.3 or later)
. Second generation iPod Classic
®(Firmware
version 1.3 or later)
. First, second and third generation iPod
touch
®(Firmware version 3.1.0 or later)
. First and second generation iPod mini®
(Firmware version 1.4.1 or later)
. iPod photo®(Firmware version 1.2 or later) .
First generation iPod nano
®(Firmware ver-
sion 1.3.1 or later)
. Second generation iPod nano
®(Firmware
version 1.1.3 or later)
. Third generation iPod nano
®(Firmware
version 1.2 or later)
. iPhone
®(Firmware version 3.1 or later)
. iPhone®3G (Firmware version 3.1 or later)
. iPhone®3GS (Firmware version 3.1 or later)
The fourth and fifth generation iPod nano®, iPod
touch®, the second generation iPod Classic®
and iPhone®3G may not work with the system
in some cases.
Make sure that your iPod
®firmware is updated.
* 12V-charge iPod®s are not chargeable with
this system.
iPod®button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position. Then, push the iPod®button to switch
to the iPod®mode.
If another audio source is playing and the iPod®
is connected, pushing the iPod®button changes
to the iPod®mode.
If the system has been turned off while the iPod®
was playing, pushing the PWR button will start
the iPod®.
Heater, air conditioner, audio, phone and voice recognition systems4-27
Condition:
