2014 NISSAN ROGUE SELECT set clock

Black plate (87,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-F6A3583F-0558-48FA-ACF6-F3E6D55C756A
SIC4577
1. Outside temperature
2. Clock
3. Operation indicators and warnings— Trip computer
— Cruise control*
— Settings menu
4. Odometer 5. Twin trip odometer
6. Continuously Variable Transmission (CVT) posi-
tion indicator
7.
switch (settings control and trip computer
control)
8.
switch (twin trip odometer control and
brightness control)
*: if so equipped
OUTSIDE AIR TEMPERATUREGUID-C477B35D-0A78-4C16-94C3-0FFE06FBA2FAThe outside air temperature is displayed in 8F or
8C in the range of −58 to 1408F (−50 to 608C) .
The outside air temperature mode includes low
temperature warning features.
. When the ignition switch is placed in the ON
position,
— If the outside temperature is below 258F
(- 4 8C) , the outside temperature display
flashes for 20 seconds, then stays on
steady.
— If the outside temperature is between 27 and 378F(−3 and 38C) , the outside
temperature display flashes continuously.
. With the ignition switch in the ON position,
or while driving,
— If the outside temperature drops below
378F(38C), the outside temperature dis-
play flashes continuously. In addition, the
low outside temperature warning indica-
tor appears for 5 seconds, then turns off.
— If the outside temperature drops below 258F(- 4 8C) , the outside temperature
display stays on steady. The low outside
temperature warning indicator does not
appear.
These warning features can be turned off in the
Instruments and controls2-17
VEHICLE INFORMATION DISPLAY
Condition:

Black plate (94,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-24Instruments and controls
3. Driving Distance (miles or km)GUID-F6FC5CCF-6C6F-4693-B932-ADF674431AA4The Driving Distance mode shows the distance
driven since the last reset. The driving distance
can be reset by pushing and holding the
switch*Afor less than 3 seconds.
4. Elapsed TimeS35-D-110201-39A88963-3DC3-4B35-9DF4-19A7D86695A0The Elapsed Time mode shows the time since
the last reset. The displayed time can be reset
by pushing and holding the
switch*Afor
less than 3 seconds.
5. Range (distance to empty) (dte —
miles or km)
GUID-BF637651-F7B6-4978-AC45-413FCB319447The distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. If the fuel level is low, the warning is
displayed on the screen.
When the fuel level drops even lower, the dte
display will change to “----”.
. If the amount of fuel added is small, the
display just before the ignition switch is
turned to the “OFF” position may continue to
be displayed. .
When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
SIC4542
6. SettingsS35-D-110201-46255287-1DE0-4853-A809-29D55EC182BESetting cannot be made while driving.
The
switch*Ais used to select and set
the item.
Turn the
*Aswitch to select or adjust and
push to set.
Clock:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Clock adjustment can be set on this menu.
. Set Clock
Adjust the time (hour and minute) of the
clock.
. [On] or [Off]
Select this submenu to set the clock display
Condition:

Black plate (154,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
4-22Heater, air conditioner, audio, phone and voice recognition systems

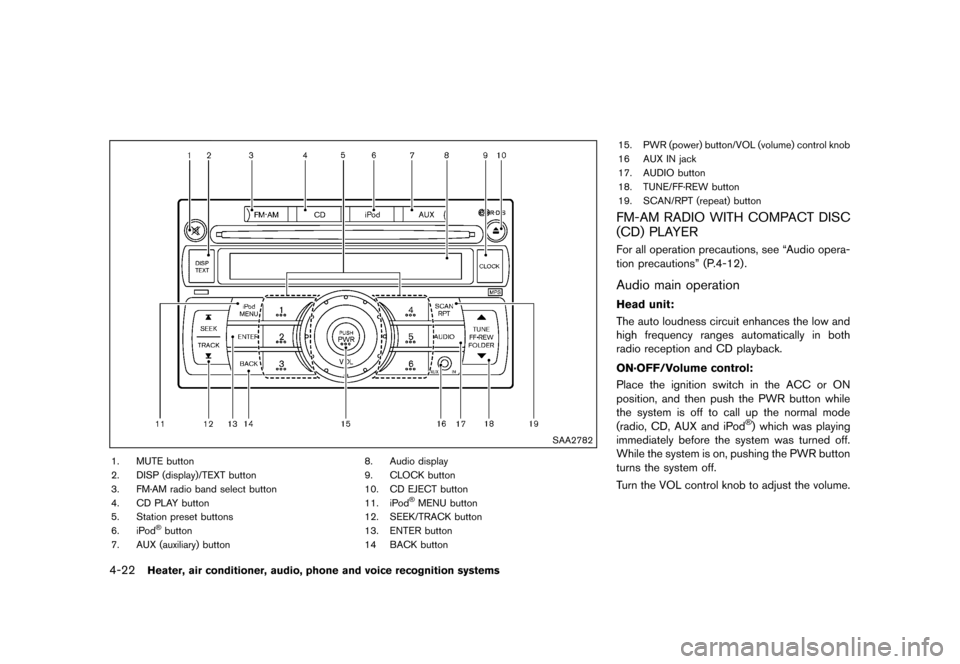

SAA2782
1. MUTE button
2. DISP (display)/TEXT button
3. FM·AM radio band select button
4. CD PLAY button
5. Station preset buttons
6. iPod
®button
7. AUX (auxiliary) button 8. Audio display
9. CLOCK button
10. CD EJECT button
11. iPod
®MENU button
12. SEEK/TRACK button
13. ENTER button
14 BACK button 15. PWR (power) button/VOL (volume) control knob
16 AUX IN jack
17. AUDIO button
18. TUNE/FF·REW button
19. SCAN/RPT (repeat) button
FM-AM RADIO WITH COMPACT DISC
(CD) PLAYER
S35-D-110201-7F3EC8FB-22B5-4244-A10C-C0DBE2251A7FFor all operation precautions, see “Audio opera-
tion precautions” (P.4-12) .
Audio main operationS35-D-110201-CB88F338-7D68-4C7D-B2E4-2761839D6DD6
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON·OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the PWR button while
the system is off to call up the normal mode
(radio, CD, AUX and iPod
®) which was playing
immediately before the system was turned off.
While the system is on, pushing the PWR button
turns the system off.
Turn the VOL control knob to adjust the volume.
Condition:

Black plate (155,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
MUTE button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push thebutton to mute the audio sound.
Push the
button again to release the mute
setting.
AUDIO button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the AUDIO button to change the selecting
mode as follows.
NOS2545
Push the TUNE (,) or SEEK (,)
button to adjust Bass and Treble to the desired
level. Use the TUNE or SEEK button also to
adjust Fade or Balance modes. Fade adjusts the
sound level between the front and rear speakers
and Balance adjusts the sound between the
right and left speakers.
To turn the beep sound off or on, push the TUNE
or SEEK button until the desired mode is
displayed. This turns on or off the beep sound
when audio buttons are pushed.
To change the Speed Sensitive Volume (Spd
Sen Vol) mode to OFF, LOW, MID or HIGH,
push the TUNE or SEEK button until the desired
mode is displayed.
Once you have adjusted the sound quality to the
desired level, push the AUDIO button repeatedly until the normal mode display reappears. Other-
wise, the normal mode display will automatically
reappear after approximately 5 seconds.
CLOCK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the CLOCK button to turn on or off the
CLOCK display.
SIC4131
Adjust the clock according to the following
procedure.
1. Push and hold the CLOCK button
*1until
the clock display starts to flash.
2. Push the SEEK/TRACK button
*2to adjust
the hours.
3. Push the TUNE/FF·REW button
*3to
adjust the minutes.
4. Push the CLOCK button
*1again to exit
the clock set mode.
The display will return to the regular clock
display after 5 seconds.
Heater, air conditioner, audio, phone and voice recognition systems4-23
Condition:

Black plate (163,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
Audio main operationS35-D-110201-62364244-60D7-41AF-886E-4DC38A679472
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
PWR/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Place the ignition switch in the ACC or ON
position, and then push the PWR button while
the system is off to turn on the last audio source,
which was playing immediately before the
system was turned off. While the system is on,
pushing the PWR button turns the system off.
Turn the VOL control knob to adjust the volume.
ENTER/SETTING button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The settings screen will appear when pushing
the ENTER/SETTING button.
The following items are available in the settings
screen.
.Bass, Treble, Balance and Fade
Controls the sound of the audio system.
Balance adjusts the sound between the left
and right speakers. Fade adjusts the sound
between the front and rear speakers.
Select the “Bass”, “Treble”, “Balance” or
“Fade” using the TUNE·SCROLL control
knob and then push the ENTER/SETTING button. Turn the TUNE·SCROLL control
knob to adjust the Bass, Treble, Balance
and Fade of the screen to the preferred
level.
. Speed Sens Vol.
To change the Speed Sensitive Volume
(Speed Sens Vol.) level from off (0) to 5,
turn the TUNE·SCROLL control knob.
. AUX Vol.
Controls the volume level of incoming sound
when an auxiliary device is connected to the
system. To change the AUX Vol. level from 0
(off) to 3, turn the TUNE·SCROLL control
knob.
. Brightness and Contrast
Adjust the brightness and contrast of the
screen.
Select the “Brightness” or “Contrast” using
the TUNE·SCROLL control knob and then
push the ENTER/SETTING button. Turn the
TUNE·SCROLL control knob to adjust the
brightness and contrast of the screen to the
preferred level.
. Clock Adjust
Adjust the clock according to the following
procedure.
JVH0117X
1. Push the ENTER/SETTING button*1until
“Setting Clock” and “Clock Adjust” appear on
the display.
2. Turn the TUNE·SCROLL control knob
*2to
adjust the hour.
3. Push the ENTER/SETTING button
*1.
4. Turn the TUNE·SCROLL control knob
*2to
adjust the minute.
5. Push the ENTER/SETTING button
*1.
. On-Screen Clock
When this item is turned on, a clock is
always displayed in the upper right corner of
the screen.
Select the “On-Screen Clock” using the
TUNE·SCROLL control knob and then push
the ENTER/SETTING button. You can tog-
Heater, air conditioner, audio, phone and voice recognition systems4-31
Condition:

Black plate (171,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

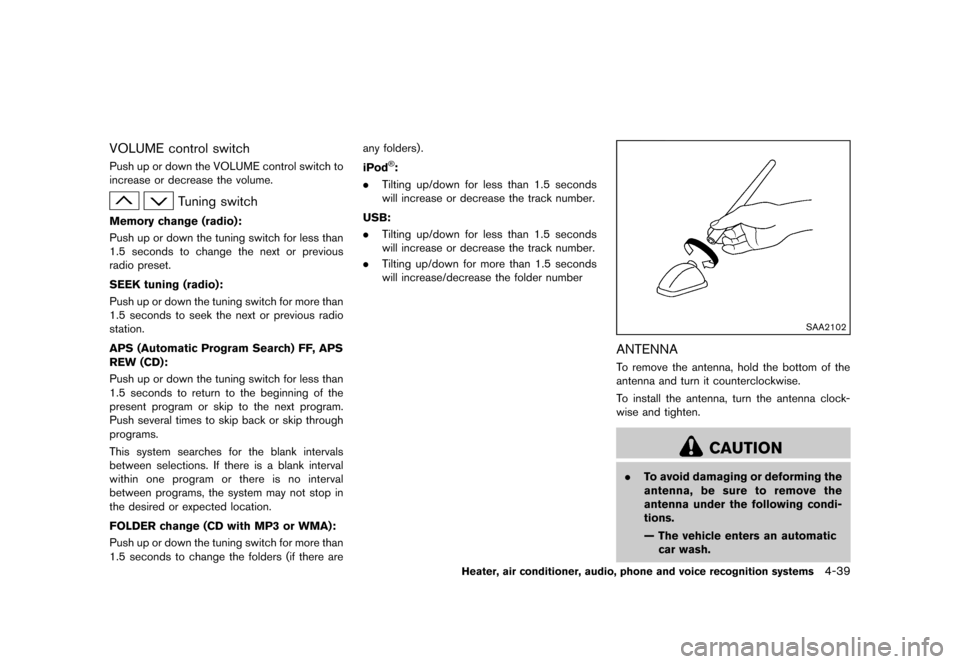

VOLUME control switchGUID-28FEC6B8-E1DE-41D8-B60B-C05C851D0868Push up or down the VOLUME control switch to
increase or decrease the volume.
Tuning switchS35-D-110201-5CA8CF8B-C0F5-481A-814C-213749094806
Memory change (radio):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for less than
1.5 seconds to change the next or previous
radio preset.
SEEK tuning (radio):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for more than
1.5 seconds to seek the next or previous radio
station.
APS (Automatic Program Search) FF, APS
REW (CD):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for less than
1.5 seconds to return to the beginning of the
present program or skip to the next program.
Push several times to skip back or skip through
programs.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval
between programs, the system may not stop in
the desired or expected location.
FOLDER change (CD with MP3 or WMA):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push up or down the tuning switch for more than
1.5 seconds to change the folders (if there areany folders).
iPod
®:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.
Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
USB:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Tilting up/down for less than 1.5 seconds
will increase or decrease the track number.
. Tilting up/down for more than 1.5 seconds
will increase/decrease the folder number
SAA2102
ANTENNAS35-D-110201-3A435C1C-B183-4681-AF7C-90168059490DTo remove the antenna, hold the bottom of the
antenna and turn it counterclockwise.
To install the antenna, turn the antenna clock-
wise and tighten.
CAUTION
.To avoid damaging or deforming the
antenna, be sure to remove the
antenna under the following condi-
tions.
— The vehicle enters an automatic
car wash.
Heater, air conditioner, audio, phone and voice recognition systems4-39
