2014 NISSAN ROGUE SELECT Owners Manual

Black plate (103,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
S35-D-110201-6910BDF6-7620-4A3A-A2E3-EA42F9846A63

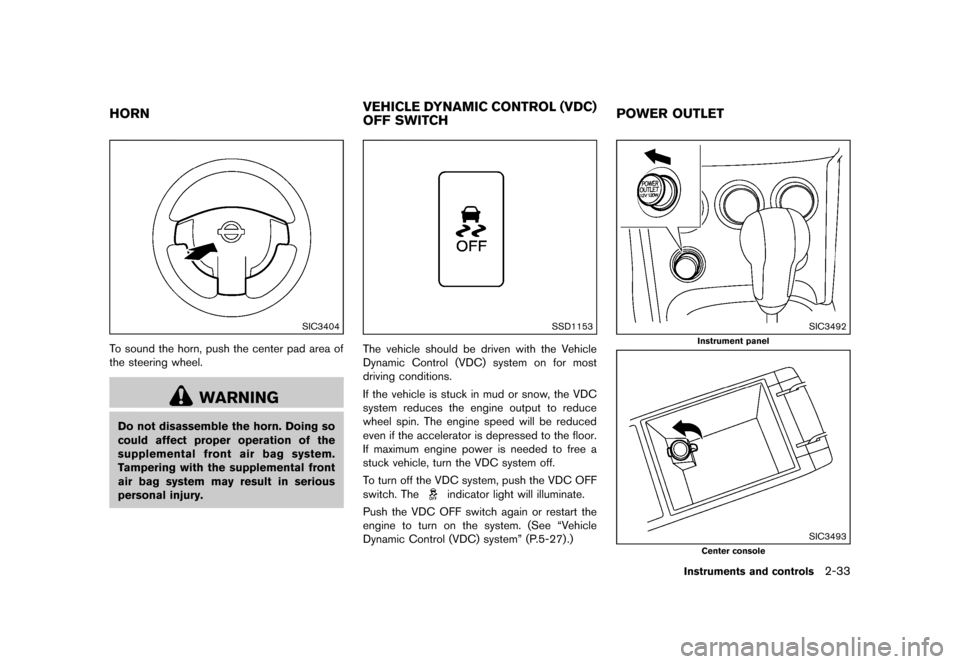

SIC3404
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
S35-D-110201-A6E4B20D-7614-4546-90DD-DBDB4900E03B
SSD1153
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator light will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-27) .)
S35-D-110201-C63091BC-C543-488A-8F3D-AFA12FC37391
SIC3492
Instrument panel
SIC3493
Center console
Instruments and controls2-33
HORN VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCHPOWER OUTLET
Condition:

Black plate (104,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-34Instruments and controls
The power outlet is located in the instrument
panel and the center console.
CAUTION
.The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open. .
When not in use, be sure to close
the cap. Do not allow water or any
liquid to contact the outlet.
S35-D-110201-CF7976D3-F285-4050-AFD1-1371CF792F0BCUP HOLDERSS35-D-110201-FD1D8479-5AEA-4CA7-8486-247F76618FF5
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
STORAGE
Condition:

Black plate (105,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

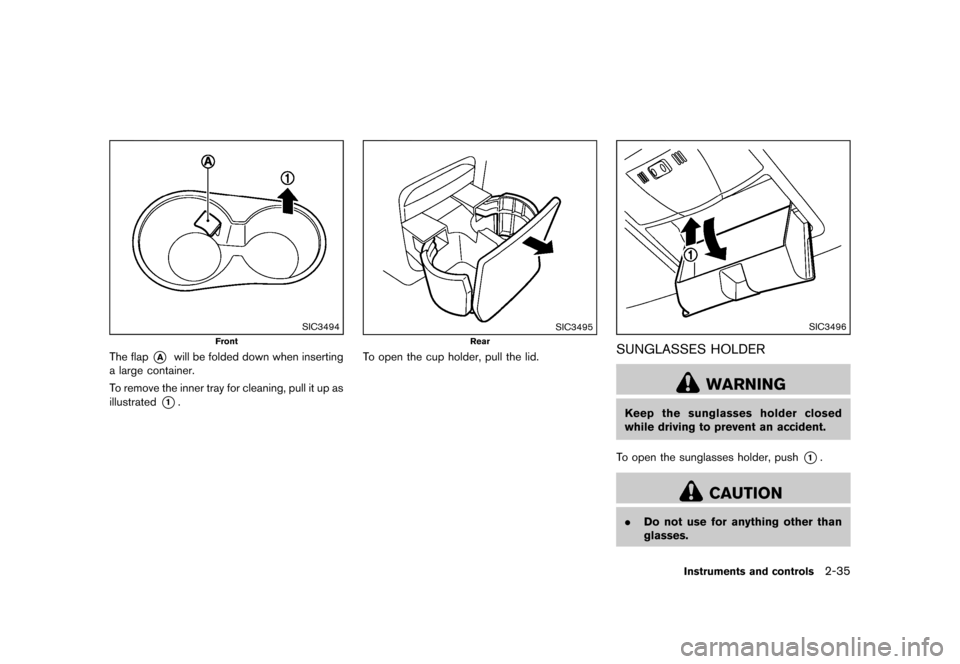

SIC3494
Front
The flap*Awill be folded down when inserting
a large container.
To remove the inner tray for cleaning, pull it up as
illustrated
*1.
SIC3495
Rear
To open the cup holder, pull the lid.
SIC3496
SUNGLASSES HOLDERS35-D-110201-7D49A2AA-DD28-4615-B72E-A1CBFE395B60
WARNING
Keep the sunglasses holder closed
while driving to prevent an accident.
To open the sunglasses holder, push
*1.
CAUTION
. Do not use for anything other than
glasses.
Instruments and controls2-35
Condition:

Black plate (106,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-36Instruments and controls
.Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
SIC3497
SIC3498
GLOVE BOXS35-D-110201-F9260F73-5260-4688-8D88-814B9E5BA4ED
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
To open the glove box, pull the handle.
To close, push the lid in until the lock latches.
The glove box light illuminates when the head-
light switch is turned on.
*ACard holder
*BBack side pocket of lid
*CRemovable partition (if so equipped)
To remove the partition, pull it out.
Condition:

Black plate (107,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

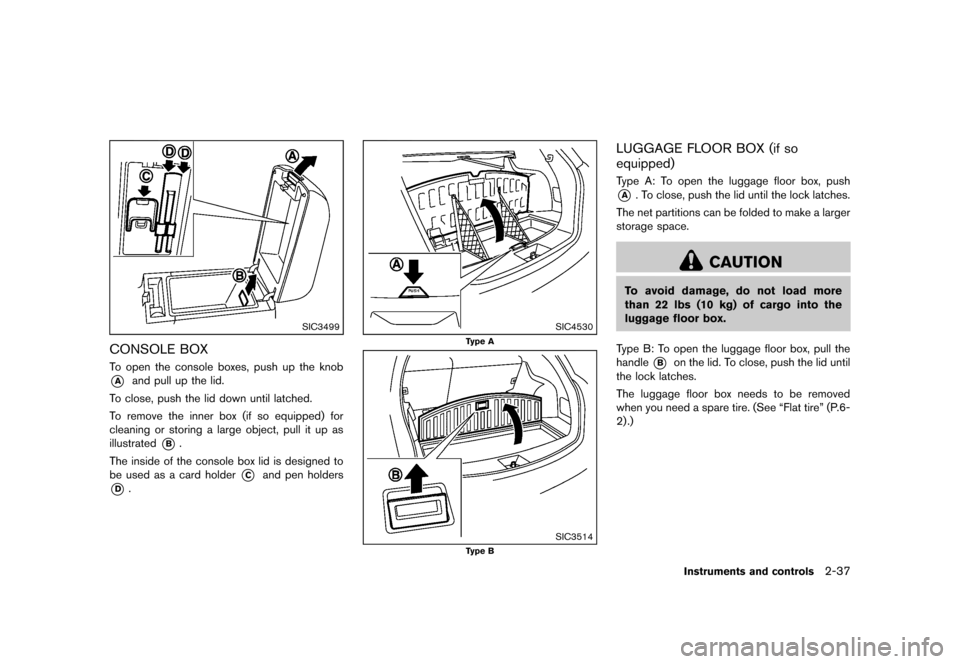

SIC3499
CONSOLE BOXS35-D-110201-E018BA87-9079-45DE-909F-A77EB11D068ETo open the console boxes, push up the knob
*Aand pull up the lid.
To close, push the lid down until latched.
To remove the inner box (if so equipped) for
cleaning or storing a large object, pull it up as
illustrated
*B.
The inside of the console box lid is designed to
be used as a card holder
*Cand pen holders
*D.
SIC4530
Type A
SIC3514
Type B
LUGGAGE FLOOR BOX (if so
equipped)
S35-D-110201-B2DC4A4F-CB14-4C93-B757-CA7BE5833E8CType A: To open the luggage floor box, push
*A. To close, push the lid until the lock latches.
The net partitions can be folded to make a larger
storage space.
CAUTION
To avoid damage, do not load more
than 22 lbs (10 kg) of cargo into the
luggage floor box.
Type B: To open the luggage floor box, pull the
handle
*Bon the lid. To close, push the lid until
the lock latches.
The luggage floor box needs to be removed
when you need a spare tire. (See “Flat tire” (P.6-
2) .)
Instruments and controls2-37
Condition:

Black plate (108,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-38Instruments and controls
SIC4267
LUGGAGE SIDE BOXS35-D-110201-65867C13-C89A-46EC-8E2A-F8212C01D932To open the luggage side box, pull up the strap.
SIC3503
CARGO COVER (if so equipped)S35-D-110201-4D798BFB-9ED7-4FB8-9F2C-7D3C067EF3DCThe cargo cover keeps the contents in the cargo
area hidden from the outside.
To use the cargo cover, pull it out and hang both
sides on the hooks
*1.
To stow the cargo cover, remove it from the hooks and hold until it is retracted.
To remove the cargo cover, stow the cover and
pull the holder to the opposite side
*2.
WARNING
.
Never put anything on the cargo
cover, no matter how small. Any
object on it could cause an injury
in an accident or sudden stop.
. Close the cargo cover when folding
the rear seat.
. Do not leave the cargo cover in the
vehicle with it disengaged from the
holder.
. Properly secure all cargo with ropes
or straps to help prevent it from
sliding or shifting. Do not place
cargo higher than the seatbacks. In
a sudden stop or collision, unse-
cured cargo could cause personal
injury.
. If the cargo cover contacts the top
tether strap when it is attached to
the top tether anchor, remove the
cargo cover from the vehicle or
secure it on the cargo floor below
its attachment location. If the cargo
Condition:

Black plate (109,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
cover is not removed, it may da-
mage the top tether strap during a
collision. Your child could be ser-
iously injured or killed in a collision
if the child restraint top tether strap
is damaged.
. Do not allow cargo to contact the
top tether strap when it is attached
to the top tether anchor. Properly
secure the cargo so it does not
contact the top tether strap. Cargo
that is not properly secured or that
contacts the top tether strap may
damage the top tether strap during
a collision. Your child could be
seriously injured or killed in a colli-
sion if the child restraint top tether
strap is damaged.

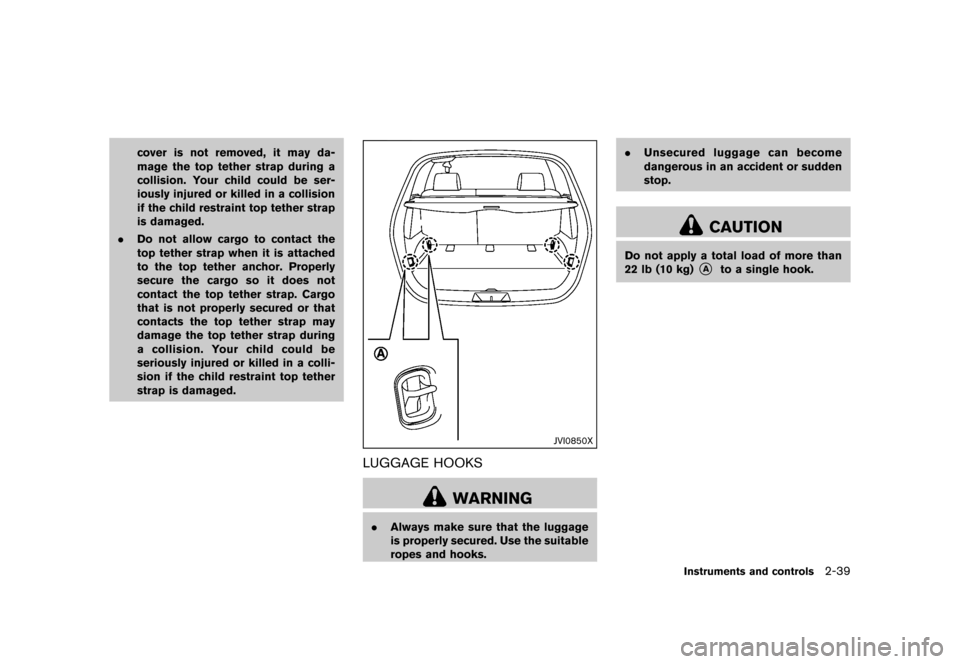

JVI0850X
LUGGAGE HOOKSS35-D-110201-2D988198-3E52-49E3-8EEB-85813B616CF7
WARNING
.Always make sure that the luggage
is properly secured. Use the suitable
ropes and hooks. .
Unsecured luggage can become
dangerous in an accident or sudden
stop.
CAUTION
Do not apply a total load of more than
22 lb (10 kg)
*Ato a single hook.
Instruments and controls2-39
Condition:

Black plate (110,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
2-40Instruments and controls

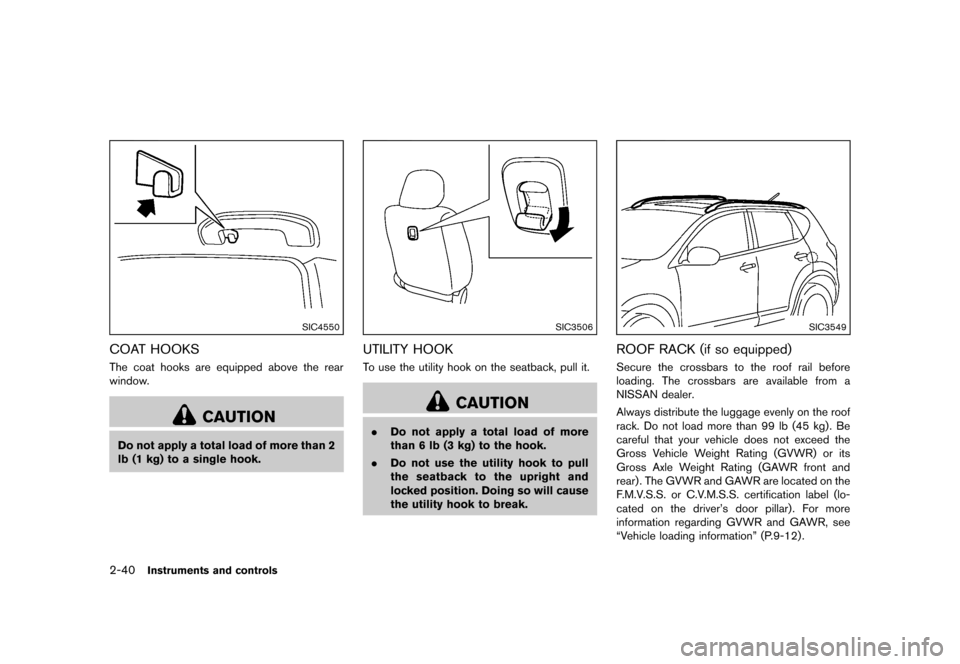

SIC4550
COAT HOOKSS35-D-110201-DF957E51-D7CE-457F-B5FE-B60CF761743AThe coat hooks are equipped above the rear
window.
CAUTION
Do not apply a total load of more than 2
lb (1 kg) to a single hook.
SIC3506
UTILITY HOOKS35-D-110201-0F642A2D-5628-4E33-83E0-2E6B14382F28To use the utility hook on the seatback, pull it.
CAUTION
.Do not apply a total load of more
than 6 lb (3 kg) to the hook.
. Do not use the utility hook to pull
the seatback to the upright and
locked position. Doing so will cause
the utility hook to break.
SIC3549
ROOF RACK (if so equipped)GUID-963DC233-F1BF-4195-80FA-612BBCFAEFB2Secure the crossbars to the roof rail before
loading. The crossbars are available from a
NISSAN dealer.
Always distribute the luggage evenly on the roof
rack. Do not load more than 99 lb (45 kg). Be
careful that your vehicle does not exceed the
Gross Vehicle Weight Rating (GVWR) or its
Gross Axle Weight Rating (GAWR front and
rear) . The GVWR and GAWR are located on the
F.M.V.S.S. or C.V.M.S.S. certification label (lo-
cated on the driver’s door pillar). For more
information regarding GVWR and GAWR, see
“Vehicle loading information” (P.9-12) .
Condition:
