.The original tires have built-in
tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
. For additional information re-
garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.Replacing wheels and tiresGUID-5F49021B-1D68-4060-A4C5-6D4AD42F0837When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “Specifications”
(P.9-7) for recommended types and sizes of
tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. For 2WD models, if your vehicle was
originally equipped with 4 tires that
were the same size and you are only
replacing 2 of the 4 tires, install the
new tires on the rear axle. Placing
new tires on the front axle may
cause loss of vehicle control in
some driving conditions and cause an accident and personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See “Wheels and tires”
(P.9-7) of this manual for wheel off-
set dimensions.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not install a damaged or de-
formed wheel or tire even if it has
Maintenance and do-it-yourself8-37
Condition:

Black plate (280,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-38Maintenance and do-it-yourself
been repaired. Such wheels or tires
could have structural damage and
could fail without warning.
. The use of retread tire is not re-
commended.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information” in the Warranty
Information Booklet.
CAUTION
Always use tires of the same type, size,
brand, construction (bias, bias-belted
or radial) , and tread pattern on all four
wheels. Failure to do so may result in a
circumference difference between tires
on the front and rear axles which will
cause excessive tire wear and may
damage the transmission, transfer case
and differential gears (AWD models) .
Wheel balanceS35-D-110201-8E10EC16-9CEC-43D7-A91E-D33EB97AE66CUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires, refer
to “Important Tire Safety Information” in the
Warranty Information Booklet.
Care of wheelsS35-D-110201-0B8C9CF9-E364-45F1-8AD3-5412738974BFSee “Cleaning exterior” (P.7-2) for details about
care of the wheels.
Spare tireS35-D-110201-E74B415C-3AFD-4581-B7A9-3FD301380EE5When a spare tire is mounted (TEMPORARY
USE ONLY or conventional) , the TPMS will not
function.
Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used,
otherwise your vehicle could be damaged or
involved in an accident.
WARNING
.The TEMPORARY USE ONLY spare
tire should be used for emergency
use. It should be replaced with the
standard tire at the first opportunity
to avoid possible tire or differential
damage.
. Drive carefully while the TEMPOR-
ARY USE ONLY spare tire is in-
stalled. Avoid sharp turns and
abrupt braking while driving.
. Periodically check spare tire infla-
tion pressure. Always keep the
pressure of the TEMPORARY USE
ONLY spare tire at 60 psi (420 kPa,
4.2 bar) . Always keep the pressure
of the full size spare tire (if so
equipped) at the recommended
pressure for standard tires, as in-
dicated on the Tire and Loading
Information label.
. With the TEMPORARY USE ONLY
spare tire installed do not drive your
vehicle at speeds faster than 50
MPH (80 km/h) .
. When driving on roads covered with
snow or ice, the TEMPORARY USE
Condition:

Black plate (281,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

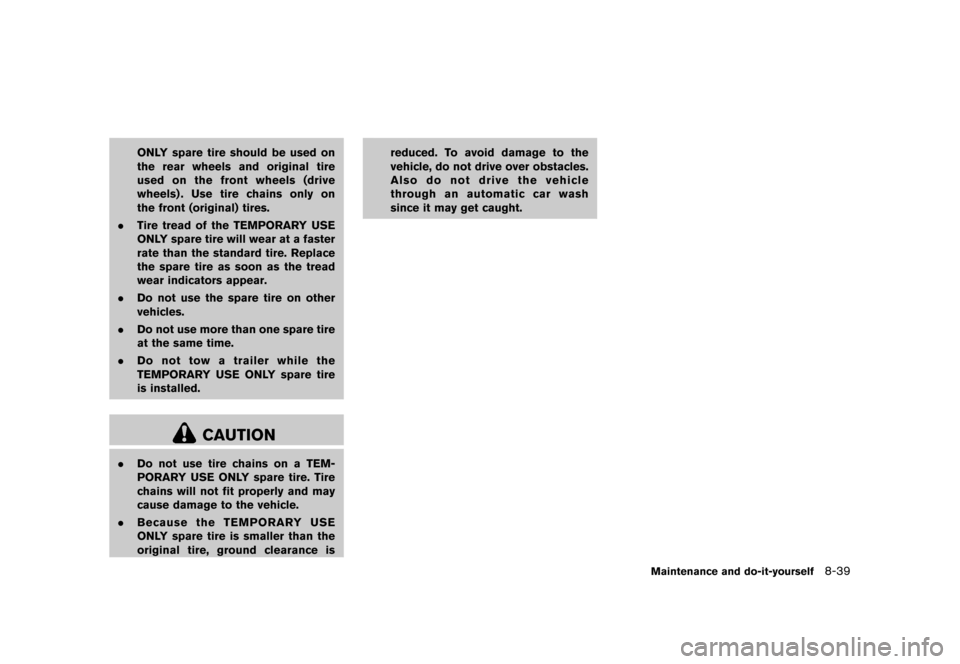

ONLY spare tire should be used on
the rear wheels and original tire
used on the front wheels (drive
wheels) . Use tire chains only on
the front (original) tires.
. Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.
. Do not use the spare tire on other
vehicles.
. Do not use more than one spare tire
at the same time.
. Do not tow a trailer while the
TEMPORARY USE ONLY spare tire
is installed.
CAUTION
.Do not use tire chains on a TEM-
PORARY USE ONLY spare tire. Tire
chains will not fit properly and may
cause damage to the vehicle.
. Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is reduced. To avoid damage to the
vehicle, do not drive over obstacles.
Also do not drive the vehicle
through an automatic car wash
since it may get caught.
Maintenance and do-it-yourself8-39
Condition:

Black plate (282,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
8-40Maintenance and do-it-yourself
MEMO
Condition:

Black plate (283,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9 Technical and consumer information
Capacities and recommended fuel/lubricants...
................... 9-2
Fuel recommendation ...
......................................................... 9-3
Engine oil and oil filter recommendation ...
....................... 9-5
Air conditioning system refrigerant and
lubricant recommendations ...
............................................... 9-6
Specifications ...
........................................................................\
..... 9-7
Engine ...
........................................................................\
............ 9-7
Wheels and tires ...
................................................................. 9-7
Dimensions and weights ...
................................................... 9-8
When traveling or registering your vehicle in
another country ...
........................................................................\
.. 9-8
Vehicle identification ...
................................................................. 9-8
Vehicle Identification Number (VIN) plate ...
..................... 9-8
Vehicle identification number (chassis number) ...
.......... 9-9
Engine serial number ...
.......................................................... 9-9
F.M.V.S.S. certification label ...
............................................. 9-9
Emission control information label ...
............................... 9-10
Tire and loading information label ...
................................ 9-10
Air conditioner specification label ...
................................ 9-10
Installing front license plate ...
................................................. 9-11 Vehicle loading information
...
................................................. 9-12
Terms ...
........................................................................\
......... 9-12
Vehicle load capacity ...
.................................................... 9-13
Securing the load ...
.......................................................... 9-15
Loading tips ...
..................................................................... 9-16
Measurement of weights ...
.............................................. 9-16
Towing a trailer ...
....................................................................... 9-16
Maximum load limits ...
...................................................... 9-17
Maximum Gross Vehicle Weight (GVW)/maximum
Gross Axle Weight (GAW) ...
......................................... 9-18
Towing load/specification ...
............................................ 9-20
Towing safety ...
.................................................................. 9-21
Flat towing ...
....................................................................... 9-24
Uniform tire quality grading ...
................................................. 9-25
Treadwear ...
........................................................................\
9-25
Traction AA, A, B and C ...
.............................................. 9-25
Temperature A, B and C ...
.............................................. 9-25
Emission control system warranty ...
..................................... 9-26
Reporting safety defects ...
..................................................... 9-26
Readiness for Inspection/Maintenance (I/M) test ...
......... 9-27
Event Data Recorders (EDR) ...
............................................. 9-27
Owner’s Manual/Service Manual order information ...
..... 9-28
Condition:

Black plate (284,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-2Technical and consumer information
S35-D-110201-7D21A931-27C1-4A22-AAA3-BC246AE0D4F9The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 15-7/8 gal 13-1/4 gal 60 See “Fuel recommendation” (P.9-3).
Engine oil See “Engine oil” (P.8-9) for changing engine oil.
.
Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark
. Viscosity SAE 5W-30
. For additional information, see “Engine oil and oil filter
recommendation” (P.9-5).
Drain and refill With oil filter change
5-1/8 qt 4-1/4 qt 4.8
Without oil filter change 4-3/4 qt 4 qt4.5
Cooling system Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or
equivalent
With reservoir 7-3/4 qt 6-3/8 qt 7.3
Reservoir 3/4 qt 5/8 qt0.75
Continuously Variable Transmission (CVT) fluid —— —.
Genuine NISSAN CVT Fluid NS-3
Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid
other than Genuine NISSAN CVT Fluid NS-3 will damage the CVT,
which is not covered by the NISSAN new vehicle limited warranty.
Differential gear oil —— —Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API
GL-5 Viscosity SAE 80W-90 For hot climates, viscosity SAE 90 is
suitable for ambient temperatures above 328F (08C).
Transfer oil —— —Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API
GL-5 Viscosity SAE 80W-90
Brake fluid Refill to the proper oil level according to the
instructions in the “8. Maintenance and do-it-
yourself” section..
Genuine NISSAN Super Heavy Duty Brake Fluid* or equivalent
DOT 3
*: Available in mainland U.S.A. through a NISSAN dealer.
Multi-purpose grease —— — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant —— —.
HFC-134a (R-134a)
. For additional information, see “Vehicle identification” (P.9-8) for
air conditioner specification label.
Air conditioning system lubricants —— — NISSAN A/C System Oil Type S or exact equivalent
Window washer fluid 1-1/4 gal 1 gal 4.5 Genuine NISSAN Windshield Washer Concentrate Cleaner &
Antifreeze or equivalent
CAPACITIES AND RECOMMENDED
FUEL/LUBRICANTS
Condition:

Black plate (285,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
FUEL RECOMMENDATIONS35-D-110201-A221234C-A924-408C-86C4-B0AED0C6451CUse unleaded regular gasoline with an octane
rating of at least 87 AKI (Anti-Knock Index)
number (Research octane number 91).
CAUTION
.Using a fuel other than that speci-
fied could adversely affect the emis-
sion control system, and may also
affect warranty coverage.
. Under no circumstances should a
leaded gasoline be used, because
this will damage the three-way cat-
alyst.
. Do not use E-15 or E-85 fuel in your
vehicle. Your vehicle is not designed
to run on E-15 or E-85 fuel. Using E-
15 or E-85 fuel in a vehicle not
specifically designed for E-15 or E-
85 fuel can adversely affect the
emission control devices and sys-
tems of the vehicle. Damage caused
by such fuel is not covered by the
NISSAN new vehicle limited war-
ranty.
. U.S. government regulations require
ethanol dispensing pumps to be identified by a small, square, orange
and black label with the common
abbreviation or the appropriate per-
centage for that region.
Gasoline specificationsGUID-FB0FC0E7-207A-41F4-86F5-B3D4696C057CNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) speci-
fications where it is available. Many of the
automobile manufacturers developed this spe-
cification to improve emission control system
and vehicle performance. Ask your service
station manager if the gasoline meets the
WWFC specifications.
Reformulated gasolineGUID-7B630239-6E8B-4DD6-A634-A7A85BD8A7F4Some fuel suppliers are now producing refor-
mulated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.
Gasoline containing oxygenatesGUID-ACAFD4CF-3803-48B3-AB06-1F34D57C0C20Some fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels
of which the oxygenate content and the fuel
compatibility for your NISSAN cannot be readilydetermined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
.
The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
. If an oxygenate-blend, other than
methanol blend is used, it should
contain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
. E-15 fuel contains more than 10%
oxygenate. E-15 fuel will adversely
affect the emission control devices
and systems of the vehicle and should
not be used. Damage caused by such
fuel is not covered by the NISSAN new
vehicle limited warranty.
. If a methanol blend is used, it should
contain no more than 5% methanol
(methyl alcohol, wood alcohol) . It
should also contain a suitable amount
of appropriate cosolvents and corro-
sion inhibitors. If not properly formu-
lated with appropriate cosolvents and
corrosion inhibitors, such methanol
Technical and consumer information9-3
Condition:

Black plate (286,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-4Technical and consumer information
blends may cause fuel system damage
and/or vehicle performance problems.
At this time, sufficient data is not
available to ensure that all methanol
blends are suitable for use in NISSAN
vehicles.
If any driveability problems such as engine
stalling and difficult hot-starting are experienced
after using oxygenate-blend fuels, immediately
change to a non-oxygenate fuel or a fuel with a
low blend of MTBE.
Take care not to spill gasoline during
refueling. Gasoline containing oxygenates
can cause paint damage.
E-15 fuelGUID-EE71EE16-16BA-4A52-BE94-A163860092C2E-15 fuel is a mixture of approximately 15% fuel
ethanol and 85% unleaded gasoline. E-15 can
only be used in vehicles designed to run on E-
15 fuel. Do not use E-15 in your vehicle. U.S.
government regulations require fuel ethanol
dispensing pumps to be identified with small,
square, orange and black label with the common
abbreviation or the appropriate percentage for
that region.
E-85 fuelGUID-2E4CD94E-1192-45B9-916B-3787F129BF0EE-85 fuel is a mixture of approximately 85% fuel
ethanol and 15% unleaded gasoline. E-85 can
only be used in a Flexible Fuel Vehicle (FFV) . Do
not use E-85 fuel in your vehicle. U.S. govern-
ment regulations require fuel ethanol dispensing
pumps to be identified by a small, square,
orange and black label with the common
abbreviation or the appropriate percentage for
that region.
Aftermarket fuel additivesGUID-CEC1B382-6E18-485F-958A-F75011934C34NISSAN does not recommend the use of any
aftermarket fuel additives (for example, fuel
injector cleaner, octane booster, intake valve
deposit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.
Octane rating tipsGUID-A306B15B-DFEF-40B6-A7F5-D6B25890AAD6Using unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy “spark knock”. (Spark
knock is a metallic rapping noise.) If
severe, this can lead to engine damage. If
you detect a persistent heavy spark knock
even when using gasoline of the stated
octane rating, or if you hear steady spark knock while holding a steady speed on
level roads, have a NISSAN dealer correct
the condition. Failure to correct the condi-
tion is misuse of the vehicle, for which
NISSAN is not responsible.
Incorrect ignition timing will result in spark
knock, after-run and/or overheating, which may
cause excessive fuel consumption or engine
damage. If any of the above symptoms are
encountered, have your vehicle checked at a
NISSAN dealer.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is not a
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.
Condition:
