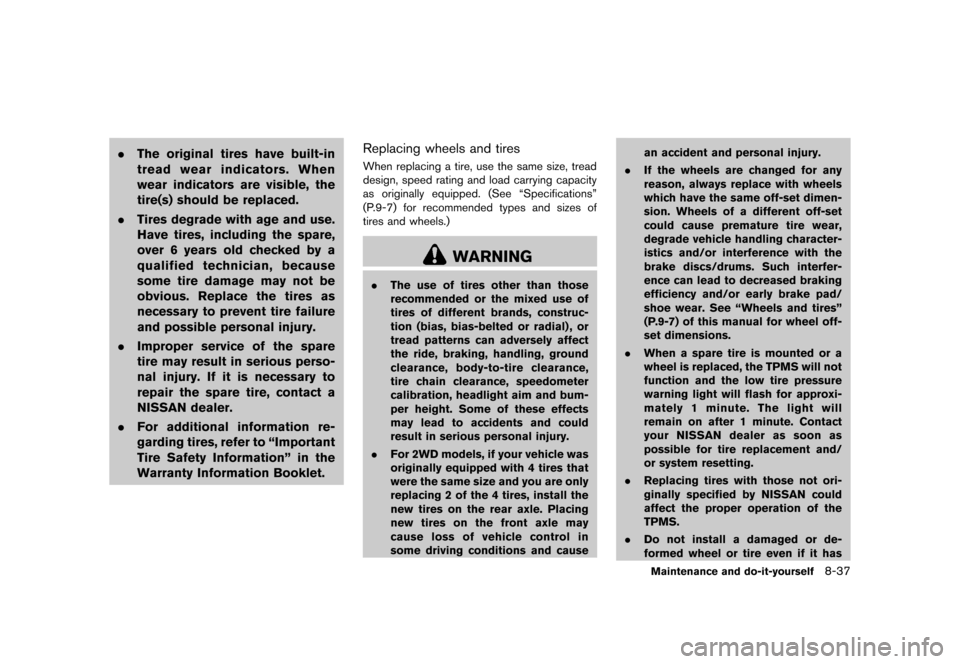

.The original tires have built-in
tread wear indicators. When
wear indicators are visible, the
tire(s) should be replaced.
. Tires degrade with age and use.
Have tires, including the spare,
over 6 years old checked by a
qualified technician, because
some tire damage may not be
obvious. Replace the tires as
necessary to prevent tire failure
and possible personal injury.
. Improper service of the spare
tire may result in serious perso-
nal injury. If it is necessary to
repair the spare tire, contact a
NISSAN dealer.
. For additional information re-
garding tires, refer to “Important
Tire Safety Information” in the
Warranty Information Booklet.Replacing wheels and tiresGUID-5F49021B-1D68-4060-A4C5-6D4AD42F0837When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. (See “Specifications”
(P.9-7) for recommended types and sizes of
tires and wheels.)
WARNING
. The use of tires other than those
recommended or the mixed use of
tires of different brands, construc-
tion (bias, bias-belted or radial) , or
tread patterns can adversely affect
the ride, braking, handling, ground
clearance, body-to-tire clearance,
tire chain clearance, speedometer
calibration, headlight aim and bum-
per height. Some of these effects
may lead to accidents and could
result in serious personal injury.
. For 2WD models, if your vehicle was
originally equipped with 4 tires that
were the same size and you are only
replacing 2 of the 4 tires, install the
new tires on the rear axle. Placing
new tires on the front axle may
cause loss of vehicle control in
some driving conditions and cause an accident and personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See “Wheels and tires”
(P.9-7) of this manual for wheel off-
set dimensions.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not install a damaged or de-
formed wheel or tire even if it has
Maintenance and do-it-yourself8-37
Condition:

Black plate (283,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9 Technical and consumer information
Capacities and recommended fuel/lubricants...
................... 9-2
Fuel recommendation ...
......................................................... 9-3
Engine oil and oil filter recommendation ...
....................... 9-5
Air conditioning system refrigerant and
lubricant recommendations ...
............................................... 9-6
Specifications ...
........................................................................\
..... 9-7
Engine ...
........................................................................\
............ 9-7
Wheels and tires ...
................................................................. 9-7
Dimensions and weights ...
................................................... 9-8
When traveling or registering your vehicle in
another country ...
........................................................................\
.. 9-8
Vehicle identification ...
................................................................. 9-8
Vehicle Identification Number (VIN) plate ...
..................... 9-8
Vehicle identification number (chassis number) ...
.......... 9-9
Engine serial number ...
.......................................................... 9-9
F.M.V.S.S. certification label ...
............................................. 9-9
Emission control information label ...
............................... 9-10
Tire and loading information label ...
................................ 9-10
Air conditioner specification label ...
................................ 9-10
Installing front license plate ...
................................................. 9-11 Vehicle loading information
...
................................................. 9-12
Terms ...
........................................................................\
......... 9-12
Vehicle load capacity ...
.................................................... 9-13
Securing the load ...
.......................................................... 9-15
Loading tips ...
..................................................................... 9-16
Measurement of weights ...
.............................................. 9-16
Towing a trailer ...
....................................................................... 9-16
Maximum load limits ...
...................................................... 9-17
Maximum Gross Vehicle Weight (GVW)/maximum
Gross Axle Weight (GAW) ...
......................................... 9-18
Towing load/specification ...
............................................ 9-20
Towing safety ...
.................................................................. 9-21
Flat towing ...
....................................................................... 9-24
Uniform tire quality grading ...
................................................. 9-25
Treadwear ...
........................................................................\
9-25
Traction AA, A, B and C ...
.............................................. 9-25
Temperature A, B and C ...
.............................................. 9-25
Emission control system warranty ...
..................................... 9-26
Reporting safety defects ...
..................................................... 9-26
Readiness for Inspection/Maintenance (I/M) test ...
......... 9-27
Event Data Recorders (EDR) ...
............................................. 9-27
Owner’s Manual/Service Manual order information ...
..... 9-28
Condition:

Black plate (290,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
9-8Technical and consumer information
DIMENSIONS AND WEIGHTSS35-D-110201-C0BD9505-CF16-45D9-ADC2-03F9DD3B48B2
Overall length in (mm) 183.3 (4,655)*1183.9 (4,670)*2
Overall width in (mm) 70.9 (1,800)
Overall height in (mm) 65.3 (1,658) 66.3 (1,683)*3
Front tread in (mm) 60.6 (1,540)
Rear tread in (mm) 61.0 (1,550)
Wheelbase in (mm) 105.9 (2,690)
Gross Vehicle
Weight Rating
(GVWR) lb (kg)
See the F.M.V.S.S.
certification label on the
driver’s side center pil-
lar.
Gross Axle
Weight Rating
(GAWR)
Front lb (kg)
Rear lb (kg)
*1: Without front license plate bracket
*2: With front license plate bracket
*3: With roof rail
S35-D-110201-97696DB0-9FA1-454C-9A54-75CB658B4436When planning to travel in another coun-
try, you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with an octane rating that is too low
may cause engine damage. All gasoline vehicles
must be operated with unleaded gasoline.
Therefore, avoid taking your vehicle to areas
where appropriate fuel is not available.
When transferring the registration of your
vehicle to another country, state, province
or district, it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle
emission control and safety standards vary
according to the country, state, province or
district; therefore, vehicle specifications may
differ.
When any vehicle is to be taken into
another country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsi-
bility of the user. NISSAN is not
responsible for any inconvenience that
may result.S35-D-110201-AF2DD131-9602-439B-9C4F-B002B286C468
STI0457
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
S35-D-110201-3F76E755-25B1-43D9-AFCF-FF5F50E32C88The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
WHEN TRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRY VEHICLE IDENTIFICATION
Condition:

Black plate (313,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-26
Advanced air bag system ...
......................................... 1-45
Air bag system Advanced air bag system ...
.................................. 1-45
Front passenger air bag and status light ...
....... 1-46
Front-seat mounted side-impact supplemental
air bag system ...
....................................................... 1-50
Roof-mounted curtain side-impact and
rollover supplemental air bag system ...
............. 1-50
Air bag warning labels ...
............................................... 1-52
Air bag warning light ...
...................................... 1-53, 2-14
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
....................................... 4-8
Air conditioner service ...
........................................ 4-11
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-11, 9-6
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-27
Alcohol, drugs and driving ...
.......................................... 5-7
All-wheel drive (AWD) ...
............................................... 5-21
All-wheel drive (AWD) warning light ...
...................... 2-10
Antenna ...
.......................................................................... 4-39
Anti-lock Braking System (ABS) ...
............................ 5-26
Anti-lock braking system (ABS) warning light ...
..... 2-10
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Audible reminders ...
....................................................... 2-16
Audio operation precautions ...
.................................... 4-12
Audio system ...
................................................................ 4-12
Steering wheel audio controls ...
.......................... 4-38 Automatic
Door locks ...
................................................................. 3-4
Average speed (MPH or km/h) ...
............................... 2-23
Avoiding collision and rollover ...
................................... 5-5
B
Back door (See lift gate) ...
.......................................... 3-10
Battery ...
............................................................................ 8-13
Battery replacement, Keyfob ...
............................. 8-22
Battery saver system ...
........................................... 2-32
Keyfob battery replacement ...
............................... 8-22
Before starting the engine ...
........................................ 5-11
Belts (See drive belts) ...
............................................... 8-14
Bluetooth
®Hands-Free Phone System ...
................ 4-41
Booster seats ...
............................................................... 1-35
Brake Anti-lock Braking System (ABS) ...
..................... 5-26
Brake fluid ...
.............................................................. 8-11
Brake system ...
......................................................... 5-25
Parking brake operation ...
..................................... 5-17
Warning light ...
......................................................... 2-11
Break-in schedule ...
....................................................... 5-19
Brightness control Instrument panel ...
...................................................... 2-8
Bulb check/instrument panel ...
................................... 2-10
Bulb replacement ...
........................................................ 8-24
C
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-40
Cargo cover ...
.................................................................. 2-38
Cargo light ...
.................................................................... 2-46
Catalytic converter, Three way catalyst ...
................... 5-3
CD/CF/USB memory care and cleaning ...
.............. 4-38 Ceiling light
...
................................................................... 2-45
Child restraints ...
............................................................. 1-21
Booster seats ...
........................................................ 1-35
LATCH system ...
...................................................... 1-22
Precautions on child restraints ...
......................... 1-21
Child safety ...
................................................................... 1-19
Child safety rear door lock ...
......................................... 3-5
Chimes, Audible reminders ...
...................................... 2-16
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
...................................................... 2-24, 4-23, 4-31
Coat hooks ...
................................................................... 2-40
Cold weather driving ...
.................................................. 5-29
Compact Disc (CD) player (See
audio system) ...
................................................... 4-25, 4-33
Console box ...
................................................................. 2-37
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Controls, Steering wheel audio controls ...
............... 4-38
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Checking engine coolant level ...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cover, Cargo cover ...
.................................................... 2-38
Cruise control ...
............................................................... 5-17
Cup holders ...
.................................................................. 2-34
CVT, Driving with CVT (Continuously
Variable Transmission) ...
................................... 5-10, 5-12D
Defroster switch, Rear window
defroster switch ...
........................................................... 2-30
Dimensions and weights ...
............................................. 9-8
Condition:

Black plate (317,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]

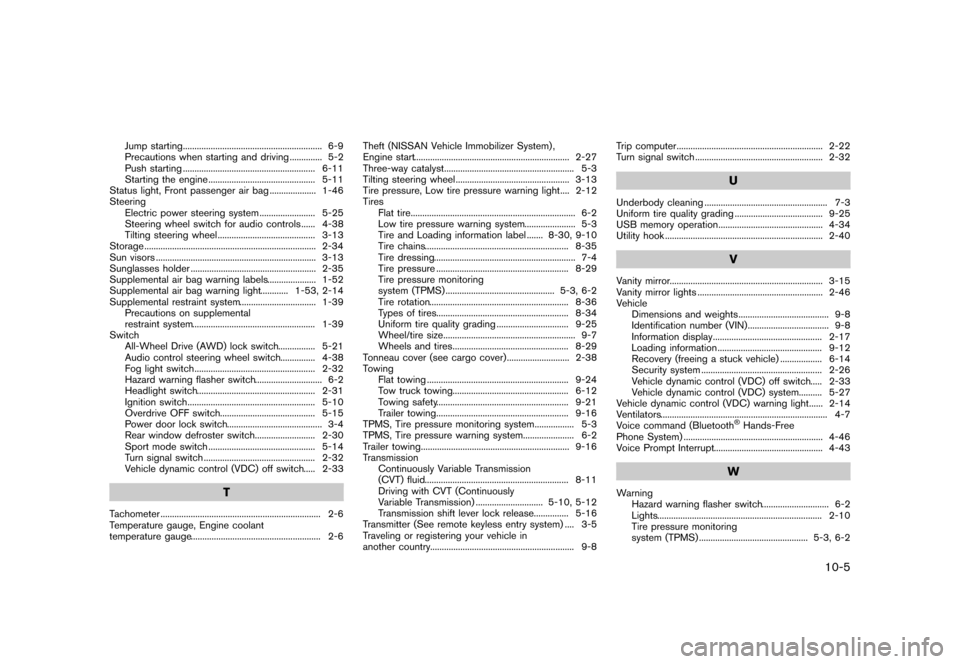

Jump starting...
............................................................ 6-9
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-11
Starting the engine ...
.............................................. 5-11
Status light, Front passenger air bag ...
.................... 1-46
Steering Electric power steering system ...
........................ 5-25
Steering wheel switch for audio controls ...
...... 4-38
Tilting steering wheel ...
.......................................... 3-13
Storage ...
.......................................................................... 2-34
Sun visors ...
..................................................................... 3-13
Sunglasses holder ...
...................................................... 2-35
Supplemental air bag warning labels ...
..................... 1-52
Supplemental air bag warning light ...
............ 1-53, 2-14
Supplemental restraint system ...
................................. 1-39
Precautions on supplemental
restraint system ...
..................................................... 1-39
Switch All-Wheel Drive (AWD) lock switch ...
................ 5-21
Audio control steering wheel switch ...
............... 4-38
Fog light switch ...
.................................................... 2-32
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-31
Ignition switch ...
....................................................... 5-10
Overdrive OFF switch ...
......................................... 5-15
Power door lock switch ...
......................................... 3-4
Rear window defroster switch ...
.......................... 2-30
Sport mode switch ...
.............................................. 5-14
Turn signal switch ...
................................................ 2-32
Vehicle dynamic control (VDC) off switch ...
..... 2-33
T
Tachometer ...
..................................................................... 2-6
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-6 Theft (NISSAN Vehicle Immobilizer System) ,
Engine start
...
................................................................... 2-27
Three-way catalyst ...
........................................................ 5-3
Tilting steering wheel ...
................................................. 3-13
Tire pressure, Low tire pressure warning light ...
.... 2-12
Tires Flat tire ...
....................................................................... 6-2
Low tire pressure warning system ...
...................... 5-3
Tire and Loading information label ...
....... 8-30, 9-10
Tire chains ...
.............................................................. 8-35
Tire dressing ...
............................................................. 7-4
Tire pressure ...
......................................................... 8-29
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-2
Tire rotation ...
............................................................ 8-36
Types of tires ...
......................................................... 8-34
Uniform tire quality grading ...
............................... 9-25
Wheel/tire size ...
......................................................... 9-7
Wheels and tires ...
.................................................. 8-29
Tonneau cover (see cargo cover) ...
........................... 2-38
Towing Flat towing ...
............................................................. 9-24
Tow truck towing ...
.................................................. 6-12
Towing safety ...
......................................................... 9-21
Trailer towing ...
......................................................... 9-16
TPMS, Tire pressure monitoring system ...
................. 5-3
TPMS, Tire pressure warning system ...
...................... 6-2
Trailer towing ...
................................................................ 9-16
Transmission Continuously Variable Transmission
(CVT) fluid ...
.............................................................. 8-11
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-10, 5-12
Transmission shift lever lock release ...
............... 5-16
Transmitter (See remote keyless entry system) ...
.... 3-5
Traveling or registering your vehicle in
another country ...
.............................................................. 9-8 Trip computer
...
............................................................... 2-22
Turn signal switch ...
....................................................... 2-32
U
Underbody cleaning ...
..................................................... 7-3
Uniform tire quality grading ...
...................................... 9-25
USB memory operation ...
............................................. 4-34
Utility hook ...
.................................................................... 2-40
V
Vanity mirror ...
.................................................................. 3-15
Vanity mirror lights ...
...................................................... 2-46
Vehicle Dimensions and weights ...
....................................... 9-8
Identification number (VIN) ...
................................... 9-8
Information display ...
............................................... 2-17
Loading information ...
............................................. 9-12
Recovery (freeing a stuck vehicle) ...
.................. 6-14
Security system ...
.................................................... 2-26
Vehicle dynamic control (VDC) off switch ...
..... 2-33
Vehicle dynamic control (VDC) system ...
.......... 5-27
Vehicle dynamic control (VDC) warning light ...
...... 2-14
Ventilators ...
........................................................................ 4-7
Voice command (Bluetooth
®Hands-Free
Phone System) ...
............................................................ 4-46
Voice Prompt Interrupt ...
............................................... 4-43
W
Warning
Hazard warning flasher switch ...
............................. 6-2
Lights ...
....................................................................... 2-10
Tire pressure monitoring
system (TPMS) ...
............................................... 5-3, 6-2
10-5
Condition:

Black plate (318,1)
[ Edit: 2013/ 10/ 22 Model: S35-D ]
10-6

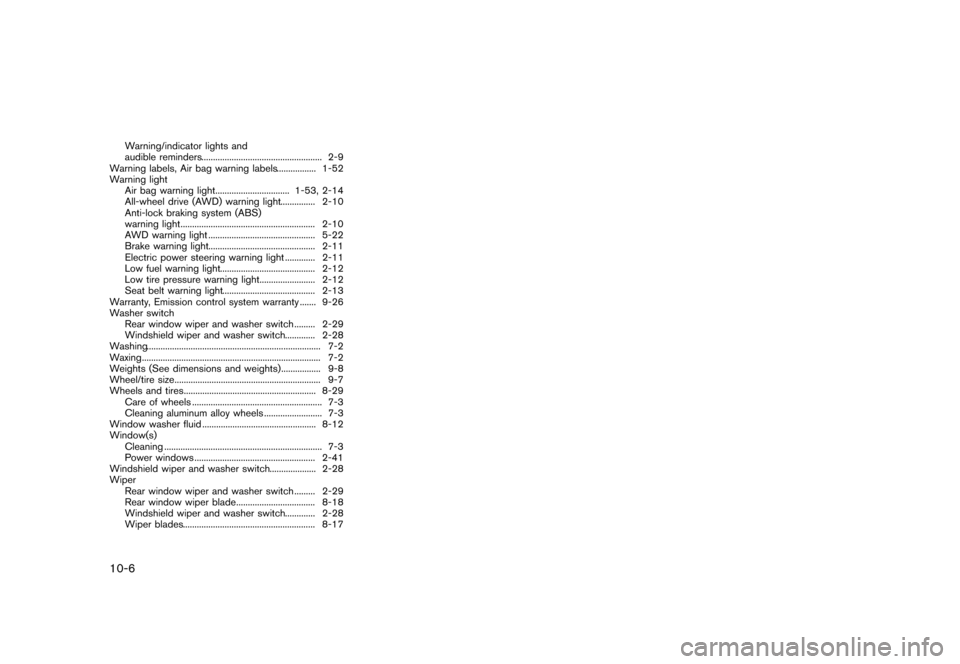

Warning/indicator lights and
audible reminders...
.................................................... 2-9
Warning labels, Air bag warning labels ...
................. 1-52
Warning light Air bag warning light ...
................................ 1-53, 2-14
All-wheel drive (AWD) warning light ...
............... 2-10
Anti-lock braking system (ABS)
warning light ...
.......................................................... 2-10
AWD warning light ...
.............................................. 5-22
Brake warning light ...
.............................................. 2-11
Electric power steering warning light ...
............. 2-11
Low fuel warning light ...
......................................... 2-12
Low tire pressure warning light ...
........................ 2-12
Seat belt warning light ...
........................................ 2-13
Warranty, Emission control system warranty ...
....... 9-26
Washer switch Rear window wiper and washer switch ...
......... 2-29
Windshield wiper and washer switch ...
............. 2-28
Washing ...
........................................................................... 7-2
Waxing ...
............................................................................. 7-2
Weights (See dimensions and weights) ...
................. 9-8
Wheel/tire size ...
............................................................... 9-7
Wheels and tires ...
......................................................... 8-29
Care of wheels ...
........................................................ 7-3
Cleaning aluminum alloy wheels ...
......................... 7-3
Window washer fluid ...
................................................. 8-12
Window(s) Cleaning ...
.................................................................... 7-3
Power windows ...
.................................................... 2-41
Windshield wiper and washer switch ...
.................... 2-28
Wiper Rear window wiper and washer switch ...
......... 2-29
Rear window wiper blade ...
.................................. 8-18
Windshield wiper and washer switch ...
............. 2-28
Wiper blades ...
......................................................... 8-17
Condition:
