NOTElContact your MITSUBISHI MOTORS Authorized Service Point for details on the combination used on your vehicle.

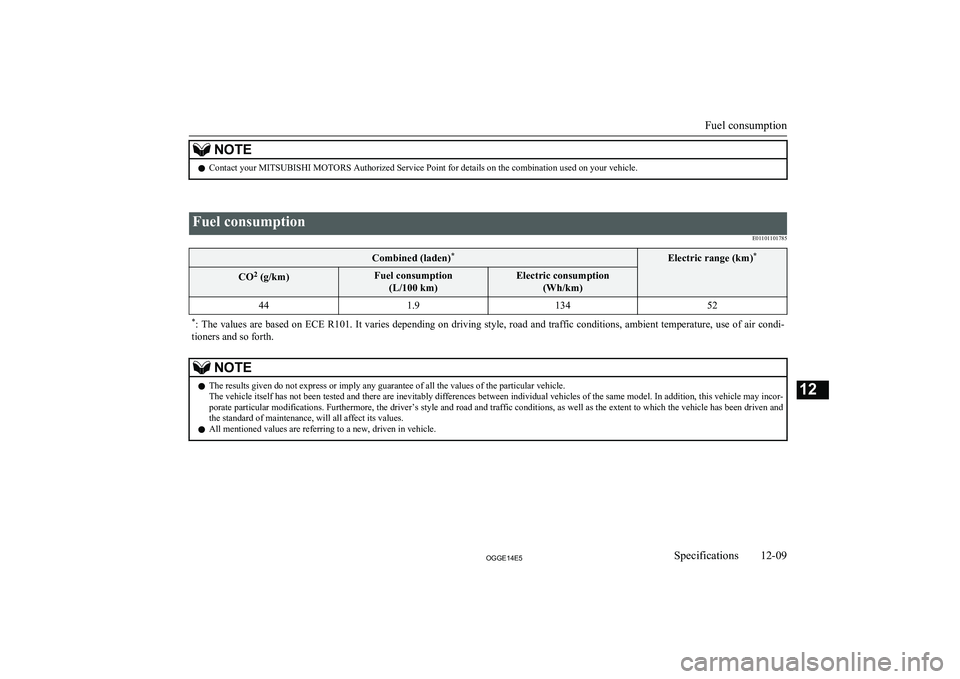

Fuel consumption
E01101101785Combined (laden)*Electric range (km) *CO2
(g/km)Fuel consumption
(L/100 km)Electric consumption (Wh/km)441.913452*: The values are based on ECE R101. It varies depending on driving style, road and traffic conditions, ambient temperature, use of air condi-
tioners and so forth.NOTEl The results given do not express or imply any guarantee of all the values of the particular vehicle.
The vehicle itself has not been tested and there are inevitably differences between individual vehicles of the same model. In addition, this vehicle may incor- porate particular modifications. Furthermore, the driver’s style and road and traffic conditions, as well as the extent to which the vehicle has been driven and the standard of maintenance, will all affect its values.
l All mentioned values are referring to a new, driven in vehicle.

Fuel consumption
12-09OGGE14E5Specifications12

Refill capacitiesE01101306014No.ItemQuantityLubricants1Engine oilPetrol-powered vehiclesOil pan4.3 litresRefer to page 11-05.Oil filter0.3 litre2Brake fluidAs requiredBrake fluid DOT 3 or DOT 43Washer fluid4.5 litres—4Engine coolant
[includes 0.65 litre in the reserve tank]Except for vehicles with elec- tric heater6.5 litresMITSUBISHI MOTORS GENUINE
SUPER LONG LIFE COOLANT PRE- MIUM or equivalent*Vehicles with electric heater7.5 litres5Rear Motor coolant
[includes 1.07 litre in the reserve tank]6.5 litres
Refill capacities
12-10OGGE14E5Specifications12

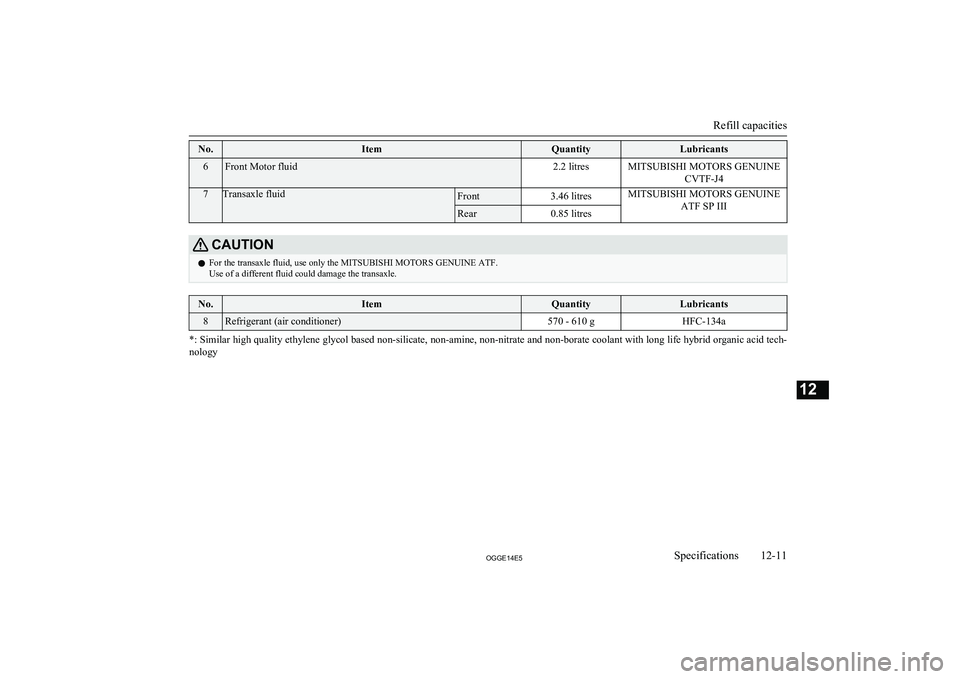

No.ItemQuantityLubricants6Front Motor fluid2.2 litresMITSUBISHI MOTORS GENUINECVTF-J47Transaxle fluidFront3.46 litresMITSUBISHI MOTORS GENUINEATF SP IIIRear0.85 litresCAUTIONlFor the transaxle fluid, use only the MITSUBISHI MOTORS GENUINE ATF.
Use of a different fluid could damage the transaxle.No.ItemQuantityLubricants8Refrigerant (air conditioner)570 - 610 gHFC-134a
*: Similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic acid tech-
nology

Refill capacities
12-11OGGE14E5Specifications12

OGGE14E5

4
4-wheel drive operation.....................................7-19A
Accessory (Installation).....................................2-14
Accessory socket............................................... 8-71
Active stability control (ASC)...........................7-31
Adaptive Cruise Control System (ACC)........... 7-43
Air conditioner Automatic climate control air conditioner.... 8-04
Important operation tips for the air conditioning................................................. 8-13
Air purifier.........................................................8-13
Airbag................................................................ 5-26
Antenna............................................................. 8-47
Anti-lock brake system (ABS).......................... 7-28
Ashtray.............................................................. 8-70
Assist grips........................................................ 8-78
Audio CD player...................................................... 8-14
LW/MW/FM radio........................................ 8-14
Troubleshooting............................................ 8-44
Automatic transmission
Fluid............................................................ 12-10
Auxiliary battery............................................. 11-09
Auxiliary battery charge warning lamp.............6-43
B
Battery charge switch........................................ 7-22
Battery save switch............................................7-21
Battery Auxiliary battery charge warning lamp........ 6-43
Discharged battery (Emergency starting)..... 9-02
Disposal information for used batteries........ 2-15 Specification............................................... 12-08
Bluetooth® 2.0 interface................................... 8-47
Bonnet............................................................. 11-04
Bottle holder...................................................... 8-76
Brake assist system............................................7-27
Brake warning lamp.......................................... 6-42
Brake Anti-lock brake............................................. 7-28
Braking.......................................................... 7-24
Fluid.................................................. 11-08,12-10
Parking brake................................................ 7-03
Bulb capacity .................................................. 11-23
C
Capacities........................................................ 12-10
Card holder................................................8-70,8-74
Cargo area cover................................................8-76
Cargo loads........................................................7-75
Catalytic converter.......................................... 11-03
Cautions on handling of 4-wheel drive vehicles................................................... 7-20
Central door locks............................................. 4-16
Charging indicator............................................. 6-42
Check engine warning lamp.............................. 6-43
Child restraint.................................................... 5-15
Child-protection rear doors............................... 4-18
Cigarette lighter................................................. 8-70
Cleaning
Exterior of your vehicle.............................. 10-03 Interior of your vehicle............................... 10-02
Clutch
Fluid............................................................ 12-10
Coat hook.......................................................... 8-78
Combination headlamps and dipper switch...... 6-45
Coolant (engine)....................................11-06,12-10
Coolant (plug-in hybrid EV system................ 11-06
Corner sensor.....................................................7-69
Cruise control.................................................... 7-34
Cup holder......................................................... 8-75
D
Daytime running lamp.......................................6-47
Daytime running lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-27
Demister (rear window).................................... 6-59
Digital clock Time Setting.................................................. 8-42
Dimensions...................................................... 12-04
Dipper (High/Low beam change)......................6-47
Doors Central door locks......................................... 4-16
Child-protection............................................ 4-18
Dead Lock System........................................ 4-16
Lock and unlock............................................ 4-14
Driving, alcohol and drugs................................ 7-02
E
Economical driving........................................... 7-02
Electric power steering system (EPS)............... 7-30
Alphabetical index
13- 1
OGGE14E5Alphabetical index

Electric tailgate..................................................4-20
Electric window control.................................... 4-33
Electrical Parking switch...................................7-14
Electronic immobilizer (Anti-theft starting system)................................................ 4-03
Emergency starting............................................9-02
Emergency stop signal system.......................... 7-27
Engine specifications.......................................12-06
Engine Coolant..............................................11-06,12-10
Number....................................................... 12-03
Oil............................................................... 11-05
Oil and oil filter........................................... 12-10
Overheating................................................... 9-04
Specifications.............................................. 12-06
Used engine oils safety instructions and disposal information............................. 2-15
Exterior and interior lamp operation............... 11-15
F
Fluid capacities and lubricants........................ 12-10
Fluid Automatic transmission fluid...................... 12-10
Brake fluid........................................ 11-08,12-10
Clutch fluid................................................. 12-10
CVT fluid.................................................... 12-10
Engine coolant.................................. 11-06,12-10
Plug-in hybrid EV system coolant.............. 11-06
Washer fluid..................................... 11-08,12-10
Forward Collision Mitigation System (FCM)... 7-55
Front fog lamp indication lamp......................... 6-42
Front fog lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-27
Switch........................................................... 6-52
Front room lamp................................................ 8-72
Bulb capacity.............................................. 11-24
Front seats......................................................... 5-03
Front turn-signal lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-27
Fuel consumption............................................ 12-09
Fuel Filling the fuel tank....................................... 2-12Fuel selection................................................ 2-12Modification/alterations to the electrical systems......................................... 2-14
Tank capacity................................................ 2-13
Fuses................................................................ 11-16
Fusible links.................................................... 11-16
G
General maintenance....................................... 11-15
General vehicle data........................................ 12-04
Genuine parts.....................................................2-15
Glove box lamp Bulb capacity.............................................. 11-24
H
Hazard warning flasher switch.......................... 6-50
Hazard warning indication lamps......................6-41
Head restraints................................................... 5-05
Headlamp levelling switch................................ 6-49
Headlamp washer switch...................................6-58
Headlamps Bulb capacity.............................................. 11-23
Headlamp flasher.......................................... 6-47Replacement..................................... 11-24,11-25Switch........................................................... 6-45
Heated mirror.................................................... 7-08
Heated seats....................................................... 5-04
Heating.............................................................. 8-14
High-mounted stop lamp................................. 11-23
Hill start assist................................................... 7-26
Hinges and latches lubrication........................ 11-16
Horn switch....................................................... 6-60
I
If the vehicle breaks down................................ 9-02
Indication lamps................................................ 6-41
Information screen display................................ 6-44
Inside rear-view mirror......................................7-05
Inside tailgate release........................................ 4-26
Inspection and maintenance following rough road operation........................................ 7-20
Instruments........................................................ 6-02
Interior lamps.................................................... 8-72
J
Jack.................................................................... 9-06Storage.......................................................... 9-06
Jump starting (Emergency starting).................. 9-02
K
Keyless entry system......................................... 4-03
Keyless operation system.................................. 4-06
Alphabetical index
13- 2 OGGE14E5Alphabetical index

Keys...................................................................4-02L
Labeling...........................................................12-02
Lamp monitor buzzer........................................ 6-47
Lane Departure Warning (LDW)...................... 7-61
Leakage (Fuel, engine coolant, oil and exhaust gas)............................................. 11-15
Licence plate lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-29
Link System.......................................................8-47
Low voltage electrical system......................... 12-08
Lubricants........................................................ 12-10
Luggage hooks.................................................. 8-78
Luggage room lamp.......................................... 8-73 Bulb capacity.............................................. 11-24
M
Making a flat seat.............................................. 5-08
Making a luggage area...................................... 5-07
Manual transmission oil.................................. 12-10
Map lamps......................................................... 8-73
Bulb capacity.............................................. 11-24
Masking the headlamps................................... 11-30
Meter illumination control................................ 6-02
Mirror Inside rear-view mirror................................. 7-05
Outside rear-view mirrors............................. 7-06
Modification/alterations to the electri- cal systems....................................................... 2-14
Multi-information display................................. 6-03
O
Oil pressure warning display............................. 6-45Oil Engine oil.......................................... 11-05,12-10
Manual transmission oil.............................. 12-10 Rear differential oil..................................... 12-10Transfer oil.................................................. 12-10
Operation under adverse driving conditions..... 9-21
Outside rear-view mirrors................................. 7-06
Overheating....................................................... 9-04
P
Parking.............................................................. 7-04Parking brake................................................ 7-03
Plug-in Hybrid EV System warning lamp.........6-44
Plug-in hybrid EV system Coolant........................................................ 11-06
Position lamps
Bulb capacity.............................................. 11-23
Replacement................................................ 11-26
Power switch..................................................... 7-08
Precautions to observe when using wipers and washers.......................................... 6-58
Pregnant women restraint.................................. 5-14
Puncture Tyre repair kit............................................... 9-07
R
Ready indicator................................................. 6-42
Rear combination lampsBulb capacity.............................................. 11-23
Replacement................................................ 11-28
Rear differential oil......................................... 12-10
Rear fog lamp Bulb capacity.............................................. 11-23
Replacement................................................ 11-28
Switch........................................................... 6-52
Rear room lamp................................................. 8-72
Bulb capacity.............................................. 11-24
Rear turn-signal lamps
Bulb capacity.............................................. 11-23
Replacement..................................... 11-27,11-28
Rear window demister switch........................... 6-59
Rear-view camera..............................................7-72
Rear-view mirror Inside............................................................. 7-05
Outside.......................................................... 7-06
Refill capacities............................................... 12-10
Regenerative braking level selector (paddle)*.. 7-15
Replacement of lamp bulbs............................. 11-22
Reversing lamps Bulb capacity.............................................. 11-23
Replacement................................................ 11-28
Reversing sensor system................................... 7-69
Roof carrier precaution......................................7-76
Room lamp........................................................ 8-72
S
S-AWC (Super-All Wheel Control).................. 7-17
Safe driving techniques..................................... 7-02
Seat belt Adjustable seat belt anchor........................... 5-12
Alphabetical index
13- 3
OGGE14E5Alphabetical index

Child restraint................................................5-15
Force limiter.................................................. 5-15
Inspection...................................................... 5-25
Pregnant women restraint............................. 5-14
Pretensioner...................................................5-14
Seat belt reminder..............................................5-11
Seat belts........................................................... 5-09
Seat
Adjustment.................................................... 5-02
Front seats..................................................... 5-03
Head restraints.............................................. 5-05
Heated seats.................................................. 5-04
Making a flat seat.......................................... 5-08
Making a luggage area.................................. 5-07
Rear seat........................................................ 5-05
Security alarm system....................................... 4-27
Select Position indicator.................................... 7-14
Selector Lever (Joystick Type)......................... 7-12
Service precaution........................................... 11-02
Side turn-signal lamps Bulb capacity.............................................. 11-23
Snow traction device (Tyre chains).................11-13
Snow tyres....................................................... 11-12
Spark plug....................................................... 12-08
Specifications.................................................. 12-02
Speed Limiter.................................................... 7-38
Starting and stopping the Plug-in Hy- brid EV System................................................ 7-11
Steering Steering wheel height adjustment................. 7-05
Stop lamps
Bulb capacity.............................................. 11-23
Replacement................................................ 11-28
Stopping the Plug-in Hybrid EV System.......... 7-11Storage spaces................................................... 8-73
Sun visors.......................................................... 8-69
Sunroof.............................................................. 4-35
Supplemental restraint system...........................5-26 Servicing....................................................... 5-36
System check screen..........................................6-14
T
Tail lampsBulb capacity.............................................. 11-23
Replacement................................................ 11-28
Tailgate.............................................................. 4-18
Tank capacity.................................................... 2-13
Time Setting...................................................... 8-42
Tools.................................................................. 9-06 Storage.......................................................... 9-06
Towing.............................................................. 9-18
Trailer towing.................................................... 7-76
Transfer oil...................................................... 12-10
Turn-signal indication lamps.............................6-41
Turn/Lane-change signals................................. 6-50
Tyre repair kit.................................................... 9-07
Tyres................................................................ 11-10
How to change a tyre.................................... 9-13Inflation pressures....................................... 11-10
Rotation....................................................... 11-11
Size (tyre and wheel).................................. 12-08
Snow traction device (Tyre chains)............ 11-13
Snow tyres................................................... 11-12
Tread wear indicators.................................. 11-11
Tyre repair kit............................................... 9-07
U
USB input terminal............................................8-66
How to connect a USB memory device........ 8-66
How to connect an iPod................................ 8-67
Used engine oils safety instructions and disposal information..................................2-15
V
Vanity mirror lampBulb capacity.............................................. 11-24
Vehicle care precautions................................. 10-02
Vehicle dimensions......................................... 12-04
Vehicle identification number......................... 12-02
Vehicle identification number plate................ 12-03 Vehicle information code plate....................... 12-02
Vehicle labeling...............................................12-02
Vehicle performance....................................... 12-05
Vehicle weight.................................................12-05 Ventilators......................................................... 8-02
W
Warning lamps.................................................. 6-42
Washer Fluid.................................................. 11-08,12-10
Switch........................................... 6-53,6-57,6-58
Washing...........................................................10-03
Waxing............................................................ 10-04
Weight............................................................. 12-05
Wheel Covers........................................................... 9-17
Alphabetical index
13- 4 OGGE14E5Alphabetical index
